Russell Hobbs RH1915 User manual

MODEL: RH1915
RUSSELL HOBBS ESPRESSO MACHINE

2
INTRODUCTION
Congratulations on the purchase of your Russell Hobbs Espresso Machine. Each unit
has been manufactured to ensure safety, reliability and ease of use.
Before use, please read the instructions carefully and keep for further reference.
IMPORTANT SAFEGUARDS
When using your Russell Hobbs Espresso machine, basic precautions should always be
followed, including the following:
•Always place the unit on a flat, level surface.
•Always ensure that the voltage on the rating label corresponds to the mains voltage
in your home.
•Do not operate without water in the reservoir.
•Do not remove the filter holder during water flow or coffee flow as the unit is under
pressure. Removing the filter holder during operation could lead to a scalding or
injury.
•Clean the steam nozzle only when the unit has been switched off and allowed to cool
down.
•Turn the power off and remove the plug when the appliance is not in use and before
cleaning.
•Always turn the power off at the power outlet before you insert or remove a plug.
Remove by grasping the plug – do not pull on the cord.
•Do not use your appliance with an extension cord unless this cord has been checked
and tested by a qualified technician or service person.
•Close supervision is necessary when the appliance is being used near children or
irresponsible persons.
•Never leave an appliance unattended whilst in use.
•Disconnect the plug from the power outlet if there is any problem during the espresso
making process or prior to cleaning the appliance.
•Do not allow the power cord to come into contact with the hot parts of the machine
(cup warming plate, filter holder, steam nozzle).
•Keep hands away from hot parts of the appliance, including the cup warming plate,
filter holder and steam nozzle.
•Do not use an appliance for any purpose other than its intended use.

3
•Do not place an appliance on or near a hot gas flame, electric element or on a
heated oven. Do not place on top of any other appliance.
•Do not let the power cord of an appliance hang over the edge of a table or bench top
or touch any hot surfaces.
•Do not operate any electrical appliance with a damaged cord or after the appliance
has been dropped or damaged in any manner.
•Packaging material (plastic bags, foam polystyrene, etc.) should not be left within
reach of children as they could be a potential source of danger.
•Do not immerse the appliance in water or any other liquid.
•The appliance’s power-cable must not be replaced by the user, as special tools are
required in order to replace it. In the event of damage to the cable, or if the cable
needs replacing, contact only the nearest after-sales assistance centre authorized by
the manufacturer.
•The appliance is intended for household use only. Commercial use invalids the
warranty and the supplier can not be held responsible for injury or damage caused
when using the appliance for any other purpose than that intended.
PARTS NAME AND LOCATION

4
PREPARING YOUR RUSSELL HOBBS ESPRESSO MACHINE BEFORE USE:
NOTE: The numbers in the brackets below refers to the diagrams on the succeeding
pages
1. Place the unit on a flat, level surface.
2. Ensure the drip tray and grill are in place
3. Fill the espresso machine with water. There are two ways in which this can be
done:
a. Simply lift the lid of the water reservoir at the top of the espresso machine
(1) and by using a jug, fill with fresh cold water or filtered water (2).
b. Alternatively, the water reservoir can be removed and filled with fresh cold
water. To do so, lift the lid and by using the reservoir as a handle, simply
slide it out (3). Then fill with fresh cold water or filtered water (4). Replace
the water reservoir firmly and close the lid (5).
Warming plate: pre-warms
up to 9 espresso cups
Heating light
Steam/hot water selector
Power switch with light
Group head
Removable drip tray and grill
Designed with no dirt traps for
small coffee granules, milk or
any other spills. You can simply
wipe clean all surfaces. The drip
tray and grill can be completely
removed for easy cleaning
1.6L water reservoir
Removable water reservoir for
easy filling, simply lift it
upwards.
Operating dial: Turn to the right
for espresso or to the left for
steam or hot water
Steam wand
Extra cup height clearance
Additional clearance between the
filter handle and the drip tray is
designed to suit taller cups
Non-slip rubber feet
Makes the unit sturdy, preventing
it from slipping or scratching the
bench top

5
4. Insert the power cord into a 230-240V AC power outlet and switch the power on.
Press the power switch to turn the espresso machine on (6). The light located on
the power button will illuminate red and the ‘heating’ light will illuminate orange.
This is to indicate that the espresso machine is on and heating up. When the
‘heating’ light switches off, this indicates that the espresso machine is heated and
ready to use (7).
Note: Before turning on the espresso machine, ensure that the operating dial is
in the ‘off’ position.
5. Place the glasses and cups on the warming plate (8).
Important: For first time use or if the machine has not been used for some time,
it is important that the machine is rinsed as follows
6. Fit the filter handle with either the one or two cup filter basket (9). Secure the
filter handle to the group head (10) + (11).
7. Place a large enough container under both pouring spouts (12).
8. Turn the operating dial clockwise to the espresso setting (13) and allow the
water to run through until the water reservoir is empty.
USING THE CONTROL PANELS
Power
Press the ‘POWER’ switch to turn the espresso machine on. The light located on the
power switch will illuminate red and the ‘HEATING’ light will illuminate orange; this is to
indicate that your espresso machine is on and is heating up.
Note: Before turning on the espresso machine ensure that the operating dial is in the off
position.

6
The espresso machine will automatically heat to the espresso temperature, 92ºC - 94ºC.
When the espresso machine is heated and ready to use the orange ‘HEATING’ light will
go out.
Note: Remember that if the amber/orange ‘HEATING’ light is on the espresso machine
is adjusting the temperature of the heating system. To turn the espresso machine off,
simply press the power switch.
Espresso
When the espresso machine is switched on and is heated to the correct temperature
(and the amber ‘HEATING’ light is off), the espresso maker is ready to make espresso.
Simply turn the operating dial clockwise to the espresso setting to start the pour and turn
it back to the off position to stop.
Steam/Hot water
When the espresso machine is switched on and you want to use either the steam or
hot water function you need to select the appropriate setting:

7
A. Should you want the espresso machine to texture milk, you need to press the
‘steam/hot water’ switch to the setting. The amber ‘HEATING’ light will
illuminate, indicating that the espresso machine is adjusting the temperature of
the heating system.
B. Should you want to use the ‘hot water’ function, you need to press the ‘steam/hot
water’ switch to the setting.
When the espresso machine is at the correct temperature, the ‘HEATING’ light
will go off. Simply turn the operating dial anticlockwise to the steam/hot water
setting to start and turn it back to the off position to stop.
OPERATING THE ESPRESSO MACHINE
Before starting to prepare for making espresso, ensure the espresso machine is
switched on, to allow the espresso machine to heat up.

8
Throughout the instruction manual, reference will be made to the following diagrams.
The diagrams will assist you in using your Russell Hobbs Espresso Machine. Each of
the diagrams is numbered.

9

10

11

12

13
THE PERFECT ESPRESSO GUIDE
Ensure the espresso machine is switched on, to allow the espresso machine to heat up.
PREHEAT GLASSES
1. Preheat the glasses/cups by filling them with hot water as this will assist to
preserve the crèma of the espresso. Set the glasses/cups aside.
PREHEAT FILTER HANDLE AND FILTER BASKET
2. Select the appropriate filter basket and place it into the filter handle (14).
Tip: Use the one cup filter basket for a single serve of espresso and the two cup
filter basket for a double serve of espresso.
3. Take the filter handle, hold it under the group head and purge water. With the
filter basket positioned under the group head turn the operating dial clockwise to
the espresso setting to start the water flow and turn it back to the off position to
stop (15).
4. Dry the filter basket.
DOSING AND TAMPING
5. Using the measuring spoon supplied, place finely ground coffee into the filter
basket (16).
6. Rest the filter handle with the filter basket in position onto the bench top. Take
the coffee tamp, apply firm level packing pressure (17), twisting 90 degrees to
polish grounds. This seals the surface of coffee cake.
7. Brush any excess coffee grounds from around the edge of the filter basket (18).
Important: Be sure not to overdose the filter basket with coffee.
Tip: The coffee dosage and the degree of tamping should remain the same every
time you make a coffee. The only thing that should vary is the coarseness of the

14
coffee grounds and this will vary depending on the bean. For example to achieve
a slower espresso pour rate use a finer grind and a coarser grind for a faster
espresso rate.
Tip: Ensure the coffee tamp is dry because if it is wet the coffee grinds will stick
to it.
THE ESPRESSO POUR

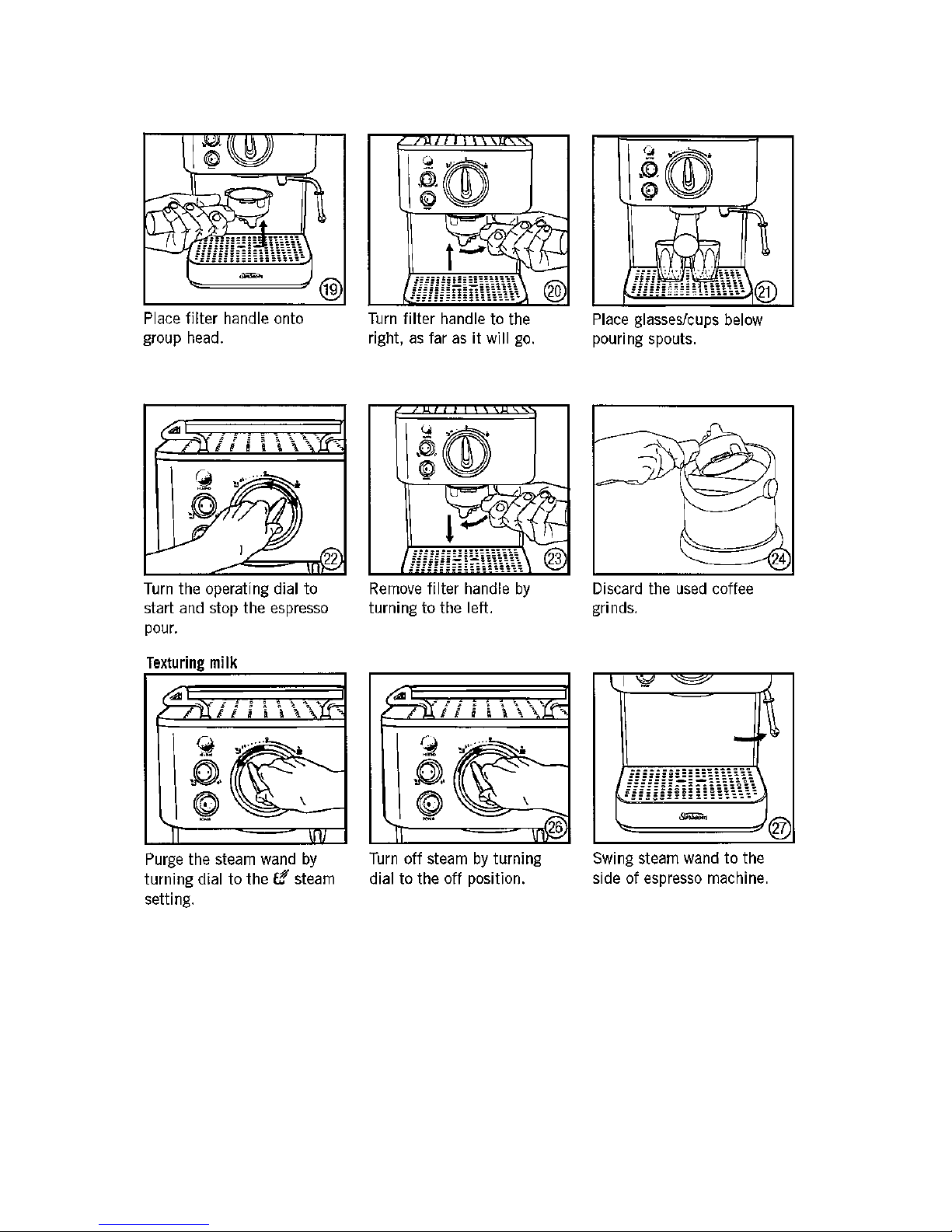

8. Lock the filter handle onto the group head (19) (20).
9. Empty the glasses/cups and place below the pouring spouts (21).
Note: Check to see that the espresso machine is ready to use. Remember, if the
‘HEATING’ light is on, the espresso machine is adjusting the temperature of the
heating system.
10. Turn the operating dial clockwise to the espresso setting to start the pour and
turn it back to the off position to stop (22).
11. Check the espresso pour. The ideal pour is dark and caramel with reddish
reflections.
12. Serve the espresso immediately.
CARING FOR YOUR ESPRESSO MACHINE
13. Remove the filter handle from the group head (23).
14. Discard the used coffee grinds from the filter basket (24).
Tip: After each use of the espresso machine, it is recommended that a small
amount of water is cycled through the group head as this will wash out any old or
used coffee grinds stuck to the bottom of the group head. Simply turn the
operating dial to the espresso setting and allow some water to run through.
REMEMBER: Do not over-pack the filter holder with ground coffee. Use the tamp tip tool
to slightly press the ground coffee down after placing coffee in the filter cup. This will
help brew hot, rich and delicious espresso with perfect crema.
For best results, it is ideal to pre-heat your cups filter handle and filter as follows :
•Insert the power cord into a 230-240V AC power outlet and
turn the power on.

15
•Fill the water reservoir (1) (2) (3)(4) (5) with cold water and start
the appliance (6).
•Put the filter handle and an empty filter in place (7) (8) (9)and
place cups underneath the filter handle.
•When the machine is ready, the orange ‘Warm Up’ light goes off, turn the
operating dial to setting (11).
•When the cups are full of hot water, return the operating dial to
the O‘off’ position .
NOTE:Once the appliance has been on for a while, coffee cups can be
warmed by placing them upside down on the cup warming
plate (12).
Preparing an espresso:
•Insert the power cord into a 230-240V AC power outlet and turn
the power on.
•Fill the water reservoir (1)(2)(3)(4)(5) with cold water.
•Start the unit (6). The red ‘Power” light and orange ‘Warm Up’
light will both illuminate.
•Pre-heat your coffee cups by placing them upside down on the cup warming
plate (12).
•Select the required filter (7) for 1 or 2 cups of coffee and place in the filter
handle.
•Using the measuring spoon supplied place one or two measures of ground
coffee into the filter (13). With the other end of the measuring spoon, use the
tamper to push (pack) down the ground coffee (14). Do not apply too much
pressure.
Important: Be sure not to over-fill the filter with too much coffee and wipe
around the edge of the filter to remove any ground coffee (15).

16
•Place the filter handle on the machine’s brewing head. Position the handle
so it points to the left, place the filter handle flat against the brewing head,
then turn the handle towards the right (16)as far as it can go.
Note: Do not over tighten.
•Place 1 or 2 pre-heated cups below each of the holes in the filter holder.
•When the Bar Espresso is at the correct temperature the orange
‘Warm Up’ light will go out, then turn the operating dial to the setting (17).
You will hear the machine making a pumping noise, this is normal.
•Once the cup/s are filled to the desired level, turn the operating dial to the O
‘off’ position.
•Remove the filter handle and the filter by turning the filter handle
to the left.
•To remove the used ground coffee from the filter, push the filter lock forward
over the edge of the filter, turn the filter handle upside down in a bin and
gently tap out the coffee (18).
•After each use of the espresso machine for best results when making
consecutive cups of espresso we recommend that you flush a small amount
of water through the machine.
With the filter handle already removed from the brewing head, simply turn the
operating dial to the cup setting and allow the water to run through.
This will wash out any old or used coffee granules stuck to the underside of
the brewing head and also helps ensure the correct water temperature for
your next cup of espresso.
•Once the orange ’Warm Up’ light goes out, your machine is ready to make
the next cup.
NOTE: Do not leave the filter handle locked in position for extended periods,
or when machine is not in use. This shortens the life of the brew head rubber
seals.

17
CARE AND CLEANING
The coffee making process involves extracting oils out of ground coffee to make
espresso coffee. Deposits of these oils build up over time and affect the taste of the
coffee and operation of the espresso machine.
Regular cleaning to remove these oils is essential for espresso machines to keep
operating effectively. Flushing water, through the brewing head and the steam nozzle, is
the easiest way to keep your machine clean after making each coffee and at the end of
your coffee making session.
Important: Never wash your espresso machine accessories in the dishwasher.
Drip Tray:
Remove the grid and drip tray at regular intervals to empty (37). Clean the drip tray and
its grid with water and a little non-abrasive washing up liquid, rinse and dry.
Over a period of time it is normal for the inside of the drip tray to be stained by the oils in
the coffee.
The brewing head, filters & filter handle :
The filter and filter handle should be washed after each use by rinsing them under warm
water. Wash at regular intervals in warm soapy water using a mild detergent. To clean
the brewing head, flush water through and wipe the head around the inside rim with a
damp cloth. To assist in keeping the filter and the brew head clean, at the end of each
coffee making session we recommend you run the machine, with the filter in place,
without coffee – using water only. Should the holes in the filters become clogged with
coffee granules use a fine bristled brush to remove them.

18
RECIPES
ESPRESSO (SHORT BLACK)
Espresso is a concentrated, full-bodied coffee with a stable layer of cream on top –
known as ‘crema’. An espresso is the foundation of all café coffee. Variations are
achieved by adding different amounts of milk and froth.
•90ml espresso glass or demitasse cup
•Single espresso (30-35ml)
ESPRESSO (LONG BLACK)
A standard espresso with hot water, served in a regular coffee cup or mug. The hot
water is added first so that the ‘crema’ is maintained.
•190ml cup
•Hot water (to taste)
•Single or double espresso
FLAT WHITE
Another old favourite, the Flat White is an espresso with steamed milk, served in a
regular coffee cup or mug. The layer of frothed milk on top should be 2mm to seal the
coffee.
•190ml cup
•Single or double espresso
•Steamed milk

19
CAFFE LATTE
An espresso with steamed milk, typically served in a glass. The layer of frothed milk on
top should be 10mm to seal the coffee.
•220ml glass or cup
•Single or double espresso
•Steamed milk
CAPPUCCINO
This delicious drink is an espresso with steamed milk, topped with creamy froth and a
dusting of chocolate. The resulting drink is approximately two-thirds milky coffee, one-
third forth.
•190-240ml cup
•Single or double espresso
•Two-thirds milky coffee, one-third forth
•Dusted with chocolate
CAFFE MOCHA
Made in a similar way to a cappuccino but with the addition of drinking chocolate.
Simply stir the chocolate into the espresso prior to adding the steamed milk and froth.
•190-240ml cup or tall glass
•Single or double espresso
•Two teaspoons of drinking chocolate
•Two-thirds milky coffee, one-third froth

20
HINTS:
Making good espresso and cappuccino is not difficult, however it does require practice.
The following tips will help you get the best results from your machine :-
•Warm the cups before filling with coffee
•Use a mocha coffee for best results
•Freshly ground coffee provides the best flavour.
To maintain flavour, fresh coffee is best stored in an airtight
container in a cool place, even in the fridge.
SERVICE
If service becomes necessary within the warranty period, the appliance should be
returned to an approved Tedelex Trading Pty Ltd Service Centre. Servicing outside the
warranty period is still available however this will be chargeable.
This appliance is not user-serviceable. If it is not working properly, check that:
1. You have followed the instructions correctly.
2. The plug and wall socket are working correctly.
If it still does not work, consult your retailer. If your retail fails to solve your problem and
you need to return to us, proceed as follows:
1. Pack the unit with all parts and accessories back into the original box.
2. Enclose your proof of purchase below. If possible add your name, address and
telephone number.
3. When returning it under the warranty you will need to state how long the unit has
been in use and what is not working correctly.
CONNECTING 3-PIN PLUG
