Russell Hobbs RHCV1601 User manual

Model Number: RHCV1601
220-240V~, 50/60Hz, 800W
Compact Cyclonic
Bagless Cylinder Vacuum Cleaner
For Customer Services & Spare Parts please call0345 2097461
Or visit us at http://mda.russellhobbs.com
PLEASE RETAIN
FOR FUTURE REFERENCE

Page(s)
Safety instructions
3-6
Vacuum
feature diagram 7
Vacuum cleaner
assembly 8-9
Using your vacuum
cleaner 10-12
Cleaning and care
13-15
Problem solving
16
Guarantee and customer services
17
Spare
parts 18
Connection to the mains supply
19
Disposal information
20
CONTENTS
2
For Customer Services & Spare Parts please call 0345 209 7461
Or visit us at http://mda.russellhobbs.com
Thank you for purchasing your Russell Hobbs Odysseus Bagless Cylinder
Vacuum Cleaner.
To get the best from your new cleaner, take a few moments to read these
instructions and keep them in a safe place for future reference.
Should you require any further assistance, our friendly Product Care team will
be happy to help.

3
SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
WARNING:
•It is hazardous for anyone other than a competent person
to carry out any service or repair operation that involves
the removal of a cover which gives protection against
exposure to electrical parts.
•If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
•This product is intended for household use only.
Do not use outdoors.
•This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction
concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play
with the appliance. Cleaning and user maintenance shall
not be made by children without supervision.
•Do not operate this appliance for anything other than its
intended use
•Do not immerse in water or other liquids for cleaning.

4
SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
•Do not direct at people, animals, electrical outlets, or
equipment containing electrical components.
•Unplug from outlet when not in use. Do not leave the
cleaner unattended while plugged in.
•Do not use with damaged cord or plug.
•Do not use vacuum cleaner if it has been dropped,
damaged, left outdoors or dropped into water.
•Keep the vacuum cleaner away from water; do not allow
it to get wet. If unit is wet, do not plug unit into wall
socket or turn unit on.
•Do not handle the vacuum cleaner with wet hands.
•Do not pull or carry by cord, use cord as a handle, close
door on cord, pull cord around sharp corners or edges, or
expose cord to heated surfaces.
•Do not unplug by pulling on cord.
•To protect against electrical shock do not immerse cord,
plug, or appliance in water or other liquid.
•Unplug from the mains outlet when not in use, before
putting on and taking off parts, and before cleaning.
•The use of accessory attachments not recommended by
the appliance manufacturer may cause fire, electric shock
or injury. Only use the accessories supplied by the
manufacturer.

5
SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
WARNING:
•Do not let the cord hang over the edge of the worktop, or
touch hot surfaces.
•Do not use this vacuum to pick up water or any other
liquids, combustible substances or hot/burning objects.
•Only use the unit when fully assembled.
•Never place your fingers or other objects into any part of
the cleaner. Be aware that loose clothing or hair may
become trapped in the cleaner if improperly used.
•Before use, ensure that all of the air vents of the cleaner
are clear and there is no restriction of air flow.
•When cleaning stairs, ensure the cleaner is on a step
below you. NEVER place the cleaner above.
•Caution: Exhaust air discharged from the rear of the
cleaner may extinguish a gas fire, pilot light, or disturb
ashes in an open fire. Always avoid directing the cleaner
toward naked flames.

6
SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
•Important: This cleaner has a thermal safety device which
automatically cuts off the power supply in case of over
heating. If the safety device has switched the cleaner off,
unplug from the mains, allow the cleaner to cool down
and check for any blockages. Once the cleaner has cooled
it can be plugged back in to the mains and used as
normal.

7
VACUUM FEATURE DIAGRAM
1Floorhead 12 Exhaust HEPA filter
22 in 1 crevice tool 13 Wheel exhaust cover
3Telescopic extension tube 14 HEPA filter
4Air valve 15 Dust filter
5Hose 16 Dust container
6Hose release button 17 Dust container flap
7Dust canister release button 18 Dust release switch
8Automatic cord rewind 19 Filter cover catch
9Power cord 20 Dust container handle
10 On/Off button 21 Dust container lid
11 Wheel & exhaust

8
VACUUM CLEANER ASSEMBLY
Before using your vacuum cleaner
Remove all packaging and lay out the separate components.
Check the unit after unpacking for any visual damage such as:
•Misaligned or damaged parts
•Damage to the main body and separate components
•Damage to the plug or cable.
If you can see any damage do not use the vacuum cleaner and
contact customer services.

9
VACUUM CLEANER ASSEMBLY
Ensure the unit is unplugged before assembling.
1. Place the dust container onto the unit, base first, then tilt forward
to engage the top.
2. Insert the hose connector into the hose outlet, aligning the
grooves in the outlet with the clips on the connector. Push in until it
‘clicks’ to secure.
3. Insert the extension tube into the hose connector and push
together.
4. Insert the extension tube into the floor head and rotate if
necessary.
12
3 4

10
USING YOUR VACUUM CLEANER
12
34
Once assembled:
1. The cord is stored inside the unit. Pull the power cord out of the
machine to as long as you require and stop when you see the yellow
tab. Do not over-extend. If the red tab is visible, then wind the cord
back until only the yellow tab is visible.
2. Plug the cable into a wall socket and press the switch on.
3. Press the power button to start vacuuming.
4. Move the vacuum cleaner floor head in a forwards and backwards
motion over the areas you would like to clean.
Note: Large items can get trapped in the brush/floor head which
could cause the unit to overheat. Make sure you pick up larger items
that could get trapped before vacuuming.

11
USING YOUR VACUUM CLEANER
7
a)
b)
8
56

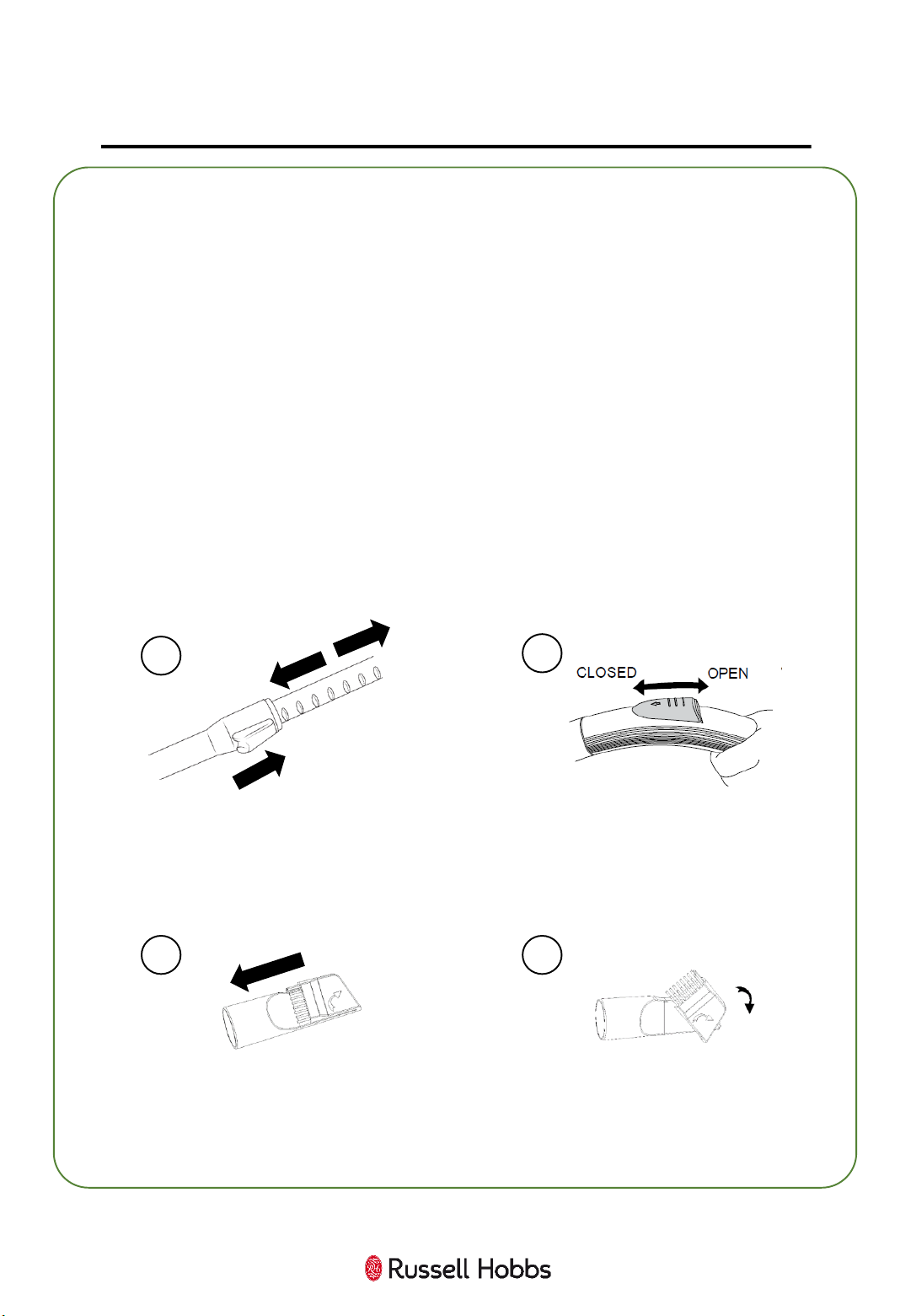

5. You can adjust the extension tube length to a comfortable cleaning
height. To alter the length of the telescopic handle,
a) Press and hold the extension lock in the direction indicated.
b) Slide the steel pole, up or down, to the correct length.
6. Another adjustment you can make is to the suction power of the floor
head. To use less suction power, move the suction control tab in the
direction indicated. For maximum suction power, close the tab.
* The 2 in 1 crevice tool is for narrow gaps and hard to reach places.
7. Both attach to either the extension tube or the hose connector in the
same manner as the floor head.
8. To adapt the tool for use as a brush on delicate surfaces, rotate the head
of the tool in the direction indicated until it extends out.

12
USING YOUR VACUUM CLEANER
1 2
3 4

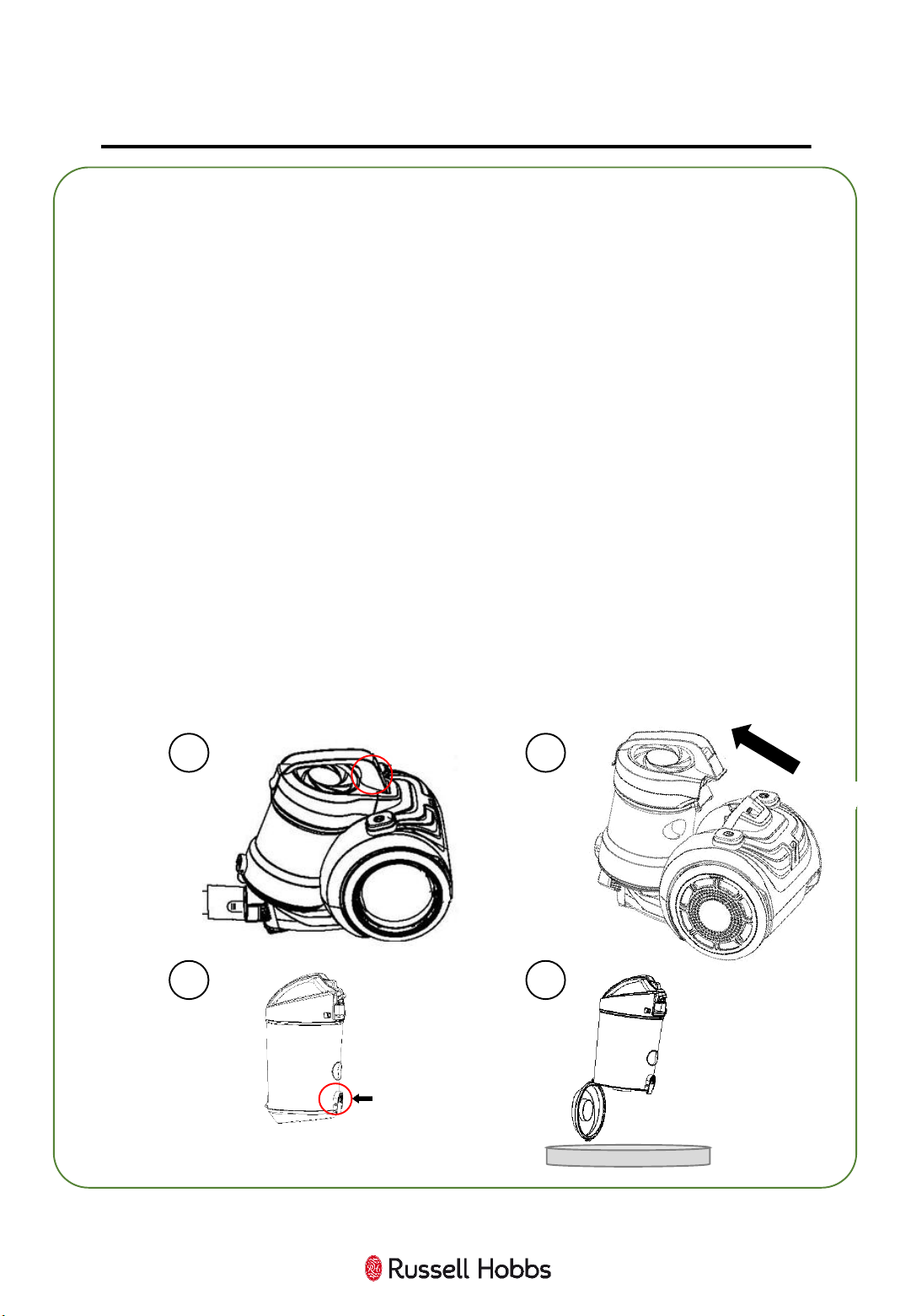

Emptying the dust container
When the dust container starts to fill it will need to be emptied.
1. To remove the dust container, press the release button located at
the top of the lid handle.
2. Lift the container away from the unit base.
3. Locate the bin release button on the cover at the back of the
container.
4. Over a bin, push the release button to open the base of the
container. You may need to tap the sides to empty all of the dirt. Close
the base to secure.
Important:
You may wish to empty the dust container outdoors as emptying may
create a dust cloud.
Place the dust container onto the unit, base first, then tilt forward to
engage the top.

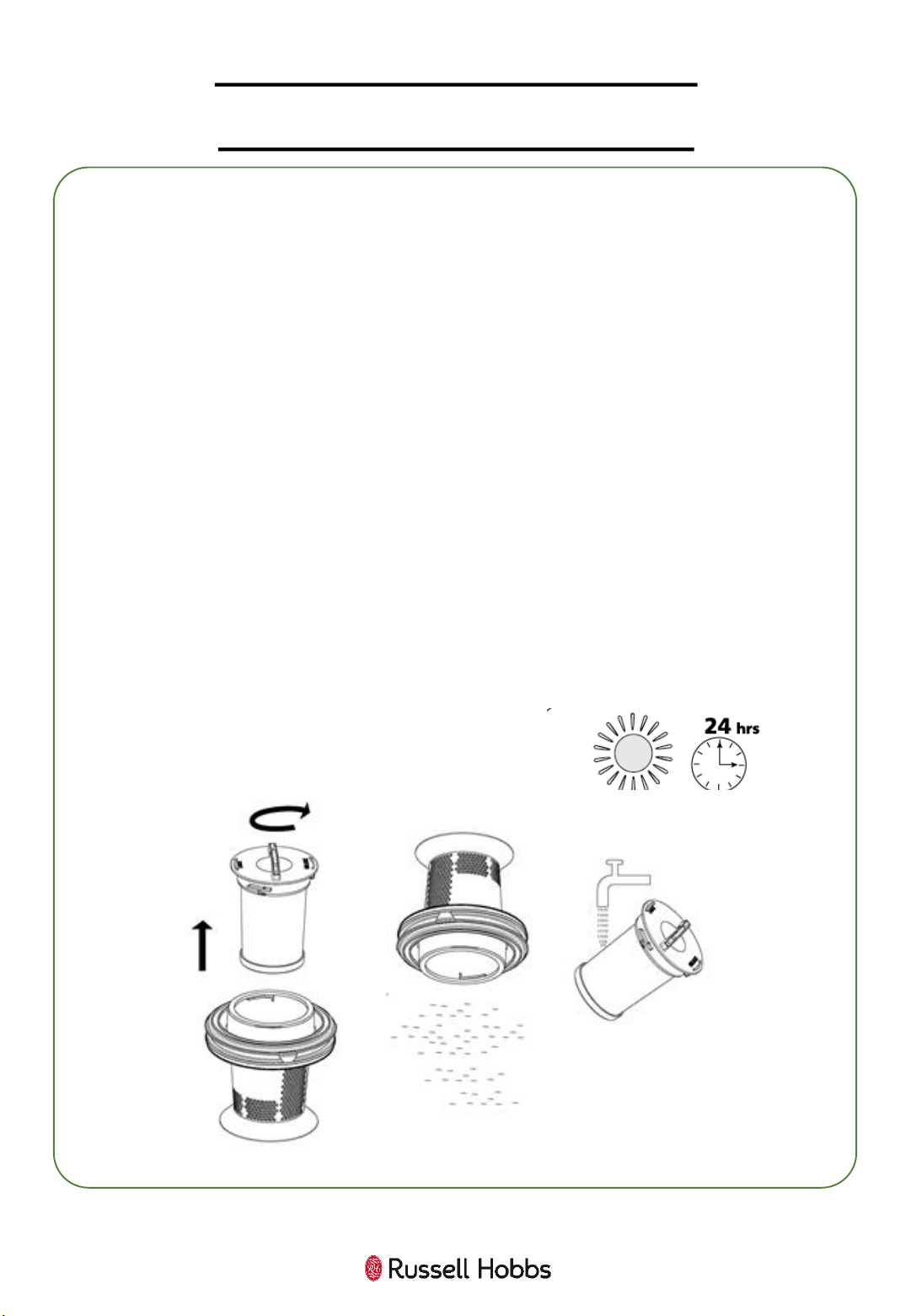

Remove the filter cover on the wheel of the cleaner by twisting the
filter cover and pulling the cover away.
Press and pull the filter out and tap over a bin to remove any
excess dust. Wash in warm water and allow to dry for 24 hours.
Once dried, put the filter back and refit the filter cover on the
wheel of the vacuum cleaner by pushing inwards and twisting until
secure.
13
CLEANING AND CARE:
CLEANING THE FILTER
Before you clean the appliance, disconnect the mains plug from the
wall socket.

14
CLEANING AND CARE:
CLEANING THE FILTER
1. Remove the dust container from the main vacuum cleaner unit.
2. Over a bin, push the release button to empty the dust container.
3. Open the dust container lid and remove the dust container filter and
cyclonic filter.
4. Remove the exhaust filter, which is located in the main vacuum cleaner
unit circled in the diagram below.
5. Wash the filters and the dust container unit in water and allow to
thoroughly dry for 24 hours before reusing.
6. Once dry, fit both the dust container filter and cyclonic filter back into
the dust container and lock the lid.
7. Place the exhaust filter back in the main vacuum unit and click the dust
container back into place.
Note: The cyclonic filter fits back into the dust container with the rib of
the filter slotting into the groove of the container. Make sure the dust
container filter is fitted back into the top of the assembly with the lip
facing downwards.

15
CLEANING AND CARE
Disassembly
To clean the exterior of the device, use a damp, soft cloth and mild detergent.
NEVER IMMERSE THE VACUUM IN WATER.
Wash non-electrical removable accessories in warm soapy water and allow to
dry thoroughly before next use.
If the vacuum is damaged, contact the customer service helpline using the
details at the bottom of this page.
Storage
Store in a clean and dry environment.
1 2 3 4
Before you clean the appliance, disconnect the mains plug
from the wall socket.
1. Press the cord rewind button to automatically bring the cord back inside
the unit for storage.
2. To remove the extension hose, manoeuvre it away from the hose
connector.
3. To remove the floor head/accessory, pull the extension tube/hose
connector away from the head/accessory –you may need to ease it off.
4. To remove the hose, press the tabs on the sides of the hose attachment
clip and pull the hose away from the unit.

16
PROBLEM SOLVING
PROBLEM POSSIBLE PROBLEM POSSIBLE SOLUTION
The vacuum cleaner is
plugged in but does
not work
Power cord/plug damage
Check the
power cord and plug for signs of damage.
Fuse is damaged
Check and replace the fuse in the plug.
The suction
is
decreasing and the
vacuum is not picking
up dirt
Dust container
Check if
the dust container is full, if so, empty it.
Filters are dirty
Clean the filters.
Hose/head blockages
Check that there are no blockages in the hose or cleaning
head.
Vacuum cleaner is
over heating
Filters are dirty
Check that the filters are not blocked,
if so, clean them
following the instructions in this booklet.
Automatic power cord
rewind does not fully
rewind the power
cord
Pull the power cord fully out and press the rewind button
again.
Dust is coming out of
the vacuum cleaner
Dust container fitting
The dust container has not been fitted correctly. Refit the
container following the instructions in this booklet.
The air coming out of
the vacuum cleaner
smells
Filters are dirty
Clean the filters. Also clean the
hose and dust container
Filters are not dry
Ensure the filters have been left to dry for 24 hours before
refitting back into the vacuum cleaner and using.

17
GUARANTEE AND CUSTOMER SERVICES
At Russell Hobbs, we take all our customer feedback seriously.
Feel free to contact our Product Care Team, on 0345 209 7461
who will be more than happy to assist you.
This product is guaranteed for 12 months from the date of the
original purchase. If any defect arises due to faulty materials or
workmanship, the faulty product must be returned to the place of
purchase.
Refund or replacement is at the discretion of the retailer.
The following conditions apply:
•The product must be returned to the retailer with the original
proof of purchase.
•The product must be installed and used in accordance with the
instructions contained in this instruction guide and any other
instructions for use which are supplied.
•It must be used for domestic purposes only and for its intended
use.
•This warranty does not cover wear and tear, damage, misuse
or consumable parts.
This does not affect your statutory rights.

18
SPARE PARTS
To check the availability of the following spare parts, simply contact
our friendly Customer Services team using the details provided at the
bottom of this page.
1. Hose
2. Extension tube
3. Floor head
4. Dust container
5. 2 in 1 crevice tool
6. Cyclonic filter
7. HEPA filter and cover
8. Dust container filter
9. Exhaust Filter
For Customer Services & Spare Parts please call 0345 209 7461
Or visit us at http://mda.russellhobbs.com

19
CONNECTION TOTHE MAINS SUPPLY
This appliance is designed to operate from a mains supply of
220-240V~50/60Hz.
Check that the voltage marked on the product corresponds
with your supply voltage.
How to change the fuse
1. Slot the end of a screwdriver into the
recess in the fuse holder of the plug.
2. Pull the fuse holder upwards until free
of the plug and slide the fuse out.
3. Replace the fuse and replace fuse
holder, pushing down until locked into
place.
Important: Only ever use 13 amp fuses.

20
Revision 3.0
Model: RHCV1601
This symbol is known as the 'Crossed-out wheelie bin Symbol'.
When this symbol is marked on a product/batteries, it means that
the product/batteries should not be disposed of with your general
household waste. Only discard electrical/electronic/battery items
in separate collection schemes, which cater for the recovery and
recycling of materials contained within. Your co-operation is vital
to ensure the success of these schemes and for the protection of
the environment. For your nearest disposal facility, visit
www.recycle-more.co.uk or ask in store for details.
We reserve the right, due to possible changes to design, to alter
the instruction manual without prior notice.
For Customer Services & Spare
Parts please call
0345 209 7461
Or visit us at
http://mda.russellhobbs.com
Made by G2S Ltd under license.
G2S Limited, Wigan, WN2 4AY
Russell Hobbs is the registered trademark of
Spectrum Brands (UK) Ltd.
