Russound AirGo Outdoor User manual
Outdoor Sound Station
Amplified Outdoor Speaker
with AirPort Express®Dock
Owners Manual
2
INTRODUCTION
Product Description
The AirGo™ Outdoor Sound System is a portable
amplifier/speaker dock for an Apple®AirPort
Express. With the AirGo Outdoor you can stream
music from an AirPlay®compatible device via the
Apple AirPort Express.
Since the Apple AirPort Express also has the ability
to act as a Wi-Fi repeater, you now have the ability to
have an outdoor Wi-Fi hotspot and listen to music at
the same time1. A special pocket within the unit, the
APX, protects the AirPort Express from the elements.
The AirGo Outdoor is a high performance, quality
outdoor sound system. A single large stereo
speaker provides excellent sound quality and a
wide sound stage.
1 Dependant upon AirPort Express configuration
Place it on the deck near the house to cover the deck
and backyard while having a cookout. Put it on the
driveway near the garage when washing the car.
Place it on the ground near the front door during
seasonal events to play music and sound effects of
your choice to match the occasion!
The AirGo Outdoor is easy and fun to use. With the
Apple AirPort Express installed, stream music from
your iPhone®, iPad®, Mac®, iTunes®or PC2and surf
the net from your Internet appliance at the same
time. The AirGo Outdoor is fun, sounds great and
brings hanging outside to another level.
2 Requires iTunes or AirFoil

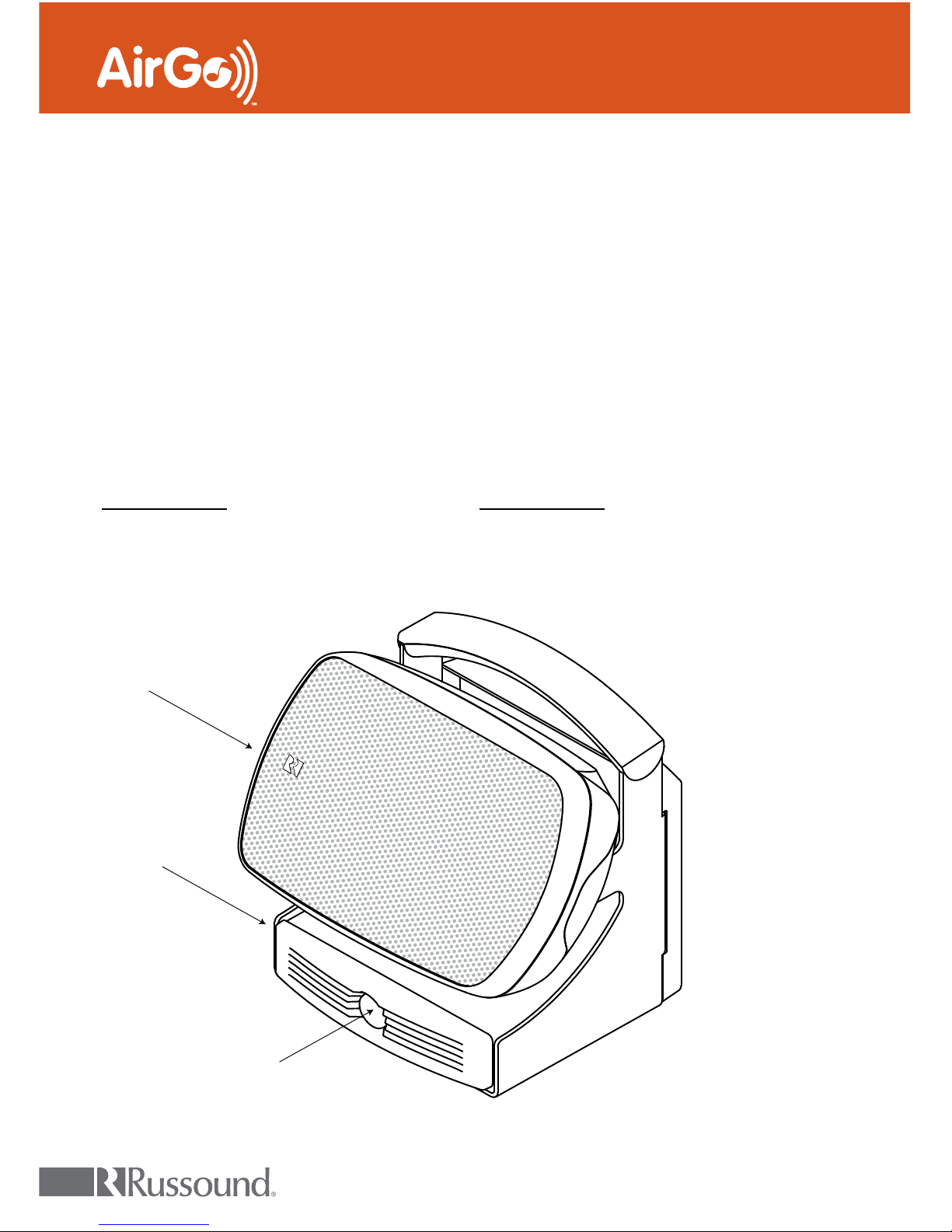

Speaker
Amplier
Touch sensitive
Mute switch
3
AirGo.russound.com
INSTALLATION

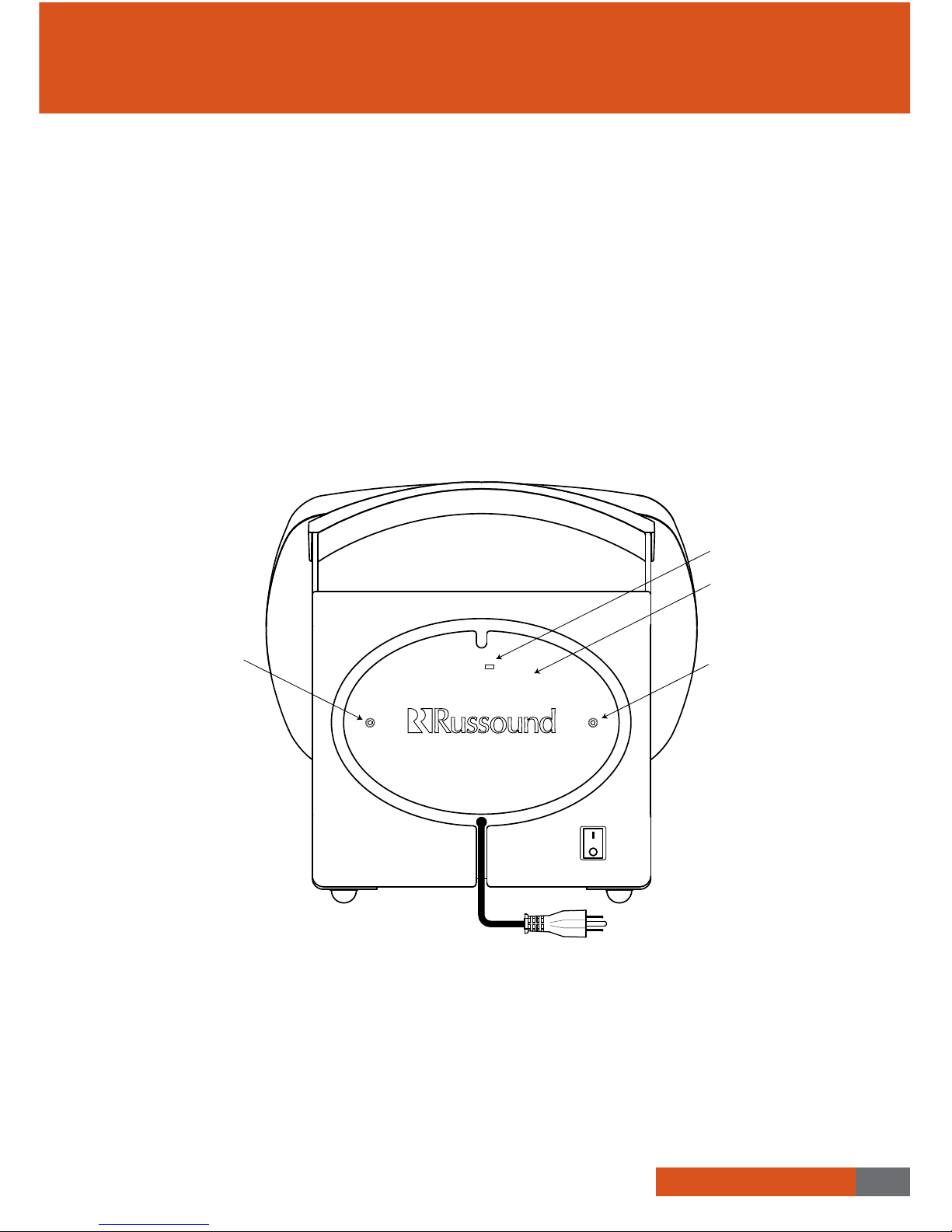

Figure 2
APX Cover
#2 Phillips
Screw
#2 Phillips
Screw
AirPort Express
Status Light
Removing the APX cover
To begin, unravel the AirGo Outdoor’s main power
cord and remove the APX cover. Use a standard
Phillips screwdriver to remove the two Phillips screws
that secure the APX cover in place. Don’t worry about
loosing the screws, they’re captive screws so they
won’t fall out. Be careful not to dislodge the gasket
that is fitted to the APX cover. It is important that it be
intact when reinstalling the cover to keep moisture out
of the APX Pocket. See figure 2
Configuration of the AirPort Express®
The AirPort Express will need to be configured before
it is installed in the APX Pocket. Please refer to the
AirPort Express installation manual for complete
directions.
4
Installing the AirPort Express®
into the AirGo Outdoor
1. Remove the detachable electrical prongs from the
AirPort Express by sliding the Power Adapter off of the
AirPort Express. See Figure 3
2. Take the 3.5mm audio plug located in the APX
Pocket and insert it into the Audio Output Jack of the
AirPort Express. See Figures 4 & 5
3. Take the power cord from the APX Pocket and insert
it into the Power Input jack of the AirPort Express.
See Figure 5
4. Carefully place the AirPort Express and all of the
connected wires into the APX Pocket.
NOTE: Make sure the APX cover is seated securely
in place and fastened tightly in place by the philips
screws to ensure a proper seal of the compartment.
5. Place the cover back onto the APX Pocket and
tighten the screws until they are snug.
6. Plug the Main Power Cord into a grounded
electrical outlet. Turn the Power Switch ON and wait for
the AirPort Express to boot up.
NOTE: The status of the AirPort Express and its booting
process can be observed at the Status Light window
located on the AirPort Express Pocket Cover.
See Figure 2
NOTE 2: Never plug the AirGo Outdoor into an
ungrounded electrical outlet, ungrounded electrical
cord or use a ground lifting adapter to remove the
safety ground.
Power Adapter
Audio output Jack
INSTALLATION
Figure 3
Figure 4
5
AirGo.russound.com
INSTALLATION
Mains
Power
AirPort Express
Power
Cord
Power cord
for
AirPort Express
Audio
plug
Figure 5. Installed AirPort Express®
6
Speaker Adjustment/Care
Figure 6. Speaker angle adjustment
Speaker Angle Adjustment
The AirGo Outdoor Speaker is shipped with the
speaker in the downward position. For optimal
sound dispersion, adjust the speaker to the upward
position before use by grasping the speaker on the
sides and tilting it upward.
See Figure 6
Taking Care of Your AirGo™ Outdoor
The AirGo Outdoor is made of durable materials
that need very little care. All we recommend is an
occasional wiping with a soft, damp cloth. Do not
use any harsh detergents, chemical solvents, or
abrasive materials. Also, do not spray water or other
liquids into the grilles.
While the AirGo Outdoor can be left out in the rain
it is recommended to bring the product inside
when not in use or to expose it to prolonged
inclement weather. This will keep the product clean,
maximizing its longevity and performance.
Your AirGo Outdoor is shipped with the speaker in the downward position.
For optimal sound dispersion, adjust the speaker to the upward position before use.
Speaker Angle Adjustment
Your AirGo Outdoor is shipped with the speaker in the downward position.
For optimal sound dispersion, adjust the speaker to the upward position before use.
7
AirGo.russound.com
Specifications
Loudspeaker type:
Passive two-way, dual input
US: 100-130VAC, 60Hz, 72W MAX
Dimensions:
Width: 12.9” (32.8cm)
Length: 10.2” (25.9cm)
Height: 12.6” (32.1cm)
Weight: 16.25 lbs, 7.37Kg
FCC
This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
This Class B digital apparatus complies with Canadian ICES-003.
Cet apparel numérique de la classe B est conforme à la norme
NMB-003 du Canada.
REFERENCE
This product meets our
highest standards for
eco-friendly products.
For more information
visit: AirGo.Russound.com
8
Warranty
The Russound AirGo Outdoor Sound System has a 90 days warranty
against defects in materials and workmanship. During the warranty
period, Russound will replace any defective part and correct any defect in
workmanship without charge for either parts or labor.
Russound may replace returned speakers with a product of equal value and
performance. In such cases, some modifications to the mounting may be
necessary and are not Russound’s responsibility.
For this warranty to apply, the unit must be utilized according to its written
instructions. If repairs are necessary, they must be performed by Russound.
The unit must be returned to Russound at the owner’s expense and with
prior written permission. Proof of purchase must accompany all claims.
Accidental damage and shipping damage are not considered defects, nor
is damage resulting from abuse or from servicing performed by an agency
or person not specifically authorized in writing by Russound.
This warranty does not cover:
• Damage caused by abuse, accident, misuse, negligence, or improper
operation or installation.
• Products that have been altered or modied.
• Any product whose identifying number or serial number has been
altered, defaced, or removed.
• Normal wear and maintenance.
To return for repairs, the unit must be shipped to Russound at the owner’s
expense, along with a note explaining the nature of service required. Be
sure to pack the speaker in the original box or a corrugated container with
at least 3 inches of resilient material to protect the unit from damage in
transit.
Before returning a speaker for repair, call Russound at 603.659.5170 for a
Return Authorization number. Write the RA number on the shipping label and
ship to: Russound, ATTN: Service, 5 Forbes Road, Newmarket NH 03857.
Russound sells products only through authorized channels to ensure that
customers obtain proper support and service. Any Russound product
purchased from an unauthorized dealer or source, will not be honored or
serviced under existing Russound warranty policy. Any sale of products by
an unauthorized source or other manner not authorized by Russound shall
void the warranty on the applicable product.
REGISTER ONLINE TODAY AT: AirGo.Russound.com
Scan this code
to go direcctly
to the page
REFERENCE
Russound 5 Forbes Road, Newmarket, NH 03857, USA
Ph. (855) MYAIRGO Fx. 603.659.5388
AirGo.Russound.com
