User Manual
PJ5000M

PJ5000M-UserManual
Versione 2.1
© Copyright 1993-2002
R.V.R.ElettronicaSpA
Via del Fonditore 2/2c - 40138 - Bologna (Italia)
Telefono: [phone]
Fax: [phone]
Email: [e-mail]
Web: www.rvr.it
Allrightsreserved
PrintedandboundinItaly. No partofthismanualmaybereproduced,
memorized or transmitted in any form or by any means, eletronic or
mechanic, including photocopying, recording or by any information
storageand retrieval system, without thepermission of the copyright
owner.

Notification of intended purpose and limitations of product use
ThisproductisaFMtransmitterintended for FM audio broadcasting. It utilises
operatingfrequenciesnotharmonisedintheintendedcountriesofuse.
Theusermustobtainalicensebeforeusingtheproductinintended country of
use.Ensure respective country licensingrequirementsarecompliedwith.
Limitationsofusecanapplyinrespectofoperatingfreuency,transmitterpower
and/orchannel spacing.
Declaration of Conformity
Hereby,R.V.R.ElettronicaSpA,declaresthatthisFMtransmitterisin
compliancewith the essential requirementsandotherrelevantprovisions of
Directive 1999/5/EC.

This page intentionally left blank

PJ5000M
iUserManual Rev. 2.1-28/05/02
Table of Content
1. Preliminary instructions 1
2. Warranty 3
3. First Aid 5
3.1 Treatment of electrical shocks 5
3.1.1 If victim is not responsive 5
3.1.2 If victim is responsive 6
3.2 Treatment of electrical Burns 6
3.2.1 Extensive burned and broken skin 6
3.2.2 Less severe burns (1st and 2nd degree) 6
4. General Description 7
4.1 External Description 7
4.2 Electrical Description 8
4.3 Meters and Indicator 8
5. Technical Specifications 9
5.1 Dimensional and Environmental Specifications 9
5.2 Electrical Specifications 9
6. Installation Procedure 11
6.1 Introduction 11
6.2 Unpacking 11
6.3 Installation 11
7. Maintenance 13
7.1 Introduction 13
7.2 Safety Consideration 13
7.3 Ordinary Maintenance 13
7.4 Equipment’s Card Replacement 13
7.5 Equipment Replacement 14
8. PJ5000M Adjustment 15
8.1 Adjustment Procedure 15
8.2 System Compensation 16
8.3 Trouble Shooting 17

PJ5000M
ii UserManualRev.2.1 - 28/05/02
Pagina lasciata intenzionalmente in bianco
This page was intentionally left blank

PJ5000M
1 / 18UserManual Rev.2.1- 28/05/02
1. Preliminary instructions
Thismanualiswrittenasageneralguidefor those having previous knowledge and
experiencewith this kind of equipment.
Itis not intended to containacompletestatementof all safety rules whichshouldbe
observedby personnel in using this orotherelectronicequipment.
Theinstallation,useandmaintenanceofthis piece of equipment involve risks both
forthepersonnelperformingthemandforthedeviceitself, thatshallbe usedonlyby
trainedpersonnel.
R.V.R. doesn’t assume responsibility for injury or damage resulting from improper
procedures or practices by untrained/unqualified personnel in the handling of this
unit.
Pleaseobserve all localcodesandfire protection standardsintheoperations of this
unit.
WARNING: alwaysdisconnect power beforeopening covers or removing any part
ofthis unit.
Useappropriategroundingprocedurestoshortoutcapacitorsandhighvoltagepoints
beforeservicing.
WARNING: This is a "CLASSA" equipment. In a residential place this equipment
cancausehash.Inthiscasecanberequestedtousertotakethenecessarymeasures.
R.V.R. Elettronica SpA reservesthe right tomodifythedesignand/or the technical
specificationsof the product and this manualwithoutnotice.

PJ5000M
2 / 18 UserManualRev.2.1 - 28/05/02
Pagina lasciata intenzionalmente in bianco
This page was intentionally left blank

PJ5000M
3 / 18UserManual Rev.2.1- 28/05/02
2. Warranty
AnyproductofR.V.R. Elettronica iscovered by a 12 (twelve) month warranty.
Forcomponentslike tubesforpoweramplifiers,the originalmanufacturer’swarranty
applies.
R.V.R.extendstotheoriginalend-userpurchaseralloriginalmanufacturerswarranties
whicharetransferable and all claims are to bemadedirectlytoR.V.R. per indicated
procedures.
R.V.R.'swarrantyshall notinclude:
1) Re-shipmentofthe unit to R.V.R. for repairpurposes
2) Anyunauthorized repair/modification
3) Incidental/consequentialdamages as a resultofanydefect
4) Nominalnon-incidental defects
5) Re-shipmentcosts or insuranceoftheunitor replacement units/parts
Warrantyshallcomeintoforcefrominvoicedateandfortheperiodofthemanufactures
warranty.
Anydamagetothegoodsmustbereportedtothecarrierinwritingontheshipment
receipt.
Anydiscrepancyordamagediscovered subsequent todelivery,shallbereported to
R.V.R.withinfive(5)daysfromitsreceipt.
Toclaimyour rightsunder thiswarranty:
a. Contact the dealer or distributor where you purchased the unit. Describe the
problemandaskif hehas aneasysolution.Dealersand Distributorsaresupplied
withall theinformationabout problemsthatmayoccurandusuallytheycanrepair
theunit quicker than what themanufacturercoulddo.Veryofteninstallingerrors
arediscoveredby dealers.
b. Ifyourdealercannothelpyou,contactR.V.R.inBolognaandexplaintheproblem.
Ifitis decided to return the unit to the factory, R.V.R. will mail you a regular
authorizationwith all the necessary instructionstosendbackthe goods.
c. Whenyou receivetheauthorization, youcanreturn theunit.Pack it carefully
for the shipment, preferably using the original packing and seal the package
perfectly. The customer always assumes the risks of loss (i.e., R.V.R. is never
responsiblefor damage orloss),until the package reachesR.V.R.premises.For
this reason, we suggest you to insure the goods for the whole value. Shipment
must be effected C.I.F. (PREPAID) to the address specified by R.V.R.’s service
managerontheauthorization.

PJ5000M
4 / 18 UserManualRev.2.1 - 28/05/02
DO NOTRETURN UNITS WITHOUT OURAUTHORIZATIONASTHEY WILLBE
REFUSED.
a Besuretoencloseawrittentechnicalreportwherementionalltheproblemsfound
andacopy of your original invoice establishingthestartingdateofthewarranty.
Replacementandwarrantypartsmaybeorder from the following address. Be sure
to include the equipment model and serial number as well as part description and
partnumber.
R.V.R.ElettronicaSpA
Via del Fonditore, 2/2c
40138 BOLOGNA
ITALY
Tel. [phone]

PJ5000M
5 / 18UserManual Rev.2.1- 28/05/02
3. First Aid
Thepersonnelemployedintheinstallation, useand maintenanceofthedevice,shall
befamiliarwith theory and practice of first aid.
3.1 Treatment of electrical shocks
3.1.1 If victim is not responsive
followtheA-B-C's of basic life support
• Placevictimflatonhisbackona hard surface.
• Openairway:lift up neck, push forehead back
• clearout mouth if necessary and observeforbreathing
• ifnot breathing,beginartificial breathing(Figure2): tilthead,pinch nostrils,make
airtightseal,fourquickfullbreaths.Remembermouthtomouthresuscitationmust
be commenced as soon as possible
Figure 1 Figure 2
• Check carotid pulse (Figura 3); if pulse is absent, begin artificial circulation
(Figura 4) depressing sternum 1 1/2" TO 2" (Figure 5).
Figura 3 Figura 4 Figura 5
• APPROX. 80 SEC. : ONERESCUER,15COMPRESSIONS
• APPROX. 60 SEC.:TWO RESCUERS, 5 COMPRESSIONS, 1 BREATH
• DO NOT INTERRUPT RHYTHM OF COMPRESSIONS WHEN SECOND
PERSONISGIVINGBREATH
• Call for medical assistance as soon as possible.

PJ5000M
6 / 18 UserManualRev.2.1 - 28/05/02
3.1.2 If victim is responsive
•Keepthemwarm
•Keep them as quiet as possible
•Loosentheirclothing (arecliningpositionisrecommended)
•Call for medical help as soon as possible
3.2 Treatment of electrical Burns
3.2.1 Extensive burned and broken skin
•Cover area with cleansheetorcloth(Cleansedavailableclotharticle).
•Donotbreakblisters, remove tissue, remove adhered particles of clothing, or
applyany salveorointment.
•Treatvictimfor shock as required.
•Arrangetransportationto a hospital as quickly as possible.
•Ifarmsorlegsareaffectedkeep them elevated
Ifmedicalhelpwill notbeavailablewithinanhourand thevictimisconsciousand not
vomiting,give himaweak solutionofsaltand soda:1level teaspoonfulofsaltand 1/
2level teaspoonful of baking soda toeachquartofwater(neither hot or cold). Allow
victim to sip slowly about 4 ounces (half a glass) over a period of 15 minutes.
Discontinuefluidif vomiting occurs
Donotgivealcohol
3.2.2 Less severe burns (1st and 2nd degree)
• Applycool(noticecold)compressesusingthecleansedavailable clotharticle.
•Do not break blisters, remove tissue, remove adhered particles of clothing, or
applysalve orointment.
•Applycleandry dressing if necessary.
•Treatvictimfor shock as required.
•Arrangetransportationtoa hospital as quickly as possible
•Ifarmsorlegsareaffectedkeepthemelevated.

PJ5000M
7 / 18UserManual Rev.2.1- 28/05/02
4. General Description
4.1 External Description
The PJ5000M is a modular power amplifier for audio FM broadcasting.
ThePJ5000M comprises five PJ1000M MosFet amplifiersconnectedusingaHC5-
1hybridcombiner.
ThePJ5000M is housed in astandard19”rackframe,44HE high, of which 7HEare
freeandmay be used for an exciter or otherpiecesofequipment.

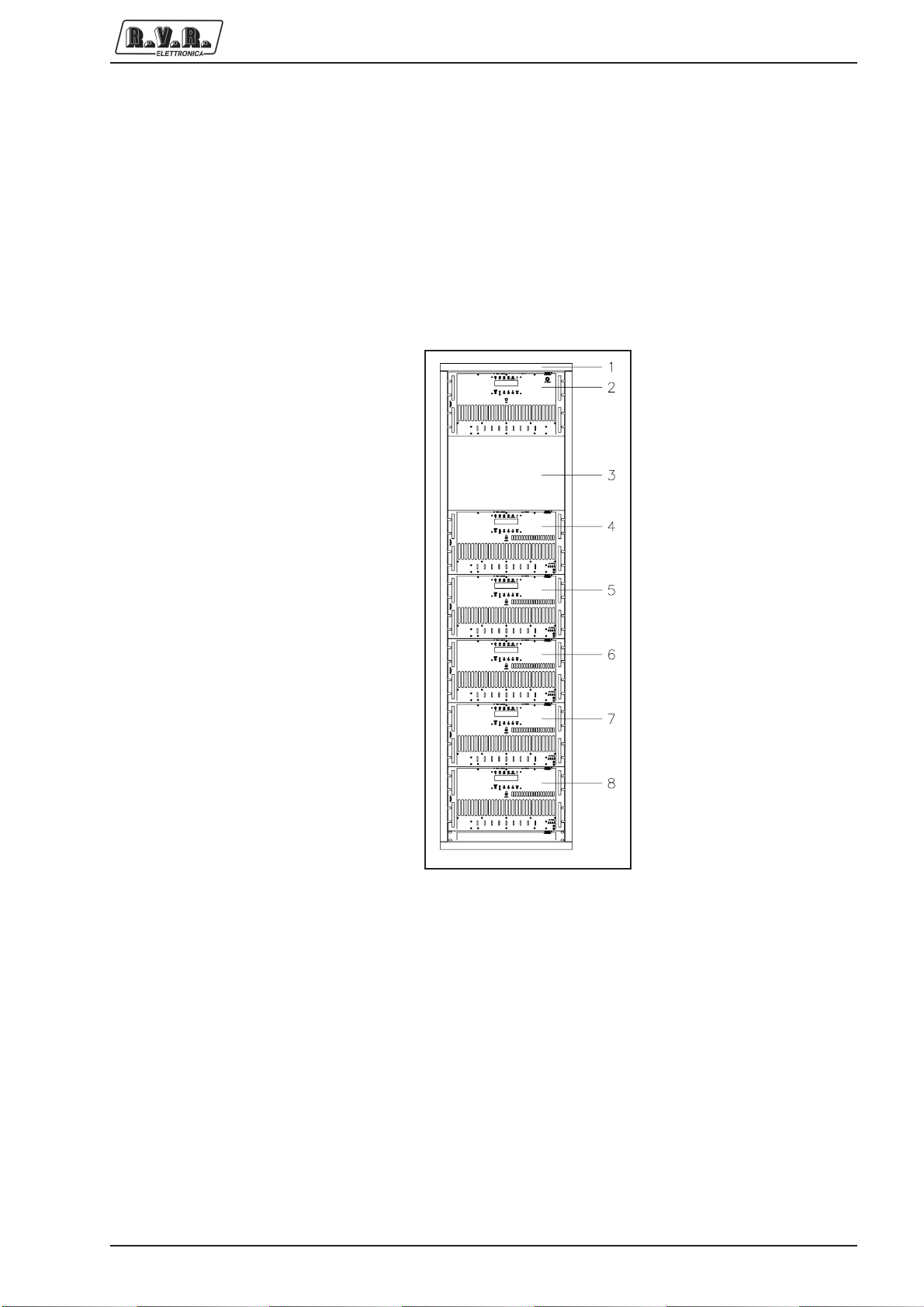

Figure 1
[1] 19”Rack Cabinet(44HE)
[2] HC5-15KW HybridCombiner
[3] 7HE Free Space
[4] PJ1000M-”A”1000W FMMosFet Amplifier
[5] PJ1000M-”B”1000W FMMosFet Amplifier
[6] PJ1000M-”C”1000W FMMosFet Amplifier
[7] PJ1000M-”D”1000W FMMosFet Amplifier
[8] PJ1000M-”E”1000W FMMosFet Amplifier

PJ5000M
8 / 18 UserManualRev.2.1 - 28/05/02
4.2 Electrical Description
The PJ5000M is a MosFet amplifier for FM audio broadcasting, operating without
thenecessity ofadjustmentsin the87.5-108MHzband.It producesanoutput power
in excess of 5000W and a drive level of about 100-120W.
TheHC5-1hybridcoupler hasthefunctionofsplitter ofthedriverpowercomingfrom
the exciter, and of combiner of the power output of the PJ1000Ms, to generate the
globaloutput of the amplifier.
Thediagramoftheconnections beetweenthe componentsofthePJ5000Misshown
in Figure 2.
Figure 2
[1] HC5-1OUT5 - PJ1000M“A” RFIN
[2] HC5-1IN1 - PJ1000M“A”RFOUT
[3] HC5-1OUT4 - PJ1000M“B” RFIN
[4] HC5-1IN2 - PJ1000M“B”RFOUT
[5] HC5-1OUT3 - PJ1000M“C”RFIN
[6] HC5-1IN3 - PJ1000M“C”RF OUT
[7] HC5-1OUT2 - PJ1000M“D”RFIN
[8] HC5-1IN2 - PJ1000M“D”RF OUT
[9] HC5-1OUT1 - PJ1000M“E” RFIN
[10] HC5-1IN3 - PJ1000M“E”RF OUT
4.3 Meters and Indicator
PJ5000M doesn’t own indicators: all the measurements and indications are given
bytheinstrumentsofitscomponents.Forallthedetails,seeasreferencethemanuals
oftheamplifier PJ1000M and of the coupler HC5.

PJ5000M
9 / 18UserManual Rev.2.1- 28/05/02
5. Technical Specifications
Theelectrical and the physical specifications of the PJ5000M aregiven below. For
detailsabout the of theamplifiermodule(PJ1000M) and the hybridcombiner(HC5-
1)see the relative manuals.
5.1 Dimensional and Environmental Specifications
Rack Dimensions 565.0 mm (22,24”) x 850.0 mm (33,46”) x
2150.0mm (84,65”)
Weight ofeach separated PJ1000M 54 Kg
Weight ofHC5 30 Kg
Total Weight 350 Kg
Operatingtemperaturerange -10 °C ÷50 °C
Humidity 95%Maximum, without condensation
5.2 Electrical Specifications
A.C.power supply 100-130 V,50-60 Hz
198-250V, 50-60 Hz
Coolingsystem Forced ventilation
Frequencyrange 87.5 MHz ÷108 MHz
Outputpower 5000 W
Powerconsuption Approx. 11500 Wat full power
Drivepower Approx. 100 W for Pout = 5000 W
Inputconnector “N” typeconnector
Inputimpedance 50 Ohm
Outputconnector Standard 1+5/8”EIA Flange
Outputimpedance 50 Ohm
Harmonicand spurioussoppression Respect allrequirments FCCand CCIR
Layoutdescription Five separatePJ1000Mamplifiermodules
andone HC5-15KW HybridCombiner.

PJ5000M
10 / 18 UserManualRev.2.1 - 28/05/02
Pagina lasciata intenzionalmente in bianco
This page was intentionally left blank

PJ5000M
11 / 18UserManual Rev.2.1- 28/05/02
6. Installation Procedure
6.1 Introduction
Thissection contains thenecessaryinformationsfor the installation andpreliminary
checksonthePJ5000M.
6.2 Unpacking
Unpacktheamplifierandbeforeanyotheroperationcheck that the amplifier hasn’t
beendamaged during transportandall the controlsandconnectorson the frontand
rear panels are in good condition.
6.3 Installation
ToinstallthePJ5000M,itisnecessarytoperformthefollowingoperations:
1) WiththehelpofFigure2,verify thatallthe connectionsarein perfectcondition.
Possibleerrors can damage the amplifier modules.
2) Asshowninthefigureabove,connecta 5KW50 OhmdummyloadtotheHC5-
1'soutput connector withathroughwattmeter in series.
3) Connectan exciter withaoutputpower not lessthan150Wto the R.F. inputof
theHC5-1.
4) Setthe output power oftheexciterto the minimumvalue.
5) Switchon the five PJ1000M and the exciter, and then wait until the exciter is
lockedonto the operatingfrequency.
6) Increasegradually the outputpowerof the exciter, verifyingatthesame timea
proportionalincreaseof output power of the PJ1000M (PWR FWDofthefive
amplifiers)andanincreaseof the output power on the meter of the hybrid
combinerwiththeselectorontheFWD position;theoutput poweronthe meter
ofthe HC5-1hybridcombiner is,apartfrom theinstrumentsreading errorsand
thelittlelossin the combiner, the sum of the output power of each amplifier.
Thisvalue can becomparedwith thevaluereadon the externalwattmeter.

PJ5000M
12 / 18 UserManualRev.2.1 - 28/05/02
7) Increasetheexciter output power in order to have 5000W power on the
PJ5000M.
8) Switchthe meter selector of the HC5-1 to the RFL position and verify that the
meterneedleisatzero.
9) Toverifythecorrectbalancing of the five PJ1000M modules, do switch the
meterselectoroftheHC5-1toUNBALpositionandverifythat the power isn't
morethan150-200W.

PJ5000M
13 / 18UserManual Rev.2.1- 28/05/02
7. Maintenance
7.1 Introduction
Thissectionprovidesgeneralmaintenanceinformationand electricaladjustmentfor
the PJ5000MAmplifier.
Maintenance is divided into categories depending upon the complexity of the
procedureandthe test equipment required to complete themaintenance.
7.2 Safety Consideration
When the amplifier is operational, hazardous voltages and high currents are
accessible internally, and there are high power R.F. signals.
Don’t remove any cover without switching off the system first and close all
covers before restarting the system.
Ensureall primarypower isdisconnected fromthe amplifier before attempting
equipment maintenance.
FIRST LEVEL MAINTENANCE
7.3 Ordinary Maintenance
The only regular maintenance needed by PJ5000M, is the periodic substitution of
the blowers, and the cleaning of dust filters and any dust accumulated inside the
amplifier.
Thetime between overhauling of the blowers dependsuponseveralenvironmental
factors,temperature, humidity, dustpollutionetc.
It’sadvisable to check theunitevery6 months, and tosubstitutenoisyblowers.
Blowersshouldbechangedasamatterofcourse at least every 18 months.
SECOND LEVEL MAINTENANCE
7.4 Equipment’s Card Replacement
Seeasreferencethecardreplacementsection ofthemanuals oftherelative device.

PJ5000M
14 / 18 UserManualRev.2.1 - 28/05/02
7.5 Equipment Replacement
If it’s necessary to replace a power amplifier or the hybrid coupler, it is advisable to
performthe adjustment of the sytem. Refertochapter8fordirections.
