RW RWPHT20 User manual

RWPHT20
THIS MANUAL COVERS
DO NOT USE APPLIANCE WITHOUT
READING THIS FIRST
CORDLESS POLE HEDGE TRIMMER
INSTRUCTION MANUAL
PLEASE RETAIN

Fig. 2 Fig.3
Fig. 4 Fig.5
Safety warnings
These instructions are for your safety. Please read through them thoroughly before use and retain them for
future reference.

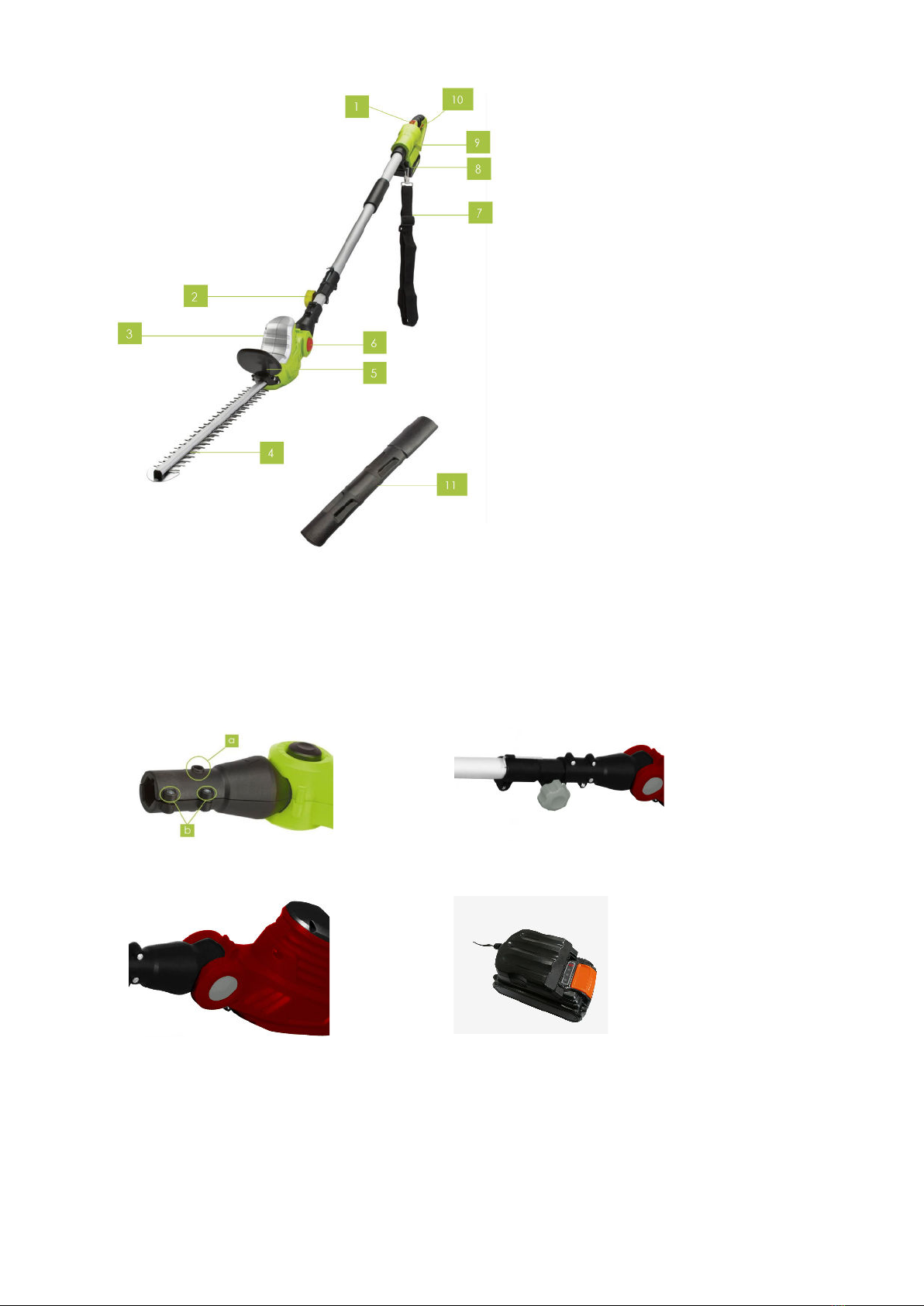

1.Start/ stop button
2.Handle extender dial
3.Air vents
4.Blade
5.Protective screen
6.Angle adjusting button
7.Shoulder strap
8.Battery location
9. Handle
10. Safety lock-o󰀨
11.Protective cover for blade

General power tool safety warnings
WARNING! Read all safety warnings and all instructions. Failure to
follow the warnings and instructions may result in electric shock, re
and/or serious injury. Save all warnings and instructions for future
reference.
The term “power tool” in the warnings refers to your battery-
operated (cordless) power tool.
Work area safety
1. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
1. Do not operate power tools in explosive atmospheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
2. Keep children and bystanders away while operating a power tool. Distractions can cause you to
lose control.
Electrical safety
1. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk
of electric shock.
Personal safety
1. Stay alert, watch what you are doing and use common sense when operating a power tool. Do
not use a power tool while you are tired or under the inuence of drugs, alcohol or medication.
A moment of inattention while operating power tools may result in serious personal injury.
3. Use personal protective equipment. Always wear eye protection. Protective equipment such as
dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will
reduce personal injuries.
4. Prevent unintentional starting. Ensure the switch is in the o󰀨-position before connecting to
battery pack, picking up or carrying the tool. Carrying power tools with your nger on the switch or
energising power tools that have the switch on invites accidents.
5. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
6. Do not overreach. Keep proper footing and balance at all times. This enables better control of the
power tool in unexpected situations.
7. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
Power tool use and care
1. Do not force the power tool. Use the correct power tool for your application. The correct power
tool will do the job better and safer at the rate for which it was designed.
8. Do not use the power tool if the switch does not turn it on and o󰀨. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
9. Store idle power tools out of the reach of children and do not allow persons unfamiliar with
the power tool or these instructions to operate the power tool. Power tools are dangerous in the
hands of untrained users.
10. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts
and any other condition that may a󰀨ect the power tool’s operation. If damaged, have the power
tool repaired before use. Many accidents are caused by poorly maintained power tools.
11. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
12. Use the power tool, accessories and tool bits etc. in accordance with these instructions,
taking into account the working conditions and the work to be performed. Use of the power tool
for operations di󰀨erent from those intended could result in a hazardous situation.
Battery tool use and care
1. Recharge only with the charger specied by the manufacturer. A charger that is suitable for one
type of battery pack may create a risk of re when used with another battery pack.
2. Use power tools only with specically designated battery packs. Use of any other battery packs
may create a risk of injury and re.
3. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins,
keys, nails, screws or other small metal objects that can make a connection from one terminal
to another. Shorting the battery terminals together may cause burns or a re.
4. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact
accidentally occurs, ush with water. If liquid contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause irritation or burns.
Service
1. Have your power tools serviced by a qualied repair person using only identical replacement
parts. This will ensure that safety of the power tool is maintained.

Hedge trimmer safety warnings:
1. Keep all parts of the body away from the cutter blade. Do not remove cut material or hold
material to be cut when blades are moving. Make sure the switch is o󰀨 when clearing jammed
material. Note that the blades coast for a while after the power is switched o󰀨. A moment of
inattention while operating the hedge trimmer may result in serious personal injury.
2. Carry the hedge trimmer by the handle with the cutter blade stopped. Proper handling of the
hedge trimmer will reduce possible personal injury from the cutter blades.
3. Hold the power tool by insulated gripping surfaces only, because the cutter blade may contact
hidden wiring or its own cord. Cutter blades contacting a “live” wire may make exposed metal parts
of the power tool “live” and could give the operator an electric shock.
4. DANGER – Keep hands away from blade. Contact with blade will result in serious personal injury.
Additional safety warnings
1. Keep hands and feet away from the cutting device at all times and especially when switching the
product on.
2. Do not try to grasp or remove trimmings when the product is running. Only remove trimmings when
the product is switched o󰀨 and disconnected from the power supply.
3. Never hold the product by the guard.
4. Always be sure of a safe and secure operating position, whilst using the product.
5. Never use the product standing on steps or a ladder. Do not work over shoulder height.
6. Always ensure the safety guard supplied is tted before using the product. Never attempt to use an
incomplete product or one tted with an unauthorised modication.
7. Check the cutting device regularly for damage, and if damaged repair immediately.
8. Do not overload the product.
9. Check immediately if the product starts to vibrate abnormally. Excessive vibration can cause injury.
10. Switch the product o󰀨 when the cutting device is blocked. Disconnect it from power supply (i.e.
remove the battery pack) then remove the blockage. Inspect the cutting device for damage before
using the product again.
11. Follow the maintenance and repair instructions for this product. Never carry out any modications of
the product. Information about maintenance and repair is provided in this instruction manual.
12. Know how to stop the product quickly in an emergency.
13. Do not expose the product to rain. Do not operate the product on a wet hedge.
14. Use the product only in daylight or good articial light.
15. Prolonged use of the product exposes the user to vibrations that can cause a range of conditions
collectively known as hand-arm vibration syndrome (HAVS) e.g. ngers going white; as well as
specic diseases such as carpal tunnel syndrome.
• To reduce this risk when using the product, always wear protective gloves and keep your hands
warm.
• The symptoms of HAVS include any combination of the following: Tingling and numbness in the
ngers; Not being able to feel things properly; Loss of strength in the hands; Fingers going white
(blanching) and becoming red and painful on recovery (particularly in the cold and wet, and probably
only in the tips at rst). Seek medical advice immediately if such symptoms are experienced.
16. Check the hedge for foreign objects before operation, e.g. wire fences. Take care that the cutting
device does not come into contact with wire or other metal objects.
17. Hold the hedge trimmer properly, e.g. with both hands if two handles are provided. Loss of
control can cause personal injury.
Maintenance and storage
1. Disconnect the product from the power supply (i.e. remove the plug from the power supply or the
battery pack) and check for damage after use.
2. Disconnect the product from the power supply (i.e. remove the plug from the power supply or the
battery pack) before carrying out maintenance or cleaning work.
3. Use only the manufacturer’s recommended replacement parts and accessories.
4. Inspect and maintain the product regularly. Have the product repaired only by an authorised service
centre or similar qualied specialist.
5. When not in use, store the product out of the reach of children.
Additional safety warnings for charger
1. This charger can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been given
supervision or instruction concerning use of the charger in a safe way and understand the hazards
involved.
2. Do not allow children to play with the charger.
3. Cleaning and user maintenance should not be made by children without supervision.
4. Disconnect the charger from the power supply and allow it to cool down before cleaning, maintenance,
storage and transportation.
5. Before using the charger, read all the instructions and cautionary markings on the charger and battery
pack.
6. The charger and battery pack supplied with it are specically designed to work together. Only use the
charger with the battery pack for this tool.

7. Charge the battery pack indoors only as the charger is designed for indoor use only.
8. Do not charge non-rechargeable batteries.
9. Protect the charger against moisture and wet conditions. There is a danger of electric shock.
10.Do not place any object on top of the charger as it could cause overheating. Do not place the charger
near any heat source.
11.Do not use an extension cord unless it is absolutely necessary. The use of an improper extension cord
could cause the risk of re, electric shock or electrocution.
12.Do not use the charger if it has been subjected to a heavy knock, dropped or otherwise damaged in
any way. Have the charger checked and repaired by an authorised service centre.
Additional safety warnings for battery packs
1. Do not attempt to charge the battery pack with any other charger than the one supplied. The charger
and battery pack supplied with it are specically designed to work together.
2. Charge and store the battery pack in an ambient temperature of 18 - 24°C (65 - 75°F) to ensure the
longest battery life and best performance. Do not charge or store the battery pack in temperatures
below 0°C (32 °F) and above 45°C (113°F).
3. Small leakage of liquid from the battery pack may occur under extreme usage or temperature
conditions. However, if the outer seal is broken and this leakage comes into contact with your skin
wash the a󰀨ected area quickly with water. If the leakage gets in your eyes ush your eyes with clean
water for a minimum of 10 minutes and seek immediate medical attention.
4. Never attempt to open the battery pack for any reason. If the plastic housing of the battery pack
breaks open or cracks, immediately discontinue its use and do not recharge it.
5. Do not store or carry a spare battery pack in a pocket or toolbox or any other place where it may
come into contact with metal objects. The battery pack may be short-circuited causing damage to the
battery pack, burns or a re.
6. Do not pierce the battery with nails, strike the battery with a hammer, step on the battery or otherwise
subject it to strong impacts or shocks.
7. Protect the battery pack against heat. Do not place the battery in direct sunlight or use or store the
battery inside cars in hot weather. Doing so may cause the battery to generate heat, explode or ignite.
8. Never try to charge a battery pack that is cracked or damaged in any other way. There is a danger of
electric shock or electrocution.
Vibration and noise reduction
To reduce the impact of noise and vibration emission, limit the time of operation, use low-vibration
and low-noise operating modes as well as wear personal protective equipment.
Take the following points into account to minimise the vibration and noise exposure risks:
1. Only use the product as intended by its design and these instructions.
13. Ensure that the product is in good condition and well maintained.
14. Use correct attachments for the product and ensure they are in good condition.
15. Keep tight grip on the handles/grip surface.
16. Maintain this product in accordance with these instructions and keep it well lubricated (where
appropriate).
17. Plan your work schedule to spread any high vibration tool use across a longer period of time.
Emergency
Familiarise yourself with the use of this product by means of this instruction manual. Memorise the
safety directions and follow them to the letter. This will help to prevent risks and hazards.
1. Always be alert when using this product, so that you can recognise and handle risks early.
Fast intervention can prevent serious injury and damage to property.
18. Switch o󰀨 and disconnect from the power supply if there are malfunctions. Have the product
checked by a qualied professional and repaired, if necessary, before you operate it again.
Residual risks
Even if you are operating this product in accordance with all the safety requirements, potential
risks of injury and damage remain. The following dangers can arise in connection with the structure
and design of this product:
1. Health defects resulting from vibration emission if the product is being used over long periods of time
or not adequately managed and properly maintained.
19. Injuries and damage to property due to broken cutting attachments or the sudden impact of hidden
objects during use.
20. Danger of injury and property damage caused by ying objects.
21.
WARNING! This product produces an electromagnetic eld during
operation! This eld may under some circumstances interfere with
active or passive medical implants! To reduce the risk of serious or
fatal injury, we recommend persons with medical implants to consult
their doctor and the medical implant manufacturer before operating
this product!

Symbols
On the product, the rating label and within these instructions you will nd among others the following symbols
and abbreviations. Familiarise yourself with them to reduce hazards like personal injuries and damage to
property.
Read the instruction manual.
Wear hearing protection.
Wear eye protection.
Wear a dust mask.
Wear protective gloves.
Wear protective, slip-resistant footwear.
Do not expose the product to rain or wet conditions
(moisture).
Keep ngers away from moving cutting device!
WEEE symbol. Waste electrical products should not be
disposed of with household waste. Please recycle where
facilities exist. Check with your Local Authority or local
store for recycling advice.

Technical specications
Voltage 20V DC
Battery type Lithium-Ion
Battery capacity 2000mAh
Charging time 3-5 hours
Cutting length 510mm
No load speed 1000/min
Tooth gap of cutter blade 16mm
Sound pressure level LpA 72.5 dB(A)
Uncertainty KpA 3.0 dB(A)
Sound power level LwA 89.7 dB(A)
Uncertainty KpA 3.0 dB(A)
Guaranteed sound power level LwA 92 dB(A)
Rear handle m/s22.6 m/s2
Uncertainty K 1.5 m/s2
WARNING! Depending on the actual use of the product the vibration
values can di󰀨er from the declared total. Adopt proper measures to
protect yourself against vibration exposures. Take the whole work
process including times the product is running under no load or
switched o󰀨 into consideration.
Proper measures include among others regular maintenance and
care of the product and accessories, keeping hands warm, periodical
breaks and proper planning of work processes.
Before you start
1. Unpack all parts and lay them on a at, stable surface.
2. Remove all packing materials and shipping devices, if applicable.
3. Make sure the delivery contents are complete and free of any damage. If you nd that parts are missing or show
damage do not use the product but contact your dealer. Using an incomplete or damaged product represents a
hazard to people and property.
4. Ensure that you have all the accessories and tools needed for assembly and operation. This also includes suitable
personal protective equipment.
WARNING! The product and the packaging are not children’s toys!
Children must not play with plastic bags, sheets and small parts! There
is a danger of choking and su󰀨ocation!
Assembly
Before using the product, familiarise yourself with the operating
features read the entire instruction manual paying particular attention
to the safety rules and operating procedures.
1. 1. Remove the bolt shown in position ‘a’ (right) and loosen the four bolts around the outside of the bracket
(position ‘b’); the two bolts on the other side are not shown. (Fig.2)
2. 2. Insert the pole section into the machine to join the handle and hedge trimmer sections together, observing the
correct orientation. You may need to extend the pole slightly (see step 4 below).
3. 3. Secure the pole in place by inserting the bolt removed from step 1 back into position ‘a’. Pass the bolt through
the corresponding hole in the pole and tighten. Re-tighten the four bolts around the outside of the bracket (b).
4. 4. To adjust the length of the handle, gently turn the dial (Fig.3/item 2) anti-clockwise and extend the pole to the
desired length, then re-tighten the dial.
5. 5. To adjust the angle of the machine, press the angle adjusting button (Fig.4/item 6) and gently move the head
until it is in the desired position.

Charging the battery
1. Remove the battery from the machine.
2. Slide the charging dock onto the battery as shown in the image (Fig.5) and plug the charger into a power socket.
The red light on the plug will turn on to indicate charging is underway.
3. The charger will stop charging once the battery is fully charged (after
4. approximately 3-5 hours). Press the red button on the battery to check the current charge level. Switch o󰀨 the
power source and remove the battery from the charger.
5. The charger may become warm when charging; this is normal and does not indicate a fault with the charger.
WARNING! The product must be fully assembled before operation!
Do not use a product that is only partly assembled or assembled with
damaged parts!
Follow the assembly instructions step-by-step and use the pictures
provided as a visual guide to easily assemble the product!
Do not connect the battery pack to the product before it is completely
assembled!
NOTE: Take care of small parts that are removed during assembly or
when making adjustments. Keep them secure to avoid loss.
Instructions for use
1. Make sure that the battery is fully charged.
2. Check that the machine is in good condition, air vents are clear, and blades are debris free and lubricated.
3. Place the shoulder strap over your shoulder and lift the machine, make sure that you feel comfortable holding it
before you switch it on.
4. Switch the machine on by pressing the main switch then squeeze the handle to start cutting.
5. When you let go of the handle the machine will stop.
6. Always hold the product by the handles. Keep the handles dry to ensure safe support.
7. Do not over work yourself. Take regular breaks to ensure you can concentrate on the work and you have full
control over the product.
8. When cutting wide hedges, cut in several stages, moving the blade in a sweeping motion. For optimum cutting
performance tilt the blade slightly downwards.
9. Do not allow the machine to overheat. If it does, switch it o󰀨 for at least 30 minutes and allow to cool.
10. To prolong the life of the blade and motor, a small amount of 3 in 1 oil can be used to lubricate.
Trimming times
Fig. 6 Fig. 7
When cutting wide hedges with the cutting area in sight move the cutting blade lightly through the cutting
surface in a sweeping motion following the shape of the hedge or shrub. A slight tilt downwards of the cutting
blade in the direction of motion is recommended for optimum cutting performance.
Cut in a number of stages if the area being cut is particularly long to achieve a better result; smaller cuttings
will allow for easy composting.
For reference only

NOTE: When shaping it is advisable to achieve a trapezoidal shape
(Fig. 8). A trapezoidal cut corresponds to the natural growth of plants
and results in optimal hedge growth, as it will expose more light to the
lower end of the hedge.
Fig.8
After use
WARNING! Always switch the product o󰀨, remove the battery pack and
let the product cool down before performing inspection, maintenance
and cleaning work!
1. Keep the product clean. Remove debris from it after each use and before storage.
2. Regular and proper cleaning will help ensure safe use and prolong the life of the product.
3. Inspect the product before each use for worn and damaged parts. Do not operate it if you nd broken and worn
parts.
WARNING! Only perform repairs and maintenance work according to
these instructions! All further works must be performed by a qualied
specialist!
General cleaning
1. Clean the product with a dry cloth. Use a brush for areas that are hard to reach.
2. In particular clean the air vents after every use with a cloth and brush.
3. Remove stubborn dirt with high pressure air (max. 3 bar).
NOTE: Do not use chemical, alkaline, abrasive or other aggressive
detergents or disinfectants to clean this product as they might be
harmful to its surfaces.
1. Check for worn or damaged parts. Replace worn parts as necessary or contact an authorised service centre for
repair before using the product again.
Cutting device (blade)
WARNING! Wear safety gloves when working on the cutting device
and close to it! Use appropriate tools to remove debris, e.g. a brush or
wooden stick! Never use your bare hands!
Always use original spare parts for replacement. Do not attach any
other type of cutting device!
The replacement of the cutting device should be done by a qualied
specialist! Rework or sharpening blades is not recommended unless it
is done by a repair service or a similarly qualied specialist!
1. Keep the cutting device(4) clean and free of debris. Remove trimmings.
2. Apply a small amount of suitable lubricant on the cutting device (4) to retain a good cutting performance (Fig. 4).
For reference only

Fig.9
1. Keep the cutting device (1) sharp. Have a worn or damaged cutting device replaced with a new one of the same
type by a qualied specialist.
2. Tighten loose nuts on the cutting device with an 8 mm wrench with 5 Nm min, 7 Nm max. to ensure safe operation
of the product.
3. Adjust the distance between blades if necessary.
Spare parts/Replacement parts/Repair
The following parts of this product may be replaced by the consumer. Spare parts are available at an authorised
dealer or through our customer service.
This product does not contain any parts that can be repaired by the consumer. Contact an authorised service
center or a similarly qualied person to have it checked and repaired.
Storage
1. Switch the product o󰀨 and remove the battery pack.
2. Clean the product as described above.
3. Attach the blade cover (11).
4. Store the product and its accessories in a dark, dry, frost-free, well-ventilated place.
5. Always store the product in a place that is inaccessible to children. The ideal storage temperature is between
10°C and 40°C.
6. We recommend using the original package for storage or covering the product with a suitable cloth or enclosure to
protect it against dust.
Transportation
1. Switch the product o󰀨 and remove the battery pack.
2. Attach the blade cover (11).
3. Always carry the product by its handle(7).
4. Protect the product from any heavy impact or strong vibrations which may occur during transportation in vehicles.
5. Secure the product to prevent it from slipping or falling over.
Troubleshooting
Suspected malfunctions are often due to causes that the users can x themselves. Therefore check the
product using this section. In most cases the problem can be solved quickly.
WARNING! Only perform the steps described within these instructions!
All further inspection, maintenance and repair work must be performed
by an authorised service center or a similarly qualied specialist if you
cannot solve the problem yourself!
For reference only

Problem Possible cause Solution
Product does not
start
• Battery pack not properly
attached
• Battery pack discharged
• Battery pack damaged
• Other electrical defect to
the product
• Attach properly
• Remove and charge
battery pack
• Replace with a new
one of the same
• Check by a specialist
electrician
Product does not
reach full power
• Battery pack capacity too
low
• Air vents are blocked
• Charge battery pack
• Clean the air vents
Unsatisfactory
result
• Blade is worn/damaged
• Thickness of branches
exceeds capacity
• Replace with a new
one
• Only cut branches
complying with the
capacity
Excessive vibration
or noise
• Blade is dull/damaged
• Bolts/nuts are loose
• Have it replaced with
new one
• Tighten bolts/nuts
Disposal and recycling
The unit is supplied in packaging to prevent its being damaged in transit. This packaging is raw material
and can therefore be reused or can be returned to the raw material system.
The unit and its accessories are made of various types of material, such as metal and plastic. Defective
components must be disposed of as special waste. Ask your dealer or your local council.
For EU countries only
Never place any electric power tools in your household refuse.
To comply with European Directive 2002/96/EC concerning old electric and electronic equipment and
its implementation in national laws, old electric power tools have to be separated from other waste and
disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot.
Recycling alternative to the return request:
As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment
must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment.
The old equipment can be returned to a suitable collection point that will dispose of the equipment
in accordance with the national recycling and waste disposal regulations. This does not apply to any
accessories or aids without electrical components supplied with the old equipment.
Subject to technical changes
