RXAIR RX3000 Manual

RX3000 Manual & Operating Instructions 7/10
Page 2 of 25
Important Safety Instructions
READ AND SAVE THESE INSTRUCTIONS
WARNING - This Air Purification System includes high voltage electricity and mechanical
moving parts. To reduce risk of fire, electric shock or injury to persons, for cleaning and
user-maintenance, such as filter replacement, the appliance must be disconnected from
the power supply prior to servicing.
CAUTION – NEVER operate this equipment without approved RxAir filters correctly
installed.
WARNING –DO NOT operate in the presence of combustible or explosive gases or
powders.

RX3000 Manual & Operating Instructions 7/10
Page 3 of 25
Table of Contents page
1. Foreword ..................................................................................................................... 5
1.1 Warnings and Precautions...................................................................................... 5
1.2 Warnings................................................................................................................. 5
1.3 Precautions:............................................................................................................ 6
2. General Description..................................................................................................... 7
2.1 Intended Use .......................................................................................................... 7
3. Controls and Indicators ............................................................................................... 8
4. Operation..................................................................................................................... 9
4.1 RX3000 Anatomy ................................................................................................... 10
5. Exterior Cleaning and Filter and UV Bulb changes ..................................................... 11
5.1 Exterior cleaning..................................................................................................... 11
5.2 Replacement of HEPA filter assembly ................................................................... 12
5.3 UV Bulb Replacement ............................................................................................ 13
5.4 Pre-Filter Installation .............................................................................................. 14
5.5 Trouble Shooting .................................................................................................... 15
5.7 Fuse inspection/change procedure Rx3000........................................................... 16
6. Lockout/Tag-out & Decontamination Procedure ......................................................... 17
6.1. Powering the unit “off” ........................................................................................... 17
6.2 Powering the unit “on” ............................................................................................ 17
6.3. Cleaning/Decontamination .................................................................................... 17
6.4. Replacing Filters.................................................................................................... 17
6.5 Replacement of the Germicidal UV Bulb................................................................ 18
7. Accessories ................................................................................................................. 19
8. Performance Specifications......................................................................................... 19
8.1 Limitations .............................................................................................................. 20
8.2 How to Get Help ..................................................................................................... 20
8.3 Warranty................................................................................................................. 21
8.4 RxAir’s Responsibility............................................................................................. 22
9. Electrical Circuit Diagram ............................................................................................ 23
10. HEPA Module Filter Log............................................................................................ 24
11. Pre-Filter Log............................................................................................................. 25

RX3000 Manual & Operating Instructions 7/10
Page 4 of 25
Table of Figures page
Figure 1: Controls & Indicators 8
Figure 2: Power Cord Warning 9
Figure 3: RX3000 Anatomy 10
Figure 4: HEPA Installation 12
Figure 5: UV Bulb Replacement 13
Figure 6: Pre-Filter Support Bars 14
Figure 7: Pre-Filter being installed 14
Figure 8: Fuse Holder 16

RX3000 Manual & Operating Instructions 7/10
Page 5 of 25
1. Foreword
Do not operate this device before reading these instructions.
This manual is intended to provide information for the proper operation and use of the
RXAIR 3000 air purifier.
General maintenance instructions are contained in this manual. Additional information or
assistance is available by contacting your authorized RxAir representative or by calling
RxAir customer support. [phone] or [phone]
1.1 Warnings and Precautions
A warning is provided if there is reasonable evidence of an association of a serious
personal hazard with the use of this device. A precaution is provided when special care
is to be exercised by the user for proper operation of this device or to avoid causing
damage to this device or other property.
A note is provided when general information is applicable.
1.2 Warnings
Electrical Shock Hazard - Refer all servicing to qualified personnel or
RxAir representatives. Replacement of the filter should only be
performed by qualified personnel.
Outlet Hazard - A properly grounded outlet at the wall power source
must be assured for proper operation and safety.
Plug Hazard -Do not alter the machine electrical plug in any manner
or otherwise force the plug into the wall unit.
Fire Hazard - Continued protection against a fire hazard requires
that all fuses and circuit breakers are replaced with the
recommended type and rating.
Cleaning Hazard - Do not clean or service this device while it is on
and/or plugged in.
Filter Hazard – DO NOT operate the unit without the HEPA Filter
installed. Use only RXAir certified filters.

RX3000 Manual & Operating Instructions 7/10
Page 6 of 25
1.3Precautions:
Observe all Precaution and Warning labels on the device.
Never place fluids on the top surface of the device.
Use only RxAir recommended accessories and parts with this
device.
When cleaning the surface of the unit, do not use excessive
amounts of liquid.
Always place the device on a rigid flat surface and utilize locking
wheels when necessary.

RX3000 Manual & Operating Instructions 7/10
Page 7 of 25
2. General Description
2.1Intended Use
The RxAir 3000 is designed to circulate room air through its patented multistage HEPA
filter to remove microbial airborne particulate. Contaminated air is therefore continuously
purified by passing through the RxAir filter. Twelve air changes per hour are easily
achieved in an 18 ft x 20 ft room resulting in a continuous cleansing or “washing” of the
room air. This is analogous to hand washing's effect on skin contamination and helps to
control airborne particulates.
The effectiveness of the device is dependent upon room parameters such as room size,
central heat and air, doors, windows, etc. RxAir consultants are available for detailed
analysis of room parameters. As a general rule it is necessary to keep windows and
doors closed for maximum effectiveness of the RxAir unit.
The RxAir unit is easily utilized in any room where air cleansing is desired, such as
restaurants, offices, classrooms, health care rooms, waiting rooms, and day care
facilities. The technical support staff at RxAir is available for consultation and support.

RX3000 Manual & Operating Instructions 7/10
Page 8 of 25
3. Controls and Indicators
Figure 1: Controls & Indicators
Power Switch
Press to turn the unit on or off.
Blower Switch
Press to alternately select Hi or Low blower speeds.
On Indicator
Illuminates when the unit power swtich is in the On position and the unit is plugged in.
HI / LOW Blower Indicators
Illuminates to indicate Hi or Low speed of the blower. The blower indicator is only visible
when the unit power switch is in the On position and the unit is plugged in.
Replace UV Bulb Indicator
Flashes when the UV bulb requires replacement. See maintenance section.
Replace Filter Indicator
Illuminates when the HEPA filter requires replacement. See maintenance section.
Switches
Lighted Indicators

RX3000 Manual & Operating Instructions 7/10
Page 9 of 25
4. Operation
The RxAir air purifier is easy to operate.
Position the unit on a flat floor surface.
Plug the flat end of the power supply
cord into the inset located in the rear left
corner of the unt and then insert the
inverse side of the power supply cord
into a 120V electrical outlet.
Warning!
Ensure proper ground before use.
Figure 2: Power Cord Warning
A properly installed electrical outlet is an essential part of overall safety. If you have any
questions as to the status of the electrical power outlet please call a qualified electrical
contractor.
The unit may then be turned on by pressing the POWER switch at which time the ON
indicator light will illuminate and the blower and UV system will operate. Select blower
speed High or Low by pressing the BLOWER switch and the indicator will change
accordingly.
The REPLACE UV BULB indicator will flash if the sensor detects a non-functioning UV
lamp. Note: See also section 6.4.
The REPLACE FILTER indicator will be on if the sensor detects low air flow through the
filter. Note: The HEPA Filter requires replacement if the indicator lamp is on.

RX3000 Manual & Operating Instructions 7/10
Page 10 of 25
4.1 RX3000 Anatomy
Figure 3: RX3000 Anatomy
Fuse holder
Isolator switches
Unit serial # is located on
this label.
Capacitor
Unit batch # is located on
this label
UV lamp
Power receptacle
Blower assembly
UV ballast
Filter retaining latch
& Rubber T handles
Power cord
Locking casters
HEPA filter
Filter serial # is located on
this label

RX3000 Manual & Operating Instructions 7/10
Page 11 of 25
5. Exterior Cleaning and Filter and UV Bulb changes
5.1 Exterior cleaning
TURN UNIT OFF AND UNPLUG FROM ELECTRICAL POWER.
Do not use excessive moisture.
Use a soft lint free cloth, dampened with any standard cleaner or disinfectant to
wipe the exterior of the unit. Allow to dry thoroughly before applying electrical
power.
[This porition of the page intentionally blank]

RX3000 Manual & Operating Instructions 7/10
Page 12 of 25
5.2 Replacement of HEPA filter assembly
TURN UNIT OFF AND UNPLUG FROM ELECTRICAL POWER.
Open new filter carton. You should have received 1 HEPA RX3000 filter.
Step 1: Remove new filter from carton. AVOID TOUCHING HEPA FILTER WITH
HANDS. APPLYING PRESSURE ON FILTER WILL REDUCE ITS
EFFECTIVENESS.
Step 2: Open rear panel door of the RxAir unit. (Figure 4)
Step 3: Grasp the flexible rubber T handles and pull up to release the filter assembly.
(Figure 3)
Step 4: Grasp the filter handle and carefully lift and pull filter toward you until the filter
is clear of the RxAir unit. Place old filter assembly in carton.
Step 5: Grasp new filter assembly by the handle and insert into the RxAir unit, with
care not to damage the filter seal, slide filter all the way forward. (Figure 3)
Step 6: Grasp the flexible rubber T handles and pull up to engage clips on the filter
assembly. (Figure 3)
Step 7: Replace rear panel door of the RxAir unit. (Figure 4)
Step 8: Re-plug the cord and turn on the power.
Step 9: Record new filter’s installation date on filter decal and in the filter log located
inside the back cover of the owner’s manual.

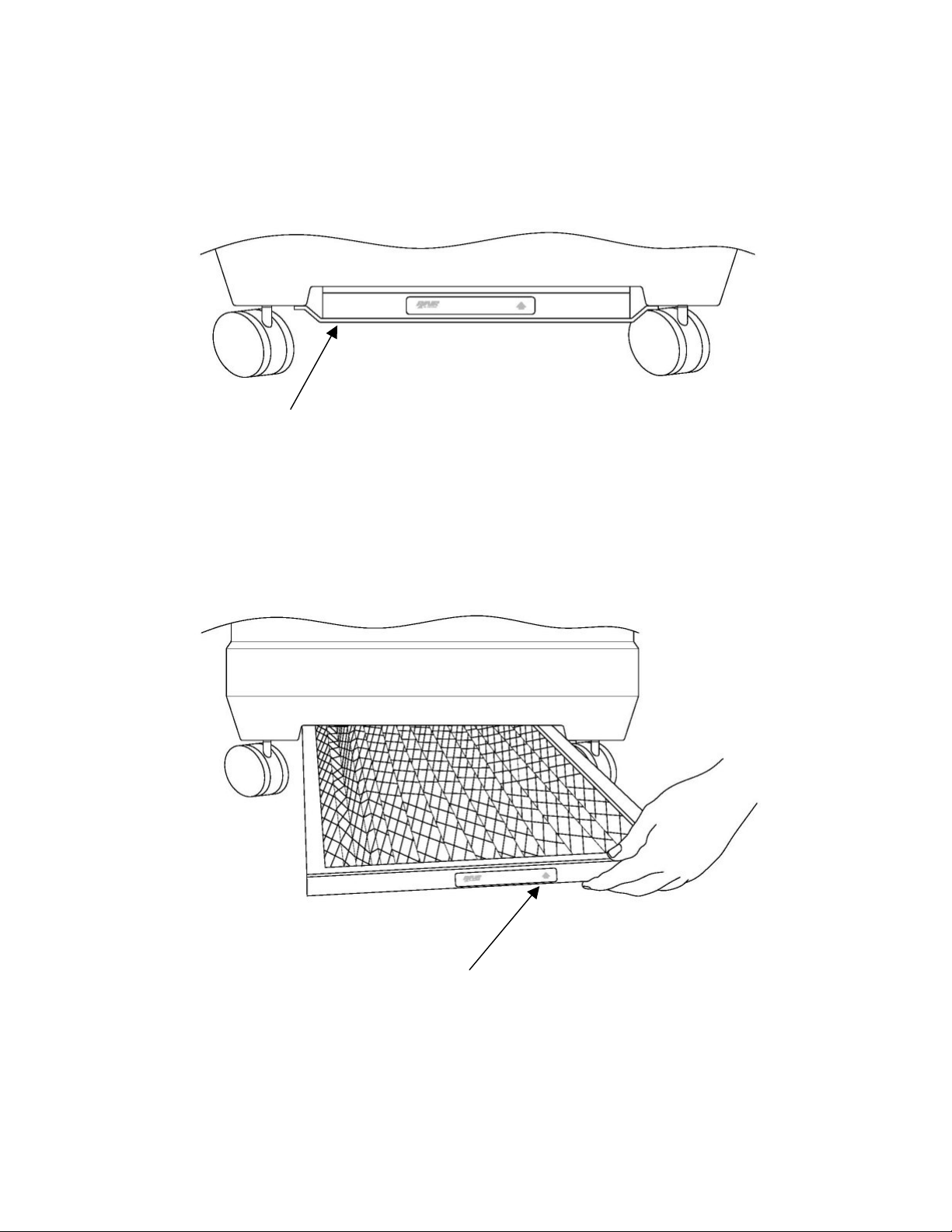

Figure 4: HEPA Installation

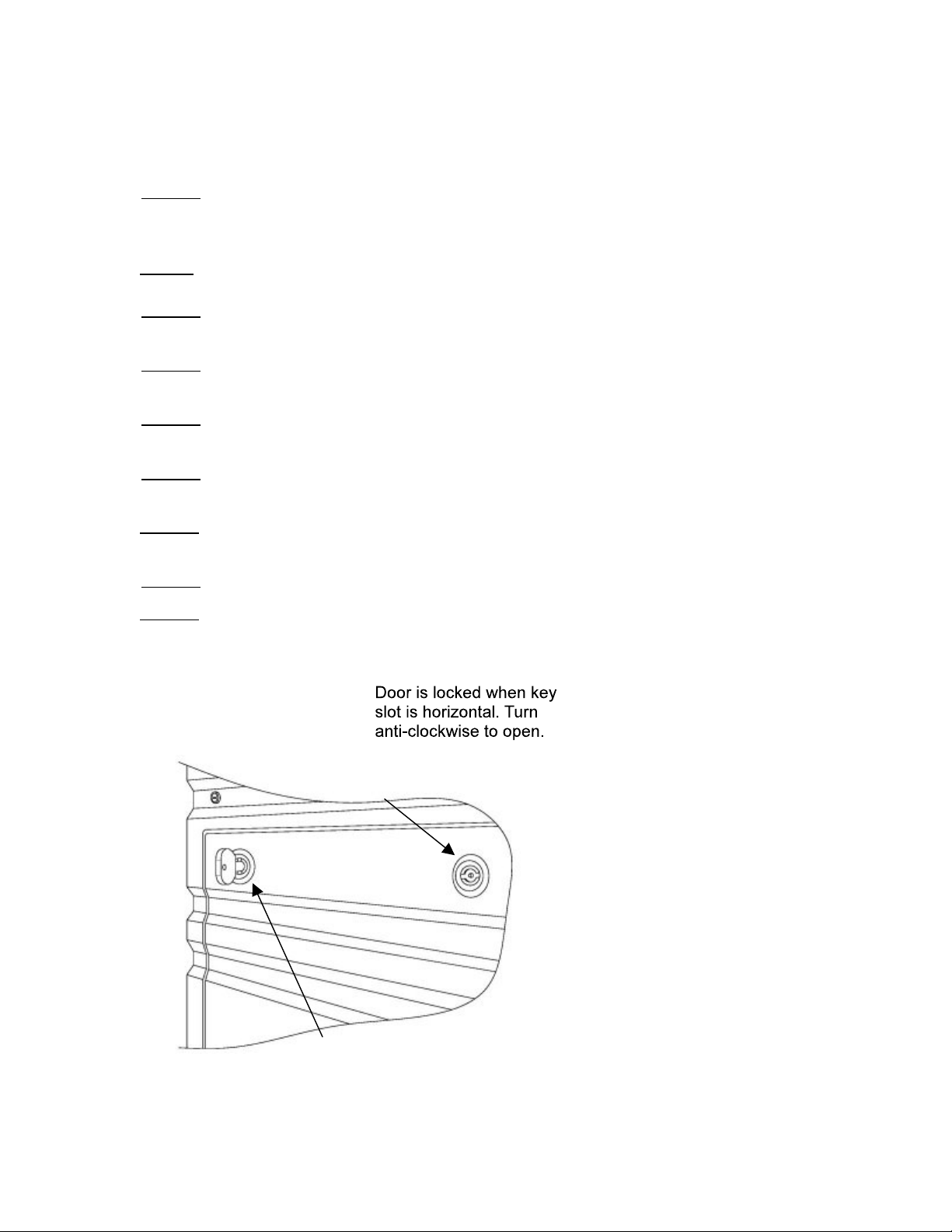

Turn key clockwise until key
slot is vertical to release.

RX3000 Manual & Operating Instructions 7/10
Page 13 of 25
5.3 UV Bulb Replacement
Remove the old bulb from the bulb receptacle first, by twisting it 90 degrees in
either direction and second, by pulling the bulb downward. Follow your facility
disposal protocols with consideration as to how the RXAir unit was used.
Install the new bulb, taking special care to handle the bulb at each metal end;
touching the glass will decrease the life of the bulb. Insert the bulb and then twist
it 90 degrees to secure in place.
Figure 5: UV Bulb Replacement
For replacement of other serviceable parts please contact RXAir Customer
Service at [phone].
Handle the bulb at each metal end;
touching the glass will decrease the
life of the bulb

RX3000 Manual & Operating Instructions 7/10
Page 14 of 25
5.4 Pre-Filter Installation
Figure 6 below illustrates the Pre-Filter in position on the Pre-Filter Support Bars.
Figure 6: Pre-Filter Support Bars
Figure 7 below illustrates the Pre-Filter being installed. Ensure the end of the filter seats
onto the support bars shown in Figure 6.
Figure 7: Pre-Filter being installed
Filter Latch
T-Handle
Locks
Pre-Filter Support
Bars
Arrow showing direction of airflow
points upwards

RX3000 Manual & Operating Instructions 7/10
Page 15 of 25
5.5 Trouble Shooting
Problem - Possible Causes and Remedies
1. Unit does not operate –
Unit may be turned off-check switches
Unit possibly unplugged
Check or change power outlet
Ensure rear door is firmly secured
Check fuse-only replace with Bussman part
#MDL-5 (Refer to Fig 6 on the next page)
Contact your representative or RxAir
2. Replace filter indicator -
Check for restrictions in front of filter
Check and/or change pre-filter
Check filter age-may need new filter
Contact your representative or RxAir
3. Replace UV bulb indicator - Check bulb installation
Replace bulb
Contact your representative or RxAir
4. Unit emits unusual noise or smell - Turn unit off
Unplug unit
Contact your representative or RxAir
Note: Always contact an authorized RxAir representative or distributor for service of any
RxAir product. Call RxAir Customer Service for assistance in locating the nearest
representative. [phone] or [phone]
Fig. B. Shows the Pre-Filter being installed. Ensure the arrow showing direction of airflow points upwards and
that the filter seats onto the support bars shown in Fig. A.

RX3000 Manual & Operating Instructions 7/10
Page 16 of 25
5.7 Fuse inspection/change procedure Rx3000
The fuse holder is mounted on the rear of the plastic cabinet, it is located just above the
access door on the left hand side of the cabinet (see image below).
Figure 8: Fuse Holder
Remove the fuse.
Insert a flat point screwdriver into the slot on the fuse holder. Push on the screwdriver to
release the spring pressure and . The light grey portion of the fuse holder will then
protrude from the cabinet and can be removed to expose the fuse.
Inspect the fuse.
The fuse elements of a good fuse should be easily viewed through the clear quartz
envelope of the fuse. If the quartz envelope is discolored or broken the fuse should be
replaced.
Replace fuse.
Pull old fuse from the light grey fuse holder and replace with a new fuse. Place the fuse
and holder in the cabinet and lock in place by inserting light pressure on the screwdriver
and turning the screwdriver one quarter turn in a clockwise direction.
IMPORTANT: Replace only with Bussmann fuse part # MDL-5.
Turn anti-clockwise
one quarter of a turn
Fuse will be released
when slot is vertical.
(see instruction below)
Fuse holder

RX3000 Manual & Operating Instructions 7/10
Page 17 of 25
6. Lockout/Tag-out & Decontamination Procedure
If you need help, please contact customer service at 1-800-231-3248
6.1. Powering the unit “off”
When the unit is running, switch the power button to the “off” position, located on
the control panel.
Next, unplug the plug end of the 3000M power cord from the power service outlet.
Then, unplug the connector end of the 3000M power cord from the units cord
receptacle.
Note: When the unit is not in use; remove and store the power cord to prevent
unauthorized use of the equipment.
6.2 Powering the unit “on”
Plug in the connector end of the 3000M power cord into the units receptacle.
Next, plug in the plug end of the 3000M power cord into the power service outlet,
verifying the outlet is a grounded service outlet.
Then, select the power button to the “on” position on the control panel.
Note: When the unit is switched to the “off” position, it does not store electricity in any
battery system. When the unit is turned off the power will dissipate from the capacitor
and can only function when the electric motor is powered in the “on” position.
6.3. Cleaning/Decontamination
If your unit was used in a medical application such as isolation of an known infectious
patient follow the proceedures as advised by your infection control department.
Note: If aerosol disinfectants are used, take precautions to not spray directly on motor
and electrical components.
Note: As a precaution, the unit should not be run until all cleaning agents have
sufficiently dried.
6.4. Replacing Filters
With the rubber seal facing down, slide the modular filter into the unit, pushing it
back with a slight angle upward until the filter pack has cleared the door.
Let the filter rest on the bottom of the unit and push into the back until it will no
longer move.
Secure the front of the Modular HEPA filter with the two black fasteners, attaching
them to the filter.
Secure the door and lock both locks on the back of the door.

RX3000 Manual & Operating Instructions 7/10
Page 18 of 25
Replace the pre-filter, with the seal facing up, loading it from the front of the unit.
Follow power up procedures for use.
Note: It is recommended that pre-filters are changed once-monthly during regular use.
For healthcare facilities Infection Control Protocols should be established for filter
changes of both filters when used for isolation of an identified hot patient.
Note: We recommend changing the modular filter annually to maintain peak
performance during standard purification uses; it is recommended that you document
your filter changes in a log, either in the one provided in the product manual or one that
you develop to maintain a schedule.
6.5 Replacement of the Germicidal UV Bulb
The Germicidal UV bulb installed in the RxAir 3000 is rated at a life cycle of
8000 hours. An infection control protocol should be established regarding
the frequency of changing of a new bulb for service life. All uv bulbs lose a
percentage of effectiveness through the life cycle. The manufacturer rates
this loss at no greater than 20% over its life.
Remove the old bulb from the bulb receptacle first, by twisting it 90 degrees
in either direction and second, by pulling the bulb downward. Follow your
facility disposal protocols with consideration as to how the RxAir unit was
used.
Install the new bulb, taking special care to handle the bulb at each metal
end; touching the glass will decrease the life of the bulb. Insert the bulb and
then twist it 90 degrees to secure in place.
WARNING: This system contains a germicidal UV light that is inactive
when the blower is not running. Additionally, there is a dual safety switch
that allows the unit to run –only when the back panel is secured. This
safety system should not be by-passed as direct viewing of uv can
seriously damage your eyesight.

RX3000 Manual & Operating Instructions 7/10
Page 19 of 25
7. Accessories
Visit our web site or see brochure enclosed with your unit.
Please contact an authorized RxAir representative or distributor for replacement filter
assemblies and other RxAir accessories. Call RxAir Customer Service for assistance in
locating the nearest representative. [phone] or [phone]
8. Performance Specifications
General
Filter 5-stage combination HEPA with UV
Air Changes per Hour 13 @ 3,000 cu. ft.
Air Flow in C.F.H. 39,000 / 27,000
Dimensions 21" W x 24" L x 35" H
Weight 86 lbs.
Chassis Polyethylene
AC Power Requirements 110-125 volts 50/60hz AC 3.5 amps (avg.)
HEPA filter
Certified HEPA filter- Minimum efficiency of 99.97% on 0.3 micron particles
Five stage filtration consists of:
External pre-filter
Germistatic filter
Electrostatic filter
HEPA
RxSorb Charcoal absorber
UV-C Germicidal ultraviolet lamp
8 watts
12” overall length
Ozone free quartz envelope
Safety
100% Dielectric Withstand Test to UL Standards.
100% Ground Continuity test to UL standards.

RX3000 Manual & Operating Instructions 7/10
Page 20 of 25
Environmental Characteristics
Operating Temperature: 50-110 degrees Fahrenheit, 10-40 degrees Centigrade
Operating Humidity: 5 to 90% maximum, non-condensing
Storage Temperature: -20 to + 60 degrees Centigrade
Storage Humidity: 5 to 95%, non-condensing.
Operating Altitude: Sea level to 8,000 feet.
Specifications are subject to change without notice.
8.1 Limitations
The number of room air changes per hour by the RxAir Air Purifier is dependent not only
upon device performance but by any other environmental factors which can affect room
air. These include but are not limited to central heat and air conditioning, windows, and
doors. If any of these factors add or remove room air then the number of room air
changes per hour will be affected.
Call RxAir Customer Service for a technical representative if assistance in determining
the number of room air changes per hour is required.
8.2 How to Get Help
RxAir maintains a network of authorized representatives and factory-trained distributors.
Contact RxAir Customer Service for assistance in determining the nearest support
facility.
Please include the device model number, the serial number, and a description of
the problem with all requests for service or assistance. RXAir: [phone] or
[phone].
