RXAIR RX4500 Manual

RX4500 Manual & Operating Instructions 7/10
www.RXAIR.com 1

RX4500 Manual & Operating Instructions 7/10
www.RXAIR.com 2
Important Safety Instructions
READ AND SAVE THESE INSTRUCTIONS
This Air Purification System includes high voltage electricity and mechanical moving parts. To
reduce risk of fire, electric shock, or injury to persons, for cleaning and user-maintenance, such
as filter replacement, the appliance must be disconnected from the power supply prior to
servicing.
WARNING: To Reduce The Risk Of Electric Shock, Do Not Use This Fan With Any Solid-State
Speed Control Device.
WARNING: DO NOT operate in the presence of combustible or explosive gases or powders.
CAUTION: NEVER operate this equipment without serviceable approved RxAir filters correctly
installed.
CAUTION: ALWAYS lock the unit’s maintenance access doors and remove the keys when the
unit is in operation to prevent access by unauthorized people.
Additionally for ducted appliance
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
a. Installation work and electrical wiring must be done by qualified person(s) in accordance
with all applicable codes and standards, including fire-rated construction.
b. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other
hidden utilities.

RX4500 Manual & Operating Instructions 7/10
www.RXAIR.com 3
Table of Contents page
1. Foreword................................................................................................................................. 5
1.1. Warnings and Precautions................................................................................................ 5
1.2 Warnings............................................................................................................................ 5
1.3 Precautions:....................................................................................................................... 6
2. General Description ................................................................................................................ 7
2.1 Components ...................................................................................................................... 8
3. Controls and Indicators........................................................................................................... 9
4. Installation............................................................................................................................. 10
4.1 Voltage Settings 208 or 230 VAC .................................................................................... 11
4.2 Duct Mounting Instructions .............................................................................................. 12
5. Operation .............................................................................................................................. 13
6. Maintenance, filter and UV bulb (optional)............................................................................ 14
6.1 Exterior cleaning .............................................................................................................. 14
6.2 Replacement of filters ...................................................................................................... 14
7. Trouble Shooting .................................................................................................................. 16
8. Accessories .......................................................................................................................... 17
9. Performance Specifications .................................................................................................. 18
9.1 Limitations........................................................................................................................ 19
10. How to Obtain Help............................................................................................................. 19
11. Warranty ............................................................................................................................. 20
12. RxAir’s Responsibility ......................................................................................................... 20
13. HEPA Module Filter Log ..................................................................................................... 21
14. Pre-Filter Log ...................................................................................................................... 22

RX4500 Manual & Operating Instructions 7/10
www.RXAIR.com 4
Table of Figures page
Figure 1: Front View ................................................................................................................... 8
Figure 2: Rear View .................................................................................................................... 8
Figure 3: Controls and Indicators................................................................................................ 9
Figure 4: Circuit Compartment.................................................................................................. 11
Figure 5: Transformer (Circuit).................................................................................................. 11
Figure 6: Duct Installation ......................................................................................................... 12
Figure 7: Open Filter Door ....................................................................................................... 15
Figure 8: Filter Removal .......................................................................................................... 15
Figure 9: Filter Placement........................................................................................................ 15

RX4500 Manual & Operating Instructions 7/10
www.RXAIR.com 5
1. Foreword
This manual is intended to provide information for the proper operation and use of the RxAir
4500 air purifier.
Do not operate this device before reading these instructions.
General maintenance instructions are contained in this manual. Additional information or
assistance is available by contacting your authorized RxAir representative or by calling RxAir
customer support. [phone]
1.1. Warnings and Precautions
A warning is provided if there is reasonable evidence of an association of a serious personal
hazard with the use of this device.
A precaution is provided when special care is to be exercised by the user for proper operation
of this device or to avoid causing damage to this device or other property.
A note is provided when general information is applicable.
1.2 Warnings
Electrical Shock Hazard - Refer all servicing to qualified personnel or
RxAir representatives. Replacement of the filter should only be performed
by qualified personnel.
A properly grounded outlet at the wall power source must be assured for
proper operation and safety.
Note: Do not alter the machine electrical plug in any manner or otherwise
force the plug into the wall unit.
Continued protection against a fire hazard requires that all fuses and
circuit breakers are replaced with the recommended type and rating.
Cleaning - Do not clean or service this device while it is on and/or plugged
in.
Filter – DO NOT operate the unit without the HEPA Filter installed. Use
only RXAir certified filter.

RX4500 Manual & Operating Instructions 7/10
www.RXAIR.com 6
1.3 Precautions:
Observe all Precaution and Warning labels on the device.
Never place fluids on the top surface of the device.
Use only RxAir accessories and parts with this device.
When cleaning the surface of the unit, do not use excessive amounts of liquid.
Always place the device on a rigid flat surface and utilize locking wheels when
necessary.

RX4500 Manual & Operating Instructions 7/10
www.RXAIR.com 7
2. General Description
Intended Use
The RxAir 4500 is designed to circulate room air through the patent pending multistage HEPA
filter to remove microbial airborne particulates. Contaminated air is therefore continuously
purified by passing through the RxAir filter. 5 air changes per hour are easily achieved in a 35
ft x 100 ft x 16 ft (16ft ceiling height) room resulting in a continuous cleansing or “washing” of
the room air. This is analogous to hand washing's effect on skin contamination and helps to
control airborne particulates.
The effectiveness of the device is dependent upon room parameters such as room size,
central heat and air, doors, windows, etc. RxAir consultants are available for detailed analysis
of room parameters. As a general rule it is necessary to keep windows and doors closed for
maximum effectiveness of the RxAir unit.
The RxAir is easily utilized in any room where air cleansing is desired, such as offices,
classrooms, health care rooms, waiting rooms, and day care facilities. The technical support
staff at RxAir is available for consultation and support.

RX4500 Manual & Operating Instructions 7/10
www.RXAIR.com 8
2.1 Components
Figure 1: Front View
Figure 2: Rear View

RX4500 Manual & Operating Instructions 7/10
www.RXAIR.com 9

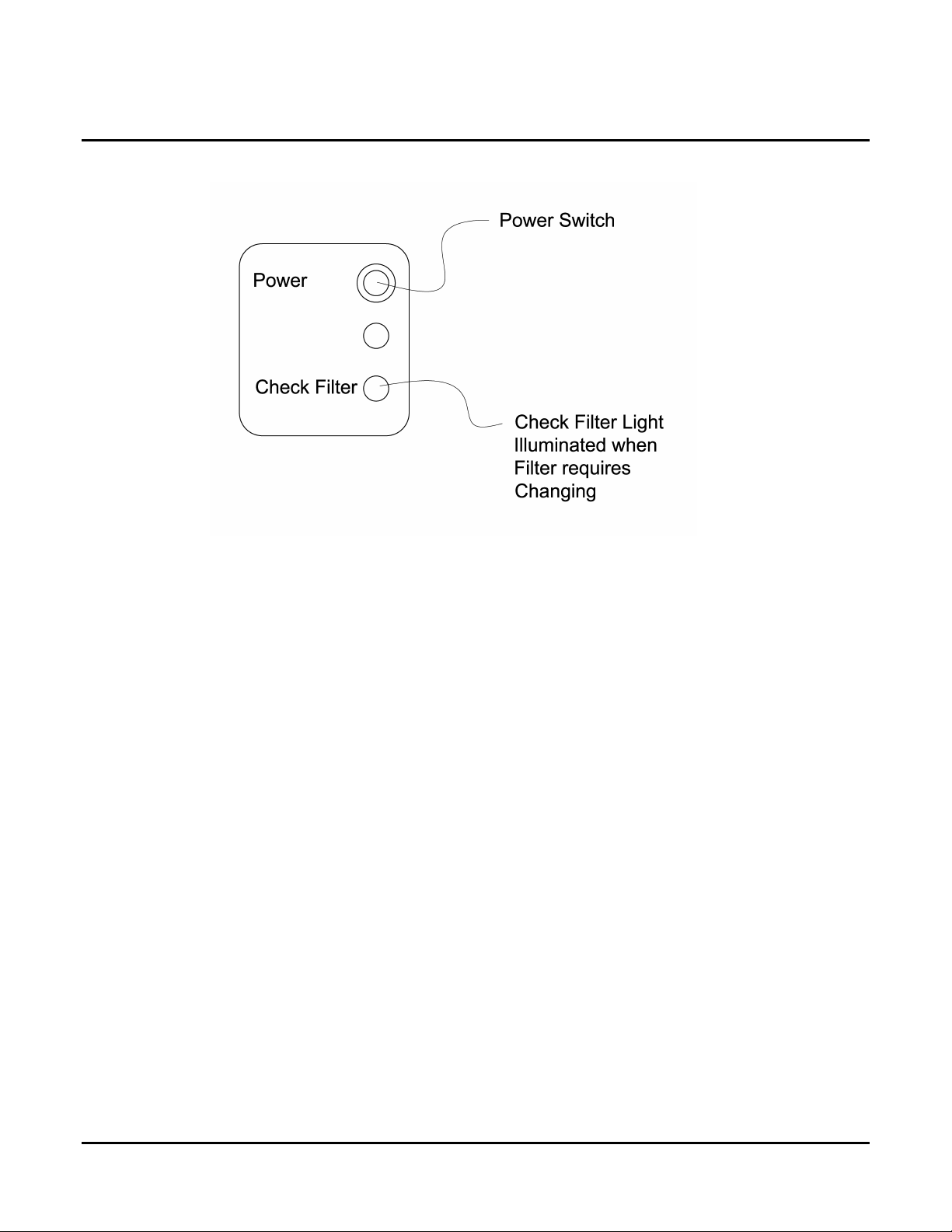

3. Controls and Indicators
Figure 3: Controls and Indicators
Power Switch
Press to turn the unit ON or OFF.
UV System Indicator (optional)

RX4500 Manual & Operating Instructions 7/10
www.RXAIR.com 10
4. Installation
Install the purifier on a flat surface with adequate room for airflow, at least six (6) inches from
the wall or other solid objects. Once positioned, engage caster locks to prevent movement.
Do Not place the unit:
Next to a source of flame;
In an area where oil is likely to splash;
In an area that is exposed to direct sunlight;
In an area where water is likely to splash;
Near loose materials such as fabrics;
Outdoors;
Always place the unit in upright position.
CAUTION:
All duct-mounted installations must be filled wired in accordance with local
and national electrical codes.
Qualified engineering professionals must carry out ducting design and
installation.
The power source must be 208 or 230 VAC (see instructions on page 4)
Take special care to keep children away from the unit.

RX4500 Manual & Operating Instructions 7/10
www.RXAIR.com 11

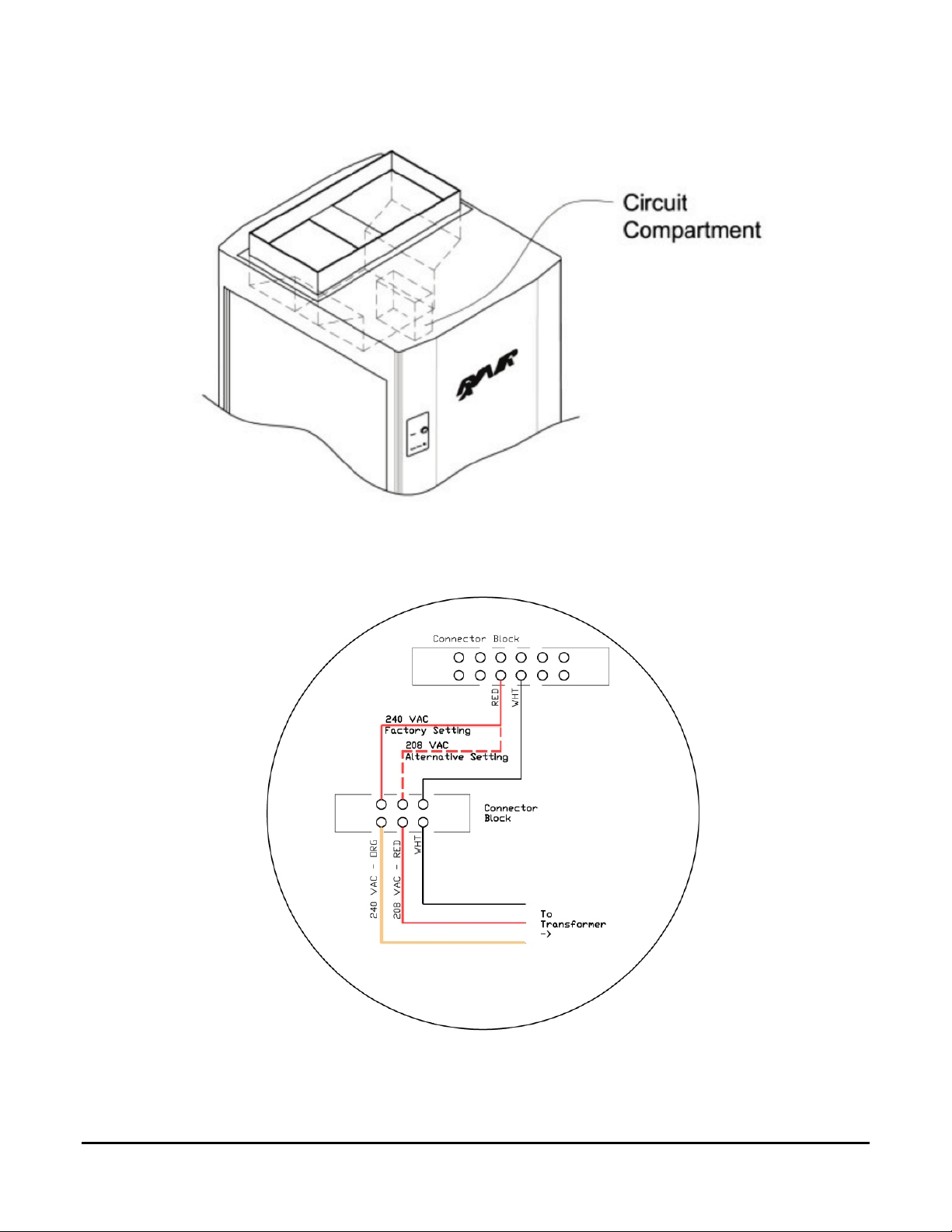

4.1 Voltage Settings 208 or 230 VAC
Figure 4: Circuit Compartment
Figure 5: Transformer (Circuit)

RX4500 Manual & Operating Instructions 7/10
www.RXAIR.com 12
Caution
Contractor to ensure that the Electrical Supply matches the Transformer Settings.
4.2 Duct Mounting Instructions
Figure 6: Duct Installation
Notes
Duct adapter is supplied attached to air purifier by RxAir.
Contractor to attach flexible duct adapter to the outlet duct using #8-24 x 1/2!! TEC screws at a
minimum spacing of 6!!

RX4500 Manual & Operating Instructions 7/10
www.RXAIR.com 13
5. Operation
The RxAir air purifier is a very simple unit to operate. Position the unit on a flat floor surface.
Plug the power plug into an electrical power outlet. A properly installed electrical outlet is an
essential part of overall safety. If you have any questions as to the status of the electrical
power outlet please call a qualified electrical contractor.
The unit may then be turned on by pressing the POWER switch at which time the ON indicator
should indicate that the unit is running.
The UV BULB indicator will be on. If the sensor detects a non-functioning UV lamp (optional)
the indicator lamp will flash.
The FILTER indicator will be on only if the sensor detects low airflow through the filter. Note:
The pre filter or the main filter requires replacement if the indicator lamp is o

RX4500 Manual & Operating Instructions 7/10
www.RXAir.com 14
6. Maintenance, filter and UV bulb (optional)
6.1 Exterior cleaning
TURN UNIT OFF AND UNPLUG FROM ELECTRICAL POWER.
Do not use excessive moisture.
Use a soft lint free cloth, dampened with any standard cleaner or disinfectant to
wipe the exterior of the unit. Allow to dry thoroughly before applying electrical
power.
6.2 Replacement of filters
Note: Although the filter assembly is designed to continuously disinfect itself and has a
germicidal barrier at the filter inlet it should be handled appropriately for your safety.
Please refer to the figures on the next page when reading these instructions.
Step 1: Remove new filters from cartons.
Step 2: Unlock and open side panel doors (one on each side) of the RxAir 4500 unit.
Step 3: Grasp the filter and carefully lift and pull filter toward you until the filter is clear
of the RxAir 4500 unit.
Step 4: Grasp new filter assembly and insert into the RxAir 4500 unit, slide filter all
the way inward.
Step 5: Replace and lock side panel doors of the RxAir 4500 unit.
Step 6: Dispose of filters and UV bulbs per direction of your facilities manager.
Step 7: Re-plug the cord and turn on the power.
Step 8: Record new filter’s installation date on filter decal and in the filter log located
inside the back cover of the owner’s manual.

RX4500 Manual & Operating Instructions 7/10
www.RXAir.com 15
Figure 7: Open Filter Door
Warning: Ensure doors are locked after filter installation to prevent unauthorized access.
Figure 8: Filter Removal
Removal and replacement of pre-filters
Figure 9: Filter Placement
Ensure arrows on filter indication airflow direction point to the inside of the unit

RX4500 Manual & Operating Instructions 7/10
www.RXAir.com 16
7. Trouble Shooting
Problem - Possible Causes and Remedies
1. Unit does not operate
Unit possibly unplugged
Check or change power outlet
Ensure side doors are firmly secured
Contact your representative or RxAir
2. Replace filter indicator
Check for restrictions in front of filter
Check and/or change pre-filter
Check filter age-may need new filter
Contact your representative or RxAir
3. Replace UV bulb indicator (optional)
Check bulb installation
(Replace bulb)
Contact your representative or RxAir
4. Unit emits unusual noise or smell
Turn unit off
Unplug unit
Contact your representative or RxAir
Note: Always contact an authorized RxAir representative or distributor for service of any
RxAir product. Call RxAir Customer Service for assistance in locating the nearest
representative. [phone].

RX4500 Manual & Operating Instructions 7/10
www.RXAir.com 17
8. Accessories
Please contact an authorized RxAir representative or distributor for replacement filter
assemblies and other RxAir accessories. Call RxAir Customer Service for assistance in
locating the nearest representative. [phone].

RX4500 Manual & Operating Instructions 7/10
www.RXAir.com 18
9. Performance Specifications
General
Filter 5-stage combination HEPA with UV
Air Changes per Hour 270,000 cubic feet
Air Flow in C.F.M 4500 (max)
Dimensions 31" W x 36" L x 74.5" H
Weight 250 lbs.
Chassis Aluminum
AC Power Requirements 208-230 volts / single phase / 60hz / 17.5 amps
HEPA filter
HEPA filter- Minimum efficiency of 99.97% on 0.3 micron particles. Five stage filtration
consists of:
External prefilter
Germistatic prefilter
RxTrete electrostatic prefilter
HEPA
Charcoal absorber
UV-C Germicidal ultraviolet lamp (optional)
16 watts
18” overall length
Ozone free quartz envelope
Environmental Characteristics
Operating Temperature 50-110 degrees Fahrenheit, 10-40 degrees Centigrade
Operating Humidity 5 to 90% maximum, non-condensing
Storage Temperature -20 to +60 degrees Centigrade
Storage Humidity 5 to 95%, non-condensing.
Operating Altitude Sea level to 8,000 feet.

RX4500 Manual & Operating Instructions 7/10
www.RXAir.com 19
9.1 Limitations
The number of room air changes per hour by the RxAir Air Purifier is dependent not only
upon device performance but by any other environmental factors which can affect room air.
These include but are not limited to central heat and air conditioning, windows, and doors. If
any of these factors add or remove room air then the number of room air changes per hour
will be affected.
RxAir Customer Service for a technical representative if assistance in determining the
number of room air changes per hour is required.
10. How to Obtain Help
RxAir maintains a network of authorized representatives and factory trained distributors.
Contact RxAir Customer Service for assistance in determining the nearest support facility.
Please include the device model number, the serial number, and a description of the problem
with all requests for service or assistance. Customer Service: [phone].

RX4500 Manual & Operating Instructions 7/10
www.RXAir.com 20
11. Warranty
1. Statement of Product Warranty
RxAir warrants that this product will be free from defects in workmanship and materials for a
period of five years from the date of purchase. Liability under this warranty and the buyer's
exclusive remedy under this warranty is limited to servicing or replacing, at RxAir’s option, at
the factory or at an authorized RxAir distributor, any product which shall under normal use
and service appear to the Company to have been defective in material or workmanship.
2. Duration of Warranty
The complete assembly (excluding filters, UV lamps, and lamp starters) shall be warranted
for a period of one year from purchase date.
Filters, UV lamps, and lamp starters shall be warranted against defects in parts or
workmanship for a period of 30 days from in service date.
3. Limitations of Warranty
Damage to any product or part through misuse, neglect, accident, or by affixing any
nonstandard accessory attachments or by any customer modification voids this warranty.
Any service other than lamp or filter replacement without the written authority of RxAir or its
authorized agents voids this warranty.
A condition of this warranty is that this equipment or any accessories claimed to be defective
be returned, when authorized by RxAir, freight prepaid to RxAir.
RxAir shall not be liable for any incidental, special, or consequential loss, damage, or
expense directly or indirectly arising from the use of its products.
Note: This constitutes the warranty in its entirety. No agent, employee, or representative of
RxAir has the authority to bind RxAir to any additional affirmation, representation, or warranty
concerning its products. Such affirmation, representation or warranty made by any agent,
employee, or representative shall not be enforceable as to RxAir.
12. RxAir’s Responsibility
RxAir is responsible for the reliability and performance of the equipment only if:
Assembly operations, readjustments, modifications, updates, or repairs are carried out
by persons authorized by RxAir; and
The electrical installation of the power system complies with product requirements and
meets all applicable National Electrical Code specifications and the equipment is used
in accordance with these instructions.
