ryan REN-O-THIN 544865B User manual

Part No. 2703562
TECHNICAL MANUAL
Operation, Parts, Service
REN-O-THIN
MODEL 544865B

1 GENERAL INFORMATION
100–09–00–CU
2000 Textron Turf Care and Specialty Products
Lincoln, Nebraska •All Rights Reserved.
Printed in U.S.A.
1 GENERAL INFORMATION
IMPORTANT!
THIS MANUAL WILL AID YOU IN THE SAFE
OPERATION AND PROPER MAINTENANCE OF
YOUR EQUIPMENT. READ MANUAL THOROUGHLY
BEFORE ATTEMPTING OPERATION. IF ANY
PORTION IS NOT CLEARLY UNDERSTOOD,
CONTACT AN AUTHORIZED DEALER FOR
CLARIFICATION.
To make sure you are fully aware of safety and service
information, the following two symbols are used
throughout this manual.
!This symbol is used throughout the manual to
alert you to information about unsafe actions or
situations, and will be followed by the word DANGER,
WARNING, or CAUTION. DANGER indicates
immediate hazards that may result in severe injury or
death. WARNING indicates unsafe actions or situations
that may cause severe injury, death and/or major
equipment or property damage. CAUTION indicates
unsafe actions or situations that may cause injury, and/or
minor equipment or property damage.
NOTE: This appears next to information or instructions
which will help you operate and maintain your
equipment the right way.
WARNING
The information and instructions included in
this manual alert you to certain things you
should do very carefully. If you do not, you
could:
•hurt yourself or others.
•hurt the next person who operates the
equipment.
•damage the equipment.
This manual contains essential operation and
safety information and must remain with the
unit at all times, within easy access of any op-
erator.
!
Additional manuals are available through your dealer.
IMPORTANT!
THIS EQUIPMENT SHOULD NOT BE MODIFIED OR
ADDED TO WITHOUT THE MANUFACTURER’S
AUTHORIZATION.
WARNING
Altering this equipment in any manner which
adversely affects the equipment’s operation,
performance, durability or use, may cause haz-
ardous conditions.
!
Direct any inquiries to:
Textron Turf Care and Specialty Products
Attn: Director of Engineering Services
P.O. Box 82409
Lincoln, NE 68501–2409 USA
SPECIFICATION INFORMATION
All information contained in this manual is the latest
available at the time of printing. Textron Turf Care and
Specialty Products reserves the right to make changes
at any time without notice.
Whenever a name brand product is specified, an
equivalent product may be used unless stated otherwise.
CHANGE OF OWNERSHIP OR ADDRESS
Textron Turf Care and Specialty Products makes every
effort to keep owners informed of all safety related
information. Therefore, changes in ownership and/or
address should be reported to the manufacturer.
Your dealer has REGISTRATION CHANGE FORMS
which will be filled out and filed by the dealer for his
records, and a copy will be sent to the manufacturer.
DEALER INFORMATION
For your nearest dealer location write to:
Textron Turf Care and Specialty Products
Attn: Sales Coordinator
P.O. Box 82409
Lincoln, NE 68501–2409 USA
In the USA and Canada call 1–888–922–8873 (dealer
information only).

TABLE OF CONTENTS
1 GENERAL INFORMATION Inside Front Cover. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 IDENTIFICATION 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3 SPECIFICATIONS 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4 SETUP 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.1 Equipment and Parts Inspection 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.2 Reel Installation 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.3 Pulley and Belt Installation 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.4 Handle and Cable Installation 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.5 Wheel Bearing Lubrication 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.6 Blade Height Adjustment 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5 OPERATION 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.1 Daily Pre-operation Check 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.2 Starting the Engine 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.3 Tips for Operating the Unit 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.4 Reels and Suggested Uses 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6 SERVICE 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.1 Belt Replacement 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.2 Lubrication 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.3 Blade Replacement 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.4 Belt Guard Rod Adjustment 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.5 Touch Up Paint 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7 STORAGE 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.1 Daily Storage 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.2 Extended Storage 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8 TORQUE CHART 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9 SERVICE MAINTENANCE RECORD 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10 DECALS 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11 CHASSIS GROUP 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
12 ENGINE AND GUARD GROUP 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
13 FLAIL BLADE REEL 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
14 1/8” FIXED BLADE REEL 20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
15 1/16” FIXED BLADE REEL 22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
16 1/32” FIXED BLADE REEL 24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
17 HANDLE 26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

NOTES

IDENTIFICATION 2
1
2 IDENTIFICATION
The Model Number and Serial Number are printed on the
nameplate decal located on the back of the chassis (see
Figure 1). These numbers must appear on all
correspondence concerning this unit.
1
FIGURE 1
1. Nameplate Decal
3 SPECIFICATIONS
Chassis 12 gauge steel, formed and welded. . . . . . . .
Reduction 1.33:1 (engine to reel). . . . . . . . . . . . . . . . .
Wheelbase 14 5/8” (371 mm) at level position. . . . . . .
Reel Speed 2700 RPM. . . . . . . . . . . . . . . . . . . . . . . . . .
Cutting Width 18” (457 mm). . . . . . . . . . . . . . . . . . . . . .
Cutting Depth 7/8” (22 mm). . . . . . . . . . . . . . . . . . . . . .
Blade Adjustment 1” (25 mm) above ground level. . .
to 7/8” (22 mm) below ground level
Weight (less reel) 106 lbs. (48 Kg.). . . . . . . . . . . . . . .
Engine 6.5 h.p. Briggs and Stratton. . . . . . . . . . . . . .
model no. 121432 type 0120 trim E1,
four cycle, aluminum cylinder with cast
iron sleeve, 3600 RPM governor– no
load, recoil starter.

4 SETUP
2
4 SETUP
4.1 EQUIPMENT AND PARTS
INSPECTION
Remove equipment and parts from the packing box and
inspect for possible shipping damage. You should have
the following items:
•Upper and lower handle
•Pre-assembled chassis and engine
•Loose parts bag
•Reel assembly (if ordered with unit)
4.2 REEL INSTALLATION
1. Remove the belt guards and tilt the unit back to allow
access to the underside of the chassis.
CAUTION
!
Block the unit as required to prevent it from
falling accidentally.
2. Loosen the reel clamps and pivot down and away
from chassis. With the pulley end toward the engine
side of unit, set the reel into place against the
chassis. Bearing guides on the reel will provide
correct alignment. See Figure 2.
1
2
FIGURE 2
1. Reel Clamp
2. Bearing Guide
3. Pivot the clamps back up over the reel bearings.
Install the reel clamp rods, washers and nuts. See
Figure 3. Tighten the nuts securely but do not over
tighten. Check reel to make sure it rotates freely.
1
2
FIGURE 3
1. Reel Clamp Rod
2. Reel Clamp Nut and Washer
4.3 PULLEY AND BELT
INSTALLATION
1. Gently tap the woodruff key (from loose parts bag)
into the slot on the reel shaft.
2. Start the two (2) set screws into the reel pulley.
3. Slide the pulley, hub side inward, onto the reel shaft.
Tap it into position over the woodruff key.
4. Align the reel pulley with the engine pulley. Placing a
straight edge across both pulleys will show when the
two pulleys are aligned.
5. Tighten the reel pulley set screws and check the
engine pulley set screws to make sure they are also
tight.
6. Place the new belts between the idler pulley and the
snubber on the idler arm, then over the engine and
reel pulleys. See Figure 4.

SETUP 4
3
1
2
FIGURE 4
1. Snubber
2. Idler Pulley
4.4 HANDLE AND CABLE
INSTALLATION
1. Assemble the upper and lower handle sections using
the hardware provided in the loose parts bag.
2. Mount the handle to the unit by placing the bottom
ends of the handle over the pins at the top edge
center of the chassis. Secure the handle with
hairpins (from loose parts bag).
3. Connect one end of the spring (from loose parts bag)
to the clutch cable and the other end to the arm of the
clutch bail on the handle. See Figure 5.
1
FIGURE 5
1. Clutch Control Bail
4. Pull the bail back against the handle. The idler pulley
should be tight against the reel belts when the bail is
against the handle.
5. Release the bail. The idler pulley should move away
from the reel belts and allow the belts to slip on the
engine pulley when the bail is released.
6. Reinstall the belt guards. The belt stop rod should be
positioned outside the belts, as shown in Figure 6.
1
FIGURE 6
1. Belt Stop Rod
4.5 WHEEL BEARING LUBRICATION
Using a pressurized lubrication gun and a lithium based
lubricant, lubricate the wheel bearings. This procedure
should be done at the time of setup and also after every
25 hours of service.
NOTE: During setup, each wheel cavity should be filled.
The cavity is full when lubricant is seen coming out
of bearing.
4.6 BLADE HEIGHT ADJUSTMENT
Blade height is adjusted by loosening the locking lever
and turning the adjusting knob to raise or lower the front
wheels. See Figure 7.

4 SETUP
4
1
2
FIGURE 7
1. Locking Lever
2. Adjusting Knob
After installing any reel, make the first adjustment on a
hard level surface.
Adjust the blades to 1/8” (3 mm) above the surface. Test
this setting on a small area, then adjust the blades to turf
conditions as required. Each number on the adjustment
decal represents a change of 1/8” (3mm).
If the desired blade position cannot be obtained by
adjusting the front wheels, the rear wheels can be
adjusted. Mounting the wheels in the top hole lowers the
blades and mounting the wheels in the bottom hole
raises the blades.
The front axle may be locked in the down position to
prevent the floating action if desired. Install and secure
1/2” screws, washers, lockwashers and nuts in the slots
above the axle. This will prevent the axle from moving.

OPERATION 5
5
5 OPERATION
WARNING
!
DO NOT operate this equipment until you have
thoroughly read and understand the operation
section of this manual.
DO NOT operate this equipment without all
shields in place.
DO NOT make any adjustments or perform any
maintenance while the engine is running.
Always run unit engine where there is plenty of
fresh air to prevent a buildup of carbon monox-
ide fumes. Carbon monoxide fumes are color-
less, odorless and deadly. NEVER run unit in
an enclosed space where exhaust fumes may
collect.
Always stop engine and DO NOT smoke or
allow open flames or sparks when refueling.
Gasoline is extremely flammable and highly
explosive under certain conditions.
Any warning decal that becomes illegible must
be replaced immediately.
To prevent injuries from thrown blades,
NEVER operate the unit with reel blades that
are missing, cracked, badly bent or in any type
of abnormal condition.
Inspect the area to be raked before operating.
Remove any objects that may present a safety
hazard or damage the equipment.
To prevent injury from rotating blades, NEVER
place hands or feet beneath the unit.
This unit is not self propelled by a mechanical
drive system. However, under some condi-
tions the reel rotation may cause the unit to
move under it’s own power.
Engage the reel ONLY when you are in the
proper operator’s position behind the handle.
The clutch bail is designed to be held by the
operator to keep the reel belt engaged ONLY
during use. DO NOT clamp or fasten the bail to
the handle. If the reel is allowed to rotate while
the operator is not in the proper operating
position, the unit may move on it’s own. This
will create an unsafe situation in which the
operator and/or bystanders may be injured.
5.1 DAILY PRE-OPERATION CHECK
1. Visually check for loose or damaged parts and
fasteners. Repair or replace as needed before unit is
placed into operation.
2. Check the reel for bent or broken blades; replace as
necessary.
3. Check engine oil level. Add oil if necessary, following
the engine manufacturer’s recommendations. Refer
to engine manual included with literature packet.
4. Fill the fuel tank with the amount and type of fuel
recommended by the engine manufacturer.
5.2 STARTING THE ENGINE

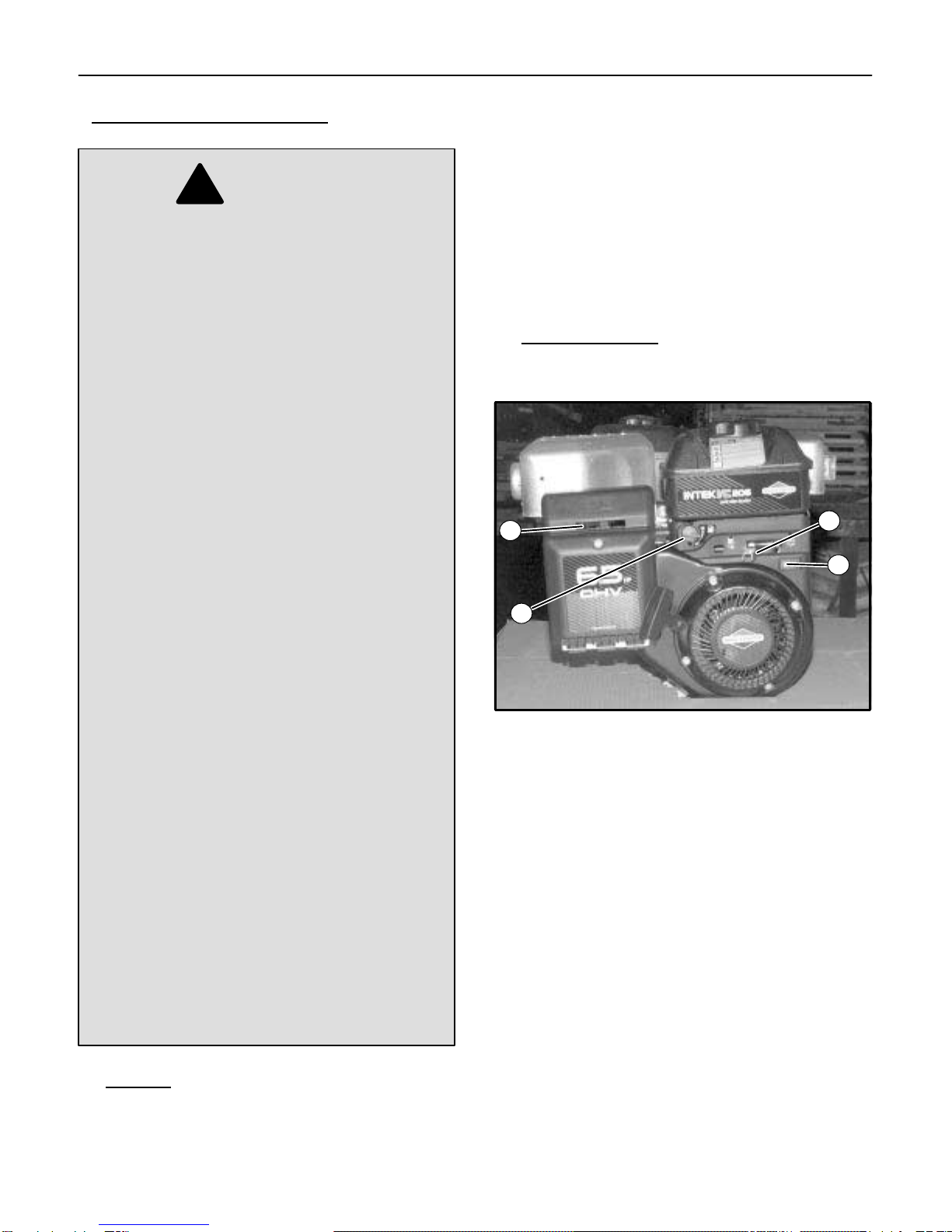

The engine controls are illustrated in Figure 8.
1
2
3
4
FIGURE 8
ENGINE
1. Throttle Control
2. Choke Control
3. Stop Switch
4. Fuel Shut-off Valve
1. Turn fuel shut-off valve to “ON” position.
2. Push stop switch to “ON” position.
3. Move manual choke control lever to “CHOKE”
position.
4. Move engine throttle control lever to “FAST”
position.
5. Grasp starter grip and pull slowly until resistance is
felt, then pull cord rapidly to start engine. Repeat if
necessary with choke opened slightly.
6. After engine starts, move choke to “RUN” position.
7. Adjust throttle control on engine as required.

5 OPERATION
6
5.3 TIPS FOR OPERATING THE UNIT
•Start the unit in motion before engaging the reel to
prevent unnecessary damage to the turf and to avoid
bogging down the engine. Disengage the reel before
stopping forward motion.
•Make all passes across the turf at a uniform speed.
•Disengage the reel at the end of each pass and before
slowing or stopping to make a turn. This prevents turf
damage while turning the unit.
•If the engine bogs down while going through a thick
patch of turf, push down on the handle just enough to
raise the reel and allow the engine to return to normal
speed.
NOTE: Never cross hard objects or surfaces
(sidewalks, driveways, stepping stones, etc.) with
the reel engaged. Severe blade damage may occur.
5.4 REELS AND SUGGESTED USES
Flail Blade Reel, Part No. 544440
1/8” (3 mm) flail blades for thatch control and
breaking up soil cores after aerating. This reel is
NOT RECOMMENDED for fine lawns and turf,
such as golf course greens.
1/8” (3 mm) Fixed Blade Reel, Part No. 545440
2” (51 mm) blade spacing is excellent for general
dethatching, renovating and breaking up cores.
1/16” (1.6 mm) Fixed Blade Reel, Part No. 547452
Blades can be spaced on 1” (25 mm) or 1 1/2” (38
mm) centers with the use of spacers between the
blades. Use the 1” blade spacing for renovating
heavy grass areas or preparing a lawn for
re-seeding. Use the 1 1/2” (38 mm) blade spacing
for renovating and thinning all coarse stemmed
grasses.
1/32” (0.8 mm) Fixed Blade Reel, Part No. 547453
3/4” (19 mm) blade spacing is excellent for thatch
and grain control on fine bent grasses, vertical
slicing, renovating and seed bed preparation.

SERVICE 6
7
6 SERVICE
WARNING
!
When replacement parts are required, use
genuine RYAN parts or parts with equivalent
characteristics, including type, strength and
material. Failure to do so may result in product
malfunction and possible injury to the
operator and/or bystanders.
6.1 BELT REPLACEMENT
Belt tension is maintained by a spring loaded idler,
controlled by the clutch bail. No belt tension adjustment
is necessary when proper belts are used.
NOTE: A matched pair of belts must be used for correct
operation. If one belt needs to be replaced, you
MUST replace both belts to assure proper belt
tension.
1. Remove belt guards and old belts from unit.
2. Place the new belts between the idler pulley and the
snubber on the idler arm and then over the engine
and reel pulleys. See Figure 9.
1
2
3
FIGURE 9
1. Idler Pulley
2. Snubber
3. Belt Stop Rod
3. Install the belt guards. Make sure the belt stop rod is
outside of the belt. See Figure 9.
6.2 LUBRICATION
The reel and idler pulley bearings are factory sealed and
require no lubrication.
Wheel bearings have lubrication fittings and require
lubrication with a standard lithium based lubricant after
every 25 hours of use.
6.3 BLADE REPLACEMENT
Fixed Blade Reels
To replace worn or damaged blades or to change to
different blade and/or spacer combination:
1. Remove the entire reel from the chassis.
2. Remove bearing from end of shaft (opposite the
pulley end). Loosen the set screw securing the
locking collar. With a small punch, tap the bearing
approximately one quarter turn in the opposite
direction of the reel rotation. This relieves the cam
lock action of the bearing and it can be removed from
the shaft.
3. Hold the shaft to keep it from turning and remove the
shaft nut. Remove the blades and spacers from the
shaft and replace or rearrange as required.
NOTE: When reassembling the reel, it is important to
start and end with a spacer. DO NOT assemble with
a blade next to the shaft nut at either end.
Fixed blades must be placed on the shaft in a
pattern 60°off center from the previous blade. See
Figure 10.
FIGURE 10
4. Re-install the shaft nut and tighten securely to keep
the blades from coming loose.

6 SERVICE
8
5. Re-install the reel bearing by exactly reversing the
steps taken to remove it.
NOTE: Blades that are worn on one cutting face may be
reversed and used again.
Flail Blade Reels
Work on only one of the six blade shaft assemblies at a
time.
1. Remove the cotter pin from one end of one of the
blade shafts and pull the shaft out.
2. Replace the blades and other worn parts and
re-assemble in the proper order while sliding the
shaft back into place.
3. Install a new cotter pin to secure the shaft.
6.4 BELT GUARD ROD ADJUSTMENT
There are two belt guard rods mounted in the belt guard.
The long rod helps to prevent the belts from slipping off
the engine pulley. The short rod (belt stop rod) acts as a
belt brake when the clutch bail is released, ensuring that
the reel stops quickly.
It is important that these two rods are adjusted correctly.
If the belt guard is removed for any reason, make sure
the two rods are positioned at the end of their respective
slots. See Figure 11.
1
2
FIGURE 11
1. Long Belt Guard Rod
2. Short Belt Guard Rod
(Belt Stop Rod)
6.5 TOUCH UP PAINT
Ransomes Green
16 oz. (0.5 L) spray can, order Part No. 838140
1 qt. (0.95 L) can, order Part No. 838141

STORAGE 7
9
7 STORAGE
DANGER
!
To prevent possible explosion or ignition of
vaporized fuel, DO NOT store equipment with
fuel in the tank or carburetor in an enclosure
with open flame (furnace, water heater pilot
light, etc.).
7.1 DAILY STORAGE
After daily usage of unit:
1. Wash the unit with water after the engine has cooled
down.
2. Check the reel blades for damage. Replace any
cracked, broken, bent or worn blades.
3. Check the engine oil level and inspect the air cleaner
for excessive dirt or any obstructions.
4. Service engine according to engine manufacturer’s
recommendations. Refer to engine manual for all
recommendations.
7.2 EXTENDED STORAGE
To prepare the unit for extended storage (30 days or
more):
1. Drain the fuel from the tank and fuel lines.
2. Start and run the engine until all the fuel in the
carburetor bowl is gone and the engine stops.
3. While the engine is still warm, drain the crankcase
oil. Replace engine oil with the proper weight and
type for the next season that the unit will be used.
4. Remove the spark plug and squirt a small amount of
engine oil into the cylinder. Slowly pull the starter a
few times to distribute oil in the cylinder and reinstall
the spark plug.
5. Check the reel for damaged blades and replace as
needed.
6. Lubricate the wheel bearings with a standard lithium
based lubricant.
To put the unit back into service after extended storage:
1. Check for loose parts and tighten as necessary.
2. Check for damaged blades and replace as
necessary.
3. Fill the fuel tank and then check the engine oil level.
4. Start the engine and check for fuel leaks. Repair any
leaks before operating the unit.

8 TORQUE CHART
10
M4 M5 M6 M7 M8 M10 M12 M14 M16 M18 M20 M22 M24 M27
ft. lbs. 1.5 3 5.2 8.2 13.5 24 43.5 70.5 108 142 195 276 353 530
N·m 2 4 7 11 18 32 58 94 144 190 260 368 470 707
ft. lbs. 2.2 4.5 7.5 12 18.8 35.2 62.2 100 147 202 275 390 498 747
N·m. 3 6 10 16 25 47 83 133 196 269 366 520 664 996
ft. lbs. 2.7 5.2 8.2 15 21.8 43.5 75 119 176 242 330 471 596 904
N·m 3.6 7 11 20 29 58 100 159 235 323 440 628 794 1205
1/4 5/16 3/8 7/16 1/2 9/16 5/8 3/4 7/8 1 1 1/8
ft. lbs. 9 18 31 50 75 110 150 250 378 583 782
N·m 12 24 42 68 102 150 203 339 513 790 1060
ft. lbs. 13 28 46 75 115 165 225 370 591 893 1410
N·m 18 38 62 108 156 224 305 502 801 1211 1912
ft. lbs. 24 40
N·m 33 54
TORQUE SPECIFICATIONS
HEX HEAD CAP SCREWS
* Grade 5 marking – Minimum commercial quality (Lower quality not recommended).
U.S. Standard Hardware
Grade Shank Size (Diameter in inches, fine or coarse thread)
SAE
grade
5 *
SAE
grade
8 **
Flangelock
Screw w/
Flangelock
Nut
The torque values shown should be used as a general guideline when specific torque values are not given.
** Grade 8 marking –
Grade Shank Size (Diameter in millimeters, fine or coarse thread)
Grade
8.8*
Grade
10.9**
Grade
12.9 ***
Metric Standard Hardware
* Grade 8.8 marking – ** Grade 10.9 marking – *** Grade 12.9 marking –
8.8 10.9 12.9

SERVICE MAINTENANCE RECORD 9
11
SERVICE MAINTENANCE RECORD
DATE SERVICE DONE INITIAL

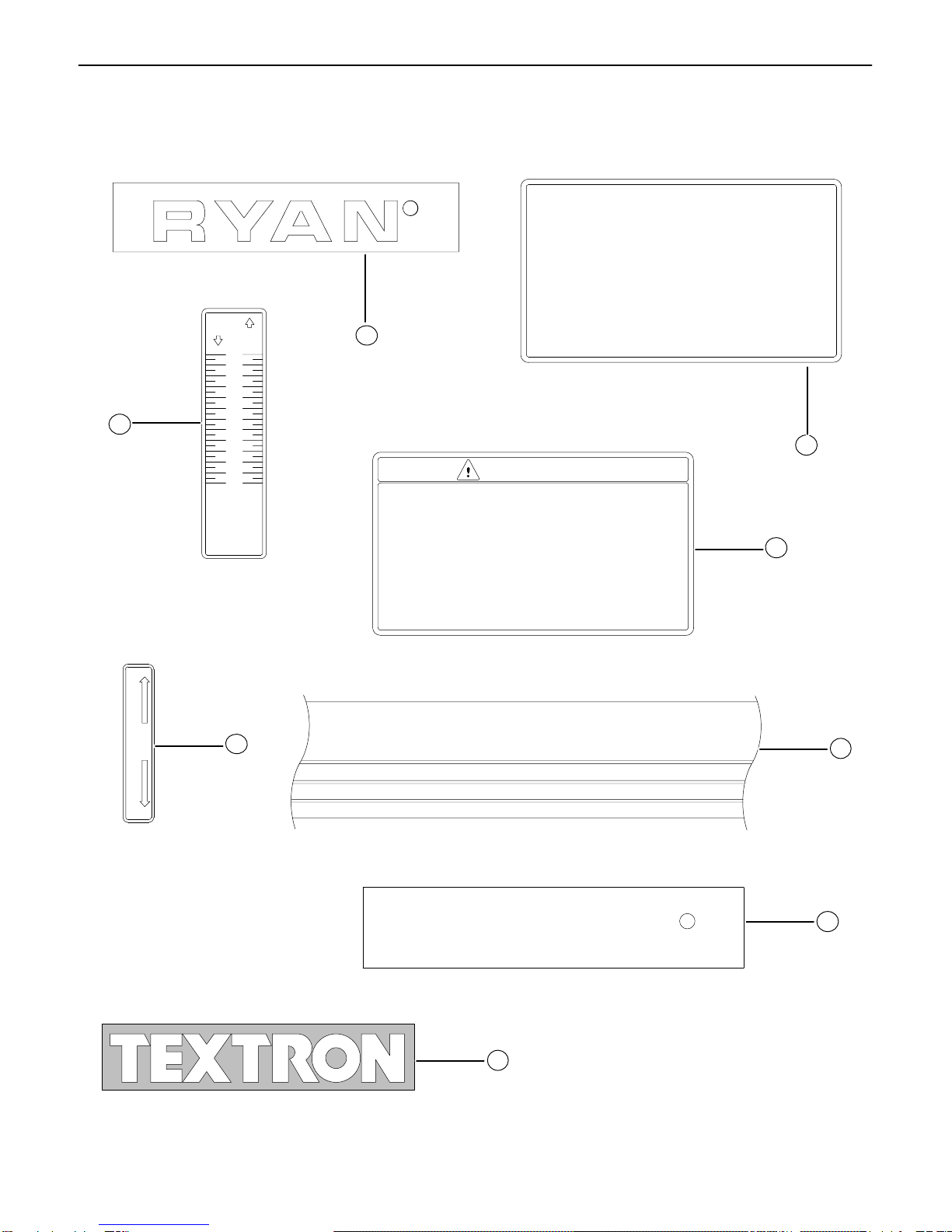

10 DECALS
12
R
DECALS
3. RESET REAR AXLE POSITION IF PROPER HEIGHT CANNOT BE OBTAINED
OPERATING INSTRUCTIONS
BEFORE OPERATING
522390
OPERATION
1. CHECK FOR LOOSE, DAMAGED OR MISSING PARTS. REPAIR BEFORE
OPERATING MACHINE.
2. ADJUST BLADE HEIGHT TO 1/8” (3MM) OFF GROUND WHEN MACHINE IS
PARKED ON HARD LEVELSURFACE.
WITH THE FRONT ADJUSTER.
1. STAND BEHIND HANDLEBAR. PULLCONTROLBAIL BACK TO HANDLEBAR
AND HOLD TO ENGAGE REEL.
2. RESET BLADE HEIGHT AS NECESSARY TO OBTAIN DESIRED RAKING DEPTH
3. STOP REEL WHEN TURNINGAROUNDAND CROSSING HARD SURFACES
OR OBSTRUCTIONS.
4. IF ENGINE STARTS TO BOG DOWN, REDUCE WALKING SPEEDAND/OR
PUSH DOWN ON HANDLEBAR TO LIFT REEL SLIGHTLY UNTIL ENGINE
RECOVERS.
522394
FAILURE TO HEED THESE WARNINGS MAY RESULT IN PERSONAL OR FATAL
INJURY TO YOU OR OTHERS AND MAY ALSO RESULT IN EQUIPMENT AND/OR
PROPERTY DAMAGE
WARNING
KNIVES, AND DRIVE BELTS. STOP REEL OR RAISEAERATING TINES
AND KNIVES BEFORE CROSSING SIDEWALKS OR OTHER HARD SURFACES.
IT IS YOUR RESPOSIBILITY TO KEEP ALLLABELS (DECALS) AND
INSTRUCTIONALLITERATURE LEGIBLEAND INTACT. REPLACEMENT
LABELS (DECALS) AND LITERATUREARE AVAILABLE FROM THE FACTORY.
READ, STUDY AND UNDERSTANDALL WARNING LABELSAND OPERATING
INSTRUCTIONS FURNISHED WITH THIS EQUIPMENT PRIOR TO USE. IF
ANY PART OF THIS MATERIAL IS UNCLEAR, CONTACT YOUR FACTORY
REPRESENTATIVE FOR CLARIFICATION. NEVER ALLOW UNSKILLED OR
IMPROPERLY TRAINED PERSONNEL TO OPERATE THIS EQUIPMENT.
BEFORE SERVICING, OR MAKING ADJUSTMENTS, STOP ENGINE. NEVER
OPERATE EQUIPMENT WITHOUT GUARDS/SHIELDS IN PLACE. KEEP
HANDS AND FEET AWAY FROM ROTATING BLADES,AERATING TINES AND
13
12
11
1
2
3
4
5
6
7
8
9
10
520913
RAISE
REELLOWER
REEL
R
REN–O–THIN
12
3
4
5
6
R
E
E
L
D
S
N
G
A
G
I
E
E
N
G
A
G
E
E
520912
7
8

DECALS 10
13
Ref.
No. Part No. Description Notes
No.
Req’d
DECALS
1 520913 Decal, height adjustment 1. . . . . . . . . . . . . . . . . . . . .
2 522390 Decal, operating instructions 1. . . . . . . . . . . . . . . . . .
3 522394 Decal, operator warning 1. . . . . . . . . . . . . . . . . . . . . .
4 524281 Decal, Ryan 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5 524387 Decal, Ren-O-Thin 1. . . . . . . . . . . . . . . . . . . . . . . . . .
6 838494 Decal, stripe, 2.41” x 20 ft. (6.1 M) As Req’d. . . . . .
7 520912 Decal, reel control 1. . . . . . . . . . . . . . . . . . . . . . . . . . .
8 844847 Decal, Textron 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

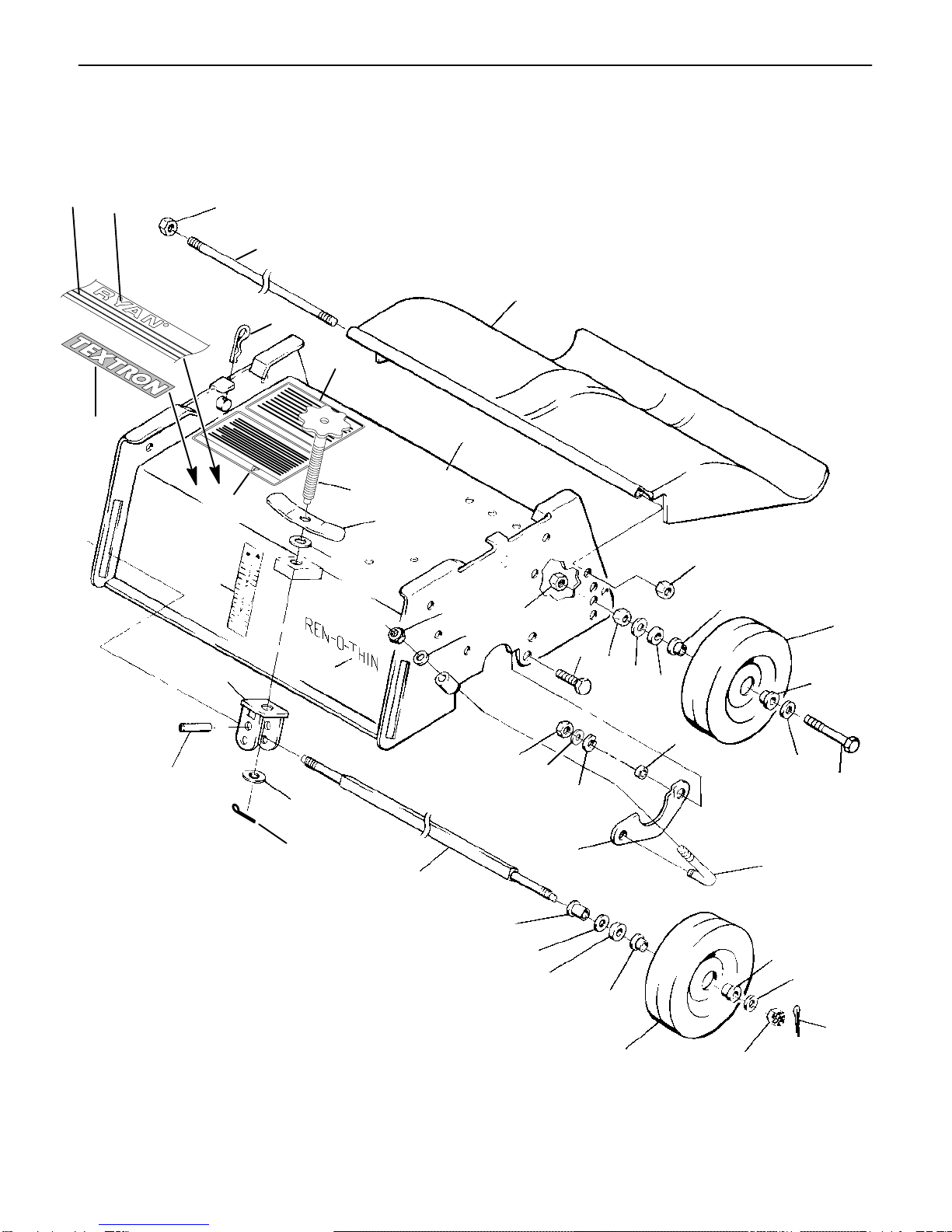

11 CHASSIS GROUP
14
CHASSIS GROUP
34
12
18
19
30
25
16
14
27
37
17
21
36 31 7
30
29
13
32
27
28
29
4
32
8
10
9
5
3
1
6
32
29
28
29
13
32
11
15
23
35
33
24
20
22
39
38

CHASSIS GROUP 11
15
CHASSIS GROUP
1 304636 Pin, cotter, 1/8 x 1 1/8 2. . . . . . . . . . . . . . . . . . . . . . .
2 306322 Screw, 5/16–18 x 7/8 2. . . . . . . . . . . . . . . . . . . . . . . .
3 306325 Lockwasher, 5/16 2. . . . . . . . . . . . . . . . . . . . . . . . . . .
4 306840 Screw, 1/2–13 x 3 2. . . . . . . . . . . . . . . . . . . . . . . . . . .
5 306932 Nut, 5/16–18 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6 306941 Nut, castle, 1/2–20 2. . . . . . . . . . . . . . . . . . . . . . . . . .
7 308332 Nut, 1/2–13 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8 517226 Bushing 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9 518972 Clamp, reel 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10 519043 Rod, reel clamp 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11 520875 Bushing, flanged 2. . . . . . . . . . . . . . . . . . . . . . . . . . . .
12 520877 Rod, shield 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
13 522256 Washer, felt 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
14 522375 Lever, locking 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
15 522385 Axle 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
16 2702114 Chassis (w/decals) 1. . . . . . . . . . . . . . . . . . . . . . . . . .
17 520913 •Decal, height adjustment 1. . . . . . . . . . . . . . . . . . . .
18 522390 •Decal, operating instruction 1. . . . . . . . . . . . . . . . . .
19 522394 •Decal, operator warning 1. . . . . . . . . . . . . . . . . . . . .
20 524281 •Decal, RYAN 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
21 524387 •Decal, Ren-O-Thin 1. . . . . . . . . . . . . . . . . . . . . . . . .
22 838494 •Decal, striping, 2 3/8 x 20 ft. (6.1 M) As Req’d. . .
23 545859 Pivot 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
24 316947 •Pin, spirol, 5/16 x 1 1/4 2. . . . . . . . . . . . . . . . . . . . . .
25 545861 Shield, trailing 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
26 548238 •*Rivet, pop, 3/16 x 5/8 5. . . . . . . . . . . . . . . . . . . . . .
27 540273 Screw, adjusting 1. . . . . . . . . . . . . . . . . . . . . . . . . . . .
28 547436 Wheel, 8 x 1 3/4 4. . . . . . . . . . . . . . . . . . . . . . . . . . . .
29 520983 •Bearing 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
30 548048 Nut, lock, 5/16–18 2. . . . . . . . . . . . . . . . . . . . . . . . . . .
31 548155 Washer, special 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
32 308091 Washer, 1/2, flat 10. . . . . . . . . . . . . . . . . . . . . . . . . . .
33 306981 Washer, 3/8 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
34 548190 Pin, hair, 3/32 x 1 3/4 2. . . . . . . . . . . . . . . . . . . . . . . .
35 306328 Pin, cotter, 3/32 x 3/4 1. . . . . . . . . . . . . . . . . . . . . . . .
36 2702143 Nut, lock, 3/8–24 2. . . . . . . . . . . . . . . . . . . . . . . . . . . .
37 809156 Washer, 9/16 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
38 103867 Washer, 5/16, flat 2. . . . . . . . . . . . . . . . . . . . . . . . . . .
39 844847 Decal, Textron 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
•INDENTED PART NAMES INDICATE THESE PARTS ARE INCLUDED IN PRECEDING ASSEMBLY
* Not Illustrated
Ref.
No. Part No. Description Notes
No.
Req’d

12 ENGINE AND GUARD GROUP
16
ENGINE AND GUARD GROUP
Obtain
Engine
Locally
17
7
31
29
22
21
30
27 13
5
25 12
25 21
18
14
23
11
20
23
9
24
2
8
6
16
8
2
1
1
8
14
18
8
1
821
28
19
28
28
15 128
34
26
26
33
32
26
26 3
10
