Ryobi CDL1802X Operation manual

7
CDL1802X
OWNER’S OPERATING MANUAL
CORDLESS DRILL DRIVER
WARRANTY
warranty
warranty
warranty
warranty
warranty
warranty
warranty
warranty
warranty
Warranty
warran
Warranty
Warranty
Warranty
warran
warrant
-ty
-ty

DESCRIPTION
1
23
4
5
6
7
8
9
10 11 12
1. Chuck
2. Torque control
3. High/low speed control
4. Forward/reverse switch
5. LED light
6. Trigger switch
7. Magnetic holder
8. Battery clip
9. Battery pack
10. Drill bits x 6
11. Screw driver bits x 6
12. Magnetic bit holder

Important!
It is essential that you read the instructions in this manual before
operating this machine.
Subject to technical modifications

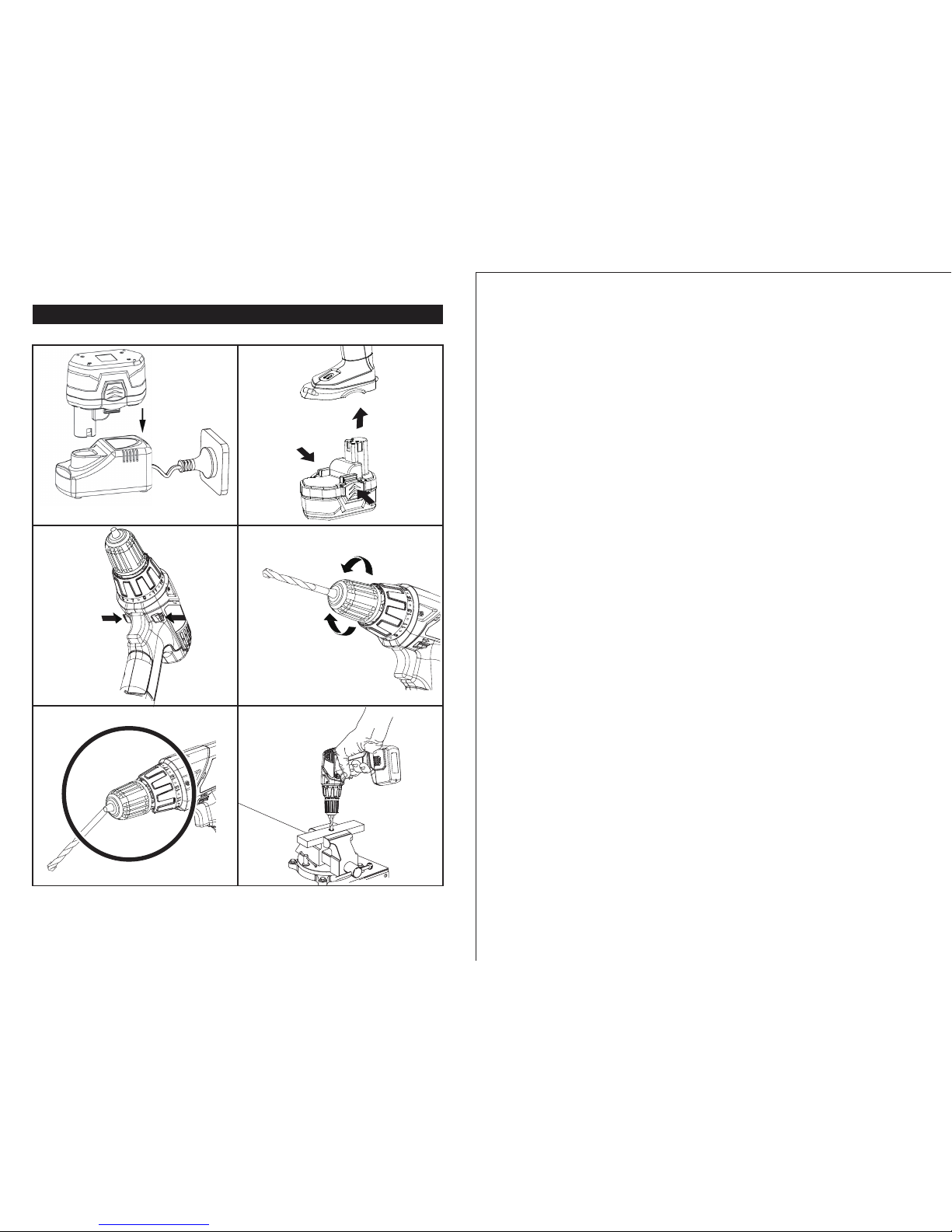

DESCRIPTION
Fig. 2
Please refer to pages 3 - 5 for instructions

1
GENERAL POWER TOOL SAFETY WARNINGS
WARNING
Read all safety warnings and all
instructions. Failure to follow the warnings
and instructions may result in electric
shock, fire and/or serious injury.
Save all warnings and instructions for future
reference. The term “power tool’’ in the warnings
refers to your mains operated (corded) power tool
or battery-operated (cordless) power tool.
WORK AREA SAFETY
Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases, or dust. Power tools
create sparks which may ignite dust or fumes.
Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
ELECTRICAL SAFETY
Power tool plugs must match the outlet.
Never modify the plug in any way. Do not use
any adapter plugs with earth (bounded)
power tools. Unmodified plugs and matching
outlets will reduce risk of electric shock.
Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges
and refrigerators. There is an increased risk of
electric shock if your body is earthed or
grounded.
Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
Do not abuse the cord. Never use the cord
for carrying, pulling or unplugging the power
tool. Keep the cord away from heat, oil,
sharp edges or moving parts. Damaged or
entangled cords increase the risk of electric
shock.
When operating a power tool outdoors, use
an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces
the risk of electric shock.
If operating a power tool in a damp location
is unavoidable, use a residual current device
(rcd) protected supply. Use of an RCD
reduces the risk of electric shock.
PERSONAL SAFETY
Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired
or under the influence of drugs, alcohol or
medication. A moment of inattention while
operating power tools may result in serious
personal injury.
Use personal protective equipment. Always
wear eye protection. Protective equipment
such as a dust mask, non-skid safety shoes,
hard hat, or hearing protection used for
appropriate conditions will reduce the chance of
serious personal injury.
Prevent unintentional starting. Ensure the
switch is in the off-position before
connecting to power source and/or battery
pack, picking up or carrying the tool.
Carrying power tools with your finger on the
switch or energising power tools that have the
switch on invites accidents.
Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key
left attached to a rotating part of the power tool
may result in personal injury.
Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
Dress properly. Do not wear loose clothing
or jewellery. Keep your hair, clothing and
gloves away from moving parts. Loose
clothes, jewellery or long hair can be caught in
moving parts.
If devices are provided for the connection of
dust extraction and collection facilities,
ensure these are connected and properly
used. Use of dust collection can reduce
dust-related hazards.
POWER TOOL USE AND CARE
Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at the
rate for which it was designed.
Do not use the power tool if the switch does
not turn it on and off. Any power tool that can
not be controlled with the switch is dangerous
and must be repaired.
Disconnect the plug from the power source
and/or the battery pack from the power tool
before making any adjustments, changing
accessories, or storing power tools. Such
preventive safety measures reduce the risk of
starting the power tool accidentally.
Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool to operate the power
tool. Power tools are dangerous in the hands of
untrained users.
2
Maintain power tools. Check for
misalignment or binding of moving parts,
breakage of parts and any other condition
that may affect the power tool's operation. If
damaged, have the power tool repaired
before use. Many accidents are caused by
poorly maintained power tools.
Use the power tool, accessories and tool bits
etc., in accordance with these instructions
and in the manner intended for the particular
type of power tool, taking into account the
working conditions and the work to be
performed. Use of the power tool for operations
different from intended could result in a
hazardous situation.
BATTERY TOOL USE AND CARE
Recharge only with the charger specified by
the manufacturer. A charger that is suitable for
one type of battery pack may create a risk of fire
when used with another battery pack.
Use power tools only with specifically
designated battery packs. Use of any other
battery packs may create a risk of injury and fire.
When the battery pack is not in use, keep it
away from other metal objects, like paper
clips, coins, keys, nails, screws, or other
small metal objects that can make a
connection from one terminal to another.
Shorting the battery terminals together may
cause burns or a fire.
Under abusive conditions, liquid may be
ejected from the battery; avoid contact. If
contact accidentally occurs, flush with water.
If liquid contacts eyes, seek medical help.
Liquid ejected from the battery may cause
irritation or burns.
SERVICE
Have your power tool serviced by a qualified
repair person using only identical
replacement parts. This will ensure that the
safety of the power tool is maintained.
SPECIAL RULES
This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless
they have been given supervision or
instruction concerning use of the appliance
by a person responsible for their safety.
Children should be supervised to ensure that
they do not play with the appliance.
This appliance is not intended for use by young
children or infirm persons unless they have been
adequately supervised by a responsible person
to ensure that they do not play with the
appliance.
Keep children and visitors away. Visitors
should wear safety glasses and be kept a safe
distance from the work area. Do not let visitors
contact the tool or extension cord.
GENERAL POWER TOOL SAFETY WARNINGS
To reduce risk of injury, charge only
nickel-cadmium type rechargeable batteries.
Other types of batteries may burst, causing
personal injury and damage.
Do not expose the charger to wet or damp
conditions.
Use of an attachment not recommended or sold
by the battery charger manufacturer may result
in a risk of fire, electric shock, or injuries to
person.
To reduce the risk of damage to the charger
body and cord, pull the charger plug rather than
the cord when disconnecting the charger.
Make sure the cord is visible so that it will not be
stepped on, tripped over, or otherwise subjected
to damage or stress.
An extension cord should not be used unless
absolutely necessary. Use of improper extension
cords could result in a risk of fire and electric
shock. If an extension cord must be used, make
sure:
a) That the pins on the plug of the extension
cord are the same, number, size and shape
as those of the plug on the charger.
b) The extension cord is properly wired and in
good condition.
Do not operate charger with a damaged cord or
plug. If damaged, have it replaced immediately
by a qualified serviceman.
Do not operate charger if it has received a sharp
blow, been dropped, or otherwise damaged in
any way; take it to a qualifi ed serviceman.
Do not disassemble charger; take it to a qualified
serviceman when service or repair is required.
Incorrect reassembly may result in a risk of
electric shock or fire.
To reduce risk of electric shock, unplug the
charger from outlet before attempting any
maintenance or cleaning. Turning off controls will
not reduce this risk.
CHARGER SAFETY

4
WARNING
Do not allow familiarity with products to
make you careless. Remember that a
careless fraction of a second is sufficient to
inflict serious injury.
WARNING
Always wear safety goggles or safety
glasses with side shields when operating
products. Failure to do so could result in
objects being thrown into your eyes,
resulting in possible serious injury.
WARNING
Do not use any attachments or accessories
not recommended by the manufacturer of
this product. The use of attachments or
accessories not recommended can result in
serious personal injury.
OPERATION
APPLICATIONS
You may use this product for the purposes listed
below:
Drilling in all types of wood products (lumber,
plywood, panelling, composition board, and hard
board).
Drilling in ceramics, plastics, fiberglass, and
laminates.
Drilling in metals.
Mixing paint.
WARNING
Always remove the battery pack from your
drill when you are assembling parts, making
adjustments, assembling or removing bits,
cleaning, or when not in use. Removing the
battery pack will prevent accidental starting
that could cause serious personal injury.
BATTERY PROTECTION FEATURES
During some applications, the battery electronics
may signal the battery to shut down, and cause the
tool to stop running. To reset the battery and tool,
release the trigger and resume normal operation.
If releasing the trigger does not reset the battery
and tool, the battery pack is depleted. If depleted,
the battery pack needs to be recharged.
NOTE: To prevent further shut down of the battery,
avoid forcing the tool.
NOTE: Batteries will not reach full charge the first
time they are charged. Allow several cycles
(operation followed by recharging) for them to
become fully charged.
NOTE: If the charger does not charge the battery
pack under normal circumstances, return both the
battery pack and charger to your nearest Ryobi
Authorised Service Centre for electrical check.
Make sure that the tool is only connected to the
voltage marked on the name plate.
Never use the tool if its cover or any bolts are
missing. If the cover or bolts have been
removed, replace them prior to use. Maintain all
parts in good working order.
Always secure tools when working in elevated
positions.
Never touch the blade, drill bit, grinding wheel or
other moving parts during use.
Never start a tool when its rotating component is
in contact with the work piece.
Never lay a tool down before its moving parts
have come to a complete stop.
ACCESSORIES: The use of accessories or
attachments other than those recommended in
this manual might present a hazard.
REPLACEMENT PARTS: When servicing use
only identical replacement parts.
Voltage 18V
No load speed 0-400/1200 min-1
Chuck (mm) 13
Drilling capacities:
- in steel (mm)
8
- in wood (mm)
22
Clutch
max torque 22 N/m
16+1 Position
Weight - incl. battery pack (KG) 1.78 kg
INSTRUCTIONS FOR SAFE HANDLING
SPECIFICATIONS
3
Disconnect charger from power supply when not
in use.
Risk of electric shock. Do not touch uninsulated
portion of output connector or uninsulated
battery terminal.
Save these instructions. Refer to them frequently
and use them to instruct others who may use
this unit. If you loan someone this unit, loan
them these instructions also.
CHARGING YOUR BATTERY PACK
The battery pack for your tool has been shipped in
a low charge condition to prevent possible
problems. Therefore, you should charge it prior to
use.
NOTE: Batteries will not reach full charge the first
time they are charged. Allow several cycles for
them to fully charge.
CHARGER:
See Figure .1
Charge battery pack only with the charger
provided.
Make sure power supply is normal house
voltage, 240 volts, 50 Hz, AC only.
Connect charger to power supply.
Place battery pack in charger. Align raised rib on
battery pack with groove in charger.
Press down on battery pack to be sure contacts
on battery pack engage properly with contacts
in charger. When properly connected, green light
will turn on.
Press reset to start fast charger cycle, red light
comes on.
DO NOT place charger in an area of extreme
heat or cold. It will work best at temperatures
above 10°C and below 38°C
IMPORTANT INFORMATION FOR RECHARGING
HOT BATTERIES
When using your tool continuously, the batteries in
your battery pack will become hot. You should let a
hot battery pack cool down for approximately 30
minutes before attempting to recharge.
LED STATUS
Red LED on = Fast charging mode.
Green LED on = Fully charged and in
maintenance charge mode.
CHARGING THE BATTERY PACK
Battery packs for this tool are shipped in a low
charge condition to prevent possible problems.
Therefore, you should charge it until the green LED
on the front of the charger comes on.
CHARGING A COOL BATTERY PACK
If battery pack is within normal temperature range,
the red LED on charger will come on.
Charge the battery pack only with a
recommended charger.
Make sure the power supply is normal
household voltage, 240 volts, 50 Hz, AC only.
Connect the charger to the power supply.
Place the battery pack in the charger aligning
raised rib on the battery pack with the groove in
the charger. See Figure 1
Press down on the battery pack to be sure
contacts on the battery pack engage properly
with contacts in the charger.
Normally the green LED on charger will come on.
This indicates the charger is in trickle
maintenance charging mode.
Press reset to start fast charger cycle.
Red LED should remain on for approximately 1
hour then the green LED will come on. Green
LED on indicates battery pack is fully charged
and charger is in maintenance charge mode.
After normal usage, a minimum of 1 hour of
charging time is required to fully recharge
battery pack.
The battery pack will become slightly warm to
touch while charging. This is normal and does
not indicate a problem.
Do not place the charger and battery pack in an
area of extreme heat or cold. They will work best
at normal room temperature.
When batteries become fully charged, unplug
the charger from power supply and remove the
battery pack.
NOTE: The green LED will remain on until the
battery pack is removed from the charger or
charger is disconnected from the power supply.
NOTE: The charger and battery pack should be
placed in a location where the temperature is more
than 10°C but less than 38°C.
NOTE: This situation only occurs when continuous
use of the tool causes the batteries to become hot.
It does not occur under normal circumstances.
Refer to “CHARGING A COOL BATTERY PACK”
for normal recharging of batteries. If the charger
does not charge your battery pack under normal
circumstances, return both the battery pack and
charger to your nearest Ryobi Authorised Service
Centre for electrical check.
CHARGING A HOT BATTERY PACK
When using the tool continuously, the batteries in
the battery pack will become hot. You should let a
hot battery pack cool down for approximately 30
minutes before attempting to recharge. When the
battery pack becomes discharged and is hot, this
will cause the green LED to come on instead of the
red LED. After 30 minutes, reinsert the battery
pack in the charger. If the green LED continues to
remain on, return battery pack to your nearest
Ryobi Authorised Service Centre for checking or
replacing.
OPERATION
CHARGER SAFETY
Make sure plug is properly connected.

5
KEYLESS CHUCK
See Figure 4.
The drill has a keyless chuck to tighten or release
drill bits in the chuck jaws. The arrows on the chuck
indicate which direction to rotate the chuck body in
order to LOCK (tighten) or UNLOCK (release) the
drill bit.
INSTALLING BITS
See Figures 4 - 5.
Lock the switch trigger by placing the direction of
rotation selector in the center position.
Open or close the chuck jaws to a point where
the opening is slightly larger than the bit size you
intend to use. Also, raise the front of the drill
slightly to keep the bit from falling out of the
chuck jaws.
Insert the drill bit.
Tighten the chuck jaws securely on the bit.
REMOVING BITS
See Figures 4.
Lock the switch trigger by placing the forward/
reverse selector in the center position.
Open the chuck jaws.
Remove the drill bit.
ADJUSTABLE TORQUE CLUTCH
This product is equipped with an adjustable torque
clutch for driving different types of screws into
different materials. The proper setting depends on
•1 - 4
•5 - 8
•9 - 12
•13 - 16
For driving small screws
For driving screws into soft material
For driving screws into soft and hard
materials
For driving screws into hard wood
6
When drilling hard, smooth surfaces, use a
center punch to mark the desired hole location.
This will prevent the drill bit from slipping
off-center as the hole is started.
When drilling metals, use a light oil on the drill bit
to keep it from overheating. The oil will prolong
the life of the bit and increase the drilling action.
If the bit jams in the workpiece or if the drill
stalls, stop the tool immediately. Remove the bit
from the workpiece and determine the reason for
jamming.
WOOD DRILLING
For maximum performance, use high speed steel
bits for wood drilling.
Begin drilling at a very low speed to prevent the
bit from slipping off the starting point. Increase
the speed as the drill bit bites into the material.
When drilling through holes, place a block of
wood behind the workpiece to prevent ragged or
splintered edges on the back side of the hole.
METAL DRILLING
For maximum performance, use high speed steel
bits for metal or steel drilling.
Begin drilling at a very low speed to prevent the
bit from slipping off the starting point.
Maintain a speed and pressure which allows
cutting without overheating the bit. Applying too
much pressure will:
When drilling large holes in metal, start with a
small bit, then finish with a larger bit. Also,
lubricate the bit with oil to improve drilling action
and increase bit life.
•Overheat the drill;
•Wear the bearings;
•Bend or burn bits; and
•Produce off-center or irregular-shaped holes.
WARNING
Battery products are always in operating
condition. Therefore, the switch should
always be locked when not in use or
carrying at your side.
SWITCH TRIGGER
See Figure 3.
To turn the drill ON, depress the switch trigger. To
turn it OFF, release the switch trigger.
FOWARD/REVERSE SELECTOR
(FORWARD/REVERSE/CENTER LOCK)
See Figure 3.
The direction of bit rotation is reversible and is
controlled by a selector located above the switch
trigger. With the drill held in a normal operating
position, the forward/reverse selector should be
positioned to the left of the switch trigger for
forward drilling. The drilling direction is reversed
when the selector is to the right of the switch
trigger.
Setting the switch trigger in the OFF (center lock)
position helps reduce the possibility of accidental
starting when not in use.
WARNING
Do not hold the chuck with one hand and
use the power of the drill to tighten the
chuck jaws on the drill bit. The chuck body
could slip in your hand, or your hand could
slip and come in contact with the rotating
drill bit. This could cause an accident
resulting in serious personal injury.
WARNING
Make sure to insert the drill bit straight into
the chuck jaws. Do not insert the drill bit
into the chuck jaws at an angle then tighten,
as shown in figure 5. This could cause the
drill bit to be thrown from the drill, resulting
in possible serious personal injury or
damage to the chuck.
OPERATION OPERATION
NOTE: Rotate the chuck body in the direction of
the arrow marked GRIP to close the chuck jaws.
Do not use a wrench to tighten or loosen the
chuck jaws.
NOTE: Rotate the chuck body in the direction of
the arrow marked RELEASE to open the chuck
jaws. Do not use a wrench to tighten or loosen the
chuck jaws.
DRILLING
See Figure 6.
Check the position of the rotation selector for the
correct setting (forward or Reverse).
Secure the material to be drilled in a vise or with
clamps to keep it from turning as the drill bit
rotates.
Hold the drill firmly and place the bit at the point
to be drilled.
Depress the switch trigger to start the drill.
Move the drill bit into the workpiece, applying
only enough pressure to keep the bit cutting. Do
not force the drill or apply side pressure to
elongate a hole. Let the tool do the work.
WARNING
Be prepared for binding at the bit
breakthrough. When these situations occur,
the drill has a tendency to grab and kick
opposite to the direction of rotation and
could cause loss of control when breaking
through material. If not prepared, this loss of
control can result in possible serious injury.
NOTE: This drill has an electric brake. When the
switch trigger is released, the chuck stops turning.
When the brake is functioning properly, sparks will
be visible through the vent slots on the housing.
This is normal and is the action of the brake.
MAINTENANCE
WARNING
When servicing, use only identical Ryobi
replacement parts. Use of any other parts
may create a hazard or cause product
damage.
WARNING
Do not at any time let brake fluids, gasoline,
petroleum based products, penetrating oils,
etc., come in contact with plastic parts.
Chemicals can damage, weaken or destroy
plastic which may result in serious personal
injury.
WARNING
Do not attempt to modify this tool or create
accessories not recommended for use with
this tool. Any such alteration or modification
is misuse and could result in a hazardous
condition leading to possible serious
personal injury.
Avoid using solvents when cleaning plastic parts.
Most plastics are susceptible to damage from
various types of commercial solvents and may be
damaged by their use. Use clean cloths to remove
dirt, dust, oil, grease, etc.
Do not abuse power tools. Abusive practices can
damage the tool as well as the workpiece.
TO INSTALL THE BATTERY PACK
See Figure 2.
Place the forward/reverse selector in the centre
lock position.
Insert the battery pack into the product as
shown.
Make sure the latches on each side of the
battery pack snap in place and that the battery
pack is secured in the product before beginning
operation.
TO REMOVE THE BATTERY PACK
Place the forward/reverse selector in the centre
lock position.
Depress the latches on each side of the battery
pack.
Remove the battery pack from the drill.
To stop the drill, release the switch trigger and
allow the chuck to come to a complete stop.
CAUTION:
To prevent gear damage, always allow the
chuck to come to a complete stop before
changing the direction of rotation.
NOTE: The drill will not run unless the forward/
reverse selector is pushed fully to the left or right.
Avoid running the drill at low speeds for extended
periods of time. Running at low speeds under
constant usage may cause the drill to become
overheated. If this occurs, cool the drill by running it
without load and at full speed.
the type of material and the size of screw you are
using.
ADJUSTING TORQUE
There are sixteen torque indicator settings
located on the front of the drill.
Rotate the adjusting ring to the desired setting.
