Ryobi RPD1010 User manual

RPD1200
ORIGINAL INSTRUCTIONS
Percussion Drill
RPD1010
RPD2-1000

Important!
It is essential that you read the instructions in this manual before operating
this machine.
Subject to technical modifications.

Safety
1
GENERAL POWER TOOL SAFETY WARNINGS
WARNING
Read all safety warnings and all instructions. Failure
to follow the warnings and instructions may result in
electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term “power tool’’ in the warnings refers to your
mains-operated (corded) power tool or battery-operated
(cordless) power tool.
1) WORK AREA SAFETY
a) Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
b) Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools
create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
2) ELECTRICAL SAFETY
a) Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodified plugs and matching outlets will
reduce risk of electric shock.
b) Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges
or moving parts. Damaged or entangled cords
increase the risk of electric shock.
e) When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of
a cord suitable for outdoor use reduces the risk of
electric shock.
f) If operating a power tool in a damp location
is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces
the risk of electric shock.
3) PERSONAL SAFETY
a) Stay alert, watch what you are doing and
use common sense when operating a power
tool. Do not use a power tool while you are
tired or under the influence of drugs, alcohol
or medication. A moment of inattention while
operating power tools may result in serious
personal injury.
b) Use personal protective equipment. Always
wear eye protection. Protective equipment such
as dust mask, non-skid safety shoes, hard hat or
hearing protection used for appropriate conditions
will reduce personal injuries.
c) Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to power source and/or battery pack, picking
up or carrying the tool. Carrying power tools with
your finger on the switch or energising power tools
that have the switch on invites accidents.
d) Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
result in personal injury.
e) Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing and gloves
away from moving parts. Looseclothes,jewellery
or long hair can be caught in moving parts.
g) If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
dust collection can reduce dust-related hazards.
4) POWER TOOL USE AND CARE
a) Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at the
rate for which it was designed.
b) Do not use the power tool if the switch does not
turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must
be repaired.
c) Disconnect the plug from the power source
and/or the battery pack from the power tool
before making any adjustments, changing
accessories or storing power tools. Such
preventive safety measures reduce the risk of
starting the power tool accidentally.
d) Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions
to operate the power tool. Power tools are
dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment
or binding of moving parts, breakage of parts
and any other condition that may affect the
power tool’s operation. If damaged, have the

Safety
2
power tool repaired before use. Many accidents
are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits
etc, in accordance with these instructions,
taking into account the working conditions and
the work to be performed. Use of the power tool
for operations different from those intended could
result in a hazardous situation.
5) SERVICE
Have your power tool serviced by a qualified repair
person using only identical replacement parts.
This will ensure that the safety of the power tool is
maintained.
DRILL SAFETY WARNINGS
a) Wear ear protectors when impact drilling. Exposure
to noise can cause hearing loss.
b) Use auxiliary handle(s), if supplied with the tool.
Loss of control can cause personal injury.
c) Hold power tool by insulated gripping surfaces,
when performing an operation where the cutting
accessory may contact hidden wiring or its own
cord. Cutting accessory contacting a “live” wire may
make exposed metal parts of the power tool “live” and
could give the operator an electric shock.
d) Hold power tool by insulated gripping surfaces,
when performing an operation where the fastener
may contact hidden wiring or its own cord.
Fasteners contacting a “live” wire may make exposed
metal parts of the power tool “live” and could give the
operator an electric shock.
e) Wear safety goggles to protect your eyes from flying
particles and splinters.
Additional safety warnings
When working on walls, ceilings or floors, avoid hitting
electrical wiring and gas or water pipes.
INTENDED USE
a) Drilling and screw driving in all types of wood.
b) Drilling in metals: steel, brass, aluminum sheets,
stainless steel and pipe (do not use impact drilling on
these materials).
c) Drilling in masonry: stone and masonry (use impact
drilling), wall tiles (use ordinary drilling first, then impact
drilling).
Do not use this product in any way other than those stated
for intended use.
MAINTENANCE
WARNING
Theproductshouldneverbeconnectedtoapowersupply
when you are assembling parts, making adjustments,
cleaning, performing maintenance, or when the product
is not in use. Disconnecting the product will prevent
accidental starting that could cause serious injury.
a) When servicing, use only original manufacturer’s
replacement parts, accessories and attachments.
Use of any other parts may create a hazard or cause
product damage.
b) Avoid using solvents when cleaning plastic parts. Most
plastics are susceptible to various types of commercial
solvents and may be damaged by their use. Use clean
cloths to remove dirt, carbon dust, etc.
c) Do not at any time let brake fluids, gasoline, petroleum-
based products, penetrating oils, etc., come in contact
with plastic parts. They contain chemicals that can
damage, weaken or destroy plastic.
d) Electric tools used on fiberglass material, wallboard,
spackling compounds, or plaster are subject to
accelerated wear and possible premature failure
because the fiberglass chips and grindings are highly
abrasive to bearings, brushes, commutators, etc.
Consequently, we do not recommend using this tool for
extended work on these types of materials. However, if
you do work with any of these materials, it is extremely
important to clean the product using compressed air.
e) Always wear safety goggles or safety glasses with side
shields during power tool operation or when blowing
dust. If operation is dusty, also wear a dust mask.
f) Ifthe power supply cordisdamaged, it mustbereplaced
only by the manufacturer or by an authorised service
centre to avoid risk. Contact authorised service centre.
g) For greater safety and reliability, all repairs should be
performed by an authorised service centre.
h) All of the bearings in the product are lubricated with
a sufficient amount of high grade lubricant for the life
span of the product under normal operating conditions.
Therefore, no further lubrication is required.
ENVIRONMENTAL PROTECTION
Recycle raw materials instead of disposing
of as waste. The machine, accessories and
packaging should be sorted for environmental-
friendly recycling.
SYMBOLS
Safety alert

Safety
3
Class II tool, double insulation
No-load speed
Wood
Metal
Masonry
Chuck Capacity
Impact
CE conformity
GOST-R conformity
Please read the instructions carefully before
starting the machine.
Waste electrical products should not be
disposed of with household waste. Please
recycle where facilities exist. Check with your
local authority or retailer for recycling advice.

5

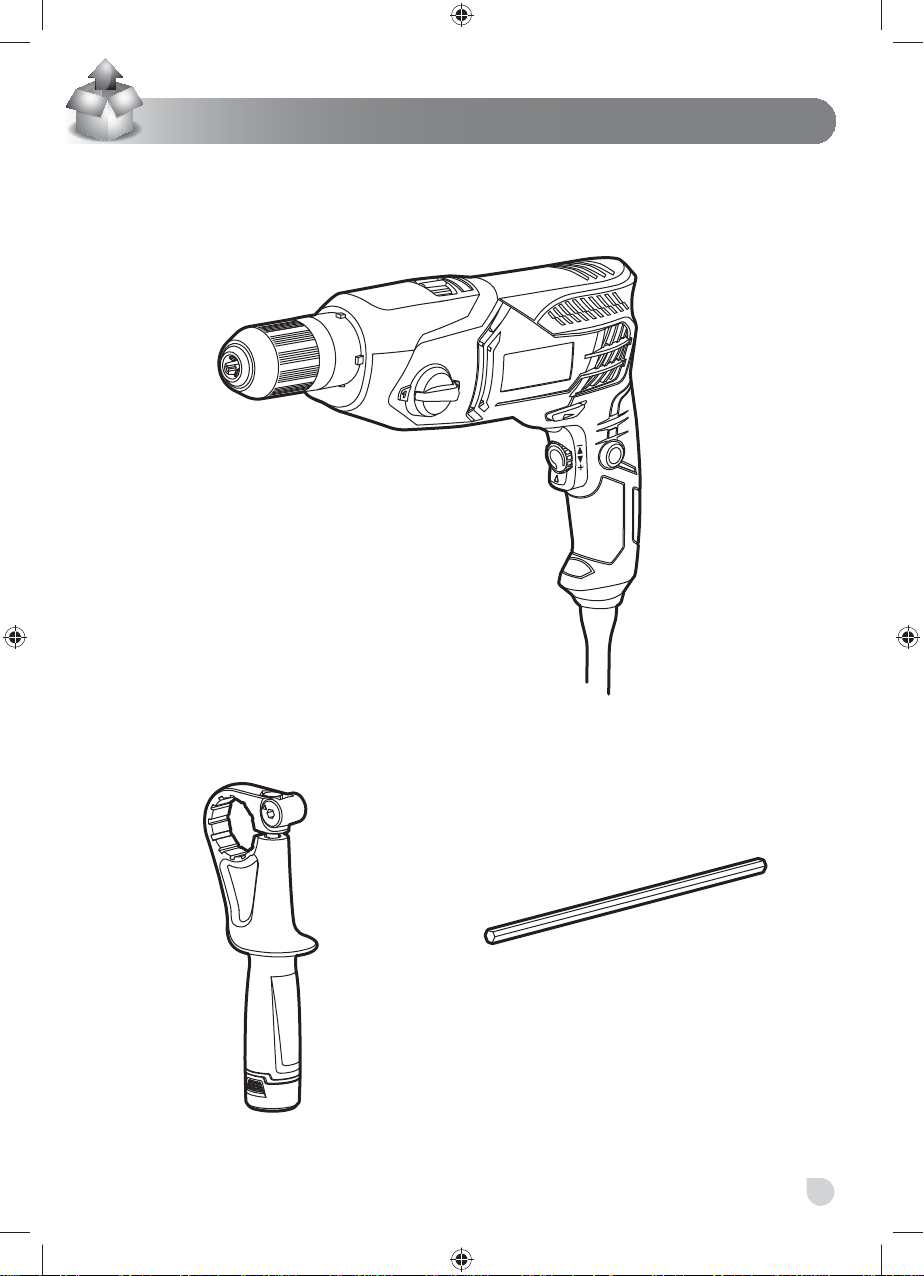

Unpacking
x 1
x 1x 1

6
Getting started
1
3
2
1 2
1
2
56

7
Getting started
43
7
1
2
3

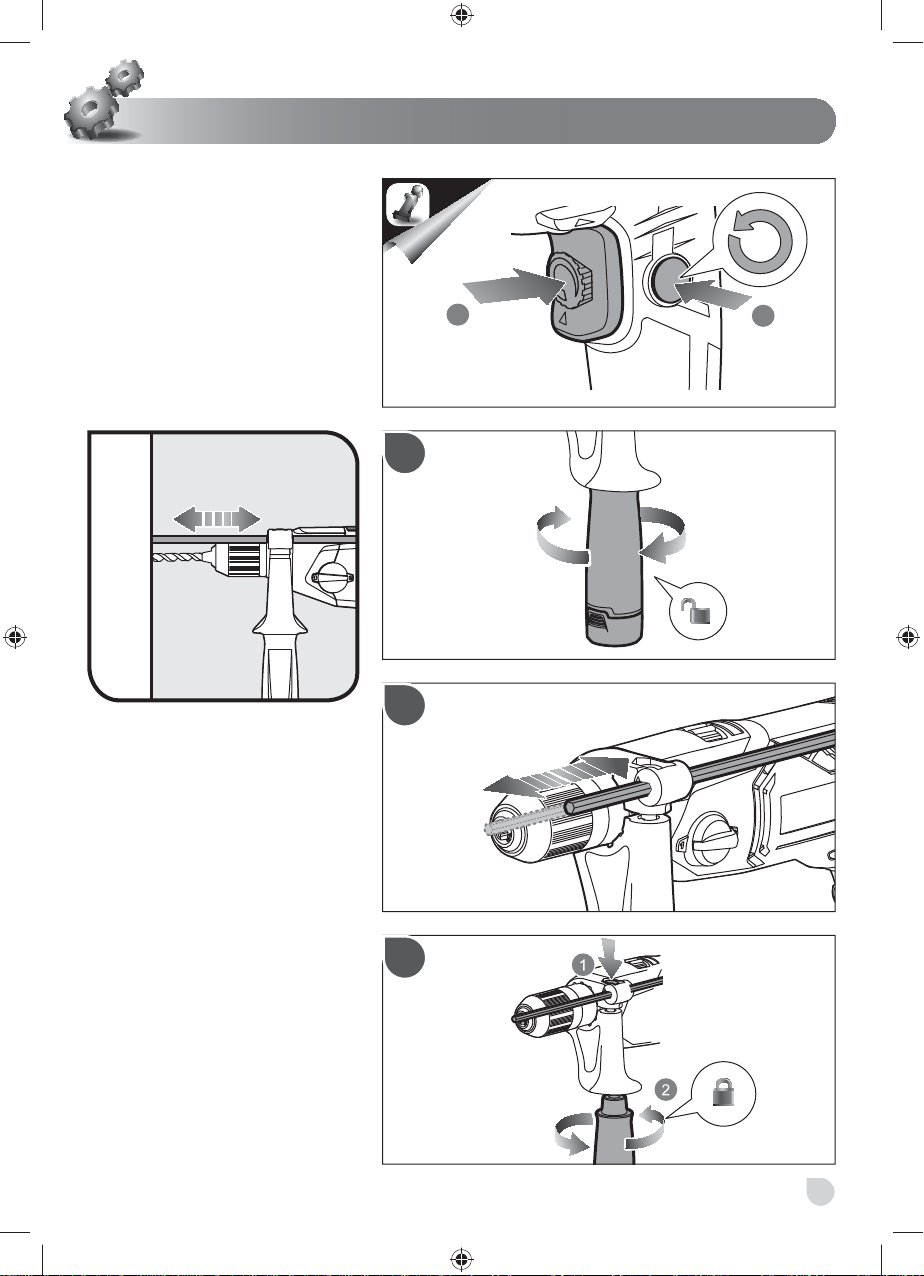

Operation
8
/
1
2
/
1
2
2
3
1
3

Operation
9
2
1
1
2
3

Operation
10
1
2
1
2
3

PRODUCT SPECIFICATIONS
Model RPD1010 RPD1200 RPD2-1000
Voltage 220-240V 50 Hz 220-240V 50 Hz 220-240V 50 Hz
Input 1010 W 1200 W 1010 W
No-load speed 0-1,200 / 0-3,200 min-1 0-1,200 / 0-3,200 min-1 0-1,200 / 0-3,200 min-1
Blows per minute (Impact rate) 0-19,200 / 0-51,200 min-1 0-19,200 / 0-51,200 min-1 0-19,200 / 0-51,200 min-1
Chuck capacity 13 mm 13 mm 13 mm
Drilling capacity
in wood 50 mm 50 mm 50 mm
in metal 13 mm 16 mm 13 mm
in masonry 20 mm 22 mm 20 mm
Weight
(According to EPTA procedure 01/2003) 3.05 kg 3.15 kg 3.05 kg
Measured sound values determined according to EN 60745:
A-weighted sound pressure level LpA = 98.5 dB(A) LpA = 97.0 dB(A) LpA = 98.5 dB(A)
Uncertainty K 3.0 dB(A) 3.0 dB(A) 3.0 dB(A)
A-weighted sound power level LWA = 109.5 dB(A) LWA = 108.0 dB(A) LWA = 109.5 dB(A)
Uncertainty K 3.0 dB(A) 3.0 dB(A) 3.0 dB(A)
Wear ear protectors.
The vibration total values (triaxial vector sum) determined according to EN 60745:
Impact drilling into concrete ah,ID = 15.5 m/s2ah,ID = 15.8 m/s2ah,ID = 15.5 m/s2
Uncertainty K 1.5 m/s21.5 m/s21.5 m/s2
Drilling into metal ah,D = 6.3 m/s2ah,D = 7.4 m/s2ah,D = 6.3 m/s2
Uncertainty K 1.5 m/s21.5 m/s21.5 m/s2
Screwdriving without impact ah= 2.3 m/s2ah= 3.9 m/s2ah= 2.3 m/s2
Uncertainty K 1.5 m/s21.5 m/s21.5 m/s2
VIBRATION LEVEL
WARNING
The vibration emission level given in this information sheet has been measured in accordance with a standardised test
given in EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of
exposure. The declared vibration emission level represents the main applications of the tool. However if the tool is used
for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may
significantly increase the exposure level over the total working period.
An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or
when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working
period. Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool
and the accessories, keep the hands warm, organisation of work patterns.

GUARANTEE
In addition to any statutory rights resulting from the purchase, this product is covered by a guarantee as stated below.
1. The guarantee period is 24 months for consumers and commences on the date when the product was purchased.
This date has to be documented by an invoice or other proof of purchase. The product is designed and dedicated to
consumer and private use only. So there is no guarantee provided in case of professional or commercial use.
2. There is, in some cases (i.e. promotion, range of tools), a possibility to extend the warranty period over the period
described above using the registration on the www.ryobitools.eu website. The eligibility of the tool is clearly displayed
in stores and/or on packaging. The end user needs to register his/her newly-acquired tools online within 8 days from
the date of purchase. The end user may register for the extended warranty in his country of residence if listed on the
online registration form where this option is valid. Furthermore, end users must give their consent to the storage of the
data which are required to enter online and they have to accept the terms and conditions. The registration confirmation
receipt, which is sent out by e-mail, and the original invoice showing the date of purchase will serve as proof of the
extended warranty. Your statutory rights remain unaffected.
3. The guarantee covers all defects of the product during the warranty period due to defaults in workmanship or material
at the purchase date. The guarantee is limited to repair and/or replacement and does not include any other obligations
including but not limited to incidental or consequential damages. The warranty is not valid if the product has been
misused, used contrary to the instruction manual, or being incorrectly connected. This guarantee does not apply to
–any damage to the product that is the result of improper maintenance
–any product that has been altered or modified
–any product where original identification (trade mark, serial number) markings have been defaced, altered or
removed
–any damage caused by non-observance of the instruction manual
–any non CE product
–any product which has been attempted to be repaired by an non-qualified professional or without prior authorization
by Techtronic Industries
–any product connected to improper power supply (amps, voltage, frequency)
–any damage caused by external influences (chemical, physical, shocks) or foreign substances
–normal wear and tear of spare parts
–inappropriate use, overloading of the tool
–use of non-approved accessories or parts
–carburettor after 6 months, carburettor adjustments after 6 months
–power tool accessories provided with tool or purchased separately. Such exclusions include but is not limited to
screw driver bits, drill bits, abrasive discs, sand paper and blades, lateral guide
–components (parts and accessories) subject to natural wear and tear, including but not limited to carbon brushes,
chuck, power cord, auxiliary handle, sanding plate, dust bag, dust exhaust tube
4. For servicing, the product must be sent or presented to a RYOBI authorized service station listed for each country in the
following list of service station addresses. In some countries your local RYOBI dealer undertakes to send the product
to the RYOBI service organisation. When sending a product to a RYOBI service station, the product should be safely
packed without any dangerous contents such as petrol, marked with sender’s address and accompanied by a short
description of the fault.
5. A repair/replacement under this guarantee is free of charge. It does not constitute an extension or a new start of the
guarantee period. Exchanged parts or tools become our property. In some countries delivery charges or postage will
have to be paid by the sender.
6. This guarantee is valid in the European Community, Switzerland, Iceland, Norway, Liechtenstein, Turkey and Russia.
Outside these areas, please contact your authorized RYOBI dealer to determine if another warranty applies.

AUTHORISED SERVICE CENTRES
RYCKO Technical Services LTD
104 Green Lane Hertfordshire AL3 6EX StAlbans
Phone: [phone]
Email: [email protected]
Penn Lawn Mowers
19-21 Parkside Ind Estate Hants BH24 3SG
Ringwood
Phone: [phone]
Fax: [phone]
Email: [email protected]
Brighton Tools & Fixings
Unit 7,Centenary Ind Estate Hughes Road, Off
Hollingdean Road Sussex Est BN2 4AW Brighton
Phone: [phone]
Fax: [phone]
Email: [email protected]
Tooltech Industrial Equip
227 E Dunhill Road Macosquin Coleraine Co
Londonderry BT514LQ
Phone: [phone]
Email: [email protected]
The Lawnmower Company
Unit B1, North Cheshire Trading Estate Prenton
CH43 3DU Wirral
Phone: [phone]
Fax: [phone]
Email: [email protected]
C J Sinclair Limited
44 Victoria Road St Peters KENT CT10 2UG
Broadstairs
Phone: [phone]
Fax: [phone]
Email: [email protected]
ACD PLANT LTD
145 Southbank Road Coundon CV6 1FG Coventry
Phone: [phone]
Email: [email protected]
Vale Garden & Leisure
King Street Middlewich Cheshire CW10 9LF
Phone: [phone]
Email: [email protected]
JWC Tool Repairs
Unit 6 Hills Centre Johnstown Road Dun Laoghire
Co Dublin 18
Phone: [phone]
Email: [email protected]
Frank Clark Ltd
Doughcloyne Industrial Estate Sarsfield Road
Wilton, Cork EIRE
Phone: [phone]
Email: [email protected]
Murray Power Tools
10 Primrose Avenue Grangemouth FK3 8YD Falkirk
Phone: [phone]
Fax: [phone]
Email: [email protected]
Austin Eames
Plas Acton Wrexham North Wales LL11 2UB
Phone: [phone]
Email: [email protected]
Wrexham Power Tools
Five Fords Gate, Bridge Road, Wrexham Ind Estate
Wrexham LL13 9PS Wrexham
Phone: [phone]
Fax: [phone]
Email: [e-mail]
Lawnmower Service Limited
Grantham Road, Wellingore LN5 0HH Lincolnshire
Phone: [phone]
POWER TOOL SOLUTIONS
321 Newark Road Bracebridge LN5 8PE LINCOLN
Phone: [phone]
Fax: [phone]
Email: [email protected]
C D Powertools
76 Old Road Churwell Morley LS27 7TH Leeds
Phone: [phone]
Fax: [phone]
Email: [email protected]
Henton & Chattell Limited
London Road Nottingham NG2 3HW
Phone: [phone]
Email: [email protected]
Garden Machines (Northampton)
66-70 Kingsthorpe Road NN2 6HD Northampton
Phone: [phone]
Email: [email protected]
CBS Power Tools Limited
Unit 4, V P Square Fengate PE1 5YS Peterborough
Phone: [phone]
Email: [email protected]
Plymouth Tools & Spares
111 Victoria Road St Budeaux PL15 1RX Plymouth
Phone: [phone]
Fax: [phone]
Email: [email protected]
Island Power Tools & Hire Centre
Unit D 5 Spithead Bus Centre, Newport Road,
Sandown Isle of Wight PO36 9PH Sandown
Phone: [phone]
Fax: 404241
Email: [email protected]
Aldermaston Tools
Unit 47 Young’s Ind Estate RG7 4PWAldermaston
Phone: [phone]
Fax: [phone]
Email: [email protected]
CME Plant
Bryn Y Groes Farm Ystradgynlais West Glamorgan
SA9 1LF
Phone: [phone]
Email: [email protected]
Southern Power Tool Services
Unit A Nickel Close Winnall Hampshire SO23 7RJ
Winchester
Phone: [phone]
Tool-Line Limited
480-486 London Road Westcliff on sea Essex SS0
9LD Westcliff-On-Sea
Phone: [phone]
Marshall & Parsons
1111 London Road Leigh on Sea Essex SS9 3JL
Leigh-On-Sea
Phone: [phone]
POWERTECH IND LTD
Unit 2c Ellisons Road Killmarsh S21 2JG Sheffield
Phone: [phone]
Email: [email protected]
Toolfix Limited
Unit 8 Quay Road Brunel Ind Estate TQ12 4DZ
Newton Abbot
Phone: [phone]
Celtic Engineering
Water-Ma-Trout Ind Est Helston Cornwall TR13 OLW
Phone: [phone]
Email: [email protected]
Heath Hayes Marine
49 Stafford Street Heath Hayes Cannock, Staffs
WS12 2EH
Phone: [phone]
Email: [email protected]
PTRS
90/2 Lagan Road Dublin Ind Estate Glasnevin
Dublin 11
Phone: [phone]
Email: [email protected]
Paragon Power Tools Ltd
11-12 Cookstown Enterprise Park, Tallaght Dublin 24
Phone: [phone]
Email: [email protected]
Donegal Fixings
Glerczou Business Park Mouicle Co Donegal
Phone: [phone]
Email: [email protected]
J W Tools
Unit 8 Oranmore Business Park Oranmore Co
Galway
Phone: [phone]
Email: [email protected]
DALY INDUSTRIAL
95 LOWER GLANMIRE ROAD CORK IRELAND
Phone: [phone]
Fax: [phone]
Email: [email protected]
For an updated list of authorised service centres, visit http://uk.ryobitools.eu/service-agents-ryobi.htm.

DECLARATION OF CONFORMITY
Techtronic Industries GmbH
Max-Eyth-Straße 10, 71364 Winnenden, Germany
Herewith we declare that the product
Percussion Drill
Model number: RPD1010 / RPD1200
Serial number range:
RPD1010: 44425101000001-44425101999999
RPD1200: 44425201000001-44425201999999
is in conformity with the following standards or standardized documents
2006/42/EC, 2004/108/EC, 2011/65/EU, EN55014-1:2006+A1:2009+A2:2011, EN55014-2:1997+A1:2001+A2:2008,
EN61000-3-2:2006+A1:2009+A2:2009, EN61000-3-3:2008, EN60745-1:2009+A11:2010, EN60745-2-1:2010,
EN60745-2-2:2010
Andrew John Eyre (BEng, CEng, MIET)
Vice President, Regulatory & Safety
Winnenden, Dec. 10, 2013
Authorised to compile the technical file:
Alexander Krug, Managing Director
Techtronic Industries GmbH
Max-Eyth-Straße 10, 71364 Winnenden, Germany

20131113
