Ryobi LM-1320 Operation manual

6986302 (STD)
06-11

1
LM-1320
Your new lawnmower has been engineered and manufactured to Ryobi’s high
standard of dependability, ease of operation, and operator safety. Properly
cared for, it will give you years of rugged, trouble free performance. If you use
your lawnmower properly and only for what it is intended, you will enjoy years
of safe, reliable service.
LAWNMOWER
CAUTION: Carefully read through this entire owner’s
manual, pay close attention to the general
safety rules and rules for safe operation,
before using.
THANK YOU FOR BUYING A RYOBI
LAWNMOWER
Voltage ………………………………………230V~50Hz
Power input ………………………………………1000W
Cutting blade speed………………………… 3450min-1
Cutting width ………………………………… 320mm
Cutting height …………………………… 20/40/60mm
Collection box capacity …………………………… 30L
Net weight ………………………………………… 8.8kg

2
SAFETY ALERT SYMBOL
Indicates danger, caution or warning.
May be used in conjunction with other
symbols or pictures.

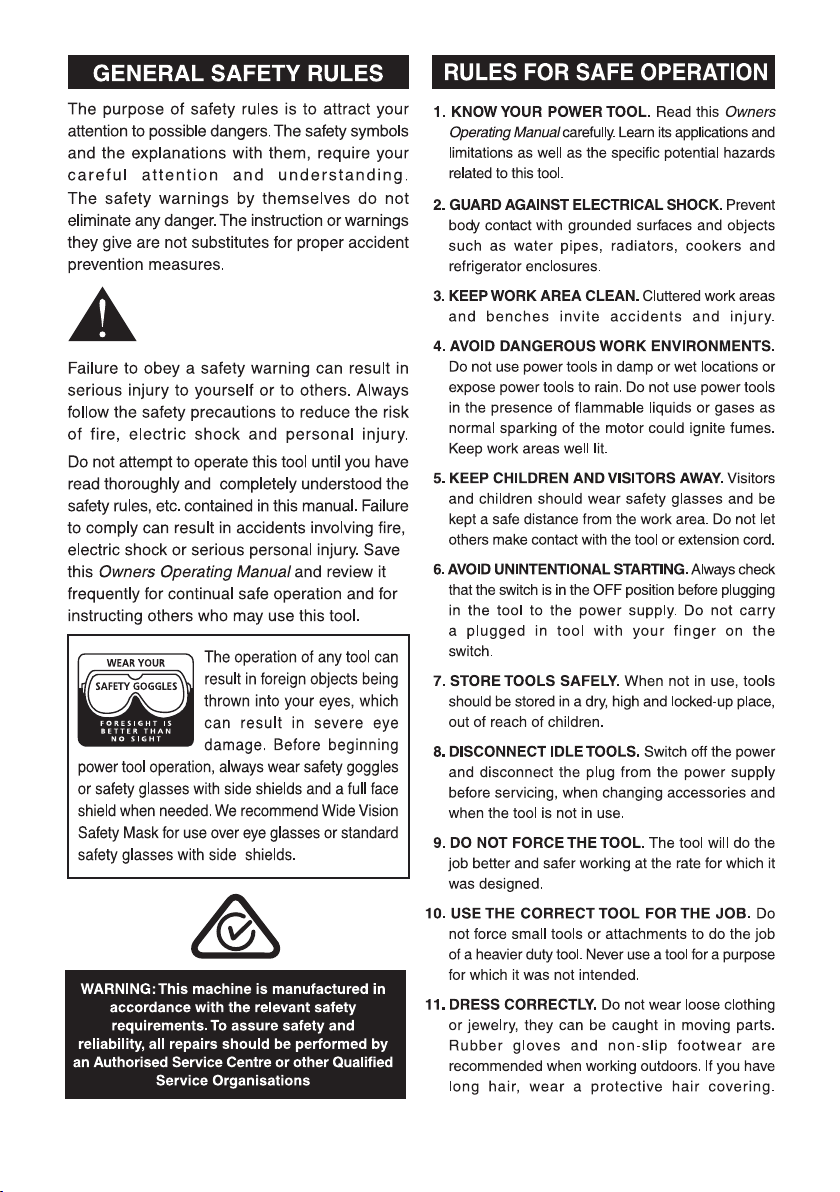

3

4
SPECIFIC SAFETY RULES FOR LAWNMOWER
1. Never allow children or people unfamiliar with
these instructions to use the lawnmower.
2. This appliance is not intended for used by
persons (includiing children) with reduced
physical,sensory or mental capabilities, or lack
of experience and knowledge, unless they have
been given supervision or instruction concerning
use of the appliance by a person responsible for
their safety.
Children should be supervised to ensure that
they do not play with the applinance.
3. Never mow while people, especially children or
pets, are nearby.
4. Do not operate the lawnmower when barefoot or
wearing open sandals, always wear substantial
footwear and long trousers.
5. Thoroughly inspect the area where the
lawnmower is to be used and remove all stones,
sticks, wires, bones and other foreign objects.
6. Before using, always visually inspect to see that
the blades, blade bolts and cutter assembly are
not worn or damaged. Replace worn or
damaged blades and bolts in sets to preserve
balance.
7. Mow only in daylight or in good artificial light.
8. Avoid operating the lawnmower in wet grass,
where feasible.
9. Walk, never run.
10. Never operate the appliance with defective
guards or shields, or without safety devices, for
example deflectors and/or grass catchers in
place.
11. Mowing on banks can be dangerous:
•Do not mow excessively steep slopes.
•Always be sure of your footing on slopes or wet
grass.
•Mow across the face of slopes - never up and
down.
•Exercise extreme caution when changing
direction on slopes.
12. Use extreme caution when stepping back or
pulling the lawnmower towards you.
13. Never mow by pulling the mower towards you.
14. Stop the blades if the lawnmower has to be tilted
for transportation when crossing surfaces other
than grass and when transporting the
lawnmower to and from the area to be mowed.
15. Do not tilt the machine when starting or
switching on the motor, except if the machine
has to be tilted for starting in long grass. In this
case, do not tilt it more than absolutely
necessary and tilt only the part which is away
from the operator. Always ensure that both
hands are in the operating position before
returning the machine to the ground.
16. Switch on the lawnmower according to
instructions and with feet well away from the
blades.
17. Do not put hands or feet near or under rotating
parts. Keep clear of discharge opening at all
times.
18. Never pick up or carry the lawnmower while the
motor is running.
19. Keep all nuts, bolts and screws tight to be sure
that the lawnmower is in safe working condition.
20. Check the grass catcher frequently for wear or
deterioration.
21. Replace worn or damaged parts for safety.

5
DESCRIPTION
STANDARD ACCESSORIES
1. Lawnmower deck
2. Grass collection box
2a)Grass collection box-upper
2b) Grass collection box-lower
3. Lower handlebar
4. Upper handlebar
5. Handlebar securing knob
6. Safety button
7. Switch lever
8. Rear deflector
9. Cable retainer
10.Washer (handlebar securing knob)
11.Bolt
12.Lock screw
13.Washer (lock screw)
Lock screw (2 pcs), Washer (2 pcs), Handlebar securing knob (2 pcs),
Washer (2 pcs), Bolt (2 pcs), Cutting blade spanner
1
3
2a
2b
4
7
6
8
5
9
Fig. 1

6

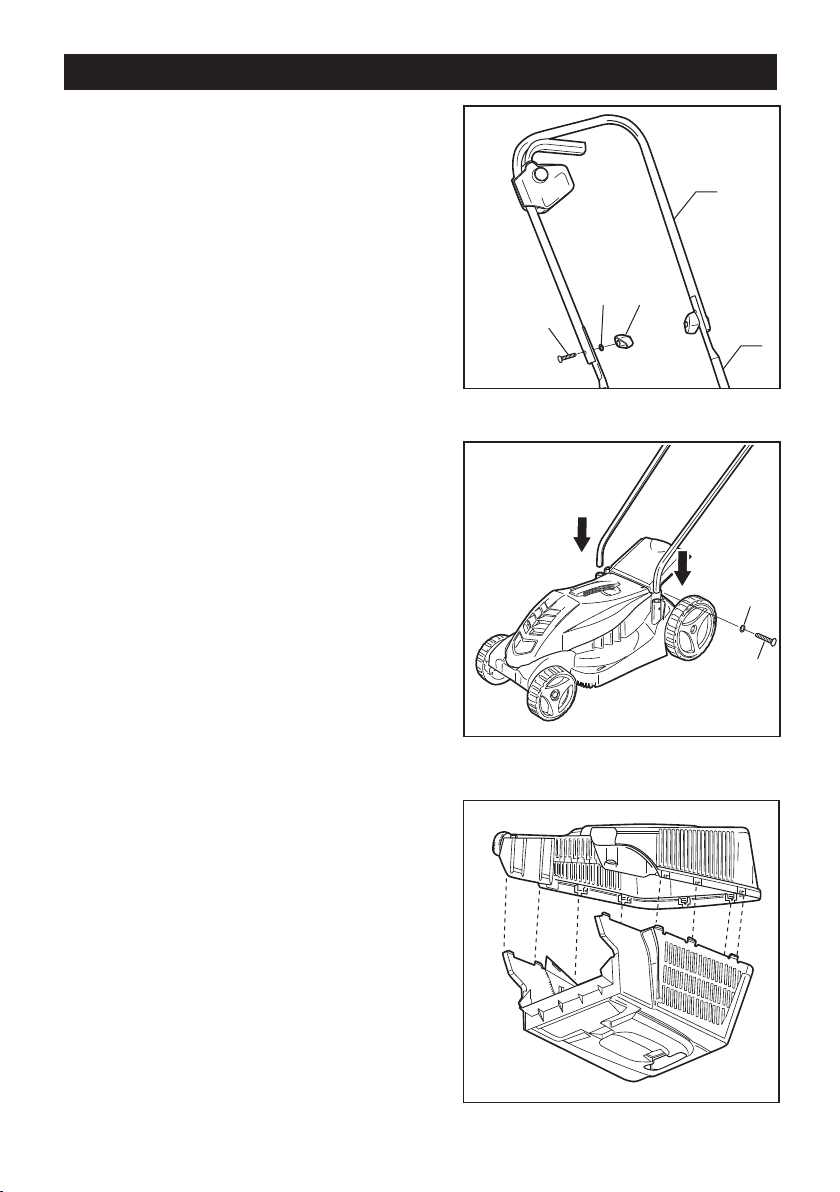

ASSEMBLY
Fig. 4
HANDLEBAR (Fig. 2, 3)
1. Assemble the upper handlebar (4) to the lower
handlebar (3) with the handlebar securing knob
(5), washer (10) and bolt (11).
2. Insert the two lower handlebar tubes into the
holes on main body, and fix the with lock screw
(12) and washer (13).
GRASS COLLECTION BOX (Fig. 4)
1. Align the rear of the grass collection box-upper
(2a), with the rear of the grass collection
box-lower (2b).
2. Ensure that the locking tabs are aligned, and
push together firmly, use of a pair of pliers may
make this easier.
3. Repeat this alignment of locking tabs on both
the right hand and left hand sides of the
collection box, firmly pushing the locking tabs
together.
Fig. 2
Fig. 3
11
10 5
13
12
4
3

7
ASSEMBLY
Fig. 5
ATTACHING THE GRASS COLLECTION BOX
(Fig. 5)
1. Ensure that the grass collection box has been
assembled correctly.
2. Lift the rear deflector (8) on the mower deck.
3. Pass the collection box under the handlebar,
align the attachment hooks and place the
collection box into position.
4. Lower the rear deflector, so that it now rests on
the grass collector box.
2
8
OPERATION
ADJUSTING THE CUTTING HEIGHT
NOTE: Stop, release switch lever and wait until the motor stops before adjusting height. The blades
continue to rotate for a few seconds after the machine is switched off, a rotating blade can
cause injury.
For the first cut of the season, a high cutting adjustment should be selected.
The cutting height can be selected among 20mm, 40mm, or 60mm by adjusting the front and rear wheels.
Front wheel adjustment (Fig.6)
Pull the front wheel axle on either side of the mower deck in turn and relocate it in the required position.
Rear wheel adjustment (Fig.7)
Pull the rear wheel axle along the slot and lift the wheel, then relocate it in the required position.
Note:
1. Set the axle in the upper position for the lowest cutting height, the middle position for the medium height,
and lowest position for the highest cut.
2. All wheels must be at the same position.
3. The lowest cutting height is only suitable for trimming a very level, short lawn. High and medium positions
are recommended for normal use. Never use the mower with the wheels set in different positions.
Fig. 6 Fig. 7

8
OPERATION
STARTING AND STOPPING
NOTE: The blade continues to rotate for a few seconds after the machine is switched off. Allow the
motor/blade to stop rotating before switching “on” again. Do not rapidly switch off and on.
Starting:
1. Set the mower to the required ‘cutting height’.
2. Press and hold the safety button(6).
3. Squeeze the switch lever(7) towards the handle.
Stopping:
Release the switch lever.
MOWING
Place the lawnmower on the edge of the lawn, as close to the power point as possible. Work away from the
power point.
Position the cable to opposite side (already cut) at the end of each turn.
WARNING:
When mowing do not allow themotor to labour particularly in heavy conditions. When the
motor labours the speed of the motor drops and you will hear a change in the motor sound,
when this occurs stop mowing, release the switch lever and raise the height of cut.
Failure to do so could damage the machine.
HEAVY GROWTH
1. Areas of heavy growth should be mown without collecting the clippings.
2. If collection is required, firstly mow the area using the maximum cutting height setting,without the grass
collection bag attached.
3. Allow the clippings to dry out.
4. Attach the grass collection bag and mow the area, again using the maximum cutting height setting.
5. Progressively lower the cutting height setting and mow the area again until the required finish is
obtained.
NOTE: To prevent damage to the grass, do not remove more than one third of the grass’s height on
any one cut.
NOTE: When the blade becomes jammed or if the motor is overloaded, remove the plug from the
power supply.
Clear any obstruction and wait for a few minutes before continuing to use the mower.

9
MAINTENANCE
SAFETY
Before any inspection, maintenance or cleaning of
the mower is conducted.
1. Ensure that the cutting blade has fully stopped
rotating.
2. The mower is disconnected from the mains
power supply.
BEORE EACH USE
1. Remove any grass and debris from around the
cutting height adjustment lever, the air filter in the
cowl and the underside of the mower deck.
2. Ensure the grass collection bag is empty, and
inspect for signs of damage.
3. Check the condition of the rear deflector, along
with the mower deck.
4. Inspect the condition of the cutting blade - note:
wear strong gloves when working with or around
the cutting blade.
5. Ensure that the cutting blade is not bent or
cracked.
6. Check the condition of the blade and it’s
mountings.
7. Check that the fixing bolt is secure.
8. Check the power supply cable
9. Inspect the ‘Switch control & safety button’.
10. Check that all securing nuts and bolts are tight.
LUBRICATE THE WHEELS, PIVOT POINTS AND
LINKAGES AFTER 25 HOURS OF USE
REPLACE THE CUTTING BLADE AFTER 50
HOURS OF USE
GENERAL MAINTENANCE
1. Remove all grass debris from the top and
underside of the mower deck, as well as from
around the ventilation holes, immediately after
use - note: wear strong gloves when working
with or around the cutting blade.
2. Motor unit - this motor unit is maintenance free
and should not be accessed by anyone other
than an approved maintenance engineer.
NOTE: Care should be taken when turning
the mower unit for inspection or
cleaning.
WARNING:
If signs of damage are found, the
mower unit should not be used until
fully repaired by a qualified person.
3. Switch control & safety button - is maintenance
free and should not be accessed by anyone
other than a approved maintenance engineer.

10
MAINTENANCE
STORAGE FOR LONGER PERIODS
NOTE: All electrical inspections and repairs
should be conducted by a qualified
electrician.
NOTE: To ensure your mower is maintained
in good working order, if the storage
period exceeds one month it is
important that the following is
adopted:
1. Clean all areas of the mower,
ensure that the grass collection
box is empty and clean.
2. Lubricate the wheels, pivot points
and linkages.
3. Cover all metal parts with oil to
prevent corrosion.
4. Cover the mower with a protective
sheet and store in a dry area.
Fig. 8
CUTTING BLADE
1. The cutting blade has sharp edges, always wear
strong gloves to protect your hands when
working with or around the cutting blade.
2. Always work away from the cutting edges of the
blade to avoid the risk of injury.
3. Care should be taken when turning or lifting the
mower unit.
4. It is recommended that the cutting blade is
replaced every two years or after 50 hours
operation, which ever occure the sooner.
5. Damaged or worn blades should by replaced
immediately.
BLADE REPLACEMENT (Fig. 8)
2. Turn the mower unit on to its side.
3. Firmly grip the end of the cutting blade - with a
gloved hand.
4. Remove the fixing bolt, with the spanner
provided.
5. Carefully remove the cutting blade.
6. Ensure that the ‘New’ cutting blade is the correct
way up, with the turned edges facing towards the
motor.
7. Locate the ‘New’ blade into position on the carrier
pins. The blade with texts should face outward.
8. Secure the fixing bolt and tighten.
9. Return the mower unit to an upright position.
1. Disconnect the mower from power supply before
removing or refitting the blade.
WARNING:
Unbalanced blades will cause the
lawnmower to vibrate-risk of accident!
POWER SUPPLY CABLE
Before use, the power supply cable should be
inspected for signs of damage or ageing.
DO NOT USE ANY POWER TOOLS IF THE
CABLE IS DAMAGED OR WORN.

RYOBI POWER EQUIPMENT
WARRANTY
Subject to the warranty conditionsbelow, this
RYOBI tool(hereinafter called “the Product”),
is warranted by Ryobi(hereincalled “the
Company”) to be free fromdefects in material
or workmanship for a period of 24 months
from the date of originalpurchase covering
both parts andlabour. Under the terms of
thiswarranty, the repair or replacement of
anypartshall be the opinion of the Company
or its authorised agent. Should service
becomenecessary during the warranty
period, the ownershouldcontact the
authorised Ryobiretailer fromwhom the
product waspurchased, or the nearest
Company branch office. In order to obtain
warranty service, the ownermust include the
SalesDocketand Warranty Certificate to
confirmdate of purchase.This Product is
sold by the dealer or agent as principal and
the dealerhasnoauthority from the Company
to give any additionalwarranty or guarantee
on the Company’s behalf except as herein
contained or herein referred to.
Warranty Conditions
Thiswarranty onlyappliesprovided that the
Product hasbeen used in accordance with
the manufacturer's recommendationsunder
normaluseandreasonablecare(in the
opinion of the Company) and such warranty
does not cover consumable components,
damage,malfunction or failureresulting from
misuse, neglect,abuse, or used for a purpose
for which it wasnotdesigned, or is notsuited
and no repairs, alterations or modifications
havebeen attempted by other than an
Authorised Service Agent. Thisguarantee
willnotapply if the tool is damaged by
accident or if repairsarise fromnormalwear
and tear.
Accessoriessuch as bits,blades, sanding
discs, cuttinglines, etc., are excluded from
thisguarantee.Normalconsumableparts,
such as carbonbrushes,bearings,chucks,
cord assembly’s, spark plugs, recoil pulleys
andbumpheadassembly’s arespecifically
excluded from this guarantee.
The Company accepts no additional liability
pursuant to thiswarranty for the costs of
traveling or transportation of the Product or
parts to and from the sevice dealer or agent
-which costsarenotincluded in the warranty.
Nothinghereinshallhave the effect of
excluding, restricting or modifying any
conditions,warranty, rightorliability imposed,
to the extent only that such exclusion,
restriction or modificationwouldrender any
term herein void.
THIS WARRANTY FORM
SHOULD BE RETAINED BY THE CUSTOMER AT ALL TIMES.
For your record and to assist in establishing date of purchase (necessary for in-warranty service), please
keep your purchase docket and this form, completed with the following particulars.
PURCHASED FROM:.........................................................................................................
ADDRESS OF DEALER:....................................................................................................
DATE:......................... MODEL NO................................ SERIAL NO.................................
Present this form with your Purchase Docket when Warranty Service is required.
STEVENS & CO (Pty) Ltd
604, 16th Street, Randjespark
Midrand, South Africa
Tel: [phone]
Fax: [phone]
email: [email protected]
P O Box 4059
HALFWAY HOUSE
1685, South Africa
