RYOBI 3404DI
A3-Size Portrait Format 4-Color Offset Press with
Built-in Direct Imaging
Number of Colors 4
Printing Speed 1,500 – 7,000 S.P.H.
Local conditions, ink, stock and printing quality required will affect the
maximum printing speed.
Max. Paper Size (W x L) 340 x 460 mm (13.39 x 18.11")
Min. Paper Size (W x L) 90 x 100 mm (3.54 x 3.94")
Max. Printing Area (W x L) 330 x 450 mm (12.99 x 17.72")
Paper Thickness 0.06 – 0.3 mm (0.0024 – 0.012")
Blanket Type Blanket with aluminum bar
Blanket Size 526 x 350 x 1.95 mm (20.71 x 13.78 x 0.077")
Plate Material PEARLdry™ Plus (waterless plate)
Number of Plates 28 per roll
Plate Setting Auto plate advance mechanism
Number of Imaging Units 2
Imaging Time 2,540 dpi: 4 min. 30 sec. 1,270 dpi: 2 min. 20 sec.
Laser Type FirePower™ multi-beam lasers (laser diode system)
Feeding System Universal feeder
Feeder Pile Capacity 400 mm (15.75")
Delivery Pile Capacity 400 mm (15.75")
Registration System Push side guide, front lay
Infeed System Underswing gripper, paper feed drum
Number of Rollers 15 (form rollers: 4) per unit
Gripper Margin 9 mm (0.354")
Oiling System Automatic centralized oiling system
Power 3-phase 200V 50/60Hz 43A or other voltages
(60A when equipped with infrared dryer)
Power Consumption Press: 13.5kW (17.5kW when equipped with infrared dryer)
Motor Wattage Main motor: 5.5kW
Recommended Room temperature: 20 – 25°C
Operating Environment Relative humidity: 50 – 60%
Dimensions (L x W x H) 3,230 x 2,635 x 1,665 mm (10'7" x 8'8" x 5'6")
including foot step and operation stand
Weight 4,500 kg (9,950 lbs) including foot step and operation stand
Press Specifications
Software RIP Harlequin ScriptWorks
Operating System Windows NT®Server 4.0
CPU Pentium III 933 MHz
Hard Disk 36GB HDD RAID (18GB x 2)
Memory 512MB
Network 100Base-TX /10Base-T
Input Language PostScript, PDF Ver. 1.3
Pre-installed Fonts 35
CRT Monitor 17-inch (color)
CD-ROM Drive Max.24x speed
Floppy Disk Drive 2-mode 3.5-inch
Standard Equipment
• RYOBI Program Inking
• Image area ratio data calculation function
• Cooling device for imaging unit and control unit
• Ink roller temperature control system (ink fountain rollers, ink oscillating rollers)
• Automatic ink roller cleaning device
• Automatic blanket cleaning device (includes impression cylinder cleaning function)
• Plate cleaning device
• Paper feed table motor drive
• Delivery table motor drive
• Powder spray device (spraying time adjustable)
• Decurling device
• Suction wheels
• Delivery paper pull-out device
• Delivery jam detector
• Static eliminator
• Double sheet detector (mechanical, electronic)
• Total counter
• Machine counter
• Preset repeat counter
• OK monitor
• Centralized oiling system
• Safety covers
• Safety bars
• Ink roller clean-up attachments
• Foot step
Optional Accessories
• RYOBI PDS-E printing density control system
• Infrared dryer
• Multi-size paper pile board
Standard Equipment
• 17-inch color monitor
• Keyboard
• Mouse
• 2-mode 3.5-inch floppy disk drive
• CD-ROM drive
Optional Accessories
• Plug-in software for EPSON ink jet printer
(Stylus color 3000, Stylus Pro 5000 /7000/7500/9000/9500)
*Color printer must be prepared by the user.
Press Equipment and Accessories
RIP for RYOBI 3404DI SV770 Specifications
RIP for RYOBI 3404DI SV770 Equipment and Accessories
• DI is a registered trademark of Presstek, Inc.
• Macintosh is a registered trademark of Apple Computer, Inc.
• Harlequin RIP is a registered trademark of Global Graphics Software Ltd.
• Windows and Windows NT are registered trademarks of Microsoft Corporation in the United States
and other countries.
• Adobe, Acrobat and PostScript are registered trademarks of Adobe Systems Incorporated.
• The names of all companies, products, software and fonts mentioned in this catalog are trademarks
and/or registered trademarks of their respective holders.
Design and specifications are subject to change without notice.
Specifications may differ slightly depending on the country.
• Cables
• 35 fonts

121021
2
3
5
6
13
4
2
3
4
5
689
1112
77
7
7
Waterless Plate (PEARLdry™ Plus)
The 3404DI uses PEARLdry™ Plus,a roll-type
waterless plate.This plate uses laser action to
form surfaces that are either adhesive or repellent
to ink.Each plate lasts for approximately 20,000
impressions,and will accommodate both short
runs as well as longer,large-lot production.
Note: The number of available plate impressions depends on
printing conditions such as the type of ink and paper
stock used.
High Printing Quality From an Offset Press
RYOBI has packed the 3404DI’s compact body with a host of
outstanding printing features.Incorporating RYOBI’s unrivaled offset
printing know-how,it features a highly reliable,robust design that
yields high printing quality and promises a long and productive
service life.
Dimensions
Compact Design Based on a Unique
CylinderArrangement
The 3404DI uses a satelliteV-shaped 5-cylinder
system consisting of two sets of double-
diameter blanket cylinders and plate cylinders,
which rotate around a triple-diameter impres-
sion cylinder. Paper is tightly held by the
impression cylinder grippers and rotated twice
without a gripper change for precise 4-color
printing.The large diameter of the impression
cylinder reduces paper curling as well as
damage to the printed material.Thanks to this
cylinder arrangement,the RYOBI 3404DI
achieves a compact design that’s about the
same size as a conventional 2-color press.
Inking section
Ink roller temperature
control system
Three Plate Cleaning Devices
Once imaging has been completed, plate
cleaning is carried out by three devices—a dry
cleaning device,a wet cleaning device and a
vacuum,to remove residual silicone on the
plate.
Plate cleaning device (wet cleaning)
Plate cleaning device (dry cleaning)
Vacuum

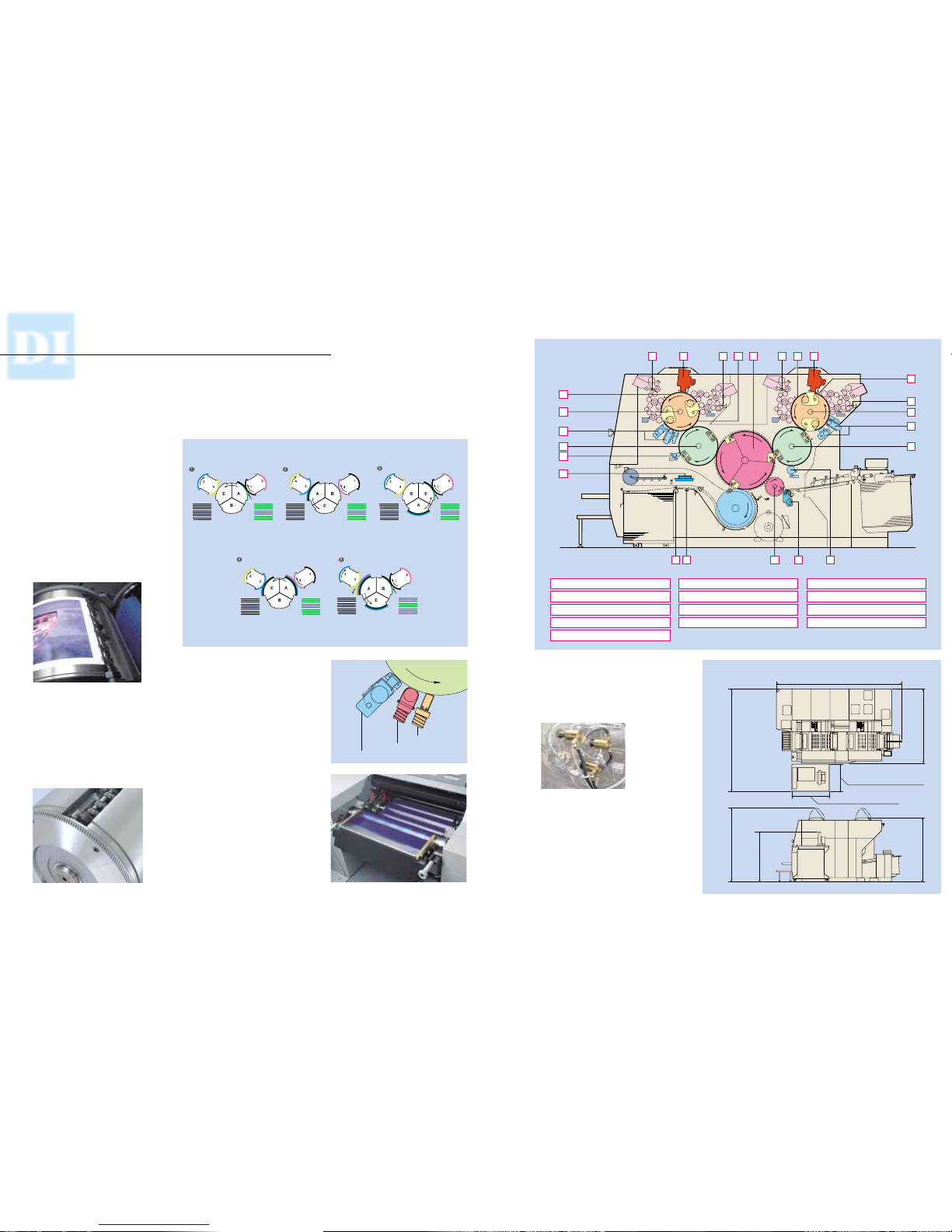

1. Imaging head
2. Printing plate
3. Plate cylinder
4. Plate cleaning device
5. Blanket cylinder
6. Automatic blanket cleaning device
7. Automatic ink roller cleaning device
8. Underswing system
9. Paper feed drum
Solid,Reliable Design
The 3404DI uses a bearer contact system to
maintain constant plate pressure with each
rotation of the cylinder.Plus, induction-
hardened ultra-high-precision helical gears and
cylinders fitted with ultra-high-precision
bearings ensure consistent,stable printing
quality over long periods of use.
Ultra-high-precision helical gears are used
on the impression cylinder
Plate cleaning devices
PaperTravel
Sheets are fed one-per-rotation of the
plate and blanket cylinders.The paper
is held by the impression cylinder
(surfaceA). Blanket cylinder 1 prints
the first color.
Blanket cylinder 2 prints
the second color. The paper printed with the second color is not transferred to the
delivery section, but enters the
second rotation while being held by
the impression cylinder grippers.
During the second rotation,
blanket cylinder 3 prints the
third color on the sheet.
When blanket cylinder 4 finishes
printing the fourth color,the sheet
is delivered to the delivery pile.
3,230 mm (10'7")
1,915 mm (6'3")
720 mm (2'4")
990 mm (3'3")
2,635 mm (8'8")
1,913 mm (6'3")
1,298 mm (4'3")
1,665 mm (5'6")
Ink RollerTemperature Control System
Roller temperature is maintained at an optimum
level by circulating temperature-controlled water
(warm water and cold water) inside the oscillating
rollers and fountain rollers.By minimizing fluctua-
tions in ink roller temperature,consistent printing
quality is maintained,even during long print runs.
The triple-diameter impression cylinder
reduces paper curl
Mechanical Configuration
10. Impression cylinder
11. Decurling device
12. Suction wheel
13. Infrared dryer (option)
11-Zone Divided Ink Fountains
Ink fountains are divided into 11 zones,each
having its own motor.The ink supply volume
for each zone is remotely controlled from the
operation stand.
Inking Mechanism
Each inking unit consists of 15 rollers including
4 form rollers,ensuring uniform inking.

RYOBI 3404DI
