SAB titan micro se User manual

1
CONTENTS
1. SAFETY .....................................................................................................................................................3
2. INTRODUCTION......................................................................................................................................3
3. FEATURES................................................................................................................................................4
4. REMOTE CONTROL ...............................................................................................................................5
5. FRONT PANEL/REAR PANEL................................................................................................................6
6. CONNECTING YOUR SYSTEM..............................................................................................................6
6.1 TV WITH MOTORIZED SYSTEM (DISEQC1.2).............................................................................................7
6.2 CONNECTING THE NETWORK......................................................................................................................7
7. BASIC OPERATIONS...............................................................................................................................9
7.1 TURN ON STB ...........................................................................................................................................9
7.2 POWER......................................................................................................................................................9
7.3 CHANNEL UP/CHANNEL DOWN ..................................................................................................................9
7.4 VOLUME UP/VOLUME DOWN-....................................................................................................................9
7.5 NUMBER ...................................................................................................................................................9
7.6 MUTE........................................................................................................................................................9
7.7 PAUSE.......................................................................................................................................................9
7.8 RECALL.....................................................................................................................................................9
7.9 FAVORITE..................................................................................................................................................9
7.10 AUDIO .................................................................................................................................................10
7.11 INFORMATION ......................................................................................................................................10
7.12 EPG .................................................................................................................................................... 10
7.13 TV/RADIO .........................................................................................................................................11
7.14 CHANNEL LIST.....................................................................................................................................11
7.15 SLEEP ..................................................................................................................................................12
7.16 PAGE UP/PAGE DOWN ..........................................................................................................................13
7.17 TEXT..................................................................................................................................................13
7.18 SUBTITLE.............................................................................................................................................13
7.19 FIND ....................................................................................................................................................13
7.20 ZOOM ..................................................................................................................................................13
7.21 TV/SAT ............................................................................................................................................... 13
7.22 MENU..................................................................................................................................................13
7.23 VIDEO FORMAT....................................................................................................................................13
7.24 EXIT .................................................................................................................................................... 13
8. SERVICE..................................................................................................................................................14

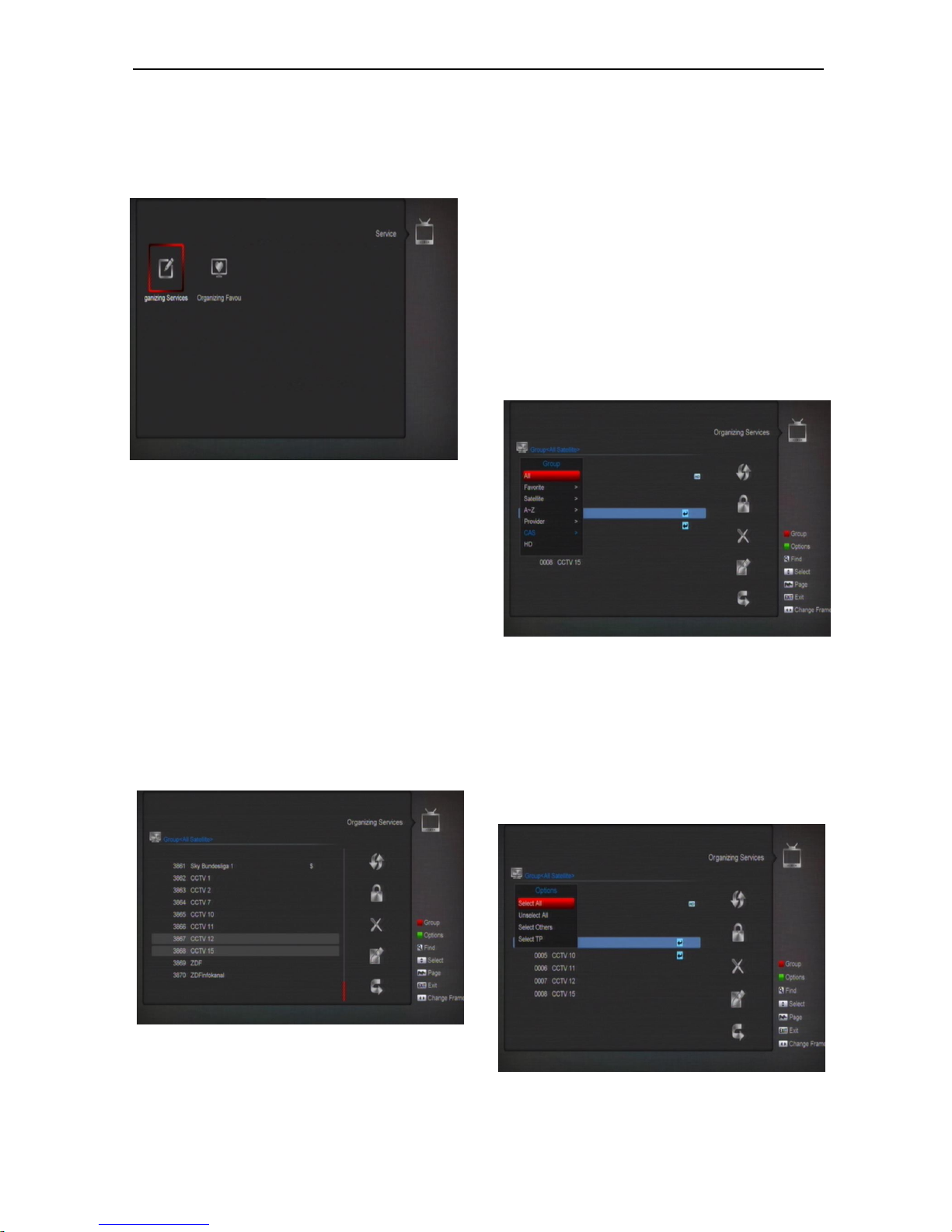

8.1 ORGANIZING SERVICE..............................................................................................................................14
8.2 ORGANIZING FAVOURITES .......................................................................................................................16
9. INSTALLATION.....................................................................................................................................16

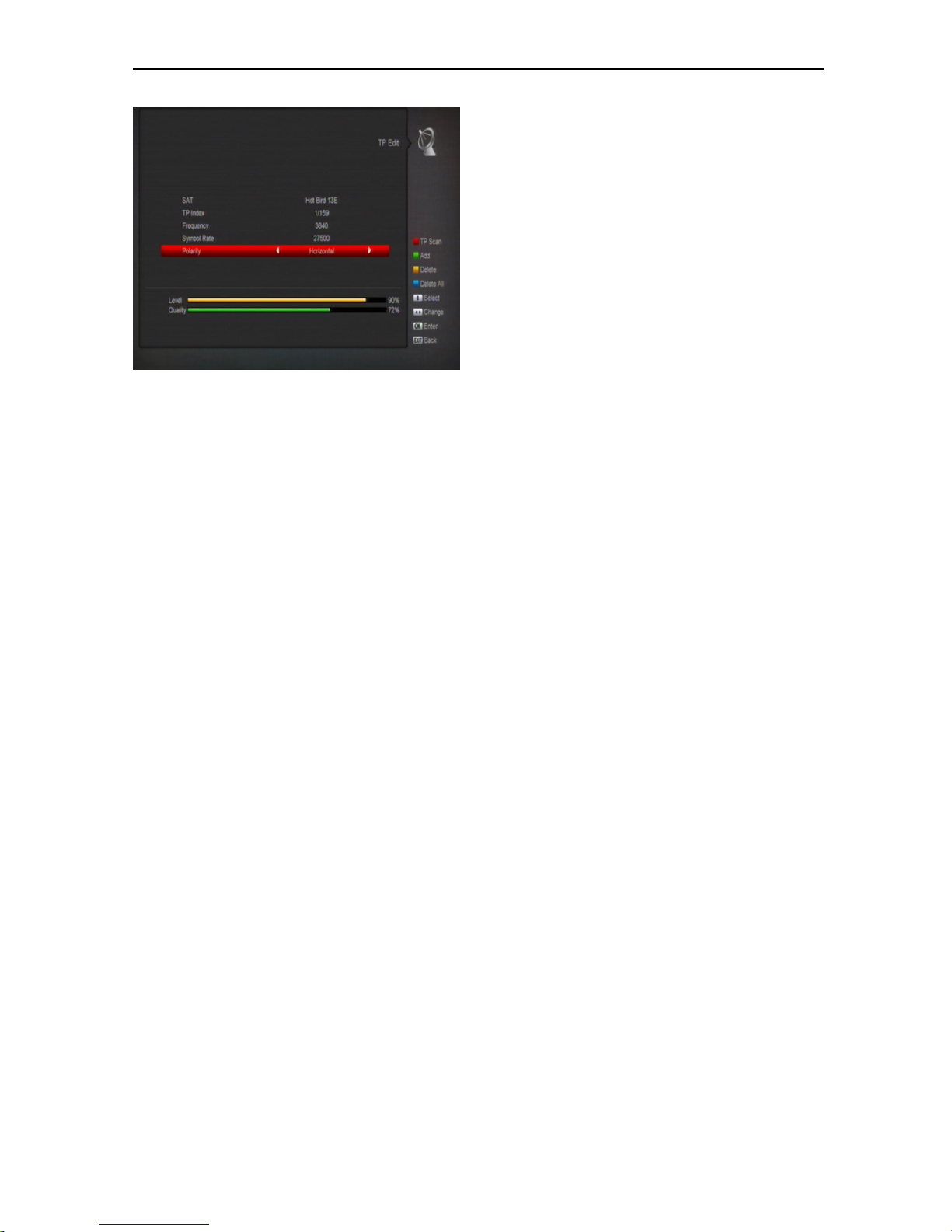

9.1 SATELLITE INSTALLATION........................................................................................................................16
9.2 FASTSCAN SATELLITE.............................................................................................................................. 19
9.3 AUTO INSTALLATION ...............................................................................................................................19
9.4 SATELLITE GUIDE....................................................................................................................................19
10. SYSTEM...................................................................................................................................................19
10.1 LANGUAGE ..........................................................................................................................................20
10.2 A/V CONTROL .....................................................................................................................................20
10.3 ETHERNET SETTING..............................................................................................................................21
10.4 TIME SETTING......................................................................................................................................23
10.5 TIMER..................................................................................................................................................24
10.6 PARENTAL CONTROL............................................................................................................................25
10.7 MISCELLANEOUS SETTINGS ..................................................................................................................25
10.8 SOFTWARE UPGRADE ........................................................................................................................... 26
10.9 DEFAULT SETTING ...............................................................................................................................28
10.10 INFORMATION ......................................................................................................................................29

2
11. CONDITIONAL ACCESS.......................................................................................................................29
11.1 CA SETTING ........................................................................................................................................29
12. MEDIA.....................................................................................................................................................30
12.1 MOVIE.................................................................................................................................................30
12.2 MUSIC .................................................................................................................................................31
12.3 IMAGE .................................................................................................................................................32
12.4 SOFTWARE...........................................................................................................................................34
12.5 DISK MANAGE .....................................................................................................................................34
12.6 REMOVE USBDEVICE SAFELY! ............................................................................................................35
12.7 HDD FORMAT......................................................................................................................................35
13. APPLICATION........................................................................................................................................35
13.1 YOUTUBE.............................................................................................................................................35
13.2 RSS READER .......................................................................................................................................36
13.3 WEATHER FORECAST ........................................................................................................................... 37
13.4 GOOGLE MAPS.....................................................................................................................................37
13.5 FTP.....................................................................................................................................................38
13.6 TITAN ONLINE .....................................................................................................................................38
13.7 WEB TV .............................................................................................................................................. 38
13.8 DLNA.................................................................................................................................................38
13.9 BIG2SMALL..........................................................................................................................................39
14. GAME.......................................................................................................................................................39
14.1 TETRIS.................................................................................................................................................39
14.2 SNAKE.................................................................................................................................................39
14.3 OTHELLO .............................................................................................................................................39
15. EPG...........................................................................................................................................................40
16. NEW FEATURES....................................................................................................................................40
17. TROUBLE SHOOTING..........................................................................................................................41
18. SPECIFICATIONS..................................................................................................................................42

3
1. SAFETY
This HD Receiver has been manufactured to satisfy the international safety standards.
Please read the following safety precautions carefully.
MAINS SUPPLY:
External DC 12V Adapter
OVERLOA
DING
: Do not overload wall outlet, extension cord or adapter as this may result in fire or
electric shock.
LIQUIDS:
Keep liquids away from the
HD Receiver
. The apparatus shall not be exposed to dripping
or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
CLEANING:
Disconnect the
HD Receiver
from the wall outlet before cleaning .Use a light damp cloth
(no solvents) to dust the HD Receiver.
VENTILATION:
The slots on top of the
HD Receiver
must be lef
t uncovered to allow proper airflow to
the unit. Do not stand the HD Receiver on soft furnishings or carpets. Do not expose the HD Receiver
to direct sunlight or do not place it near a heater. Do not stack electronic equipments on top of the
HD
Receiver.
ATTACHMENTS:
Do not use any attachments that are not recommended as these may cause
hazard or damage the HD Receiver.
CONNECTION TO THE SATELLITE DISH LNB:
Disconnect the
HD Receiver
from the mains before
connecting or disconnecting the cable from the satellite dish.
FAILURE TO DO SO CAN DAMAGE THE LNB.
CONNECTION TO THE TV:
Disconnect the
HD Receiver
from the mains before connecting or
disconnecting the cable from the satellite dish.
FAILURE TO DO SO CAN DAMAGE THE TV.
EARTHING:
The LNB cable
MUST BE EARTHED to the system earth for the satellite dish.
LOCATION:
Place the
HD Receiver
indoor in order not to expose to lightening, rain or sunlight.
2. INTRODUCTION
Thank you for purchasing the HD Receiver.
This HD Receiver is fully compliant with the international DVB standard and thus transmits digital
images, sounds, information guides and teletext directly to your TV through the satellite broadcasting.
Now you can comfortably see and receive digitally transmitted music, news, movie and sports satellite
broadcasts in your office or at your home. You can enjoy interesting games embedded in HD
Receiver.
In service search section, both the automatic service search method and the manual search mode
are provided. Also it supports DiSEqC 1.0, 1.2 and USALS, enabling you to move your antenna in
order to focus preferred satellite. You can save up to 6000 TV and Radio services and work around
with the favorite, Lock, Delete, Move and Sort functions.
The menu is very modern and supports multiple languages. All functions can be carried out using the
remote control and some of the functions can also be carried out using the front panel. The HD
Receiver is easy to use and adaptable for future advances. Please be aware that new software may
change the functions of the HD Receiver.

4
If you have any difficulties concerning the operation of your HD Receiver, please refer to the relevant
section of this manual, including the ‘Troubleshooting’. This Manual will provide you with useful
information on using the HD Receiver.
3. FEATURES
MPEG-Fully DVB-S / DVB-S2 (H.264) HD compliant
6000 channels (TV and Radio) programmable
Multilingual menu text support
Channel switching time less than 1 second
Channel list editing
Favorite channel list editing
True-color On-Screen Display (OSD)
Full Picture In Graphic (PIG) function
Electronic Program Guide (EPG) for on screen channel information
Subtitle supported
Teletext supported by VBI insertion and software emulation
Parental lock facility by channel and program event
Program and Channel information transfer from receiver to receiver
Exciting games embedded
Dolby Digital Bit-Stream output via HDMI
DiSEqC 1.0, 1.1, 1.2 ,USALS and Unicable
HDMI Full HD (1080p) Video/Audio Output
2x USB 2.0 Host
RTC (Real-Time-Clock)
Time Shift
Video Recording
Recording one channel and Time Shifting another channel (optional)
3G Network Function Supported

5
4. Remote Control
You can power on/off the receiver, operate on screen menu, and
use a variety of hot key function.
POWER
To switch your receiver on from standby or standby to on.
MUTE
Used to enable or disable the audio
NUMERIC KEYS
Used to select channels or enter programming parameters
TV / RADIO
Receiver switches between TV and Radio mode.
(ZOOM)
Press key select zoom times, from X1 to X16.
RECALL
Return to the previous menu or status.
TV/SAT
Receiver switches between TV and receive mode.
INFO
To display channel status or various program information of current service.
EPG(Electronic Program Guide)
Display the Programs guide on screen when available.
MENU
Displays the Main Menu on the screen, or return to the previous menu or
status.
EXIT
Cancel the user selection and return to the viewing mode from a menu.
OK
To select menu option, or to updated on entry.
<,> KEY
To adjust volume level, or to move cursor left or right in the menu.
^,v KEY
To change channels, or to move cursor up or down in the menu.
PAGE /PAGE
To move up the cursor to the next or previous page
in the menu or channel list.
●REC
Has different functions per menu.
Teletext
Shows teletext information of the current channel supports.
Subtitle
Subtitle Display.
(FIND)
Use to prompt find channels sort by character.
TIMER
Press timer key you can setup up the Standby time.
V ． FORMAT
Press V.FORMAT button to switch the display mode among "AUTO", "By
Native TV","480p", "576P", "720P_50","720P_60,"1080i_50"," 1080i_60" ,"
1080P_50" and" 1080P_60"
FAV(FAVORITE)
To set receiver to the favorite server mode,
display the favorite channel.
FOLDER
Press this button to enter the Record Manager menu directly.
AUDIO(Red Key)
Audio channels setup, to select audio mode; Left, Right , Stereo, Mono.
OPTION(GREEN KEY)
Shows NVOD information of the current channel supports.
SAT
Display the satellite list at normal picture.
Play Mode
Select the play mode in MP3 or JPEG player.
USB
To remove the USB Hard Disk safely.

6
TMS(Time Shift)
Press this button to display Time Shift info bar.
Play
To play the MP3, JPEG, or Record files.
Stop
To stop the Time Shift, recording, or MP3/JPEG player.
PAUSE
Used to select the freeze function.
Press once to freeze the screen picture.
FB
To start Fast Backward function.
FF
To start Fast Forward function.
SB
To start Slow Backward function.
SF
To start Slow Forward function
/ PREV/NEXT
Switch to preview or next file in play mode
5. Front panel/Rear Panel
Please refer to the diagram above for all possible connections of your receiver
Do not connect the unit to the mains socket until all other connections have been made and checked.
LNB IN 13/18V 400mA MAX: This port is to connect the coaxial cable from LNB of your Dish.
AV OUT: This RCA connector is used to connect TV using RCA cable.
HDMI: Audio and Video output socket for TV set with HDMI Input Jack only.
RS 232 SERIAL PORT: This is used to connect your receiver to a computer through a serial cable.
USBA/B : USB 2.0 Host, connect to USB hard disk, or flash disk and 3G dongles.
IR IN: Connect an External IR-Sensor (Infrared).
Ethernet: Network port, you can get a new software updates from this port.
DC 12V:This is used to connect an external 12V adapter.
Card Slot: One CA Interface for Conax. (on the right side of the receiver)
6. Connecting Your System
There are two ways to connect the receiver to your existing TV system. We recommend using one of
the following cases for the best result:

7
1. If you have a high definition television set, you should use a HDMI cable for best result, Plug one
end of the cable into the HDMI socket on the receiver, and the other end into the matching socket on
your television. In this case, you do not have to make audio connections because the HDMI connector
can output stereo audio or Dolby Digital audio.
2. Connect one end of RCA cable to the RCA jack on the back of the receiver and the other end to a
RCA jack on your TV.
Finally connect the coaxial cable from the LNB of your Dish to the LNB IN jack on the receiver.
With External Audio / Hi-Fi System
To connect any external Audio Hi-Fi system, the receiver has been provided with RCA connector at
the back of the receiver marked with AV OUT.
Connect an RCA cable from the AV OUT jack on the back of the receiver to the LINE, AUX, SPARE
OR EXTRA input jacks on your Hi-Fi System.
6.1 TV with Motorized System (DiSEqC 1.2)
Connect one end of your coaxial cable to the LNB IN connector on the receiver and the other end to
the REC or Receiver connector on the DiSEqC 1.2 motor.
Connect the coaxial cable from the LNB to the LNB connector on the DiSEqC 1.2 motor.
All our receivers are designed to be DiSEqC 1.0 and DiSEqC 1.2 compatible.
This allows multiple antennas to be connected to the receiver at the same time.
If you have two or more fixed antennas or LNBs, then we recommend you use a DiSEqC 1.0
switch.
Connect the coaxial cable from the first LNB to the LNB 1 or LNB A input connector of the DiSEqC
switch.
Do the same for any other LNBs that you have.
Connect one end of a coaxial cable to the RF output connector of the DiSEqC switch,
connect the other end to the LNB IN socket on the receiver.
To the digital receiver, you can connect either a single satellite antenna directly or LNB of
multi-feed equipment.
6.2 Connecting the Network
1. Connecting to the LAN:

8
Connect one end of the Ethernet cable to the product and the other end to the LAN router.
2.Connecting to the Wi-Fi (Wireless LAN):
You can connect the network via the Wi-Fi access point or DSL/cable modem.
a. Plug in the wireless USB dongle to the USB port.(Separate purchase required)
b. Set the options for the Wi-Fi.
1. Network Name (SSID): Select the network name of your Wi-Fi access point from the list.
2. Security Type (WEP): This product supports WEP 40/128bit ASCII and WEP 40/128bit HEX. The security
type of the Wi-Fi and the product shall be set the same.
3. Password:When using the security type, you must set the password. Enter the samepassword intheWi-Fi
setting menu.
3. Connecting to the 3G:
Connect the network via the 3G dongle. Plug in the USB that has 3G dongle.
Note:
1) Make sure the distance between the Wi-Fi access point and the product is not too far away. This may lower the
quality of service.
2) It is recommended to purchase a wireless USB dongle distributed by RT5370. Other products may not function or
respond.
3) It is recommended to purchase a 3G USB dongle distributed by huawei E1750 , E1550 , E1752 , E173 Other
products may not function or respond.
4) We recommend the network connection over a direct LAN.

9
7. Basic Operations
7.1 Turn on STB
First, connect to an external 12V adapter to turn on
the unit.
When the STB is first used, there will play the first
channel from the default Channel List. If the STB is not
first used, STB will play the same channel as last time
before turning off.
?Frequently Asked Question
Q: The power of my STB has been turned on and not
in Standby mode, but the TV screen showed
nothing:
A: Make sure the TV set has been set to the correct
video input (not the TV channels). For example, if you
have connected the unit with the Video1 input of the TV
set, the TV set has to be switched to Video1.
Q: The power of my STB has been turn on and not in
Standby mode, but the TV screen showed
nothing except one box with “No Signal” image.
A: That means the channel, which you select, is no
signal. It could be several causes:
1 The channel which you select is not in your
allocate satellite. The simply solution is to change
channel.
2 The signal of current TV channel is too weak. You
can try to change channel to other strong signal
channels. If the problems still exist, please consult
your local dealer or other professionals for
technical service.
3 You use the Dual LNB, and you need Modify LNB
Type
7.2 Power
1 Press [Power] Key can enter the Standby state
2 In Standby state, press [Power] Key again can call
back the unit and go on play the previous channel
3 User can also disconnect the device’s main power
to end the Standby state.
7.3 Channel Up/Channel Down
In full screen, press [CH+/CH-] to change channel.
7.4 Volume Up/Volume Down-
In full screen, press [VOL+/VOL-] to adjust volume.
7.5 Number
In full screen, use number key and press [OK] on the
Remote Control Unit to change channel.
7.6 Mute
1 Press [MUTE] key to mute the sound and the
screen will show up mute OSD.
2 Press [MUTE] key again to restore sound.
7.7 Pause
1 In playing mode, press [Pause] key, the picture will
be paused, but the sound of the channel will still
continues.
2 Press [Pause] key again, the screen’s picture will
skip over to the current playing picture, and the
sound of the channel will corresponding playing.
7.8 Recall
Press [RETURN] key will directly switch to the previous
channel that you played before current channel.
7.9 Favorite
1 In full screen, press [FAV] key, it will display a
window of “Favorite list” on the left of the screen,
which you can watch like below.
2 In the window of " Favorite list ", you can move
highlight by press [Channel Up/Channel Down]
key to select favorite Channels.
3 In the window of ” Favorite list ", you can press
[Left/Right] key to select favorite groups Pressing

10
[P-/P+] keys can implement the “Page up/Page
down” function
4 Press [Exit] key to exit the current window.
? Frequently Asked Question
Q: Why the screen displays “No Favorite Channel”,
after pressing [FAV] key?
A: It is becausethat you haven’t set any channels as
“favorite channel”. Please refer to Favorite
.
7.10 Audio
1 In full screen, press [AUDIO] key can open the
“Audio” window on the screen.
2 You can modify the audio track by press [Channel
Up / Channel Down] key and modify the audio
mode by press[left/right] key.
3 Mode: Left/Right/Stereo/Mono
7.11 Information
In full screen, press [INFO] key (press [INFO] key and
[RED] key) can open information screen, in the window
shows the parameters of current channel.
7.12 EPG
1 The STB has an Electronic Program Guide (EPG)
to help you navigate channels through all the
possible viewing options. The EPG supplies
information such as channel listings and starting
and ending times for all available channels.
Press [EPG] key to display EPG screen.
2 Press [Red] key can select the channels by
different group, such as by
Favorite/Satellite/Provider/CAS etc.
3 Press [Green] key to select different display mode
among Now EPG, Next EPG, More and Schedule,
like the following picture:

11
4 Press [Yellow] key in EPG menu can set one
record timer or go to Timer List menu.
5 In EPG menu, when you select one event by high
light item, you can set this event to record timer list
directly by press [REC] button.
6 In EPG menu, press [Exit] to close EPG screen.
7.13 TV/RADIO
In TV mode, pressing [TV/RADIO] key can switch to
Radio mode. In Radio mode, press [TV/RADIO] key to
switch to TV mode.
7.14 Channel List
1 In full screen, press [OK] key can enter “Channel
List”.
2 Press [Red] key to change the different group.
Which you can watch like below.

12
3 Press [Green] key to display details information for
EPG Now.
4 Press [Yellow] key you can change the current
channel’s property, such as FAV/ Lock/ Skip/
Delete/ Rename.
5 Press [Blue] key can open the “Sort” windowlike
below. There are five kinds of sorting ways. You
can press [Channel Up/Channel Down] key to
move highlight and press [OK] key to confirm you
selection.
l
6 Press [white] key you can change the channel list
mode.:mode1,mode2,mode3 and EPG
7 The five kinds of sorting way are:
Default: Sorting by scanning result.
FTA/$: Sort channel through free and
scramble sequence. Free channel will in the
front of channel list and scramble channel will
at the rear of channel list
Lock: Accumulated all locked channels and
list in the last of TV Channel List.
Name (A-Z): Sorting in Alphabetical Order,
ignore “$” symbol.
Name (Z-A): Sorting in Alphabetical Order,
ignore “$” Symbol.
8 Press [Up/Down] key to move highlight and press
[OK] key to play the highlighted channel.
9 Press [Page Up/Down] key to page up and page
Down.
10 Press [Exit] key to exit the channel list.
7.15 Sleep
1 This function can set sleep timer. When you set a
sleep timer and the time arrive, the system will
enter to standby automatically.
2 Pressing [SLEEP] key, it will switch the mode
between Sleep Timer Off /10/30/60/90/120
minutes.

13
7.16 Page Up/Page Down
In Channel list, press [Page+/Page-] key can page up
and page down the channel list.
7.17 TEXT
1 Press [TTX] key in full screen, you can open
teletext page on the channel which has teletext
information.
2 If the channel has no teletext information, it will
show “No Teletext Data” on the screen.
7.18 Subtitle
1. Press [SUBTITLE] key in full screen you can
select the subtitle language or off on the channel
which has subtitle.
2. If you set the Auto subtitle option as ON in
Miscellaneous settings menu, the subtitle will be
showed automatically.
7.19 Find
1 Press[Find] key in full screen can open the“Find”
window like above. You can
press[Up/Down/left/right ]key to move
highlight and press[OK]key to input the
selected symbol or letter into the dialogue.
2 After input each character, the program list
on the left will search the channel
according your input, and list the matched
channel.
3 Move highlight to “OK”and press [OK]
key can close“Find”window and you can
select channel from the channels list
directly.
7.20 Zoom
1 The [ZOOM] key allows you to magnify a certain
area on the images
2 Press [ZOOM] key again, the image will enlarge
rotate as x1, x2, x4, x6, x8, x12, x16.
3 In “x2 ~ x16” image, using [Up/ Down/ Up/ Down]
keys to move the image center area you want to
see.
4 In zoom mode, press [Exit] to close “Zoom”
window.
7.21 TV/Sat
1 Press [TV/Sat] key can switch between TV mode
and STB mode
7.22 Menu
Press [MENU] key can open the menu, exit the
current menu to last menu or close the window.
7.23 Video Format
Press [V. Format] key under Full Screen playback for
1st, it will show the current system outputting video
resolution, continuously press this key, system will
switch its outputting video resolution by sequence
"AUTO", "By Native TV","480p", "576P",
"720P_50","720P_60,"1080i_50"," 1080i_60" ,"
1080P_50" and" 1080P_60"
7.24 Exit
1 Press [EXIT] key can exit the current menu
to last menu or close the window.

14
8.Service
When you press [Menu] key to enter menu,
there will display the picture like below:
Press [Left/Right] key you can select the
submenu of Organizing services and
Organizing favourites.
Press [OK] key to enter the “Organizing
Service”. If Menu Lock is “On”, it will display
an dialogue for user to key in password.
The default Password is “0000”.
Press [Menu] key to go back to main menu.
8.1 Organizing Service
When you enter to “Organizing Service” menu,
there will display the screen like below.
1. You can move highlight by press [Channel
Up/Channel Down] key and [OK] key to
select the programs which you want to edit.
2. You can press [Page Up/Page Down] key
to implement the Page Up/Page Down
function.
3. You can use [Red] key to switch different
Group.
4. You can press [Green] key to select the
programs by different select mode.
5. Press color key can implement the
corresponding function in “Organizing
Services”.
Groups
1 Press [Red] key can open the “Groups” window
like above
2 You can press [Up/Down] key to move
highlight and press [OK] key to select group.
3 Press [Menu] key to close “Groups” List.
Options
1. Press [Green] key can open the “Options”
window like above.

15
2. You can press [Up/Down] key to move
highlight and press [OK] key to confirm the
select mode.
3. Press [Menu] key to close “Options” List.
Move
1. Select the channels which you want to edit
in channel list by press [OK] key or other
select mode.
2. Then press [Right] key to move the high
light to right toolbar.
3. Select Move icon by press [Channel
Up/Channel Down] key and [OK] key.
4. Move the channels to the position which
you want and press [OK] key to confirm.
Like the following picture:
Lock
1 Select the channels which you want to edit in
channel list by press [OK] key or other select
mode.
2 Then press [Right] key to move the high light
to right toolbar.
3 Select Lock icon by press [Channel
Up/Channel Down] key and [OK] key.
4 Lock the channel by press [OK] key.
Like the following picture:
Delete
a) Select the channels which you want to
edit in channel list by press [OK] key or
other select mode.
b) Then press [Right] key to move the high
light to right toolbar.
c) Select Delete icon by press [OK key to
delete channel one by one.
d) When you high light in channel list ,you
can press [OK] key to select more
channels ,and repeat b and c step to
deleted.
Skip and rename
Follow the same way you can set the channel’s
Skip or give the new name for high light channel.
Find

16
1. Press[Find] key can open the “Find”
window like above. You can
press[Up/Down/left/right]key to move
highlight and press [OK] key to input the
selected symbol or letter into the dialogue.
2. After input each character, the program list
on the left will search the channel according
your input, and list the matched channel.
3. Move highlight to “OK” and press [OK] key
can close “Find” window and you can select
channel from the channels list directly.
8.2 Organizing Favourites
This menu is helpful in adding and deleting
services to and from the favorite group.
1 FAV List
To choose the FAV List by press “FAV” button.
2 Add
To add services into favorites, Mark the desired
services by press “ OK ” button in Service List,
press to choose Add mode and press “ OK ”
button.
3 Remove
To remove services from favorites, Mark the
desired services by press “ OK ” button in
Favorite List, press to choose Remove
mode and press “ OK ” button.
4 Move
You can reorder and move the service to the
preferred position in Favorite List.
5 Rename
Select the desired FAV List by press “FAV”
button, using , buttons to choose Rename
mode and press “ OK ” button to display
keyboard, and rename it.
6 Group, Options and Find functions
Please refer to the “Organizing Services” part in this
manual.
9.Installation
1.Press [OK] key to enter the “Installation”. If Menu
Lock is “On”, it will display an dialogue for user to key
in password. The default Password is “0000”.
2.Press [Left/Right] key to select menu pages among
Satellite Installation,FastScan Satellite,Auto
installation,Satellite Guide
3. Press [Up/ Down] key to select menu items. Press
[menu] key to go back to main menu.
9.1 Satellite Installation
Satellite
1 Satellite: Press[OK]key to enter the Satellite
list.

17
2 Press [Up/ Down] key to select satellite. Press
[Page] key to page up or page down.
LNB Type
In this item, press[Left/Right]key can switch
among “Standard”, “User” and
“Universal” , ”Unicable” mode.
DiSEqC
DiSEqC: You can press [OK] and [Up/ Down] key to
switch options. There are several options for your
selection:
a) Disable: without DiSEqC.
b) 1/2, 2/2: two ports DiSEqC
c)1/4, 2/4, 3/4, 4/4: 4 ports DiSEqC
d) 1/8, 2/8… 8/8: 8 ports DiSEqC
e) 1/16, 2/16….16/16: 16 ports DiSEqC
Positioner
Positioner：In “Positioner” item, you can press
[Left/Right] key to switch “Off / DiSEqC 1.2 /
USALS” functions.
22K
You can use [Left/Right] key to switch “ON / Off”.
When this item is switched to “ON”, receiver will
receive TV and radio input signal from 22K port.
If the item is switched to “Off”, the receiver will
receive all signal from 0K port.
!Notice
When you choose LNB type “Universal”, you
can not modify 22K.
Polarity
In “Polarity” item, [Left/Right]key to switch “Auto /
H / V” functions.
LNB Power
In “LNB POWER” item, you can press [Left/Right] key
to switch: ” On/Off” functions.
TP Edit
When you enter to “TP Edit” menu, there will
display the screen like below:

18
1 In “Satellite” item, press[Left/Right]key to
switch satellite that you want to scan or
press[OK]key to enter satellite list for
selection.
2 In “TP Index” item, you not only can use
[Left/Right]key to select transponder but also
can use[Add] and [Delete]functions.
When you press[Green] key, it will display
“New TP” in “TP Index” item; You should
set the parameters of “TP Frequency” and
“Symbol Rate” for this new transponder.
The parameters of “TP Frequency” and
“Symbol Rate” can set by number keys.
The available range are “3000~13450
MHz” and “1000~45000Ks/s”.
When you press[Yellow] key, there will
show up a warning message for reminding
whether you will delete the current
transponder or not. If you select “Yes”, the
current transponder will be deleted, and the
total account of transponder will reduce 1
correspondingly.
When you press [Blue] key, there will show
up a warning message for reminding
whether you will delete all transponders or
not. If you select “OK”, all transponders will
be deleted.
3 For the existed transponder, you also can
use number keys to modify the parameters
of “TP Frequency” and “Symbol Rate”.
4 When you complete your modification,
Press [Red] key, it will show up a dialog to
ask you scan mode, program type, scan
type and NIT Search on/off. After you set
up, press [OK] key to start scanning.
5 In the “TP Scan” item, press [Exit] key to
exit the scanning and save the current
parameters.
Single Scan
1 Press [Red] key, it will show up a dialog to
ask you scan mode (means you want to
scan all channels or only scan free
channels), program type (means you want
to scan all channels or only scan TV/Radio
channels), scan type (means preset scan,
that is searching the existed TP. Automatic
Scan means blind scan. It is no need
existed TP info) and NIT Search on/off.
After you set up, press [OK] key to start
scanning.
2 Press [White] key into the blind scanning
immediately.
TP Scan
Press [Green] key to scan current TP’s
programs.
Auto DiSEqC
Press [Blue] key to run Auto DiSEqC function, it
can find the satellite connect to which port
automatically.
Blind Scan
Press [White] key can directly into blind scan
mode to scan the current satellite.

19
9.2 FastScan Satellite
In this menu, you can search the channels fast
by select the provider and press OK button on
Start Search item.
9.3 Auto installation
“Auto Installation” is a very new and convenient
function. It will automatically detect all dishes
connecting to this machine and scan the
available services belonging to the satellite
matched according to satellites and
transponders data in current database. You
don’t have to input any parameter of your
antenna settings. Just press “ OK ” button to
enter this “Auto Installation” menu then it starts
scanning and shows you the result at the end of
scanning.
9.4 Satellite Guide
When you enter to “Satellite Guide” menu, you
will see the screen like below:
“Satellite Guide” is use for user to enter local
longitude; local latitude and satellite longitude.
By the evaluation from the receiver evaluate the
antenna azimuth and antenna elevation; user
can follow this guidance to adjust antenna.
1 You can use number keys to input
parameters in “Local Longitude”, “Local
Latitude” and “Satellite Longitude”.
2 You can use [Left/Right] key to select east
or west in “Local Longitude” and “Satellite
Longitude”, select north and south in
“Local Latitude”.
3 Moving highlight to “Start” item and press
[OK] key. The lower column on the screen
will calculate the corresponding value
automatically.
4 Orientation means the angle between
south and satellite.
Press [Exit] key to draw back to “Main” Menu.
10.System
When you enter to “System” menu, you will see
a screen like below:

20
In “System” menu:
Press[Left/Right]key to select menu items
among Language, A/V Control,Ethernet
Setting,Time setting, Timer, Parental
Control,Miscellaneous Settingls,Software
Upgrad, Default Setting, HDMI
Certificatio ,Information.
Press[OK]key to enter the selected item.
10.1 Language
When you enter to “Language” menu, you will
see the screen like below:
1 Language: press [Left/Right] key to select menu
languages, the selections of languages include:
French, English, Spanish, Russian, German,
Greek, Italian, Portuguese, Arabic, Polish. etc.
2 First Audio: Some channels have more than one
audio language for choosing; by this function you
can set the first audio for this channel. If the
playing channel has the same audio as the “First
Audio” you set, system will play this audio
language as default. If the channel hasn’t the
suited audio language, then the system will
compare automatically with second audio
language. The selections of audio languages
include: English, French, German, Russian,
Arabic, Portuguese, Turkish, Spanish, Polish and
Italian.
3 Second Audio: If the channel has no correspond
audio with “First Audio” but have corresponded
audio with “Second Audio”, system will play the
second audio language as default. If no audio
language corresponds with the “Second Audio”,
then the default language of current channel will
be played automatically. The selections of audio
languages include: English, French, German,
Russian, Arabic, Portuguese, Turkish, Spanish,
Polish and Italian.
4 Audio Priority: Press [Left/Right] key to select
Dolby or Language.
5 EPG: Press [Left/Right] key can select EPG
language.
6 Subtitle Language: Press [Left/Right] key
can select subtitle language.
7 Teletext: You can set teletext language. If the
streams have this language you can see the
teletext in language you set.
8 Press [MENU] key to draw back from “Language”
menu.
10.2 A/V Control
When you enter to “A/V Control” menu, you will
see the screen like below:
