SABINE SWA4U ANTENNA DIVIDER User manual

UHF/VHF Antenna Divider
Operating Guide
for models:
SWA4U
SWA4V
Version 1.1
Table of Contents
Introduction ---------------------------------------------------------3
General information on antenna placement ----------------3
Components -------------------------------------------------------3
Installation Connections ----------------------------------------- 4
General Installation Cautions ---------------------------------- 4
Installation Diagrams---------------------------------------------5
Cautions & Warranty ---------------------------------------------6
Limited Warranty --------------------------------------------------7

2
Notes

SWA4V-U-ANTENNA-DIVIDER-Op-Guide-021024.pmd - hto
3
Introduction
Operating Guide for Antenna Divider Systems for the Sabine True Mobility Wireless
Systems: SWM3000 UHF 30-channel True Diversity Receiver (SWA4U) and SWM1600
VHF 16-channel True Diversity Receiver (SWA4V).
Your Sabine Antenna Divider features very low inter-modulation distortion, high dynamic
range and low noise components, and eliminates interference in multiple system usage.
Please refer to your True Mobility Receiver Operating Guide for important information
about the correct setup of your receiver.
General information on antenna placement
The Antenna Divider should be placed in an open area within visual range of the in-
tended microphone locations. Note that the range of a True Mobility transmitter is about
100 meters, but that structural objects can lessen that range. Extension antennas can
be added to maintain good reception even when the antenna divider is located far from
the transmitters.
CAUTIONS
Since the installation of the antennas influences the operating efficiency of the re-
ceiver, the most important rule is to minimize the distance between receiving an-
tenna and transmitter for better reception and performance.
Keep the system away from electrical-noise sources (electric motors, refrigerators,
arc welders, etc.). Place the antenna divider at least one meter above floor level.
Keep all transmitters at least 3 meters away from a receiver antenna.
Your Antenna Divider can be installed into an EIA standard rack-mount case using the
rack-mount brackets provided. Sabine also offers Rear-to-Front Antenna Converter
Kits (SWA100), UHF or VHF Extension Antennas (SWAUEXT, SWAVEXT), and a UHF
Extension Antenna Boosters (SWAUB) to improve reception.
Components
This antenna divider will allow you to connect up to 4 Sabine SWM3000 UHF receivers
(SWA4U) or 4 Sabine SWM1600 VHF receivers (SWA4V) to one set of antennas —
thus alleviating the “porcupine effect” of multiple-receiver antenna placement —and im-
proving reception as well. This setup can be combined with the Sabine UHF Extension
Antennas (SWAUEXT) or the Sabine VHF Extension Antenna (SWAVEXT) for addition-
ally improved reception. Extension antennas must be purchased separately.
Included in SWA4U and SWA4V kits
Qty Item Description
8 Signal Cable Lines 40 cm (TNC)
2 Rack Mount Brackets
1 AC-to-DC Power Adapter
1 Instruction Manual
Antenna Divider Installation Instructions

4
Antenna Divider Installation Instructions
Installation Connections
1. Using rack mount brackets supplied, install the Sabine Antenna Divider into an EIA
standard cabinet (this step is optional).
2. Attach the two antennas supplied with your receiver to the A and B Antenna Input
ConnectorsonthebackoftheAntennaDivider.Toimprovereception,youcanreplace
the supplied antennas with Sabine Extension Antennas (UHF: SWAUEXT or VHF:
SWAVEXT).
3. Using the supplied cables, connect the #1 A and B Antenna Outputs on the Antenna
Divider to the corresponding Antenna A and B TNC connectors on your #1 Sabine
Wireless Receiver. Proceed in the same fashion for the remaining Sabine Wireless
units.
4. Plug the AC-to-DC Power Adapter cord into the DC Power Input Jack on the back
of the Antenna Divider. Plug the adapter into an appropriate AC power source (see
Caution #1 below).
5. Turn on Power switch.
General Installation Cautions
1. Power Supply: Be sure to plug your unit into an appropriate power source. Low
voltage (<12 Volt) will cause the unit not to function properly. High voltage (>18 volt),
or fluctuating voltage may damage the unit.
2. UHF/VHF Mixing: Do not mix UHF and VHF receivers on one Antenna Divider. For
UHF reception, use a Sabine SWA4U Antenna Divider. For VHF reception, use a
SabineSWA4UAntennaDivider.
3. AntennaShorting:Becareful not toallowtheantennato come incontactwithmetal
surfaces (antenna divider case, other wires, cables, etc.).
4. Receiver to Antenna Divider cables: Keep these cables as short as possible. It is
recommended to use the cables supplied with your Antenna Divider.
5. Extension Antenna cables: For best results, use high quality coaxial cable with a
50 Ohm impedance. Specifications will vary by cable manufacturer. For best
results, the cable attenuation should be no more than 6 dB per 100 feet (30 meters)
inthetransmitter/receiverband. Examplesofsuchcables are RG217/UforUHFand
RG58/U for VHF. The longer your cable, the more you can subtract from the 100-
meter range between transmitter and receiver antenna. A well-placed extension
antenna will eliminate trouble spots and generally improve overall performance of
the wireless.

SWA4V-U-ANTENNA-DIVIDER-Op-Guide-021024.pmd - hto
5
Antenna Divider Installation Instructions
Antenna B Input
Connector (TNC)

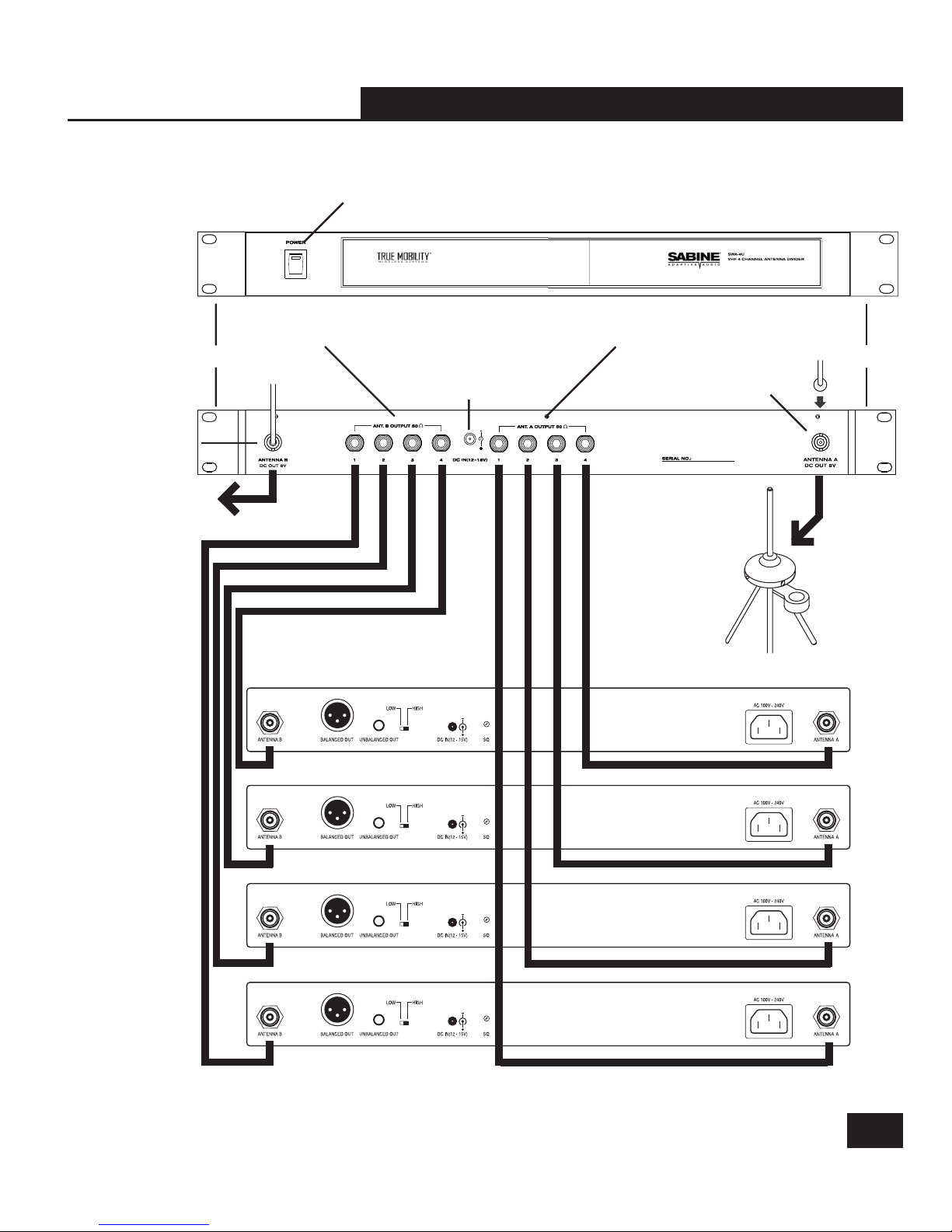

Installation Diagrams
Sabine
Antenna
Divider
Sabine
True Mobility
Wireless
Receivers
To Optional Antenna
Booster and
Extension Antenna
Antenna A Input
Connector (TNC)
Antenna B Distribution
Output (to receivers)
DC Power Input Jack,
Power On/Off Switch with Power
On LED indicator
Rack Ears Rack Ears
Antenna A Distribution
Output (to receivers)
To Optional
Antenna Booster
and Extension
Antenna

6
Warning! This equipment must be earthed.
Caution! Risk of electric shock. Do not open.
Caution! Shock hazard. Do not remove covers. No user serviceable parts
inside. Refer servicing to qualified service personnel.
Warning! To reduce the risk of fire or electric shock, do not expose this
product to rain or moisture.
Attention! Cet appareil doit être reliéàla terre.
Attention! Risque de choc électrique; ne pas ouvrir.
Attention!Risquedechoc; nepas oterles capots.Aucune pièceaccessible
àl'intérieur. S'addresser àun technicien qualifié.
Attention! Pour réduire le risque d'incendie ou de choc électrique, ne pas
laisser l'appareil sous la plouie ou àl'humidité.
Achtung! Dieses Gerät muss schutzgeerdet sein.
Achtung! Gefar eines elektrischen Stormschlags. Gehause nicht öffnen.
Achtung! Gefar eines elektrischen Stormschlags. Gehäuse nicht öffnen.
Keine con Benutzer zu bedienenden Teile im Geräteinneren.
ÜberlassenSiedasGerätzuServicezwecken nur geschultemFachpersonal.
UmBrandgefaroderdas RisikoeineselektrischenSchlags auszuschließen,
das Gerät vor Nässe und Feuchtigkeit schützen.
Advertencia! Este equipo debe estar conectado a tierra.
Precaución! Reisgo de descarga eléctrica. No abrir.
Precaución!Riesgo dedescarga eléctrica. Nodesmontar lastapas. Piezas
interiores no reparables por el usuario. Reparable sólo por personal
cualificado.
Advertencia! Para reducir el riesgo de incendio o de descarga eléctrica no
exponga este producto a la lluvia o humedad.
FCCStatement:
This device complies with Part 15, Class B, of the FCC Rules. Operation
is subject to the following conditions: (1) This device may not cause
harmful interference; and (2) This device must accept any interference
received, including interference that may cause undesired operation.
Warning:
Changes or modifications to this unit not expressly approved
by the party responsible for compliance could void the user's authority
to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
•Consult the dealer or an experienced radio TV technician for help.
This digital apparatus does not exceed the Class B limits for radio noise
emissions from digital apparatus set out in the Radio Interference
Regulations of the Canadian Department of Communications.
Le present appareil numerique n'emet pas de bruits radioelectriques
depassant les limites applicables aux appareils numeriques de la class B
prescrites dans le Reglement sur le brouillage radioelectrique edicte par
le ministere des Communications du Canada.
Cautions & Warranty
TheSabineAntenna Divider isdesigned tooperate from standard
AC power. Please be sure the power in your area is compatible
with the power requirements marked on the rear of the unit. Using
the wrong input voltage may cause permanent damage to the unit
and will void the warranty.
The True Mobility Wireless Microphone system is supplied with
one of the following AC/DC adapters:
Japan 100 VAC
U.S./North America 120 VAC
Continental Europe 230 VAC
United Kingdom 240 VAC
Australia 240 VAC
1. Read all safety and operating instructions before using this prod-
uct.
2. All safety and operating instructions should be retained for future
reference.
3. Obey all cautions in the operating instructions and on the
unit.
4. All operating instructions should be followed.
5. Use only shielded audio and data cables.
6. This product should not be used in the presence of moisture or
rain, or near any water, i.e., a bathtub, sink, swimming pool, wet
basement, etc.
7. This product should be located so that its position does not
interfere with proper ventilation. Do not use in direct sunlight.
Do not place flat against a wall or in a built-in enclosure that will
impede the flow of cooling air.
8. This product should not be placed near a source of heat such as
a stove or radiator.
9. Connect only to a power supply of the type marked on the unit
adjacent to the power entry module.
10. Never break off the ground pin on the power supply cord.
11. Power supply cords should always be handled carefully.
Never walk or place equipment on power supply cords.
Periodically check cords for cuts or signs of stress, especially at
the plug and the point where the cord exits the unit.
12. The power supply cord should be unplugged when the unit is to be
unused for long periods of time.
13. Care should be taken so that objects do not fall and liquids are not
spilled into the unit through the ventilation holes or any other
openings.
14. This unit should be checked by a qualified service technician if:
A. The power supply cord or plug has been damaged.
B. Anything has fallen or been spilled into the unit.
C. The unit does not operate correctly.
D. The unit has been dropped or the enclosure damaged.
15. The user should not attempt to service this equipment. All ser-
vice work should be done by a qualified service technician.

SWA4V-U-ANTENNA-DIVIDER-Op-Guide-021024.pmd - hto
7
FBXand FBX FeedbackExterminator are registeredtrademarks of Sabine,Inc., and arethe brand namesof its lineof automatic feedbackcontrollers.
Covered by U.S. Patent No. 5,245,665, Australian Patent No. 653,736, Canadian Patent No. 2,066,624-2, German Patent No. 69118486.0, and
U.K. Patent No. 0486679. Other patents pending. GRAPHI-Q, POWER-Q, REAL-Q, and REAL-Q2 are trademarks of Sabine, Inc.
Copyright 2002 All rights reserved.
THIS LIMITED WARRANTY VALID ONLY WHEN PURCHASED AND REGIS-
TERED IN THE UNITED STATES OR CANADA. ALL EXPORTED PRODUCTS
ARE SUBJECT TO WARRANTY AND SERVICES TO BE SPECIFIED AND
PROVIDED BY THE AUTHORIZED DISTRIBUTOR FOR EACH COUNTRY.
Cesclausesdegarantiene sontvaiablesqu’auxEtats-Uniset auCanada.Dans tous
les autres pays, les clauses de garantie et de maintenance sont fixees par le
distributeurnationaletassureeparluiselonlalegislationenvigueur.
DieseGarantieistnur in denUSAandKanadagultig.Alle Export-Produkte sindder
Garantieunddem ServicedesImporteursdes jewelligenLandesuntervorfen.
Esta garantia es valida solamente cuando el producto es comprado en E.U.
continentalesoenCanada.Todoslosproductosqueseancompradosenelextranjero,
estansujetosalasgarantiasy servicio que cada distribuidor autorizado determine
yotrezcaenlosdiferentes paises.
ONE-YEARLIMITEDWARRANTY/REMEDY
SABINE,INC.(“SABINE”)warrantsthisproducttobe free from defects in material
and workmanship for a period of one (1) year from date of purchase PROVIDED,
however,that thislimitedwarrantyisextended onlytotheoriginalretail purchaserand
issubjecttotheconditions, exclusions and limitationshereinaftersetforth:
CONDITIONS,EXCLUSIONSAND LIMITATIONS OF LIMITED WARRANTIES
Theselimitedwarrantiesshallbevoidand of no effect if:
a.Thefirst purchase of the product is for the purpose ofresale;or
b. The original retail purchase is not made from an AUTHORIZED SABINE
DEALER;or
c.Theproducthasbeendamagedbyaccidentorunreasonableuse,neglect,improper
service or maintenance, or other causes not arising out of defects in material or
workmanship;or
d.Theserialnumberaffixed to the productisaltered,defacedorremoved;or
e.Thepower supply groundingpinisremoved orotherwisedefeated.Inthe eventof
adefect in materialand/orworkmanship coveredbythis limitedwarranty,Sabine will
repairthedefectinmaterialorworkmanshiporreplacetheproduct,atSabine’soption;
andprovided,however, that, inanycase,allcosts ofshipping,ifnecessary, are paid
byyou, thepurchaser.
THE WARRANTY REGISTRATION CARD SHOULD BE ACCURATELY COM-
PLETED, MAILED TO AND RECEIVED BY SABINE WITHIN FOURTEEN (14)
DAYS FROM THE DATE OF YOUR PURCHASE.
Inordertoobtain service underthesewarranties,youmust:
a.Bring thedefectiveitemtoany AuthorizedSABINEDEALERandpresenttherewith
the ORIGINAL PROOF OF PURCHASE supplied to you by the AUTHORIZED
SABINEDEALERinconnectionwithyourpurchasefromhimof this product. If the
DEALERisunable to providethenecessarywarranty service,youwillbedirected to
thenearestotherSABINEAUTHORIZEDDEALER whichcanprovide suchservice.
OR
b.Shipthedefective item, prepaid, to:
SABINE,INC.
13301NWUSHIGHWAY 441
ALACHUA,FL32615-8544
includingtherewithacomplete,detailed description of the problem, togetherwitha
legiblecopyof theoriginalPROOFOF PURCHASE andacompletereturn address.
UponSabine’sreceipt of these items:
Ifthedefectisremedialunder thelimitedwarrantiesandtheothertermsandconditions
expressed have been complied with, Sabine will provide the necessary warranty
servicetorepairorreplacetheproductandwill returnit,FREIGHT COLLECT,toyou,
thepurchaser.
Sabine’s liability to the purchaser for damages from any cause whatsoever and
regardless of the form of action, including negligence, is limited to the actual
damagesuptothegreaterof$500.00oran amountequalto thepurchaseprice ofthe
productthatcaused the damage or that is the subject oforisdirectlyrelated to the
causeof action. Suchpurchasepricewillbe thatineffectforthe specific productwhen
thecauseofactionarose.Thislimitation ofliabilitywillnotapplytoclaimsforpersonal
injuryordamagetoreal property or tangible personal propertyallegedlycausedby
Sabine’snegligence. Sabinedoesnot assume liabilityforpersonal injury orproperty
damagearisingout of orcausedbyanon-Sabine alterationorattachment,nordoes
Sabineassumeany responsibility fordamagetointerconnected non-Sabine equip-
ment that may result from the normal functioning and maintenance of the Sabine
equipment.
UNDER NO CIRCUMSTANCES WILL SABINE BE LIABLE FOR ANY LOST
PROFITS, LOST SAVINGS, ANY INCIDENTAL DAMAGES OR ANY CONSE-
QUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE
THEPRODUCT,EVEN IF SABINEHASBEENADVISEDOF THE POSSIBILITY
OF SUCH DAMAGES.
THESE LIMITED WARRANTIES ARE IN LIEU OF ANY AND ALL WARRAN-
TIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE
IMPLIEDWARRANTIESOFMERCHANTABILITYANDFITNESSFORAPAR-
TICULAR USE; PROVIDED, HOWEVER, THAT IF THE OTHER TERMS AND
CONDITIONS NECESSARY TO THE EXISTENCE OF THE EXPRESS LIM-
ITED WARRANTIES, AS HEREINABOVE STATED, HAVE BEEN COMPLIED
WITH,IMPLIEDWARRANTIESARENOTDISCLAIMEDDURINGTHEAPPLI-
CABLE ONE-YEAR PERIOD FROM DATE OF PURCHASE OF THIS PROD-
UCT.
SOME STATES DO NOT ALLOW LIMITATION ON HOW LONG AN IMPLIED
WARRANTYLASTS,ORTHEEXCLUSIONORLIMITATIONOFINCIDENTAL
OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS OR EX-
CLUSIONSMAYNOTAPPLYTOYOU. THESELIMITED WARRANTIES GIVE
YOUSPECIFICLEGAL RIGHTS, ANDYOUMAYALSOHAVE OTHER RIGHTS
WHICH MAY VARY FROM STATE TO STATE.
THESELIMITEDWARRANTIES ARETHEONLYEXPRESS WARRANTIESON
THISPRODUCT,ANDNOOTHERSTATEMENT,REPRESENTATION,WAR-
RANTY OR AGREEMENT BY ANY PERSON SHALL BE VALID OR BINDING
UPONSABINE.
In theeventof anymodificationordisclaimerofexpressorimpliedwarranties,orany
limitation of remedies, contained herein conflicts with applicable law, then such
modification, disclaimer or limitation, as the case may be, shall be deemed to be
modifiedtothe extentnecessarytocomply withsuchlaw.
Yourremedies forbreachof thesewarrantiesare limitedtothoseremediesprovided
herein, and Sabine gives this limited warranty only with respect to equipment
purchasedintheUnited States of America.
INSTRUCTIONS-WARRANTY REGISTRATION CARD
1.Mailthe completed WARRANTY REGISTRATION CARD to:
SABINE,INC.
13301NWUSHIGHWAY 441
ALACHUA,FL32615-8544
a. Keep the PROOF OF PURCHASE. In the event warranty service is required
duringthewarrantyperiod, youwillneedthisdocument.Therewillbeno identification
cardissuedby Sabine, Inc.
2. IMPORTANCE OF WARRANTY REGISTRATION CARDS AND NOTIFICA-
TION OF CHANGES OF ADDRESS:
a. Completion and mailing of WARRANTY REGISTRATION CARDS - Should
notificationbecome necessary for any condition that mayrequirecorrection, the
REGISTRATION CARD will help ensure that you are contacted and properly
notified.
b. Notice of address changes - If you move from the address shown on the
WARRANTYREGISTRATIONCARD,youshouldnotifySabineofthechangeof
addresssoastofacilitateyour receipt of any bulletins orotherformsofnotification
which may become necessary in connection with any condition that may require
disseminationofinformation or correction.
3.Youmay contactSabinedirectlyby telephoning(386)418-2000.
4.Please havetheSabine productnameand serialnumberavailablewhencommu-
nicatingwithSabine Customer Service.
Limited Warranty
MADE IN TAIWAN and USA
Manufactured by: Sabine, Inc.
13301 NW US Highway 441
Alachua, Florida 32615-8544 USA
Phone: (386) 418-2000 •Fax: (386) 418-2001
www.Sabine.com
This manual suits for next models
3
Table of contents
Other SABINE Antenna manuals
Popular Antenna manuals by other brands

TechniSat
TechniSat SKYRIDER 65 instruction manual

Sea Tel
Sea Tel 14400MK2-21 operating instructions

RCA
RCA ANT1050 - HDTV / TV Assembly and usage instructions

Televes
Televes DAT 790 HD BOSS LR quick start guide

Hy-Gain
Hy-Gain Discoverer 7-1 instructions

Altelix
Altelix AD5158G23M2 installation instructions

Comet Antenna
Comet Antenna MA-721 instruction manual

Directive Systems & Engineering
Directive Systems & Engineering DSE2345LY quick start guide

Jung
Jung 1720 NE operating instructions

CommScope
CommScope ValuLine VHLP1 Series installation instructions

REMO Electronics
REMO Electronics BAS-2007 LTE MiMo Indoor Quick user guide

One Forall
One Forall SV-9450 instruction manual
