Saeco M-50 User manual

EM0490
M50

Contents
Saeco’s Safety Precauons 02
Congratulaons 03
Features of your M50
®
Precision Grinder 04
Funcons of your M50
®
Precision Grinder06
Operang your M50
®
Precision Grinder 08
Adjusng the Grind Seng 11

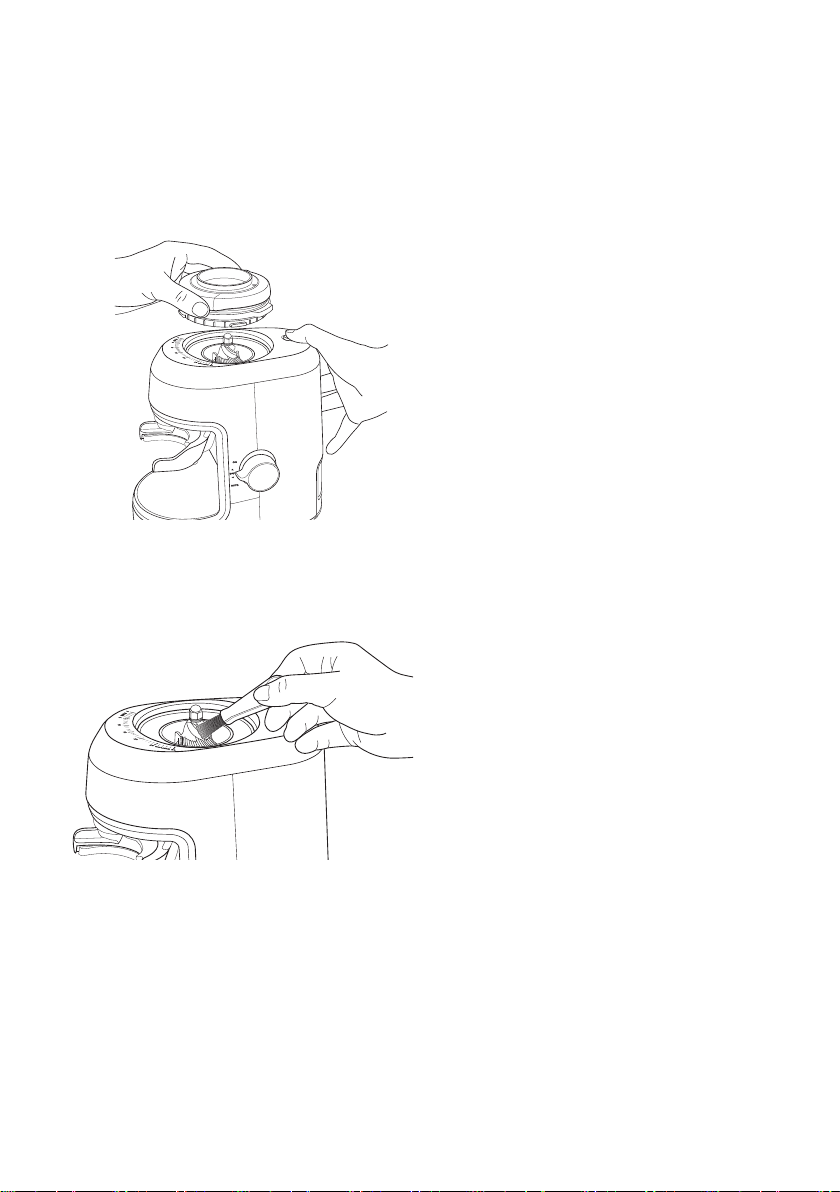

Care and Cleaning 12

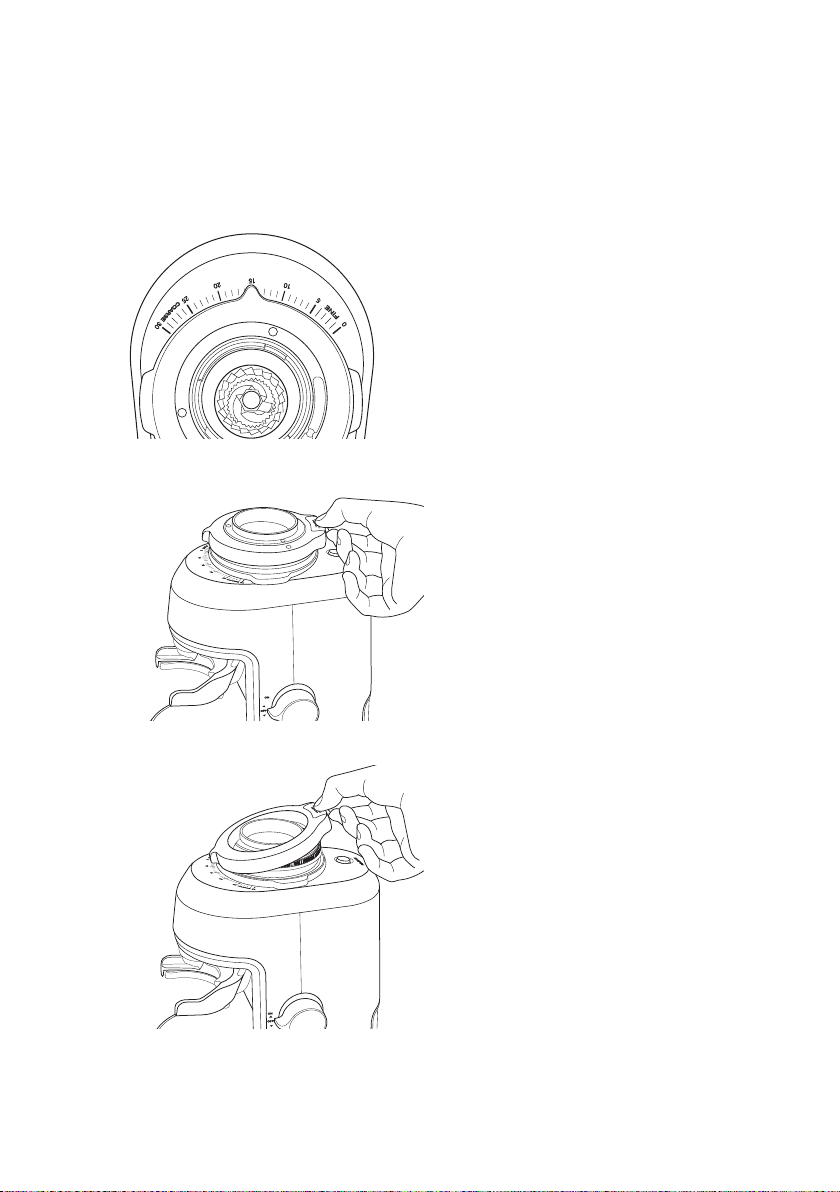

Advanced Sengs for Recalibraon 14
1
Important instructions
retain for future use

2
Saeco’s Safety Precauons
SAFETY PRECAUTIONS FOR YOUR SAECO COFFEE GRINDER
•Check the hopper for the presence of foreign
objects before using.
•Always operate the grinder with the hopper
properly inserted in the grinder.
•Do not place your hand in or near the burrs
while the grinder is in operaon. •Always place the unit on a flat, level surface.
•Switch off and unplug at power point before cleaning.
•Do not aempt to re-grind ground coffee.
•Switch off the appliance and disconnect from
power supply before touching any part of the
grinder that moves during use.
Saeco is very safety conscious when designing and manufacturing consumer products, but it is essenal that the
product user also exercise care when using an electrical appliance. Listed below are precauons which are
essenal for the safe use of an electrical appliance:
• Read carefully and save all the instrucons
provided with an appliance.
• Always turn the power off at the power outlet
before you insert or remove a plug. Remove by
grasping the plug - do not pull on the cord.
• Turn the power off and remove the plug when the
appliance is not in use and before cleaning.
• Do not use your appliance with an extension cord
unless this cord has been checked and tested by
a qualified technician or service person.
• Always use your appliance from a power outlet of
the voltage (A.C. only) marked on the appliance.
• This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilies, or lack of experience and
knowledge, unless they have been given supervision
or instrucon concerning use of the appliance by a
person responsible for their safety.
• Children should be supervised to ensure that they
do not play with the appliance.
• The temperature of accessible surfaces may be
high when the appliance is operang.
• Never leave an appliance unaended while in use.
• Do not use an appliance for any purpose
other than its intended use.
• Do not place an appliance on or near a hot gas
flame, electric element or on a heated oven.
• Do not place on top of any other appliance.
• Do not let the power cord of an appliance hang
over the edge of a table or bench top or touch any
hot surface.
• Do not operate any electrical appliance with a
damaged cord or aer the appliance has been
damaged in any manner.
• For addional protecon, Sunbeam recommend
the use of a residual current device (RCD with
a tripping current not exceeding 30mA in
the electrical circuit supplying power to your
appliances.
• Do not immerse the appliance in water
or any other liquid unless recommended.
• Appliances are not intended to be operated
by means of an external mer or separate remote
control system.
• This appliance is intended to be used in
household and similar applicaons such as: staff
kitchen areas in shops, offices and other working
environments; farm houses; by clients in hotels,
motels and other residenal type environments;
bed and breakfast type environments.
Ensure the above safety precauons are understood.

3
Saeco M50 delivers quality, style and
superior performance capturing the essence
of the commercial kitchen. Inspired by heavy
-duty equipment found in restaurants, cafes
and bars, the Saeco M50® is built to last.
It brings together a range of appliances
designed to expertly create authenc café
food and beverages at home.
Uncompromising blends of stainless steel
and die-cast alloy characterise the range.
This, combined with advanced technology
and funconal design, guarantee that each
product will surpass expectaons.
When making coffee regardless of the brewing
method the flavour of the resulng brew
depends largely on the quality, freshness and
roast of the coffee beans used. Other factors
that can also affect the taste of the final cup
include the purity of the brew water, the con-
dion of the grinder and the actual design of
the burr mechanism within the grinder.
The Saeco M50® grinder features tool hardened
steel conical burrs for extra long life. The conical
burr design ensures that the parcle size of the
coffee is consistent and even. This is especially
important for espresso, if the parcle size
of the coffee is uniform equal amounts of the
coffee’s aromac profile will be extracted.
If, however, the parcle size of the coffee
varies some parcles will be over-extracted
and some will be under-extracted, resulng in
a poor tasng coffee.
®
Another advantage of the conical burr design
is its slow rotang operaon. This combined
with a belt-driven motor, minimises heat
transfer to the burrs and thus protects the
aromac profile of the coffee and ulmately
enhances the quality of the resulng brew.
The Saeco M50 Precision Grinder is constructed
with quality die-cast metal components and
includes many features that make grinding coffee
at home easy so you can enjoy a lovely fresh cup
of coffee every me.
®
Congratulaons

4
Features of your M50 ®
Precision Grinder
450g Bean hopper
The 450g capacity bean hopper has a closure arm for
easy removal. This allows the user to remove the hopper
without taking out the beans.
Grind adjustment collar
Large and easy to use, the collar has a range of
30 grind sengs. This allows the user to select a fine
grind for an espresso or a coarser grind for brew styles
such as plunger. With such precise sengs the user
controls the parcle size and ulmately the quality of the
brew.
LED lighng
The grind delivery outlet is illuminated with
LED lighng when grinding begins.
Easy Grind™ easy use funcon
Grinding into the group handle is seamless with the
unique Easy Grind technology. Simply posion the group
handle and gently press down for freshly ground coffee.
Group handle cradle
A stylish and sturdy metal cradle designed for 58mm
group handles that allows hands free operaon.
Also comes with a 50mm group handle adapter.
Grind spill tray and storage area
Posioned under the grinding spout the grind spill tray
catches any loose coffee grinds. Underneath the tray is a
storage area for the burr cleaning brush and 50mm
group handle adapter.
Rubber feet
The non-slip rubber feet ensure the grinder remains
stable and prevents slipping on the bench top during use.
Features of your Cafe Series
®
Precision Grinder
™

5

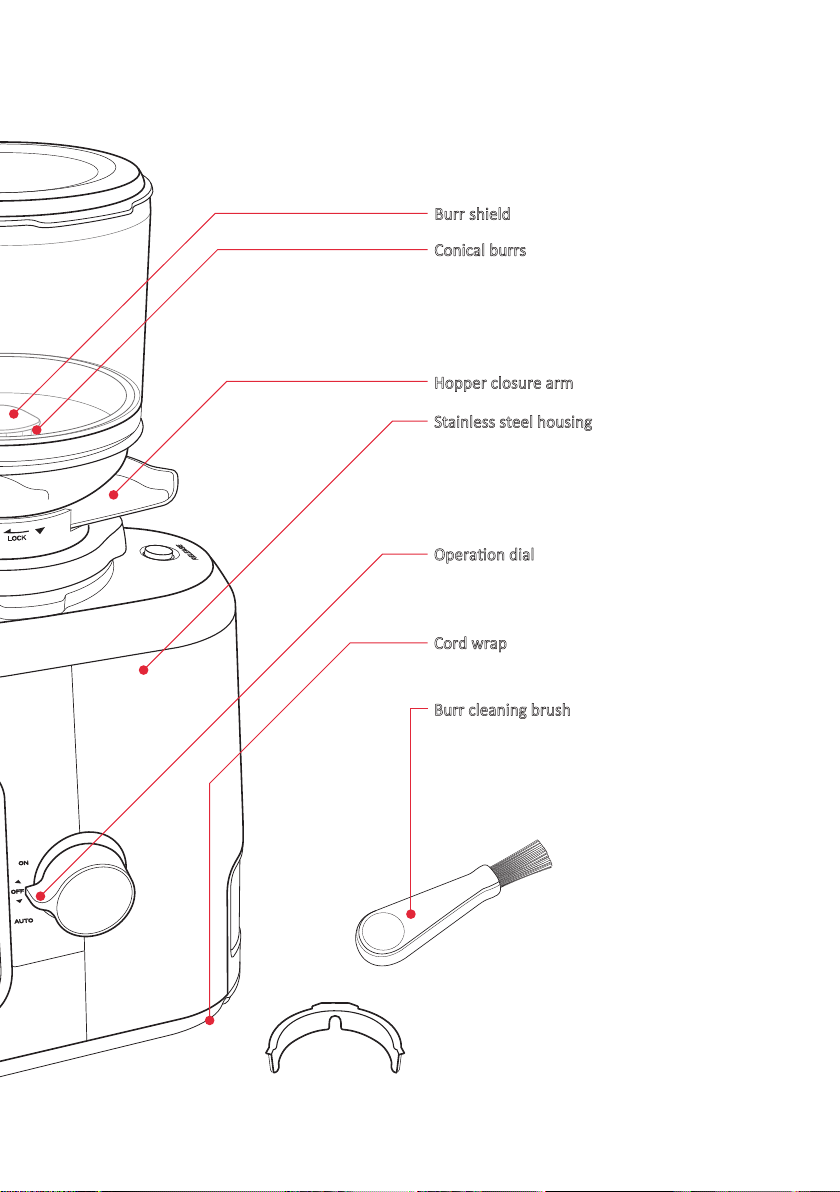

Burr shield
Conical burrs
The hardened steel conical burrs achieve
excellent grind consistency and minimises
heat transfer to the coffee due to their
slow rotaon.
Hopper closure arm
Stainless steel housing
Built to last, the heavy-duty Stainless Steel
body encases a powerful belt driven motor
and provides a stable base foundaon for the
grinder.
Operaon dial
Allowing both automac and manual grinding.
Cord wrap
Cord wraps away to keep bench top clean.
Burr cleaning brush
Strong bristles help sweep out grinds from
the burrs.
50mm group
handle adapter

6
Funcons of your M50®
Precision Grinder
Easy Grind
™
technology
The new patent pending Easy Grind™ funcon
allows an easy one touch grind directly into
the group handle. Simply set the operaon
dial to auto and place the handle into the
group handle cradle then gently depress the
handle downward to fill the basket with
freshly ground coffee on demand.
Adjustable grind sengs
Accurate and adjustable grind sengs give
the flexibility to create the right grind size
for different coffee styles and extracon
rates. The unique grind cartridge and easy
recalibraon system ensures ongoing
precision.
Slow speed grinding
The combinaon of a powerful yet quiet,
belt-drive system and hardened steel conical
burrs deliver a slow speed grinding process.
This minimises the heat transfer to the
coffee, protecng its aromac profile.

7
LED Lit Grind Area
Seamless grind delivery is assisted by LED
illuminaon that engages when grinding
begins. An auto dimming feature then dims
the light when grinding is complete.
Easy clean without recalibraon
The patent pending grind cartridge enables
easy access to the lower burr chamber
without altering your grind sengs.
Funcons of your M50®
Precision Grinder (connued)

8
Before using the coffee grinder, wipe the
base exterior with a damp cloth. Wash the
bean hopper and hopper lid in warm soapy
water, then rinse and dry thoroughly.
Note: Do not immerse the grind cartridge in
water or any other liquid.
Note: Do not place any parts of the coffee
grinder in the dishwasher.
1. Place the coffee grinder on a dry, level
surface.
2. To aach the bean hopper, align the arrow
on the hopper with the arrow on the top of
the grind cartridge and turn clockwise to
lock. See figure 1.
The grinder will not funcon without the
hopper in place.
3. Fill the bean hopper with coffee beans.
Tip: To maintain an even weight bearing
down on the burrs, we recommend keeping
the hopper at least half full. This ensures a
more consistent grind is achieved.
Note: This coffee grinder is intended to grind
whole coffee beans only.
5.
6.
Figure 1
Figure 2
Ensure operaon dial is off, plug the power
cord into a 230-240V AC power outlet and
switch the power on.
Select the grind by turning the grind
adjustment collar to the desired seng,
see figure 2.
Refer to the grind seng table on page 11 to
assist you in selecng the correct grind level
for the desired brewing method.
4. Place the hopper lid onto the bean hopper
and open the hopper closure arm.
Operang of your M50®
Precision Grinder

9
For grinding into the group handle
7. Insert the group handle into the group
handle cradle at an inclined angle placing
the front edge under the lip of the group
handle cradle. See figure 3.
Note: The group handle cradle accepts 58mm
group handles. To use a 50mm group handle
aach the adapter located in the storage area
under the drip tray.
8. Turn the dial to the ‘Auto’ posion and
gently press down on the handle to grind
into the basket. See figure 4.
Note: With the dial at ‘Auto’ you have the
opon to leave the group handle in the group
handle cradle without grinding coffee.
9. Once the basket is full, remove the group
handle from the group handle cradle.
See figure 5. Collapse the coffee in the
basket by tapping it on the bench. Repeat
the grinding process unl the desired
amount of coffee has been ground and
tamp to finish.
Figure 3
Figure 4
Figure 5
Figure 6
Operang of your M50®
Precision Grinder (connued)

10
For hands free grinding
10. Insert the group handle into the group
handle cradle at an inclined angle
placing the front edge under the lip of
the group handle cradle. See figure 3.
11. To connuously grind coffee, turn the
dial to the ‘On’ posion, see figure 7.
12. When the desired amount of coffee has
been ground, return dial to the ‘Off’
posion.
Figure 7
Operang of your M50®
Precision Grinder (connued)

11
The range of 30 grind sengs allows for
precision adjustment. The coffee maker has
control of the parcle size and ulmately the
quality of the resulng brew.
Some things to remember when using the
coffee grinder;
•The smaller the parcle size the longer it
will take to grind.
•Aer long periods of using the finer sengs
we recommend removing the grind cartridge
and sweeping away any residual coffee to avoid
clogging. See the Care and Cleaning secon on
page 12 for more details.
Tips
1.
2. Coffee that is ground too fine for a
parcular brewing process will result in
over-extracon and the coffee will taste
bier. On the other hand, coffee that is too
coarse for a parcular brewing method will
result in under-extracon and the coffee
will be thin and poor in flavour.
3. Once coffee is ground it quickly loses its
flavour and aroma. For the best results we
recommend you grind beans immediately
prior to brewing.
4. Buy fresh whole coffee beans weekly.
5. To retain freshness, store whole coffee
beans in an airght container in a cool,
dark, dry place. It is not recommended
that you store beans in the grinder’s bean
hopper for a prolonged period.
6. To ensure the best results from the coffee
grinder clean the bean hopper and conical
burrs regularly.
Adjusng the Grind Seng
Grind seng table
SETTING BREWING METHOD
0
-7Turkish
7
-15 Espresso for M50
®
7 -15 Stove Top
10 -20 Syphon Brew Method
15 -30 Aero Press, Drip Filter, V-60 Dripper
25 -30 Plunger, Clever Coffee Dripper
Select the correct grind for the brewing
method you are using. 30 grind sengs
are available to ensure precision
adjustment. The lower sengs deliver
finer grinds while the higher sengs
deliver coarser grinds. It is important
to experiment with the grind sengs
to achieve the ideal brew that best
suits your palate.

12
Important Notes:
• Spots and marks on the surface of the
burrs are part of the hardening process.
These marks do not affect the performance
of the grinder or the taste of the coffee.
• Ensure the coffee grinder is switched off
and unplugged from the power outlet prior
to cleaning.
• Do not immerse the motor base of the
coffee grinder in water.
• Do not immerse any part of the grind
cartridge in water or any other liquid.
• Do not place any parts of the coffee grinder
in the dishwasher.
• Do not use abrasive cleansers or scouring
pads.
Cleaning the motor base and bean hopper
1. Close the hopper closure arm and remove
the bean hopper from the motor base, see
figure 8. Store unused beans in an airght
container to preserve their freshness.
2. Wipe the motor base exterior with a damp
cloth and dry.
3. Wash the bean hopper in warm soapy
water, then rinse and dry.
Cleaning the burrs
If the coffee grinder is used frequently (every
day), the burrs need to be cleaned every
three weeks to ensure best performance of
the coffee grinder. Regular cleaning helps
the burrs achieve consistent grinding results,
which is especially important when grinding
coffee for espresso.
1. Close the hopper closure arm and purge
the grinder by turning on unl no more
grinds come out.
2. Ensure the coffee grinder is switched off
and unplugged from the power outlet.
Remove the bean hopper from the motor
base, see figure 8.
3. To remove the grind cartridge, press and
hold down the ‘RELEASE’ buon on the
top of the grinder base and with the other
hand hold the cartridge grip tabs and turn
an-clockwise, see figure 9.
Care and Cleaning
Figure 8
Figure 9
Note: Using the cartridge grip tabs enables
removal of the grind cartridge without
changing your grind sengs.

13
5. Li the grind cartridge away from the
grinder base, see figure 10.
6. Clean the grind cartridge and boom burr
using the burr cleaning brush (located
under the grind spill tray), see figure 11.
7. Once both burrs are cleaned, return the
grind cartridge to the grinder base so that
the arrow on the side of the grind cartridge
is aligned with the ‘ALIGN’ arrow on the
grinder base. Turn clockwise unl the arrow
on the grind adjustment collar is aligned
with ‘LOCK’ arrow and the ‘RELEASE’
buon pops out.
Figure 11
Figure 10
Care and Cleaning (connued)

14
Advanced Sengs
Recalibraon of the M50
To recalibrate for a coarser grind
6. Take note of your current grind seng
posion.
7. Rotate the grind adjustment collar to
posion 15 on the grind sengs, see
figure 12.
8. Li the recalibraon release lever and
remove grind adjustment collar, see figure
13 and 14.
9. To make the grind coarser, reposion the
collar to seng 10 on the grind sengs.
10. Re-assemble the collar by pressing down
the front and then the rear ensuring two
clicks are heard.
11. Return the grind seng back to your
original grind seng posion. Your grind
will now be coarser.
12. Aach the hopper, open the hopper
closure arm and turn on the grinder.
To recalibrate for a finer grind
Note: The grinder is factory set for fine
grinding. Only re-calibrate finer if the 0
seng does not achieve the desired grind
fineness.
6. Rotate the grind adjustment collar to
posion 15 on the grind sengs,
see figure 12.
7. Li the recalibraon release lever and
remove grind adjustment collar, see figure
13 and 14
8. To make the grind finer, reposion the
collar to seng 17 on the grind sengs.
9. Re-assemble the collar by pressing down
the front and then the rear ensuring two
clicks are heard.
10. Aach the hopper and run the grinder to
ensure smooth operaon.
Cauon: Re-calibrang too fine may cause
burrs to collide resulng in a metallic
grinding noise. If this occurs turn off the
grinder and move to a coarser seng (a
seng towards 30) or re-calibrate for a
coarser grind.
11. Open hopper closure arm and adjust
grind sengs to deliver required grind
size.
Note: Further tuning may be required.
Note: Recalibraon will change all previous sengs on the grinder
1. Close hopper closure arm.
2. Purge beans through the grinder.
3. Turn the operaon dial to the ‘off’ posion.
4. Disconnect the plug from the power socket.
5. Remove the bean hopper by turning anclockwise.
®

15
Figure 12
Figure 13
Figure 14
Advanced Sengs
Recalibraon of the M50 (connued)

Do not dispose this product as unsorted municipal waste. Collection
of such waste separatelyfor special treatment is necessary.
This product must not be disposed together with the domestic waste.
This product has to be disposed at an authorized place for recycling
of electrical and electronic appliances.
By collecting and recycling waste, you help save natural resources,
and make sure the product is disposed in an environmental friendly
and healthy way.
Disposal
