Saeco Intelia Deluxe User manual

HD8904
Register your product and get support at
www.saeco.com/welcome

English 5
Čeština 27
Deutsch 49
Español 72
Français 95
Magyar 118
Italiano 141
Nederlands 164
Polski 187
Português 210
Slovensky 233

ES PR ES SO
ES PR ES SO LU NG O
MI LK FROT H
A
R
O
M
A
S
T
R
E
N
G
T
H
ME NU
HOT WATE R
1
2
4
13
14
15
26 25
16
27
19
20
18
17
21 22
24
23
3
8
9
6
5
10
11
7
12
28
1

English
Contents
Introduction 5
Important 6
Warning 6
Caution 6
Electromagnetic fields (EMF) 7
Machine overview (Fig. 1) 7
The display 8
First installation 8
Manual rinsing cycle 11
AquaClean filter 11
AquaClean filter installation 11
Replacing the AquaClean filter 12
Using the machine 13
Brewing coffee with beans 13
Adjusting the coffee quantity 13
Adjusting the grind setting 13
Frothing milk 13
Hot water 14
Cleaning and maintenance 15
Weekly cleaning of the brew group 15
Lubrication 16
Daily cleaning of the automatic milk frother 16
Automatic milk frother cleaning (monthly) 17
Descaling 18
Descaling procedure 19
Interruption of the descaling cycle 20
Warning icons and error codes 20
Meaning of error codes 21
Ordering accessories Saeco 22
Guarantee and support 22
Recycling 23
Troubleshooting 23
Introduction
Congratulations on buying this Intelia/Intelia Deluxe full automatic espresso
machine! The machine is suitable for preparing espresso coffee using whole
coffee beans. To fully benefit from the support that Saeco offers, please
register your product at www.saeco.com/welcome. This user manual
applies to all Intelia/Intelia Deluxe models with automatic milk frother.
5
English

Important
Warning
-Connect the machine to a wall socket with a voltage matching the
technical specifications of the machine.
-Connect the machine to an earthed wall socket.
-Do not let the power cord hang over the edge of a table or counter, or
touch hot surfaces.
-Never immerse the machine, mains plug or power cord in water (danger
of electrical shock).
-Do not pour liquids on the power cord connector.
-Never direct the hot water jet towards body parts: danger of burns.
-Do not touch hot surfaces. Use handles and knobs.
-Switch off the machine with the main switch located on the back and
remove the mains plug from the socket:
-If a malfunction occurs.
-If the machine will not be used for a long time.
-Before cleaning the machine.
-Pull on the plug, not on the power cord.
-Do not touch the mains plug with wet hands.
-Do not use the machine if the mains plug, the power cord or the machine
itself is damaged.
-Do not make any modifications to the machine or its power cord.
-Only have repairs carried out by a service center authorized by Philips to
avoid a hazard.
-The machine should not be used by children younger than 8 years old.
-This machine can be used by children aged from 8 years and above and
by persons with reduced physical, sensory or mental capabilities or lack
of experience and knowledge if they have been given supervision or
instruction concerning use of the machine in a safe way and if they
understand the hazards involved.
-Cleaning and user maintenance shall not be made by children unless
they are older than 8 and supervised.
-Keep the machine and its cord out of the reach of children aged less than
8 years.
-Children should be supervised to ensure that they do not play with the
machine.
-Never insert fingers or other objects in the coffee grinder.
Caution
-This machine is intended for normal household use only. It is not
intended for use in environments such as staff kitchens of shops, offices,
farms or other work environments.
-Always put the machine on a flat and stable surface. Keep it in upright
position, also during transport.
-Do not place the machine on a hotplate or directly next to a hot oven,
heater or similar source of heat.
6English

-Only put roasted coffee beans in the bean hopper. If ground coffee,
instant coffee, raw coffee beans or any other substance is put in the
coffee bean hopper, it may cause damage to the machine.
-Let the machine cool down before inserting or removing any parts. The
heating surfaces may retain residual heat after use.
-Never fill the water tank with warm, hot or sparkling water, as this may
cause damage to the water tank and the machine.
-Never use souring pads, abrasive cleaning agents or aggressive liquids
such as petrol or acetone to clean the machine. Simply use a soft cloth
dampened with water.
-Descale your machine regularly. The machine indicates when descaling is
needed. Not doing this will make your appliance stop working properly.
In this case repair is not covered under your guarantee.
-Do not keep the machine at temperatures below 0°C.Water left in the
heating system may freeze and cause damage.
-Do not leave water in the water tank when the machine is not used over
a long period of time. The water can be contaminated. Use fresh water
every time you use the machine.
Electromagnetic fields (EMF)
This Philips appliance complies with all applicable standards and
regulations regarding exposure to electromagnetic fields.
Machine overview (Fig. 1)
1 Lid of the bean hopper
2 Coffee bean hopper
3 Socket for cord
4 Water tank
5 Pre-ground coffee compartment
6 Grinder adjustment knob
7 Control panel
8 Coffee grounds container
9 Coffee dispensing spout
10 Drip tray
11 Drip tray cover
12 Drip tray full indicator
13 ESPRESSO button
14 ESPRESSO LUNGO button
15 AROMA STRENGTH button
16 Standby button
17 MENU button
18 HOT WATER button
19 MILK FROTH button
20 Cord
21 Cleaning brush (for specific types only)
22 Grease (for specific types only)
23 Pre-ground coffee measuring spoon
24 Water hardness tester
25 Coffee residues drawer
26 Brew group
27 Protective handle
7
English

28 Automatic milk frother
The display
Use these buttons to navigate through the menus:
ESPRESSO
-ESPRESSO button = ESC button: press this button to return to the main
menu. The ESC button takes you back one level. You may have to press
the ESC button several times to get back to the main menu.
A
R
O
M
A
S
T
R
E
N
G
T
H
-AROMA STRENGTH button = OK button: press this button to select,
confirm or stop a function.
MILK FROTH
-MILK FROTH button = UP button: press this button to scroll up through
the display menu.
ME NU
-MENU button = DOWN button: press this button to scroll down through
the display menu.
First installation
This machine has been tested with coffee. Although it has been carefully
cleaned, there may be some coffee residues left. We guarantee, however,
that the machine is absolutely new.
Like with most full-automatic machines, you first need to brew some coffees
to enable the machine to complete its self-adjustment and get the best
tasting coffee.
1Remove all packaging material from the machine.
2Place the machine on a table or worktop away from the tap, the sink and
heat sources.
Note: Leave at least 15 cm of free space above, behind and on both sides
of the machine.
3Slide the drip tray with drip tray cover into the machine.
4Remove the water tank.
5Fill the water tank with fresh water to the MAX level indication.
8English

6Open the lid of the bean hopper. Fill the bean hopper with coffee beans
and close the lid.
7Insert the small plug into the socket located on the back of the machine.
Insert the mains plug into the wall socket.
8Attach the automatic milk frother to the hot water/steam dispensing
spout.
9Place a container under the hot water/steam dispensing spout.
10 Press the STANDBY button to switch on the machine.
11 Press the OK button to start the automatic circuit priming cycle.
12 The machine heats up and the display shows the temperature icon.
-The machine performs an automatic rinsing cycle.
AQUA
CL EAN
AQUACLEAN
FILTER?
13 The display shows the following icon to indicate you have to install the
AquaClean filter.
Note: If you want to install the AquaClean filter afterwards, press the ESC
button and continue with the manual rinsing cycle. For installation, see
chapter ‘AquaClean filter’.
AQUA
CL EAN INSTALL
FILTER
14 Press the OK button. The display shows the following icon.
15 Remove the AquaClean filter from its packaging. Shake the filter for about
5 seconds.
9
English

16 Immerse the AquaClean filter upside down in a jug with cold water and
wait until no more air bubbles come out.
17 Remove the water tank from the machine, empty it and insert the filter
vertically onto the filter connection.
18 Fill the water tank with fresh water and slide it back into the machine.
19 Press the OK button.
A Q U A
CL EAN
0/8
ON
OFF
20Select ON on the display and confirm the activation by pressing the OK
button.
Note: When activation is finished, the display shows a tick to confirm
activation.
AQUA
CL EAN
100%
21 The display shows the filter ready icon to indicate the AquaClean filter
has been installed correctly.
22 To rinse the filter, press the HOT WATER button and let half a litre of
water flow out from the hot water/steam dispensing spout. Discard this
water.
Note: It can take a while until water comes out of the hot water
dispensing spout. The filter needs to be fully filled and rinsed with water.
The machine is ready for use.
Note: After installing the AquaClean filter, you do not have to perform the
manual rinsing cycle.
10 English

Manual rinsing cycle
1Place a container under the coffee dispensing spout.
2Press the AROMA STRENGTH button to select pre-ground coffee. Do not
add pre-ground coffee.
3Press the ESPRESSO LUNGO button. The machine starts dispensing
water.
4When the machine stops dispensing, empty the container. Repeat steps
1-3 twice.
5Place a container under the steam wand.
6Press the HOT WATER button. Hot water dispensing starts automatically.
Dispense water until the display shows the no water icon.
7Fill the water tank with fresh water up to the MAX level and remove the
container.
The machine is ready for use.
AquaClean filter
The AquaClean filter is designed to reduce limescale deposits in your coffee
machine and provide filtered water to preserve the aroma and flavor of each
cup of coffee. If you use a series of 8 Aquaclean filters as indicated in this
user manual, you don't have to descale your machine for 5000 cups (with a
capacity of 100 ml).
AquaClean filter installation
Note: Your machine has to be completely limescale-free before you start to
use the AquaClean filter. If you did not activate the filter upon first use and
brewed more than 50 cups (with 100 ml capacity), you need to descale the
machine before you activate the filter.
1Remove the AquaClean filter from its packaging. Shake the filter for about
5 seconds.
2Immerse the AquaClean filter upside down in a jug with cold water and
wait until no more air bubbles come out.
11
English

3Remove the water tank from the machine.
4Insert the AquaClean filter vertically onto the filter connection. Push the
AquaClean filter to the lowest possible point. Make sure that the filter fits
tightly and the seal is in the right position, to guarantee the best
performance.
5Fill the water tank with fresh water and slide it back into the machine.
6Press the MENU button and scroll to the AquaClean filter option. Then
press the OK button to select the AquaClean filter option.
Note: If you are installing the filter at first time use, follow the steps in
chapter ‘First installation’.
A Q U A
CL EAN
0/8
ON
OFF
7Select ON on the display and confirm the activation by pressing the OK
button.
Note: The display shows a tick icon to confirm the activation.
8To rinse the filter, press the SPECIAL DRINKS button, select the HOT
WATER option and press the OK button twice. Water flows out from the
hot water dispensing spout. Discard this water.
Note: It can take a while until water comes out of the hot water
dispensing spout. The filter needs to be fully filled and rinsed with water.
9Use the sticker attached to the plastic packaging of the AquaClean filter
to write down the date of the next filter replacement (after 3 months).
Place the sticker on the water tank.
The filter and machine are now ready for use.
Replacing the AquaClean filter
Replace the filter every 3 months or at machine request.
Display icon AquaClean filter What to do
10% + icon flashes The performance of this filter is decreasing. It is
recommended to remove the old filter and place the
new filter as described in section 'AquaClean filter
installation’ to retain proper filter performance.
0% + icon flashes Remove the old filter immediately and place the new
filter as described in section ‘AquaClean filter
installation’. When you activate a new filter, the display
shows the word NEW. Press the OK button to confirm
the activation.
0% and icon disappears from display You first need to descale the machine before you can
place and activate a new filter.
After 8 filter replacements you need to descale the machine chapter
‘Descaling’, section ‘Descaling procedure’.
12 English

Using the machine
Brewing coffee with beans
1Adjust the coffee dispensing spout to suit the size of your cup.
2Press the AROMA STRENGTH button to select the desired coffee
strength from 1-5 beans.
3Press the ESPRESSO button to brew an espresso or press the ESPRESSO
LUNGO button to brew a coffee.
Adjusting the coffee quantity
1Press and hold the ESPRESSO button or ESPRESSO LUNGO button until
the display shows the word MEMO.
2When the cup contains the desired amount of coffee, press the OK
button to save the selected quantity.
Adjusting the grind setting
Note: You can only adjust the grinder settings when the machine is grinding
coffee beans.
1Open the lid of the bean hopper.
2Place a cup under the coffee dispensing spout.
3Press the ESPRESSO button.
4While the machine grinds the coffee, place the end of the measuring
spoon handle on the grinder adjustment knob in the coffee bean hopper.
Use the spoon to press and turn the knob to the left or to the right one
notch a time.
5There are 10 different grinding degree settings you can choose from. The
smaller the dot, the stronger the coffee.
-Coarse grind: lighter taste, for dark roasted coffee blends.
-Fine grind: bolder taste, for light roasted coffee blends.
6Brew 2-3 coffees to taste the difference.
Frothing milk
Warning: Danger of scalding! Dispensing may be preceded by
small jets of hot water. Use the appropriate protective handle
only.
1Insert the suction tube into the automatic milk frother.
13
English

2Insert the automatic milk frother on the rubber grip until it locks into
place.
3Insert the suction tube into the milk container.
4Place a cup under the automatic milk frother and press the MILK FROTH
button.
-The machine dispenses the frothed milk directly into the glass.
5Press the OK button to stop frothing
Hot water
Warning: Danger of scalding. Only grab the steam wand by its
protective handle. Dispensing may be preceded by small jets of
hot water.
1Remove the automatic milk frother from the steam wand.
14 English

2Place a container under the steam wand.
3Press the HOT WATER button. Hot water dispensing starts automatically.
4Press the OK button to stop hot water dispensing. Remove the container.
Cleaning and maintenance
Weekly cleaning of the brew group
Clean the brew group once per week.
1Remove the coffee grounds container and open the service door.
2Remove the coffee residues drawer.
1
2
3To remove the brew group, press the lever and pull the brew group out of
the machine.
4Rinse the brew group with fresh water and let it air dry.
5To place the brew group back, make sure that the lever is in contact with
the base of the brewing unit.
Note: If it is not in contact with the base, push it down.
15
English

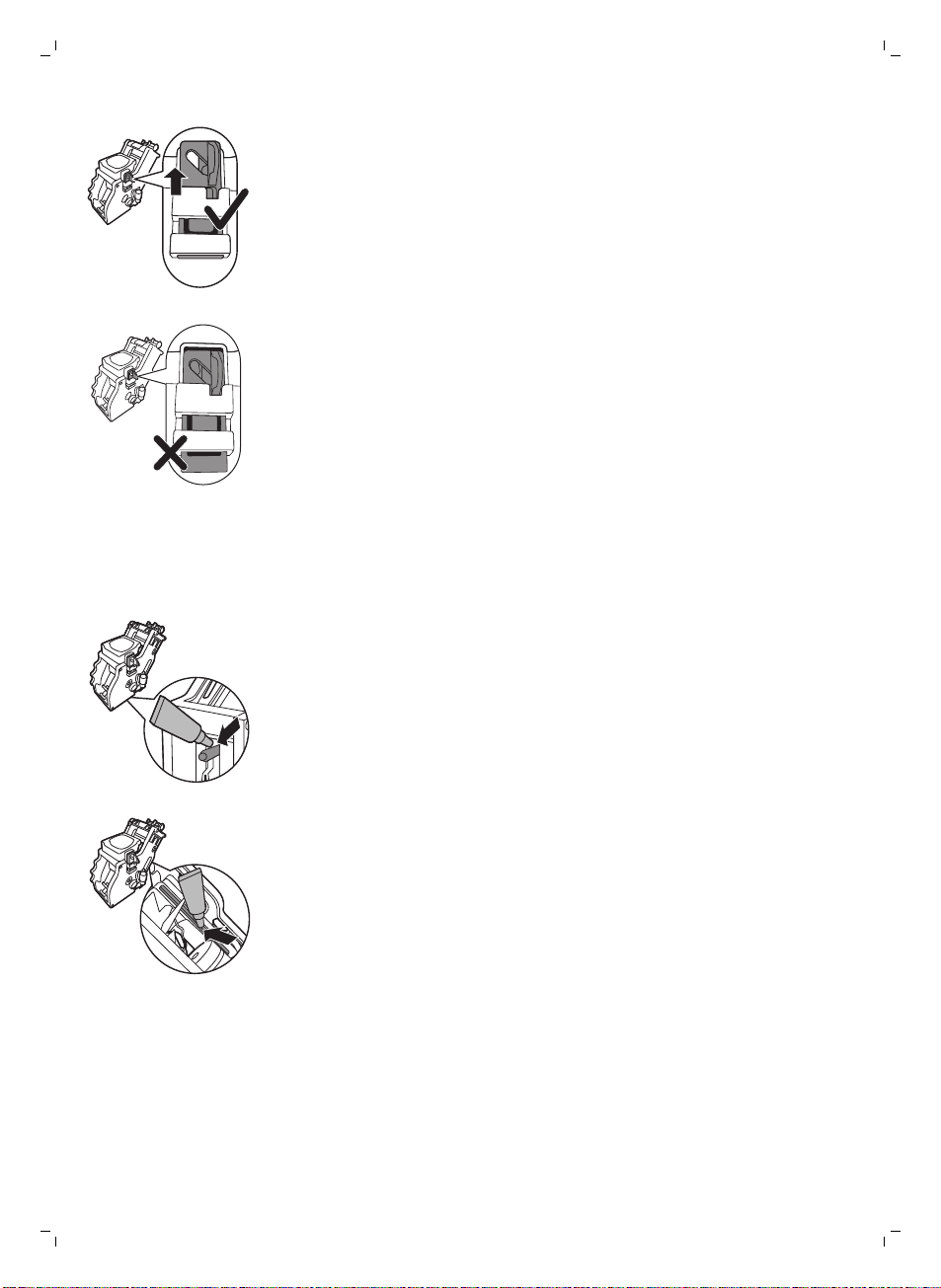

6Make sure the locking hook of the brew group is in the correct position.
To position the hook correctly, push it upwards until it is in uppermost
position.
7The hook is not correctly positioned if it is still in bottommost position.
8Slide the brew group back into the machine along the guiding rails on the
sides until it clicks into position. Then place the coffee residues drawer
back in the machine.
Lubrication
Lubricate the brew group after approximately 500 cups of coffee or once a
month.
1Apply some lubricant around the shaft in the bottom of the brewing unit.
2Apply lubricant to the rails on both sides, as shown in the illustration.
3Slide the brew group back into the machine along the guiding rails on the
sides until it clicks into position. Then place the coffee residues drawer
back in the machine.
Daily cleaning of the automatic milk frother
1Plunge the suction tube into a jug filled with fresh water.
2Place an empty container under the automatic milk frother. Press the
MILK FROTH button.
3When the water that flows out of the automatic milk frother is clean,
press the ESC button to stop the dispensing.
16 English

Automatic milk frother cleaning (monthly)
1Pour the contents of a Saeco milk circuit cleaning sachet into a jug. Add a
half litre of water.
2Insert the suction tube into the jug.
3Place a container under the automatic milk frother.
4Press the MILK FROTH button.
5You can press OK to stop or let the machine dispense until it stops
automatically.
6Rinse the jug with fresh water and fill it with a half litre of fresh water for
the rinsing cycle. Empty the container and place it back under the
automatic milk frother.
7Insert the suction tube into the jug.
8Press the MILK FROTH button.
9You can press OK to stop or let the machine dispense until it stops
automatically.
10 Remove the automatic milk frother from the steam wand. Remove the
rubber grip from the steam wand.
Warning: The steam wand can be hot after use.
11 Remove the suction tube.
1
2
1
12 Remove the automatic milk frother by pressing on the sides.
13 Remove the rubber lid.
14 Rinse the components with lukewarm water.
Note: You can also clean these components in the dishwasher.
17
English

15 Press in the middle to attach the lid and make sure it is in place.
16 Attach the automatic milk frother to the fitting and make sure it is locked
into place.
17 Attach the suction tube.
18 Insert the rubber grip back on the steam wand. Insert the automatic milk
frother on the rubber grip until it locks into place.
Descaling
You have to descale the machine when the display shows the CALC CLEAN
icon or after 8 AquaClean filter replacements.
START
CALC
CLEAN
If you do not descale when the display shows the CALC CLEAN icon or after
8 AquaClean filter replacements, the machine may stop working properly. In
this case, repairs are not covered by the guarantee).
Never drink the water with descaling mixture that you pour into
the water tank or any water with residues that comes out of the
machine during the descaling procedure.
The descaling procedure lasts approximately 30 minutes.
Only use Saeco descaling solution to descale the machine. Saeco descaling
solution is designed to ensure optimal performance of the machine. The use
of other products may damage the machine and leave residues in the water.
You can buy Saeco descaling solution in the online shop at
www.shop.philips.com/service.
18 English

Descaling procedure
CALC
CLEAN
Note: You can pause the descaling or rinsing cycle by pressing the ESC
button. The display will show the following icon. To continue the descaling
or rinsing cycle, press the OK button.
1Remove and empty the drip tray. Slide the drip tray back into the
machine.
Note: Remove the AquaClean water filter from the water tank (if present).
2Remove the automatic milk frother from the steam wand.
3Press the OK button.
4The display shows the following icon to indicate that the machine enters
the descaling cycle. If you want to exit the descaling cycle, press the ESC
button.
5Pour the entire bottle of Saeco descaling solution (250ml) into the water
tank.
6Add water to the descaling solution in the water tank up to the CALC
CLEAN indication.
7Place a large container (1.5 l) under the steam wand and dispensing
spout.
8Press the OK button to start the descaling cycle.
Note: The machine dispenses the entire descaling solution at regular
intervals through the steam wand and dispensing spout (this takes
approximately 25 minutes).
9Wait until all of the descaling solution has been dispensed. Remove and
empty the container.
10 Remove and empty the drip tray. Slide the drip tray back into the
machine.
11 Rinse the water tank and fill it with fresh water up to the CALC CLEAN
indication. Slide the water tank back into the machine.
12 Place the container back under the steam wand and dispensing spout.
13 Press the OK button to start the rinsing cycle (this takes approximately 4
minutes).
CALC
CLEAN
-The display shows the following icon to indicate that the rinsing cycle is
finished.
14 The display shows a tick icon.
15 Rinse the water tank and fill it with fresh water up to the MAX level. Slide
the water tank back into the machine.
16 Press the OK button to end the descaling cycle.
17 Place a container under the steam wand and dispensing spout.
19
English

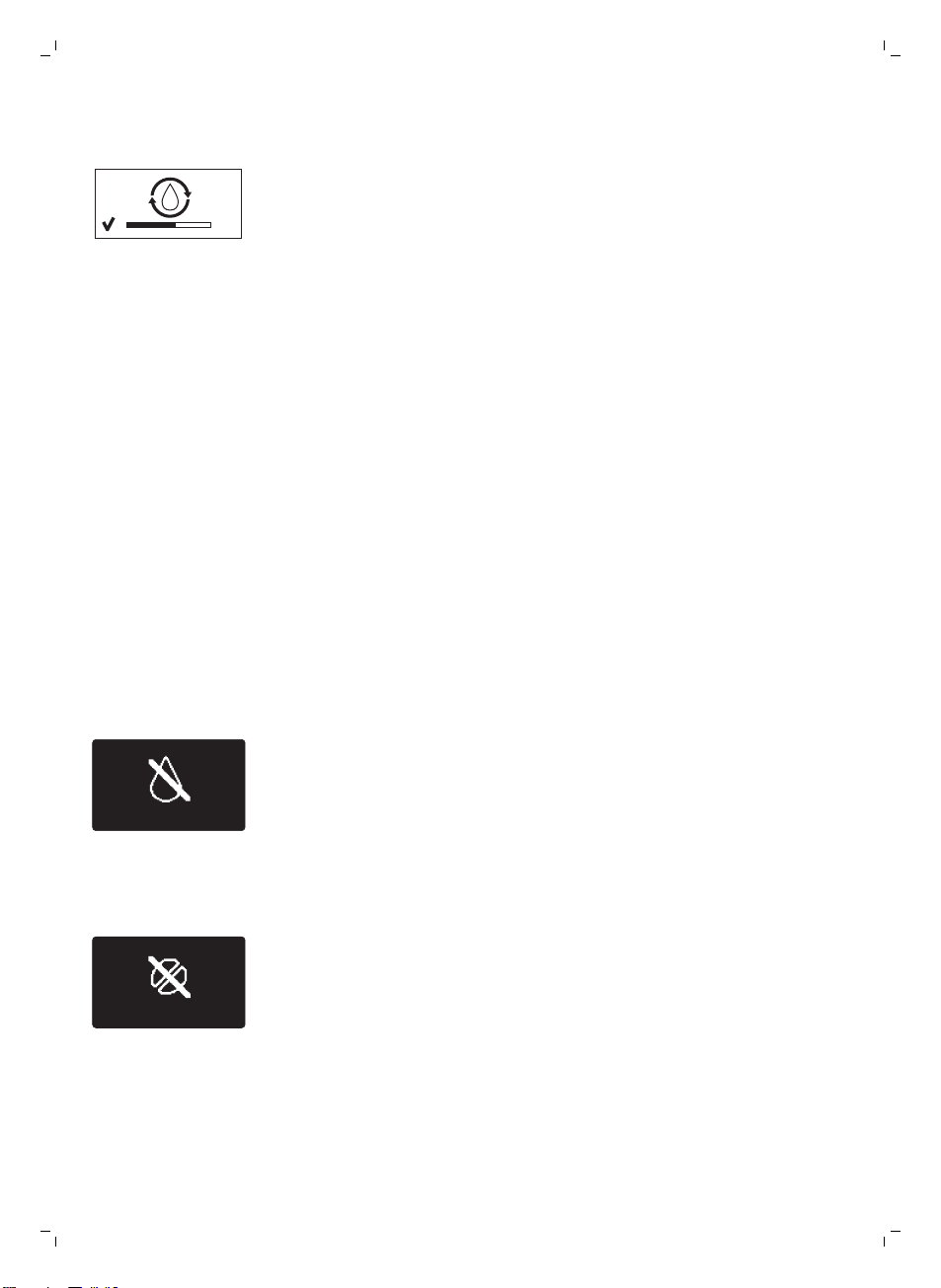

18 The display shows the following icon to indicate that the machine is
heating up.
-The machine performs an automatic rinsing cycle.
19 Remove the container. Remove and empty the drip tray. SLide the drip
tray back into the machine.
20Place the AquaClean filter back in the water tank. Reinsert the automatic
milk frother.
21 Remove and rinse the brew group see chapter ‘Cleaning and
maintenance’, section ‘Clean the brew group’.
The machine is now ready for use.
Interruption of the descaling cycle
Once the descaling cycle has started, you must complete it till the very end
without turning off the machine. In case you get stuck during the cycle or in
case of power failure or accidental disconnection of the power cord, you
can exit by pressing the standby button. If this occurs, empty and rinse
carefully the water tank, then fill it up to the CALC CLEAN level. Follow the
instructions in chapter ‘First installation’, section ‘Manual rinsing cycle’
before brewing any beverage. If the cycle was not completed, the machine
will require another descaling cycle to be performed at your earliest
convenience.
Warning icons and error codes
Warning signals are displayed in red. Below you find a list of the
warnings that may appear on the display and their meaning.
-Fill the water tank with fresh water to the MAX level indication.
-The bean hopper is empty. Put new coffee beans in the bean hopper.
20 English
