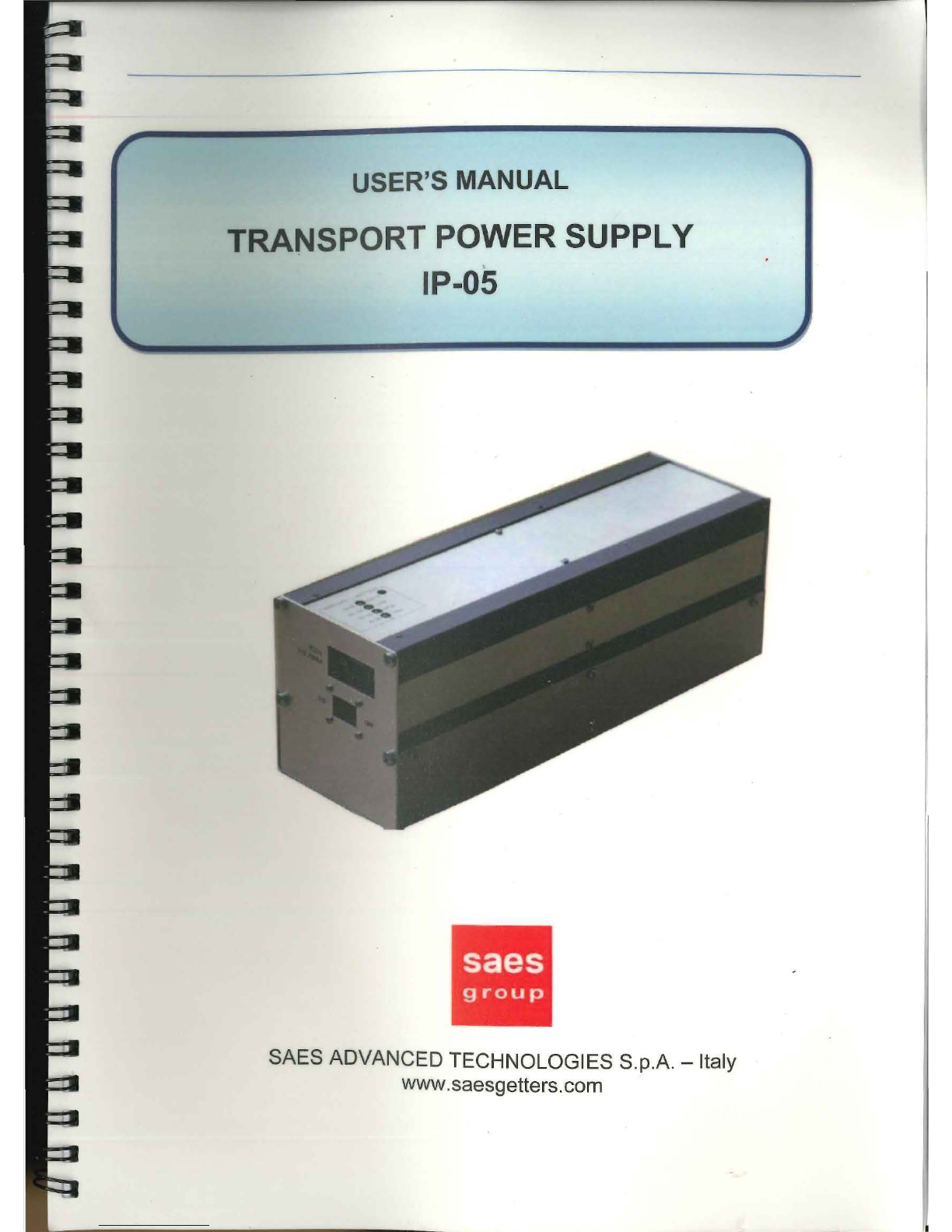

SAES IP-05 User manual

USER'S MANUAL
TRANSPORT POWER SUPPLY
IP-05
SAES ADVANCED TECHNOLOGIES S.p.A. -Italy
www.saesgetters.com

:1:
.,.
a: •
•
•
•
•
•
•
•
•
a
a
a

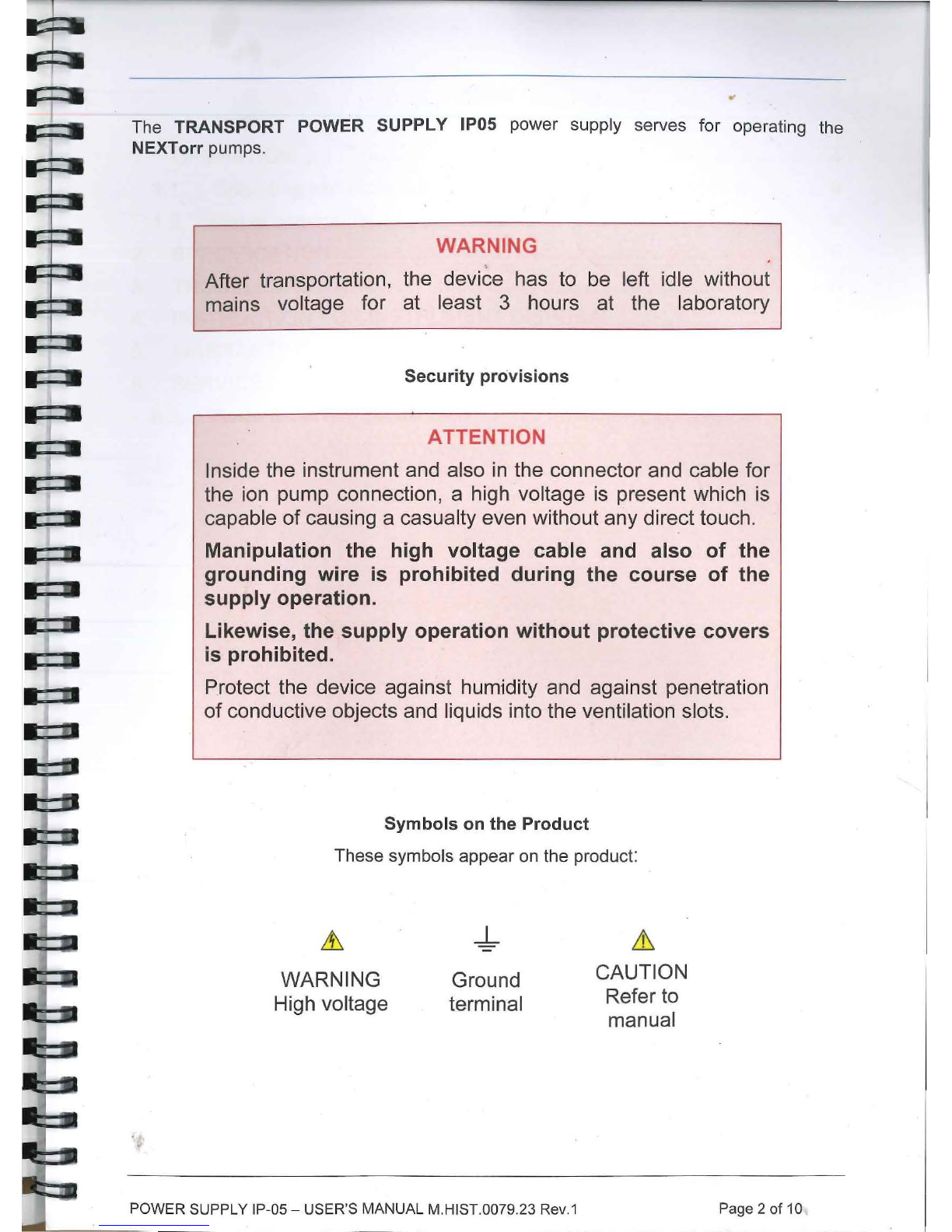

The TRANSPORT POWER SUPPLY IP05 power supply serves for operating the
NEXTorr pumps.
WARNING
After transportation, the device has to be left idle without
mains voltage for at least 3 hours at the laboratory
Security provisions
ATTENTION
Inside the instrument and also in the connector and cable for
the ion pump connection, a high voltage is present which is
capable ofcausing a casualty even without any direct touch.
Manipulation the high voltage cable and also of the
grounding wire is prohibited during the course of the
supply operation .
Likewise, the supply operation without protective covers
is prohibited .
Protect the device against humidity and against penetration
of conductive objects and liquids into the ventilation slots.
Symbols on the Product
These symbols appear on the product:
Lt
WARNING
High voltage Ground terminal
POWER SUPPLY IP-05 -USER'S MANUAL M.HIST.0079.23 Rev.1
&
CAUTION
Refer to
manual
Page 2 of 10

I
I I
I •
~ I :
t •
t •
I •
I •
I •
I •
I •
I •
a
a
•
•
•
II
II
t::ll
1:::11
-==-

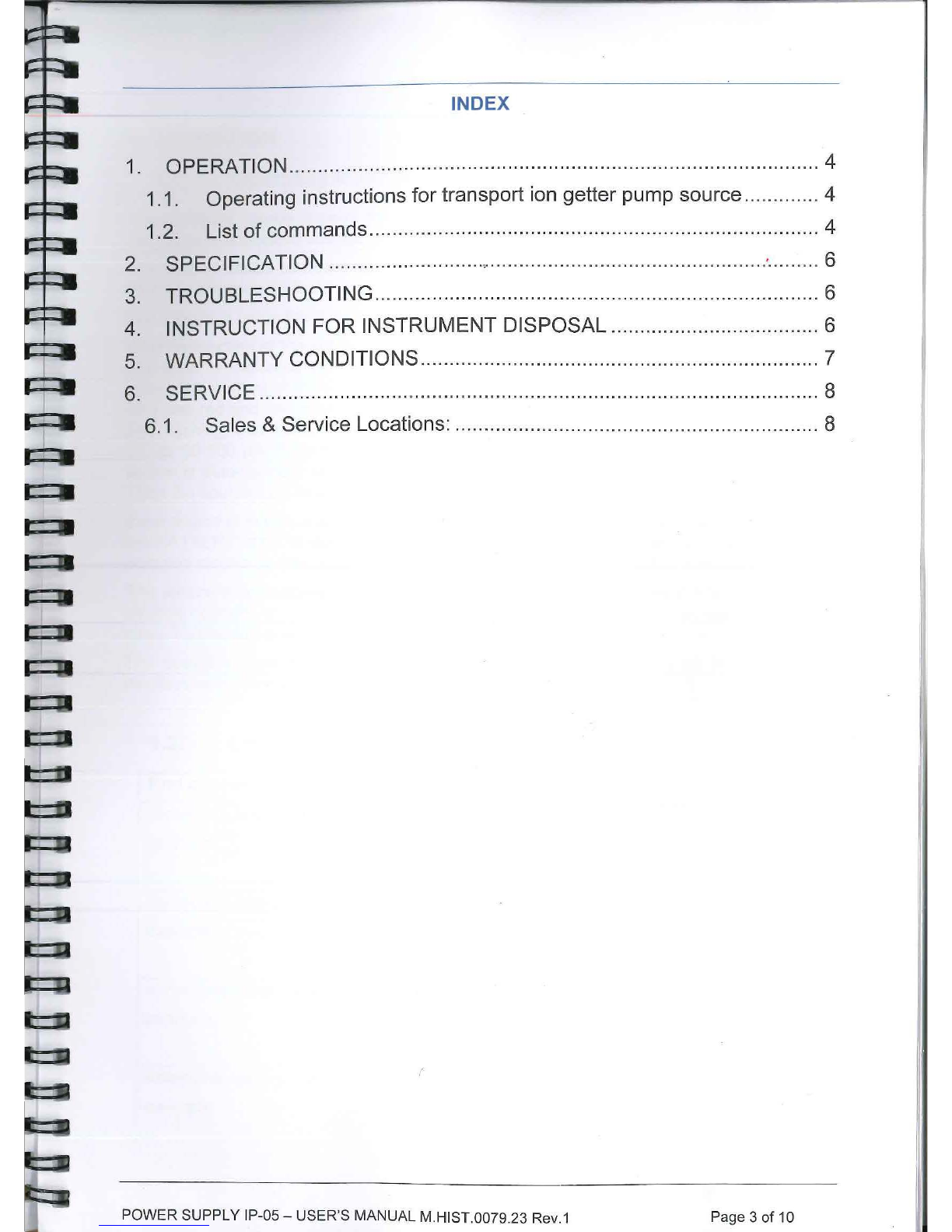

INDEX
1. OPERATION.. .. ....................... .. ..................................... ... ....................... 4
1.1. Operating instructions for transport ion getter pump source............. 4
1.2. List of commands................................................... .. ......................... 4
2.
SPECIFICATION .................... .. .....,........... .. ........................... .. ......:......... 6
3. TROUBLESHOOTING........................................
.. .. .. ............................... 6
4. INSTRUCTION FOR INSTRUMENT DISPOSAL .................................... 6
5.
WARRANTY CONDITIONS..... .. ....... .. ................ .. ... ... ............................. 7
6.
SERVICE .. .. .............................. .. ...................................... .. ..................... 8
6.1. Sales & Service Locations: ............................................................... 8
POWER SUPPLY IP-05 -USER'S MANUAL M .H IST.0079.23 Rev.1 Page 3 of 10
I
I

I
J I
s:
I
I
!I
r II
r :a
I
~
I
ill
I
II
I ill
I ill
I •
I
!ti
I •
I
ii
I a
I •
I ~
•
•
"
•
•
•
J~-5"" \$
·)
I

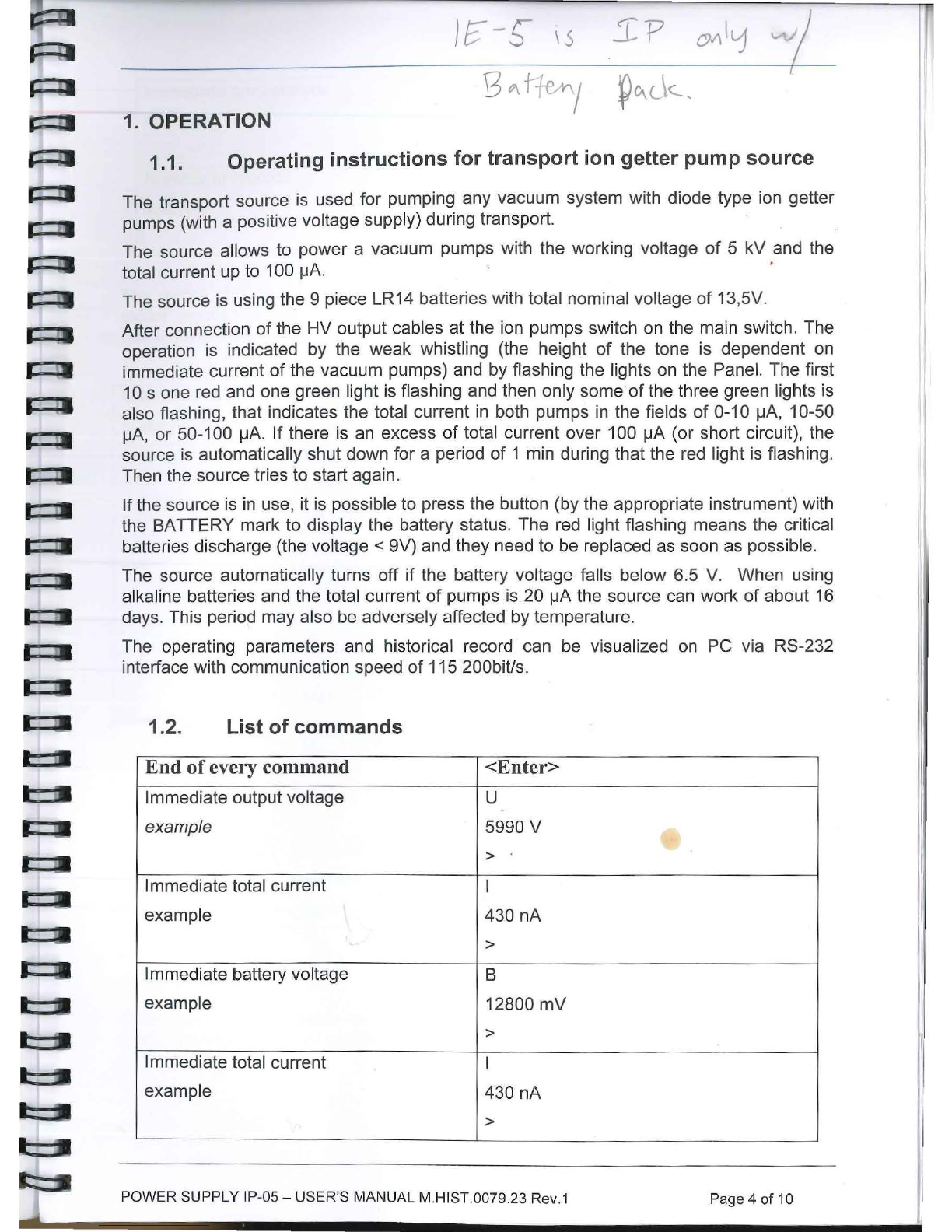

1. OPERATION
1.1. Operating instructions for transport ion getter pump source
The transport source is used for pumping any vacuum system with diode type i on getter
pumps (with a positive voltage supply) during transport.
The source allows to power a vacuum pumps with the working voltage of 5 kV and the
total current up to 100 µA. ·
The source is using the 9 piece LR14 batteries with total nominal voltage of 13,5V.
After connection of the HV output cables at the ion pumps switch on the main switch. The
operation is indicated by the weak whistling (the height of the tone is dependent on
immediate current of the vacuum pumps) and by flashing the lights on the Panel. The first
1Os one red and one green light is flashing and then only some ofthe three green lights is
also flashing, that indicates the total current in both pumps in the fields of 0-10 µA, 10-50
µA, or 50-100 µA. If there is an excess of total current over 100 µA (or short circuit), the
source is automatically shut down for a period of 1 min during that the red light is flashing.
Then the source tries to start again.
If the source is in use, it is possible to press the button (by the appropriate instrument) with
the BATTERY mark to display the battery status. The red light flashing means the critical
batteries discharge (the voltage < 9V) and they need to be replaced as soon as possible.
The source automatically turns off if the battery voltage falls below 6.5 V. When using
alkaline batteries and the total current of pumps is 20 µA the source can work of about 16
days. This period may also be adversely affected by temperature.
The operating parameters and historical record can be visualized on PC via RS-232
interface with communication speed of 115 200biUs.
1.2. List of commands
End of every command <Enter>
Immediate output voltage u
example 5990 v
>
Immediate total current I
example 430 nA
>
Immediate battery voltage B
example 12800
mV
>
Immediate total current I
example 430 nA
>
P OW ER SUPPLY IP-05 - US ER'S MANUAL M.HIS T. 0079. 23 Rev.1 Page
4o f 10

' .
Immediate temperature T
example 24 c
>
Number of records F
example 07Records
>
'
The record of current list of value is called by command FOO, previous one F01 etc. The
oldest record has the highest number. The record is realized only when the source is
running more than 1 min.
Command Displayed (typed) value Description
History record f
07
Example
Record# 7
Total Time: 24600 min Total time after battery change
On Time: 1475770 s Total time after source
switching on
Charge: 266490149 uC Total curried charge
Max. I: 539864 s: 20140 nA Maximum current and
corresponding time
Min. I: 1466 s: 19490 nA Minimum current and
corresponding time
Max. T: 1376897 s: 26 C Maximum temperature and
corresponding time
Min. T: 423169 s: 18 C Minimum temperature and
corresponding time
Min. B: 1475738 s: 7900 mV Minimum battery voltage and
corresponding time
Current: 00 nA Last value
of current
Voltage: 00 V Last value of pump voltage
Battery: 3200 mV Last value of battery voltage
&. Caution:
After communication cable connection the consumption from battery is rising of about
5mA. Therefore ifit is not necessary, do not leave the communication cable connected!
POWER SUPPLY IP-05 -USER'S MANUAL M.HIST.0079.23 Rev.1 Page 5 of 10

' .
I'. •
I •
I •
I •
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I

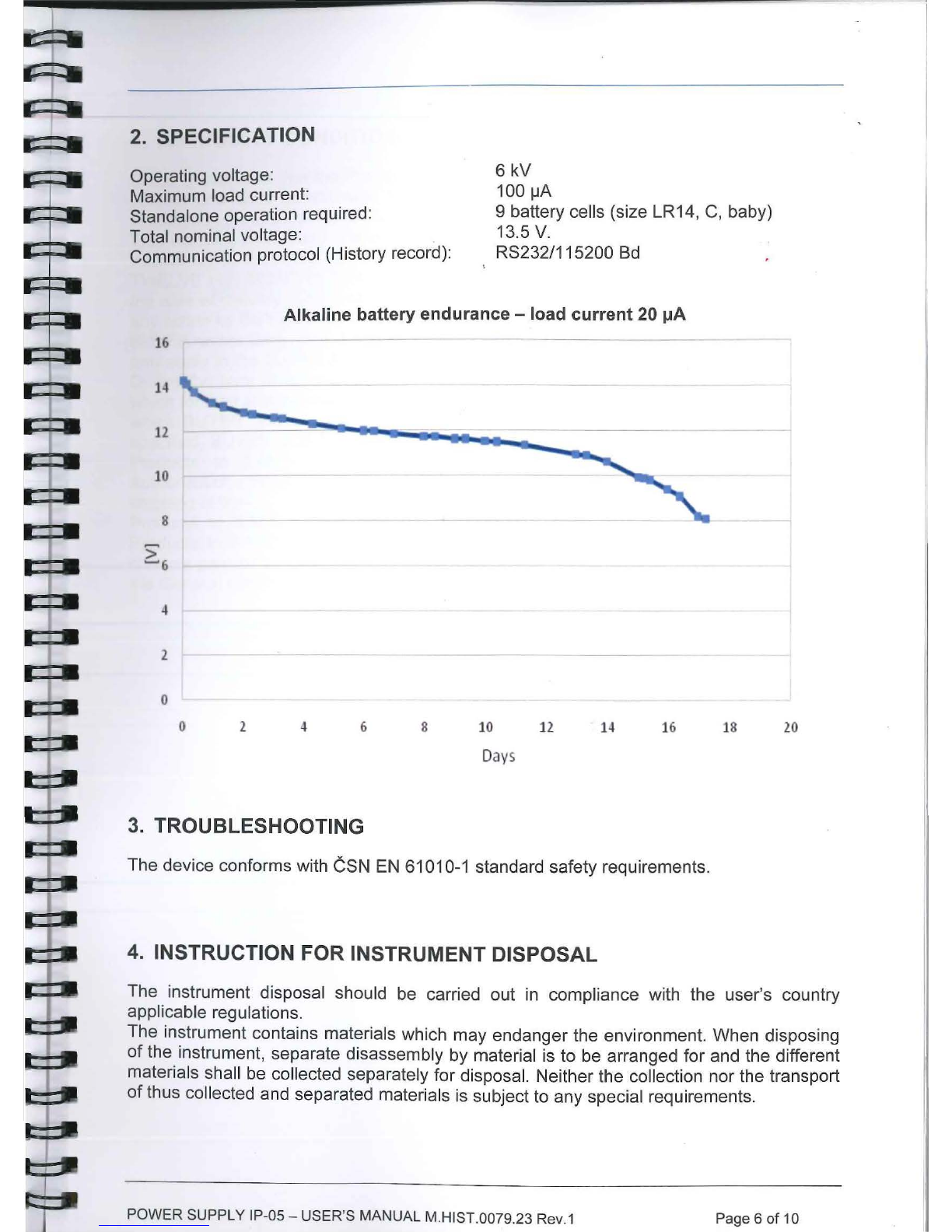

2. SPECIFICATION
Operating voltage:
Maximum load current: 6 kV
100 µA
Standalone operation required:
Total nominal voltage: 9 battery cells (size LR14, C, baby)
13.5 V.
Communication protocol (History record): RS232/115200 Bd
Alkaline battery endurance -load current 20 µA
16
>
~6
l
0
0 l 6
3. TROUBLESHOOTING
8 10
Days
12 14 16
The device conforms with CSN EN 61010-1 standard safety requirements.
4. INSTRUCTION FOR INSTRUMENT DISPOSAL
18 20
The instrument disposal should be carried out in compliance with the user's country
applicable regulations.
The instrument contains materials which may endanger the environment. When disposing
of the instrument, separate disassembly by material is to be arranged for and the different
materials shall be collected separately for disposal. Neither the collection nor the transport
of thus collected and separated materials is subject to any special requirements.
POWER SUPPLY IP-05 -USER'S MANUAL M.HIST.0079.23 Rev.1 Page
6of10

f;::
Ii
i::.
~
•
t:
•
~
•
c •
~
•
t I •
I
t:
•
t •
E •
' •
r •
r •
t •
I •
I •
I •
I •
I •
I •
I •
a:
I •
•

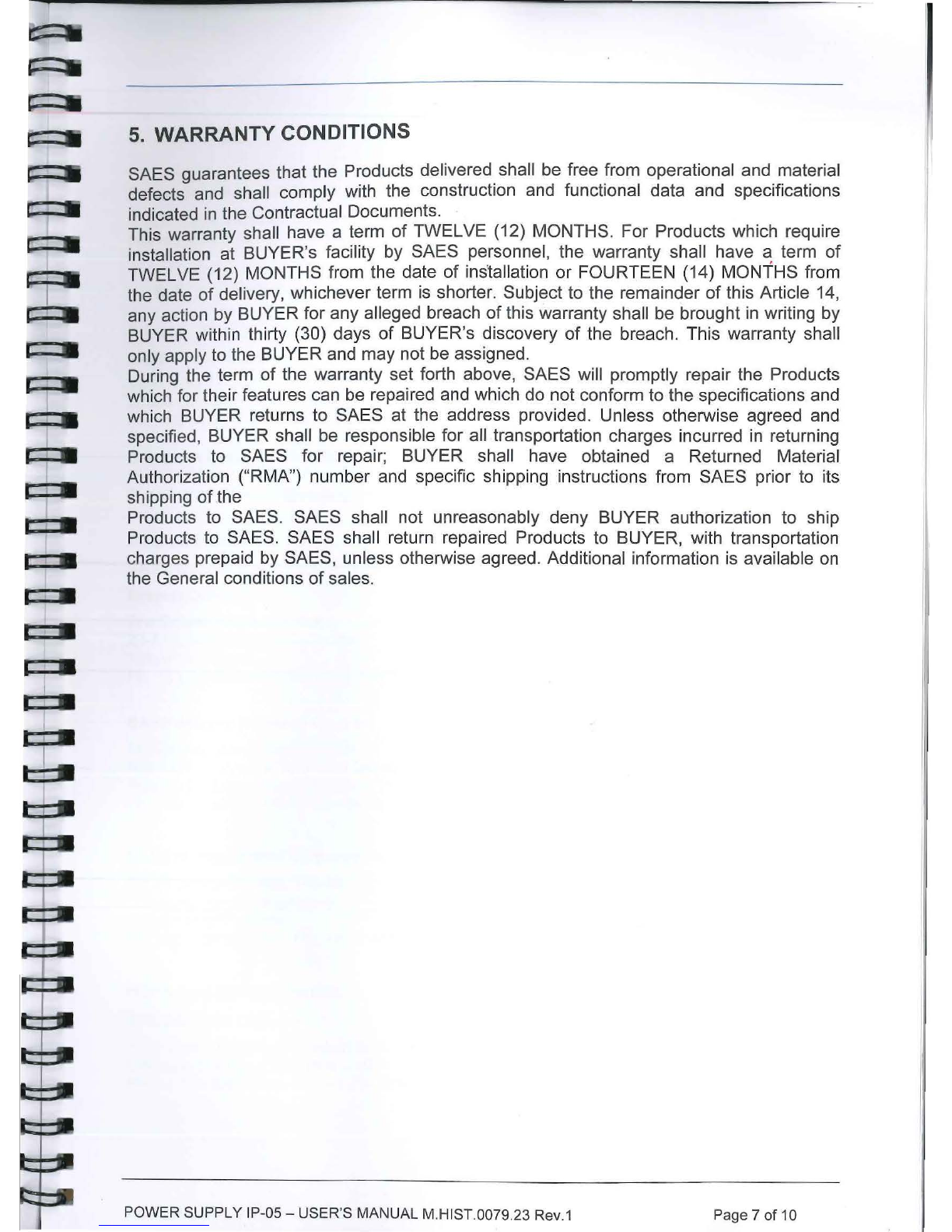

5. WARRANTY CONDITIONS
SAES guarantees that the Products delivered shall be free from operational and material
defects and shall comply with the construction and functional data and specifications
indicated in the Contractual Documents.
This warranty shall have a term of TWELVE (12) MONTHS. For Products which require
installation at BUYER's facility by SAES personnel, the warranty shall have a term of
TWELVE (12) MONTHS from the date of installation or FOURTEEN (14) MONTHS from
the date of delivery, whichever term is shorter. Subject to the remainder of this Article 14 ,
any action by BUYER for any alleged breach of this warranty shall be brought in writing by
BUYER within thirty (30) days of BUYER's discovery of the breach. This warranty shall
only apply to the BUYER and may not be assigned.
During the term of the warranty set forth above, SAES will promptly repair the Products
which for their features can be repaired and which do not conform to the specifications and
which BUYER returns to SAES at the address provided. Unless otherwise agreed and
specified, BUYER shall be responsible for all transportation charges incurred in returning
Products to SAES for repair; BUYER shall have obtained a Returned Material
Authorization ("RMA") number and specific shipping instructions from SAES prior to its
shippi ng ofthe
Products to SAES. SAES shall not unreasonably deny BUYER authorization to ship
Products to SAES. SAES shall return repaired Products to BUYER, with transportation
charges prepaid by SAES, unless otherwise agreed. Additional information is available on
the General conditions of sales.
POWER SUPPLY IP -05 -USER'S MANUAL M.HIST.007 9. 23 Rev.1 Page
7o f 10

I •
I •
J •
I •
I •
r •
r •
I •
I •
I •
I •
I •

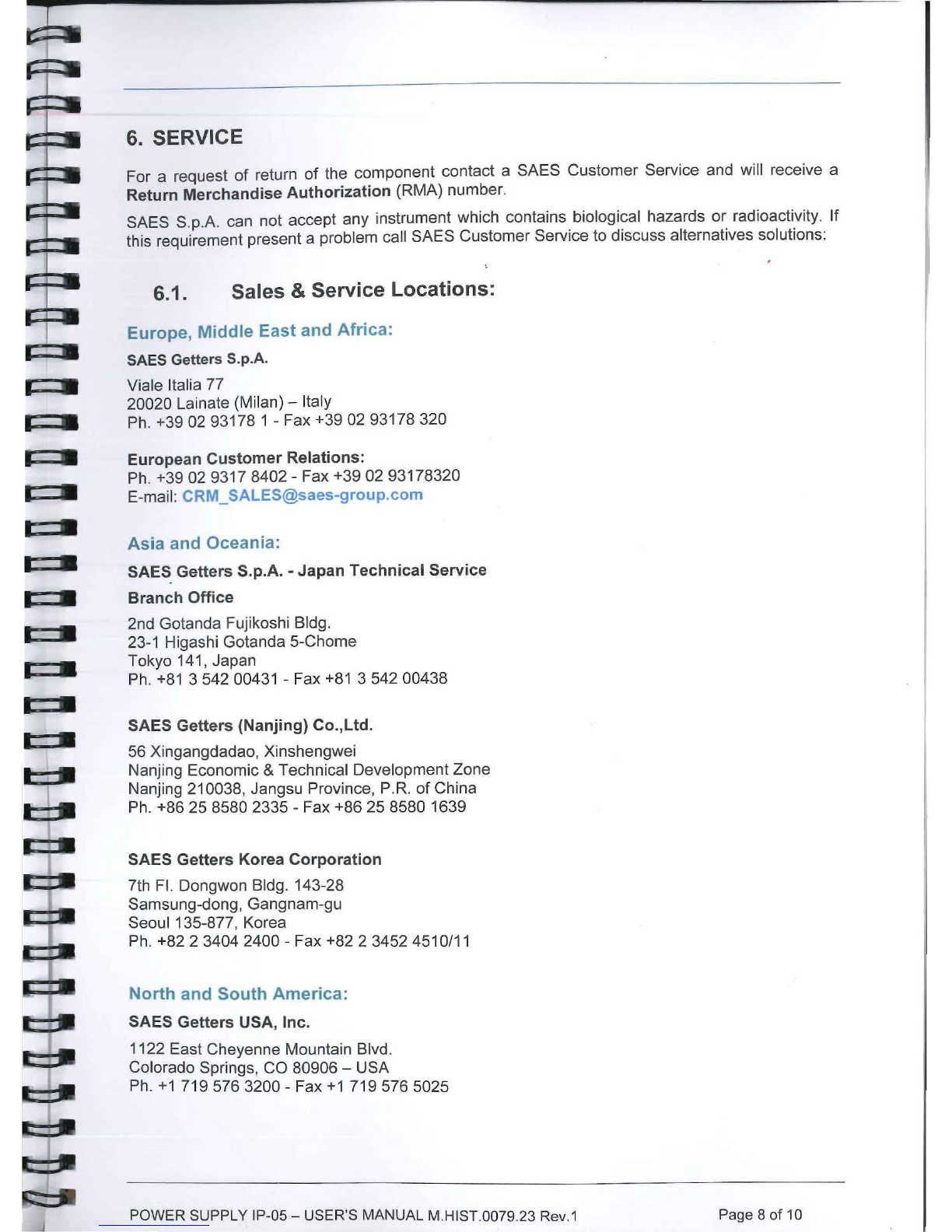

6. SERVICE
For a request of return of the component contact a SAES Customer Service and will receive a
Return Merchandise Authorization (RMA) number.
SAES S.p. A. can not accept any instrument which contains biological hazards or radioactivity. If
this requirement present a problem call SAES Customer Service to discuss alternatives solutions:
6.1. Sales &Service Locations:
Europe, Middle East and Africa:
SAES Getters S.p.A.
Viale Italia 77
20020 Lainate (Milan) -Italy
Ph . [phone] - Fax [phone]
European Customer Relations:
Ph. [phone] -Fax [phone]
E-mail: [e-mail]
Asia and Oceania:
SAES Getters S.p.A. -Japan Technical Service
Branch Office
2nd Gotanda Fujikoshi Bldg.
23-1 Higashi Gotanda 5-Chome
Tokyo 141 , Japan
Ph. [phone] -Fax [phone]
SAES Getters (Nanjing) Co.,Ltd.
56 Xingangdadao, Xinshengwei
Nanjing Economic & Technical Development Zone
Nanjing 210038, Jangsu Province, P. R. of China
Ph . [phone] -Fax [phone]
SAES Getters Korea Corporation
7th Fl. Dongwon Bldg. 143-28
Samsung-dong, Gangnam-gu
Seoul 135-877, Korea
Ph. [phone] -Fax [phone]
North and South America:
SAES Getters USA, Inc.
1122 East Cheyenne Mountain Blvd.
Colorado Springs, CO 80906 -USA
Ph. [phone] -Fax [phone]
POWER SUPPLY IP-05 -USER'S MANUAL M.HIST.0079.23 Rev.1 Page
8of10

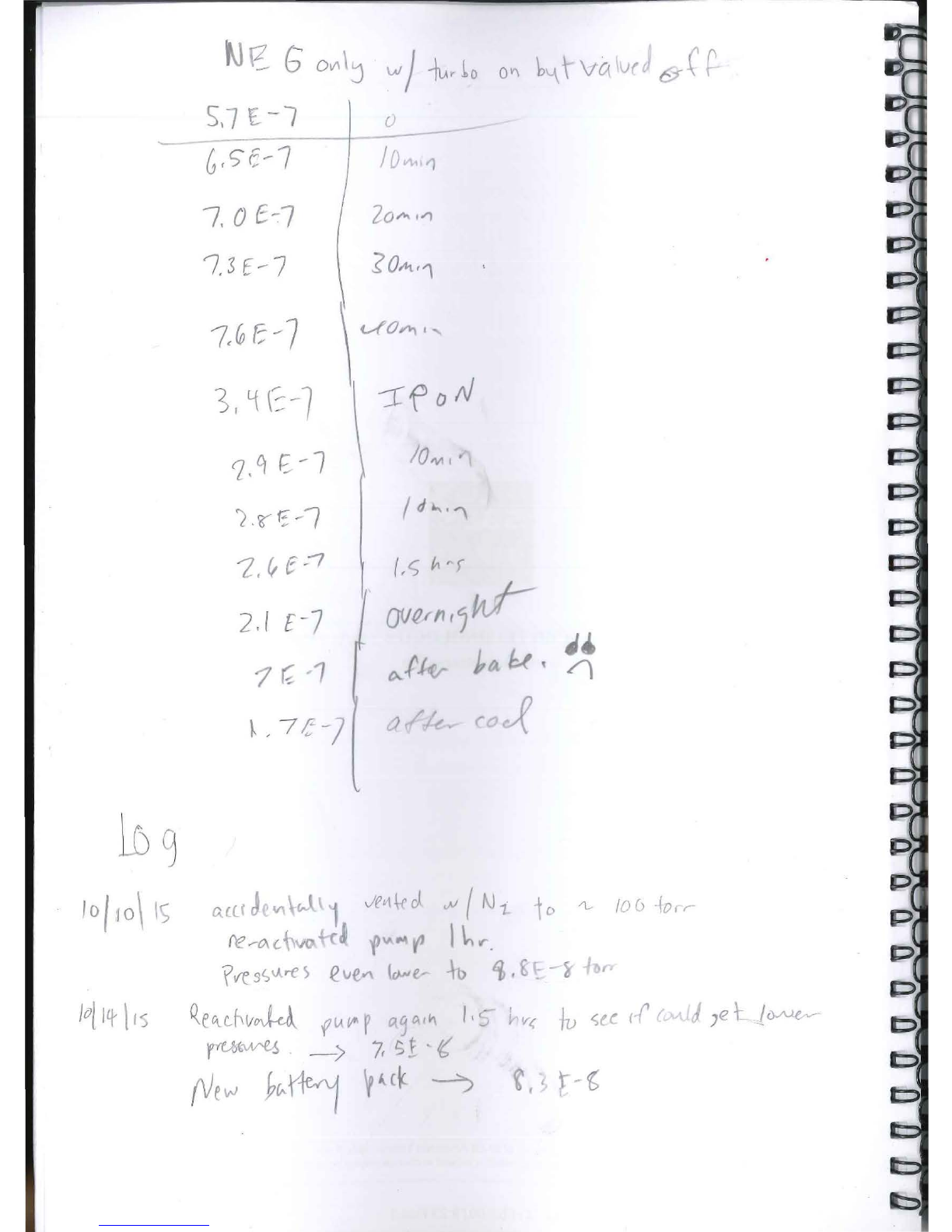

log
lo/ro\ 1$
S,7 E -/ u
--~--
G,<;f--7 lo~ '1
7. 0 E~7
!. 3f --7
1<& f; ~ 7
~,Lt\:-7
'2.~~-1
?. ~ e ~-,
2.( E-7
1 (:, ,7
~, 7 t-7
2ot11-. ,..,
?o~,1
(, c; h ")
(JIJQrfl 1] tJ-
o- .(' J.rr J, b. /:.( • ~
tJ ~ ( vf
1.HC.< J(l "'\c,J \ 1 Jfi\ \c cl .µ ( 1'J 1- io "1-- /0 6 ·lo u-
re~~ l.' JO.tc~ fY.~V' th~.
fves<:.V.rt>S ev~ lc>--'e"" ~b ~.&{--~~'Dr
~ectcJwJ-el.. fl.A.VA' r ll~ ~'" 1. s 0v< tv <,(_(. cf{. )et fi>Aler---
f'U>~ -:> 7, Sr' (
(Ve.,.i J,r. ~ v H~ ---":> ~ •1 r- f;
