SAFARI Montage Live! H.323 Gateway
Installation Guide

2

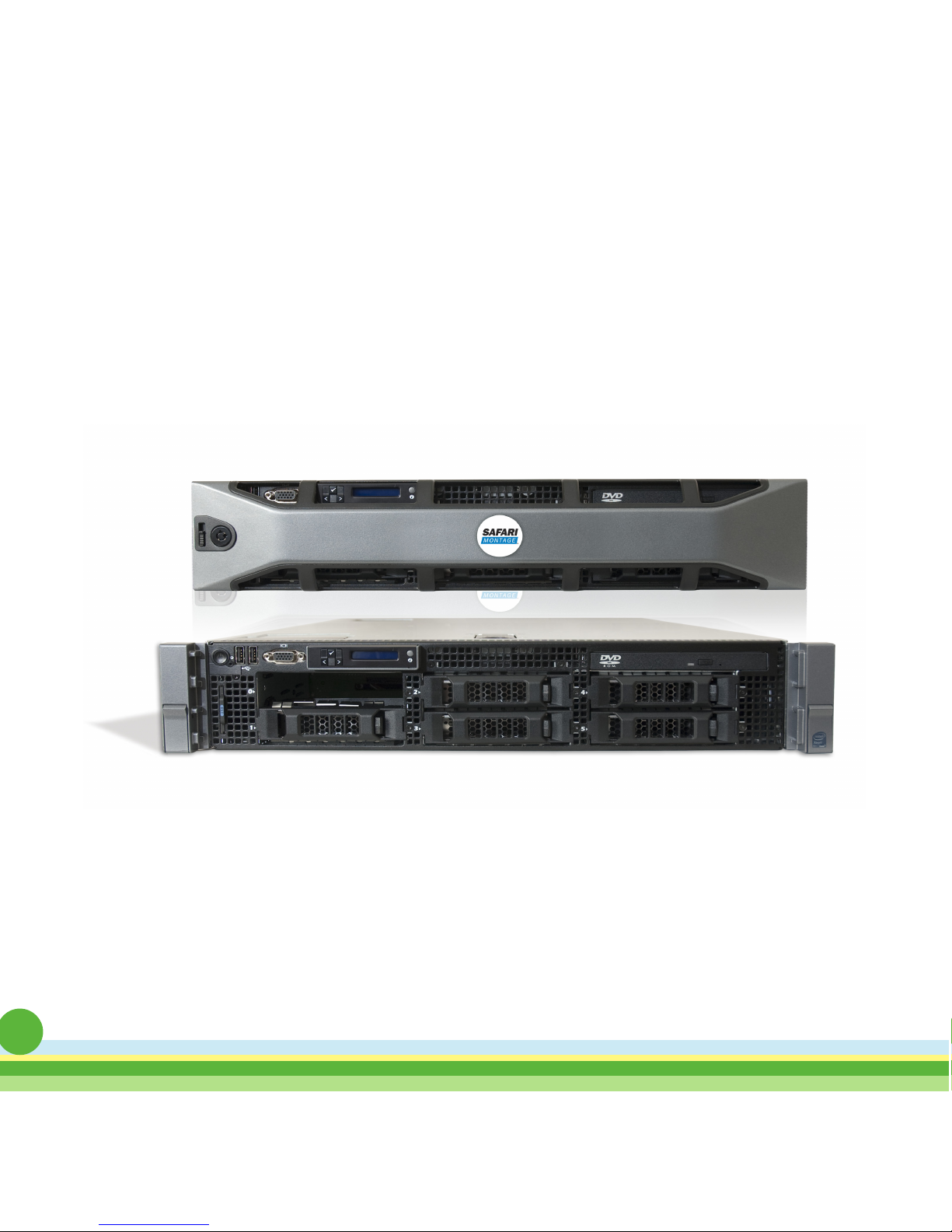

SAFARI Montage®Live! H.323 Gateway
Thank you for choosing the SAFARI Montage Live! H.323 Gateway. In just a few steps, you’ll have the
ability to included traditional H.323-based videoconferencing systems in your SAFARI Montage Live!
videoconferencing sessions This setup guide covers how to install and configure your gateway.

3
Step 1
Step 2 Positioning the SAFARI Montage Live! H.323 Gateway
Install the gateway in a rack mount enclosure, using the supplied mounting brackets
or rails and screws. There should be adequate airflow around the gateway, with
temperatures not exceeding 95ºF.
Unpacking the Hardware
Carefully remove the SAFARI Montage Live! Gateway and the following items from
the box, and place them on a flat surface. If any items are missing, please call
1.800.843.4549.
Power Cord Keys (2)
(Styles may vary) Ethernet Cable
Mounting Brackets (2) or
Rails (2) (Mounting Brackets Shown)
Mounting Bracket
Screws (8)
DV Dongle (2)
(VGA and DVI; Styles may vary)

4
Step 3 Connecting the SAFARI Montage Live! H.323 Gateway
a. Using the image below as a guide, first connect the gateway to the network by
plugging an Ethernet cable into any active Ethernet port on the network.
b. Connect a monitor, keyboard and mouse to the gateway.
Note: The monitor connection must be made via the DV connection,
as labeled below and using the included DV dongle. Both VGA
connections (front and rear) are disabled.
c. Connect the power cord from the back of the gateway into a grounded outlet.
We highly recommend connecting it to an uninterrupted power supply (UPS).
Note: Please see the hardware warranty for terms related to the gateway’s
environmental conditions and electrical power.
SAFARI Montage Live! H.323 Gateway
Monitor (DV)
Keyboard
and Mouse
Power
Network
DO NOT
USE
4

5
Step 4
Step 5 Networking the SAFARI Montage Live! H.323 Gateway
Configure the SAFARI Montage Live! H.323 Gateway in the same manner a
Windows® appliance would be configured for the networking environment being
used.
Required Network Ports
Below is a list of required network ports to be opened.
Port Type Application
1503 TCP
1720 TCP H323/Q.931
1731 TCP
Note: Additional ports may be required for operation with
traditional videoconferencing equipment. See Additional Port
Settings under the Troubleshooting section of this guide.
The gateway will boot into Microsoft® Windows Server® 2008. Once the boot
sequence has completed, the Windows Server 2008 desktop will appear and
administrators will be asked to enter the Microsoft product key and to activate the
server.
Note: On the desktop, Administrators will see an open window labeled
httpd.exe. This window must remain open at all times for normal
operation; however, this window can be minimized.
Powering Up the SAFARI Montage Live! H.323 Gateway
Now that the cables have been connected, power up the gateway.
Remove the bezel from the front of the gateway by unlocking it with the key provided
and press the power button located on the front of the gateway.
Power
5

6
Step 6 Accessing the SAFARI Montage Live! H.323 Gateway Interface
Launch a web browser from any workstation on your network, enter the URL or IP
address of the SAFARI Montage Live! H.323 Gateway into the address bar and
press ”enter”.
Congratulations!
Basic installation and startup are complete.
For information on how to use the SAFARI Montage Live! H.323 Gateway, click on
the Help icon ( ) located at the top right of the interface.

7
Troubleshooting
If there any difficulties with installation or further information is needed, please visit
www.SAFARIMontage.com/support or call a support representative at 800.782.7230. When calling,
please have the gateway’s serial number available. The gateway’s serial number can be found on the
back of the appliance.
Gateway Number:
Hostname/URL:
Date Installed:
Additional Port Settings
In addition to the required ports listed on page 5, the following ports may need to be configured in order
for the SAFARI Montage Live! H.323 Gateway to operate with traditional videoconferencing equipment.
Port Type Application Equipment
2979 TCP/UDP H.263 video streaming Polycom
3230 – 3247 UDP Audio and video Polycom
3230 – 3247 UDP RTCP Polycom
11720 TCP/UDP Alternative for call set-up (must be
bidirectional) Polycom
80 TCP HTTPd Tanberg
1719 UDP H.323/RAS UDP Tanberg
2326 – 2373 UDP H.323/RTP Tanberg
970 - 973 UDP Streaming/RTP Tanberg
974 UDP SAP Tanberg
5555 - 5587 TCP H.323/H.245/Q.931 Tanberg
NOTICE:
The information in this installation guide is subject to change without notice. Library Video Company reserves the right to modify the design of its products and
change the information in this installation guide.

800.843.4549 • SAFARIMontage.com
PO Box 580, Wynnewood, PA 19096
© 2011 Library Video Company. All Rights Reserved. 09/11
SAFARI Montage H323 Gateway Installation Guide R2 for G9946H323
