Safeline HL1 User manual
www.safeline-group.com
10.2019 © 2019 SafeLine and all the SafeLine products and
accessories are copyrighted by law.
Made in Tyresö, Sweden with quality and care
Telephone accessories
HL1 Manual
HL1 2.01 EN
2HL1 2.01 EN
Introduction
Introduction
Technical Data 3
General information 4
Introduction 5
Components 5
Content
Installation
Certicate
Declaration of conformity 11
Mounting instructions 6
Jumper 6
Wiring Safeline SL6+ Voice station 7
Wiring MX3+ Voice station 8
Wiring Speaker 9
Inductive Loop 10
3
SafeLine HL1
HL1 2.01 EN
Introduction
Technical data
Current consumption: Idle: 3 mA
Active with no insignal: 100 mA
Active with max insignal: 1,8 A Peak
Input level for max output: Low sensitivity: 500 mV RMS
High sensitivity: 250 mV RMS
Input voltage: 12-15 VDC
Size (H xW xD):Sheet metal housing: 157 x 92 x 38 mm
Surface mounted: 155 x 90 x 29 mm
4HL1 2.01 EN
Introduction
This unit was built with state-of-the-art technology and to
generally recognised safety related technical standards currently app-
licable. These installation instructions are to be followed by all people
working with the unit, in both installation and maintenance.
It is extremely important that these installation instructions are made
available at all times to the relevant technicians, engineers or servicing
and maintenance personnel. The basis prerequisite for safe handling
and trouble free operation of this system is a sound knowledge of the
basic and special safety regulations concerning conveyor technology,
and elevators in particular. The unit may only be used for its intended
purpose. Note in particular that, no unauthorised changes or additions
may be made inside the unit or individual components.
Exclusion of liability
The manufacturer is not liable with respect to the buyer of this product
or to third parties for damage, loss, costs or work incurred as a result of
accidents, misuse of the product, incorrect installation or illegal chang-
es, repairs or additions. Claims under warranty are likewise excluded in
such cases. The technical data is the latest available. The manufacturer
accepts no liability arising from printing errors, mistakes or changes.
Declaration of conformity
Download ”The declaration of conformity” at our website:
www.safeline-group.com
Safety Precautions!
- Only trained professionals, who are authorised to work on the equip-
ment, should install and con gure this product.
- This quality product is dedicated for the lift industry. It has been
designed and manufactured to be used for its speci ed purpose only.
If it is to be used for any other purpose, SafeLine must be contacted in
advance.
- It should not be modi ed or altered in any way, and should only be
installed and con gured stric tly following the procedures described in
this manual.
- All applicable health and safety requirements and equipment
standards should be considered and strictly adhered to when installing
and con guring this product.
- After installation and con guration this product and the operation
of the equipment should be fully tested to ensure correct operation
before the equipment is returned to normal use.
Electrical and electronic products may contain materials, parts and
units that can be dangerous for the environment and human health.
Please inform yourself about the local rules and disposal collection
system for electrical and electronic products. The correct disposal of
your old product will help to prevent negative consequences for the
environment and human health.
General
information
5
HL1
HL1
HL1 2.01 EN
Introduction
Introduction
Components
The HL1 transmits sound inductively to hearing aids. HL1 is
automatically activated by sound control. It is turned idle 20
seconds after not receiving any sounds.
SafeLine HL1 in sheet
metal housing with
external inductive loop.
SafeLine HL1 in surface
mounted front plate with
built-in inductive loop.
Inductive loop
connector
Sensitivity setting
DC supply and
speaker terminal
6
SENS.
HIGH
LOW
HL1 2.01 EN
Installation
Mounting
instructions
For the surface mounted model
HL1 shall be mounted visibly at 1100-1800 mm height from the car
oor, in near proximity to the emergency‑call button. Max distance
to HL1 for approved audibility is 700 mm. For testing the HL1, please
use a hearingloop tester with headset or a eld strength meter.

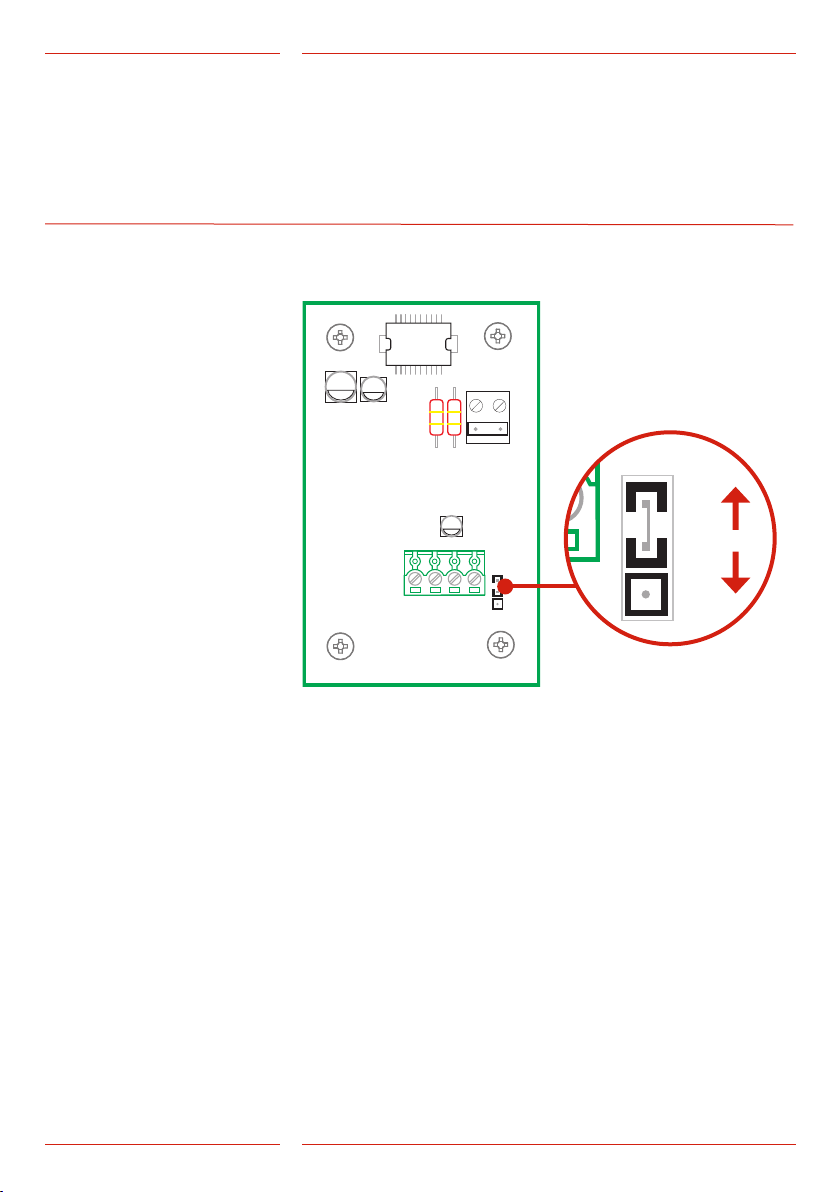

The HL1 can be set for two different amplication levels by switching
the sensitivity jumper.
Jumper
High amplication of the signal.
Low amplication of the signal.
7
ADDRESS
J2
LOCAL BUTTON
BUS A
BUS B
OUT A (YELL.)
OUT B (GREEN)
INPUT A
INPUT B
EMG LIGHT +
HEARING LOOP
BUS GND
BUS 12V
J4 J3
-
RS2
HEARING LOOP
*CABLE13
HL1
+12-15 VDC
0 VDC
SPK A
SPK B
0 V
12 V
NC
NO
C
230 V
L N
0 V
12 V
NC
NO
C
230 V
L N
HL1 2.01 EN
Installation
Inductive loop
Wiring
Safeline SL6+
Voice station
8
123
4 5 6
97 8
*0#
SafeLine MX3+
serial no.
hologram
sw ver.
www.safeline-group.com
SPK A
SPK B
HL1
*CABLE15
MX3+
UP2
+12-15 VDC
0 VDC
0 V
12 V
NC
NO
C
230 V
L N
0 V
12 V
NC
NO
C
230 V
L N
HL1 2.01 EN
Installation
Wiring SafeLine
MX3+ Voice
station
Inductive loop
9
+12-15 VDC
0 VDC
SPK A
SPK B
A
0 V
12 V
NC
NO
C
230 V
L N
0 V
12 V
NC
NO
C
230 V
L N
UP2
SL3000
HL1 2.01 EN
Installation
Inductive loop
Wiring Speaker
10
HL2
HL1
HL1 2.01 EN
Installation

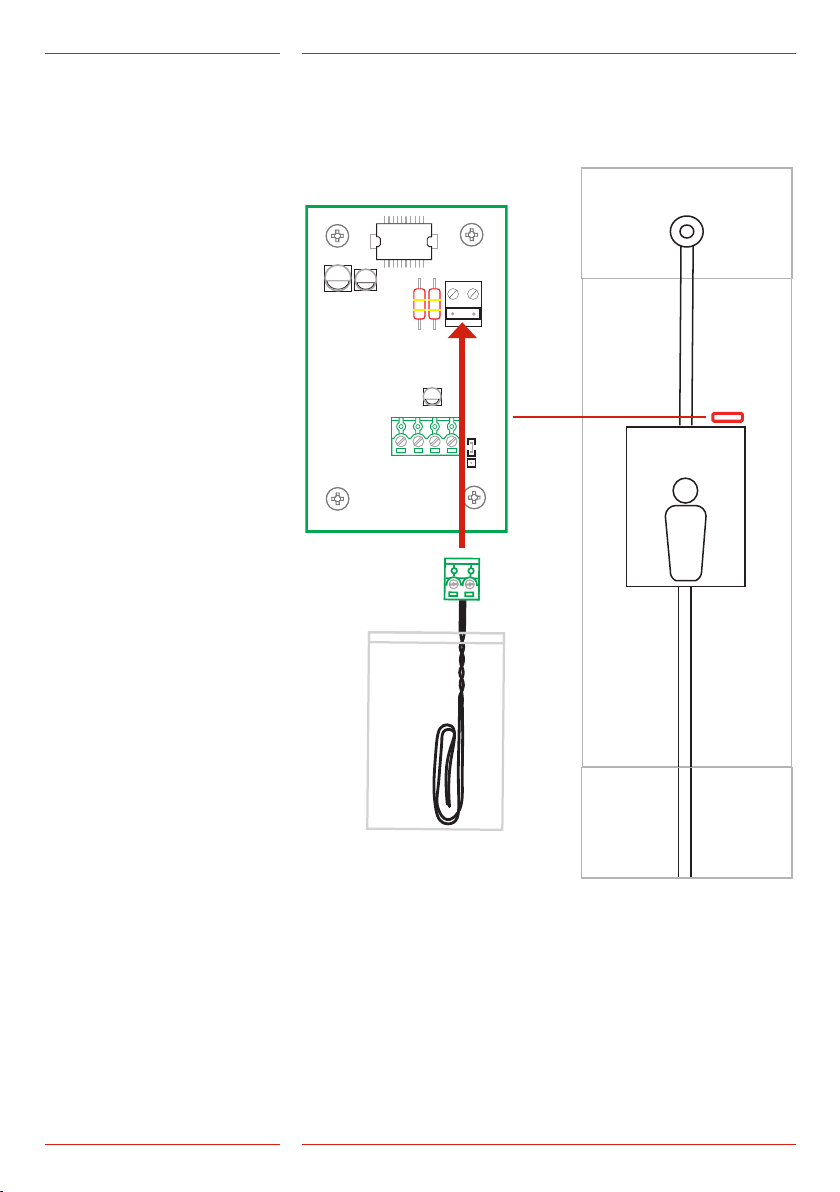

Inductive Loop In order to connect the hearing loop, please do the following:
