SAFWAY Hunnebeck Safescreen User manual

Perimeter climbing screen system
SAFESCREEN
User guide

2
Contents
Contents
1 Product Features...................................................................................................... 5
1.1 General Information...............................................................................................................6
1.2 Method Statement Guidelines............................................................................................6
1.3 Safety Instructions ................................................................................................................. 7
1.4 Equipment Information ......................................................................................................... 7
1.5 Document Information..........................................................................................................8
1.6 Other Information...................................................................................................................9
2 Overview...................................................................................................................10
3 Components..............................................................................................................11
3.1 Support Shoe ......................................................................................................................... 11
3.2 Main Frame............................................................................................................................ 13
3.3 Platform................................................................................................................................... 16
3.4 Cladding ................................................................................................................................. 19
3.5 Loading Platform ................................................................................................................. 23
3.6 Hydraulic ............................................................................................................................... 25
3.7 Fasteners............................................................................................................................... 26
4 Applications ............................................................................................................ 28
4.1 Support Shoe ....................................................................................................................... 28
4.2 Support Shoe on MKII Soldier ......................................................................................... 29
4.3 Support Shoe anchorage.................................................................................................. 30
4.4 Anchorage out of position................................................................................................ 32
4.5 Wind Clamp ...........................................................................................................................34
4.6 Main Channels ..................................................................................................................... 35
4.7 Brace Medium Duty (SHS 60x60x4.0mm) ................................................................... 36
4.8 Brace (RHS 60x100x3.6mm) – for application refer to 4.9 .......................................37
4.9 Brace HD (RHS 100x60x5.0mm)......................................................................................37
4.10 Fixed Platform (type 2)– for application refer to 4.11.................................................. 38
4.11 Fixed Platform HD............................................................................................................... 38
4.12 MainChannelStieningAngle........................................................................................ 40
4.13 Hole Web Bearing Plate..................................................................................................... 41
4.14 Main Channel Splice Plate................................................................................................ 42
4.15 Main Support Bobbin ..........................................................................................................43
4.16 Lifting Barrel ..........................................................................................................................43
4.17 SecondaryChannel(1.5mm)–forapplicationreferto4.18 ..................................... 45
4.18 SecondaryChannel(3.0mm) .......................................................................................... 45
4.19 Extending Drawer ............................................................................................................... 46
4.20 Universal Cleat......................................................................................................................47
4.21 Extension Channel.............................................................................................................. 48
4.22 Guide Box.............................................................................................................................. 49
4.23 Pivot Plate ............................................................................................................................. 50
4.24 Armadillo Plates.................................................................................................................... 51
4.25 Pull Plate................................................................................................................................ 52
4.26 Armadillo Outer Box........................................................................................................... 53
4.27 Armadillo Inner Box ............................................................................................................ 54
4.28 Perforated Adjustable Outer Panel (MK2) .................................................................... 55
4.29 Perforated Adjustable Outer Panel (MK3) .................................................................... 56

3
Unless stated otherwise all dimensions are in mm
Safescreen
4.30 Perforated Adjustable Inner Panel (MK2) ......................................................................57
4.31 Perforated Adjustable Inner Panel (MK3)...................................................................... 58
4.32 Perforated Fixed Panel (MK1 & 2).................................................................................... 59
4.33 Perforated Fixed Panel HD (MK1 & 2) ............................................................................ 59
4.34 Perforated Fixed Panel (MK3) .......................................................................................... 60
4.35 Perforated Return Panel (MK1 & 2) .................................................................................. 61
4.36 Perforated Return Panel (MK3) ........................................................................................ 62
4.37 Guide Plate for Outer Panel (MK2) ................................................................................. 62
4.38 Bolt Plate for Outer Panel (MK3) ..................................................................................... 63
4.39 Return Panel Adjustable Brace Tube............................................................................. 64
4.40 Return Panel Brace Bracket ............................................................................................. 65
4.41 Wing Panel (MK1 & 2) ......................................................................................................... 66
4.42 Wing Panel (MK3).................................................................................................................67
4.43 Wing Return Panel (MK1 & 2)............................................................................................ 68
4.44 Mesh Panel ........................................................................................................................... 69
4.45 Connecting Box................................................................................................................... 70
4.46 Loading Platform Brace (100x60)......................................................................................71
4.47 Loading Platform Brace (60x60)......................................................................................72
4.48 Loading Platform Aluminium Tread Plate ......................................................................73
4.49 Hydraulic Power Pack (120 Bar) .......................................................................................74
4.50 Hydraulic Power Pack (98 Bar).........................................................................................75
4.51 Hydraulic Ram.......................................................................................................................76
4.52 Hydraulic Hoses ...................................................................................................................77
4.53 Ram and Hose Trolley.........................................................................................................77
5 Storage and Maintenance..................................................................................... 78
5.1 Storage ...................................................................................................................................78
5.2 Typical storage area............................................................................................................78
5.3 Pre-assembled Frames.......................................................................................................79
5.4 Pre-assembled Platforms.................................................................................................. 80
5.5 Perforated Adjustable Panels (MK2) ............................................................................... 81
5.6 Perforated Adjustable Panels (MK3) .............................................................................. 82
5.7 Fixed Panels ......................................................................................................................... 82
5.8 Return / Wing Panels.......................................................................................................... 83
5.9 Support Shoes ..................................................................................................................... 84
5.10 Main Channels ..................................................................................................................... 84
5.11 Secondary Channels.......................................................................................................... 85
5.12 Fixed Platforms.................................................................................................................... 85
5.13 Braces .................................................................................................................................... 86
5.14 Hydraulic Power Packs...................................................................................................... 86
5.15 Ram and Hoses Trolley.......................................................................................................87
5.16 Post Pallets ............................................................................................................................87
5.17 Mesh Pallets ......................................................................................................................... 88
5.18 Maintenance......................................................................................................................... 88

4Unless stated otherwise all dimensions are in mm
6 Assembly ................................................................................................................. 89
6.1 Safety and working area ................................................................................................... 89
6.2 Tools ....................................................................................................................................... 90
6.3 Main Fame assembly .......................................................................................................... 91
6.4 Platform assembly............................................................................................................... 95
6.5 Folding Platform assembly ..............................................................................................104
6.6 Armadillo Platform assembly ............................................................................................111
6.7 Fixing platforms to Main Frame.......................................................................................115
6.8 Fixing Panels to Main Frame............................................................................................ 117
6.9 Loading Platform ................................................................................................................123
6.10 Assembly check list...........................................................................................................126
7 Transport / Delivery...............................................................................................127
7.1 Unit types and requirements .......................................................................................... 127
7.2 Preparation for delivery / Adjustments.........................................................................128
7.3 Vehicle loading arrangement ..........................................................................................131
7.4 Mechanical lifting ...............................................................................................................132
7.5 Delivery / return typical check list .................................................................................134
8 Installation and Operation ...................................................................................135
8.1 Pre-installation ....................................................................................................................135
8.2 Installation on-site..............................................................................................................136
8.3 Operating the unit..............................................................................................................142
9 Chronology.............................................................................................................153

5
Unless stated otherwise all dimensions are in mm
Safescreen
1 Product Features
SAFESCREEN®isasuspended,self-climbingsystemthatoersaccessandfulledge
protection to a number of levels. It is designed to be used in line with the construction
of concrete slabs; however, it is independent of formwork and falsework equipment.
Theshutteringworkontallstructurescanbecarriedoutwithouttheneedofascaold
or crane and with reduced input of manpower and materials. The system provides a
safe working environment for the site personnel against adverse weather conditions
and falls from height and also provides protection to local services and public areas by
preventing loss of debris from site.
Typically, the system climbs vertically, following the newly constructed levels, and can
be used on inclined or irregular buildings.
The hydraulic climbing power pack ensures smooth climbing, irrespective of the
loading of the individual brackets.
SAFESCREEN® can be assembled on site or, where there are working area restrictions,
pre-assembled and delivered. Units are assembled together with re-usable bolted
modular components.
SAFESCREEN® units consist of two vertical frames and platforms for access, covered
with panels for protection. The unit is typically 1.0m wide and 4.6m long with folding
access platforms. The platforms provide access areas for comfortable concreting, rebar
installation,xingforcladding/balconybracketsandprotectionoffallingobjects.The
distance between Support Shoes and platform width depends mainly on the building’s
geometry and site conditions. The perforated panels and platforms can be then re-
adjusted without the need for disassembly. Additionally, units can be adjusted on the
structure to accommodate irregular structure shapes.
Principles:
• Wind protection;
• Edge fall protection;
• Prevention of dropping tools and materials;
• Simpliesedgesotdetails.
Sizes:
• Lengthupto5.0m;
• Heightupto15.0m;
• Non-standard,applicationspecic,alsoavailable.
Features:
• Adjustable cladding panels;
• Folding/extending platforms;
• Self-climbing;
• Simple to assemble and install;
• Adapted for standard transport;
• Used on reinforced concrete, post-tension and pre-cast slabs.

6Unless stated otherwise all dimensions are in mm
Product Features
1.1 General Information
This user guide for assembly and use contains important information regarding
the assembly and use of the SAFESCREEN® system, as well as safety instructions
that are important for a safe application on site. Those instructions are created to

therefore carefully read this user guide before assembly and use of the system,

1.2 Method Statement Guidelines
HÜNNEBECK can provide further guidance and on-site assistance on any issues
contained in this document that are not clear.
Further information can be found in the product‘s data sheets. IF IN DOUBT, ASK.
• Design Risk Assessment
(refer to HÜNNEBECK Policy Statement for full details)
Specicdesignschemeswillbesitespecicandwillgenerallybetoarecognised
standard arrangement as indicated in HÜNNEBECK Technical Data Sheets, otherwise
calculations will verify.
The Design Risk Assessment is an integral part of HÜNNEBECK‘s design process.
The designer will assess the hazards and risks associated with the erection, use and
dismantling of the temporary work at an early stage in the design process. HÜNNEBECK
will communicate where risks to health and safety remain by including a “Residual Risk
Note“ on the drawing. The note will be clearly visible and marked by the familiar black
exclamation mark on a yellow triangle. The statement will be brief but clear to enable
reliable performance by a competent contractor.
HÜNNEBECK draws attentions to the following Health and Safety legislation:
• The Construction (Health, Safety and Welfare) Regulations 1996 (CHSW Regs);
• Construction (Design and Management) Regulations 2015 (CDM Regs);
• Lifting Operations and Lifting Equipment Regulations 1998 (LOLER Regs);
• Work at Height Regulations 2005 (WaH Regs);
• Manual Handling Operations Regulations 1992 (MHO Regs).

Work at height can be reduced / eliminated by considering the method of assembly and
use:
• Walkwaysthataredesignedtobere-usedreducetheamountoftimeandeort
dismantling and re-erecting;
• Walkways that can be pre-assembled on the ground and then raised by crane to a
vertical position will remove some work at height;
• Installing completed walkways when the walkway is on the ground, will remove work
at height associated with the constructing later on.
Preventing Falls - The use of guardrails and other collective measures
The use of PPE / Safety Harnesses
Lanyards MUST always be secured to a suitable part of the structure. Always consider
the attachment level and deployment (extension) of the lanyard when under load.

7
Unless stated otherwise all dimensions are in mm
Safescreen
1.3 Safety Instructions
It is the responsibility of the site Management / Supervisors to ensure that all
operatives involved in the assembly of the SAFESCREEN® system have been made
aware of this document and that they understand the drawings (if supplied) and the
function of the various components. The Contractor is also responsible for drawing

is not usually identical to the assembling instructions.
• Risk Assessment
The Contractor is responsible for the compilation, documentation, implementation
and revision of a risk assessment for each construction site. His employees
are obliged to implement the resulting measures in accordance with all legal
requirements.
• Assembly Instructions
The assembly instructions are an integral component of the SAFESCREEN®
construction and are a part of the installation instructions. They comprise a list of
safetyguidelines,detailsofthestandardcongurationandintendeduseaswellas
the system’s description.
Thefunctionalinstructions(standardconguration)containedintheassembly
instructions are to be complied with as stated. Enhancements, derivations or changes
representariskandthereforerequireseparatevericationwiththehelpofarisk
assessment or a set of instructions which comply with the relevant laws, standards
and safety regulations. The same also applies in those cases where components are
provided by the Contractor.
• Availability of the Assembly Instructions
The Contractor has to ensure that the assembly instructions provided by the
manufacturer or formwork supplier are available at the place of use. Site personnel
are to be informed of this before assembly and use takes place and that they are
available at all times.
• Detailed Assembly
The method of erection / dismantling detailed is intended to be used as a general
guide to inform the user about the product’s details to enable safe use. It must
notbeusedasasubstituteforacontractor’sspecicriskassessmentandmethod
statement, and all relevant health and safety regulations must be adhered to. Due
tothevarietyofpossiblecongurationsoftemporaryworksystems,themethodof
erectionorpartsofitmaydierfromthatshown.Additionally,analternatemethodof
erection may be preferred or developed in which case it is imperative that all relevant
health and safety legislation is adhered to.
1.4 Equipment Information
• Material Check
SAFESCREEN® material deliveries are to be checked on arrival at the construction
site / place of destination, as well as before each use, to ensure it’s in perfect
condition and function correctly. Changes to the material are not permitted.
• On-site Preparations
The Contractor must ensure the appropriate environment and conditions for storage
and the particular application of the system(s) supplied.
• Storage and Transportation
The special requirements of the SAFESCREEN® system either as individual
components and / or as pre-assembled parts regarding storage and transportation
procedures must be complied with. This applies not only to and from the site but
also to the movement of individual components and / or pre-assembled parts on the
construction site / place.

8Unless stated otherwise all dimensions are in mm
Product Features
• Lifting
When applicable, the lifting requirements of the individual components and / or
pre-assembled parts must be followed.
• Genuine Components
The information provided assumes that any product combinations will be between
genuine HÜNNEBECK products or products supplied by HÜNNEBECK unless
otherwise stated.
Combiningcomponentsfromdierentmanufacturerscarriescertainrisks.Theyareto
beindividuallyveriedandaseparatesetofassemblyinstructionsfortheinstallation
of the equipment may be required.
Any unauthorised use in relation to third party products could give rise to a risk of
collapse, damage, injury or death.
• Spare Parts and Repairs
Only original components may be used as spare parts. Repairs are to be carried out
by the manufacturer or by authorised repair facilities only.
1.5 Document Information
• Representations
The representations shown in the assembly instructions are in part, situations of
assembly and not always complete in terms of safety considerations. The safety
installations which have possibly not been included in these representations must
be available and must be in accordance with the latest regulations. Overviews
and diagrams are for illustrative purposes only and whilst we endeavour to ensure
accuracy, we are not responsible for omissions or errors.
• Safety Symbols
Individual safety symbols are to be complied with.
Examples:
DANGER Danger!
DANGER indicates a hazardous situation which, if not avoided, will result in death or
serious injury.
WARNING Warning!
WARNING indicates a hazardous situation which, if not avoided, could result in death
or serious injury.
CAUTION Caution!
CAUTION used with the safety alert symbol indicates a hazardous situation which, if
not avoided, could result in minor or moderate injury.
NOTE Note
NOTE refers to practices not related to personal injury.
VISUAL CHECK VISUAL CHECK refers to a visual check and is not related to personal injury.
• User Guide Compliance
HÜNNEBECK will not be liable for any damage to property, personal injury or any
losses caused by failure to follow the instructions contained in this guide. It remains
the responsibility of the user to comply with the applicable legislation.

9
Unless stated otherwise all dimensions are in mm
Safescreen
1.6 Other Information
This guide provides an overview of the SAFESCREEN® system’s instructions for
assembly and use. More detailed data sheets on all products are available in electronic
format upon request.
Due to continuous product development, it is important that only our most current
data sheets are used. These should be read in conjunction with our user guides where
available.
HÜNNEBECK reserves the right to alter or amend, without notice, the design and / or
specicationsofproductsintheinterestsofimprovementorwhenrequiredtocomply
with new regulations, other safety guidances or industry advancements.
HÜNNEBECK reviews and updates its product guides from time to time, in accordance
with changes in legislation. HÜNNEBECK also issues safety notes on its products or
packagingwhererequired.Thesenoticesmayaectthemannerinwhichproductsare
used and should therefore be adhered to. The most recent published notice should
prevail.
All information in this guide is correct at the time of going to press and / or other
publication media.
SGB, HÜNNEBECK, ALUMA and BRAND are trading names of BRAND SAFWAY
Copyright:
BRAND SAFWAY
Regent Park,
299 Kingston Road,
Leatherhead,
Surrey,
KT22 7SG
United Kingdom

10 Unless stated otherwise all dimensions are in mm
Overview
2 Overview

11
Unless stated otherwise all dimensions are in mm
Safescreen
3 Components
3.1 Support Shoe
Component Product code 
928
Support Shoe Assembly
Anchored to a concrete slab, they hold
the entire SAFESCREEN® unit and transfer
vertical and horizontal loads to the
permanent structure.
During lifting they guide the main frame
and keep the unit in position.
Comes complete with pins and wires.
595092 33.00
2293
Support Shoe Extended Assembly
As with the Support Shoe (Product code:
595092) these are used to hold the entire
SAFESCREEN® unit and transfer vertical
and horizontal to the permanent structure.
During lifting they guide the main frame
and keep the unit in position.
Comes complete with pins and wires.
595351 64.16
207
Wind Clamp
Fixed to the Support Shoe Assembly
(Product code: 595092) or the Support
Shoe Extended Assembly (Product code:
595351), to help eliminate horizontal
movement of the SAFESCREEN® units.
Comes complete with pins and wires.
595053 2.00
325
120
15
Ø12 tapped
hole (typ.).
Ø26 slot
53.5mm long.
Support Shoe Holding Down Plate
Usedtoosetthexingpositionofthe
Support Shoe Assembly (Product code:
595092) or the Support Shoe Extended
Assembly (Product code: 595351), where
required.
595046 4.25
120 120
10
Ø14 hole
(typ.). 
Usedasapackertoosetthexing
position of the Support Shoe Assembly
(Product code: 595092) or the Support
Shoe Extended Assembly (Product code:
595351), where required.
595049 1.10

12 Unless stated otherwise all dimensions are in mm
Components
Component Product code 
171
Ø5 hole
(typ.).
Ø16

Used with the Support Shoe Assembly
(Product code: 595092) or the Support
Shoe Extended Assembly (Product code:
595351).
Supplied with the main component but
can be ordered separately as a spare.
595108 0.30
126
Ø5 hole.
Ø6 hole.
Ø16
Side Clamp Pin (front)
Used with the Support Shoe Assembly
(Product code: 595092) or the Support
Shoe Extended Assembly (Product code:
595351).
Supplied with the main component but
can be ordered separately as a spare.
595106 0.25
104
Ø5 hole
(typ.).
Ø16
Split Pin
Side Clamp Pin (rear)
Used with the Support Shoe Assembly
(Product code: 595092) or the Support
Shoe Extended Assembly (Product code:
595351).
Supplied with the main component but
can be ordered separately as a spare.
Split Pin is supplied with the pin and not
coded.
595107 0.25
Ø30xØ2.3
Ø5
31
Lynch Pin
Used with the Support Shoe Assembly
(Product code: 595092) or the Support
Shoe Extended Assembly (Product code:
595351), to secure Main Latch Locking
Pin.
Supplied with the main component but
can be ordered separately as a spare.
595136 0.02
Ø2
Aluminium Ferrules
(for illustration
purposes only)

Used with the Support Shoe Assembly
(Product code: 595092) or the Support
Shoe Extended Assembly (Product code:
595351), to secure Pins from falling.
Supplied with the main component but
can be ordered separately as a spare.
Aluminium Ferrules
Used with the Steel Wire. Can be supplied
separately as spares, in boxes of 100
units.
595137
595138
0.01
0.01

13
Unless stated otherwise all dimensions are in mm
Safescreen

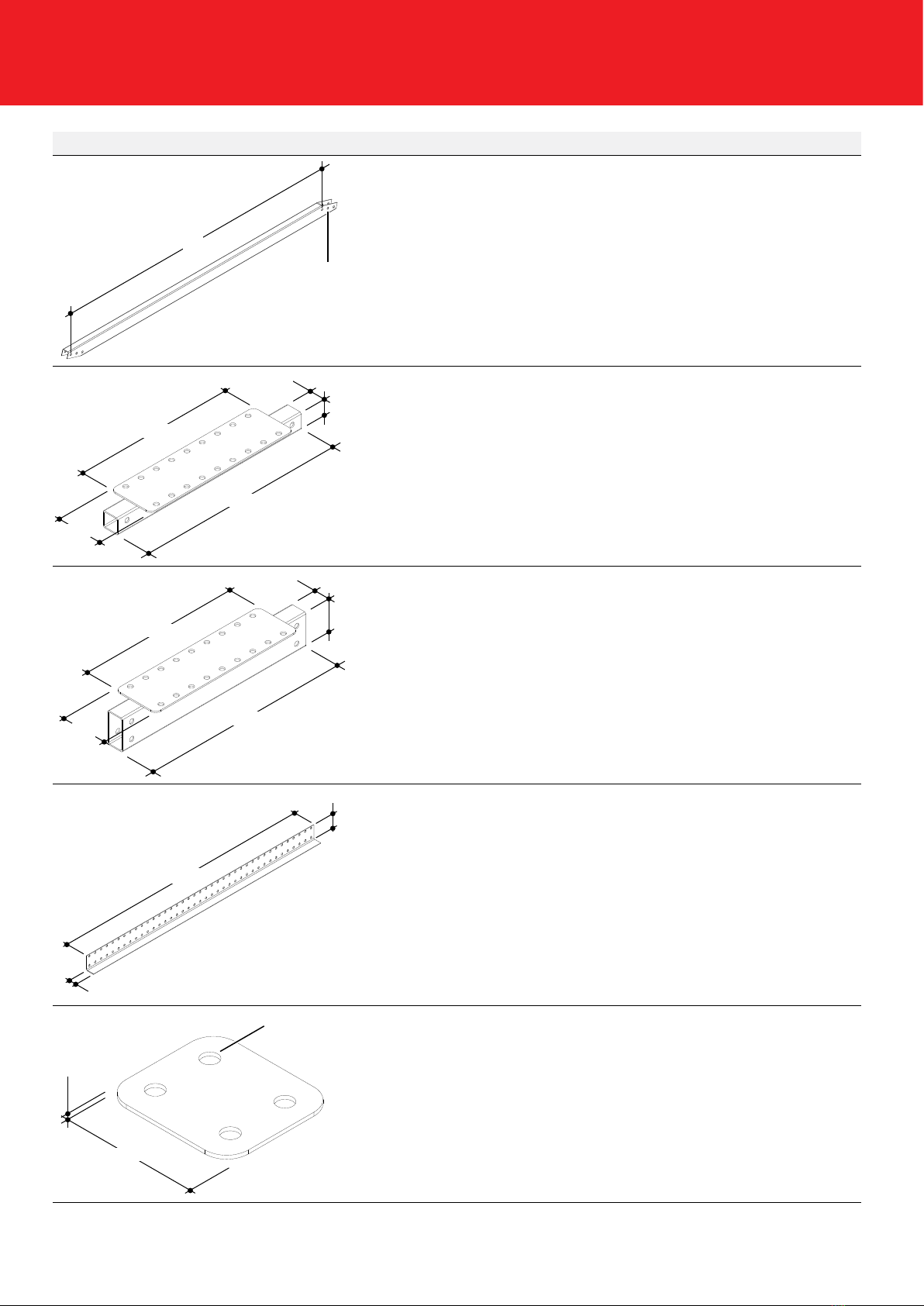

3.2 Main Frame
Component Product code 
L
Ø17 hole
(typ.).
160
90







Typically used in pairs to build the main
frame, can be used interchangeably with
theMainChannel(3.0mm).
TheMainChannel(3.2mm)shares
the same codes as the Main Channel
(3.0mm).
Some items may not be readily available.
* - Non-Standard.
595003
595004
595005
595008
595002
595012
595000
51.42
47.14
42.85
25.71
21.43
15.00
8.57
L
Ø17 hole
(typ.).
160
90






Typically used in pairs to build the main
frame, can be used interchangeably with
the Main Channel (3.2mm).
The Main Channel (3.0mm) shares the
same codes as the Main Channel (3.2mm).
Some items may not be readily available.
595003
595005
595008
595002
595012
595000
48.12
40.10
24.07
20.05
14.04
8.02
1875
Ø18 hole
(typ.).


Used for bracing the main frame.
Some items may not be readily available.
595044 13.10
L
Ø18 hole
(typ.).





Used for bracing the main frame.
Some items may not be readily available.
* - Non-Standard.
595114
595113
595112
595111
595110
28.67
25.70
23.50
21.50
19.00

14 Unless stated otherwise all dimensions are in mm
Components
Component Product code 
L
Ø18 hole
(typ.).





Used for bracing the main frame.
Some items may not be readily available.
* - Non-Standard.


595124
595123
595122
39.10
35.80
32.40
30.00
24.50
750
60
60
584
165 Ø18 holes
(typ.).
Fixed Platform (type 2)
Used in the main frame to support
decking.
595096 8.60
Ø18 holes
(typ.).
750
60
100
584
165
Fixed Platform HD
Used in the main frame to support
decking.
595098 9.79
2435
135
77.5
Ø18 holes
(typ.).

Used to add extra strength to Main
Channel, especially where Main Support
Bobbin (Product code: 595075) is used.
It can also be used to join Main Channels
together.
Always use in pairs.
595102 16.40
140
4
Ø16.5 hole
(typ.).
4 Hole Web Bearing Plate
Used in conjunction with the Main Support
Bobbin (Product code: 595075) to add
additional strength where Main Channel
StieningAngle(Productcode:595102)is
not used.
Always use in pairs.
595094 0.50

15
Unless stated otherwise all dimensions are in mm
Safescreen
Component Product code 
1187.5
4
140
Ø16.5 hole
(typ.).
Main Channel Splice Plate
Used to join Main Channels end-to-end.
Always use in pairs.
595045 5.39
Ø28.6
Ø16.5
60
Main Support Bobbin
Used with the Support Shoe Assembly
(Product code: 595092) or the Support
Shoe Extended Assembly (Product code:
595351) to support the main frame of the
SAFESCREEN® units.
Typically used with Main Channel
StieningAngle(Productcode:595102)or
4 Hole Web Bearing Plate (Product code:
595094).
595075 0.20
Ø65
Ø17.5
60
Lifting Barrel
Fixed to the Main Channels, it allows for
web slings to be attached for crane lifting.
595100 1.40
60
Ø20 MF Spacer Tube
Used with M16 bolts to connect Main
Channelproles.
590929 0.04

16 Unless stated otherwise all dimensions are in mm
Components
3.3 Platform
Component Product code 
L
127
65
Ø17 hole
(typ.).













Usedforaccessplatform.Oneange,with
holes,allowsforxingchanneltochannel
ortoxedplatforms.Theotherange,
without holes, allows for plywood decks
tobexedusingself-drillingscrews.
Some items may not be readily available.
* - Non-Standard.
595291
595025
595292
595293
595294
595027
595029
595295
595031
595296
595297
595298
595020
13.50
8.06
7.69
5.63
4.88
4.50
4.13
3.94
3.00
2.63
2.44
1.50
3.00
L
127
65
Ø17 hole
(typ.).










Usedforaccessplatform.Oneange,with
holes,allowsforxingchanneltochannel
ortoxedplatforms.Theotherange,
without holes, allows for plywood decks
tobexedusingself-drillingscrews.
Some items may not be readily available.
* - Non-Standard.
595251
595252
595253
595254
595255
595256
595257
595258
595259
595260
27.00
21.00
15.75
9.00
8.25
7.88
7.50
7.13
6.38
6.00
Ø18 hole
(typ.).
747.5 L
193
60
40
Extending Drawer
Fixed to the underside of the platform
beams and used to provide an extending
platform. Used to close gaps to a
structure’s edge.
(Lmin=760mm;Lmax:1040mm)
Always use in pairs.
595103 6.91

17
Unless stated otherwise all dimensions are in mm
Safescreen
Component Product code 
185
108
50
Ø18 slots
(typ.).
6
Universal Cleat
Used to increase the strength of
secondary channels when connecting the
Extending Drawer (Product code: 595103).
595104 1.32
1385
65
116
Ø18 holes
(typ.).
Ø6.5 holes
L channel
R channel
Extension Channel (L)
Extension Channel (R)
Used in folding platforms, to allow for
platforms to be folded and adjusted for
transportation.
Always use in pairs.
595149
595150
9.68
9.68
81
127125
Ø20 holes. Guide Box
Used with the secondary channels to
allow for adjustment of the Extension
Channel (Product code: 595149/595150).
Supplied with M16x40CSK Screws,
Washers and Nylok Nuts.
595142 2.24
432
70
80
Ø14 holes
(typ.).
Ø17 holes
Pivot Plate
Connects to the Extension Channel
(Product code: 595149/595150) to allow
for the wing platform to rotate for easier
transportation.
595143 2.20

18 Unless stated otherwise all dimensions are in mm
Components
Component Product code 
900
287
Right Plate
Left Plate
Ø12 holes
(typ.).
Ø14 x 20
slots (typ.).
146
Armadillo Starter Plate Right
Armadillo Starter Plate Left
Used with Armadillo Inner Box as part of
the adjustable platform. This item is job
specicandothersizescanbesupplied.


3.77
3.77
287
A
900
Ø12 holes
(typ.).
Ø14 x 20
slots (typ.).





Used with Armadillo Inner Box as part of
the adjustable platform. Fits between the
Starter Plate and End Plates.
Thisitemisjobspecic.





3.58
3.53
3.48
3.43
3.38
287
176
900
Ø14 x 20
slots (typ.).
Armadillo End Plate
Used as part of the adjustable platform.
PlacedontopofInllPlateandattached
to the end of the Armadillo Inner Box
together with Pull Plate.
Thisitemisjobspecic.
 3.14
320
134.5
6
Ø20 holes.
Ø25 slots
Pull Plate
Used with the Armadillo End Plate and
connected to the Armadillo Inner Box.
Pull Plate is part of parts kit no. 103 to
107 which includes 16.8x13 Spacer Tube,
Chain with links, M12x25 or M12x35 Pan
Head Screws, M12 Large Washers and
M12 Nylok Nuts.
Parts kit number depends on the amount
of Armadillo Plates.
 1.88

19
Unless stated otherwise all dimensions are in mm
Safescreen
Component Product code 
50
90
185
400
185
400
Armadillo Outer Box
Used to create an adjustable platform
when attached to the Fixed Platform
(Product code: 595096/595098).
The overall length and support positions
arejobspecic.
Thisitemisjobspecic.
 7.56 / m
40
80
L
Armadillo Inner Box
Used to create an armadillo platform
when attached to the Outer Box.
Lengthisschemespecic.
Thisitemisjobspecicanddoesnot
haveaspeciccode.
 5.76 / m
3.4 Cladding
Component Product code 
2900
Ø18 slots
21mm long.
1620 /
1307.5
R6/T9
perforation
not shown.
101
Perf. Adj. Outer Panel (MK2) 2900x1620
Perf. Adj. Outer Panel (MK2)
2900x1307.5
Used with the Perforated Adjustable
Inner Panels (MK2) to provide extended
cladding. Version manufactured up to
Dec. 2016 has Ø18 holes. Version from
Dec. 2016 has Ø18 slots 21mm long.
Supplied with M12x35 Screws and Nuts
(“stoppers” for Inner Panels).
595169
595167
90.54
81.82
2900
Ø18 slots
21mm long.
1618 /
1305.5
R6/T9
perforation
not shown.
89
Perf. Adj. Outer Panel (MK3) 2900x1618
Perf. Adj. Outer Panel (MK3)
2900x1305.5
Used with Perforated Adjustable Inner
Panels (MK3) to provide extended
cladding.
Supplied with M12x35 Screws and Nuts
(“stoppers” for Inner Panels).
595340
595342
84.82
76.90

20 Unless stated otherwise all dimensions are in mm
Components
Component Product code 
1450
R6/T9
perforation
not shown.
Ø14
holes.
Ø18
holes.
1609 /
1296.5
30
Perf. Adj. Inner Panel (MK2) 1450x1609
Perf. Adj. Inner Panel (MK2) 1450x1296.5
Used with Perforated Adjustable Outer
Panels (MK2) to provide extended
cladding.
Supplied with M12x90 Setscrews (used to
lock the panel in position).
595170
595168
35.66
30.13
1450
R6/T9
perforation
not shown.
Ø18
holes.
1609 /
1296.5
30
Perf. Adj. Inner Panel (MK3) 1450x1609
Perf. Adj. Inner Panel (MK3) 1450x1296.5
Used with Perforated Adjustable Outer
Panels (MK3) to provide extended
cladding.
Supplied with M12x90 Setscrews (used to
lock the panel in position).
595341
595343
26.92
24.92
Ø18 holes
(typ.).
Varies
1612.5
/ 1300
R6/T9
perforation
not shown.
30
Perf. Fixed Panel (MK1 & 2)


Perf. Fixed Panel (MK1 & 2)



Perf. Fixed Panel (MK1 & 2)




Perf. Fixed Panel (MK1 & 2) non-standard
* - Non-Standard.
595202
595225
595223
595226
595203
595200
595230
595231
595201

94.11
88.76
49.02
47.95
45.81
81.03
76.37
41.21
39.34
––
1612.5
/ 1300
50
Varies
Ø18 holes
(typ.).
R6/T9
perforation
not shown.
Perf. Fixed Panel HD (MK1 & 2)
Usedtoprovidexedwidthcladding.
Lengthvariesaccordingtojobspecic
requirements.
 
