Saga saga1-l4 User manual

INSTALLATION &
OPERATION
MANUAL

SAGA1-L Series
1
PREFACE
This installation & operation manual is intended as an
instruction manual for trained person who is in charge
of installation, maintenance, repair, etc.
Before installation please read the user’s guide and this
installation & operation manual carefully.

SAGA1-L Series
2
The main contents of this manual are organized into the following chapters.
Table of Contents
PRE ACE
1.0
Wire Diagram of SAGA1-L series………………………………………….....p.4
2.0 Transmitter PC Layout………………………………………………………..p.5
3.0 Receiver PC Layout…………………………………………………………..P.6
3-1 Relay oard for SAGA1-L8, L6, L4, L8 , L6
3-2 Independent COM Line
3-3 Receiver/Decoder oard for SAGA1-L8, L6, L4, L8 , L6
4.0 Change of Frequency…………………………………………………………P.10
5.0 Change of NO/NC Contact of R0/START Relay..…………………………P.14
6.0 ID-Code Remote Setting ………………………………………………………P.15
7.0 Troubleshooting………………………………………………………………….P.16
Appendix

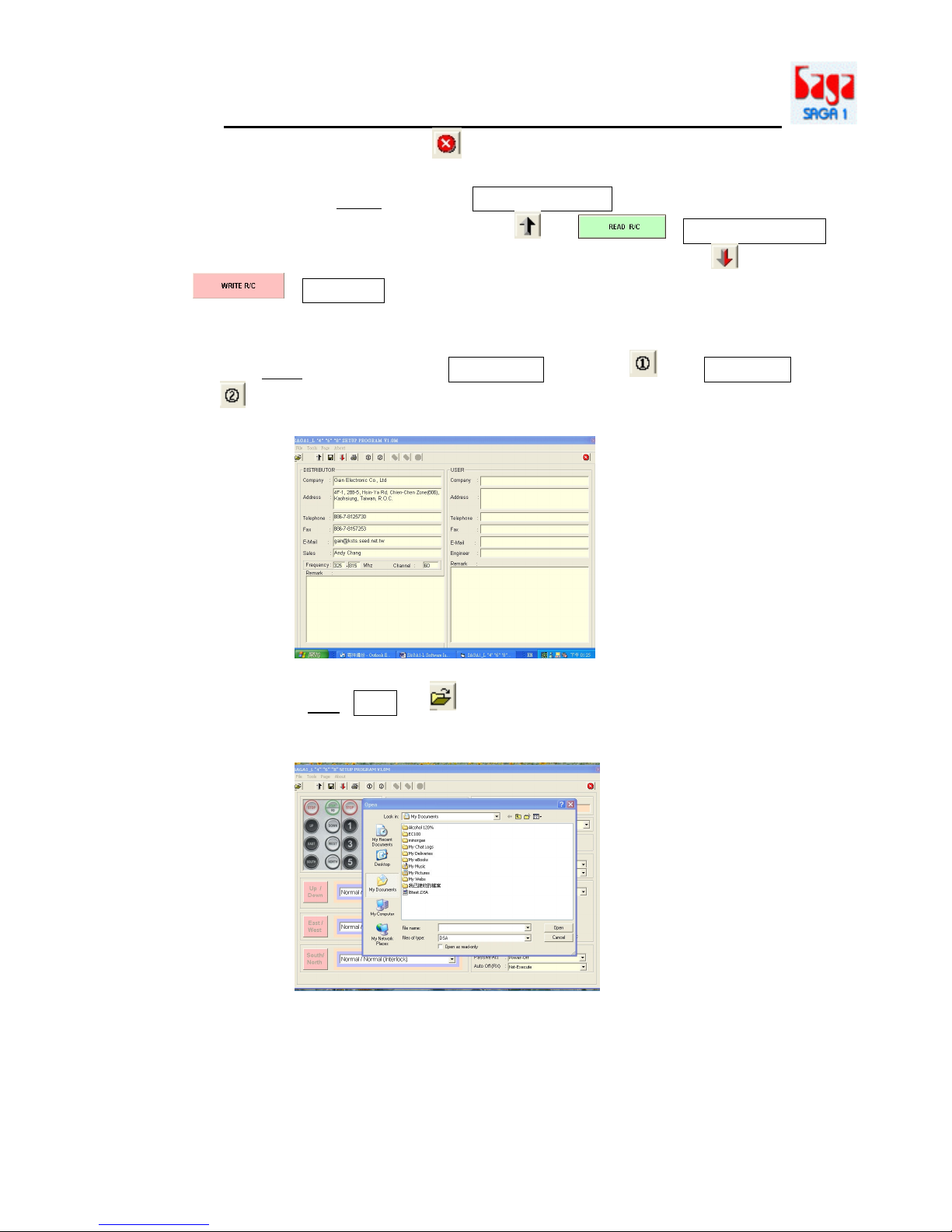

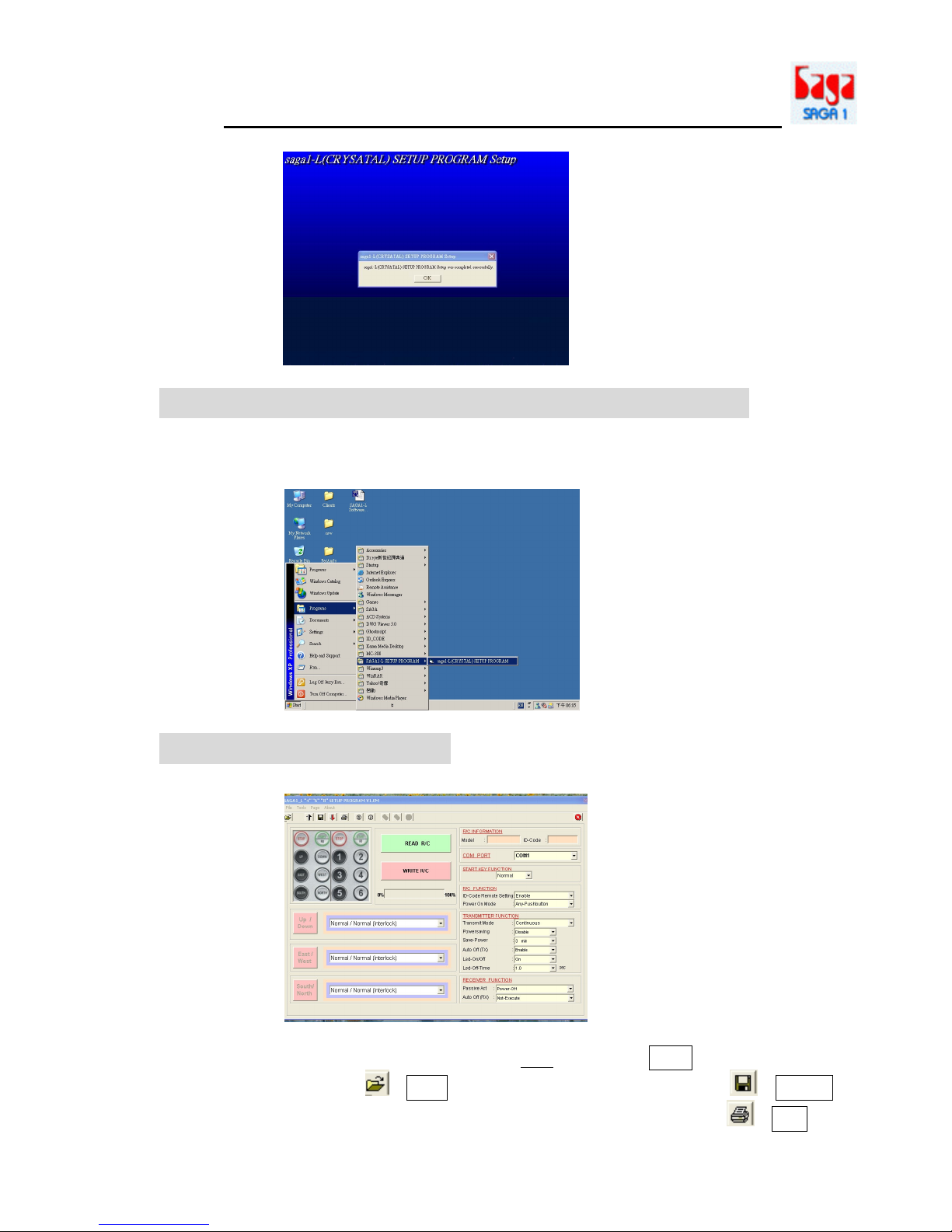

SAGA1-L Series Software Installation And Operation Instruction…………P.17~23

SAGA1-L Series
3
1.0
 WIRE DIAGRAM OF SAGA1-L SERIES:
Remark (1) The R0/START could be N.C. or N.O.
(2) The fuse for the power AC24/48/110/220/380V is 0.5A.
The fuse for the power DC12/24V is 1.5A.
(3) The fuse for AC type at the COM(MAIN) is 10A.
The fuse for DC type at the COM(MAIN) is 20A.
(4) The com lines have been arranged prior to shipment, if an independent
COM line is required, please refer to page 8/23.
SAGA1-L8, L8B
SAGA1-L6
SAGA1-L4
(1)
(2)
(3)
Note: The polarity directio
n for
the power of DC12/24V
isn’t required when
plugging in the power
line connector
(4)
SAGA1-L6B

SAGA1-L Series
4
2.0

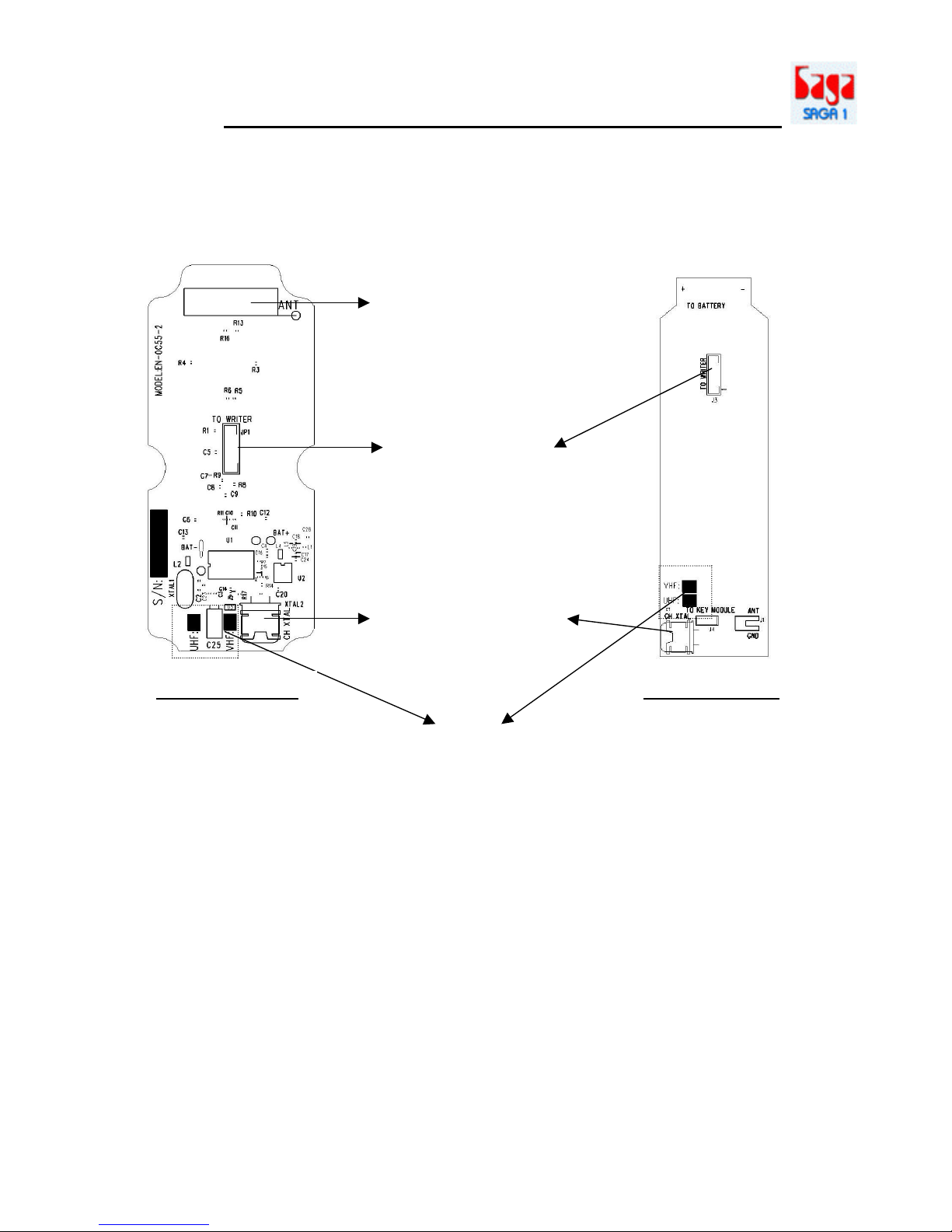

 TRANSMITTER PCB LAYOUT:
This terminal is used
for copier to read
and write data or
connecting to PC for
function setting
through software.
Replacing this
Crystal to change the
frequency on the
transmitter.
There are two kinds of frequencies
VHF and UHF are available marking
with a check is the current frequency
band and please make sure not to
replace a VHF crystal unit into UHF
PC board or visa versa.
VHF 310.0325~331.165MHz
UHF 425.5925~446.725MHz
Internal Antenna
SAGA1-L4, L6, L8
SAGA1-L6B, L8B

SAGA1-L Series
5
3.0
 RECEIVER PCB DIAGRAM:
3-1. Relay Boa d fo SAGA1-L8, L6, L4, L8B, L6B

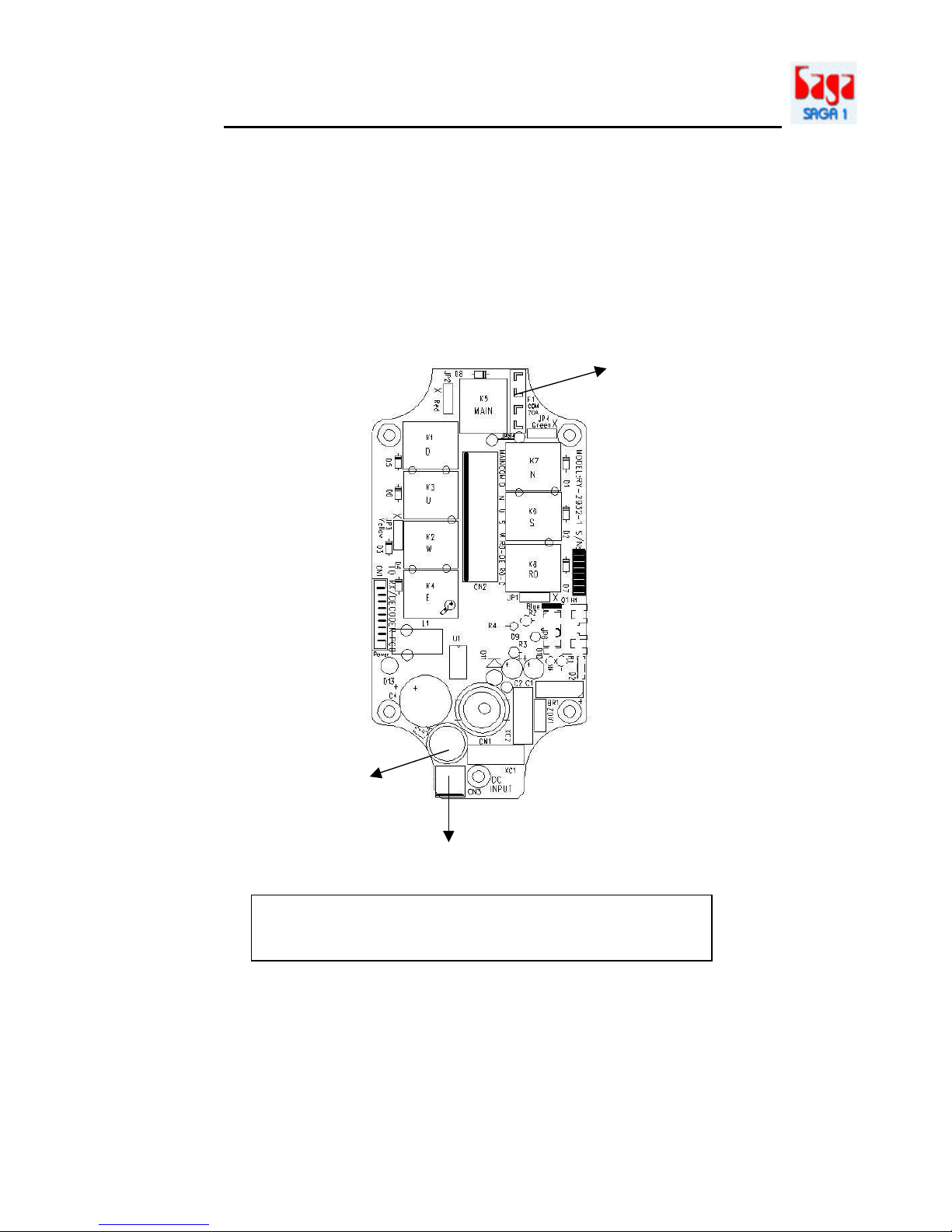

3-1-1 DC Type
Fuse 20A
(yellow color)
Fuse 1.5A
DC Input
Remark: The polarity direction of DC Input isn’t required
when plugging in the power line connector

SAGA1-L Series
6
3-1-2 AC Type
SAGA1-L8, L8B, L6B
SAGA1-L6
Fuse 10A
Fuse 0.5A
Voltage selection
Jumper
HI position to
select higher
volta
ge of the
combination,
LO position to
select lower
voltage of the
combination.
AC Input

SAGA1-L Series
7
3-2. Independent COM Line:
The SAGA1-L series offer optional independent COM lines as:
SAGA1-L8/L8B
4 independent COM lines
Up/Down, East/West, South/No th and R0
SAGA1-L6
3 independent COM lines
Up/Down, East/West, R0
SAGA1-L4
2 independent COM lines
Up/Down, R0
SAGA1-L6B
1 independent COM line
Up/Down ~East/West 2S and R0
SAGA1-L4
Please refer to the above figures of receiver relay boards and if an independent COM
line is required then cut the wire labeled with a white “X”. The longer part of the wire
will beco e the new COM Line. Then you ay connect this new COM wire with an
existed spare output wire, otherwise, you have to use an extra wire ade by yourself.
If an independent COM line is
required then cut the wire labeled
with a white “X” as showing as
below. The longer part of the wire
will become the new CO
M Line.
Cut the
wire here.

SAGA1-L Series
8
3-3. Receive /Decode Boa d fo SAGA1-L8, L6, L4, L8B, L6B
Replacing this
Crystal to Change
the frequency on
the receiver.
There are two kinds of
frequencies VHF and UHF
are available marking with a
check is the current
frequency band and please
make sure not to replace a
VH crystal unit into UH
PC board or visa versa.
VH :310.325~331.165MHz
UH :425.5925~446.725MH
This terminal is used for
copier to read and write
data or connecting to PC
for function setting.
through software.
SQ ADJ is used for
a minimum receiving
sensitivity adjustment,
please don’t adjust
arbitrarily.
If necessary, adjusting
clock wise (allow
receiving a weaker
signal) until the SQ
lamp turns on, then
adjusting counter
clock wise (allow
receiving a stronger
signal) until the SQ
lamp turns off to keep
the SQ lamp at “off”
status before
operating. The SQ lamp will turn on
when receiving any radio
signal. It was taken as
interference if the SQ
lamp didn’t at “off” status
before operating.
The receiving sensitivity
is adjustable via the SQ
ADJ.
The RX memory is
defective if the Error
LED flashes red every
0.5 second slowly.

SAGA1-L Series
9
4.0
 CHANGE OF FREQUENCY
The frequency of SAGA1-L system can be simply changed by only replacing the
correspondent crystal frequency in both the TX and RX. Please refer to below
procedure in regards to replacing the crystal.

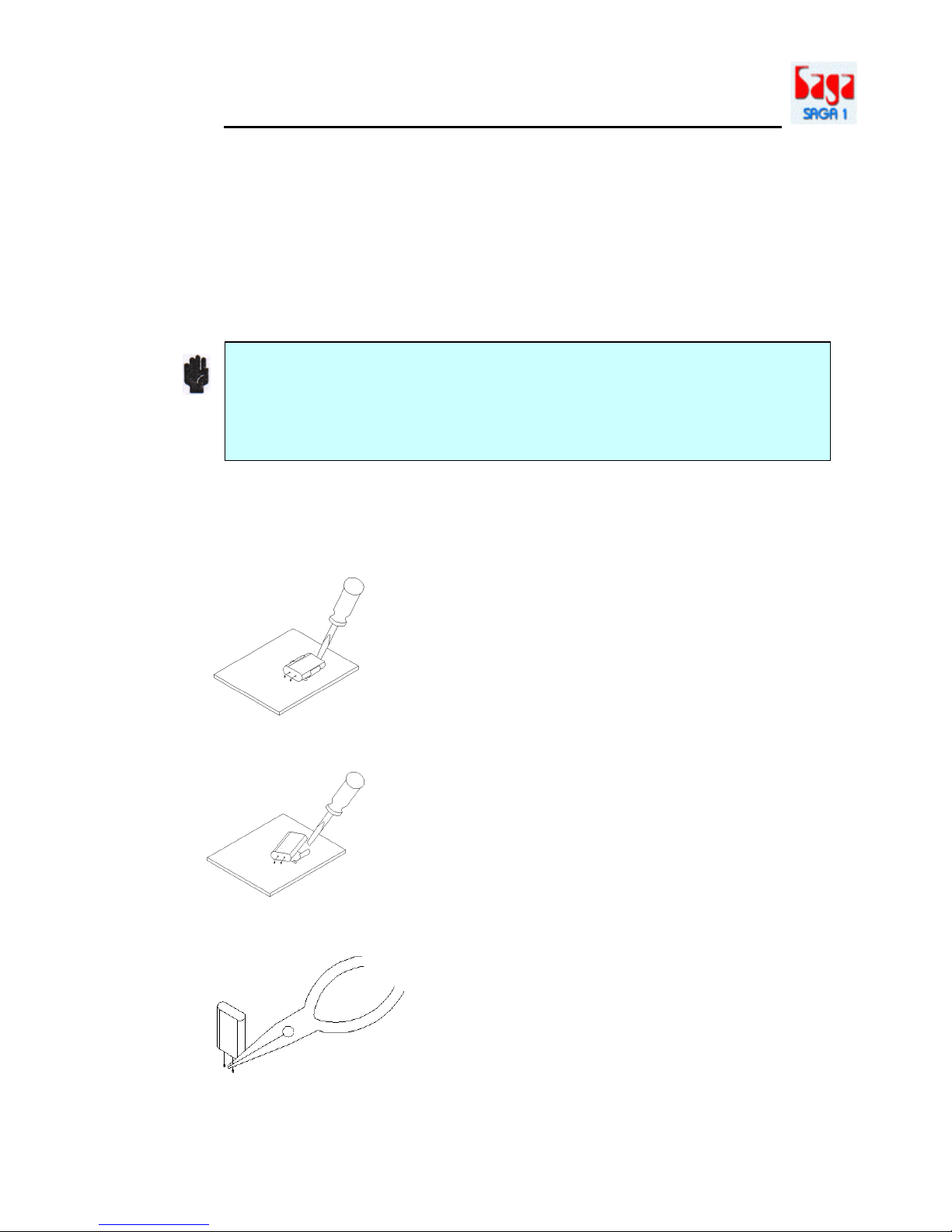

P ocedu es:
(1). Pry up the crystal unit with a flat screwdriver
(2). Remove the crystal unit from the system.
(3). Use a needle nose pliers to straighten both pins of the new crystal unit.
Note: To replace a new crystal, please note that there are 2 kinds of frequencies
(VHF and UHF) are available. The indication of VHF or UHF is shown on
the PC board with a check ark “V” and please ake sure to not replace a
VHF crystal unit into UHF PC board or visa versa.

SAGA1-L Series
10

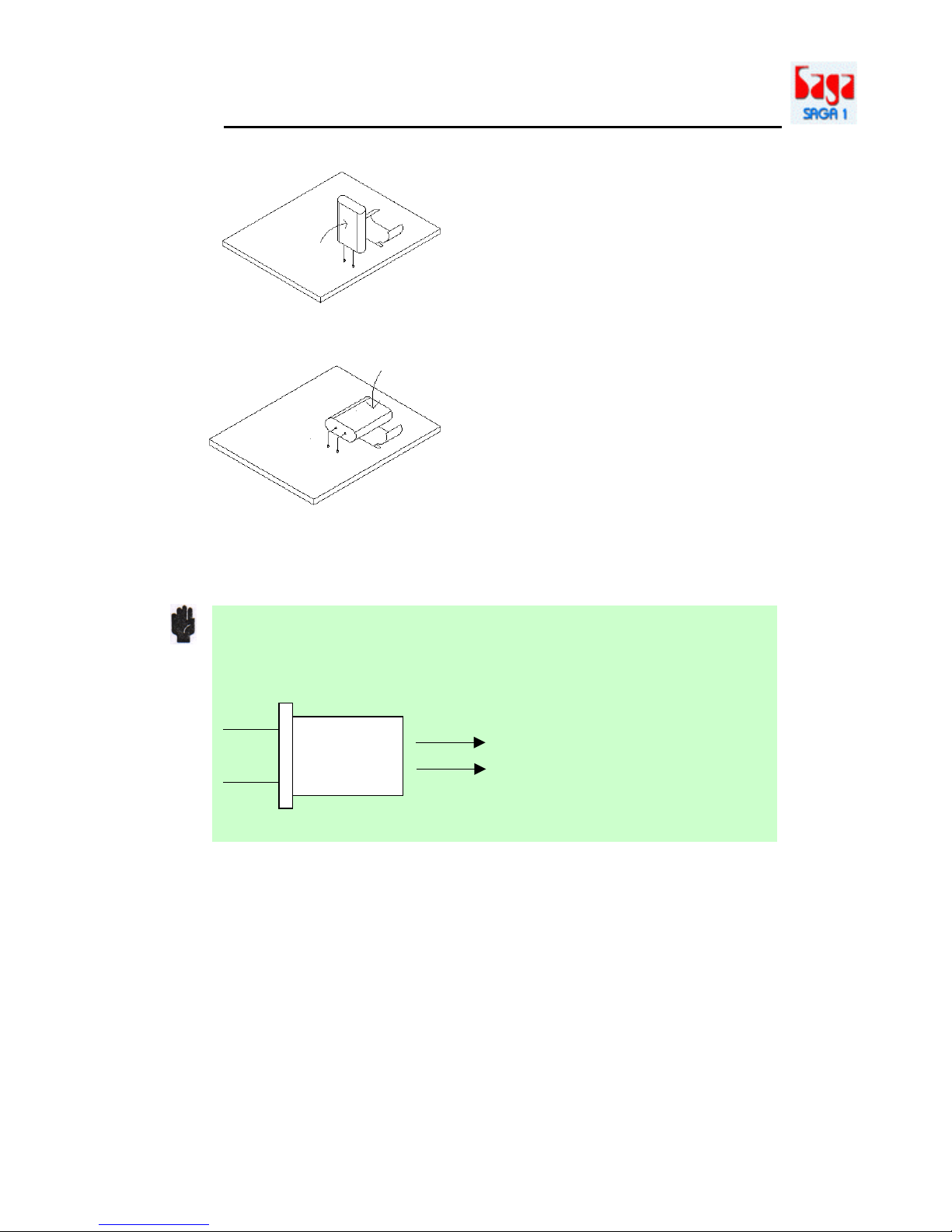

(4). Insert the new crystal unit vertically into the PC board.
(5). Press the new crystal down into the socket.
Attention The frequency will be different when plugging the same
crystal into the TX or RX. For example
T：311MHz requency for TX is 311 MHz
R：321.7MHz requency for RX is 321.7MHz

SAGA1-L Series
11
 VHF BAND CONVERSION TABLE
CH No.
Ch-F eq(MHz)
CH No.
Ch-F eq(MHz)
CH No.
Ch-F eq(MHz)
1 310.0325 32 318.3250 63 326.6175
2 310.3000 33 318.5925 64 326.8850
3 310.5675 34 318.8600 65 327.1525
4 310.8350 35 319.1275 66 327.4200
5 311.1025 36 319.3950 67 327.6875
6 311.3700 37 319.6625 68 327.9550
7 311.6375 38 319.9300 69 328.2225
8 311.9050 39 320.1975 70 328.4900
9 312.1725 40 320.4650 71 328.7575
10 312.4400 41 320.7325 72 329.0250
11 312.7075 42 321.0000 73 329.2925
12 312.9750 43 321.2675 74 329.5600
13 313.2425 44 321.5350 75 329.8275
14 313.5100 45 321.8025 76 330.0950
15 313.7775 46 322.0700 77 330.3625
16 314.0450 47 322.3375 78 330.6300
17 314.3125 48 322.6050 79 330.8975
18 314.5800 49 322.8725 80 331.1650
19 314.8475 50 323.1400
20 315.1150 51 323.4075
21 315.3825 52 323.6750
22 315.6500 53 323.9425
23 315.9175 54 324.2100
24 316.1850 55 324.4775
25 316.4525 56 324.7450
26 316.7200 57 325.0125
27 316.9875 58 325.2800
28 317.2550 59 325.5475
29 317.5225 60 325.8150
30 317.7900 61 326.0825
31 318.0575 62 326.3500

SAGA1-L Series
12
 UHF BAND CONVERSION TABLE
CH No.
Ch-F eq(MHz)
CH No.
Ch-F eq(MHz)
CH No.
Ch-F eq(MHz)
101 425.5925 132 433.8850 163 442.1775
102 425,8600 133 434.1525 164 442.4450
103 426,1275 134 434.4200 165 442.7125
104 426.3950 135 434.6875 166 442.9800
105 426.6625 136 434.9550 167 443.2475
106 426.9300 137 435.225 168 443.5150
107 427.1975 138 435.4900 169 443.7825
108 427.4650 139 435.7575 170 444.0500
109 427.7325 140 436.0250 171 444.3175
110 428.000 141 436.2925 172 444.5850
111 428.2675 142 436.5600 173 444.8525
112 428.5350 143 436.8275 174 445.1200
113 428.8025 144 437.0950 175 445.3875
114 429.0700 145 437.3625 176 445.6550
115 429.3375 146 437.6300 177 445.9225
116 429.6050 147 437.8975 178 446.1900
117 429.8725 148 438.1650 179 446.4575
118 430.1400 149 438.4325 180 446.7250
119 430.4075 150 438.7000
120 430.6750 151 438.9675
121 430.9425 152 439.2350
122 431.2100 153 439.5025
123 431.4775 154 439.7700
124 431.7450 155 440.0375
125 432.0125 156 440.3050
126 432.2800 157 440.5725
127 432.5475 158 440.8400
128 432.8150 159 441.1075
129 433.0825 160 441.3750
130 433.3500 161 441.6425
131 433.6175 162 441.9100

SAGA1-L Series
13
5.0

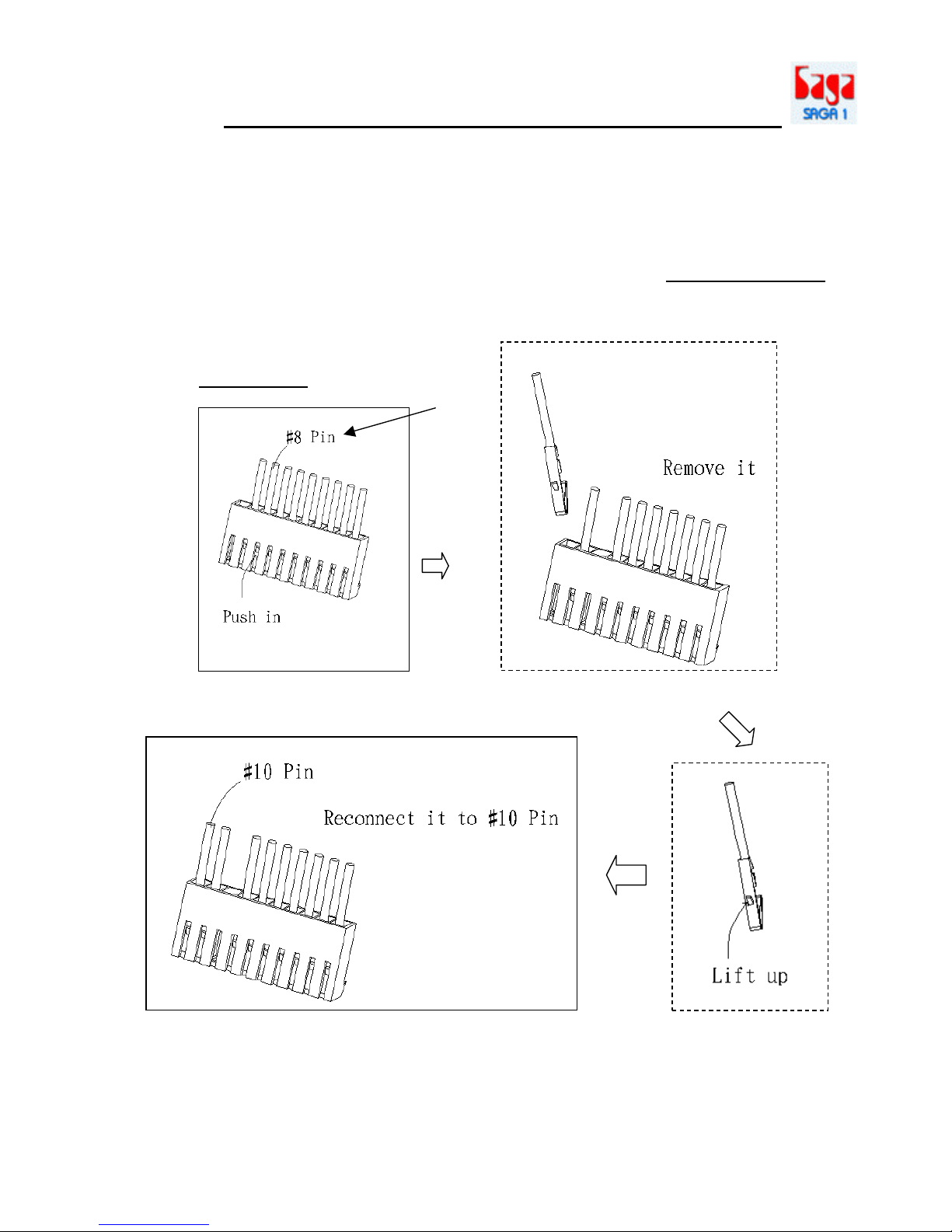

 CHANGE OF NO/NC CONTACT OF R0/START RELAY
The R0/START key of the new SAGA1-L crystal series provides NO and NC contact. The
NO is the default setting. If a NC output is necessary, please remove the No. 8 wire
(R0/Sta t, pink colo ) from the connector and insert it into No. 10.
P ocedu es:
The R0/START is N.O.
The R0/START is N.C.
Pink
color

SAGA1-L Series
14
6.0

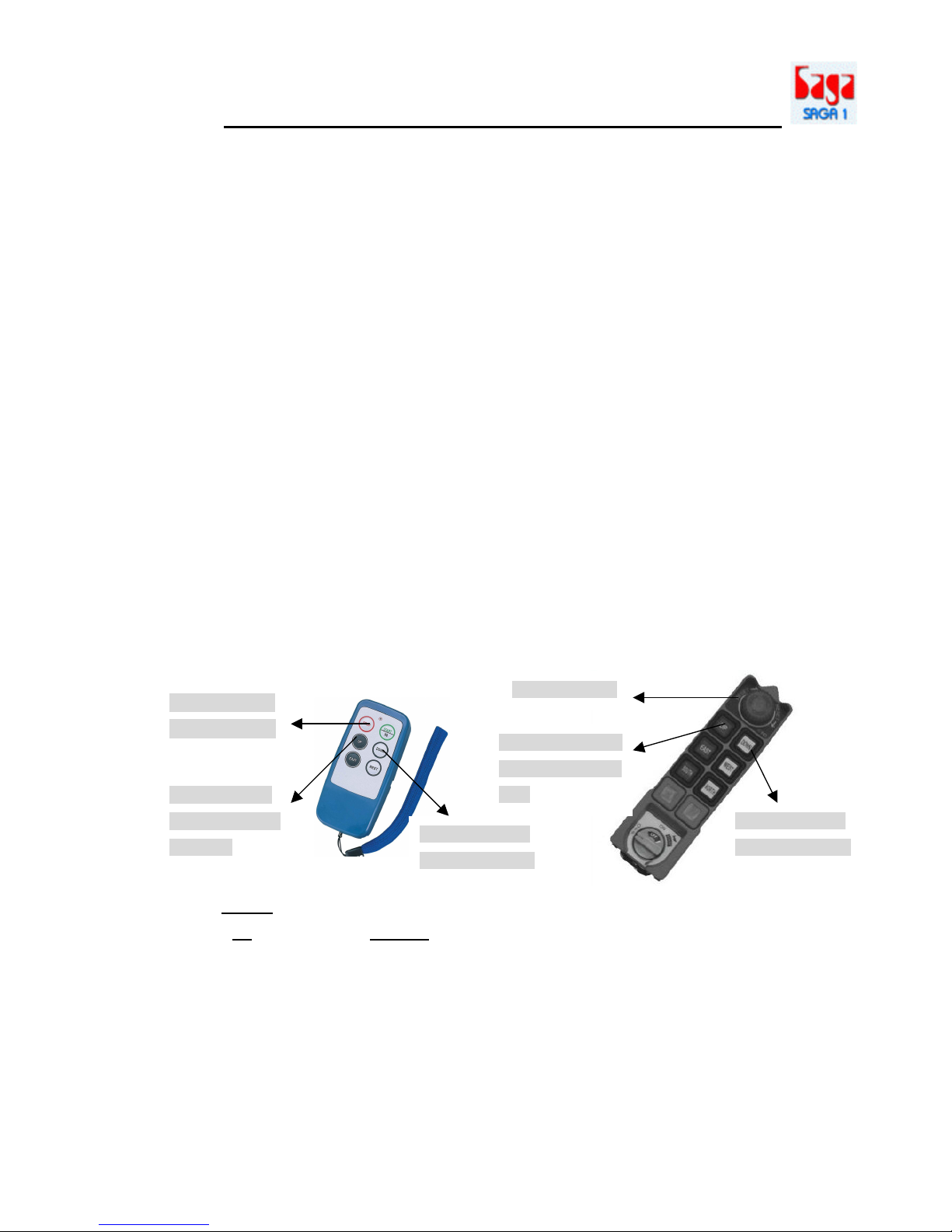

 ID-Code Remote Setting
ID-Code remote setting allows you to pair the new TX or RX if one of them is damaged.
In order to work the TX & RX must have the same frequency. Using ID-Code remote
setting will make both the TX and RX to have the same ID Code.
1). Please make su e the following conditions befo e ID-Code emote setting:
(a) oth TX and RX are of the SAME model and frequency.
(b) To place the transmitter as close as possible to the receiver to avoid any
interference.
(c) Turn off the RX power more than 10 seconds and turn it on again.
(d) Complete the ID-Code remote setting within 4 minutes after turning on the RX. The
RX will NOT accept the ID-Code remote setting signal after 4 minutes.
2). ID-Code emote setting Inst uctions:
(a) Press and hold the transmitter STOP pushbutton/EMS button.
(b) Press DOWN pushbutton and hold it.
(c) Press UP pushbutton 4 times and release “STOP & DOWN” pushbuttons when the
red light on the transmitter is flashing.
(d) Start the system as usual.
Note: Fo SAGA1-L6B
1. The DOWN pushbutton must be remaining in 1
st
step while holding the button.
2. Press UP pushbutton till 1
st
step continuing for 4 times. Do not press button into 2
nd
step
while processing this instruction otherwise the ID-Code remote setting will be aborted.
 ATTENTION:
* In case ID-Code remote setting fails, repeat the instructions above within 4 minutes.
* ID-Code remote setting is available for ID Code only. It will not change function settings
* Within the operating distance, all same model systems on the same frequency will be
paired with the transmitters ID Code.
Press and hold the
STOP
STOPSTOP
STOP pushbutton
Continuing press
the UP
pushbutton
for 4 times Press and hold the
DOWN pushbutton
Press EMS button
Press and hold the
DOWN pushbutton
Continuing press the
UP pushbutton for 4
times

SAGA1-L Series
15
7.0

TROUBLESHOOTING
Item
Phenomenon Cause Action Requi ed
1 Red LED flashing quickly
(every 0.2 sec.) when
any motion pushbutton of
Transmitter is pressed.
a) One of the pushbutton
is jammed.
b) The system is not
properly powered
according to the
instruction.
a) Replace the
pushbutton.
b) Power on
again according
to the instruction.
2 TX LED flashes red and
yellow reciprocally and
slowly (every 0.5 sec.)
The memory of the TX is
defective.
Send back the
Manufacturer.
3 RX Error LED flashes red
slowly (every 0.5 sec.)
The memory of the RX is
defective.
Send back the
Manufacturer.
4 The operating distance
Is shorter or an intermittent
operation is happened.
It was interfered by other
Radio Remote Controller
/or unknowing signal with
the same frequency.
Replace the crystal
of both TX and RX
to change the
frequency.
Rema k: The memo y of the TX and RX has Anti-copy function design, any
inadequate action on decoding the fi mwa e of the memo y will cause
the t ouble as the above item 2 and 4.
Gain Elect onic Co., Ltd. 01/2004 v.1.0
If any p oblem couldn’t be solved o any comments, suggestions please fax
to 886-7-8157253

SAGA1-L Series
16
Appendix
SAGA1-L Series Software Installation and
Operation Instruction
I. How to install the SAGA1-L function setting program:
1. Insert the CD-ROM into the CD-ROM driver, the program initiates
automatically, then you see a screen as below, click “OK” and continue:
2. The next screen you see is as below, click on or “Change Directory” if
you intend to install the program in other directory than the preset drive.
3. Click on “Continue” to proceed with the installation.

SAGA1-L Series
17
4. Click “OK” to finish the installation procedure.
II. How to start the SAGA1-L function setting program:
To start using this program, please click from “Start” menu on your desktop,
then move your mouse to “Programs”, “SAGA1-L SETUP PROGRAM”, and
click on “saga1-L (CRYSTAL) SETUP PROGRAM” to activate.
III. Toolbar of the program:
1. On the left upper corner of the toolbar “ ile”, there are Load means to load the
saved data (same as ); Save to save the current data (same as ); Printer to
print out the existing data shown on the current screen (same as ); Exit to

SAGA1-L Series
18
leave this program (same as ).
2. On next toolbar “Tools” there are Read Setup Data to read the function setting
of the transmitter or receiver (same as or ); Write Setup Data to
write function setting into the transmitter or receiver (same as or
); Language to choose language applied in this program, either for
English, traditional Chinese, or simplify Chinese.
3. On the “Page” menu, there are Setup-Page (same as ) and User-Page (same
as ), choose the latter to change the screen to an information page which
provides blank space to fill in related datum of the distributor and user.
4. When chose “ ile” Load or , a screen popped up to load data file in “DSA”
format as below. The use of this saved data is to record corresponding details of
the setting in order to make a duplication of the transmitter or receiver.

SAGA1-L Series
19
IV. The operation of the program:
Note
a. Make sure the power is off before any reading or writing either
on the transmitter or receiver.
b. Check the connection port on RS232 whether it is on “COM1” or
others if the reading failed.
c. Do aware to read first every time before writing or making any
function setting.
d. This software allows user to read or write directly from both the
transmitter and receiver.
1. Connect the interface cable (RS232) with the transmitter of receiver.
2. When the computer is connected with the transmitter or receiver, click on
or to read the data, then click “OK” after the new data is input, and
a new screen with “Model” and “ID-Code” appeared as below (lower picture).
3. When the new settings or modification have been made, click or
to write data into the transmitter or receiver, then click “YES”.
3. If you want to save the new setting, click on to save the data with “DSA”
format.
4. To print out the setting, click on .
V. unction setting of SAGA1-L by PC Software
Definition for special terms
*ID-Code Remote Setting When the power is on, the ID-Code of the receiver can be
changed remotely by the transmitter within 4 minutes.
*Power Saving The signal is sent by the transmitter periodically to save power, the effective
distance will be lessened once this mode is chosen.
