Sainlogic WS-0310 User manual

1
SAINLOGIC WS-0310 Professional WIFI
Weather Station User Manual
1.Introduction
Thank you for your purchase of the WS0310 Professional WIFI
Wireless Weather station. The following user guide provides step by
step instructions for installation, operation and troubleshooting.
2.Warnings
Warning: Any metal object may attract a lightning strike, including
your weather station mounting pole. Never install the weather station in
a storm.
Warning: Installing your weather station in a high location may
result in injury or death. Perform as much of the initial check out and
operation.
3.Getting Started
The WS0310 weather station consists of a display console (receiver), a
sensor array with Integrated Outdoor Transmitter and mounting
hardware.
3.1. Parts List
The WS0310 weather station consists of the following parts (as
referenced in Figure 1 ).
QTY
Item
1
Display Console
(LxHxW):8.3X1.0X6.1 in
LCD Dimensions (LxW): 6.7 x
4.9 in

2
QTY
Item
1
Integrated Outdoor Transmitter
Dimensions (LxHxW)：
13 x 6 x 11in
1
Anemometer Mounting Bracket
(with pole insert)
Dimensions: 3 x 4 x 1 ½”
1
Anemometer Mounting Bracket
Back Plate (pole mount)
Dimensions: 3 x 3 x 1 ”
1
Anemometer Pole
Dimensions: 12 x 1½ x 1”
2
Pole mounting nuts (M3) / bolts
Ø3)

3
QTY
Item
4
Pole mounting nuts (M5) / bolts
( Ø5)
4
Tapping screws
1
Manual
1
Power Adapter
Figure 1
3.2 Recommend Tools
●Precision screwdriver (for small Phillips screws)
●Compass or GPS (for wind direction calibration)
●Adjustable Wrench

4
3.3 Sensor Assembly Set Up
The following illustration shows the full segment for Thermo-Hygrometer
，WIND,RAIN and UV INDEX sensor.purposes only ,as shown in
Figure 2.
Figure 2
3.3.1 Insert batteries into the transmitter. Locate the battery
door on the transmitter, push and open the battery compartment, as
show in Figure 3.
Figure 3

5
Remove the battery door on the back of the sensor by removing the set
screw, as shown in Figure 4.
Figure 4
Inserting 3xAA batteries in the battery compartment, as show in Figure
5.
Figure 5

6
Close the battery door. Make sure the gasket (around the battery
compartment) is properly seated in its trace prior to closing the door.
Tighten the set screw.
Note: Do not install the batteries backwards. You can permanently
damage the sensors. The solar panel does not charge the batteries, so
rechargeable batteries are not needed or recommended.
Note: We recommend installing Lithium AA batteries for sensors.
The sensor LED indicator will light for 3 seconds, and then flash once
per 16 seconds thereafter. Each time it flashes, the sensor is
transmitting data.
Replace the battery door and push to tighten it.
Note: If the sensor does not power up after inserting the batteries,
press the reset button shown in Figure 6.
Figure 6
3.4 Display Console
3.4.1 Display Console Layout
The display console layout is shown in Figure 7
Note: The following illustration shows the full segment LCD display
for description purposes only and will not appear like this during normal
operation.

7
Figure 7
1. Outdoor temperature display
2. WIFI network
3. Outdoor humidity display
4. Outdoor humidity HI/LO alarm icon
5. Min/Max reset for 24h icon
6. Weather forecast
7.Rainfall display(RATE, 24h,
WEEK,MONTH, TOTAL)
8. Rainfall units of measure
9. Date display
10. Time alarm icon
11. Time and Year
12. UV Index display
13. Sunshine intensity
14. MOON phase
15. Sunlight units of measure
16. Indoor Dew point display
17. Indoor Dew point ICON
18. Indoor temperature and humidity display
19. Pressure (REL and ABS) display
20. Pressure units of measure
21. Wind speed average display
22.Wind gust display
23.Wind speed units of measure
24.Wind chill and feels like HI/Lo alarm icon
25. Wind direction
26. OUT dew point and AT(Apparent
Temperature) display icon
27. Integrated outdoor transmitter Low power
indicator
28.Temperature units (°F or °C)
29.Outdoor temperature HI/LO alarm icon

8
3.4.2 Display Console Set Up
It is recommended to plug in the power supply to reduce the
battery consumption and extend the service life.
Note: The sensor array must be powered and updating before
powering up the console, or the
console will time out searching for the sensor. Power the console last.
Make certain the weather station sensor array is at least 10’ away from
the console and within
100’ of the console. If the weather station is too close or too far away, it
may not receive a proper signal.
Remove the battery door on the back of the display, as shown in Figure
8. Insert three AAA (alkaline or lithium) batteries in the back of the
display console. The display will beep once and all of the LCD
segments will light up for a few seconds to verify all segments are
operating properly.
Note: The character contrast is best from a slightly elevated viewing
angle.
Figure 8

9
Replace the battery door, and fold out the desk stand and place the
console in the upright position.
The unit will instantly display indoor temperature, humidity, pressure,
tendency, moon phase, and time. The wind speed, wind gust, wind
direction, rain, UV/Sunlight , Integrated outdoor temperature and
humidity will update on the display within a few minutes. Do not Press
any menu buttons until the outside transmitter report in, otherwise the
outdoor sensor search mode will be terminated. When the outdoor
transmitter data has been received, the console will automatically
switch to the normal mode from which all further settings can be
performed.
While in the search mode, the remote search icon will be constantly
displayed.
If it does not update, please reference the troubleshooting guide in
Section 18.
Note: The power adapter is intended to be correctly oriented in a
vertical or floor mounted position. The prongs are not designed to hold
the plug in place if it is plugged into a ceiling, under-the-table or cabinet
outlet.
Figure 9

10
Note: If the power adapter is plugged in, BL ON will display in the
time area for three seconds when powered up. Conversely, if the power
adapter is not plugged in, AC OFF will be displayed, the icon will
display .
4.Weather Station Installation
4.1 Pre Installation Checkout Before installing your weather
station in the permanent location, we recommend operating the
weather station for one week in a temporary location with easy
access. This will allow you to check out all of the functions, insure
proper operation, and familiarize you with the weather station and
calibration procedures. This will also allow you to test the wireless
range of the weather station.
4.2 Site Survey
Perform a site survey before installing the weather station. Consider the
following:
1. You must clean the rain gauge once per year and change the
batteries every two years. Provide easy access to the weather station.
2. Avoid radiant heat transfer from buildings and structures. In general,
install the sensor array at least 5’ from any building, structure, ground,
or roof top.
3. Avoid wind and rain obstructions. The rule of thumb is to install the
sensor array at least four times the distance of the height of the tallest
obstruction. For example, if the building is 20’ tall, install 4 x (20 – 6)’ =
56’ away. Use common sense. If the weather station is installed next to
a tall building, the wind and rain will not be accurate.
4. Wireless Range. The radio communication between receiver and
transmitter in an open field can reach a distance of up to 300ft,
providing there are no interfering obstacles such as buildings, trees,
vehicles, high voltage lines. Wireless signals will not penetrate metal
buildings. Most applications will only reach 100ft due to building
obstructions, walls and interference.
5. Radio interference such as PCs, radios or TV sets can, in the worst
case, entirely cut off radio communication. Please take this into
consideration when choosing console or mounting locations.

11
4.3 Best Practices for Wireless Communication
Wireless communication is susceptible to interference, distance, walls
and metal barriers. We recommend the following best practices for
trouble free wireless communication.
1. Electro-Magnetic Interference (EMI). Keep the console several feet
away from computer monitors and TVs.
2. Radio Frequency Interference (RFI). If you have other 433 MHz
devices and communication is intermittent, try turning off these other
devices for troubleshooting purposes. You may need to relocate the
transmitters or receivers to avoid intermittent communication.
3. Line of Sight Rating. This device is rated at 300ft line of sight (no
interference, barriers or walls) but typically you will get 100ft maximum
under most real-world installations, which include passing through
barriers or walls.
4. Metal Barriers. Radio frequency will not pass through metal barriers
such as aluminum siding. If you have metal siding, align the remote and
console through a window to get a clear line of sight.
The following is a table of reception loss vs. the transmission medium.
Each “wall”or obstruction decreases the transmission range by the
factor shown below.
Medium
RF Signal Strength Reduction
Glass (untreated)
5-15%
Plastics
10-15%
Wood
10-40%
Brick
10-40%
Concrete
40-80%
Metal
90-100%

12
5.Final Installation of Sensors
Integrated outdoor transmitter installation.
Professional Wireless Weather Station can be used in both the
Northern and Southern Hemispheres.
Prior to installation, you will need to calibrate the wind direction.
5.1. NorthernHemispheres (NOR).
The cardinal directions (N, S, E, W) molded on the body of the outdoor
sensor are indicators for the Northern Hemisphere only.
Step 1: There is a “S” indicator on the wind vane that indicates South,
as shown in Figure 10. Align this “S” marker in the direction of South.
Step 2: Console operation is set to NorthernHemispheres( NOR in the
time area) in Location division.
Note:There are four alphabet letter of “N”,”E”,”S”and “W” around the
wind direction, representing for the direction of North, East, South and
West. Wind direction sensor has to be adjusted so that the directions on
the sensor are matching with your real location. Permanent wind
direction error will be introduced when the wind direction sensor is not
positioned correctly during installation.
NorthernHemispheres

13
Southern Hemispheres
Figure 10
5.2. SouthernHemispheres (SOU).
For Southern Hemisphere installations, ignore these(N, S, E, W) and
face the solar panel to the North (and in a sunny position) when it
comes to installing the Integrated outdoor transmitter.
Step 1: Install the Integrated outdoor transmitter and face the solar
panel North.
Step 2: Console operation is set to Southern Hemispheres( SOU in the
time area) in Location division.
Note: Wind direction sensor has to be adjusted so that the
directions on the sensor are matching with your real location.
Permanent wind direction error（read approximately 180º）will be
introduced when the wind direction sensor is not positioned correctly
during installation.

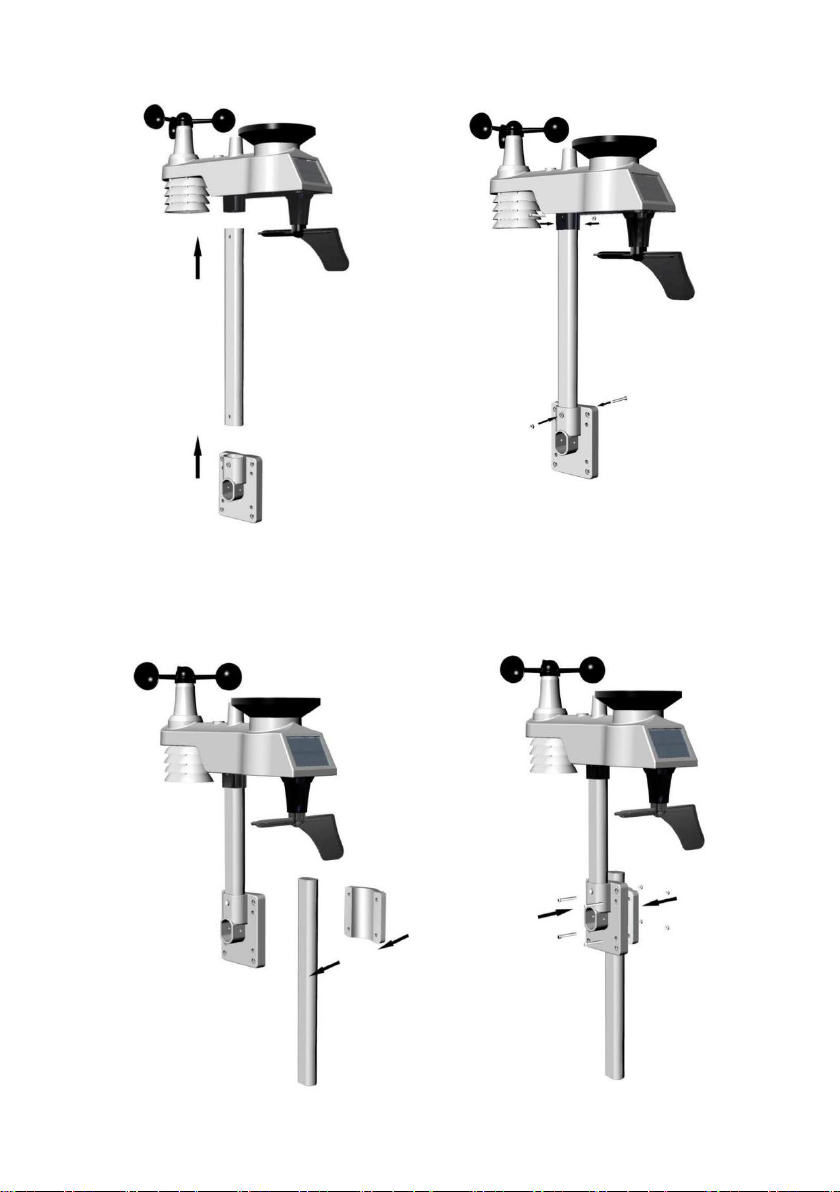

Fasten the integrated transmitter to mounting pole brackets with foot-
mounting, two ￠3 bolts and M3 nuts , as shown in Figure 11

14
Figure 11
Tighten the mounting pole to your existing mounting pole with the four￠
5 Bolts and M5 Nuts assembly, or fix on the wall with four tapping screw,
as shown in Figure12.

15
Figure 12
6. Low Battery Icon.
A low battery indicator icon is shown in the display window for
Integrated outdoor transmitter. When the low battery icon appears (the
battery voltage is lower than 3.6V), replace the batteries in the sensor
with fresh batteries. Be sure to never mix old and new batteries, and
never mix battery types such as alkaline and lithium together.
7. Console Operation
Note: The console has five keys for easy operation: MIN/MAX/-key,
ALARM key, SET/MODE key, CHANNEL/+ and SNOOZE key.
7.1 Quick Display Mode
Note: To exit the Quick Display Mode at any time, press the
SNOOZE key of the display console.
While in Normal Mode, press (do not hold) the SET/MODE key to enter
the Quick Display Mode as follows:

16
once for time, time/week and second,
Twice for rainfall
three for outdoor dew point temperature.
four for wind average
Five for pressure
1.Time, Time/Week and Second. Press the CHANNEL/+ or
MIN/MAX/- key to toggle between time, time/week and second.
2.Rainfall. Press the CHANNEL/+ or MIN/MAX/- key to toggle between
rate, 24h, week, month and total.
To clear the total rain, press the CHANNEL/+ or MIN/MAX/- button
until total rain is displayed. The total rain will flash.Press and hold the
SET button for five seconds until total rain reads 0.0.
3.Outdoor Dew Point.Press the CHANNEL/+ or MIN/MAX/- key to
toggle between AT （Apparent Temperature) and dew point.
4.Wind Average.Press the CHANNEL/+ or MIN/MAX/- key to toggle
between current,2mins and 10 minutes.
5.Absolute Pressure and Relative Pressure.Press the CHANNEL/+
or MIN/MAX/- key to toggle between absolute pressure and relative
pressure.
7.2 Set (Program) Mode
While in Normal Mode, press and hold the SET(MODE) key for at least
three seconds to enter the Set Mode. The first setting will begin flashing.
You can press the SET(MODE) key again to skip any step, as defined
below.
Note: In the Set mode, press the [+] key or [-] key to change or
scroll the value. Hold the [+] key or [-] key for three seconds to
increase/decrease rapidly.
Note: To exit the Set mode at any time, press the SNOOZE button
of the display console.
1. Time SYNC(default:ON).Press the SET key again to set the
network time sync. Press the [+] key or [-] key to switch between
SYNCtime ON and SYNCtime OFF of measure.
2. 12/24 Hour Format (default: 24h):.Press the SET(MODE) key
again to adjust the 12/24 hour format setting (FMT). Press the [+]
key or [-] key to change between 12 hour and 24 hour format.
3. Change Hour.press the SET(MODE) key again to set the hour.
Press the [+] key or [-]key to adjust the hour up or down. Note the
PM icon is present during afternoon hours.

17
4. Change Minute.Press the SET(MODE) key again to set the minute.
Press the [+] key or [-] key to adjust the minute up or down.
5. Date Format (default: MM-DD): Press the SET(MODE) key again
to enter the day/month format mode. Press the [+] key to switch
between MM-DD, DD-MM.
6. Change Month.Press the SET(MODE) key again to set the
calendar month. Press the [+] key or [-] key to adjust the calendar
month.
7. Change Day.Press the SET(MODE) key again to set the calendar
day. Press the [+] key or [-] key to adjust the calendar day.
8. Change Year. Press the SET(MODE) key again to set the calendar
year. Press the [+] key or [-] key to adjust the calendar year.
9. Max/Min Clearing (default: ON). Press the SET(MODE) key again
to set the max/min clearing mode (CLR). The Max/Min can be
programmed to clear daily (at midnight) or manually. Press the [+]
key or [-] key to switch between “Clears 24h” and Clears Manually.
10. Temperature Units of Measure (default: °C):. Press the
SET(MODE) key again to change the temperature units of measure
(the UNITSET icon will be displayed). Press the [+] key or [-] key to
switch between °F and °C units of measure.
11. Wind Speed Units of Measure (default: m/s). Press the
SET(MODE) key again to change the wind speed units of measure .
Press the [+] key or [-] key to toggle the wind speed units between
m/s, km/h, mph, knots,ft/s or bft.
12. Rainfall Units of Measure (default: mm). Press the SET(MODE)
key again to change the Rainfall units of measure. Press[+] key or [-]
key to toggle the rainfall units between mm and inch.
13. Barometric Pressure Display Units(default: hPa). Press the
SET(MODE) key again to change the pressure units of measure.
Press the [+] key or [-] key to toggle the pressure units between
mmhg, inHg or hPa.
14. Pressure Threshold Setting (default level 2). Press the
SET(MODE) key again to change the pressure threshold. Press the
[+] key or [-] key to change pressure threshold 2 mbar/hour to 4
mbar/hour.(For detailed information of this part please refer to 15.5)
15. Weather Icons Setting (default: partly cloudy).Press the
SET(MODE) key again to change the initial weather icon. Press the
[+] key or [-] key to select the initial weather icon of Sunny, Cloudy,
Partly Cloudy or Rainy. (For detailed information of this part please
refer to 15.1 and 15.2)

18
16. Sunlight Display Units(default: W/㎡). Press the SET(MODE) key
again to change the sunlight units of measure. Press the [+] key or
[-] key to toggle the sunlight units between , W/㎡, fc or lux.
17. Location division.(default: Northern Hemisphere).Press the
SET(MODE) key again to change the location division. Press the [+]
key or [-] key to toggle the sunlight units Northern Hemisphere
(NOR)or Southern Hemisphere(SOU). (refer to 5.0 Final
Installation of Integrated outdoor transmitter)
7.3 Reset Min/Max record
In normal mode, press (do not hold) the MIN/MAX/-key,the MAX icon
will be displayed in date area. Press the SET/MODE key to view max
values of rainfall (rate, 24h, week or month) , pressure (ABS or
REL),outdoor temperature and humidity(AT or dewpoint)and indoor
temperature and humidity (temp or dew point).
Press the MIN/MAX/- key for three seconds to clear all max values. （
the rainfall, wind speed, wind gust, pressure, temperature and humidity
maximum values. The maximum values will now display the current
values）.
Press the MIN/MAX/- key again (do not hold), the MIN icon will be
displayed. Press the SET/MODEkey to view min values of pressure
(ABS or REL), outdoor temperature/humidity((AT or dew point),and
indoor temperature/humidity(temp or dew point).
Press the MIN/MAX/- key for three seconds to clear all min values.(the
pressure, temperature and humidity minimum values. The minimum
values will now display the current values).
Press the SNOOZE key to exit the min/max checking and cleaning
mode, return to normal display mode.
7.4 Snooze Mode
If the alarm sounds, and you wish to silence the alarm, press the
SNOOZE key, the backlight will turn on. The alarm icon will continue to
flash and the alarm will silence for five minute. press any key

19
(MIN/MAX/+ ,SET/MODE, ALARM,CHANNEL/+) to permanently exit
the Snooze mode.
7.5 Back light Mode
If the LED is off, Press the SNOOZE button once. The backlight will turn
on for five seconds, and if no operation is performed for three seconds,
the backlight will turn off.
The backlight operation is different when operating on batteries to save
power.
ADJUSTABLE BACKLIGHT BRIGHTNESS
There are 3 levels of brightness of backlight.When the backlight is on
press SNOOZE key to switch between the 3 levels.
When backlight is off, press and hold the SNOOZE key for two seconds,
the backlight will turn on permanently, and BL ON icon will be displayed
for three seconds in the date area.
To turn off the backlight at any time press and hold the SNOOZE key
for two seconds.BL OFF icon will be displayed for three seconds in the
date field.
Note: If plugged into AC power, the time area will display AC ON
and the backlight will remain on. It is not recommended leaving the
backlight on for a long period of time when operating on batteries only,
or the batteries will run down quickly.
8. Alarm Mode
The WS0310 includes the following alarms:
Time (There are two alarms for time. Alarm 1 and Alarm 2)
Outdoor Temperature
Outdoor Humidity
Outdoor AT(Apparent Temperature)
Outdoor Dew Point
Outdoor Feels Like Temperature
Outdoor Dew Point
Wind Gust
Wind Average
Rate Rainfall

20
24 Hour Rainfall
Absolute Pressure
Relative Pressure
Indoor Temperature
Indoor Humidity
Indoor Dew Point
UV Index
Sunlight
8.1 Alarm Operation
When an alarm condition is exceeded, the alarm icon will flash
(visual) and the alarm beeper will sound (audible). To silence the
beeper, press any key.
8.2 Viewing the High and Low Alarms
To view the current alarm settings, press the ALARM key to enter the
alarm mode. HI AL 1 will be displayed in the date area. At the same
time Alarm 1 time and HI alarm parameters of indoor
temperature/humidity, outdoor temperature/humidity, rain rate, AT, feels
like, wind gust, wind average, absolute pressure, UV index, Sunlight are
displayed. Press SET/MODE key to view Alarm 2 time and HI alarm
parameters of indoor dew point, 24h rainfall, outdoor dew point, and
relative pressure.
Press ALARM key again to view the LOW alarms along with the alarm
clock time the same way HI alarms.
Press the SNOOZE key at any time to return to the normal mode.
8.3 Setting the Alarms
Press ALARM key to enter the alarm mode.
Press and hold the SET/MODE key for three seconds. The first alarm
parameter will begin flashing (alarm hour).
To save the alarm setting and proceed to the next alarm parameter,
Press (do not hold) the SET/MODE key.
