Saitek 720+ User manual

User Guide
[ENGLISH/N/08-12]
720
+

[2]
Package Contents .................................................. 3
Features
Headset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
In-line Controller ............................................... 5
Digital Decoder Box ............................................. 6
Connect To
Xbox 360®...................................................... 9
PlayStation®3 .................................................. 13
Table of Contents

[3]
Package Contents
C
B
D
H
E
G
F
A7.1 Surround Headset
Digital
Decoder Box
Optical Cable USB Cable
In-line Audio Controller
with Breakaway Cable
Xbox LIVE®
Communication Cable
Detachable,
Flexible Microphone
Digital Audio Adapter
(Xbox 360 only)

[4]
Microphone Insertion Directions
Insert the microphone into the
headset by lining up the small dot
on the microphone with the small
dot on the headset.
Firmly press the microphone
into place.
Rotate the microphone in a
clockwise direction until it stops.
Adjustable Headrail
Plush Headrail and
Earcup Padding
Removable, Flexible
Microphone
Headset

[5]
Mic Mute: Slide the mic mute switch down to mute the microphone
so others cannot hear you.
Master Volume and Mute: Use to adjust the master volume of game audio.
Push in to mute all game sound.
Breakaway In-line Connector
Xbox LIVE Port: Use to connnect to Xbox LIVE.
Voice Communication Volume and SVM Control: Use to adjust the volume of the
voices of other players. SVM = Selectable Voice Monitoring. SVM allows the user
to hear his or her own voice through the headset. Push in to turn SVM ON/OFF.
In-line Controller
1
1
2
2
3
3
4
4
5
5

[6]
Optical Port
USB Port
Power Button
Game Volume Control
Press to cycle through Dolby/
EQ modes
ON = Dolby Digital signal is
being received
ON = Pro Logic IIx mode
OFF = Stereo mode
ON = Dolby Headphone mode
OFF = Stereo Only Mode
EQ Indicator:
GREEN = Music Mode
BLUE = Movie Mode
OFF = Stereo Mode
Headset Output
STEREO
Digital Decoder Box
1 2
1 6
7
8
2
3
4
5
9 9
10
10
3 4 5 6 7 8

[7]

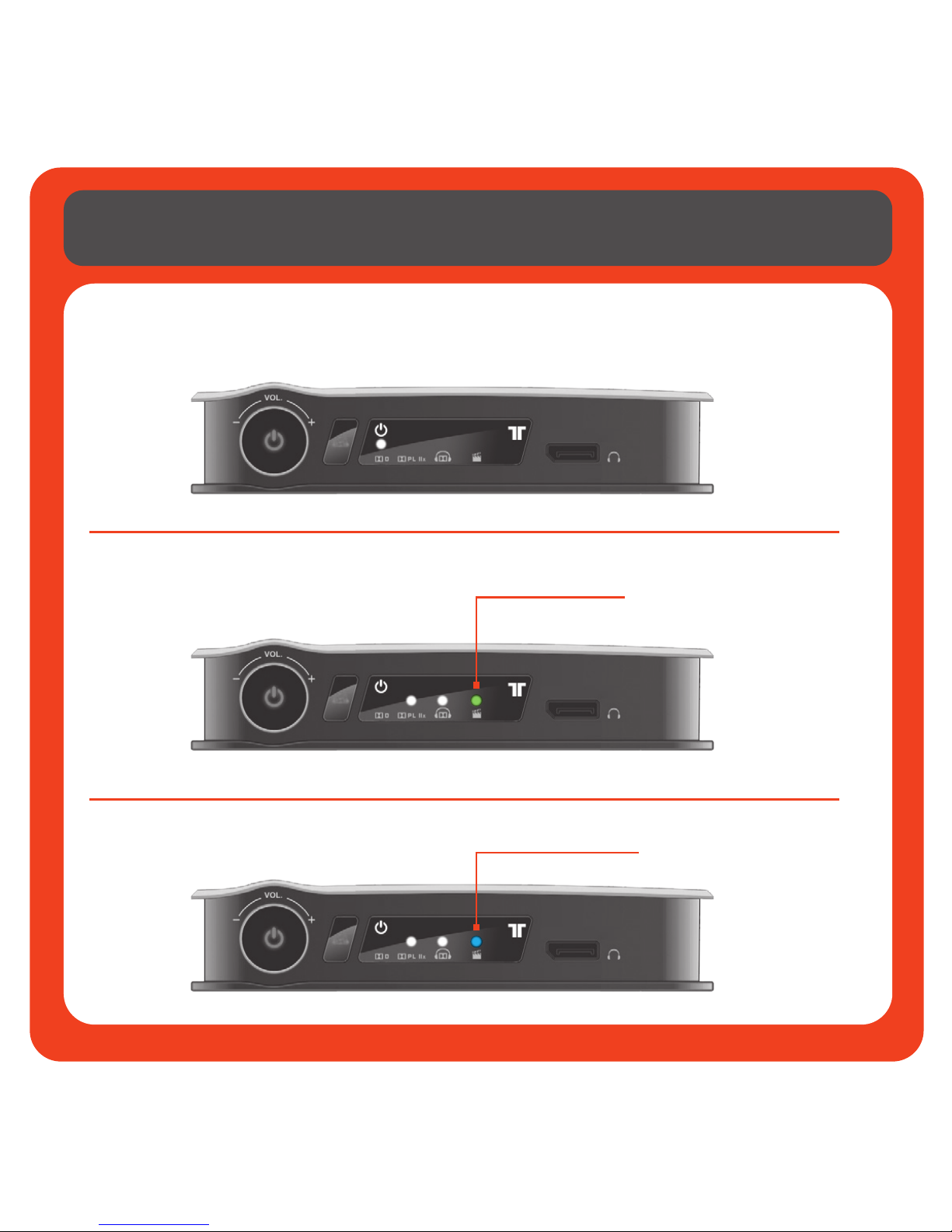

Stereo Audio
GREEN = Music Mode
BLUE = Movie Mode
7.1 Audio
7.1 Audio
PRO LOGIC IIX MUSIC
PRO LOGIC IIX MOVIE
STEREO
Audio Input Format: Dolby Digital / EX

[8]
Stereo Audio
GREEN = Music Mode
BLUE = Movie Mode
7.1 Audio
7.1 Audio
PRO LOGIC IIX MUSIC
PRO LOGIC IIX MOVIE
STEREO
Audio Input Format: Stereo

[9]
Connect to Xbox 360
Remove protective caps from the optical cable.
Plug one end of the optical cable into the rear of the gaming console.
Plug the other end of the optical cable into the Decoder Box.
Plug one end of the USB Cable to a USB port on the console.
Plug the other end of the USB Cable into the Decoder Box.
Plug the headset connector into the Decoder Box.
Plug the headset into the in-line controller.
Be sure to connect the Xbox LIVE communication cable in the proper order:
1. Connect Xbox LIVE cable into Xbox LIVE port on the in-line controller.
2. Connect puck side of Xbox LIVE cable
into Xbox 360-compatible controller.
Power ON the gaming console and the Decoder Box.
In the Xbox Dashboard, select System Settings > Console Settings > Audio
> Digital Output and select “Dolby Digital 5.1.” Watch to ensure that the
“Dolby Digital” light on the audio controller illuminates as a game or movie
starts. To confirm Xbox LIVE settings, press the “Xbox Guide Button”
when a game is loaded, and go to Personal Settings > Voice. Ensure that
“Headset Only” is selected.

[10]
A E GDCB H
A
B
D
G
H
E
C

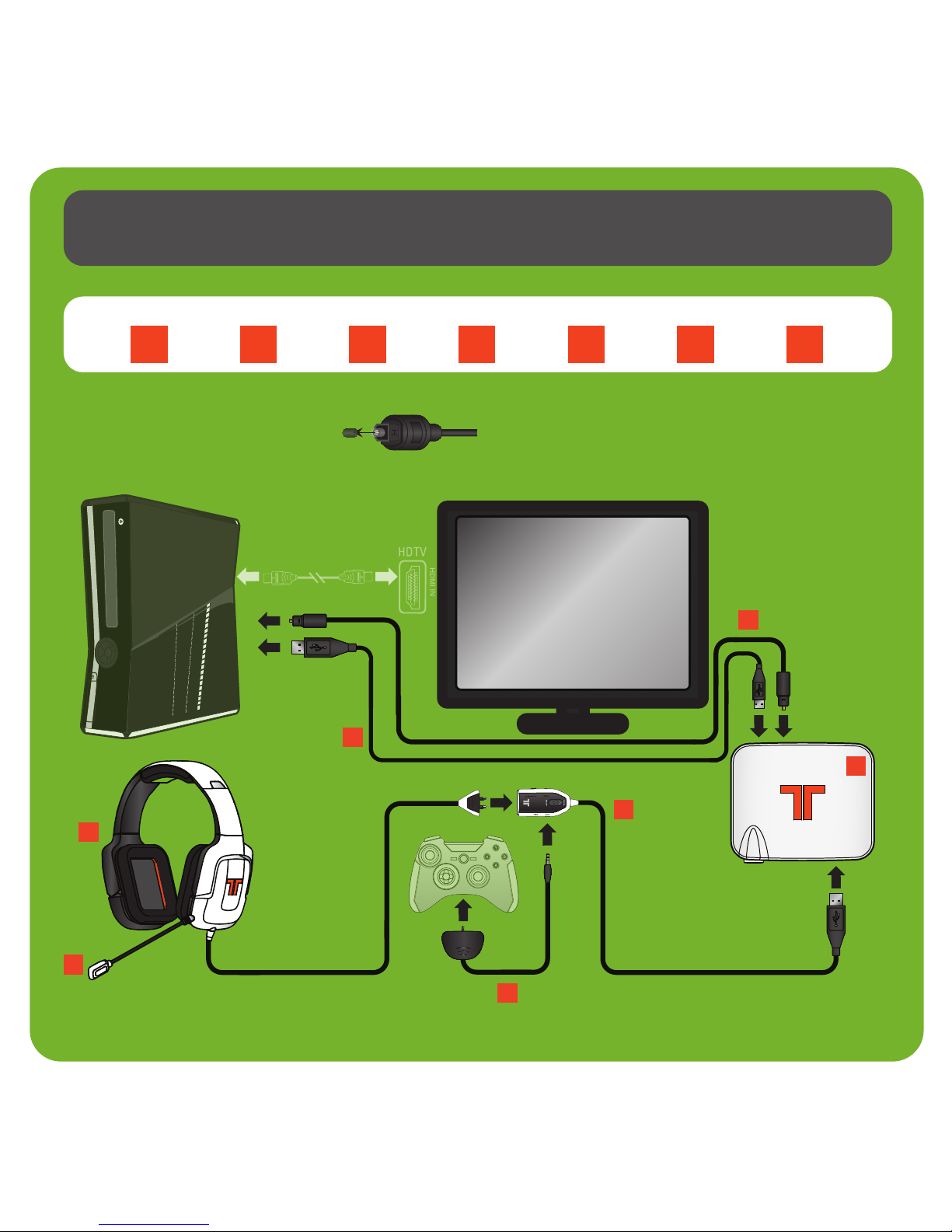

XBOX S - HDMI/Component/Composite/VGA
PARTS NEEDED FROM PACKAGE CONTENTS (REFERENCE PAGE 3)
1.
2.

[11]
D
A E GDCB H
A
E
G
D
C
B
H
1.
2.

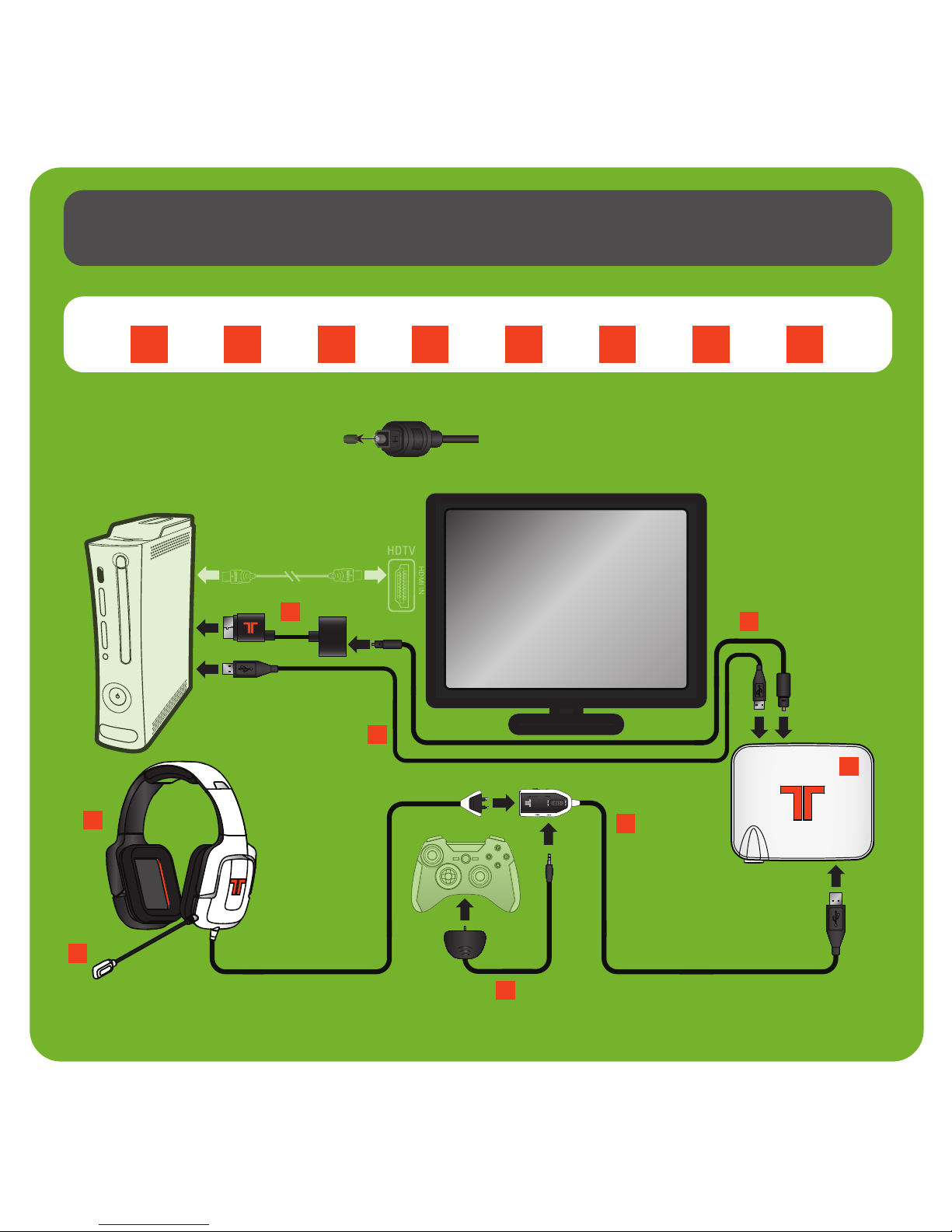

XBOX - Component/Composite/VGA
PARTS NEEDED FROM PACKAGE CONTENTS (REFERENCE PAGE 3)

[12]
A FE GDCB H
A
E
G
D
C
B
H
F
XBOX - HDMI
PARTS NEEDED FROM PACKAGE CONTENTS (REFERENCE PAGE 3)
1.
2.

[13]
Connect to PS3
Remove protective caps from the optical cable.
Plug one end of the optical cable into the rear of the gaming console.
Plug the other end of the optical cable into the Decoder Box.
Plug one end of the USB Cable into a USB port on the console.
Plug the other end of the USB Cable into the Decoder Box.
Plug the headset connector into the Decoder Box.
Plug the headset into the in-line controller.
Power ON the gaming console and the Decoder Box.
On the PS3 go to Settings > Sound Settings and change the audio output to be
“Optical Digital”.
Watch to ensure that the “Dolby Digital” light on the Decoder Box illuminates as
a game or movie starts.
9In the XrossMediaBar™ menu, select System Settings > Accessory Settings
> Audio Device Settings, and set both the input and output to “TRITTON 720+
Headset.” You can see a visual confirmation that the microphone is functioning
if the bar graph moves. If you do not see any movement, ensure the mute switch
is configured correctly and that all connections, including the microphone, are
tight and fully inserted.
If you are using a DTS-compatible game or movie, and the “Dolby Digital” light
on the decoder box does not illuminate, you must disable DTS 5.1 audio on your
PlayStation 3. To do so, navigate to Settings > Sound Settings > Audio Output
Settings > Optical Digital in the XrossMediaBar and ensure that “Dolby Digital 5.1
Ch.” is checked, and “DTS 5.1 Ch.” is unchecked.

[14]
A GDCB H
A
CB
D
G
H
PS3
PARTS NEEDED FROM PACKAGE CONTENTS (REFERENCE PAGE 3)

[15]
WARRANTY
2-YEAR LIMITED WARRANTY
Mad Catz warrants this product to be free from defects in materials and workmanship for the
warranty period. This non-transferable, two- (2) year limited warranty is only to you, the first end-user
purchaser. If a defect covered by this warranty occurs AND you provide proof of purchase, Mad Catz,
at its option, will repair or replace the product at no charge.
The Mad Catz two- (2) year limited warranty is available to North American and European customers.
Your sole and exclusive remedy is repair or replacement of your Mad Catz product. In no event shall
Mad Catz liability exceed the original purchase price of the product. This warranty does not apply
to: (a) normal wear and tear or abusive use; (b) industrial, professional or commercial use; (c) if the
product has been tampered with or modified.
NORTH AMERICA AND EUROPE
To receive warranty service, you must:
Obtain a Return Authorization Number from Mad Catz Technical Support via ONE
of the following methods:
a. Submit a Ticket at http://support.madcatz.com
b. Call the Mad Catz Tech Support Center nearest you:
North America: 1-800-659-2287 (USA) or 1-619-683-2815 (outside USA)
United Kingdom: 08450 508418
Europe (outside UK): [phone]
France: 01 82 88 01 80
Germany: 089-21094818
Spain: 93 181 63 94
Once you have your unique Return Authorization Number, do the following:
1. Ship the product to Mad Catz at your expense for service.
2. Enclose a copy of the original sales receipt showing a purchase date.
3. Enclose a full return address with daytime and evening phone numbers.

[16]
TECHNICAL SUPPORT
Online Support: http://support.madcatz.com
North American telephone, available Monday through Friday
(excluding holidays): 1-800-659-2287 (USA only) or 1-619-683-2815 (outside USA).
United Kingdom telephone, available Monday through Friday
(excluding bank holidays): 08450 508418.
European telephone (outside UK), available Monday through Friday
(excluding bank holidays): [phone].

[17]
CAUTIONS
• Long-termexposuretoloudmusicorothersoundsinheadphonesmaycausehearingdamage.Itisbest
to avoid extreme volume levels when using headphones, especially for extended periods.
• Usethisunitonlyasintended.
• Topreventreorshockhazard,donotexposethisunittorainormoisture.Donotusewithin30’ofany
water such as swimming pools, bathtubs, or sinks.
• Toavoidelectricalshock,donotdisassemble.Referservicingtoqualiedpersonnelonly.
• Neverinsertobjectsofanykind,otherthanauthorizeditems,intotheproductastheymaytouch
dangerous voltage points or short out parts that could result in fire or electrical shock.
• Stopusingthisunitimmediatelyifyoubegintofeeltiredorifyouexperiencediscomfortorpaininyour
hands and/or arms while operating the unit. If the condition persists, consult a doctor.
• Avoidprolongeduseofthisunit.Takebreaksevery30minutes.
• Routeallcordssothattheyarenotlikelytobewalkedonortrippedover.Makesurethatcordsarenot
placed in a position or areas where they may become pinched or damaged.
• Donotwrapcordsaroundanypartofanyone’sbody.
• Donotallowchildrentoplaywithcords.
• This product contains small parts that may cause choking if swallowed. Not intended for use by children
under 3 years of age.
United States and Canada:
Asrequired,certainoftheseclassBdigitaldevices(theheadsets)havebeentestedbyMadCatz,Inc.,7480
Mission Valley Road, Suite 101, San Diego, CA 92108, and found to comply with part 15 of the FCC rules and
the Canadian RSS-210 which sets forth limits designed to provide reasonable protection against harmful
interferenceinaresidentialinstallation.Thesedevice(s)use,generateandcanradiateradiofrequency
energy and, if not assembled, installed and used in accordance with the instructions, may cause harmful
interference to radio communications. There is no guarantee that interference will not occur in any particular
location or use. Operation is subject to the following two conditions: (1) this device may not cause harmful
interference and (2) this device must accept any interference received, including interference that may cause
undesired operation.
FCC Part 15 section 15.105
Warning: Any changes or modifications made on the system not expressly approved by the manufacturer
couldvoidtheuser’sauthoritytooperatetheequipment.

[18]
CAUTIONS
Exposure to Radio Frequency Radiation:
TheradiatedoutputpoweroftheheadsetiswellwithinFCCradiofrequencyexposurelimitsforthis
type of device when unaltered and used as described in our instructions and the controller operates
withinguidelinesfoundinradiofrequencysafetystandards,whichreecttheconsensusofthescientic
communityandtherefore,themanufacturerbelievesthedevice’sinternalwirelessradioissafeforuseby
consumers. The level of energy emitted is far less than the electromagnetic energy emitted by wireless
devices such as mobile phones. However, the use of wireless radios may be restricted in some situations
(e.g., on airplanes). If you are unsure of restrictions that may apply in any situation, you must ask for
authorization before turning on, connecting or using the controller.
EU DECLARATION OF CONFORMITY:
Asrequired,certainoftheseproductshavebeentestedandconformtotherequirementsoftheEuropean
Union Directives 1999/5/EC, 2002/95/EC, 2002/96/EC, and 2004/108/EC. Authorized signatory of the
manufacturer is Mad Catz, Inc., 7480 Mission Valley Road, Suite 101, San Diego, CA 92108.
08/12

[19]
[ENGLISH/N/08-12]
WWW.TRITTONAUDIO.COM
©2012 Mad Catz, Inc. 7480 Mission Valley Road, Suite 101, San Diego, CA 92108 U.S.A. Mad Catz, TRITTON, the Mad Catz logo and
the TRITTON logo are trademarks or registered trademarks of Mad Catz Interactive, Inc., its subsidiaries and affiliates. The shape
and design of this product are a trade dress of Mad Catz Interactive, Inc., its subsidiaries and affiliates. Microsoft, Kinect, Xbox, Xbox
LIVE, Xbox 360, and the Xbox logos are trademarks of the Microsoft group of companies. PlayStation, XMB and PS3 are trademarks
or registered trademarks of Sony Computer Entertainment Inc. (SCEI). This product is not sponsored, endorsed or approved by
Microsoft or SCEI. Manufactured under license from Dolby Laboratories. “Dolby,” “Pro Logic,” and the double-D symbol are registered
trademarks of Dolby Laboratories. All rights reserved. All other product names and images are trademarks or registered trademarks of
their respective owners. Made in China. All rights reserved. Product features, appearance and specifications may be subject to change
without notice. Please retain this information for future reference.
©2012 Mad Catz Europe, Ltd. 1-2 Shenley Pavilions, Chalkdell Drive. Shenley Woods, Milton Keynes, Buckinghamshire MK5 6LB,
Royaume-Uni(UK).MadCatz,TRITTON,lelogoMadCatzetlelogoTRITTONsontdesmarquesdecommerceoudesmarques
déposéesdeMadCatzInteractive,Inc.,deseslialesetsociétésafliées.Laformeetledesigndeceproduitsontcaractéristiquesde
lamarqueMadCatzInteractive,Inc.,deseslialesetsociétésafliées.Microsoft,Kinect,Xbox,XboxLIVE,Xbox360,etleslogosXbox
sontdesmarquesdecommercedugroupeMicrosoft.PlayStation,XMBetPS3sontdesmarquesdéposéesoudesmarquesdecom-
mercedétenuesparSonyComputerEntertainmentInc.(SCEI).Ceproduitn’estnigaranti,nihomologué,niapprouvéparMicrosoftou
SCEI.FabriquésouslicencedeDolbyLaboratories.«Dolby»,«Pro-Logic»,etlesymbolededoubleDsontdesmarquesdéposéesde
DolbyLaboratories.Tousdroitsréservés.Touslesautresnomsetimagesdeproduitssontdesmarquesdecommerceoudesmarques
déposéesdeleurspropriétairesrespectifs.FabriquéenChine.Tousdroitsréservés.L’aspect,lesfonctionnalitésetlesspécications
du produit peuvent changer sans préavis. Veuillez conserver cette notice pour référence ultérieure.
©2012 Mad Catz Europe, Ltd. 1-2 Shenley Pavilions, Chalkdell Drive. Shenley Woods, Milton Keynes, Buckinghamshire MK5 6LB, Reino
Unido (UK). Mad Catz, TRITTON, el logotipo de Mad Catz y el logotipo de TRITTON son marcas comerciales o marcas comerciales
registradas de Mad Catz Interactive Inc., sus subsidiarias y afiliados. La forma y el diseño de esto producto son un vestido comercial
de Mad Catz Interactive Inc., sus subsidiarias y afiliados. Microsoft, Kinect, Xbox, Xbox LIVE, Xbox 360, y los logotipos de Xbox son
marcas comerciales del grupo de empresas de Microsoft. PlayStation, XMB y PS3 son marcas comerciales o marcas comerciales
registradas de Sony Computer Entertainment Inc. (SCEI). Este producto no está patrocinado, recomendado o no se autorizado por
Microsoft o SCEI. Manufacturado bajo licencia de Dolby Laboratories. “Dolby,” “Pro Logic,” y el símbolo de la doble D son marcas
registradas por Dolby Laboratories. Reservados todos los derechos. El resto de nombres y de las imágenes del producto son marcas
registradas o marcas registradas de sus dueños respectivos. Hecho en China. Reservados todos los derechos. Las características,
el aspecto y las especificaciones del producto pueden ser objeto de modificación sin previo aviso. Por favor guarde esta información
para su consulta en el futuro.
Mad Catz is a publicly traded company on the TSX/NYSE MKT, symbol MCZ.
Mad Catz ist ein börsennotiertes Unternehmen (TSX, NYSE MKT: MCZ).
Les actions de Mad Catz sont cotées en bourse sur le TSX/NYSE MKT sous le symbole MCZ
