Salda Smarty 2X P Guide

Subject to technical modication
Smarty 2X-3X P_MI_P0112_AZ_0002
AHU WITH HEAT RECOVERY
Smarty 2X P
Smarty 3X P
Mounting and installation instructions

2
Smarty 2X/3X P
www.salda.lt
Safety instructions and precautions 3
Information about the product 4
Description 4
Dimensionsandweight 5
Technicaldata 6

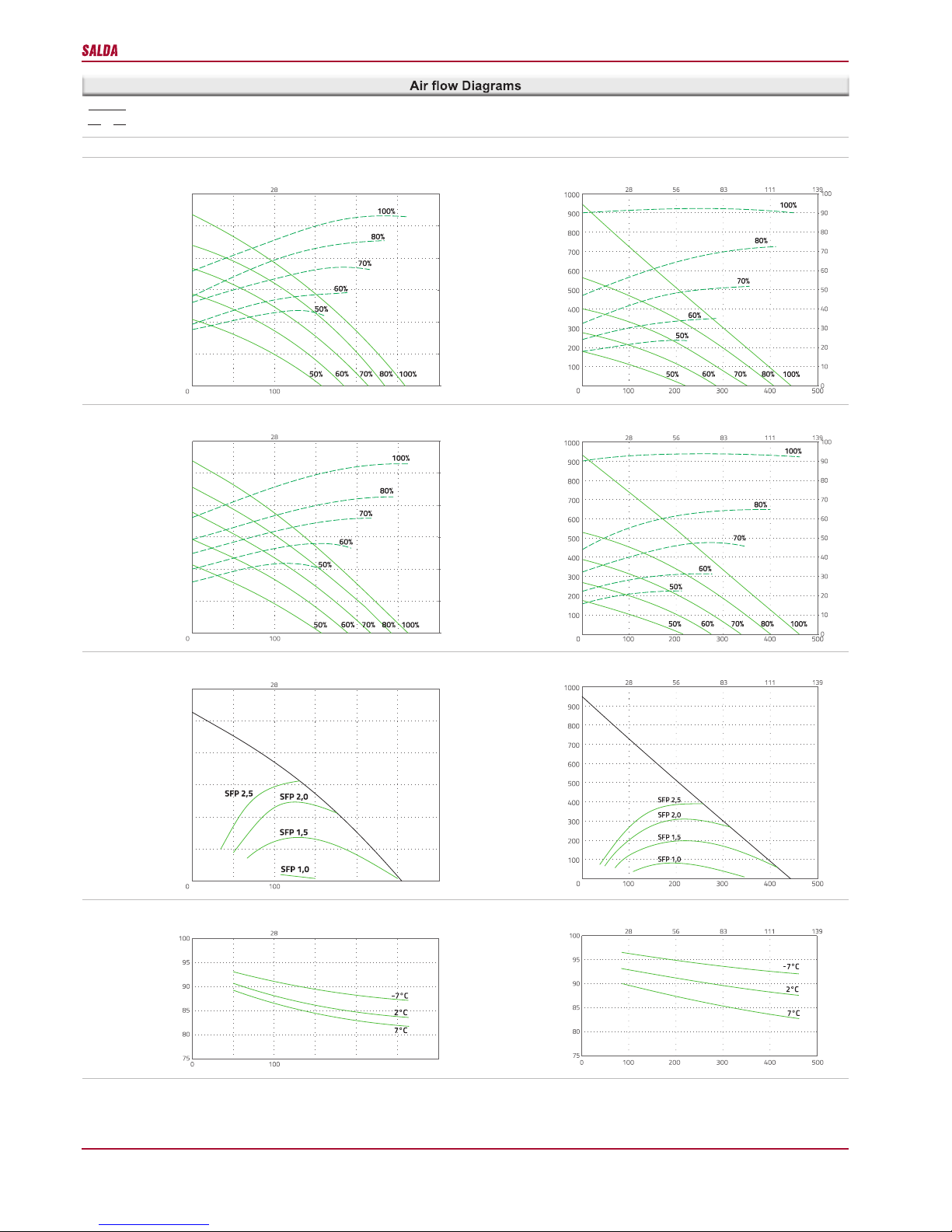

AirowDiagrams 7
Operatingconditions 8
Standardpackageofcomponents 8

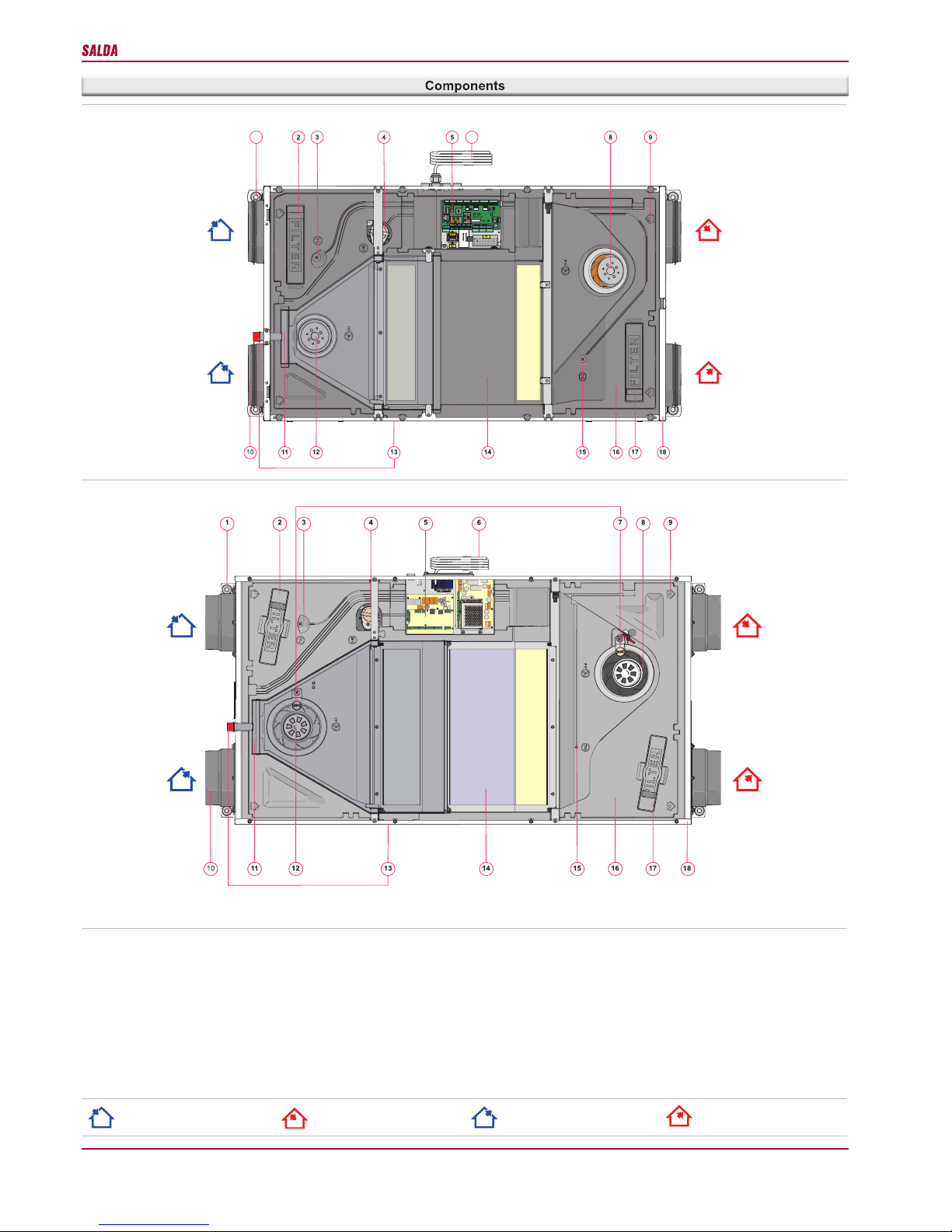

Components 9

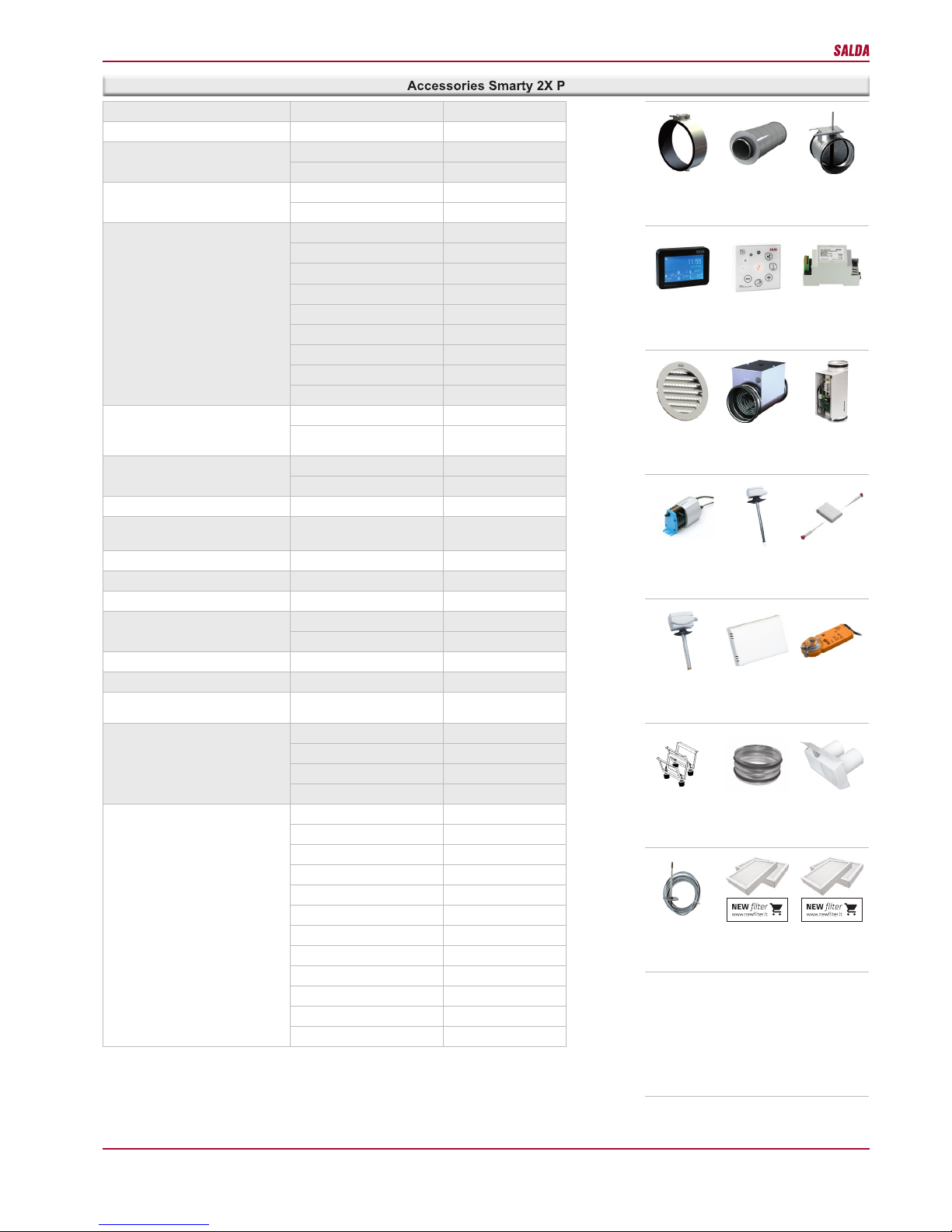

AccessoriesSmarty2XP 10
AccessoriesSmarty3XP 11
Instalation 12
Receptionofgoods 12
Transportationandstorage 12
Unpacking 12
Meaning of the symbols used in the instructions and on
the device 13
MountingdiagramSmarty2X/3XP1.1 13

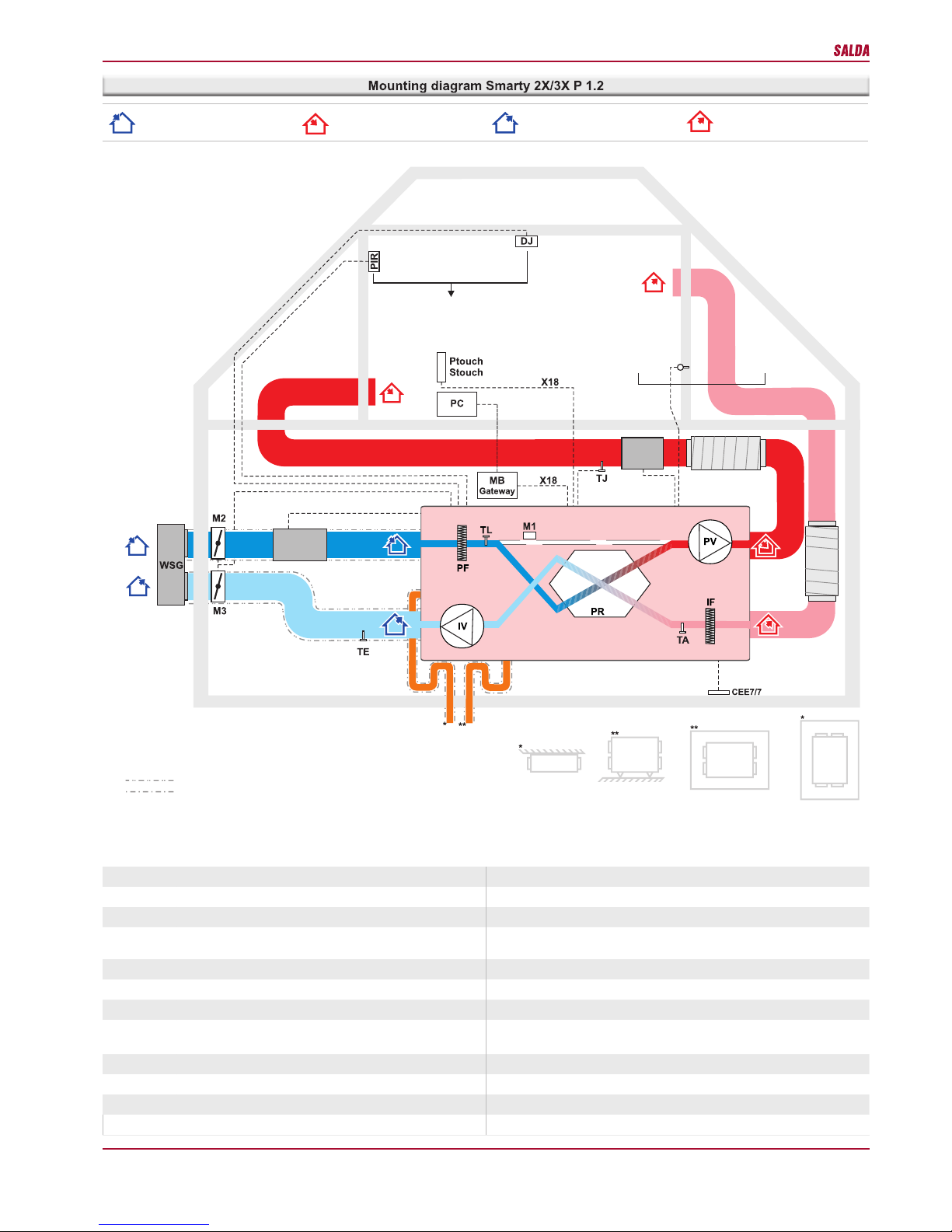

MountingdiagramSmarty2X/3XP1.2 14
MountingdiagramSmarty2X/3XP1.3 15
Placerequirementsfortheequipment 16
Mounting 16
Mounting positions 16
Drainage 17
Connectionofairducts 20
WiringDiagram 20
Connectionofaccessories 21
Controller miniMCB EX1 V1.0 21
Outdoor Air Pre-Heater 25
Outdoor Air Heater 27
Connection of Supply and Extract Air Dampers 31
Temperature sensores conection 31
Supply air CO2 or RH (input 0-10VDC) 32
Extract air CO2 or RH (input 0-10VDC) 32
Room CO2 transmitter installation recommendation 33
CO2 concentration according to Pettenkofer limit 33
Connection of Remote Control Panel or ModBus 34
Fire Protection Signal Input (Fire protection input (NC))
34
Connection of the unit to electric network 34
Start-uprecommendations 35
System protection 35
Recommendations before the start of the unit (before the
nal user) 35
Possible faults and troubleshooting 35
Notes 36

3
Smarty 2X/3X P
www.salda.lt
Device is manufactured in compliance with the following directives:
• Machinery Directive, 2006/42/EC;
• Low Voltage Directive, EEC 2006/95;
• Electromagnetic Compatibility Directive, 2004/108/EC.
Read this instruction very carefully before installing and using this equipment. Installation, connection and maintenance should be carried out by a
qualied technician and in accordance with the local rules and legal acts.
The company shall take no responsibility for the injuries su󰀨ered by the people or for the damaged property, if the safety requirements are not followed
or the device is modied without the permission of the manufacturer.
Main safety rules
Warning – pay attention Additional information
Stick the auxiliary label on the unit (on an easily accessible place) or on
the dashed place of a technical manual in order to keep the important
information about the unit.
STICK HERE
200003025238
IV
PV
KE
PE
M
0.084 kW; 0.92 A; 230/50 V/Hz; ~1
0.085 kW; 0.93 A; 230/50 V/Hz; ~1
kW; A; 0 V/Hz; ~0
kW; A; 0 V/Hz; ~0
0.005 kW; 0.021 A; 24/50 V/Hz; ~-
0.17 kW; 1.87 A; IP-34
TOTAL:
gu072489 / 2014.03 www.salda.lt
1
3
4
5
2
6
200003025238
IV
PV
KE
PE
M
0.084 kW; 0.92 A; 230/50 V/Hz; ~1
0.085 kW; 0.93 A; 230/50 V/Hz; ~1
kW; A; 0 V/Hz; ~0
kW; A; 0 V/Hz; ~0
0.005 kW; 0.021 A; 24/50 V/Hz; ~-
0.17 kW; 1.87 A; IP-34
TOTAL:
gu072489 / 2014.03 www.salda.lt
1
3
4
5
2
6
PAVYZDYS
EXAPLE
PAVADINIMAS
TITLE
M
200003025238
IV
PV
KE
PE
M
0.084 kW; 0.92 A; 230/50 V/Hz; ~1
0.085 kW; 0.93 A; 230/50 V/Hz; ~1
kW; A; 0 V/Hz; ~0
kW; A; 0 V/Hz; ~0
0.005 kW; 0.021 A; 24/50 V/Hz; ~-
0.17 kW; 1.87 A; IP-34
TOTAL:
gu072489 / 2014.03 www.salda.lt
1
3
4
5
2
6
ESEMPIO
TITOLO
200003025238
IV
PV
KE
PE
M
0.084 kW; 0.92 A; 230/50 V/Hz; ~1
0.085 kW; 0.93 A; 230/50 V/Hz; ~1
kW; A; 0 V/Hz; ~0
kW; A; 0 V/Hz; ~0
0.005 kW; 0.021 A; 24/50 V/Hz; ~-
0.17 kW; 1.87 A; IP-34
TOTAL:
gu072489 / 2014.03 www.salda.lt
1
3
4
5
2
6
MUSTER
TITEL
200003025238
IV
PV
KE
PE
M
0.084 kW; 0.92 A; 230/50 V/Hz; ~1
0.085 kW; 0.93 A; 230/50 V/Hz; ~1
kW; A; 0 V/Hz; ~0
kW; A; 0 V/Hz; ~0
0.005 kW; 0.021 A; 24/50 V/Hz; ~-
0.17 kW; 1.87 A; IP-34
TOTAL:
gu072489 / 2014.03 www.salda.lt
1
3
4
5
2
6
ПPИМEP
НАЗВАНИЕ
200003025238
IV
PV
KE
PE
M
0.084 kW; 0.92 A; 230/50 V/Hz; ~1
0.085 kW; 0.93 A; 230/50 V/Hz; ~1
kW; A; 0 V/Hz; ~0
kW; A; 0 V/Hz; ~0
0.005 kW; 0.021 A; 24/50 V/Hz; ~-
0.17 kW; 1.87 A; IP-34
TOTAL:
gu072489 / 2014.03 www.salda.lt
1
3
4
5
2
6
PRZYKŁAD
TYTUŁ
1 – Logo
2 – Internal usage code
3 – Brand name
4 – Technical data
5 – Units number
6 – Web address
Danger
• Before performing any electricity or maintenance tasks make sure, that the device is disconnected from the mains.
• Before performing any installation or maintenance tasks, make sure that all moving parts of the device have stopped.
• Make sure that the fans can not be entered through air ducts or branch openings.
• If you notice liquids on electric parts or connections that bear voltage, stop the operation of the appliance.
• Do not plug the device into the mains, that di󰀨ers from the one indicated on the label or on the housing.
• Voltage of the mains should comply with the electrotechnical parameters indicated on the label.
• The device should be earthed in accordance with the rules of installation of electric appliances. It is forbidden to turn on and use
unearthed device. Follow the requirements of the device’s labels that indicate Danger.
Warnings
• Connection of electricity and maintenance of the device should be performed only by a qualied personnel, in accordance with the
manufacturer’s instructions and valid safety requirements.
• In order to reduce the risk during installation and maintenance, suitable protective clothes should be worn.
• Beware of sharp angles while performing installation and maintenance tasks.
• Do not touch heating elements until they haven’t cooled down.
• Some devices are heavy, thus one should be very careful while transporting and installing. Use suitable lifting equipment.
• While connecting electricity to the mains a circuit breaker of suitable size is necessary.
Warning!
• If the device is installed in a cold environment, make sure that all connections and tubes are properly isolated. Intake and discharge
air ducts should be isolated in all cases.
• Openings of the ducts should be covered during transportation and installation.
• Do not connect humidity transducers to the ventilation system.
Before starting the equipment
• make sure, that there are no strange objects inside;
• manually check whether fans are not stuck or blocked;
• if rotary heat exchanger is installed in the device, make sure that it is not stuck or blocked;
• check the grounding;
• make sure that all components and accessories are connected in accordance with the project or provided instructions.
Danger: Fumes
SaldaAntifrostsystem uses dis-balancing of the air ow and it may cause negative pressure in premises. Great care should be taken
when using at the same time in premises as another heating appliance what depend on the air in premises. Such appliances include
gas, oil, wood or coal-red boilers and heaters, replaces, continuous ow or other water heaters, gas hobs, cookers or ovens which
draw air in from the room and duct exhaust gases out through a chimney or extraction ducting. The heating appliance can be starved
of oxygen, impairing combustion. In exceptional cases harmful gases could be drawn out of the chimney or extraction ducting back
into the room. In this case we strictly recommend to turn o󰀨 SaldaAntifrost and use an external preheater for heat exchanger anti-frost
protection (see SaldaAntifrost function on the Remote controller manual)

4
Smarty 2X/3X P
www.salda.lt
Smarty 2X/3X P are residential air handling unit with a high e󰀩ciency (up to 90 %) counter ow heat exchanger. The unit provides ventilation in the
home and takes the heat from the exhausted air. AHU complies with ErP 2018** and Passivhaus requirements. The unit is operated by a separate
remote control panel or though separate MB-Gateway by PC. Remote control panel and MB-Gateway are optional and not included in standard pack-
age. Control functions depend on selected control board type: MiniMCB or MiniMCB basic.
Smarty 2X/3XP operates within the limits of the airow diagrams and is suitable for indoor operation only. Required ambient temperatures must be
from +5 oC to +40 oC. For the cold climate zones (air temperatures below -5 oC, integrated or optional pre-heater is required.
Not suitable for swimming pools, saunas and other
similar facilities.
Product name
Control board
Type
Heat recovery
Temperature
control
Bypass damper
Pressure sen-
sor
(lter pollution
monitoring)
Optional heating elements
*- only pre-heater or heater
Duct based Air
Pre-Heater
Duct based
Air Heater
Smarty 2X P 1.1 Mini MCB Premium + + + - + +
Smarty 2X P 1.2 Mini MCB Basic Advanced + + + - +*
Smarty 2X P 1.3 Mini MCB Basic Basic + + - - +*
Smarty 3X P 1.1 Mini MCB Premium + + + + + +
Smarty 3X P 1.2 Mini MCB Basic Advanced + + + - +*
Smarty 3X P 1.3 Mini MCB Basic Basic + + - - +*
Thank you for purchasing the devices of our company!
** ‒ Version 1.3 is provided without circulation dampers and does not meet the requirements of Eco design

5
Smarty 2X/3X P
www.salda.lt

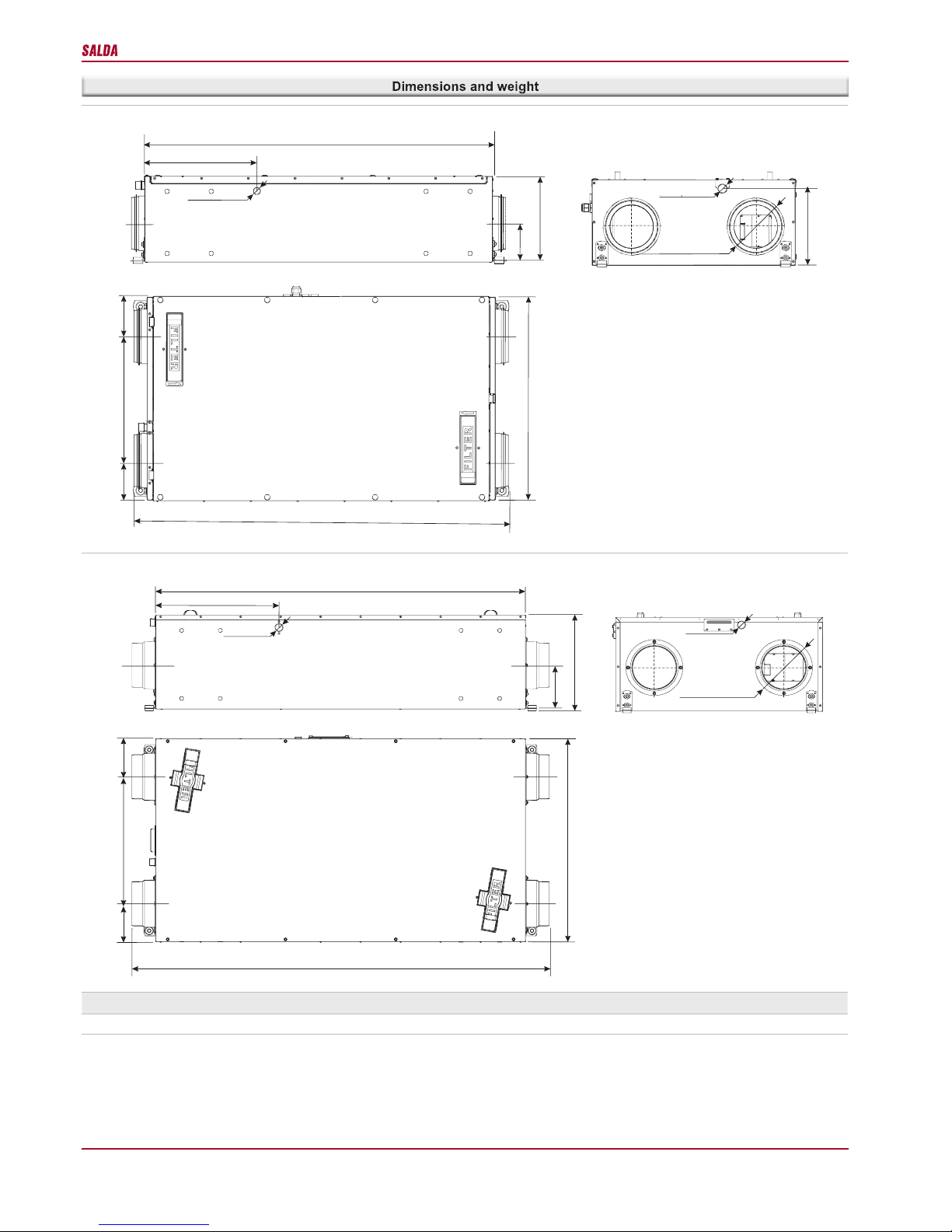

Smarty 2X P
360 mm 115 mm
115 mm
1043 mm
590 mm
250 mm
1009 mm
326 mm
113 mm
G3/8"
ø 21,3 mm
ø 125 mm/160 mm*
223 mm
Smarty 3X P
1225 mm
408,5 mm
G3/8"
150 mm
324 mm
ø 21,3 mm
ø 150/160 mm*
1381,5 mm
685,5 mm
128 mm
128 mm 429,5 mm
Smarty 2X P Smarty 3X P
Weight (without package and accessories) [kg] 30 53
* With respect to the diameter of a used air duct
Using air ducts of 125 mm, an NPU 125 coupling is
required.
G3/8”
ø 21,3 mm
ø 150/160 mm*
320 mm
ø 21,3 mm

6
Smarty 2X/3X P
www.salda.lt
NOTE. Subject to technical modication
Smarty 2X P LWA total, dB(A) LWA, dB(A)
125 Hz 250 Hz 500 Hz 1 kHz 2 kHz 4 kHz 8 kHz
Supply 59,0 44,0 52,0 51,0 53,0 53,0 51,0 36,0
Exhaust 55,0 42,0 47,0 47,0 50,0 48,0 44,0 29,0
Surrounding 47,1 34,7 42,7 42,8 37,0 33,3 33,0 31,2
Measured at ow/pressure [m3/h / Pa] 153/50
Smarty 3X P LWA total, dB(A) LWA, dB(A)
125 Hz 250 Hz 500 Hz 1 kHz 2 kHz 4 kHz 8 kHz
Supply 63,1 49,4 64,7 56,8 52,9 49,4 41,1 30,8
Exhaust 49 37,5 50,2 42,8 32,3 28,2 16,8 17,3
Surrounding 49,3 40,0 46,7 46,5 37,7 31,5 21,2 20,4
Measured at ow/pressure [m3/h / Pa] 245/50
Smarty 2X P 1.1 2X P 1.2 2X P 1.3 3X P 1.1 3X P 1.2 3X P 1.3
Purpose residential residential residential residential residential residential
Energy e󰀩ciency class (EU 1254/2024) [kW/(m2a)] A A - A A -
Thermal e󰀩ency of heat recovery (EN 13141-7) [%] 82 82 82 87 87 87
SPI (EN 13142) [W/(m3/h)] 0,32 0,32 0,32 0,27 0,27 0,27
Reference ow (EN 13141-7) [m3/s] 0,04 0,04 0,04 0,07 0,07 0,07
Reference pressure di󰀨erence (EN 13141-7) [Pa] 50 50 50 50 50 50
Tightness class (EN 13141-7) A1 A1 A1 A1 A1 A1
Maximum ow rate (EN 13141-7) [m3/h] 219 219 219 350 350 350
Exhaust air fan
phase/voltage [50 Hz/VAC] 1/230 1/230 1/230 1/230 1/230 1/230
power/current [kW/A] 0,051/0,4 0,051/0,4 0,051/0,4 0,085/0,75 0,085/0,75 0,085/0,75
speed [min-1] 4525 4525 4525 3200 3200 3200
control input [VDC] 0-10 0-10 0-10 0-10 0-10 0-10
protection class IP 44 IP 44 IP 44 IP 54 IP 54 IP 54
insulation class B B B B B B
Supply air fan
phase/voltage [50 Hz/VAC] 1/230 1/230 1/230 1/230 1/230 1/230
power/current [kW/A] 0,051/0,4 0,051/0,4 0,051/0,4 0,085/0,75 0,085/0,75 0,085/0,75
speed [min-1] 4525 4525 4525 3200 3200 3200
control input [VDC] 0-10 0-10 0-10 0-10 0-10 0-10
protection class IP 44 IP 44 IP 44 IP 54 IP 54 IP 54
insulation class B B B B B B
Integrated electrical preheater [kW] - - - - - -
Integrated electrical heater [kW] - - - - - -
By-pass damper
voltage [VDC] 24 24 -** 24 24 -**
power/current [kW/A] 0,001/0,048 0,001/0,048 -** 0,001/0,048 0,001/0,048 -**
control input threaded threaded -** threaded threaded -**
protection class IP40 IP40 -** IP40 IP40 -**
Integrated outdoor air damper - - - - - -
Integrated exhaust air damper - - - - - -
Total power/current consumption [kW/A] 0,10/0,85 0,10/0,85 0,1/0,85 0,17/1,55 0,17/1,55 0,17/1,5
Automatic control integrated miniMCB miniMCB
basic
miniMCB
basic miniMCB miniMCB basic
miniMCB
basic
Insulation of walls [mm] 20 20 20 30 30 30
Exhaust air lter (class, dimensions LxWxH) [mm] MPL G4 (185x168x25) MPL G4 (225x195x25)
Supply air lter (class, dimensions LxWxH) [mm] MPL G4 (185x168x25) MPL G4 (225x195x25)
Fan type EC EC EC EC EC EC
Impeller type backwards
curved wings
backwards
curved wings
backwards
curved wings
backwards
curved wings
backwards
curved wings
backwards
curved wings
Device protection class IP 32 IP 32 IP 32 IP 32 IP 32 IP 32

7
Smarty 2X/3X P
www.salda.lt
operational limits
power consumption
Smarty 2X P Smarty 3X P
Supply air Supply air
60
50
40
30
20
10
0
600
500
400
300
200
100
50
14
150
42
200 250
56 69
300
83
60
50
40
30
20
10
0
600
500
400
300
200
100
50
14
150
42
200 250
56 69
300
83
600
500
400
300
200
100
50
14
150
42
200 250
56 69
300
83
50
14
150
42
200 250
56 69
300
83
v [m /h]
3
Δ P [Pa]
stat
v [l/s]
Δ P [Pa]
stat
v [l/s]
v [m /h]
3
Δ P [Pa]
stat
v [m /h]
3
v [l/s]
P [W]
Δ P [Pa]
stat
v [m /h]
3
v [l/s]
P [W]
v [m /h]
3
Δ P [Pa]
stat
v [l/s]
Δ P [Pa]
stat
v [l/s]
v [m /h]
3
Δ P [Pa]
stat
v [m /h]
3
v [l/s]
P [W]
Δ P [Pa]
stat
v [m /h]
3
v [l/s]
P [W]
Exhaust air Exhaust air
60
50
40
30
20
10
0
600
500
400
300
200
100
50
14
150
42
200 250
56 69
300
83
60
50
40
30
20
10
0
600
500
400
300
200
100
50
14
150
42
200 250
56 69
300
83
600
500
400
300
200
100
50
14
150
42
200 250
56 69
300
83
50
14
150
42
200 250
56 69
300
83
v [m /h]
3
Δ P [Pa]
stat
v [l/s]
Δ P [Pa]
stat
v [l/s]
v [m /h]
3
Δ P [Pa]
stat
v [m /h]
3
v [l/s]
P [W]
Δ P [Pa]
stat
v [m /h]
3
v [l/s]
P [W]
v [m /h]
3
Δ P [Pa]
stat
v [l/s]
Δ P [Pa]
stat
v [l/s]
v [m /h]
3
Δ P [Pa]
stat
v [m /h]
3
v [l/s]
P [W]
Δ P [Pa]
stat
v [m /h]
3
v [l/s]
P [W]
Specic fan power (SFP) Specic fan power (SFP)
60
50
40
30
20
10
0
600
500
400
300
200
100
50
14
150
42
200 250
56 69
300
83
60
50
40
30
20
10
0
600
500
400
300
200
100
50
14
150
42
200 250
56 69
300
83
600
500
400
300
200
100
50
14
150
42
200 250
56 69
300
83
50
14
150
42
200 250
56 69
300
83
v [m /h]
3
Δ P [Pa]
stat
v [l/s]
Δ P [Pa]
stat
v [l/s]
v [m /h]
3
Δ P [Pa]
stat
v [m /h]
3
v [l/s]
P [W]
Δ P [Pa]
stat
v [m /h]
3
v [l/s]
P [W]
v [m /h]
3
Δ P [Pa]
stat
v [l/s]
Δ P [Pa]
stat
v [l/s]
v [m /h]
3
Δ P [Pa]
stat
v [m /h]
3
v [l/s]
P [W]
Δ P [Pa]
stat
v [m /h]
3
v [l/s]
P [W]
Temperature e󰀩ciency Temperature e󰀩ciency
60
50
40
30
20
10
0
600
500
400
300
200
100
50
14
150
42
200 250
56 69
300
83
60
50
40
30
20
10
0
600
500
400
300
200
100
50
14
150
42
200 250
56 69
300
83
600
500
400
300
200
100
50
14
150
42
200 250
56 69
300
83
50
14
150
42
200 250
56 69
300
83
v [m /h]
3
Δ P [Pa]
stat
v [l/s]
Δ P [Pa]
stat
v [l/s]
v [m /h]
3
Δ P [Pa]
stat
v [m /h]
3
v [l/s]
P [W]
Δ P [Pa]
stat
v [m /h]
3
v [l/s]
P [W]
v [m /h]
3
Δ P [Pa]
stat
v [l/s]
Δ P [Pa]
stat
v [l/s]
v [m /h]
3
Δ P [Pa]
stat
v [m /h]
3
v [l/s]
P [W]
Δ P [Pa]
stat
v [m /h]
3
v [l/s]
P [W]
Temperature e󰀩ciency (balanced mass ow):
Extract air = 20 °C/60 % RH
Outdoor air = -7 °C / 2 °C / 7 °C

8
Smarty 2X/3X P
www.salda.lt
Standard package (without optional accessories) includes:
anti-vibration rubbers
4 pcs.
caps of a cover screws
8 pcs.
(only Smarty 2XP)
supply air sensor TJ
1 pc.
key
1 pc.
condensate outlet pipe
G3/8
1 pc.
* ‒ when relative humidity of extracted air is lower than 35 %.
** ‒ uses dis-balancing of the air ow and it may cause negative pressure in premises.
Place of operation Indoors / outdoors / indoors and outdoors /
outdoors with special accessories
Operation in explosive environment impossible
Transporting of the polluted air impossible
Outdoor air temeperature without preheater (SaldaAntifrost** o󰀨) [°C] -5/+40*
Outdoor air temeperature without preheater (SaldaAntifrost** on) [°C] -15/+40
Outdoor air temperature limits with a selected pre-heater on an air duct [°C] -40/+40
Outdoor air max humidity [%] 90
Temperature limits of an extracted air [°C] +15 / +40
Extract air max humidity [%] 60

9
Smarty 2X/3X P
www.salda.lt
Smarty 2X P
6
1
Smarty 3X P
1. Mounting bracket with anti-vibration mounts - 4 pcs.
2. Outdoor air lter and the cover (IF)
3. Outdoor air temperature sensor (TL)
4. Bypass damper (M1) ‒ only 1.1 and 1.2 versions
5. Control board
6. CE7/7 power supply cable - 3m, supply air sensor TJ
7. Pressure sensor (only Smarty 3X P 1.1) ‒ 2 pcs.
8. Supply air fan (PV)
9. Air ow marking
10. Flange 4 pcs.
11. Condensate tray
12. Exhaust air fan (IV)
13. Condensate discharge ducts
14. Heat exchanger (PR)
15. Extract air sensor (TA)
16. EPP casing
17. Extract air lter and the cover (PF)
18. Galvanized steel casing
outdoor air supply air exhaust air extract air

10
Smarty 2X/3X P
www.salda.lt
AP AKS SKG
Ptouch Stouch MB Gateway
ALU EKA EKA NIS
MAXI BLUE
SET
S-KFF-U S-RFF-U-D-F2
S-KCO2 S-RCO2-F2 CM230-F-L
Smarty 2X P
legs
NPU WSG
TE MPL (G4) MPL (F7)
Coupling NPU 125 GFDNPUC002
Supply and extract air gratings WSG 160 GGRWSG0126_509
Dampers SKG 125 GSKSKG002
SKG 160 GSKSKG003
Clamps AP 125 GAPAP002
AP 160 GAPAP004
Silencers
AKS 125-3 GSOAKS036
AKS 125-6 GSOAKS003
AKS 125-9 GSOAKS004
AKS 125-10 GSOAKS034
AKS 125-12 GSOAKS052
AKS 160-6 GSOAKS005
AKS 160-9 GSOAKS006
AKS 160-10 GSOAKS029
AKS 160-12 GSOAKS039
Filters
MPL (G4) ZFEPF125
MPL (F7)
(optional) ZFEPF124
Remote control panels Ptouch PRGPU081
Stouch PRGPU51
Net module MB Gateway PRGPU082
Legs Smarty 2X P legs GAGKS-
MARTY168_1005_0
Condensate pump MAXI BLUE SET PRGSIK002
Channel humidity transmitter S-KFF-U ZAKKT0051
Humidity transmitter RH S-RFF-U-D-F2 ZAKKT0050
CO2 sensors S-KCO2 ZAKKT0049
S-RCO2-F2 ZAKKT0048
Actuator for damper CM230-F-L ZAKP0076
Ventilation grille ALU 125 GGRALU002
Temperature sensor 3 m TE
(optional) PJUT0063
Electrical heaters
EKA 125-0,3-1f PSIEKA063
EKA NIS 125-0,3-1f PSIEKANIS18
EKA 125-0,6-1f PSIEKA060
EKA NIS 125-0,6-1f PSIEKANIS02
Electrical preheaters
EKA 125-0,3-1f PSIEKA063
EKA NIS 125-0,3-1f PSIEKA031
EKA 125-0.6-1f PSIEKA060
EKA NIS 125-0,6-1f PSIEKANIS02
EKA 125-1,2-1f PSIEKA051
EKA NIS 125-1,2-1f PSIEKANIS20
EKA 125-1,8-1f PSIEKA047
EKA NIS 125-1,8-1f PSIEKANIS22
EKA 160 1.0-1f PSIEKA031
EKA NIS 160-1,0-1f PSIEKANIS03
EKA 160-2.0-1f PSIEKA16004
EKA NIS 160-2,0-1f PSIEKANIS09

11
Smarty 2X/3X P
www.salda.lt
WSG AKS SKG
Ptouch Stouch MB Gateway
TE EKA EKA NIS
MAXI BLUE
SET
S-KFF-U S-RFF-U-D-F2
S-KCO2 S-RCO2-F2 CM230-F-L
Smarty 3X P
legs
MPL (G4) MPL (F7)
AP ALU
Supply and extract air gratings WSG 160 GGRWSG0126_509
WSG 150 GGRWSG0126_508
Dampers SKG 160 GSKSKG003
SKG 150 GSKSKG014
Actuator for damper CM230-F-L ZAKP0076
Temperature sensor 3 m TE PJUT0063
CO2 sensors S-KCO2 ZAKKT0049
S-RCO2-F2 ZAKKT0048
Channel humidity transmitter S-KFF-U ZAKKT0051
Humidity transmitter RH S-RFF-U-D-F2 ZAKKT0050
Remote control panels Ptouch PRGPU081
Stouch PRGPU51
Net module MB Gateway PRGPU082
Filters
MPL (G4) ZFEPF109
MPL (F7)
(pasirenkamas)
ZFEPF108
Legs Smarty 3X P legs GAGKS-
MARTY168_1000
Clamps AP 150 GAPAP003
AP 160 GAPAP004
Ventilation grille ALU 160 GGRALU003
Condensate pump MAXI BLUE SET PRGSIK002
Electrical heaters
EKA 160-0,6-1f PSIEKA018
EKA NIS 160-0,6-1f PSIEKANIS81
EKA 160-1,0-1f PSIEKA031
EKA NIS 160-1,0-1f PSIEKANIS03
Electrical preheaters
EKA 160-1,0-1f PSIEKA031
EKA NIS 160-1,0-1f PSIEKANIS03
EKA 160-1,2-1f PSIEKA16003
EKA NIS 160-1,2-1f PSIEKANIS23
EKA 160-2.4-1f PSIEKA16005
EKA NIS 160-2,4-1f PSIEKANIS24
EKA 160-5.0-2f PSIEKA16007
EKA NIS 160-5,0-2F PSIEKANIS27
Silencers
AKS 150-6 GSOAKS064
AKS 150-9 GSOAKS048
AKS 150-10 GSOAKS106
AKS 150-12 GSOAKS086
AKS 160-6 GSOAKS005
AKS 160-9 GSOAKS006
AKS 160-10 GSOAKS029
AKS 160-12 GSOAKS039

12
Smarty 2X/3X P
www.salda.lt
Each device is thoroughly checked before transportation. While receiving goods it is recommended to check whether devices were not damaged dur-
ing transportation. If a damage to the device is noticed, immediately address the representatives of a transport company. Please inform a representa-
tive of the manufacturer, if any deviation from the order is noticed.
• All units are packed in the factory to withstand regular conditions of transportation.
• Upon unpacking, check the unit for any damages caused during transportation. It is forbidden to install damaged units!!!
• The package is only for protection purpose!
While unloading and storing the units, use suitable lifting equipment to avoid damages and injuries. Do not lift units by holding on power supply cables,
connection boxes, air extract or exhaust anges. Avoid hits and shock overloads. Before installation units must be stored in a dry room with the rela-
tive air humidity not exceeding 70% (at +20 °C) and with the average ambient temperature ranging between +5 °C and +30 °C. The place of storage
must be protected against dirt and water.
• The units must be transported to the storage or installation site using forklifts.
• The storage is not recommended for a period longer than one year. In case of storage longer than one year, before the installation it is necessary
to verify whether the bearings of fans and motor rotate easily (turn the impeller by hand) and if the electric circuit insulation is not damaged or the
moisture is accumulated.
1
2
3
Unit Dimensions of a single package Dimensions of multipackage Max. number of transported pack-
ages
H1 [mm] L1 [mm] W1 [mm] H2 [mm] L2 [mm] W2 [mm] [pcs.]
Smarty 2X P 260 680 1120 2240 785 1155 8
Smarty 3X P 325 780 1400 2167 800 1430 6
H2
L2
W2
L1
W1
H1

13
Smarty 2X/3X P
www.salda.lt
outdoor air supply air exhaust air extract air
IV Extract air fan TJ Supply air temperature sensor
PV Supply air fan CEE7/7 Power cable with plug
PR Plate heat exchanger X18 Control panel connection place
PF Filter for supply air (G4/(F7 - optional)) M1 ByPass motor
IF Filter for extract air (G4) PC Personal computer
TA Extract air temperature sensor MBGateway Net module
TL Outdoor air temperature sensor Ptouch Control panel
TE** Exhaust air temperature sensor (** - shall be ordered
separately) Stouch Control panel
PIR Motion detector M2 Outdoor air damper actuator
DJ Smoke detector M3 Exhaust air damper actuator
WSG Supply and exhaust air grilles KE (EKA) Electric heater
PE (EKA
NIS/EKA) Electric preheater AKS*** Silencer (*** - recomendet)
AKS***
AKS***
AKS***
AKS***
PE (EKA
NIS/EKA)
KE
(EKA)
PE* (EKA
NIS/EKA)
KE*
(EKA)
AKS***
AKS***
PE* (EKA
NIS/EKA)
KE*
(EKA)
* and ** - positions of drainage installation:
‒ it’s recommended to insulate by 50 mm mineral wool
‒ it’s recommended to insulate by 25 mm mineral wool
Separate power supply source
Transmitter 1
CO2 or RH Transmitter 2
CO2 or RH
**

14
Smarty 2X/3X P
www.salda.lt
outdoor air supply air exhaust air extract air
IV Extract air fan TJ Supply air temperature sensor
PV Supply air fan CEE7/7 Power cable with plug
PR Plate heat exchanger X18 BMS or control panel connection place
PF Filter for supply air (G4/(F7 - optional)) PE* (EKA
NIS/EKA) Electric preheater
IF Filter for extract air (G4) PC Personal computer
TA Extract air temperature sensor MBGateway Net module
TL Outdoor air temperature sensor Ptouch Control panel
TE** Exhaust air temperature sensor (** - shall be ordered
separately) Stouch Control panel
PIR Motion detector M2 Outdoor air damper actuator
DJ Smoke detector M3 Exhaust air damper actuator
WSG Supply and exhaust air grilles KE * (EKA) Electric heater
M1 ByPass motor AKS*** Silencer (*** - recomendet)
AKS***
AKS***
AKS***
AKS***
PE (EKA
NIS/EKA)
KE
(EKA)
PE* (EKA
NIS/EKA)
KE*
(EKA)
AKS***
AKS***
PE* (EKA
NIS/EKA)
KE*
(EKA)
Separate power supply source
Transmitter 1*
CO2 or RH
* and ** - positions of drainage installation:
- It’s recommended to insulate by 50 mm mineral wool
- It’s recommended to insulate by 25 mm mineral wool
KE* or PE* - either pre-heater PE or heater KE shall be connected.
Transmitter 1* - it is possible to connect 1 CO2 or RH transmitter, which can be installed inside the building or in the ventilation duct.
**

15
Smarty 2X/3X P
www.salda.lt
outdoor air supply air exhaust air extract air
IV Extract air fan TJ Supply air temperature sensor
PV Supply air fan CEE7/7 Power cable with plug
PR Plate heat exchanger X18 BMS or control panel connection place
PF Filter for supply air (G4/(F7 - optional)) PE* (EKA
NIS/EKA) Electric preheater
IF Filter for extract air (G4) PC Personal computer
TA Extract air temperature sensor MBGateway Net module
TL Outdoor air temperature sensor Ptouch Control panel
TE** Exhaust air temperature sensor (** - shall be ordered
separately) Stouch Control panel
PIR Motion detector M2 Outdoor air damper actuator
DJ Smoke detector M3 Exhaust air damper actuator
WSG Supply and exhaust air grilles KE* (EKA) Electric heater
AKS*** Silencer (*** - recomendet)
AKS***
AKS***
AKS***
AKS***
PE (EKA
NIS/EKA)
KE
(EKA)
PE* (EKA
NIS/EKA)
KE*
(EKA)
AKS***
AKS***
PE* (EKA
NIS/EKA)
KE*
(EKA)
Separate power supply source
Transmitter 1*
CO2 or RH
* and ** - positions of drainage installation:
- It’s recommended to insulate by 50 mm mineral wool
- It’s recommended to insulate by 25 mm mineral wool
**
KE* or PE* - either pre-heater PE or heater KE shall be connected.
Transmitter 1* - it is possible to connect 1 CO2 or RH transmitter, which can be installed inside the building or in the ventilation duct.

16
Smarty 2X/3X P
www.salda.lt
• Installation should only be performed by qualied and trained sta󰀨.
• When connecting air ducts, consider the notices indicated on the casing of the unit.
• Before connecting to the air duct system, the connection openings of ventilation unit should be closed.
• When connecting the ducts , you should pay attention to the air ow direction indicated on the device housing.
• Do not connect the bends close to connection anges of the unit. The minimum distance of the straight air duct between the unit and the rst branch of
the air duct in the supply air duct must be 1xD, in air exhaust duct 3xD, where D is diameter of the air duct.
• It is recommended to use the accessories-holders. This will reduce vibration transmitted by the unit to the air duct system and environment.
• Enough space must be left for opening of the maintenance door and lter covers.
• If the installed ventilation unit is adherent to the wall, it may transmit noise vibrations to the premises. Though the level of noise caused by the fans is
admissible, it is recommended to mount the unit at the distance of 400 mm from the nearest wall. If it is not possible, the mounting of the unit is recom-
mended on the wall of the room where the level of noise is not important.
• Ducts are connected to the unit in such way that they could be easily disassembled and the heater could be removed from the unit when performing
service or repair works.
Z
Smarty 2X P Smarty 3X P
Space for door opening Z [mm] 1270 1550
1. Ceiling mounting with the cover downwards. The slope towards the tube 0,5 – 1o.
2. Horizontal mounting on the wall with condensate tube downwards. 1o slope towards tube.
3. Mounting on the wall with condensate tube downwards. Any slopes are necessary.
4. Levelling feet mounting:
a. remove coverings from holes;
b. screw the supports;
c. 1o slope towards tube.
1
2

17
Smarty 2X/3X P
www.salda.lt
Levelling supports are provided as the accessories, the
screws are included.
3
4
After hanging or setting a heat recovery unit (1), it is necessary to connect condensate discharge system (2-3). A pipe (3) (metal or plastic pipes are
connected using an elbow G3/8, if the device is placed on the legs; rubber pipes are connected using a strap, in other cases condensate pipe can be
extended in any direction) should be connected following this course: heat recovery unit (1), pipe (3) and sewerage system. The pipe (3) must have an
incline of not less than 3° (1 meter of a pipe shall be inclined down by 60 mm)! Before turning on the heat recovery unit (1), it is necessary to pour 0,5
l of water (or more) (pipe loop (3) should always be full) and to make sure, that water gets to the sewerage system! Otherwise, while the heat recovery
unit (1) is operating, water can get into the premises!
Condensate discharge system should be used in premises, where the ambient temperature must not be lower than 1° C! If it falls below 0°C, system
must be protected using thermal insulation!
It is not necessary to install the loop (3) of the pipe under the heat recovery unit (1), but it must be lower than the level of heat recovery unit (1).
1,0o
Possible positions for condensation measurement:
D = min 150 mm
1
23
3
a
b* c*
d

18
Smarty 2X/3X P
www.salda.lt
Smarty 2X P:
I II III
IV V
VI VII VIII
IX X XI
* Drain (I-XI) of the condensate is installed when the device is set in position b* or c* (shown in the illustrations above).
Before installing lateral condensate drainage, it is necessary to remove a plate (VI) in a metal part of the housing and make a hole. The cover (I-III)
should be removed, and a bath (IV-V), caps should be removed from the hole. Condensate drainage must be inserted into the hole (VII-VIII) and
lubricated with sealant (IX); a washer should be placed from the other side and screwed using a nut (X). Screwing is performed by hand, until the tip
of the condensate discharge lowers into EPP part (XI).

19
Smarty 2X/3X P
www.salda.lt
Before every heating season the condensate tube shall be
lled with water as indicated during the rst start-up! Before
every heating season the condensate tube shall be lled
with water as indicated during the rst start-up!
* Drain (I - XI) of the condensate is installed when the device is set in position b* or c* (shown in the illustrations above).
Before installing lateral condensate drainage, it is necessary to remove a plate (III) in a metal part of the housing and make a hole. The cover (I)
should be removed, and a bath (II), caps should be removed from the hole. Condensate drainage must be inserted into the hole (IV -V) and lubricated
with sealant (VI) ); a washer should be placed from the other side and screwed using a nut (VII)). Screwing is performed by hand, until the tip of the
condensate discharge lowers into EPP part (VIII).
Smarty 3X P:
I II
III IV V
VI VII VIII
Note. If the collector is situated upstream, install a system with a condensate pump (o󰀨ered as an accessory).

20
Smarty 2X/3X P
www.salda.lt
• Connected air ducts must be straight and have their own xing.
• Make sure that the fans can not be entered through air duct heads. If it is possible to enter the fan, protective grid should be installed. You can choose
it in our website.
• Do not reduce the diameter of the piping near air inlet or exhaust ducts. If you want to reduce the speed of air in the system, drop of pressure and
noise level, you can increase the diameter.
• In order to reduce the level of the noise in the air supply system, install dampers (see chapter on their installation).
• In order to reduce air loss in the system, the air ducts and prole parts should be of class C and higher. Their catalog can be found in our website.
• Outside air and exhaust system piping should be isolated in order to prevent heat loss and condensation.
• It is recommended to maintain a distance of up to 8 meters between air intake and air exhaust ducts. Air supplying system should be installed further
from potential air pollution sources.
• Use holders while installing air ducts next to the ventilation equipment. They suppress vibration and assure a rm installation of various system parts.
Necessary holders can be found in our catalog or website.
• A common mistake is that air ducts are connected in inappropriate place. On the ventilation equipment there are signs, indicating the air duct to be
connected. Before starting the system carefully check whether the work was performed properly.
For “Smarty 2X P” it is possible to use air ducts of two sizes: ø D1 - 125 mm (a), ø D2 - 160 mm (b).
NOTE. Using air ducts of ø D1 - 125 mm diameter, a coupling NPU 125 is required.
For “Smarty 3X P” it is possible to use air ducts of two sizes: ø D2 - 160 mm or 150 mm (b).
Electrical equipment connection to the control board terminals. Control board connectors shall be of the following cross sectional area.
Control board 0,5 mm21,5 mm22,5 mm2
MiniMCB X1, X2, X3, X4, X5, X6, X7 X9, X13, X14, X15, X16 X10, X11, X12, X17
MiniEX1 X19, X20, X21, X23 - -
Power supply - - Xp1
Automation E zone, connector Xp1 general power connection to the unit ~1/230 VAC.
D2
D1
D1
1
23
1
2
D1
D2
NPU
a:
b:
