Kett fv Series User manual

Grain / Rice Moisture Tester Riceter fv series
Operating Manual
Riceter
fv series
Grain Moisture Tester

2
Thank you for purchasing our Grain/Rice Moisture Tester, Riceter fv200
series. This tester can measure the moisture of grain by simple operation,
but proper operation is necessary for accurate moisture measurement.
Please read this operating manual carefully before use.
Note: The pictures in this manual are examples and may differ from
actual product.

1
Contents of Package ............................................................................ 2
Part Names .............................................................................................. 3
Description of Display ......................................................................... 4
How to Place Batteries ........................................................................ 6
Before Measurement ........................................................................... 7
Measurement ......................................................................................... 8
Average Value....................................................................................... 15
Storage.................................................................................................... 16
Specications ....................................................................................... 17
Table of contents

2

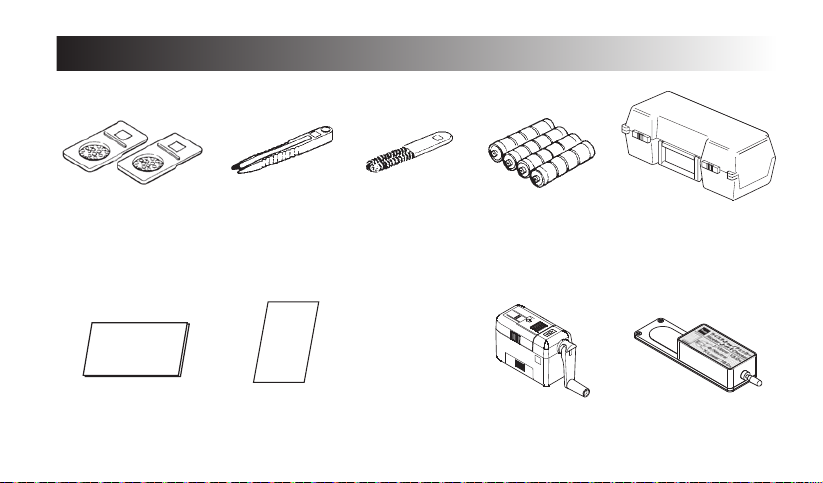

Contents of Package
Operating
manual
Rice husker
TR-130
Carrying case
Sample tray
(2 pcs)
Spoon
with tweezers
Cleaning brush Battery
(AA size x4 pcs)
Inspection
certicate
Riceter
J·m·f checker
<Option>

3
Part Names
“POWER” button
“SELECT” button
Display
Application table
Handle stop mark
Model No.
“MEA.” button (Measure)
“AVG.” button (Average)
Testing Chamber
Handle
Note : Application table differs depending on the model number. Above example is fv201.

4
This tester adopts the auto power off
function. The power of the tester is
automatically turned o in approx.
5 minutes after turning on the power if
no operation is performed.
Use of backlight in the display section
allows users to see the display clearly
even in the dark.
Battery Indicator
Moisture Content
Number of measurement
Application Name

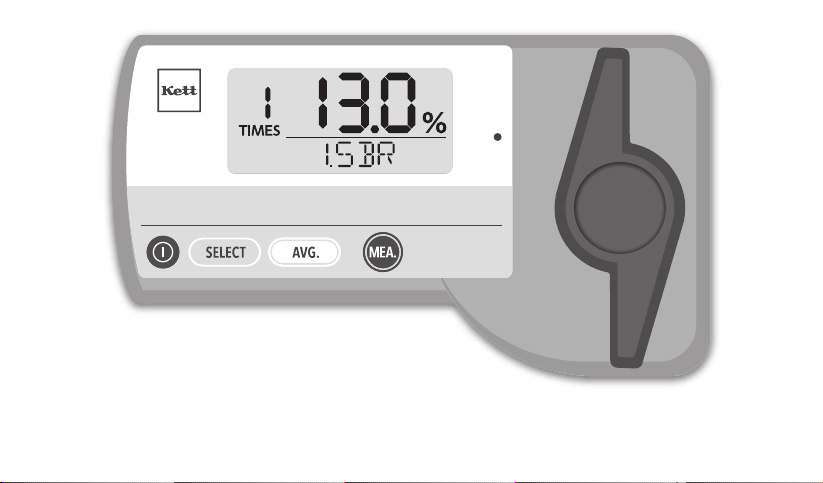

Description of Display

5
Meanings of special marks The display may show marks as follows:
Battery mark Caution Battery is dead. Replace the batteries with new ones.
(displayed immediately after pressing the power switch and while using)
Over mark Caution Displayed when the measured result exceeded the upper limit of the
measurement range
Under mark Caution
Displayed when the measured result fell below the lower limit of the
measurement range, or the contact between the test sample tray
and the measuring unit of the main body was poor.
Error mark
Main unit temperature is too low -5°C or lower.
Main unit temperature is too high 50°C or higher.
• When measurement is performed with the Sample tray empty or the measuring unit is
poorly insulated due to condensation, high humidity, contamination, etc., the over mark,
under mark, or other meaningless numbers may be displayed. In such a case, clean the
measuring unit and dry it well in a natural way.
Description of Display

6
123
Take out the main unit
from the carrying case.
Take out the batteries
from the battery holder.

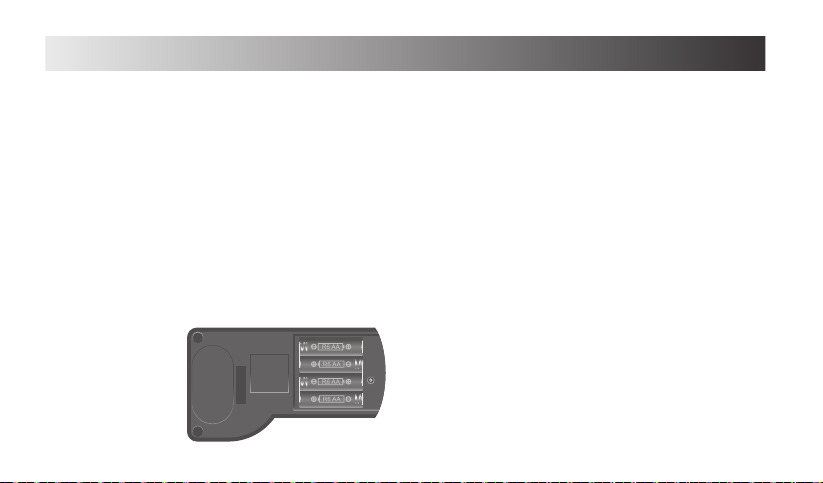

Open the battery box
on the back side of the
main unit, and place 4
batteries appropriately.
How to Place Batteries

7
Battery replacement
When the battery is running out, the
battery mark lights up the display.
Replace all 4 batteries (AA) with new
ones.
Those batteries are gradually discharging
even when the tester is not used.
It is recommended to always use new
batteries.
Place batteries in
the correct polarity
Riceter fv200 series is equipped with a
temperature compensation function.
However, the test unit and samples
are required to be thermally stabilized
before measurement.
Before MeasurementHow to Place Batteries

8
<All characters displayed after pressing the "POWER" button> <Model number and software version number>
Press the “POWER” button. All the characters and marks on the display section as
well as the backlight light up for 2 seconds, and then model number and software
version number are automatically displayed. The backlight goes out, and the tester
becomes a standby state for measuring.
1
Measurement
Ex) Riceter fv201

9
<Ready for measurement>
The backlight turns o and “Application”,
“Times”, “%” are displayed. It is ready
for measurement.
Measurement

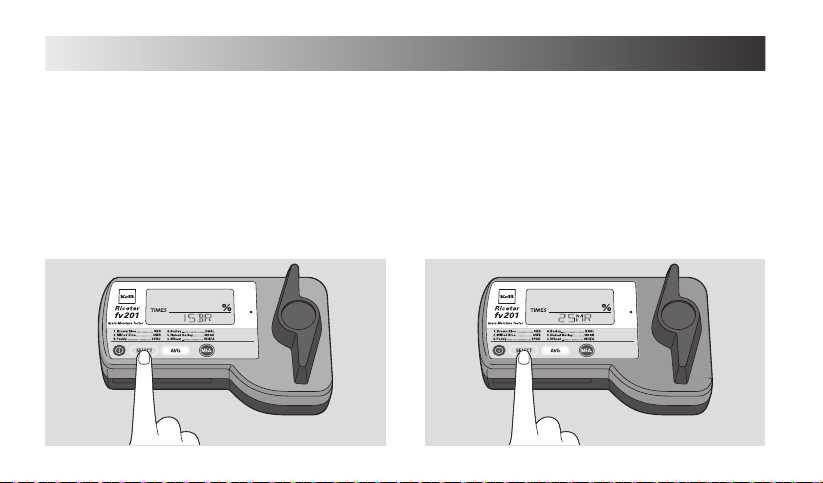

Press the "SELECT" button and repeat
until the abbreviation for the name
of the application you wish to test
appears.
The selected application is memorized
even after turning o the power.
2

10
3
Measurement
Evenly in one layer on the sample tray
Put the test sample evenly in one
layer on the sample tray.
Note: Both the amount of sample is too
much or insufficient may cause a
measurement error. Over more, too
much sample may cause wear on the
screw and damage the instrument.
Note: Sort out immature or dead grains from
the sample tray in order to avoid error.
Too muchInsucient Evenly placed
in one layer
× ×

11

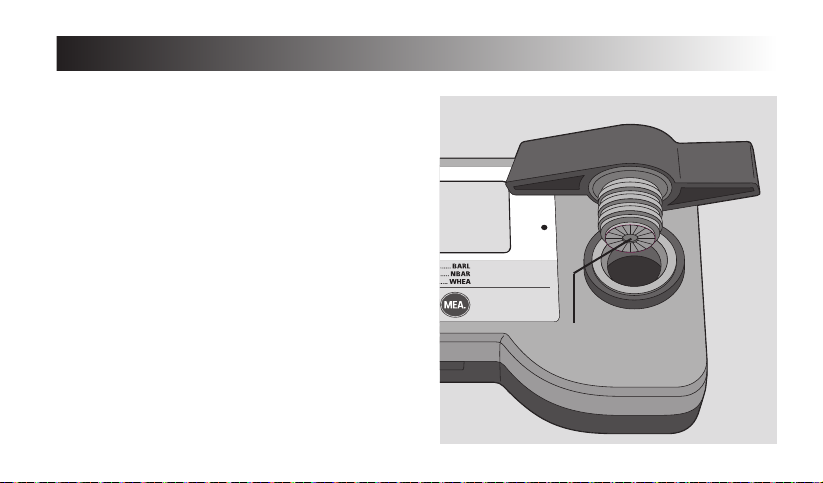

Rotate the handle counterclockwise
to let the sample tray enter the
testing chamber and insert it into the
testing chamber until the guide line
is hidden.
Note: Failure to observe this may cause the
tip of the handle to damage the plastic
portion of the sample tray. Be sure to
fully insert the tray.
Correct placement Incorrect placement
Designated position
4
Measurement
Guide line Guide line

12

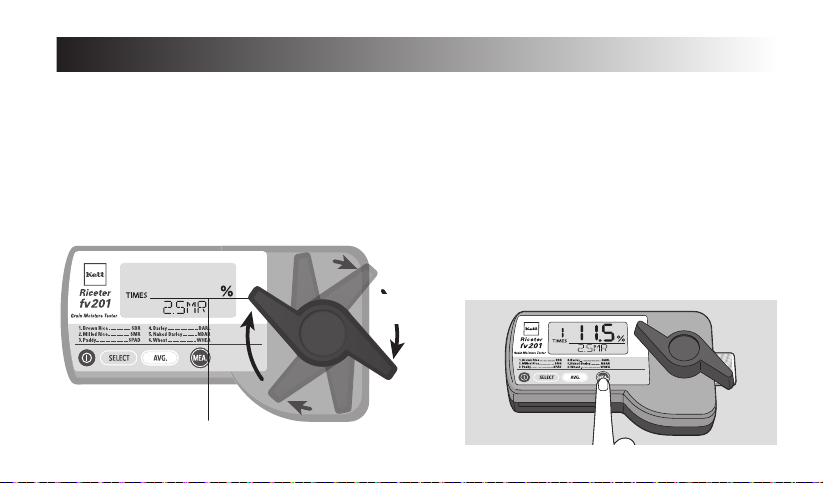

Slowly rotate the handle clockwise.
When the tip of the handle reaches
the sample (A), and fully rotate the
handle to the “handle stop mark”
holding the handle rmly (B).
Press the "MEA." button, the decimal
point blinks, the backlight lights up,
the moisture content and measuring
number are displayed thereafter. The
backlight goes out after 4 seconds,
but the moisture content remains
being displayed.
5 6
Measurement
Handle stop mark ●
(B) Fully rotating
(A) Slowly rotate
(B)
Fully rotate
(A) Slowly rotate
(B)(B)
Fully rotateFully rotate
(B)
Fully rotate

13
For continuous measurement, perform
the next measurement while the last
measured value is displayed. Replace the
test sample, fully rotate the handle, and
press the "MEA." button. The last measured
value disappears and the new measured
value is displayed. The measuring count
also changes at the same time.
7
Measurement
After a lapse of 5 minutes, the power
is automatically turned o and all the
displayed items are cleared.
Pressing the "POWER" button while
the display is in the on state allows
users to turn o the power manually.
Note: If the handle moves to the right side
of the red mark after being fully
rotated, the handle or main unit may
be damaged. Please inspect the unit at
our ocial distributor.

14
Clean the inside of the testing chamber, the sample tray, and metal plate after
every measurement. If the last test sample remains, proper measurement cannot
be performed. For continuous measurement, disconnect the handle and remove
the attached sample and contamination from the tip of the handle and contact
section.
8
1 2 3 4
Measurement

15
Pressing the "AVG." button after several
measurements can obtain the average
value of the measured moisture
contents. The average value calculated
from the measured values of the
measuring count 2 to 9 is displayed with
the average characters and number of
measurement times.
Note1: To obtain the average value of
moisture contents, press the
"AVG." button within 5 minutes
after measurement. After the last
measured value disappears, the
average calculation function does
not work.
The initial state is restored in the
following states:
• When the power is turned o
• When the "SELECT" button is pressed
• When the "AVG." button is pressed
• When the continuous measurement
count exceeds 9
Note 2: AVG characters are displayed while
an average value is displayed.
Average Value

16
Observe the following instructions
to keep moisture tester for a long
period of time:
• Be sure to remove the batteries.
• Clean every portion of the main body
in a careful manner. Especially for the
testing chamber, disconnect the handle
and clean the inner contact section
suciently.
• Be sure to put the tester together with
accessories in the carrying case and keep
them in a cool place avoiding direct
sunlight.
Storage
Thoroughly clean inside

17
Measurement method :Electrical resistance
Accuracy :0.5% (SEC, 9-20% range), Environment without abnormal electromagnetic noise*1
Operating temperature : 0 to + 40 °C
Display : Digital LCD with backlight illuminator, Minimum display digit : 0.1%
Number of applications : Refer to the application table
Temperature correction : Automatic temperature correction with thermistor
Automatic temperature
correction
:Unit and sample temperature correction
Note: Sample temperature correction is applicable for less than 20% moisture
sample
Power source : 1.5V (AA size) battery x 4
Auto power o : After 5 minutes of inactivity
Power consumption :Max. 0.3W
Dimensions and weight : (Only main unit) 164(W)x94(D)x64.5(H)mm, approx. 0.44kg
Accessories :Sample tray (2), Spoon with tweezers (1), Cleaning brush (1), AA size Battery (4),
Carrying case (1), Operating manual (1), Inspection certicate (1)
Options :Rice husker TR-130, Riceter J·m·f checker
*1 It has been conrmed that the environmental error caused by electromagnetic noise is within 0.5% by radiated radio
wave electromagnetic eld immunity test (EN6100-4-3) at test levels 3V/m :80MHz ~ 1GHZ, 1V/m: 2.0 ~ 2.7GHz.
Specications

Notes
● Copyingsomeorallofthecontentsofthisusermanualwithoutpriorwrittenconsentisstrictlyprohibited.
● Thecontentsofthisusermanualmaybechangedatanytimeinthefuturewithoutanypriornotice.
● Theappearance and/orrepresentationsofthe productsandpartsdepictedinthisusermanualmay notap-
pearexactlyastheiractualcounterparts,butthisdoesnotaffecttheiroperationorfunctionality.
● Thisusermanualwasintendedtobewrittenasclearlyandaccuratelyaspossible.However,ifyouareunclear
aboutanythinginthisusermanualornoticeanymissinginformation,pleasecontactusdirectly.
● Wecannotbeheldresponsibleforanyactionsoreffectsresultingfromtheexecutionofanyoperationsout-
linedinthisusermanual.
060449-01
