salmson AXESS 180 How to use

INSTALLATION ET MISE EN SERVICE
DES CIRCULATEURS DOMESTIQUES
INSTALLATION AND STARTING INSTRUCTIONS
FOR DOMESTIC CIRCULATORS
FRANCAIS
ENGLISH
INSTALLAZIONE E MESSA IN SERVIZIO DELLE
POMPE DI CIRCOLAZIONE DOMESTICHE ITALIANO
INSTALACION Y PUESTA EN SERVICIO
DE LOS CIRCULADORES DOMESTICOS ESPAÑOL
N.M.S.
STOCK N° 4.073.543/Ed.4-03/10
N X
Y i 33
AXESS

2

3
STANDARD rév.4 bt / cem
ROUMAIN
DECLARAğIE DE CONFORMITATE CE
Pompes SALMSON declarăcăprodusele citate în
prezenta declaraĠie sunt conforme cu dispoziĠiile
directivelor următoare úi cu legislaĠiile naĠionale care
le transpun: Echipamente electrice de joasătensiune”
06/95/CEE modificată, Compatibilitate
electromagnetică” 04/108/CEE modificată
úi, de asemenea, sunt conforme cu normele
armonizate citate în pagina precedentă.
ESPANOL
DECLARACIÓN DE CONFORMIDAD “CE”
Pompes SALMSON declara que los materiales
citados en la presenta declaración están conformes
con las disposiciones de las siguientes directivas y
con las legislaciones nacionales que les son
aplicables: Directiva sobre equipos de baja tensión
06/95/CEE modificada, Compatibilidad
electromagnética 04/108/CEE modificada
Igualmente están conformes con las disposiciones de
las normas armonizadas citadas en la página anterior.
DANSK
EF OVERENSSTEMMELSESERKLÆRING
SALMSON pumper erklærer, at produkterne, som
beskrives i denne erklæring, er i overensstemmelse
med bestemmelserne i følgende direktiver, samt de
nationale lovgivninger, der gennemfører dem:
Lav spændings direktivet 06/95/EØF, ændret
Direktiv 04/108/EØF vedrørende elektromagnetisk
kompatibilitet, ændret , De er ligeledes i
overensstemmelse med de harmoniserede europæiske
standarder, der er anført på forrige side.
ELLINIKA
ǻǾȁȍȈǾ CE ȈȊȂĭȍȃǿǹȈ
ǾPompes SALMSON įȘȜȫȞİȚ ȩIJȚ IJĮ ʌȡȠȧȩȞIJĮ ʌȠȣ
ȠȡȓȗȠȞIJĮȚ ıIJȘȞ ʌĮȡȠȪıĮ įȒȜȦıȘ İȓȞĮȚ ıȪȝijȦȞĮ ȝİ
IJȚȢ įȚĮIJȐȟİȚȢ IJȦȞ ʌĮȡĮțȐIJȦ ȠįȘȖȚȫȞ țĮȚ IJȚȢ İșȞȚțȑȢ
ȞȠȝȠșİıȓİȢ ıIJȚȢ ȠʌȠȓİȢ ȑȤİȚ ȝİIJĮijİȡșİȓ:
ȉȡȠʌȠʌȠȚȘȝȑȞȘ ȠįȘȖȓĮ ʌİȡȓ «ȋĮȝȘȜȒȢ IJȐıȘȢ»
06/95/ǼȅȀ, ȉȡȠʌȠʌȠȚȘȝȑȞȘ ȠįȘȖȓĮ ʌİȡȓ
«ǾȜİțIJȡȠȝĮȖȞȘIJȚțȒȢ ıȣȝȕĮIJȩIJȘIJĮȢ» 04/108/ǼȅȀ
țĮȚ İʌȓıȘȢ ȝİ IJĮ İȟȒȢ İȞĮȡȝȠȞȚıȝȑȞĮ İȣȡȦʌĮȧțȐ
ʌȡȩIJȣʌĮ ʌȠȣ ĮȞĮijȑȡȠȞIJĮȚ ıIJȘȞ ʌȡȠȘȖȠȪȝİȞȘ
ıİȜȓįĮ.
ITALIANO
DICHIARAZIONE DI CONFORMITA' "CE"
Pompes SALMSON dichiara che i prodotti descritti
nella presente
dichiarazione sono conformi alle disposizioni delle
seguenti direttive nonché alle legislazioni nazionali
che le traspongono: bassa tensione 06/95/CEE
modificata, compatibilità elettromagnetica
04/108/CEE modificata
Sono pure conformi alle disposizioni delle norme
europee armonizzate citate a pagina precedente.
NEDERLANDS
EG-VERKLARING VAN CONFORMITEIT
Pompes SALMSON verklaart dat de in deze
verklaring vermelde producten voldoen aan de
bepalingen van de volgende richtlijnen evenals aan
de nationale wetgevingen waarin deze bepalingen
zijn overgenomen: laagspanningsrichtlijn 06/95/EEG
gewijzigd, elektromagnetische compatibiliteit
04/108/EEG gewijzigd
De producten voldoen eveneens aan de
geharmoniseerde normen die op de vorige pagina
worden genoemd.
PORTUGUES
DECLARAÇÃO "C.E." DE CONFORMIDADE
Pompes SALMSON declara que os materiais
designados na presente declaração obedecem às
disposições da directiva e às legislações nacionais
que as transcrevem :Directiva de baixa voltagem
06/95/CEE, compatibilidade electromagnética
04/108/CEE
Obedecem também às normas europeias
harmonizadas citadas na página precedente:
SUOMI
CE-VAATIMUSTENMUKAISUUSVAKUUTUS
SALMSON-pumput vakuuttaa, että tässä
vakuutuksessa kuvatut tuotteet ovat seuraavien
direktiivien määräysten sekä niihin sovellettavien
kansallisten lakiasetusten mukaisia:
Matala jännite Muutettu 06/95/CEE,
Sähkömagneettinen yhteensopivuus Muutettu
04/108/CEE
Lisäksi ne ovat seuraavien edellisellä sivulla
mainittujen yhdenmukaistettujen normien mukaisia:
SVENSKA
ÖVERENSSTÄMMELSEINTYG
Pompes SALMSON intygar att materialet som
beskrivs i följande intyg överensstämmer med
bestämmelserna i följande direktiv och nationella
lagstiftningar som inför dem:
,EG-LŒgspŠnningsdirektiv 06/95/EWG med fšljan-
de Šndringar, elektromagnetisk kompatibilitet
04/108/CEE
Det överensstämmer även med följande
harmoniserade europeiska standarder som nämnts på
den föregående sidan.
ýESKY
PROHLÁŠENÍ O SHODċ
Spoleþnost Pompes SALMSON prohlašuje, že
výrobky uvedené v tomto prohlášení odpovídají
ustanovením níže uvedených smČrnic a národním
právním pĜedpisĤm, které je pĜejímají:
„Nízké napČtí“ 06/95/EHS ve znČní pozdČjších
zmČn,Elektromagnetická kompatibilita“ 04/108/EHS
ve znČní pozdČjších zmČn
a rovnČž splĖují požadavky harmonizovaných norem
uvedených na pĜedcházející stránce:
EESTI
VASTAVUSTUNNISTUS
Firma Pompes SALMSON kinnitab, et selles
vastavustunnistuses kirjeldatud tooted on kooskõlas
alljärgnevate direktiivide sätetega ning riiklike
seadusandlustega, mis nimetatud direktiivid üle on
võtnud: Madalpingeseadmed
06/95/EMÜ,Elektromagnetiline ühilduvus
04/108/EMÜ
Samuti on tooted kooskõlas eelmisel leheküljel ära
toodud harmoniseeritud standarditega::
LATVISKI
PAZIƻOJUMS PAR ATBILSTƮBU
EK NOSACƮJUMIEM
UzƼƝmums «Pompes SALMSON» deklarƝ, ka
izstrƗdƗjumi, kas ir nosaukti šajƗdeklarƗcijƗ, atbilst
šeit uzskaitƯto direktƯvu nosacƯjumiem, kƗarƯ
atsevišƷu valstu likumiem, kuros tie ir ietverti:
DirektƯva par elektroiekƗrtƗm, kas paredzƝtas
lietošanai noteiktƗs sprieguma robežƗs 06/95/EEK ar
grozƯjumiem ElektromagnƝtiskƗs saderƯbas direktƯva
04/108/EEK ar grozƯjumiem
un saskaƼotajiem standartiem, kas minƝti iepriekšƝjƗ
lappusƝ.
LIETUVISKAI
EB ATITIKTIES DEKLARACIJA
Pompes SALMSON pareiškia, kad šioje
deklaracijoje nurodyti gaminiai atitinka šiǐdirektyvǐ
ir jas perkelianþiǐnacionaliniǐƳstatymǐnuostatus :
Žema Ƴtampa »
06/95/EEB,pakeista,Elektromagnetinis
suderinamumas » 04/108/EEB, pakeista
ir taip pat harmonizuotas normas, kurios buvo
cituotos ankstesniame puslapyje.
MAGYAR
EK MEGFELELėSÉGI NYILATKOZAT
A Pompes SALMSON kijelenti, hogy a jelen
megfelelĘségi nyilatkozatban megjelölt termékek
megfelelnek a következĘirányelvek elĘírásainak,
valamint azok nemzeti jogrendbe átültetett
rendelkezéseinek:
Módosított 06/95/EGK „KisfeszültségĦvillamos
termékek (LVD)”, Módosított 04/108/EGK
„Elektromágneses összeférhetĘség (EMC)”
valamint az elĘzĘoldalon szereplĘ, harmonizált
szabványoknak:
MALTI
DIKJARAZZJONI TA’ KONFORMITÀ KE
Pompes SALMSON jiddikjara li l-prodotti
speƛifikati f’din id-dikjarazzjoni huma konformi
mad-direttivi li jsegwu u mal-leƥislazzjonijiet
nazzjonali li japplikawhom :
Vultaƥƥ baxx 06/95/CEE modifikat, Kompatibbiltà
elettromanjetika 04/108/CEEmodifikat
kif ukoll man-normi armoniĪĪati li jsegwu
imsemmija fil-paƥna preƛedenti.
POLSKI
DEKLARACJA ZGODNOĝCI CE
Firma Pompes SALMSON oĞwiadcza, Īe produkty
wymienione w niniejszej deklaracji sązgodne z
postanowieniami nastĊpujących dyrektyw i
transponującymi je przepisami prawa krajowego:
niskich napiĊü 06/95/EWG ze zmianą,
kompatybilnoĞci elektromagnetycznej 04/108/CEE
oraz z nastepującymi normami zharmonizowanymi
podanymi na poprzedniej stronie:
SLOVENCINA
PREHLÁSENIE EC O ZHODE
Firma SALMSON þestne prehlasuje, že výrobky
ktoré sú predmetom tejto deklarácie, sú v súlade s
požiadavkami nasledujúcich direktív
a odpovedajúcich národných legislatívnych
predpisov :
NízkonapäĢové zariadenia 06/95/ EEC pozmenená,
Elektromagnetická zhoda (EMC) 04/108/ EEC
pozmenená
ako aj s harmonizovanými normami uvedenými na
predchádzajúcej strane :
SLOVENŠýINA
IZJAVA O SKLADNOSTI
Pompes SALMSON izjavlja, da so izdelki, navedeni
v tej izjavi, v skladu z doloþili naslednjih direktiv in
z nacionalnimi zakonodajami, ki jih vsebujejo:
Nizka napetost 06/95/CEE spremenjeno
elektromagnetna združljivost 04/108/CEE
pa tudi z usklajenimi standardi, navedenimi na
prejšnji strani.
BULGARE
ȾȿɄɅȺɊȺɐɂə ɁȺ ɋɔɈɌȿɌɋɌȼɂȿ ɋɔɋ CE
ɉɨɦɩɢ SALMSON ɞɟɤɥɚɪɢɪɚɬ, ɱɟ ɩɪɨɞɭɤɬɢɬɟ
ɩɨɫɨɱɟɧɢ ɜɧɚɫɬɨɹɳɚɬɚ ɞɟɤɥɚɪɚɰɢɹ ɫɴɨɬɜɟɬɫɬɜɚɬ
ɧɚ ɪɚɡɩɨɪɟɞɛɢɬɟ ɧɚ ɫɥɟɞɧɢɬɟ ɞɢɪɟɤɬɢɜɢ ɢ
ɩɪɢɟɥɢɬɟ ɝɢ ɧɚɰɢɨɧɚɥɧɢ ɡɚɤɨɧɨɞɚɬɟɥɫɬɜɚ :
« ɇɢɫɤɨ ɧɚɥɹɝɚɧɟ » 06/95/CEE ɢɡɦɟɧɟɧɚ,
ȿɥɟɤɬɪɨɦɚɝɧɢɬɧɚ ɫɴɜɦɟɫɬɢɦɨɫɬ » 04/108/CEE
ɢɡɦɟɧɟɧɚ
ɤɚɤɬɨ ɢɧɚ ɯɚɪɦɨɧɢɡɢɪɚɧɢɬɟ ɫɬɚɧɞɚɪɬɢ,
ɭɩɨɦɟɧɚɬɢ ɧɚ ɩɪɟɞɢɲɧɚɬɚ ɫɬɪɚɧɢɰɚ.

12 h
9h 3h
6h

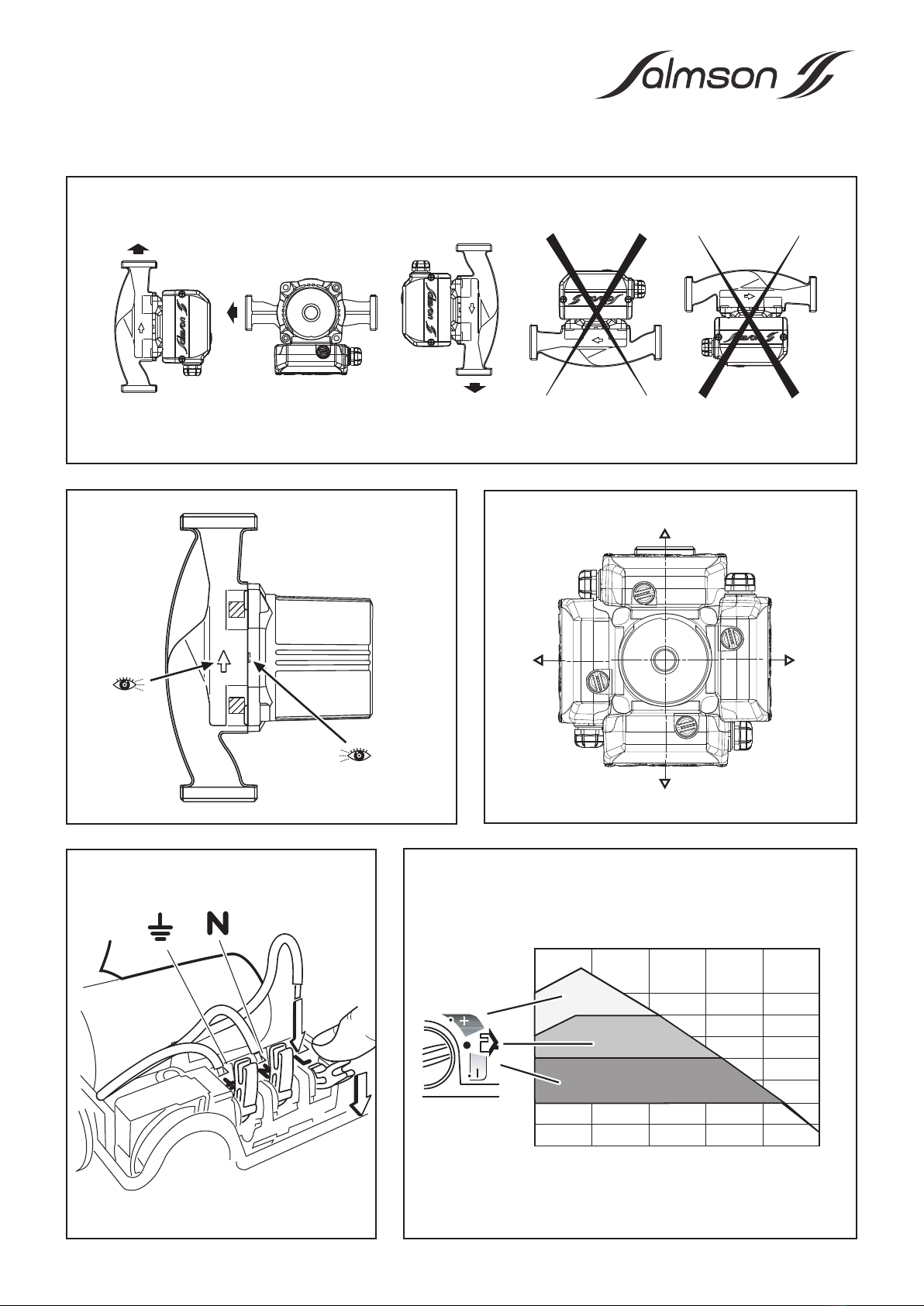

FIG. 1
FIG. 2
FIG. 4
FIG. 3
FIG. 5
0
0
0,5
1
1,5
2
2,5
3
3,5
4
4,5
0,5 1,5 2,512
4

5
1. GÉNÉRALITÉS
1.1 Applications
Pour la circulation accélérée de l'eau dans les circuits
ouverts ou fermés de chauffage central domestique
(individuel), et de climatisation.
1.2 Caractéristiques techniques
Plage de température : + 2° à + 95°C
Température ambiante : maxi + 40 °C
Pression de service maxi : 106 Pa (10 bars)
Pression mini :
1,5.104Pa (1.5 m ; 0.15 bar)
à l’aspiration (m CE*) à + 82 °C
:
3.104Pa (3 m ; 0.3 bar) à 95°C
:
105Pa (10 m ; 1 bar) à +110°C
Antigel (eau + glycol) : jusqu’à 50%
(A l’exclusion de tout autre liquide sans accord préalable).
Débit maxi (50 Hz) N Y
Xi 33 : 3 m3/h
*10,2 mCE = 1 bar = 105Pa
2. SÉCURITÉ
La présente notice devra être lue avec attention
avant installation et mise en service. On veillera en
particulier, au respect des points concernant la
sécurité du matériel vis à vis de l’utilisateur
intermédiaire ou final.
Cet appareil n'est pas prévu pour être utilisé par des
personnes (y compris des enfants) dont les capacités
physiques, sensorielles ou mentales sont réduites, ou
des personnes dénuées d'expérience ou de
connaissance, sauf si elles ont pu bénéficier, par
l'intermédiaire d'une personne responsable de leur
sécurité, d'une surveillance ou d'instructions préalables
concernant l'utilisation de l'appareil.
Il convient de surveiller les enfants pour s'assurer qu'ils
ne jouent pas avec l'appareil.
2.1 Sym oles des consignes du manuel
Risque potentiel mettant en danger la sécurité
des personnes.
Risque potentiel relatif à l’électricité mettant en
danger la sécurité des personnes.
Signale une instruction dont la non-
observation peut engendrer un
dommage pour le matériel et son fonctionnement.
3. TRANSPORT ET STOCKAGE
Dès réception du matériel, vérifier s’il n’a pas subi de
dommages durant son transport. En cas de défaut
constaté, prendre dans les délais prévus toutes
dispositions nécessaires auprès du transporteur.
Si le matériel livré devait être
installé ultérieurement, stockez-le dans
un endroit sec et protégez-le contre les chocs et
toutes influences extérieures (humidité, gel, etc...).
4. PRODUITS ET ACCESSOIRES
4.1 La pompe
A orifices filetés ou brides ovales selon modèle.
Le moteur est à rotor noyé, les coussinets sont auto-
lubrifiés.
Sélection manuelle par sélecteur à 3 positions.
Conformité : TF95
Classe d'isolation : F (155 °C)
Protection : IP42
Le moteur est auto-protégé, il ne nécessite aucune
protection extérieure.
Fréquence 50 Hz
Tension * (monophasé) 230 V
* Tension standard : tolérance 50 Hz ± 10 %.
4.2 Accessoires
Fournis : joints de raccords union ou de brides.
Conseillés : Raccords-union ou contre-brides ovales
à visser Vannes d’isolement...
5. INSTALLATION
5.1 Montage (voir FIG. 1)
- Veiller à l’accessibilité du circulateur.
- Montage direct sur tuyauterie, de préférence verticale,
et si possible sur le circuit retour chaudière ; jamais au
point le plus bas afin de le protéger contre les dépôts.
Pour le raccordement au réseau d’eau,
l’usage d’accessoires neufs est requis.
-L’axe du moteur doit être o ligatoirement horizontal.
- La flèche située sur le corps de pompe indique le
sens de circulation de l’eau (voir FIG. 2).
- Prévoir de part et d’autre du circulateur des vannes
d’isolement pour faciliter son démontage ou toute
intervention.
Si le circulateur doit être calorifugé, nous
recommandons de ne pas o struer les
encoches situées sur la ride moteur (voir FIG. 2).
ATTENTION !
ATTENTION !
ATTENTION !
ATTENTION !

6. MISE EN ROUTE
6.1 Remplissage - Dégazage
Ne jamais faire fonctionner le
circulateur SANS EAU.
- Ouvrir les vannes de part et d’autre du circulateur et
remplir complètement l’installation.
- Purger le circuit au point haut.
- Mettre sous tension le moteur pour mettre en service
le circulateur.
- Le réglage des plages de fonctionnement s’effectue
par changement de position du bouton sélecteur
(voir FIG. 5).
Risques de rûlure au contact du moteur. En
fonctionnement, sa température peut être
supérieure à 100 °C.
7. ENTRETIEN
Le circulateur ne nécessite aucun entretien particulier
en cours de fonctionnement.
Les coussinets moteur sont lubrifiés par le liquide
véhiculé.
Au début de chaque période de chauffe, ou après un
arrêt prolongé, s’assurer que le circulateur tourne
librement.
Nous recommandons de conserver la
oîte à ornes fermée pendant le
montage du circulateur.
5.2 Orientation de la oîte à ornes (voir FIG 3)
Si nécessaire, il est possible de changer l'orientation du
moteur, donc de la boîte à bornes.
- Retirer les vis de fixation du moteur sur le corps et
tourner le moteur dans la position souhaitée.
Prendre soin de ne pas endommager le
joint de corps et de le replacer
correctement.
Position de la oîte à ornes à 3 et 6 h
(appareil installé) à proscrire en
utilisation sur circuit eau glacée.
5.3 Raccordement électrique
Le raccordement électrique doit être effectué
par un électricien agréé et conformément aux
normes locales en vigueur.
Toutes les informations électriques du circulateur
figurent sur la plaque signalétique.
Réseau d’alimentation
Utiliser un câble à 3 conducteurs (3 x 1,5 mm2H05 VVF)
pour raccorder le réseau aux bornes correspondantes
du circulateur : PHASE (L) - NEUTRE (N) - TERRE ( )
(voir FIG. 4).
Le câ le d’alimentation ne doit pas être en
contact avec la tuyauterie ni toucher la
pompe ; s’assurer qu’il soit à l’a ri de toute
humidité.
Contrôler la protection de la ligne, la tension
d’alimentation requise et la fréquence du réseau.
Le circulateur doit être raccordé au réseau électrique
à l’aide d’un interrupteur ayant une distance
d’ouverture pour chaque pôle d’au moins
3 mm.
La prise de courant doit être équipée impérativement
d’une borne terre (norme NFC 15-100).
Après raccordement électrique, remettre le couvercle
de la boîte à bornes.
ATTENTION !
6
ATTENTION !
FRANCAIS
ATTENTION !
ATTENTION !

7
FRANCAIS
INCIDENTS
8.1LE CIRCULATEUR
EST BRUYANT
8.2LE CIRCULATEUR
NE DÉMARRE
PAS
CAUSES
a) Présence d’air :
)La pression à l’aspiration
est trop fai le :
c)Bruits importants de
circulation d’eau :
d)Corps étrangers dans la
roue :
a)Le circulateur n’est pas
alimenté électriquement :
)Corps étrangers dans la
roue :
REMÈDES
a) Positionner le bouton sélecteur en position 1.
b) Augmenter la pression dans le circuit.
c) Possibilités de positionner le bouton sélecteur différemment.
d) Démonter le moteur et nettoyer la roue.
a) - Vérifier le raccordement du moteur.
- Vérifier les fusibles de l’installation.
b) Démonter le moteur et nettoyer la roue.
8. INCIDENTS DE FONCTIONNEMENT
Avant toute intervention METTRE HORS
TENSION le circulateur.
Si un incident de fonctionnement venait à persister, nous vous
recommandons de vous adresser au SAV SALMSON, seuls habilités
pendant la période de garantie à procéder au démontage-
remontage de nos matériels.
HOTLINE TECHNIQUE 0 820 0000 44

8
1. GENERAL
1.1 Applications
For faster circulation of water in open- and closed-
circuit domestic (individual) central heating and air-
conditioning systems.
1.2 Specifications
Temperature range : +2° to +95°C
Ambient temperature : up to 40°C
Max. service pressure : 106 Pa (10 bar)
Min. suction pressure :
1,5.104Pa (1.5 m; 0.15 bar)
(m w.g.*) at + 82°C;
:
3.104Pa (3 m; 0.3 bar)
at +95°C;
:
105Pa (10 m; 1bar)
at +110°C
Antifreeze (Water + glycol)
: up to 50 %
(whith the exclusion of all other liquids without first
obtaining the agreement).
Max. flowrate (50 Hz) N Y
Xi 33 : 3 m3/h
*10,2 m w.g. = 1 bar = 105Pa
2. SAFETY
Read this data sheet carefully before installing and
starting up. Pay special attention to the points
concerning the safety of the equipment for the
intermediate or end user.
This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
Children should be supervised to ensure that they do
not play with the appliance.
2.1 Sym ols used in the manual
Potential risk that might endanger the safety of
the persons.
Safety instructions relating to electric risks.
If you do not consider this instruction, it
may involve a damage for the material
and its functioning.
3. TRANSPORT AND STORAGE
When taking delivery of the equipment, check that it
has not been damaged in transit. If anything is found
wrong, take the necessary steps with the carrier within
the allowed time.
If the equipment delivered is to e
installed at a later time, store it in a dry
place and protect it from impacts and outside
influences (moisture, frost, etc.).
4. PRODUCTS AND ACCESSORIES
4.1 The pump
With threaded ports or ovales flange according to
model.
The motor has a wet rotor and the bushings are self-
lubricating.
Manual selection by Three-position selector switch.
Compliance : TF95
Insulation class : F (155°C)
Protection : IP42
The motor is self-protected and needs no external
protection.
Frequency 50 Hz
Voltage * (1-phase) 230 V
* standard voltage : tolerance 50 Hz ± 10 %.
4.2 Accessories
supplied : Union’s gasket or flange’s gasket.
Recommended :
Unions or screw-on oval counter-flanges.
Isolating valves.
5. INSTALLATION
5.1 Assem ly (see FIG. 1)
-Make sure that the circulator is accessible.
- Assemble directly on a pipe, preferably vertical, and
if possible on the boiler return circuit; never at the low
point (to protect against deposits).
For connection with the water supply
network, the use of new accessories is
necessary.
-The motor shaft axis must always e horizontal.
- The arrow on the pump casing indicates the
direction of water flow (see FIG. 2).
- Install isolating valves on both sides of the circulator
to facilitate removal and other work on it.
If the circulator must e insulated, we
advise against o structing the
evacuation notches in the motor flange (see FIG. 2).
We recommend to keep the terminal
ox closed during the assem ly of the
circulator.
ATTENTION !
ATTENTION !
ATTENTION !
ATTENTION !
ATTENTION !
ENGLISH

9
5.2 Orientation of terminal ox (see FIG. 3)
If necessary, the orientation of the motor, and with it
that of the terminal box, can be changed.
-Remove the motor attachment screws and turn the
motor to the desired position.
Take care not to damage the casing
gasket, and reinstall it correctly.
The terminal ox should not e placed
at 3 and 6 o’clock on an ice water
circuit.
5.3 Electrical connection
The electrical connection must e made y a
qualified electrician and comply with
applica le local standards.
Complete electrical information about the circulator is
given on the data plate.
Power supply network
Use a three-conductor cable (3 x 1,5 mm2 H05 VVF) to
connect mains power to the corresponding terminals
of the circulator: phase (L), neutral (N), and earth ( )
(see FIG. 4).
The power ca le must not touch the pipe or the
pump; make sure that it is away from any
moisture.
Check line protection and the mains voltage and
frequency.
The circulator must be connected to the mains via a
switch with an opening distance, on each pole, of at
least 3 mm.
The power outlet must have an earthing contact.
After making the connections, put the cover back on
the terminal box.
6. STARTING UP
6.1 Filling, degassing
Never operate the circulator WITHOUT
WATER.
- Open the valves on both sides of the circulator and
fill the installation completely.
- Bleed the circuit at the high point.
- Power up the motor to start the circulator.
- The running ranges are adjusted by changing the
position of the selector switch (see FIG. 5).
Risk of urning. In operation, the motor casing
may e hotter than 100°C.
7. SERVICING
The circulator needs no special servicing in operation.
The motor bushings are lubricated by the liquid
pumped.
At the beginning of each heating season, or after a
prolonged shutdown, make sure that the circulator
turns freely.
ATTENTION !
ATTENTION !
ATTENTION !
ENGLISH
INCIDENT
8.1THE CIRCULATOR
IS NOISY
8.2THE CIRCULATOR
FAILS TO START
CAUSE
a) Air in circulator:
) The suction pressure is too
low:
c)Considera le flowing
water noise:
d)Foreign odies in impeller:
a)No power supply to
circulator:
) Foreign odies in impeller:
REMEDIES
a) Put the selector switch in position 1.
b) Raise the pressure in the circuit.
c) Consider a slower speed.
d) Remove the motor and clean the impeller.
a) - Check that the motor is connected.
- Check the fuses of the installation.
b) Remove the motor and clean the impeller.
8.
OPERATING TROUBLE
Switch the circulator OFF efore doing any
work on it.

10
1. GENERALITA’
1.1 Applicazioni
Per la circolazione accelerata dell’acqua nei circuiti
aperti o chiusi di riscaldamento centrale domestico
(individuale) e di climatizzazione.
1.2 Caratteristiche tecniche
Campo di temperatura : +2° a +95°C
Temperatura ambientale : 40°C al massimo
Pressione di servizio massima : 106 Pa (10 bar)
Pressione minima :
1,5.104Pa (1.5 m; 0.15 bar)
all’aspirazione a +82°C
(m/Col. Acqua)* :
3.104Pa (3m; 0.3 bar)
a +95°C
:
05Pa (10m ; 1bar)
a +110°C
Miscela acqua + glicol : fino a 50% (b)
(Ad ecclusare di altri liquiali se non richiesto
preventivamente).
Portata massima (50 Hz) N Y
Xi 33 : 3 m3/h
* (10,2 m/Col. Acqua = 1 bar = 105Pa)
2. SICUREZZA
Le presenti istruzioni vanno lette attentamente prima
di procedere all’installazione ed alla messa in servizio.
Verificare in particolare il rispetto dei punti relativi alla
sicurezza del materiale nei confronti dell’utente
intermedio o finale.
Questo apparecchio non è destinato a essere
utilizzato da persone (compresi i bambini) con limitate
capacità fisiche, sensoriali o mentali oppure mancanti
di esperienza e/o conoscenza, a meno che non
vengano sorvegliate da una persona responsabile
della loro sicurezza o abbiano ricevuto da quest'ultima
istruzioni su come utilizzare l'apparecchio.
I bambini devono essere sorvegliati al fine di garantire
che non giochino con l'apparecchio.
2.1 Sim oli delle consegne del manuale
Rischio potenziale che può mettere in pericolo la
sicurezza delle persone.
Avvertenze relative ai rischi elettrici.
Segnala un'istruzione la cui mancata
osservanza può provocare un danno
al materiale o comprometterne il funzionamento.
3. TRASPORTO E STOCCAGGIO
Al ricevimento del materiale, verificare che esso non
abbia subito eventuali danni durante il trasporto. In
caso venga constatato un difetto, prendere nei debiti
tempi le misure utili nei confronti del vettore.
Se il materiale consegnato è destinato
ad essere installato ulteriormente,
immagazzinarlo in un locale asciutto e proteggerlo
dagli urti e da ogni influenza esterna (umidità, gelo,
ecc.).
4. PRODOTTI ED ACCESSORI
4.1 La pompa
A orifizi filettati o flange ovale secondo i modelli.
Motore a rotore inondato. Cuscinetti autolubrificati.
Selezione manuale per selettore a 3 posizioni.
Conformità : TF95
Classe d’isolamento : F (155°C)
protezione
: IP42
Il motore è autoprotetto e non richiede nessuna
protezione esterna.
Frecuenza 50 H
Tensione * (mono) 230 V
* Tensione standard : tolleranza 50 Hz ± 10 %
4.2 Accessori
Consegnati : Garnizone bocchettoni o di flange.
Acconsigliati :
Bocchettoni o controflange ovali da avvitare
Valvole di isolamento...
5. INSTALLAZIONE
5.1 Montaggio (vedi FIG. 1)
- Assicurarsi che la pompa sia accessibile.
- Montaggio diretto sulle tubazioni preferibilmente verticali
e possibilmente sul circuito di ritorno caldaia; in nessun
caso nel punto più basso per proteggerlo dai depositi.
Per il collegamento alla rete d'acqua,
l'impiego di accessori nuovi è
necessario.
-L’asse del motore deve essere tassativamente
orizzontale.
- Il senso della circolazione dell’acqua è indicato da
una freccia sul corpo della pompa (vedi FIG. 2).
- Prevedere su entrambi i lati della pompa di circolazione
delle valvole di isolamento per agevolare lo
smontaggio della pompa e qualsiasi altro intervento.
ATTENZIONE !
ATTENZIONE !
ATTENZIONE !
ITALIANO

11
Se la pompa va coi entata, si racco-
manda di non ostruire le tacche
praticate sulla flangia motore (vedi FIG. 2).
Raccomandiamo di conservare la
morsettiera chiusa durante
l'assem laggio della circolatore.
5.2 Orientamento della morsettiera (vedi FIG. 3)
Se occorre, si può modificare l’orientamento del
motore e conseguentemente della morsettiera.
-
Rimuovere le viti di fissaggio del motore sul corpo della
pompa e girare il motore nella posizione
desiderata.
Fare attenzione a non danneggiare la
guarnizione del corpo e a reinserirla
correttamente.
La posizione della morsettiera sulle 3 e
6 è vietata se utilizzata su circuito di
acqua refrigerata.
5.3 Collegamento elettrico
Il collegamento elettrico va eseguito da un
elettricista autorizzato in conformità alle vigenti
norme locali.
Tutte le informazioni elettriche della pompa di
circolazione figurano sulla piastrina segnaletica.
Rete di alimentazione
Utilizzare un cavo a 3 conduttori (3 x 1,5 mm2H05 VVF)
per collegare la rete ai relativi morsetti della pompa :
FASE (L) - NEUTRO (N) - TERRA ( ) (vedi FIG. 4).
Il cavo di alimentazione non deve entrare in
contatto con la tu azione né toccare la pompa:
verificare che sia al riparo dall’umidità.
Verificare la protezione della linea, la tensione di
alimentazione richiesta e la frequenza della rete.
La pompa di circolazione va collegata alla rete
elettrica mediante un interruttore la cui distanza di
apertura per ogni polo è di almeno 3 mm.
La presa di corrente deve comportare tassativamente
un morsetto di terra.
Dopo il collegamento elettrico, rimettere il coperchio
della morsettiera.
6. MESSA IN SERVIZIO
6.1 Riempimento - Degasaggio
Non far funzionare mai la pompa di
circolazione SENZ’ACQUA.
- Aprire le valvole su entrambi i lati della pompa e
riempire completamente l’impianto.
- Spurgare il circuito al punto superiore.
- Mettere in tensione il motore per mettere in servizio la
pompa di circolazione.
- La regolazione della spiaggia de funzionamento
della pompa viene eseguita cambiando la posizione
delle selettore (vedi FIG. 5).
Ai rischi di ruciatura. In esercizio, la
temperatura della carcassa del motore può
superare i 100°C.
7. MANUTENZIONE
La pompa di circolazione non richiede nessuna
manutenzione particolare durante il funzionamento.
I cuscinetti motore sono lubrificati dal liquido
convogliato.
All’inizio di ogni periodo di riscaldamento, o dopo
un’interruzione prolungata, verificare che la pompa
giri liberamente.
ATTENZIONE !
ATTENZIONE !
ATTENZIONE !
ATTENZIONE !
ITALIANO
ATTENZIONE !

12
ITALIANO
INCIDENTI
8.1LA POMPA DI
CIRCOLAZIONE
È RUMOROSA
8.2LA BOMBA NON
SI AVVIA
CAUSE
a) Presenza d’aria :
)La pressione di
aspirazione è troppo
assa :
c) Forti rumori di circolazione
d’acqua :
d)Presenza di corpi estranei
nella girante :
a) Mancanza di
alimentazione elettrica :
)Presenza di corpi estranei
nella girante :
RIMEDI
a) Posizionare il selettore in posizione 1.
b) Aumentare la pressione nel circuito.
c) E’ possibile posizionare il selettore in modo diverso.
d) Smontare il motore e pulire la girante.
a) - Verificare il collegamento del motore.
- Verificare i fusibili dell’impianto.
b) Smontare il motore e pulire la girante.
8.
INCIDENTI DI FUNZIONAMENTO
Prima di ogni intervento, METTERE FUORI
TENSIONE LA POMPA
.
ATTENZIONE !

13
1. GENERALIDADES
1.1. Aplicaciones
Para acelerar la circulación del agua en los circuitos
abiertos o cerrados de calefacción central doméstica
(individual) y climatización.
1.2 Características técnicas
Margen de temperatura : + 2° a + 95°C
Temperatura ambiente : máximo + 40°C
Presión de servicio máxima : 106 Pa (10 bar)
Presión mínima en la :
1,5.104Pa (1.5 m; 0.15 bar)
aspiración (en mCA)* a + 82°C
:
3.104Pa (3 m ; 0.3 bar)
a + 95°C
:
105Pa (10 m ; 1bar)
a + 110°C
Mezcla agua + glicol : hasta el 50%
(excluyendo calquier otro liquido sin previo
acuerdo).
Caudal màximo (50 Hz) N Y
Xi 33 : 3 m3/h
*(10,2 mCA = 1 bar = 105Pa)
2. SEGURIDAD
Conviene leer atentamente este manual antes de
proceder al montaje y a la puesta en servicio. Se
prestará especial atención a los puntos referentes a la
seguridad del material de cara al usuario
intermediario o final.
Este aparato no ha sido concebido para ser utilizado
por personas (incluidos los niños) con capacidades
físicas, sensoriales o mentales limitadas o que
carezcan de la experiencia y/o el conocimiento para
ello, a no ser que sean supervisadas por una persona
responsable de su seguridad o reciban de ella las
instrucciones acerca del manejo del aparato.
Se debe supervisar a los niños para garantizar que no
jueguen con el aparato.
2.1 Sím olos de las consignas del manual
Riesgo potencial que pone en peligro la
seguridad de las personas.
Reglas relativas a los riesgos eléctricos.
Indica una instrucción que de no
seguirla puede causar daños al
material y su funcionamiento.
3. TRANSPORTE Y ALMACENAMIENTO
Al recibir el material, verificar que no haya sufrido
daños durante el transporte. En caso de constatar un
defecto, tomar todas las precauciones necesarias
con respecto al transportista en los plazos previstos.
Si el material entregado está destinado
a su posterior instalación, conviene
almacenarlo en un lugar seco, protegido de los
golpes y de cualquier influencia exterior (humedad,
hielo, ...).
4. PRODUCTOS Y ACCESORIOS
4.1 La om a
De orificios roscados o bridas ovaladas según el modelo.
El motor es de rotor sumergido y los cojinetes están
autolubricados.
Selección manual por selector a 3 posiciones.
Conformidad : TF95
Clase de aislamiento : F (155°C)
Protección : IP42
El motor está autoprotegido y no precisa ninguna
protección exterior.
Frequencia 50 Hz
Tensión * (mono) 230 V
* Tensión estandár : tolerancia 50 Hz ± 10 %.
4.2 Accesorios
Entregados : juntos de raccores o de bridas.
Consejados :
Empalmes de unión o contrabridas ovaladas para
atornillar.
Válvulas aisladoras.
5. INSTALACION
5.1 Montaje (ver la FIG. 1)
- Asegurarse de que se pueda acceder al circulador.
- Montaje directo en tubería, preferentemente
vertical y a ser posible en el circuito de retorno de la
caldera, pero nunca en el punto más bajo para
protegerle contra los depósitos.
Para la conexión a la red de agua, el
uso de nuevos accesorios es requerido.
-El eje del motor de e estar o ligatoriamente horizontal.
- La flecha situada en el cuerpo de la bomba indica
el sentido de la circulación del agua (Ver la FIG. 2).
- Prever válvulas de aislamiento a ambos lados del
circulador para facilitar el desmontaje o cualquier
intervención.
ATENCION!
ATENCION!
ATENCION!
ESPAÑOL

14
ESPAÑOL
Si el circulador de e ser calorifugado,
recomendamos no o struir las ranuras
situadas en la rida del motor (ver la FIG. 2).
Recomendamos guardar la caja de
terminal cerrada durante el montaje
del circulador.
5.2 Orientación de la caja de terminales (ver la FIG. 3)
Si procede, se puede modificar la orientación del
motor y por lo tanto de la caja de terminales.
- Retirar los tornillos de sujeción del motor y hacerlo
girar hasta la posición deseada.
Tener cuidado de no dañar la junta del
cuerpo y colocarla de nuevo
correctamente.
En circuito de agua helada de e
proscri irse la posición 3 y 6h de la
caja de terminales.
5.3 Conexión eléctrica
La conexión eléctrica de e efectuarla un
electricista homologado y de e hacerse
conforme a las normas locales vigentes.
Todas las informaciones eléctricas del circulador
figuran en la placa de identificación.
Red de alimentación
Utilizar un cable de 3 conductores
(3 x 1,5 mm2H05 VVF)
para conectar la red eléctrica a los terminales
correspondientes del circulador: FASE (L) - NEUTRO (N) -
TIERRA ( ) (ver la FIG. 4).
El ca le de alimentación no de e estar en
contacto con la tu ería ni tocar la om a.
Cerciorarse de que esté resguardado de cualquier
clase de humedad.
Controlar la protección de la línea, la tensión de
alimentación requerida y la frecuencia de la red.
El circulador debe estar conectado a la red eléctrica
mediante un interruptor, con una distancia de
abertura para cada polo de 3 mm por lo menos.
La toma de corriente debe estar equipada
imperativamente con un terminal de tierra.
Después de la conexión eléctrica, volver a poner de
nuevo en su sitio la tapa de la caja de terminales.
6. PUESTA EN MARCHA
6.1. Llenado - Desgasificación
No hacer funcionar nunca el circulador
SIN AGUA.
- Abrir las válvulas a ambos lados del circulador y
llenar completamente la instalación.
- Purgar el circuito en el punto alto.
- Poner en tensión el motor para poner en servicio el
circulador.
- El reglaje de la playa de funcionamiento se efectúa
cambiando la posición de rotación del selector
(ver la FIG. 5).
Cuidado con los riesgos de quemadura. En
funcionamiento, la temperatura del motor
puede ser superior a los 100°C.
7. MANTENIMIENTO
Durante el funcionamiento, el circulador no precisa
ningún mantenimiento particular.
Los cojinetes del motor están lubricados por el líquido
transportado.
Al principio de cada periodo de calentamiento o
después de una parada prolongada, asegurarse de
que el circulador gira libremente.
ATENCION!
ATENCION!
ATENCION!
ATENCION!
ATENCION!

15
ESPAÑOL
INCIDENTES
8.1EL CIRCULADOR
ES RUIDOSO
8.2EL CIRCULADOR
NO ARRANCA
CAUSAS
a) Presencia de aire :
)La presión de aspiración
es demasiado aja :
c)Ruidos importantes de
circulación de agua :
d)Cuerpos extraños en la
rueda :
a) El circulador no está
alimentado
eléctricamente :
)Cuerpos extraños en la
rueda :
REMEDIOS
a) Poner el selector en posición 1.
b) Aumentar la presión en el circuito.
c) Posibilidad de poner el selector diferentemente.
d) Desmontar el motor y limpiar la rueda.
a) - Verificar la conexión del motor.
- Verificar los fusibles de la instalación.
b) Desmontar el motor y limpiar la rueda.
8.
INCIDENTES DE FUNCIONAMIENTO
Antes de cualquier intervención PONER FUERA DE
TENSION el circulador.

QUESTO LIBRETTO D'USO DEVE ESSERE
RIMESSO ALL'UTILIZZATORE FINALE E
RIMANERE SEMPRE DISPONIBILE SUL POSTO.
ESTE MANUAL HA DE SER ENTREGADO AL
UTILIZADOR FINAL Y SIEMPRE DISPONIBLE
EN SU EMPLAZAMIENTO.
CE MANUEL DOIT ETRE REMIS A
L'UTILISATEUR FINAL ET ETRE TOUJOURS
DISPONIBLE SUR SITE.
FRANCAIS
ENGLISH
THIS LEAFLET HAS TOBE GIVEN TO THE
END USER AND MUST BE LEFT ON SITE.
ESPAÑOL
ITALIANO
SERVICE CONSOMMATEUR
Tél. 0820 0000 44
Espace Louis Lumière - Bâtiment 6
53, boulevard de la Républi ue - 78403 Chatou Cedex
www.salmson.com
POMPES SALMSON - SAS AU CAPITAL DE 16.775.000 €SIREN 313 986 838 RCS VERSAILLES - APE 291C
PORTUGAL
Rua Alvarez Cabral, 250/255
4050 - 040 Porto
PORTUGAL
TEL. : (351) 22 208 0350
TEL. : (351) 22 207 6910
FAX : (351) 22 200 1469
mail@salmson.pt
SALMSON SOUTH AFRICA
Unit 1, 9 Entreprise Close,
Linbro Business Park - PO Box 52
EDENVALE, 1610
Republic of SOUTH AFRICA
TEL. : (27) 11 608 27 80/ 1/2/3
FAX : (27) 11 608 27 84
SALMSON ITALIA
Via J. PeriI 80 I
41100 MODENA
ITALIA
TEL. : (39) 059 280 380
FAX : (39) 059 280 200
info.tecniche@salmson.it
W.S.L. LEBANON
Bou Khater building - Mazda Center
Jal El Dib Highway - PO Box 90-281
Djeideh El Metn 1202 2030 - Beiruth
LEBANON
TEL. : (961) 4 722 280
FAX : (961) 4 722 285
SALMSON ARGENTINA S.A.
Av. Montes de Oca 1771/75
C1270AABE
Ciudad Autonoma de Buenos Aires
ARGENTINA
TEL.: (54) 11 4301 5955
FAX : (54) 11 4303 4944
info@salmson.com.ar
SALMSON VIETNAM
E-TOWN - Unit 3-1C
364 CONG HOA - TAN BINH Dist.
Hochi minh-ville
VIETNAM
TEL. : (84-8) 810 99 75
FAX : (84-8) 810 99 76
This manual suits for next models
2
Table of contents
Languages:
Other salmson Water System manuals

salmson
salmson NSB Series How to use

salmson
salmson NSB How to use

salmson
salmson ZOOM User manual

salmson
salmson GEOSUN HXL How to use

salmson
salmson C1000N How to use

salmson
salmson Priux home M How to use

salmson
salmson THERMO'CLOCK How to use

salmson
salmson ZEN O HOME How to use

salmson
salmson Siriux Series How to use
Popular Water System manuals by other brands

Billi
Billi B-3000 installation guide

Hellenbrand
Hellenbrand ProMate 1 owner's manual

Truma
Truma Aquatherm operating instructions

GREENoneTEC
GREENoneTEC TSC160 manual

Taco Comfort Solutions
Taco Comfort Solutions Plumb n' Plug 00 Series instruction sheet

OptiPure
OptiPure Sanit-ICE Installation & operation manual
