TABLE OF CONTENTS
60” SHAVING MILL
COVER & TABLE OF CONTENTS……………………………….….………..Pages 1 – 2
STATEMENT OF FACT …………………………………..…………… ..……… Page - 3
MACHINE REGISTRATION ………………………….…………….…………….Page - 4
SERVICE & MAINTENANCE INSTRUCTIONS ………………….……….…Pages 5 – 8

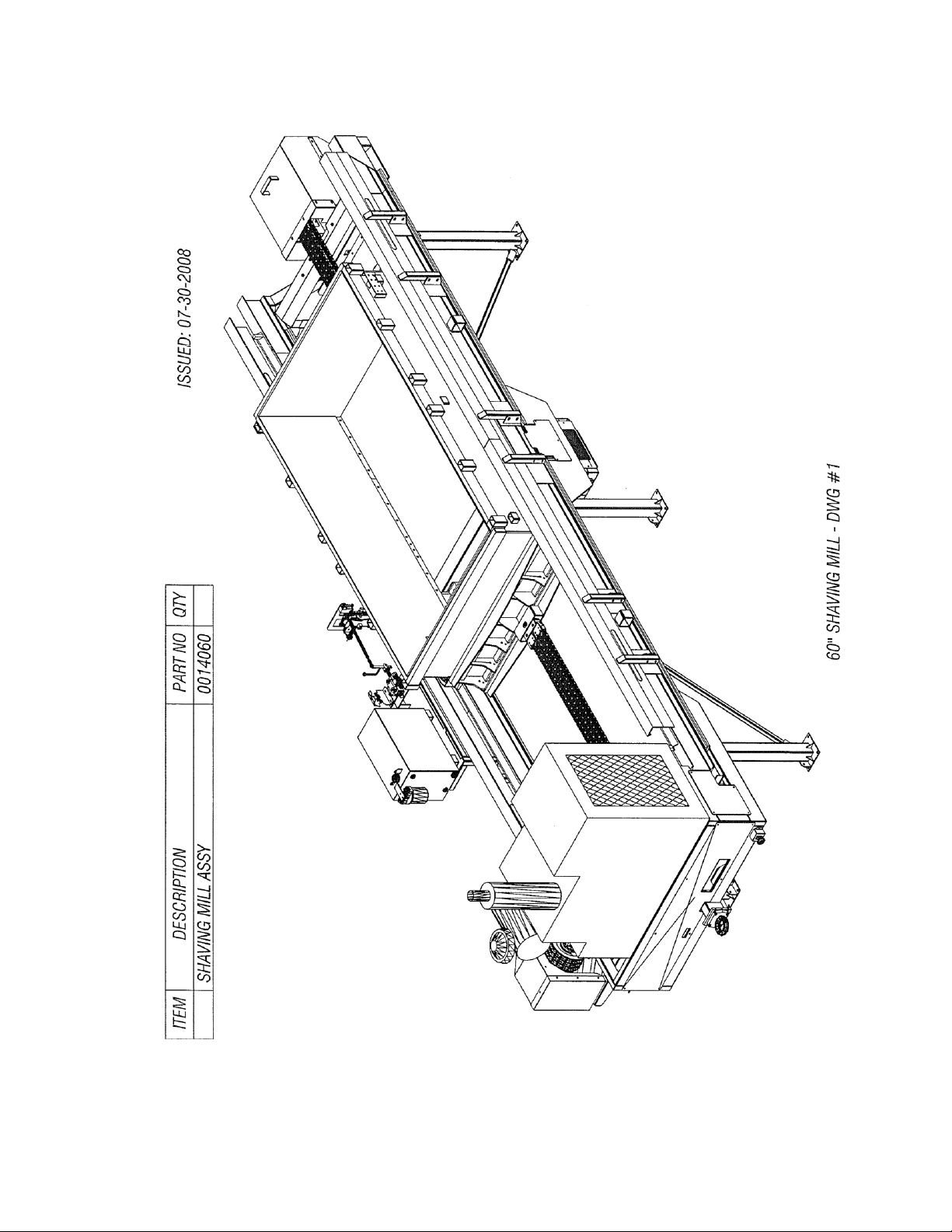

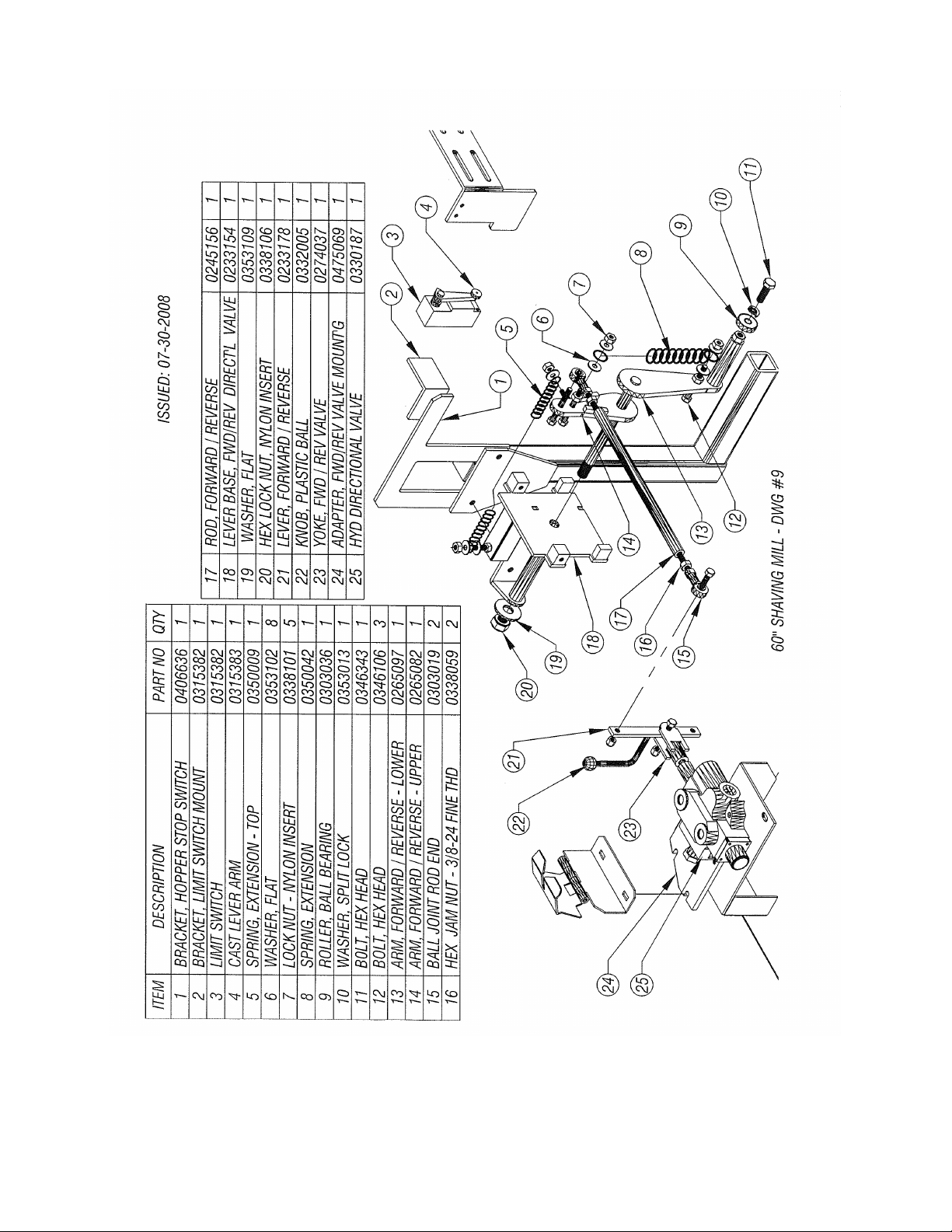

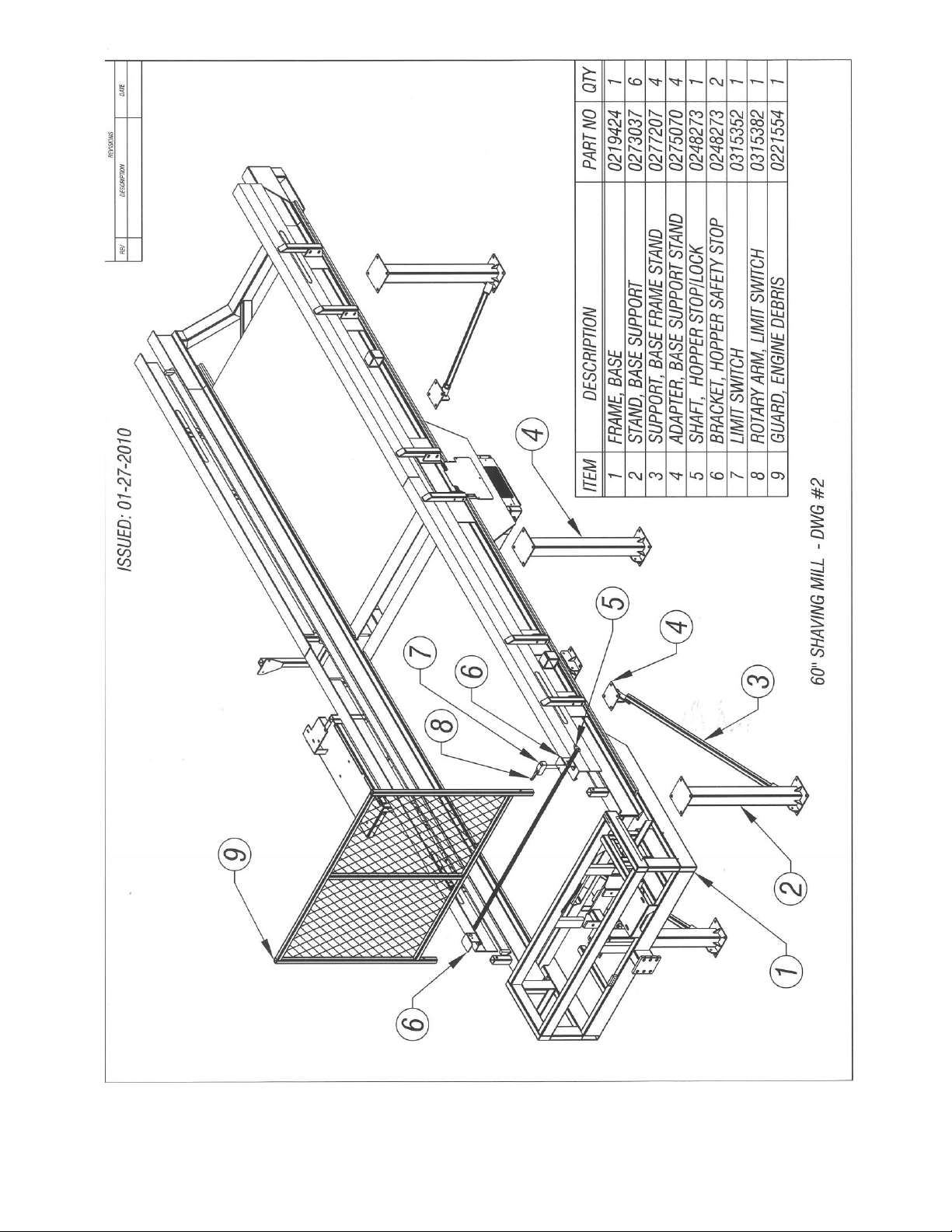

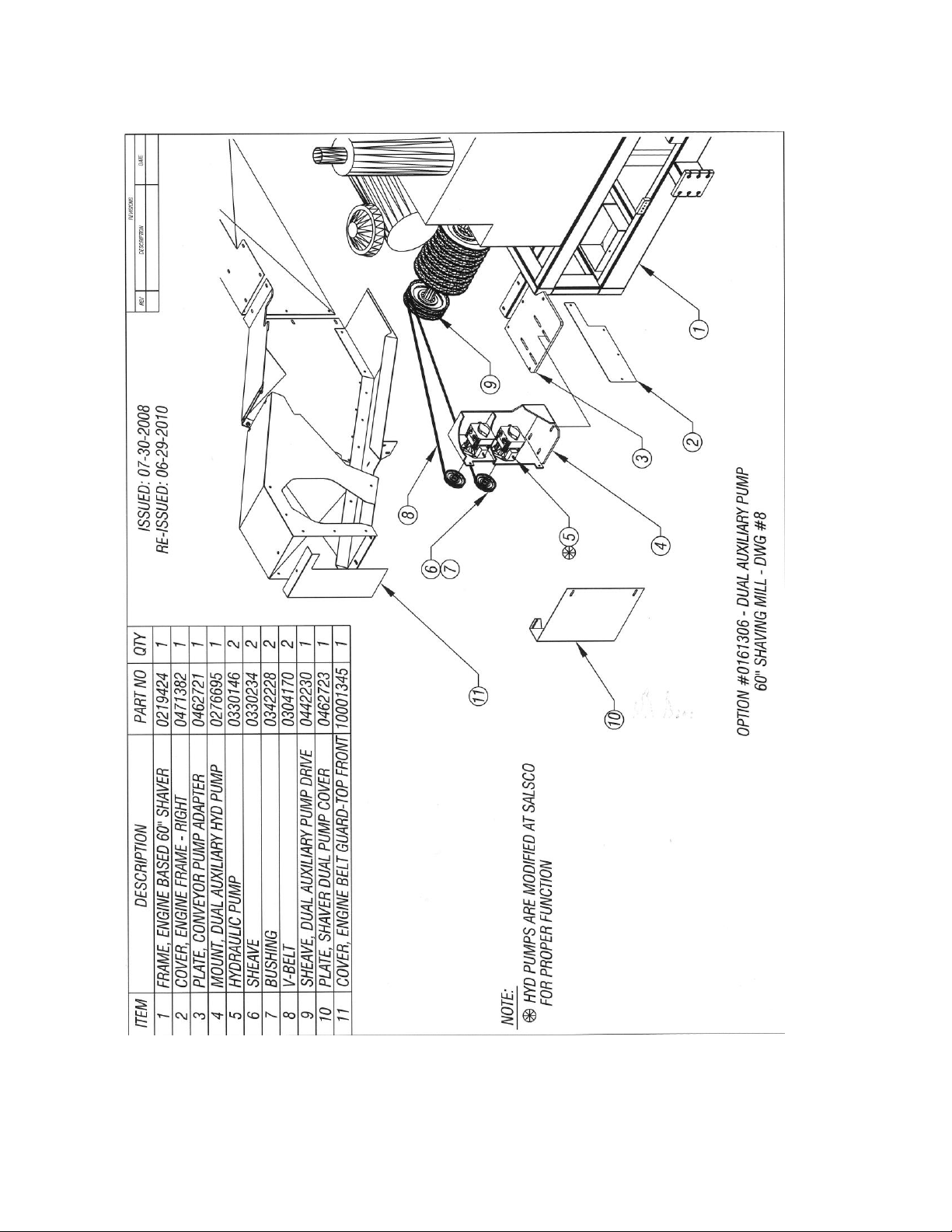

PARTS DIAGRAMS ……………………………………….….…….…………Pages 9 – 36

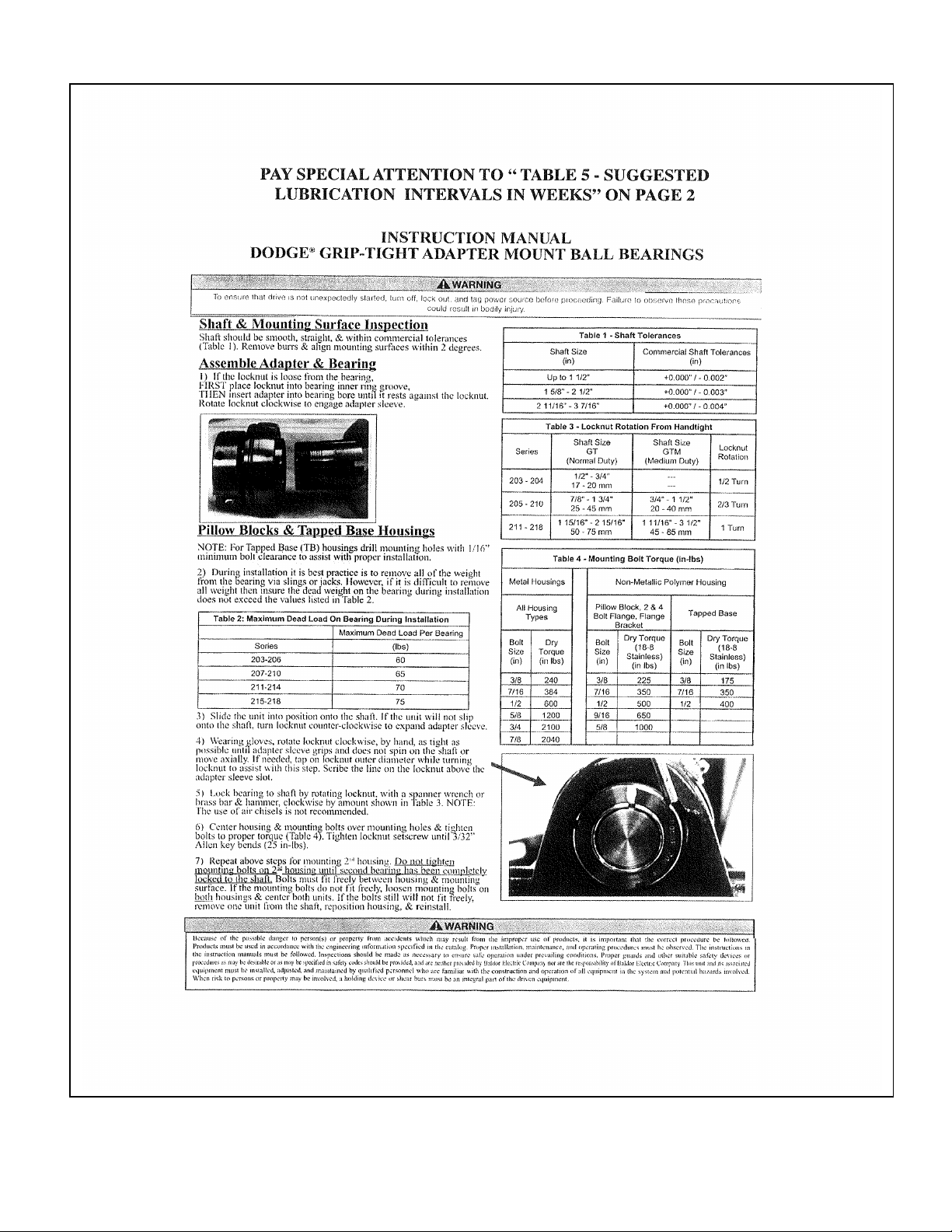

DODGE BEARING LUBRICATING GUIDELINES …Pages 12 - 13
TORQUE CHART & BELT ADJUSTMENT CHART…………..…...………...…Page - 37
WARRANTY POLICY/PROCEDURE ………………………….………...……...Page - 38
COPY OF WARRANTY CLAIM FORM….……………………………………...Page – 39
COPY OF DEALER DELIVERY REPORT & WARRANTY CARD…………….Page 40
SERVICE SCHEDULE LOG ………………………..……………………………...Page - 41
SALSCO, INC.
105 School House Road
Cheshire, CT 06410
800-872-5726, 203-271-1682
203-271-2596 (Fax)
www.salsco.com, [email protected]

O:\Manuals\SHAVING MILLS\60 INCH\60 INCH SHAVING MILL, ENGINE DRIVEN MANUAL_10.30.2017.doc- 3 -
STATEMENT OF FACT
You have just purchased the highest quality, most dependable, Shaving Mill, on the market
today. This unit has the ability to meet exact standards and perform for years with
minimum downtime. HOWEVER, it cannot read nor will it understand this manual no
matter how long you leave it on top of the machine.
It is your responsibility to read and understand this manual; it is also your responsibility
to be certain this information is passed along to anyone who is expected to operate this
equipment. Should you choose not to read, understand and pass along the information
provided you, please expect equipment failure and possible injuries to persons around this
equipment.
For the safety of the operator, it is imperative that this manual is carefully read and
understood.
Once you have read this manual, it is your responsibility to be sure that all new operators
read and understand this manual, especially all cautions stated.
As a manufacturer of equipment, we have a responsibility to design a safe piece of
equipment. NOTE: The important safeguards and instructions in this manual are not
meant to cover all possible conditions and situations that may occur. It must be understood
that common sense, caution, and care are factors, which cannot be built into any product.
These factors must be supplied by the person(s) caring for and operating this equipment.
ONLY YOU CAN PREVENT ACCIDENTS!!

O:\Manuals\SHAVING MILLS\60 INCH\60 INCH SHAVING MILL, ENGINE DRIVEN MANUAL_10.30.2017.doc- 4 -
MACHINE REGISTRATION
MANUFACTURED BY: SALSCO, INC.
105 School House Rd., Cheshire, CT 06410
800-872-5726, 203-271-1682, 203-271-2596 (Fax)
[email protected] www.salsco.com
THIS MANUAL COVERS MODEL (s): 60” Shaving Mill
This company reserves the right to discontinue, add improvements to, or change the design of any model
or product at any time without obligation to improve existing machines, either by changing the design or
adding new parts.
It has been and will continue to be the policy of SALSCO to update existing machines at its own
discretion. Whenever possible, new designs will be made in such a way that they can be "Retro Fit" if so
desired.
Record in the space provided below the model and serial number of this unit. Please retain these
numbers for future reference.
No parts orders will be accepted WITHOUT MODEL NUMBERS OR PART NUMBERS. All part
numbers are listed in this manual.
_____________________________________________ ___________________
Serial Number Model Number
NOTE: Be sure to complete your warranty card. This will insure immediate processing of any warranty
claims.
READ AND UNDERSTAND THIS MANUAL BEFORE STARTING THE MACHINE
07/08

O:\Manuals\SHAVING MILLS\60 INCH\60 INCH SHAVING MILL, ENGINE DRIVEN MANUAL_10.30.2017.doc- 5 -
MAINTENANCE/SERVICE
A. Daily greasing is required and remote grease fittings are located in various
spots on the unit. These locations are marked with decals and care should be
taken to insure none of the grease points are missed.

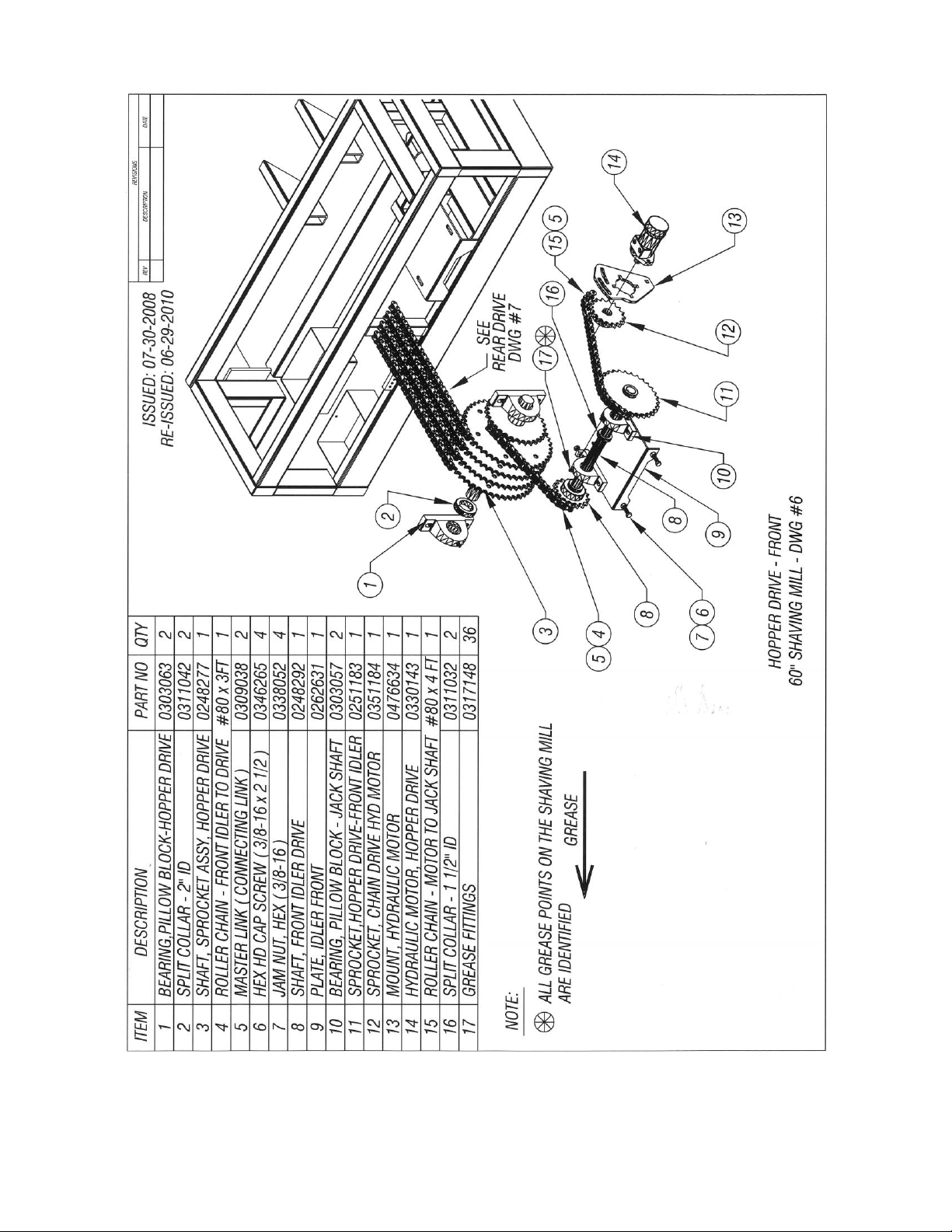

B. Chain tension.
a. 20” mill
i. Under the engine on this unit you will see an idler sprocket for the
main box chain. The only regular maintenance to this assembly
should be greasing and inspection. If you ever change the main
chain or have a bearing failure on this shaft be sure the sprocket is
set so the main chain is not touching the deck.
ii. At the rear of the unit you will find the drive set up which moves
the box. This is also where you tension the main drive chain if
needed.
1. Remove the top section of the orange guard exposing the
drive system.
2. Loosen the jam nut and pusher bolt against the drive motor.
3. Loosen the drive motor pivot bracket putting slack in the
chain between the drive motor and the jackshaft number.
4. On jackshaft, loosen the jam nuts and pusher bolts on the
front side of the bearings. Don’t touch the rear pusher bolts
yet. Loosen the bearing mounting bolt enough so you slide
the jackshaft. Now loosen the rear jam nuts and use the rear
pusher bolts to slide the jackshaft assembly in turn
tensioning the chain from the rear jackshaft to the front
jackshaft. Once this chain is tight lock down the rear jam
nuts, and then lock down the bearing bolts; now bring the
front pusher bolts against the bearings and lock down the
jam nuts.
5. Now, tension the chain from the front jackshaft to the drive
motor by reversing steps 3 & 2.
6. As with the front of the unit the height of the sprocket
assembly carrying the main chain should not be changed
from the original factory setting.
7. Tensioning the main drive chain, which moves the box, is
done at the rear drive assembly. Once you have tensioned
all of the chains in this drive assembly and locked them
down in the fashion indicated in this procedure you are
ready to tension the main drive chain. The rear drive
assembly is mounted on an orange frame, which slides on
the main frame for the unit as indicated. If you loosen the
four bolts which hold the orange mounting frame to the

O:\Manuals\SHAVING MILLS\60 INCH\60 INCH SHAVING MILL, ENGINE DRIVEN MANUAL_10.30.2017.doc- 6 -
units mainframe, this will allow the mounting frame to
slide. Loosen the jam nut on the pusher/puller bolt and turn
the pusher bolt to slide the rear drive assembly to tension
the main drive chain. As long as the chain doesn’t touch the
deck you are fine. Lock down the jam nut on the
pusher/puller bolt, the bolts holding down the rear drive
assembly and replace the guards and you will be ready to
go.
C. Belt tension, there are two belt systems which are typical to the 20”, 30”, 40”
& 60” shaving mills.

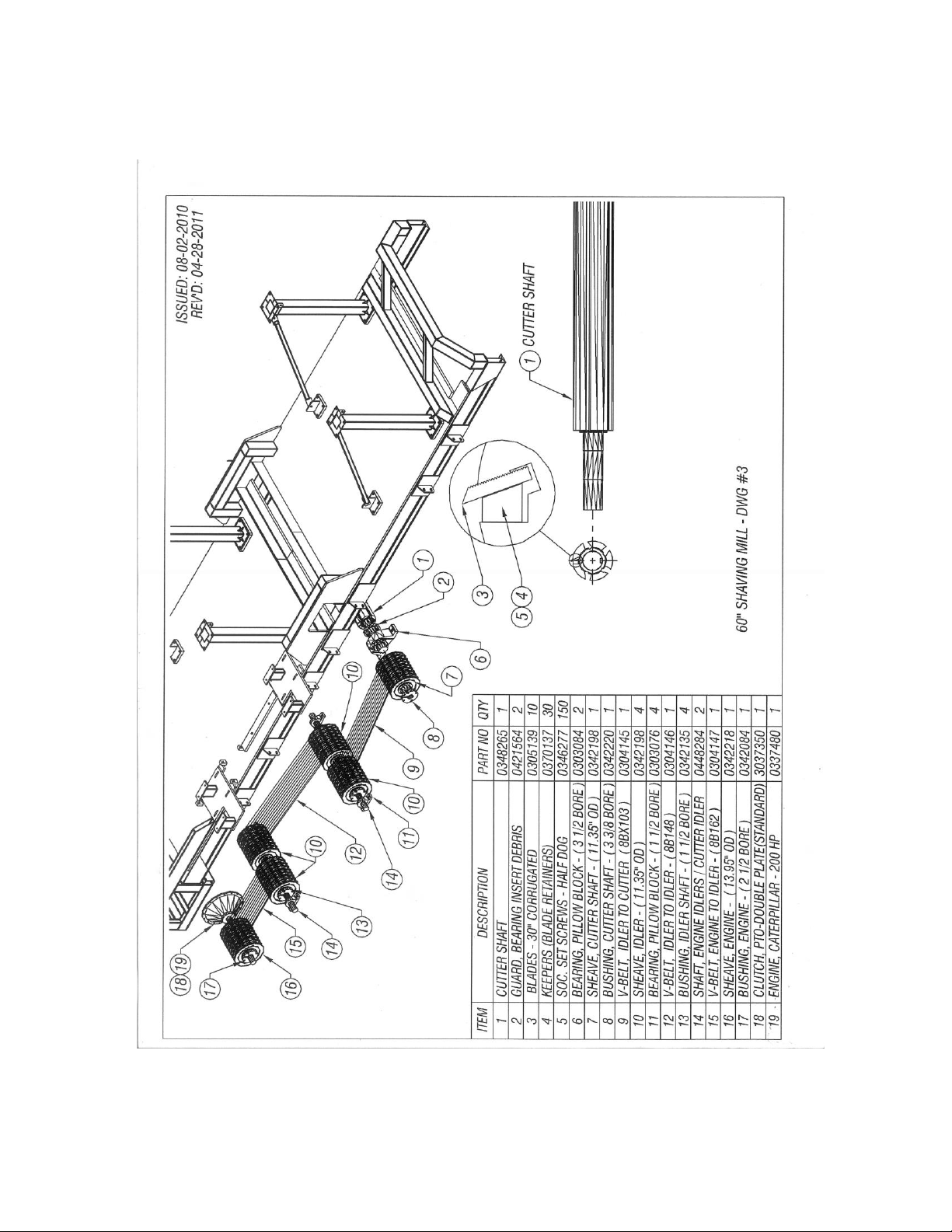

a. Cutter head to engine belt system.
i. First remove the guards. This will make it much easier to tension
these belts properly. Start at the cutter shaft and work towards the
engine.
ii. (Note: Use the following procedure for each of the jackshaft
assemblies.) Loosen the jam nuts and pusher bolts on the engine
side; loosen the bearing mounting bolts so the jackshaft assembly
can slide. Now, use the pusher bolts on the cutter shaft side to slide
the jackshaft to tension the belt using the 3/8 rule. Lock down the
cutter shaft side jam nuts and pusher bolts, bearing bolts and
engine side pusher bolts and jam nuts.
iii. Now that you have tensioned all of the belts from the cutter shaft
up towards the engine, tension the last belt that runs from the last
jack shaft to the engine by sliding the engine. Loosen the engine
mounting bolts, the jam nuts and the pull/push bolts on the front of
the engine mounting area to slide the engine and tension the belt.
Be sure to use the 3/8 rule when tensioning this belt.
Note: While these guards are off check the tension of the
blower drive system.
iv. IT IS IMPERATIVE THAT YOU REPLACE AND SECURE
ALL GUARDS PRIOR TO OPERATION OF THIS UNIT.
RUNNING THIS UNIT WITH OUT GUARDS IN PLACE
CAN CAUSE SERIOUS INJURY OR DEATH.
b. Blower assembly belt tensioning.
i. First you need to remove the guards. This will make it possible to
tension the belts properly.
ii. On the back of the actual blower loosen the bolts holding it to the
drop out trough. Loosen the pusher bolt on the top right corner of
the blower. This will allow you to relieve the tension on the belt
running from the blower to the jackshaft.
iii. Now to tension the belts from the cutter shaft to the jackshaft use
the same procedure in step C.a.ii.

O:\Manuals\SHAVING MILLS\60 INCH\60 INCH SHAVING MILL, ENGINE DRIVEN MANUAL_10.30.2017.doc- 7 -
iv. Now that the belt is tight from the cutter head to the jackshaft
reverse the procedure on loosening the blower housing to tension
the belt from the jackshaft to the blower.
v. Once the belts are tight, using the 3/8 rule, and all the bolts are
retightened you are ready to replace the guards.
vi. IT IS IMPERATIVE THAT YOU REPLACE AND SECURE
ALL GUARDS PRIOR TO OPERATION OF THIS UNIT.
RUNNING THIS UNIT WITH OUT GUARDS IN PLACE
CAN CAUSE SERIOUS INJURY OR DEATH.

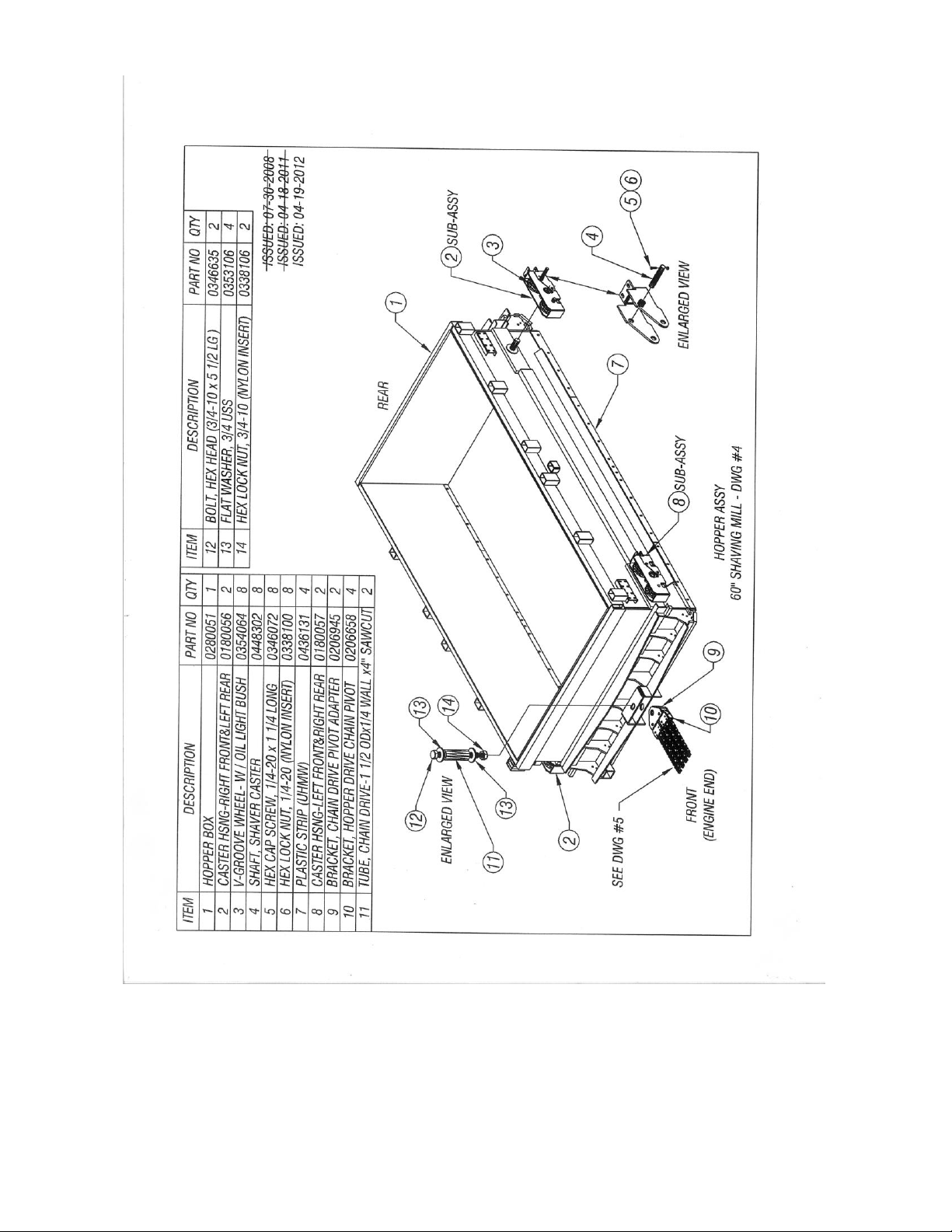

D. Wood Box Travel Adjustment.
a. By moving plates you can adjust how far the box travels relative to the
cutter head.
NOTE: USE CAUTION WITH THIS ADJUSTMENT. TEST YOUR
ADJUSTMENT WITH THE CUTTERHEAD DISENGAGED TO BE
SURE THE BOX IS NOT TRAVELING OVER THE
CUTTERHEAD. EXTENSIVE DAMAGE WILL BE CAUSED IF
THE BOX TRAVELS INTO THE CUTTERHEAD !!!!
E. Crossover Relief Valve
a. The relief valve has two screws for adjustment on the top and bottom of
the valve. Each complete turn of the screw represents 150 psi of hydraulic
pressure. Factory settings are set at 4 turns or 600 psi for both the top and
bottom screw. This setting should not be changed with out contacting a
Salsco service representative.

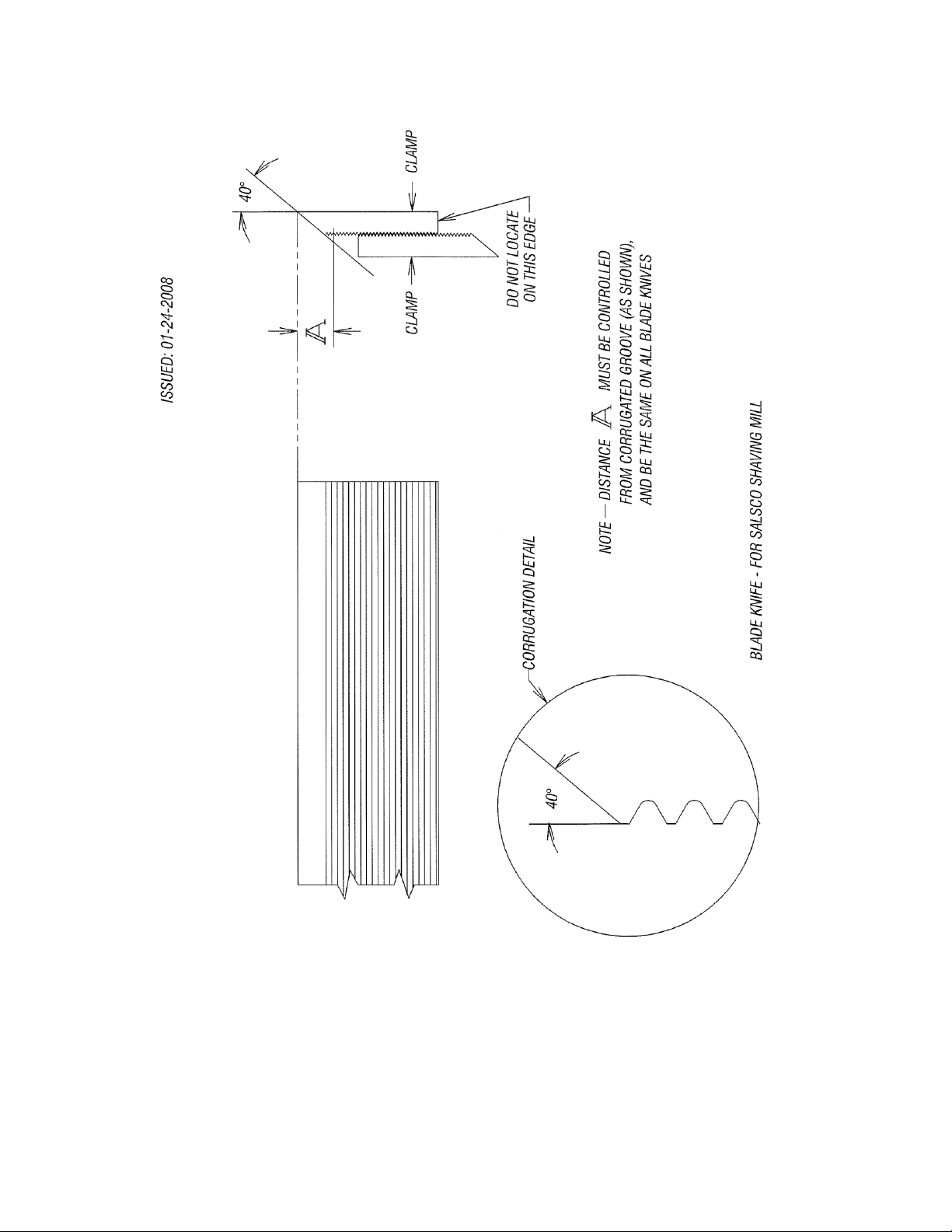

F. Blade Maintenance
a. The blades on this unit must be inspected weekly and serviced
accordingly.
b. Removing the blades (be sure to count the number of exposed grooves on
the back of the blades)
i. First either run the box over the cutter head (follow the procedure
marked Accessing the Cutter Head) or work inside of the box.
ii. Clean out the allen head screws.
iii. Loosen one set of screws a few turns and tap the keepers for that
blade down. Be sure to use a piece of brass or soft material that
will not damage the keepers. By loosening the screws and tapping
down the keepers you will loosen the blade. Remove and replace
all the blades in this pocket. Be sure to set them to factory specs of
1/8 inch above the deck.

O:\Manuals\SHAVING MILLS\60 INCH\60 INCH SHAVING MILL, ENGINE DRIVEN MANUAL_10.30.2017.doc- 8 -
Maintenance Schedule for Salsco Shaving Mills
Electric and Diesel 20” thru 60”
General Notes: This maintenance schedule is to be used in conjunction with your
operators/service manual and service manuals provided by engine/motor/clutch
manufacturers.
Daily service: Every 8 hours of operation
Grease all Bearings, including but not limited to the following:
oCutter head bearings
oBelt drive system
oChain drive system
oWood box wheels
oWood box switcher grease points
oClutch grease points (if equipped with diesel engine and clutch set up)
Note: While using remote greasing system be sure to check the operation of
system if there is any change in required pressure when pumping grease.
oEngine oil level
oHydraulic fluid level
oAny and all daily service recommended by engine manufacturer
Weekly service: Every 40 hours of operation
oCheck and adjust tension on all belts
oCheck and adjust tension on all chains
oCheck cutter head blades. Change/Sharpen the blades if they are dull
REV. 7/08

O:\Manuals\SHAVING MILLS\60 INCH\60 INCH SHAVING MILL, ENGINE DRIVEN MANUAL_10.30.2017.doc- 9 -

O:\Manuals\SHAVING MILLS\60 INCH\60 INCH SHAVING MILL, ENGINE DRIVEN MANUAL_10.30.2017.doc- 10 -

O:\Manuals\SHAVING MILLS\60 INCH\60 INCH SHAVING MILL, ENGINE DRIVEN MANUAL_10.30.2017.doc- 11 -

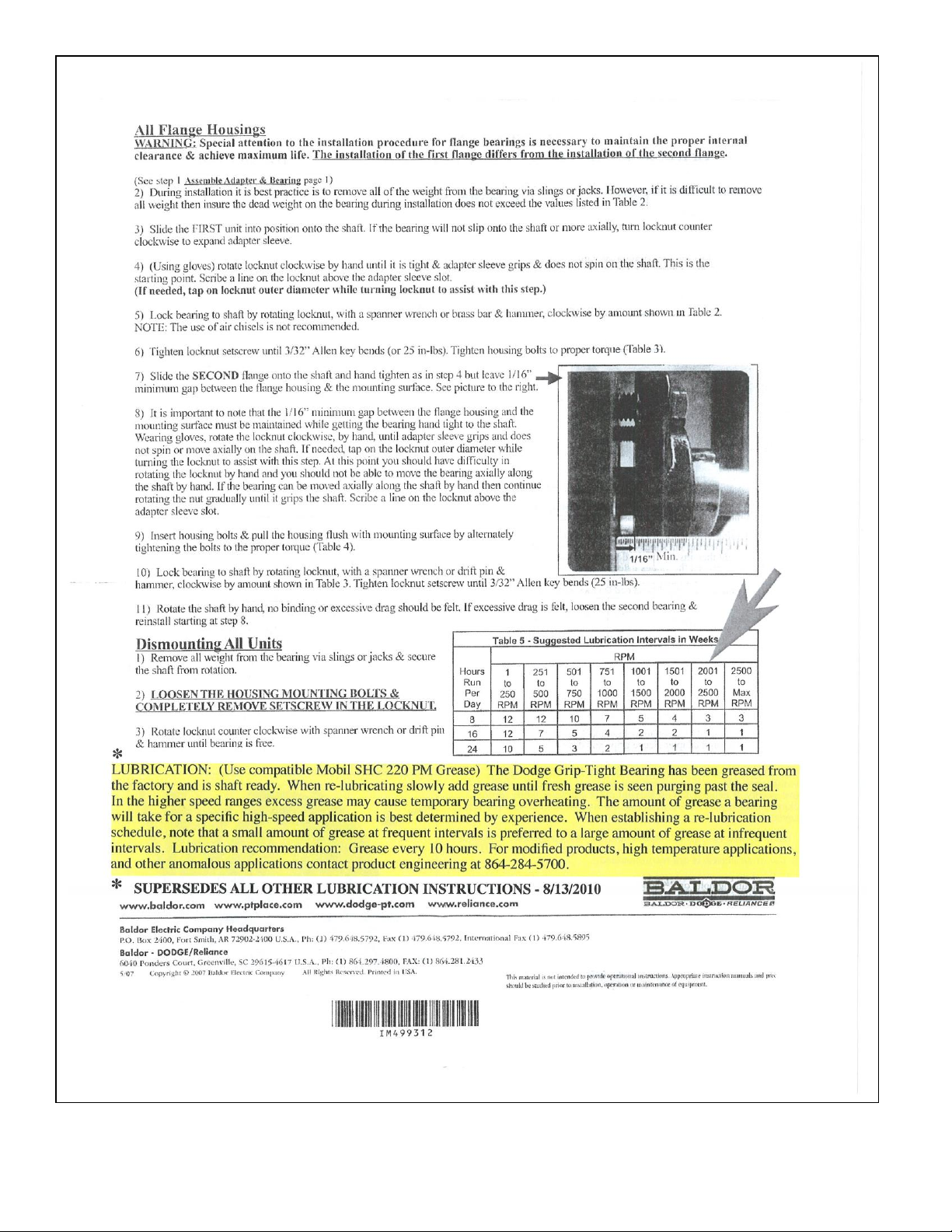

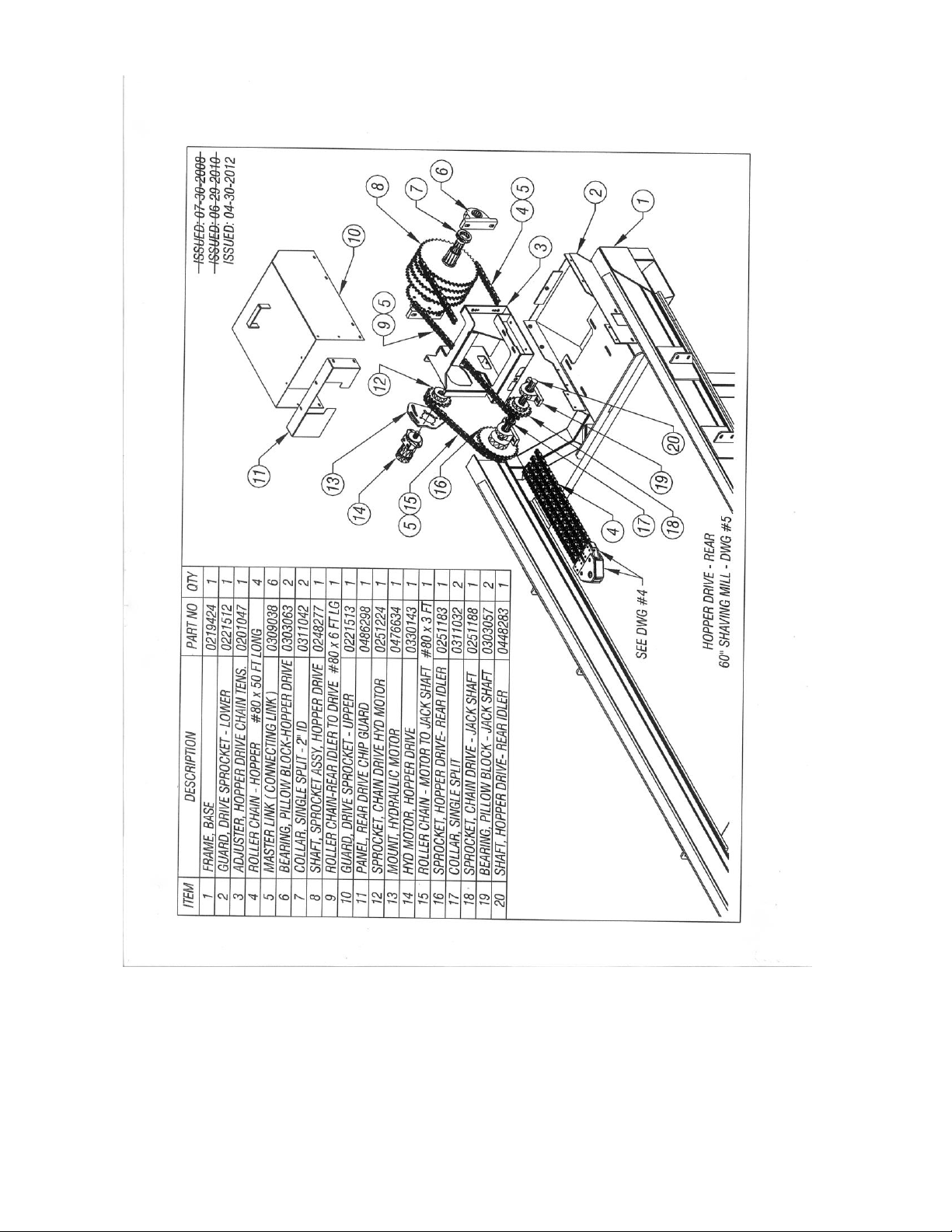

**** ITEM # 5 –PAY SPECIAL ATTENTION TO MANUFACTURERS
LUBRICATION GUIDELINES ON THE FOLLOWING PAGES

O:\Manuals\SHAVING MILLS\60 INCH\60 INCH SHAVING MILL, ENGINE DRIVEN MANUAL_10.30.2017.doc- 12 -

O:\Manuals\SHAVING MILLS\60 INCH\60 INCH SHAVING MILL, ENGINE DRIVEN MANUAL_10.30.2017.doc- 13 -

O:\Manuals\SHAVING MILLS\60 INCH\60 INCH SHAVING MILL, ENGINE DRIVEN MANUAL_10.30.2017.doc- 14 -

O:\Manuals\SHAVING MILLS\60 INCH\60 INCH SHAVING MILL, ENGINE DRIVEN MANUAL_10.30.2017.doc- 15 -

O:\Manuals\SHAVING MILLS\60 INCH\60 INCH SHAVING MILL, ENGINE DRIVEN MANUAL_10.30.2017.doc- 16 -

O:\Manuals\SHAVING MILLS\60 INCH\60 INCH SHAVING MILL, ENGINE DRIVEN MANUAL_10.30.2017.doc- 17 -

O:\Manuals\SHAVING MILLS\60 INCH\60 INCH SHAVING MILL, ENGINE DRIVEN MANUAL_10.30.2017.doc- 18 -

O:\Manuals\SHAVING MILLS\60 INCH\60 INCH SHAVING MILL, ENGINE DRIVEN MANUAL_10.30.2017.doc- 19 -

O:\Manuals\SHAVING MILLS\60 INCH\60 INCH SHAVING MILL, ENGINE DRIVEN MANUAL_10.30.2017.doc- 20 -
