Salton SIC001 Installation guide

INSTRUCTIONS AND WARRANTY
MODEL NO: SIC001
SALTON 1600W INDUCTION COOKER

2
Congratulations on purchasing our Salton 1600W Induction Cooker. Each unit is manufactured
to ensure safety and reliability. Before using this appliance for the first time, please read the
instruction manual carefully and keep it for future reference.
FEATURES OF THE SALTON 1600W INDUCTION COOKER
1600W
Safer to use - no flames from burning gas or red-hot electric elements
The induction cooker is ideal for all households and occasions
It can be used as a food warmer or for quick, easy and healthy cooking
The induction cooker’s compact cook top is great for home entertaining and can be used
as an additional cooking surface.
The induction cooker heats up instantly, similar to gas cooking but provides you with
more control over the cooking process.
There are no flames or red-hot electric heating elements as found in traditional cooking
equipment.
Induction cooking utilises high temperatures, reducing cooking times as well as sealing
in food nutrients and taste.
The risk of burn injury is significantly less than traditional cooking methods as the
surface of the cooker’s top is only heated from contact with the pot or pan.
It is perfect for garden cottages, holiday makers, camping, caravanning or even student
dorm rooms.
Easy to use push button control
8 power levels: 120W (60°C) –1600W (240°C)
Adjustable temperature/ power settings allow you more control
Black crystal surface with digital LED Display
8 cooking menus: Hot Pot, Soup, Fry, Braise, Deep Fry, Porridge, Slow Cook and Boil
With Pause and Keep Warm functions
Suitable for use with induction-ready cookware
Fast, healthy, energy efficient cooking
With boil dry protection as well as high and low voltage protection

3
Advanced structural and technical design for your safety assurance
Save over 50% of energy compared to other cooking methods
Fast-Cook induction technology is over 50% faster than traditional cooking methods
For domestic use only
1 year warranty
IMPORTANT SAFEGUARDS
When using any electrical appliance, basic safety precautions should always be followed
including the following:
1. Please read the instructions carefully before using any appliance.
2. Always ensure that the voltage on the rating label corresponds to the mains
voltage in your home.
3. Always use a dedicated single mains socket for this appliance. Never connect the
unit to a socket which is sharing a power supply with other electrical appliances.
4. Incorrect operation and improper use can damage the appliance and cause injury
to the user.
5. The appliance is intended for household use only. Commercial use invalids the
warranty and the supplier cannot be held responsible for injury or damage caused
when using the appliance for any other purpose than that intended.
6. Avoid any contact with moving parts.
7. This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
8. Children should be supervised to ensure that they do not play with the appliance.
9. People with heart pacemakers should avoid using the appliance. It is advisable to
consult a doctor or pacemaker manufacturer about your particular situation.

4
10.Check the power cord and plug regularly for any damage. If the cord or the plug is
damaged, the manufacturer or a qualified person must replace it in order to avoid
an electrical hazard.
11.Do not allow this appliance to touch curtains, wall coverings, aluminium foil,
clothing, dishtowels or other flammable materials during use. Caution is required
on surfaces where heat may cause damage -an insulated heat pad is
recommended. Never place the appliance on a plastic, fabric or carpeted surface
while cooking. Do not use the appliance on carpet or vinyl) or any other low heat-
resistant surface.
12.Do not use this appliance on an iron or steel table as the oscillating magnetic field
may cause the table to heat up as well. Do not put it on any metal platforms
(such as iron, stainless steel, aluminium), or place a non-metal pad less than 10
cm thick on the heating plate while the cooker is in use.
13.Do not place the induction cooker when in use, on a gas stove (the magnetic lines
can heat the metal parts of the gas stove)
14.Do not heat an empty cooking pot or pan as this could cause the cookware to
become distorted or the heating coil to become damaged.
15.Do not overheat a cooking pot or pan. Do not overfill your cooking pot or pan.
16.Do not leave the appliance unattended during use. Always unplug the unit when
not in use or before cleaning.
17.Ensure that the switch is in the “Off” or “O” position after each use.
18.Do not place metallic objects such as knives, forks, spoons, lids, cans and
aluminium foils on top of the cooking plate.
19.Do not place anything between the pot or the pan and the appliance.
20.To avoid danger, do not insert any foreign objects, such as wire, or block the air
ventilation opening or entry port.
21.When using the induction cooker, place it horizontally and allow at least 10 cm of
free space between the sides and back of the induction cooker and the wall. Do
not use the induction cooker in narrow spaces. Please keep the ventilation
opening free, for release of heat.
22.The maximum weight that can be put on the appliance is 4kg.

5
23.The appliance is not intended to be operated by means of an external timer or
separate remote-control system.
24.DANGER OF SCALDING. Extreme caution must be used. Do not move the
appliance while it is in operation. It is recommended that you do not move the
appliance when it is in use with a cooking pot or pan, when switched on or before
it has cooled down.
25.Beware of hot steam which escapes out of the cookware during the cooking
process or when you remove the lid.
26.Avoid contact with the cooking area directly after cooking as it retains heat from
the cookware.
27.DO NOT place the product near flammable materials.
28.Food should not be kept warm for more than 4-6 hours in order to maintain the
continued freshness of the food.
29.Never use this appliance for heating food in a can or coffee pots as it may cause
the can to explode from built up pressure.
30.Let the appliance cool down completely before you clean it or put it away.
31.Do not use the appliance if it has been dropped or damaged in any way. In case
of damage, take the unit in for examination and/or repair by an authorised service
agent.
32.Do not use harsh abrasives, caustic cleaners or oven cleaners when cleaning this
appliance.
33.To reduce the risk of electric shock, do not immerse or expose the appliance, plug
or the power cord to water or any other liquid. Do not touch the power cord or
plug with wet hands.
34.Never immerse the unit in water or any other liquid for cleaning purposes. Do not
place the unit into a dishwashing machine.
35.Do not use the appliance in a bathroom or near a source of water.
36.The appliance cannot be partially or fully immersed in water for cleaning.
37.Remove the plug from the socket by gripping the plug. Do not pull on the cord to
disconnect the appliance from the mains. Always unplug the unit when not in use,
before cleaning or when adding or removing parts.

6
38.The use of accessory attachments that are not recommended or supplied by the
manufacturer may result in injuries, fire or electric shock.
39.A short cord is provided to reduce the hazards resulting from becoming entangled
in or tripping over a longer cord.
40.DO NOT carry the appliance by the power cord.
41.Do not let the cord hang over the edge of a table or counter. Ensure that the cord
is not in a position where it can be pulled on inadvertently.
42.Do not allow the cord to touch hot surfaces and do not place on or near a hot gas
or electric burner or in a heated oven.
43.Do not place the appliance close to those objects which are affected by magnets
such as: radio’s, television’s, automatic banking cards and cassette tapes.
44.Position the appliance on a firm, level and heat resistant surface, near a power
socket and out of reach of children.
45.Do not use the appliance on a gas or electric cooking top or over or near an open
flame. Do not place the unit on a hot surface.
46.Do not block the air intake or exhaust vent. Use the unit with sufficient space
around it. Keep the front side as well as right and left side of the unit clear. Make
sure there is at least 10cm free space around it to prevent it from overheating.
47.Use of an extension cord with the appliance is not recommended. However, if it is
necessary to use an extension lead, ensure that the lead is suited to the power
consumption of the appliance to avoid overheating of the extension cord,
appliance or plug point. Do not place the extension cord in a position where it can
be pulled on by children or animals, or tripped over.
48.This appliance is not suitable for outdoor use. For household use only. Do not
use this appliance for anything other than its intended use.
49.The manufacturer does not accept responsibility for any damage or injury caused
by improper or incorrect use, or for repairs carried out by unauthorised personnel.
50.If the black crystal surface is cracked, please switch the appliance off and take it
to an authorised service centre immediately.
51.In case of technical problems, switch off the machine and do not attempt to repair
it yourself. Return the appliance to an authorised service facility for examination,

7
adjustment or repair. Always insist on the use of original spare parts. Failure to
comply with the above mentioned pre-cautions and instructions, could affect the
safe operation of this machine.

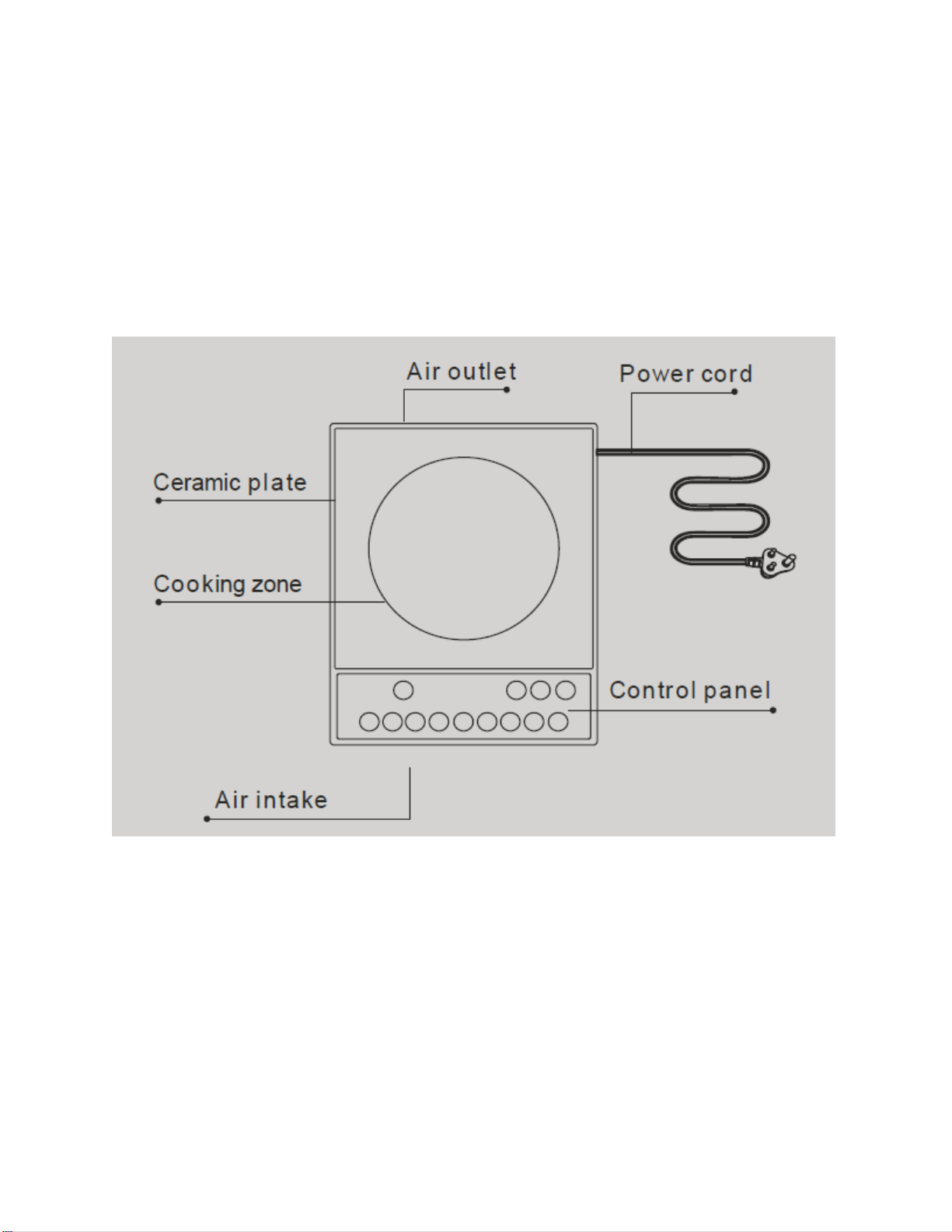

PARTS DIAGRAM
WHY YOU CHOSE INDUCTION TECHNOLOGY
Induction cooking brings time-saving innovation to the modern kitchen. Not only is it
rapid, healthy and safe but it is also a more energy efficient cooking method. Induction
cooking offers you the ultimate cooking convenience with less of the cost.

8
An induction cooker is ideal for all households and occasions. It is great for home
entertaining for example. Use it as a food warmer to keep your food at the optimal
serving temperature or as an additional cooking surface when needed. Use it in garden
cottages, when camping or caravanning or even as a compact cooktop for student
accommodation such as dorm rooms.
HOW DOES IT WORK?
An Induction Cooker uses induction
heating to directly heat a cooking pot or
pan. Traditional cooking methods would
transfer heat from electric elements,
coils or burning gas ie. spiral or solid
typed hotplates, stove tops and gas
cookers.

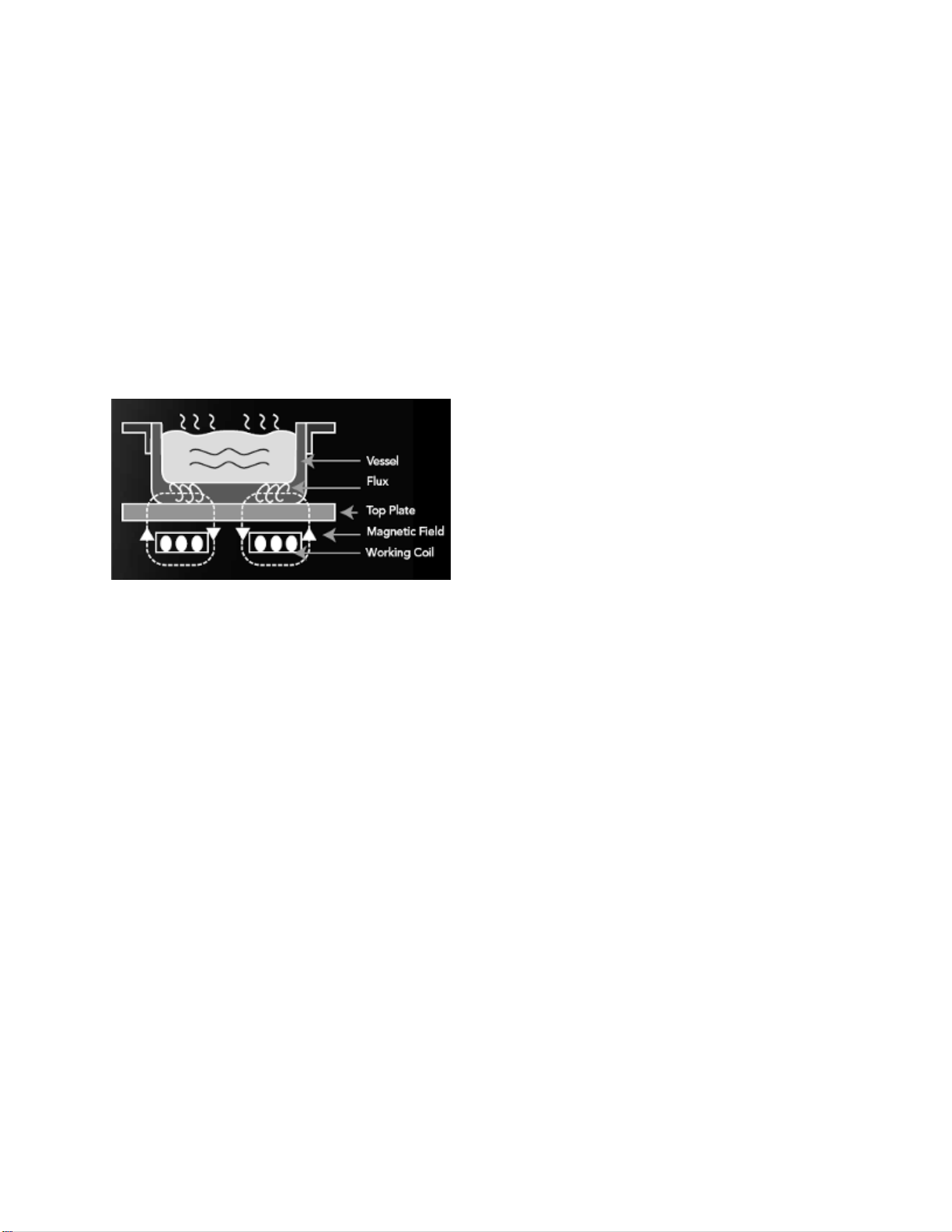

In an Induction Cooker, a coil of copper wire is placed underneath the cooking surface.
An alternating electric current flows through the coil which produces an oscillating
magnetic field. This field induces an electric current in the cooking pot or pan. It is this
resistive heating technology that instantly heats the cooking pot or pan. The copper coil
itself does not get hot - without a pot or pan in place, there is no heat produced.
An Induction Cooker heats cookware instantly, similar to gas cooking but provides you
with more control over the cooking process. The possibility of burn injury is also
significantly less than with traditional cooking methods as the surface of the cook top is
only heated from contact with the cooking pot or pan. There are no flames or red-hot
electric heating elements as found in traditional cooking equipment.
The induction effect does not heat the air around the cooking pot or pan which results in further
energy efficiencies. Some air is blown through the cook top to cool the internal electronics but
this air emerges only a little warmer than ambient room temperature.

9
Induction cooking also promotes a healthier and balanced lifestyle. It utilizes high heat and
reduced cooking times to help seal in nutrients and tasty goodness!
Induction Cookers are designed specifically for use with Induction-ready pots and pans. Test
your cookware for compatibility by trying to stick a magnet to its bottom. Your cookware is
compatible and will work with an Induction Cooker if the magnet stays in place.
INDUCTION-READY COOKWARE:
Material: steel, cast iron, enamelled iron, stainless steel
Shape: flat bottom pots or pans
Size: diameter measuring from 15cm to 18cm
Weight: cookware with a weight of up to 4kg (including contents)
COOKWARE NOT SUITABLE FOR INDUCTION USE:
Material: heat-resistant glass, ceramics, copper, bronze, aluminium
Shape: convex or concave. Round bottoms
Size: diameter measuring less than 15cm
Weight: cookware with a weight over 4kg (including contents)
Heat –Resistant
Glass Pot

10
NOTE: The induction cooker will not heat and will present an error in the following
situations:
Once a cooking function has been selected but there is no pot or pan on
the cooking area
When a pot or pan is used that is not made from induction-ready material
When the shape of the pot or pan is incorrect or if it is too small in
diameter
When the pot or pan is too heavy
BEFORE FIRST USE
Take the appliance out of the box and take off any protective wrappings. REMEMBER: DO
NOT LEAVE PROTECTIVE PACKAGING LYING AROUND, AS IT COULD BE DANGEROUS
AROUND INFANTS.
Before using, please first check if the power plug connects well with the power outlet. Before
placing the pot on the cooker plate, please clean up water stains, oil spots or any other adherent
dirt from the outside surface of the pot and cooker plate. Please put the pot to be heated on the
central part of the induction cooker. Do not put an empty pot on the cooker plate to be heated.
OPERATING INSTRUCTIONS
1. After pressing the “ON/OFF”key, the induction cooker enters into manual
cooking mode.
2. After pressing the “ON/OFF” key, if no proper vessel is placed on the cooker
plate, the induction cooker will not heat up and the alarm will sound to indicate
that a vessel (pot/ pan) is required. After one minute, it will switch off
automatically.

11
3. After switching on the appliance, press the corresponding cooking buttons to
enter the desired cooking mode.
4. Please refer to “Cooking Modes”for detail of the corresponding heating process.
5. After selecting a mode, you can press “+”or “-”to adjust the power. Note that in
some modes, the induction cooker will automatically adjust the power according
to the cooking requirement. For certain modes, the power is restricted complying
with the cooking requirement.
6. When the operating time is over, the induction cooker switches off automatically.
If switch off is needed in advance, press the “ON/OFF ”key to turn the appliance
off.
COOKING MODES
Hot Pot
In this mode, time and power can be adjusted at any time. If the water in the pot dries
up or the temperature is abnormally high, the induction cooker automatically switches
off or starts its protection function.
Fry/ Deep Fry
Ideal for high temperature cooking. Time and power can be adjusted at any time.
When the temperature of the ingredients reaches the temperature level provided by the
selected mode (the highest temperature of various modes are different), the induction
cooker will switch to interval heating or stops heating. After the temperature cools down,
the induction cooker restarts heating.
Porridge/ Soup/ Braise
The induction cooker automatically controls the power according to the time duration
that has been set and the temperature of the ingredients. Under these modes, the

12
power can be adjusted within the adjustable power range at any time. After this manual
adjustment, the induction cooker will return to auto power control according to the
cooking purpose two minutes later. When Porridge, or Soup mode is selected, the
induction cooker will start the auto two-hour keeping warm function after the operation is
finished.
Slow Cook
Ideal for continuous heating with gentle power. When using this mode to cook stew,
soup or porridge , please first use the “Hot pot”mode to bring ingredients to boil and
then heat it by using “Slow cook”. The cooking time duration can be set according to
preference.
Note:
Under this mode, the power cannot be adjusted. If adjustment is needed, please switch
to the other modes, such as “Hotpot”.
Boil
Boil mode is for boiling water. After the water is boiled, the induction cooker will switch
off automatically.
Note:
It is recommended to put water that occupies 30% to 80% of the pot capacity
when boiling water.
When boiling water, factors such as an uneven pot bottom, scale or weather
conditions could influence the boiling effect.
Please use the specific stock pot or water kettle when boiling water.
Keep Warm
Keep Warm mode is ideal to provide gentle heat to maintain warmth. Under this mode,
the induction cooker heats the ingredients with gentle power to maintain a certain
temperature inside the pot. Note: Under this mode, the power cannot be adjusted.

13
PAUSE FUNCTION
The pause function is designed for temporarily stopping heating during the normal
operation process. You can switch to pause status in any cooking mode. During
operation, when pause is needed, please press the function key “Pause”.Now, the
pause indicator lights up, the display and other function indicators stay in the previous
status. The power indicator turns off and the induction cooker stops heating. When the
induction cooker is in pause, press the “Pause”key again or select any cooking mode to
quit the pause status and return to the normal heating process. After setting pause, the
induction cooker stops heating. The default pause time interval is 10 minutes. After 10
minutes, if the pause mode is not cancelled, the induction cooker will sound an alarm.
The alarm will last for several seconds then the induction cooker will switch off
automatically.
COOKING TIPS
Put oil or butter into the induction-ready pot or pan before switching the unit on.
Never start cooking on too high a temperature as this may cause the food to
burn.
Induction cooking works rapidly. You may need to decrease the amount of
cooking time required in some recipes.
Never over-cook. Add water, wine or stock to your recipes if necessary.
Foods which overcook easily should be removed from the frying pan as soon as
cooking has been completed.
Try to dry meat, fish, poultry, etc. before adding to hot oil to prevent unnecessary
splattering.
We advise that you use cookware with a bottom diameter of 12-16cm when deep
frying food.
Do not fry too much food at a time in order to prevent the oil temperature from
dropping too dramatically.

14
CLEANING AND MAINTENANCE
Discolouration, burn marks or stains may result from the use of pots and pans
that have not been cleaned properly.
Clean the induction cooker after each use to avoid stains caused by a build-up of
food or grease residues. Never leave food on the black crystal surface overnight.
Always unplug the unit and allow it to cool before starting to clean.
Clean the induction cooker while still warm after use. Wipe the black crystal
surface with warm soapy water using a sponge or dishcloth only. Normal dish
washing liquid should be sufficient. For excess soiling, after the unit is cool,
wash the black crystal surface with a soft sponge moistened with a non-abrasive
kitchen cleaner.
Never scrape with hard or sharp utensils when cleaning.
Use a non-abrasive sponge or damp dish cloth to clean the exterior of the
induction cooker.
Wipe the unit thoroughly to remove soap residue. Ensure that all parts are
thoroughly dried.
Use a vacuum cleaner to carefully suck up dirt from the air intake and exhaust
vent.
Do not use petrol, acetone, vinegar, alcohol, benzene, bleach, solvents, abrasive
cleaners or scouring pads to clean your appliance as it can be damaging to the
finish.
Never immerse the cord or plug in any liquid.
Do not soak the induction cooker in water.
Do not place heavy objects on the black crystal surface as this surface is
breakable.
This appliance is for household use only and is not user-serviceable.
Do not open or change any parts by yourself. Please refer to a qualified electrical
service department or return to the supplier if servicing is necessary.
If the unit is not used for a prolonged period of time, store it in its original
packaging, in a dry place and out of reach of children. When storing, protect the

15
unit from extreme heat, moisture, extreme cold temperatures and direct sunlight.
Always clean the unit thoroughly before a prolonged storage period.
Improper use can lead to scratches on the black crystal surface. To avoid
scratches and discolouration, ensure that you follow the above cleaning and
maintenance guidelines.
STORING THE APPLIANCE
Unplug the unit from the wall outlet and clean all the parts as instructed above. Ensure
that all parts are dry before storing.
Store the appliance in its box or in a clean, dry place.
Never store the appliance while it is still wet or dirty.
Never wrap the power cord around the appliance.
SERVICING THE APPLIANCE
There are no user serviceable parts in this unit. If the unit is not operating correctly, please
check the following:
You have followed the instructions correctly
That the unit has been wired correctly and that the wall socket is switched on.
That the mains power supply is ON.
That the plug is firmly in the mains socket.
If the appliance still does not work after checking the above:
- Consult the retailer for possible repair or replacement. If the retailer fails to resolve the problem
and you need to return the appliance, make sure that:
The unit is packed carefully back into its original packaging.
Proof of purchase is attached.
A reason is provided for why it is being returned.

16
If the supply cord is damaged, the manufacturer or an authorised service agent must replace it,
in order to avoid any hazard. If service becomes necessary within the warranty period, the
appliance should be returned to an approved Home Of Living Brands (Pty) Limited service
centre. Servicing outside the warranty period is still available, but will, however, be chargeable.
CHANGING THE PLUG
Should the need arise to change the fitted plug, follow the instructions below.
This unit is designed to operate on the stated current only. Connecting to other power
sources may damage the appliance. Connect a three-pin plug as follows:
The wires in this mains lead are coloured in accordance with the following code:
Green/Yellow = Earth
Blue = Neutral
Brown = Live
TROUBLESHOOTING GUIDE
Problem
Solution
After plugging in the power cord and
pressing the “ON/OFF” key, the indicator
and display do not light up.
Is the power plug properly connected?
Is the switch, power outlet, fuse or power
cord damaged?
The “ON/OFF” indicator lights up and the
display works normally, but heating does
not start.
Is the pot material correct for use?
Is the appliance in a “Preset” working
status?
For other causes, please take the appliance
to an authorised repair agent.
Heating suddenly stops during the
process.
Is the temperature of the oil too high when
frying?

17
Is the ambient temperature of the
surroundings very high?
Is the air inlet or air outlet of the induction
cooker blocked?
Is the default heating time of the induction
cooker over?
The self-safety protection of the induction
cooker starts, wait for several minutes and
connect power to use it.
ADVANCED STRUCTURAL AND TECHNICAL DESIGN FOR YOUR SAFETY
ASSURANCE

18
PLEASE AFFIX YOUR PROOF OF PURCHASE/RECEIPT HERE
IN THE EVENT OF A CLAIM UNDER WARRANTY THIS RECEIPT MUST BE PRODUCED.
W A R R A N T Y
1. Home Of Living Brands (Pty) Limited warrants to the original purchaser of this product (“the
customer”) that this product will be free of defects in quality and workmanship which under normal
personal, family or household use and purpose may manifest within a period of 1 (one) year from
the date of purchase (“warranty period”).
2. Where the customer has purchased a product and it breaks, is defective or does not work properly
for the intended purpose, the customer must notify the supplier from whom the customer bought
the product (“the supplier”) thereof within the warranty period. Any claim in terms of this warranty
must be supported by a proof of purchase. If proof of purchase is not available, then repair, and/or
service charges may be payable by the customer to the supplier.
3. The faulty product must be taken to the supplier's service centre to exercise the warranty.
4. The supplier will refund, repair or exchange the product in terms of this warranty subject to
legislative requirements. This warranty shall be valid only where the customer has not broken the
product himself, or used the product for something that it is not supposed to be used for. The
warranty does not include and will not be construed to cover products damaged as a result of
disaster, misuse, tamper, abuse or any unauthorized modification or repair of the product.
5. This warranty will extend only to the product provided at the date of the purchase and not to any
expendables attached or installed by the customer.
6. If the customer requests that the supplier repairs the product and the product breaks or fails to
work properly within 3 (three) months of the repair and not as a result of misuse, tampering or
modification by or on behalf of the customer, then the supplier may replace the product or pay a
refund to the customer.
7. The customer may be responsible for certain costs where products returned are not in the original
packaging, or if the packaging is damaged. This will be deducted from any refund paid to the
customer.
HOME OF LIVING BRANDS (PTY) LTD
www.homeoflivingbrands.com
011 493-6204 (JHB)
031 303-1163 (DBN)
021 552-5161 (CT)
www.salton.co.za
www.facebook.com/SaltonAppliances
