Salton SWH10 Installation guide

INSTRUCTIONS AND WARRANTY
MODEL NO. SWH10
SALTON 3.5L WOK AND HOTPLATE DUO

2
Congratulations on purchasing our Salton 3.5L Wok and Hotplate Duo. Each unit is manufactured to
ensure safety and reliability. Before using this appliance for the first time, please read the instruction
manual carefully and keep it for future reference.
FEATURES OF THE SALTON 3.5L WOK AND HOTPLATE DUO
•1000-1200W
•Large 31cm diameter wok with deep 7cm interior
•Non-stick coated aluminium pan for hassle-free cooking and easy cleaning
•Tempered glass lid with steam vent
•Dishwasher safe pan and lid
•Cool-touch handles
•Electric hotplate base with adjustable temperature control (Off, Low, Medium or High)
•Hotplate can be used individually as a single solid plate hot plate
•Cooks from simmer to 220 ℃(80-220 ℃)
•With Tempura rack and wooden spatula
•Tempura rack is ideal for steaming or draining excess oil from foods
•Create quick, tasty meals in no time! Thai, Oriental or Local dishes made easy
•Ideal for stir-fry, steaming, deep-frying, scrambled eggs, fondue and so much more!
•With indicator light and non-slip feet
•Includes recipes
•For domestic use only
•1 year warranty
IMPORTANT SAFEGUARDS
When using any electrical appliance, basic safety precautions should always be followed including the
following:
1. Please read the instructions carefully before using any appliance.
2. Always ensure that the voltage on the rating label corresponds to the mains voltage in your
home.
3. Incorrect operation and improper use can damage the appliance and cause injury to the user.

3
4. The appliance in intended for household use only. Commercial use invalids the warranty and
the supplier can not be held responsible for injury or damage caused when using the appliance
for any other purpose than that intended.
5. Avoid any contact with moving parts.
6. Close supervision is required when any appliance is used near or by children or invalids.
7. Check the power cord and plug regularly for any damage. If the cord or the plug is damaged, it
must be replaced by the manufacturer or a qualified person in order to avoid an electrical
hazard.
8. Do not use the appliance if it has been dropped or damaged in any way. In case of damage,
take the unit in for examination and/or repair by an authorised service agent
9. To reduce the risk of electric shock, do not immerse or expose the hotplate, plug or the power
cord to water or any other liquid.
10. Never immerse the unit in water or any other liquid for cleaning purposes.
11. Do not use the appliance with wet hands, on a damp floor or if the appliance itself is wet.
12. Do not touch the plug with wet or damp hands.
13. Remove the plug from the socket by gripping the plug. Do not pull on the cord to disconnect the
appliance from the mains. Always unplug the unit when not in use, before cleaning or when
adding or removing parts.
14. The use of accessory attachments which are not recommended or supplied by the manufacturer
may result in injuries, fire or electric shock.
15. A short cord is provided to reduce the hazards resulting from becoming entangled in or tripping
over a longer cord.
16. Do not let the cord hang over the edge of a table or counter. Ensure that the cord is not in a
position where it can be pulled on inadvertently.
17. Do not allow the cord to touch hot surfaces and do not place on or near a hot gas or electric
burner or in a heated oven.
18. Do not use the appliance on a gas or electric cooking top or over or near an open flame.
19. Use of an extension cord with this appliance is not recommended. However, if it is necessary to
use an extension lead, ensure that the lead is suited to the power consumption of the appliance
to avoid overheating of the extension cord, appliance or plug point. Do not place the extension
cord in a position where it can be pulled on by children or animals or tripped over.
20. This appliance is not suitable for outdoor use. Do not use this appliance for anything other than
its intended use.
21. DO NOT carry the appliance by the power cord.

4
22. Do not leave this appliance unattended during use. Always unplug the unit when not in use or
before cleaning.
23. Always operate the appliance on a smooth, even, stable surface. Do not place the unit on a hot
surface.
24. Ensure that the switch is in the “Off” or “0” position after each use.
25. The manufacturer does not accept responsibility for any damage or injury caused by improper
or incorrect use, or for repairs carried out by unauthorised personnel.
26. In case of technical problems, switch off the appliance and do not attempt to repair it yourself.
Return the appliance to an authorised service facility for examination, adjustment or repair.
Always insist on the use of original spare parts. Failure to comply with the above mentioned
pre-cautions and instructions, could affect the safe operation of this appliance.
27. Do not move the unit while in use.
28. Do not use any sharp cooking utensils, as this will damage the non-stick coating on the wok.
Only use wooden or plastic utensils.
29. DO NOT use caustic cleaners, nylons or metal brushes on the non-stick surface. It may scratch
or damage the surface.
30. Do not touch hot surfaces. Use only the handles or knob on the appliance.
31. The unit, particularly the hotplate and wok, become very hot during operation. All persons must
be extra careful while using the appliance. If the user is not careful, improper use could lead to
scalding and injury.
32. Note that the hotplate is still very hot even after the temperature control has been turned off.
Leave it to cool for a few minutes before handling.
33. Touch the wok only on the handles and knob. Check regularly, whether the handles and knob
are fixed properly and have not come loose over time.
34. Watch out for spluttering of oil or fat during cooking. Use the lid whenever possible and watch
out for the steam and spluttering when removing the lid.
35. Safety distance: please leave at least 30cm space around the wok and hotplate on all sides to
ensure sufficient ventilation. This must also include space above the unit.
36. Do not place any oil or fats directly on the hotplate.
37. Close supervision is necessary when any appliance is used by or near children.
38. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions,
or has been damaged in any manner. Return appliance to the nearest authorised service facility
for examination, repair or adjustment.
39. Be sure that the handles are assembled and fastened properly before using this appliance.

5
40. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
41. Do not operate this appliance by means of an external timer or separate remote control system.
42. This appliance is intended to be used in household and similar applications such as:
–staff kitchen areas in shops, offices and other working environments;
–farm houses;
–by clients in hotels, motels and other residential type environments;
–bed and breakfast type environments

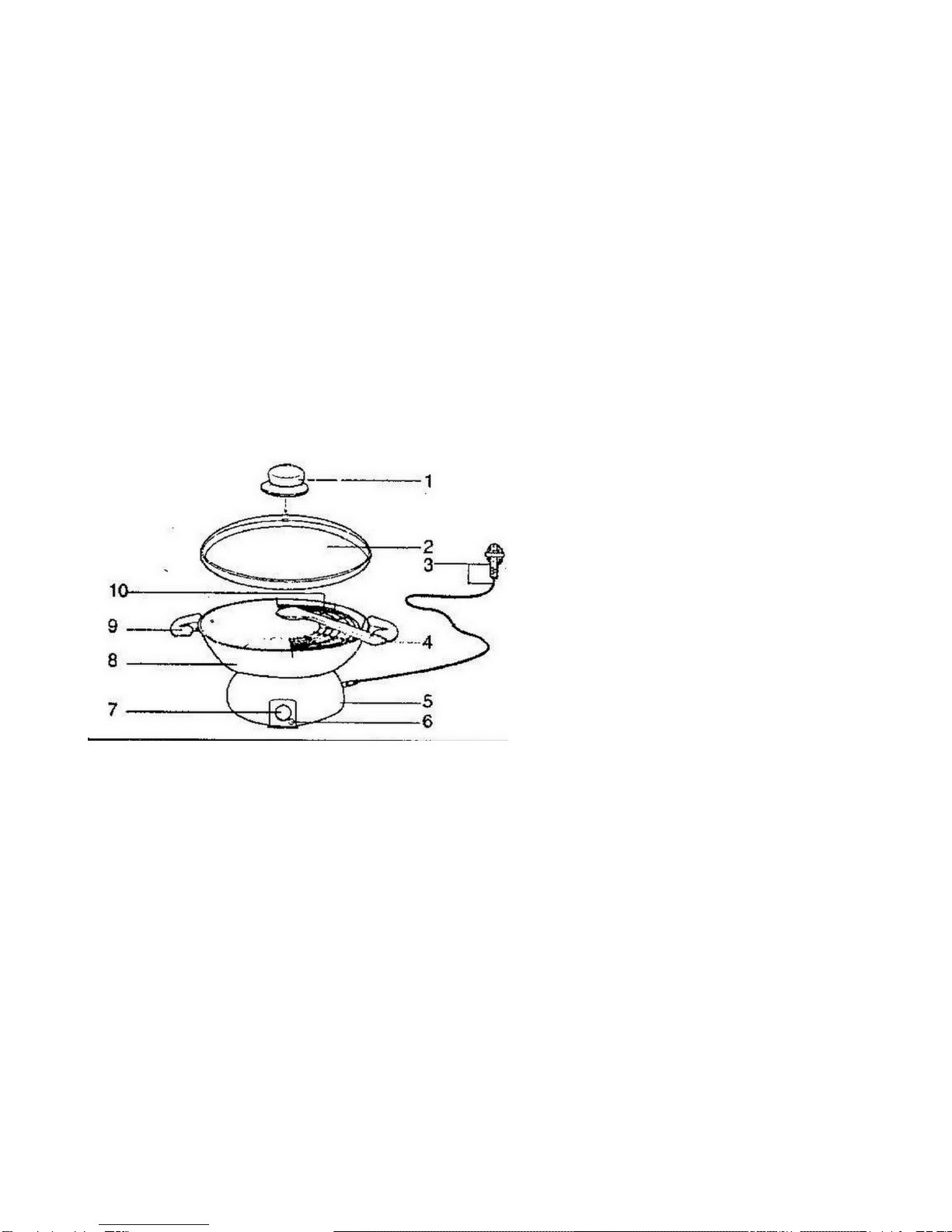

PARTS DIAGRAM
BEFORE FIRST USE
Before using this unit, please read these instructions completely. Save this manual and pass it on to
next user.
Before using this appliance for the first time, unpack the appliance and remove all protective packaging
and wrappings. Please ensure to discard the protective packaging and wrappings immediately. It is
important to keep these away from babies, infants and children for safety purposes.
Assemble the glass lid with the knob and screw provided.
C
E
G
H
1. Lid handle
2. Glass lid
3. Power cord with plug
4. Wooden spatula
5. Hotplate
6. Indicator light
7. Control panel: OFF/ LO/ MED/ HI
8. Wok/ pan
9. Handles
10. Tempura rack

6
OPERATING INSTRUCTIONS
*There may be a brief manufacturing odour or small amount of smoke during first use. This
usually occurs when using cooking appliances for the first time as the element will take a
minute or two to cure, etc. Please ensure that there is sufficient ventilation in the area where
you are using the appliance*
1. After following the instructions above, place the hotplate on a firm, flat surface.
2. Ensure that the control panel of the hotplate is set to the “0” or “OFF” position.
3. Insert the power cord of the hotplate into a suitable plug socket.
4. Place the wok (with lid in place) in the centre of the hotplate. Ensure that the wok is
placed securely.
5. To switch the unit on, set the control panel to the required temperature LOW/ MED/ HI
by turning the knob in a clockwise direction. The indicator light will turn on and the unit
will start heating to the temperature required. As the wok heats up, you may hear a
clicking sound. This is due to the expansion of the metal as it heats and is normal. You
may also notice this sound as the unit cools down. The indicator light will turn off when
the unit has reached desired temperature. NOTE: Never turn the unit on without any
food and / or liquid in the wok.
6. Before first use: pour some salad or vegetable oil into the wok together with some
water and bring it to the boil. Leave it to boil for 5-7 minutes. Once complete, discard
the oil and water mixture. Clean the wok as per the cleaning instructions in the manual
then begin the cooking process. This quick measure will eliminate any manufacturing
odours.
7. To cook: Follow steps 1 to 5 above. Now lift the lid and place the food to be cooked
into the wok. Be careful when inserting the food as the wok is hot and this may cause
the food to splatter. Be careful not to overfill the wok. During cooking, the indicator light
may cycle on and off indicating that the desired temperature is being maintained. Tip:
Experiment with foods and experience a world of taste.
8. Once the food is cooked to your preference, turn the temperature control to the “0” or
“OFF” position and unplug the unit from the power socket.

7
NOTE: Be careful when working with this appliance, as the wok, lid and hotplate become very
hot. Only the handles and knob will be cool enough to touch.
Basic Temperature Guide:
LOW Low temperature Keep foods warm
MED Medium temperature Chinese/ Chocolate fondue
HI High temperature Meat fondue/ Cheese vegetable pan
Following a few general tips can prolong the life of your wok:
1. Always wash the wok and lid as soon as possible after each use.
2. DO NOT pour cold water into a hot pan.
3. The wok has a non-stick coating. Use only the wooden spatula for turning and stirring foods so
as not to damage the coated surface. Never scrape with hard or sharp utensils.
4. Wash the wok and lid after each use to avoid stains caused by a build-up of food or grease
residues.
5. Never leave food in the wok overnight.
COOKING TIPS
Foods which overcook easily should be removed from the wok as soon as cooking has been
completed.
Try to dry meat, fish, poultry, etc. before adding to hot oil to prevent unnecessary splattering.
Do not fry too much food at a time in order to prevent the oil temperature from dropping too
dramatically.
CLEANING AND MAINTENANCE
This appliance is for household use only and is not user-serviceable.

8
Do not open or change any parts by yourself. Please refer to a qualified electrical service
department or return to the supplier if servicing is necessary.
Always remember to unplug the unit from the electrical outlet when not in use and before
cleaning. Ensure that the control panel is set to the “OFF” or “0” position.
Allow the wok and hotplate sufficient time to cool.
Lift the wok off of the hotplate and clean it as described below.
Clean the body of the wok while it is still warm after use. Be careful as it may still be hot. Clean
when the wok is comfortable to the touch. As the wok has a removable base (the hotplate), the
pan itself and lid easily fit into most dishwashers for cleaning. Note: If you choose to wash the
pan in a dishwasher, the bottom of the pan is likely to discolour due to the caustic nature of the
dishwashing detergent.
If preferred, the wok can be cleaned with a damp cloth or sponge. Soaking the pan to loosen
food residue is not necessary. If however desired, do not soak for more than two hours.
Soaking for more than two hours may damage the non-stick finish.
Do not scrub the wok as this will damage the non-stick coating. Always ensure that the wok
is completely dry before use or storing.
Do not use bleach or other abrasive substance or solvents to clean your appliance as it can be
damaging to the finish.
To remove stubborn spots/marks from the pan, wipe the surfaces with a cloth slightly dampened
in soapy water or mild non-abrasive cleaner. Rinse and dry with a clean, dry, soft cloth.
Do not use the lid if it is chipped or cracked. Handle the lid carefully and avoid impact. Do not
handle the lid if it is hot with a wet towel or place the hot lid on a cold or wet surface.
Check the screw on the lid knob periodically in case it has become loose. Retighten it if
necessary. CAUTION: Over-tightening can result in stripping of the screw or cracking of the lid
knob.
After cleaning, completely wipe the wok dry with a soft cloth. Clean the wok after each use.
To maintain a longer life of the non-stick coated surface on the inside of the pan, apply a very
light coat of cooking oil to the non-stick coating with a paper towel before storing. Repeat
periodically.
Never allow the hotplate to come into contact with any liquid. To clean the hotplate, gently wipe
it with a soft dry cloth or paper towel. Always ensure that the hotplate is completely dry
before use or storing.
Do not immerse the hotplate in water or any other liquid, or hold it under a running tap.

9
STORING THE APPLIANCE
Unplug the hotplate from the wall outlet and clean all the parts as instructed above. Ensure that
all parts are cool and dry before storing.
Store the appliance in its box or in a clean, dry place.
Never store the appliance while it is still wet or dirty.
Never wrap the power cord around the appliance.
SERVICING THE APPLIANCE
There are no user serviceable parts in this appliance. If the unit is not operating correctly, please check
the following:
You have followed the instructions correctly
That the unit has been wired correctly and that the wall socket is switched on.
That the mains power supply is ON.
That the plug is firmly in the mains socket.
If the appliance still does not work after checking the above:
Consult the retailer for possible repair or replacement. If the retailer fails to resolve the problem and you
need to return the appliance, make sure that:
The unit is packed carefully back into its original packaging.
Proof of purchase is attached.
A reason is provided for why it is being returned.
If the supply cord is damaged, it must be replaced by the manufacturer or an authorised service agent,
in order to avoid any hazard. If service becomes necessary within the warranty period, the appliance
should be returned to an approved Home of Living Brands (Pty) Ltd service centre. Servicing outside
the warranty period is still available, but will, however, be chargeable.

10

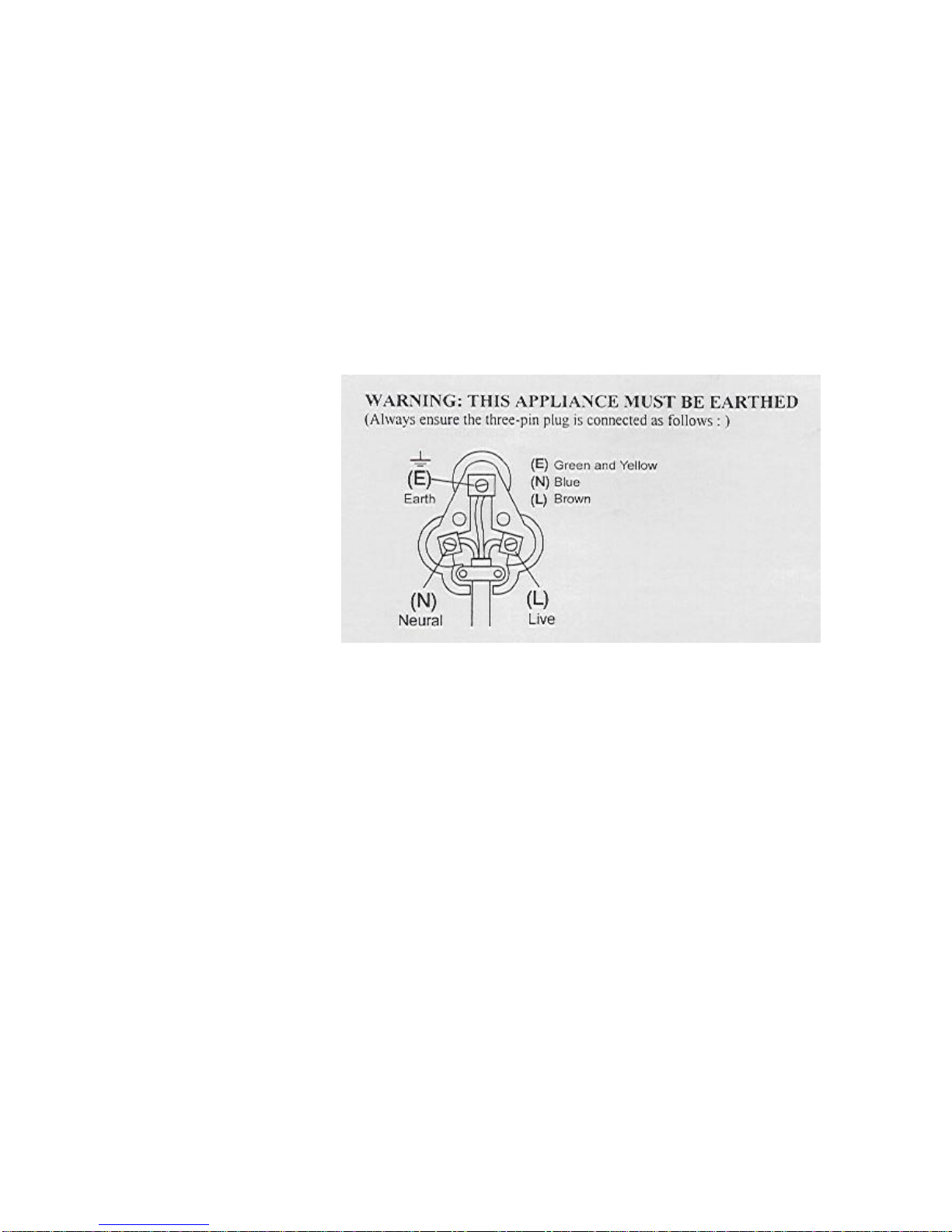

CHANGING THE PLUG
Should the need arise to change the fitted plug, follow the instructions below.
This unit is designed to operate on 230V-240V current only. Connecting to other power sources
may damage the appliance. Connect a three-pin plug as follows:
The wires in this mains lead are coloured in accordance with the following code:
Green/Yellow = Earth
Blue = Neutral
Brown = Live
TASTY RECIPES AND MEAL IDEAS
Important: Heat settings and cooking duration as given in recipes are approximate. Due to
personal differences in taste, some foods may be desired more or less crisp, more or less
done, especially in the case of meats. Therefore, heat settings may be increased, decreased
or varied in any way to suit individual preference.
CHEESE OR CHOCOLATE FONDUE
METHOD: Bring the cheese (or chocolate) to boil and set the control panel to the LOW
position. Keep stirring with the wooden spatula in order to get a smooth result.

11
BEEF FILLET
400g beef fillet 4-8 tsp. soy sauce
2 tbsp. food starch 2 bundles of spring onions
300g turnips 20g ginger
3 tsp. oil 120ml chicken stock
Pinch of salt and pepper 50g peanuts
Optional: Sherry for taste
METHOD: Cut the beef fillet into manageable slices. Marinate for 15 minutes in 3 teaspoons
of soy sauce. Powder with food starch. Clean and wash the spring onion - cut them into 4cm
slanted pieces. Clean, wash and peel the turnips - cut them into 4-5cm long thin strips. Peel
ginger and cut it across into thin slices. Heat oil well in the wok, fry the meat for half a minute
and then on the tempura rack. Fry turnips and ginger, stirring constantly. Add the spring
onion and fry it for about 1 minute. Add the meat, (optional: add some sherry) and 1-2
teaspoons of soy sauce. Bring to the boil, mix everything together in the wok, including the
chicken stock, add salt and pepper to taste. Cut and sprinkle peanuts.
CHINESE MEAT BALLS
500g minced beef 5ml salt
250g cabbage 15ml soy sauce
2 onions 30ml cooking oil
1.5ml ginger
METHOD: Preheat the wok. Put meat, cabbage and onions through a mincer using a coarse
mincing grade, or place in a food processor. Combine ginger, salt and soy sauce and add to
meat mixture. Mix well. Shape into balls about 2.5 –3 cm in diameter. Fry in oil until done,
browning well on all sides.

12
BEEF STROGANOFF
750g round steak cut into strips 300ml sour cream
Flour, salt and pepper 1 can tomato soup
30ml cooking oil 15ml Worcestershire sauce
150ml chopped onions 6 to 8 drops Tabasco sauce
1 clove garlic, minced 2.5ml salt
1 x 200g can mushrooms 1ml pepper
METHOD: Preheat the wok. Cover meat in seasoned flour. Insert cooking oil to the pan and
brown meat well. Add onions, garlic and mushrooms and sauté lightly. Reduce heat.
Combine cream, tomato soup, Worcestershire sauce, tobasco sauce, salt and pepper and
pour over meat. Cover and braise until tender. Serve over hot spaghetti or rice. Sprinkle with
parmesan cheese.
SCRAMBLED EGGS
6 Eggs slightly beaten 100ml cream or milk
Salt and pepper 30ml butter
METHOD: Preheat the pan. Combine the eggs, salt, pepper and milk. Melt the butter in the
pan and add the eggs. Stir the eggs as they become firm. Serve when firm but not dry.
Variations:
• Curried – Add 5 to 10ml curry powder
• Dried Beef – Add 230ml shredded dried beef
• Ham or Bacon – Add sautéed cubed ham or bacon.
• Onion and Parsley – Add chopped onion and parsley
• Chives – Add chopped chives
• Mushrooms – Add sliced canned or fresh mushrooms

13
PLEASE AFFIX YOUR PROOF OF PURCHASE/RECEIPT HERE
IN THE EVENT OF ACLAIM UNDER WARRANTY THIS RECEIPT MUST BE PRODUCED.
W A R R A N T Y
1. Home of Living Brands (Pty) Limited warrants to the original purchaser of this product (“the
customer”) that this product will be free of defects in quality and workmanship which under
normal personal, family or household use and purpose may manifest within a period of 1 (one)
year from the date of purchase (“warranty period”).
2. Where the customer has purchased a product and it breaks, is defective or does not work
properly for the intended purpose, the customer must notify the supplier from whom the
customer bought the product (“the supplier”) thereof within the warranty period. Any claim in
terms of this warranty must be supported by a proof of purchase. If proof of purchase is not
available, then repair, and/or service charges may be payable by the customer to the supplier.
3. The faulty product must be taken to the supplier's service center to exercise the warranty.
4. The supplier will refund, repair or exchange the product in terms of this warranty subject to
legislative requirements. This warranty shall be valid only where the customer has not broken
the product himself, or used the product for something that it is not supposed to be used for.
The warranty does not include and will not be construed to cover products damaged as a result
of disaster, misuse, tamper, abuse or any unauthorised modification or repair of the product.
5. This warranty will extend only to the product provided at the date of the purchase and not to
any expendables attached or installed by the customer.
6. If the customer requests that the supplier repairs the product and the product breaks or fails to
work properly within 3 (three) months of the repair and not as a result of misuse, tampering or
modification by or on behalf of the customer, then the supplier may replace the product or pay a
refund to the customer.
7. The customer may be responsible for certain costs where products returned are not in the
original packaging, or if the packaging is damaged. This will be deducted from any refund paid
to the customer.
HOME OF LIVING BRANDS (PTY) LTD (JOHANNESBURG)
JOHANNESBURG TEL NO. [phone]
CAPE TOWN TEL NO. [phone]
DURBAN TEL NO. [phone]
www.homeoflivingbrands.com
www.salton.co.za
www.facebook.com/SaltonAppliances
