SAMCOM ExCam XF P1367 User manual

ExCam®XF P1367
User Manual

Doc.-ID: 190314-PT08BA-ES-ExCam XF-P1367_EN_rev.00.docx, Page 2 of 32
Table of contents
1Introduction ..............................................................................................................4
2Technical data ..........................................................................................................4
2.1 Explosion protection............................................................................................4
2.2 Electrical parameters of the camera....................................................................5
2.3 Connection cable Ex-d - Ex-e (SKDP03-T).........................................................5
2.4 Video-technical characteristics............................................................................6
2.5 Other technical data............................................................................................6
3Safety Instructions...................................................................................................6
4Installation ................................................................................................................7
5Electrical connection ...............................................................................................9
5.1 Potential equalization..........................................................................................9
5.2 Connection and Fusing .....................................................................................10
5.2.1 Network interface / plug assignment (RJ45)............................................................................11
5.2.2 Connecting the heating (24V DC)............................................................................................11
5.2.3 Connection to a terminal box (alternatively) ............................................................................11
5.3 Example: external connection and fusing via the terminal box..........................14
5.3.1 Example: direct routing from the ExTB-3 to the safe area ......................................................14
5.3.2 Example: Routing via ExConnection Rail (optional accessories)............................................15
5.3.3 Appropriate cables & cable entries..........................................................................................16
5.3.4 Cable kits - "plug and play" connection packages...................................................................17
5.3.5 Fusing......................................................................................................................................18
5.3.6 Tests prior to switching on the voltage ....................................................................................19
6Working in the camera housing............................................................................19
6.1 Work preparation:..............................................................................................19
6.2 Opening the pressure-resistant housing............................................................20
6.3 Removing/inserting a SD memory card.............................................................23
6.4 Status LED........................................................................................................24
6.5 Hardware Reset ................................................................................................24
6.6 Closing of the pressure-resistant housing.........................................................24
6.7 Battery...............................................................................................................25
7Settings of the lens ................................................................................................26
8Network access and visualization ........................................................................27
8.1 Browser Support................................................................................................28
8.2 Assigning the IP address...................................................................................28
8.3 Password/ Identification ....................................................................................29
9Maintenance/ Modification.....................................................................................29
10 Repair...................................................................................................................30
11 Disposal/ Recycling............................................................................................30
12 Drawings & 3D models.......................................................................................30
13 Certificates and further documentation............................................................31

Doc.-ID: 190314-PT08BA-ES-ExCam XF-P1367_EN_rev.00.docx, Page 3 of 32
Table of Figures and Charts
Fig. 2-1 Sectional view of SKDP03-T ................................................................................5
Tab. 2-1. Other technical data...........................................................................................6
Tab. 4-1 Mounting Accessories.........................................................................................8
Fig. 5-1 ExCam XF P1367 Equipotential Bonding.............................................................9
Tab. 5-1 Equipotential Bonding .......................................................................................10
Fig. 5-2. Cable gland (KLE) and supply line ....................................................................10
Fig. 5-3. ExCam XF P1367 T08-VA2.3.K3.BOR2-LL.H-005.N-P.....................................10
Tab.5.2 Wire assignment in power cables.......................................................................11
Tab. 5-3. Wire assignment of terminal box ExTB-3.........................................................12
Fig. 5-4 Video Tutorial ExTB-3 ........................................................................................12
Fig. 5-5 Sample circuit of terminal box ExTB-3................................................................13
Fig. 5-6 Photo of the occupied terminal box ExTB-3 .......................................................13
Fig 5-7 ExTB-3 -> Safe area............................................................................................14
Fig. 5-8 ExTB-3 -> ExConnection Rail.............................................................................15
Fig. 5-9 Barrier gland.......................................................................................................16
Fig. 5-10 Cable kit –plug & play connection package.....................................................17
Tab. 5-4 Available cable kits............................................................................................18
Tab. 5-5 Recommendation for fusing ..............................................................................18
Fig. 6-1 Removing the weather protection roof (1/2) (this illustration is an example) ......20
Fig. 6-2 Removing the weather protection roof (2/2) (similar illustration).........................21
Fig. 6-3 Opening the ExCam XF P1367 (similar illustration)............................................21
Fig. 6-4. Mounting adapter with built-in components.......................................................23
Fig. 7-1. User Interface for setting the zoom and focus...................................................26
Tab.7-1 Lens Data...........................................................................................................26
Fig. 8-1 Axis IP Utility ......................................................................................................29
History of revisions
Product: ExCam® XF P1367
Title: User Manual for ExCam®XF P1367
Doc. -Id. 190314-PT08BA-ES-ExCam XF-P1367_EN_rev.00.docx
Author: Eva Schneider, Grad. Eng. (UAS)
Created: 14.03.2019
Rev.
Index
Date
Name
Comment
Approved by the ATEX Supervisor
0
14.03.2019
E. Schneider
Compilation of the document
Digital unterschrieben von Steffen
Seibert
DN: cn=Steffen Seibert, o=SAMCON,
ou, [email protected],
c=DE
Datum: 2019.04.16 14:57:12 +02'00'

Doc.-ID: 190314-PT08BA-ES-ExCam XF-P1367_EN_rev.00.docx, Page 4 of 32
1 Introduction
The ExCam XF P1367 is a powerful mega-pixel IP camera of the latest generation, with
5-megapixel resolution at 3072 x 1728 pixels. It is certified according to ATEX, IECEx
and EAC-Ex, and also has MASC certification. The camera has a high-definition televi-
sion resolution. It is equipped with a powerful remote zoom and focus lens (with i-CS).
The ExCam series is certified both in accordance with the European (ATEX) and interna-
tional (IECEx) directive. The explosion-protected housing is approved for ATEX group II
for zones 1, 2, 21 and 22 including the explosion groups IIC / IIIC. The T08 ExCam certi-
fication allows not only stationary device installation but also mobile applications (hand-
held use, etc.). To see other approvals, please visit our website at www.samcon.eu.
When designing the ExCam XF P1367, we focused very much on safety, mechanical
precision and a high quality stainless steel.
2 Technical data
2.1 Explosion protection
Identification marks acc. to Directive 2014/34/EU:
Model key: T08-VA2.3.K3.BOR2-LL.H-005.N-P
II 2G (zone 1 and 2)
II 2D (zone 21 and 22)
Explosion protection (gas): Ex db IIC T5 Gb
Explosion protection (dust): Ex tb IIIC T95°C Db
Protection class: IP 68 (IEC /EN 60529)
Transport/storage temperature: 0°C…+40°C
Ambient temperature (EX): -60°C…+60°C
Named testing laboratory: TÜV Rheinland (number 0035)
EU type approval certificate: TÜV 18 ATEX 8218X (2018)
IECEx Certificate of Conformity: TUR 18.0023X (2018)
EAC-Ex TUR Report: TC RU C-DE.AБ.61.B.00381/19
Other certificates: see https://www.samcon.eu/en/products/network/excam-xf-p1367/

Doc.-ID: 190314-PT08BA-ES-ExCam XF-P1367_EN_rev.00.docx, Page 5 of 32
2.2 Electrical parameters of the camera
Supply of 24 V DC for the heating:
Voltage supply: 24 V DC
Power consumption: approx. 40W@-60°C (temperature-dependent)
Power supply of the camera over Ethernet (PoE):
Voltage supply: PoE, IEEE 802.3af/802.3at type 1 class 3
Reference voltage: +48 V DC (44...54 V DC)
Maximum power consumption: 8.9 W
Typical power consumption: 5.0 W
2.3 Connection cable Ex-d - Ex-e (SKDP03-T)
Description: Data transfer and power supply of the camera
module (compliant with DIN EN 60079-14)
Jacket colour: green (GN), similar to RAL3001
Outside diameter: 12.4 ± 0.3 mm
Bending radius: 8 x Dawhen installed and 4 x Daafter installation
Data line: 4 x 2 x AWG23/1 CAT.6a
Performance elements: 3G1.5 (BK-BU-GN/YE)
Properties: PUR halogen-free, flame-retardant, UV-
resistant, chemical resistance, shielded (see
www.samcon.eu)
Quick link:
https://www.samcon.eu/fileadmin/documents/en/60-Assembling%26mounting/SKDP03-T_Datasheet.pdf
Fig. 2-1 Sectional view of SKDP03-T

Doc.-ID: 190314-PT08BA-ES-ExCam XF-P1367_EN_rev.00.docx, Page 6 of 32
2.4 Video-technical characteristics
We use the AXIS P1367 network camera in a pressure-resistant enclosure. For details,
please refer to the Product Documentation, video-technical data of AXIS®:
https://www.axis.com/products/axis-p1367
2.5 Other technical data
Camera (Ex-d)
Permissible ambient temperature
0°C … +60°C (for PoE power supply)
-60°C … +60°C (for 24 V DC power supply)
Protection class as per EN
60529/IEC 529
IP68 (test conditions: 24h/3m water column 5°C°)
Housing material
Stainless steel, mat. no. 1.4404
Weight
About 8.0 kg
Dimensions
D113mm x 310mm
Tab. 2-1. Other technical data
3 Safety Instructions
Please absolutely observe the safety directions stated
in the Ex-installation instructions of the T08 ExCam series!
Quick link:
https://www.samcon.eu/fileadmin/documents/en/22-Ex-Network-Cameras/ExCam-Series-T08-EX-Installation-Manual-2018.pdf
It is absolutely mandatory to observe the national safety regulations and regula-tions
for prevention of accidents, as well as the safety instructions given below in this User
Manual!
Attention!
Cameras of the type T08 ExCam are not suitable for use in zone 0 and
zone 20. The ambient temperature, temperature class and explosion
group as stated on type plate must be observed! Alterations are not per-
mitted! The camera is to be operated in sound conditions and in the in-
tended way.
Attention!
Only original parts of SAMCON Prozessleittechnik GmbH may be used for
repairs. Repairs concerning the explosion protection may only be carried
out in accordance with the nationally applied regulations and by
SAMCON Prozessleittechnik GmbH.

Doc.-ID: 190314-PT08BA-ES-ExCam XF-P1367_EN_rev.00.docx, Page 7 of 32
Attention!
Prior to installation, take external sources of heat or cold into account!
The temperature ranges prescribed for storage, transportation, and
operating must be adhered to!
Attention!
Observe the warnings given on the type plate:
“WARNING –DO NOT OPEN IN HAZARD AREAS“
“WARNING –DO NOT OPEN WHILE ENERGIZED“
The use in hazardous areas with regard to temperature and dust layers is
defined in the respective national regulations.
When installing the ExCam, adhere to the requirements of the EN/IEC
60079-14.
4 Installation
For erecting and operating the camera, the relevant national regulations, as well as the
generally accepted rules of technology shall prevail. Before mounting the camera, thor-
oughly check it for any transport damage, especially on the housing and cable. Installa-
tion, electrical connection and the first start must only be carried out by qualified special-
ists.
Work preparation:
Attention!
Prepare your work carefully and in accordance with the relevant
regulations.
Attention!
Depending on classification of hazard areas, a work approval has to
be obtained.
When you open the pressure-resistant enclosure under voltage, it is
absolutely necessary to prevent potentially explosive atmosphere!
To ensure the best image quality delivered by the network camera, plan the installation
site carefully (consider light conditions, object distance or size, angle and minimum object
distance to the focus).

Doc.-ID: 190314-PT08BA-ES-ExCam XF-P1367_EN_rev.00.docx, Page 8 of 32
Use appropriate tools and aids.
When working, ensure a safe stand.
Make sure that any static charge is avoided
Attention!
Please observe the national security, installation and accident preven-
tion regulations (e.g. DIN EN 60079-14) and the safety instructions in
this User Manual, as well as the ones in the Installation Guidelines!
Attention!
Adhere to the provisions of the IECEx, ATEX and EX installation in-
structions for mounting and commissioning!
Attention!
Please pay attention to the national and local regulations for mounting
heavy loads. If in doubt, take appropriate security measures.
Drawings for drill hole patterns and further information can be viewed on our product
page:
Quick link:
https://www.samcon.eu/en/products/network/excam-xf-p1367/
Option mounting accessories
Wall bracket
WMB-...
WALL MOUNT EXCAM XF (01569-001)
Wall bracket for devices of T08-VA3 series
Suitable for hanging the camera on walls.
Material: stainless steel 1.4404
Load bearing: 45 kg
Dimensions: 445 x 140 x 185 mm
Pole adapter
PMB-…
WALL MOUNT EXCAM XF (01570-001)
Pole adapter for VA wall mount
Material: stainless steel 1.4404
Suitable for pole diameters
between 50 and 105 mm
Load-bearing capacity: 45 kg
Dimensions:120 x 180 (x 130 at masts of Ø
60 mm)
Tab. 4-1 Mounting Accessories

Doc.-ID: 190314-PT08BA-ES-ExCam XF-P1367_EN_rev.00.docx, Page 9 of 32
5 Electrical connection
Attention!
The electrical connection of the equipment may only be carried out by
officially qualified and skilled personnel!
Attention!
It is absolutely necessary to ground the ExCam®series housing via a
PA connection.
Attention!
Please observe the national security, installation and accident preven-
tion regulations (e.g. DIN EN 60079-14) and the safety instructions in
this User Manual, as well as the ones in the Installation Guidelines!
The delivered ExCam®XF P1367 is equipped with an electrical connection cable of the
type SKDP03-T. The maximum transmission range from the camera to the next active
network interface is 100 meters and can be individually specified by the client. The user
is NOT authorised to do electrical connection procedures inside the pressure-resistant
enclosure.
5.1 Potential equalization
The potential equalization/grounding of the camera body is absolutely necessary, in order to
avoid static charges and thus formation of sparks. For this purpose, a screw terminal is
provided at the rear side, at the bottom (right) (see Figure 5.1). The cross-section of the
equipotential bonding should comply with the National Ground Rules (at least 4 mm2).

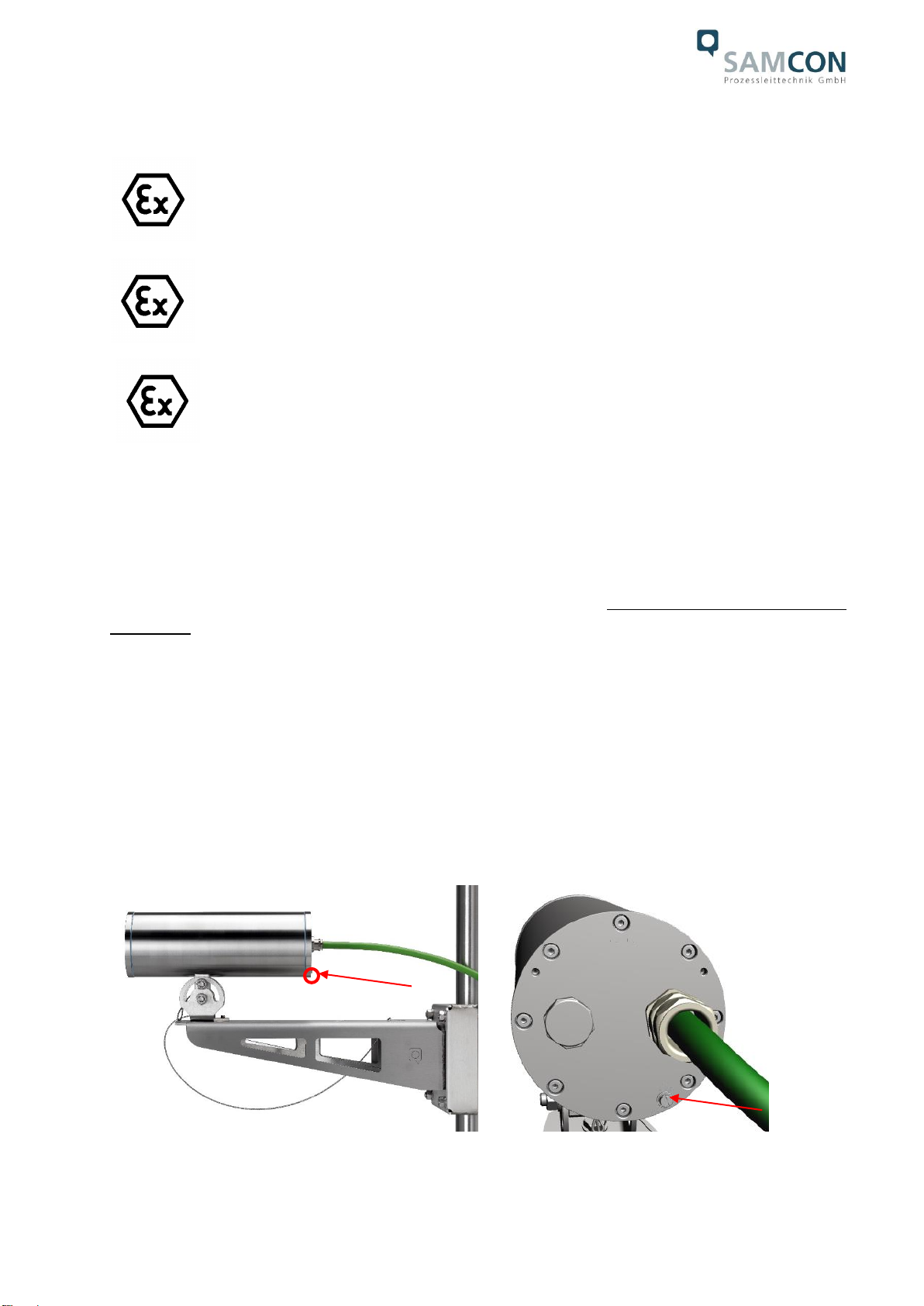

Fig. 5-1 ExCam XF P1367 Equipotential Bonding

Doc.-ID: 190314-PT08BA-ES-ExCam XF-P1367_EN_rev.00.docx, Page 10 of 32
Wiring table:
Potential
Colour (IEC 60757)
Cross-
section
Comment
PA
GN/YE
4 mm2(rigid)
Terminal: slotted screw M4x0.7 (DIN 84) with
washer Ø9mm (DIN 125A),
Keep 3Nm tightening torque!
Tab. 5-1 Equipotential Bonding
5.2 Connection and Fusing
Fig. 5-2. Cable gland (KLE) and supply line
The green system cable is intended for communication and data transfer to the connect-
ed network devices and, at the same time, for voltage supply (PoE) to the camera. To
ensure the power supply of ExCam XF P1367 (Powered Device/ PD), it is necessary to
make sure that the power-over-Ethernet provider (Power Sourcing Equipment/ PSE) on
the connection side (for example PoE Midspan PoE injector, switch, etc.) fulfils the speci-
fication IEEE 802.3af and 802.3at type 1 Class 3 ("classification current: 26-30 mA
@48VDC, max. feed-in power (power source equipment): 15.4 W, maximum offtake
(power device): 6.49 - 12.95 W"). The data transfer of the ExCam XF P1367 series is
done via a 100 Mbit/s Ethernet connection (100BASE-TX).
Fig. 5-3. ExCam XF P1367 T08-VA2.3.K3.BOR2-LL.H-005.N-P
Cable gland flange 1F, type 6, M20
SKDP03-T - digital video stream
Control system and power supply
(PoE) of the camera module

Doc.-ID: 190314-PT08BA-ES-ExCam XF-P1367_EN_rev.00.docx, Page 11 of 32
5.2.1 Network interface / plug assignment (RJ45)
Standardly, of the camera’s cable end is furnished with an RJ45 Ethernet plug with Pow-
er over Ethernet (PoE). This plug (Fig. 5-3) should be coupled with the RJ45 PoE socket
of the network device (PSE). Prior to connecting it to the camera, the network device can
already be supplied with power, hence you need not to observe any “power ON”priority.
5.2.2 Connecting the heating (24V DC)
For the housing heating (type LL), you need a second power supply with separate supply
fusing at L+ potential. Pin configuration and power supply fusing should be in accordance
with Tab.5.2.
Potential/
Wire no.
Colour
(IEC60757)
Conductor
Voltage
Maximum power consumption / fusing
(type LL)
L+ / 1
BK
1.5mm2,
stranded wire
+24 V DC
40 W of continuous power
Fine-wire fuse
(L+) 4000 mA -T- slow-blow
(high inrush load!)
L- / 2
BU
1.5mm2,
stranded wire
0 V DC/GND
Tab.5.2 Wire assignment in power cables
5.2.3 Connection to a terminal box (alternatively)
If you have to connect the camera to a terminal box, please remove the plug properly,
according to good professional practice. In this case it is imperative to ensure a correct
routing of the individual wires according to the EIA/TIA-568B (see Tab. 5.3). As a rule of
thumb, the core wires of the same colour coding (IEC60757) should be connected.
Especially in EMC-critical environments, it is important to ensure that the cable shield is
properly grounded on the terminal box side.
Attention!
Never open the Ex-e terminal box under voltage!
Attention!
Adhere to the international installation regulations for connection
chambers with increased safety (Ex-e).
Attention!
Adhere to the separate Usual Manual for the Ex-e connection chamber
attached in the annex.

Doc.-ID: 190314-PT08BA-ES-ExCam XF-P1367_EN_rev.00.docx, Page 12 of 32
In accordance with standard EIA/TIA-568B for 100BaseTX and 24 V DC for terminal
boxes, we recommend the following core wire assignment for the SKDP03-T cable:
Camera (Ex-d)
(T568B)
Colour
SKDP03-T
(IEC60757)
Terminal
ExTB-3
Cross-
sectional
surface
Comment
Tx+
WH / OG
1
0.25 mm2
Solid conductor
Tx-
OG
2
0.25 mm2
Solid conductor
Rx+
WH / GN
3
0.25 mm2
Solid conductor
Rx-
GN
4
0.25 mm2
Solid conductor
(PoE +48 VDC)
WH / BU
5
0.25 mm2
Solid conductor
(PoE +48 VDC)
BU
6
0.25 mm2
Solid conductor
(PoE GND)
WH / BN
7
0.25 mm2
Solid conductor
(PoE GND)
BN
8
0.25 mm2
Solid conductor
GND/SHD
YE / GN
PE
2.5 mm2
Flex
L+
BK
9
1.5 mm2
L+ 24VDC
L-
BU
10
1.5 mm2
L- 24VDC
PE
YE / GN
PE
1.5 mm2
PE
Tab. 5-3. Wire assignment of terminal box ExTB-3
Video Tutorial:
Please view our video tutorial:
“SAMCON 01 Wiring the cable SKDP03-T to the junction box ExTB-3”
https://go.samcon.eu/v01

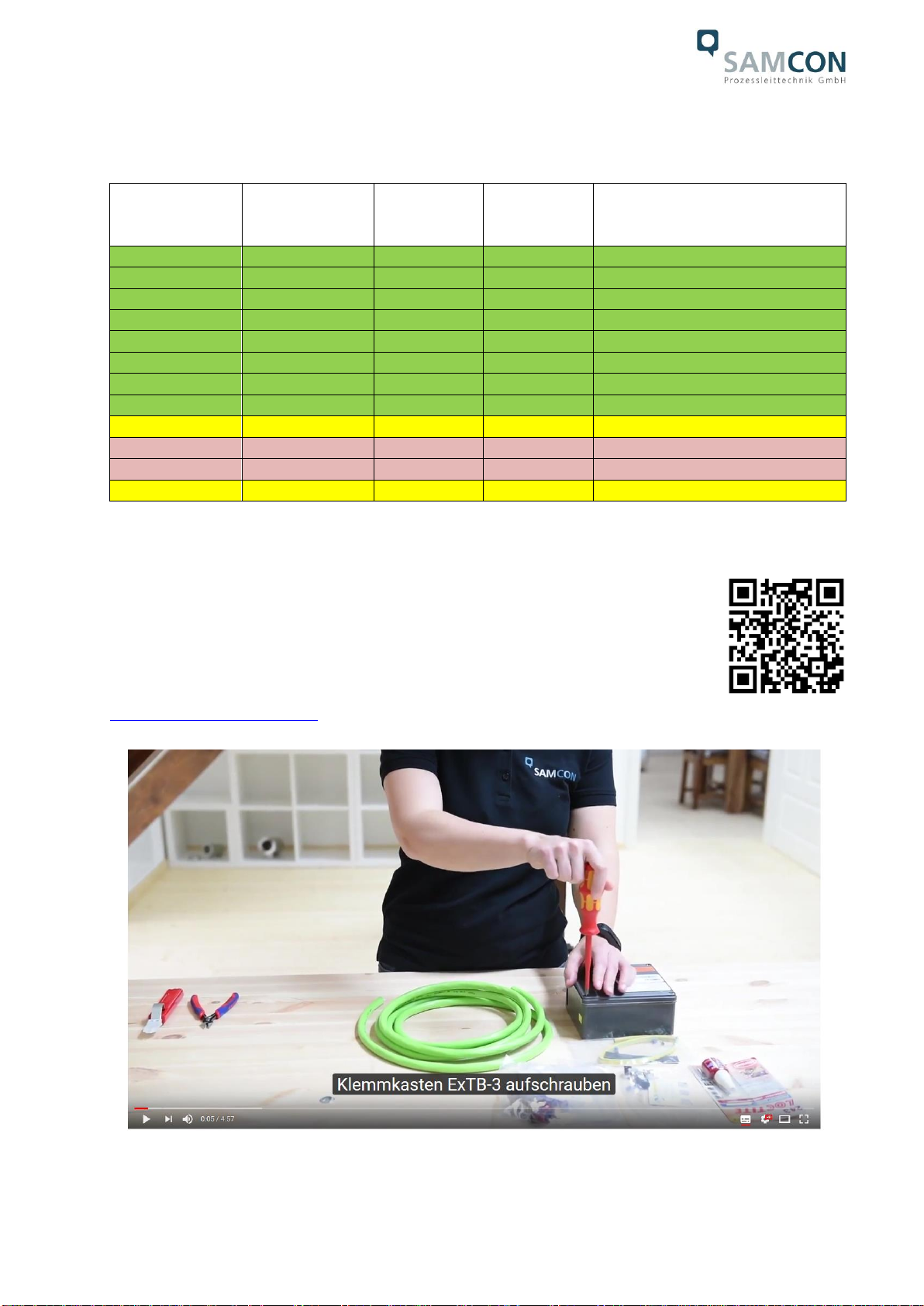

Fig. 5-4 Video Tutorial ExTB-3

Doc.-ID: 190314-PT08BA-ES-ExCam XF-P1367_EN_rev.00.docx, Page 13 of 32

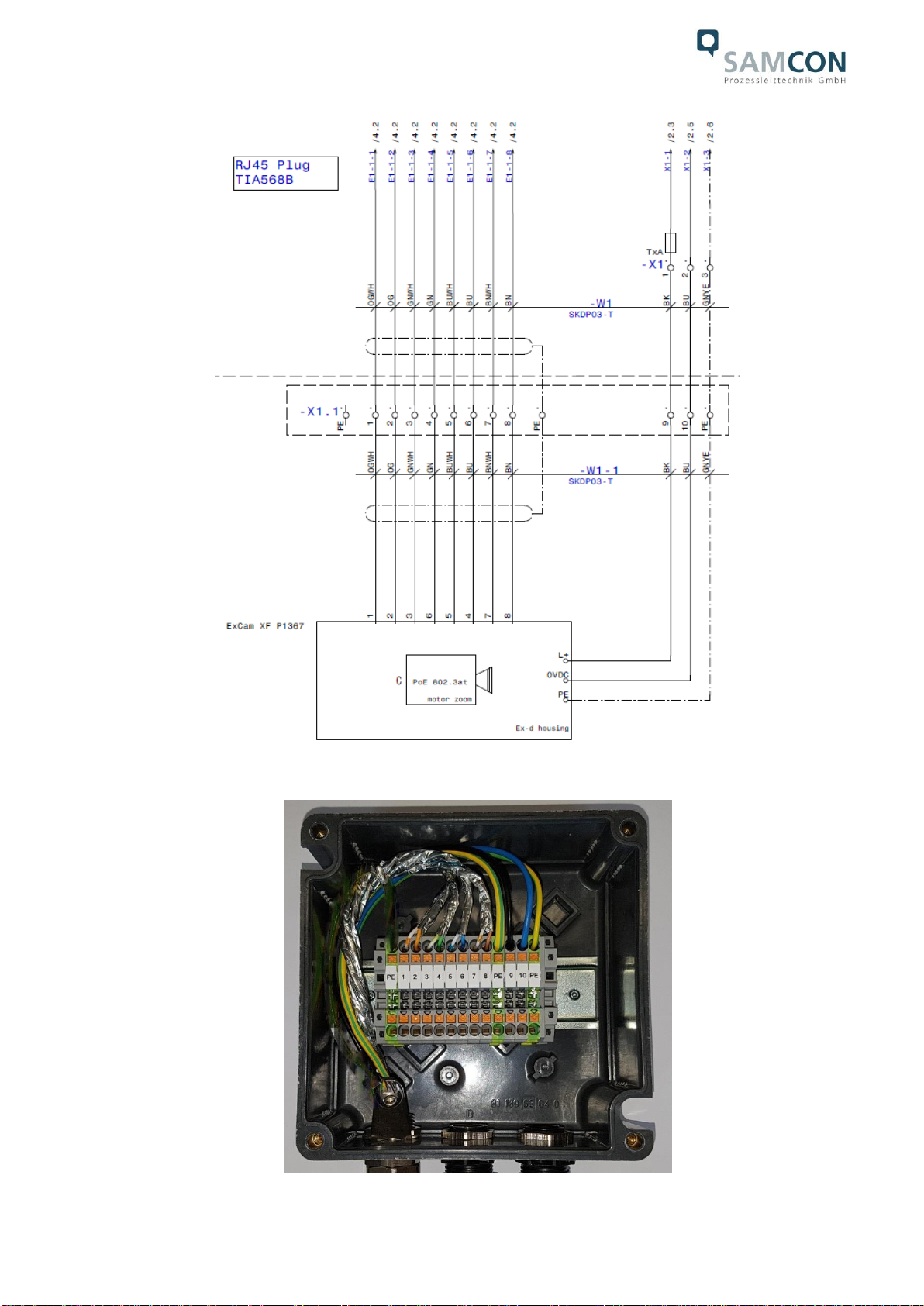

Fig. 5-5 Sample circuit of terminal box ExTB-3
Fig. 5-6 Photo of the occupied terminal box ExTB-3

Doc.-ID: 190314-PT08BA-ES-ExCam XF-P1367_EN_rev.00.docx, Page 14 of 32
Attention!
Introduce the foiling up to about 15 mm to the terminals, in order to pre-
vent alien crosstalk. Make sure that the foiling cannot cause any short
circuit of the data pairs!
Attention!
Bring the twisted pair composite approximately 10mm close to the termi-
nals, in order to ensure the interference immunity.
Attention!
Use only terminals approved by SAMCON.
Attention!
Finally, check your network installation by per Class-D Link Test.
5.3 Example: external connection and fusing via the terminal box
There are several options of routing the ExTB-3 terminal box in a safe area:
5.3.1 Example: direct routing from the ExTB-3 to the safe area
Fig 5-7 ExTB-3 -> Safe area
Switch/
PoE
15W
24 V DC for heating
PoE (802.3at) for camera

Doc.-ID: 190314-PT08BA-ES-ExCam XF-P1367_EN_rev.00.docx, Page 15 of 32
In the case of direct routing from ExTB-3 to the safe area, the power supply and the volt-
age signal are led from the safe area to the terminal box. Please observe the terminal
box assignment, as described above.
Attention!
Cables and wires must comply with the requirements of the
IEC 60079-0/1/7 & 14.
Attention!
The supply line must have a sufficient cross-section. The cable pro-
tection must comply with national and international regulations.
5.3.2 Example: Routing via ExConnection Rail (optional accessories)
Fig. 5-8 ExTB-3 -> ExConnection Rail
In the case of routing the ExTB-3 into an ExConnection Rail, larger installation distances
can be covered.
Please note:
In hazardous areas, the ExConnection Rail (optional accessories) acts as a PoE+ switch, a
media converter from copper to fibre-optic cable, as well as a power supply for the cameras.

Doc.-ID: 190314-PT08BA-ES-ExCam XF-P1367_EN_rev.00.docx, Page 16 of 32
5.3.3 Appropriate cables & cable entries
An integral part of the device safety is the correct selection of the cables, wires and cable
entries.
Attention!
Cables and wires must comply with the requirements of the IEC 60079-
0/1/7 & 14.
Attention!
The supply line must have a sufficient cross-section. The cable pro-
tection must comply with national and international regulations.
To see non-binding configuration and planning guidelines, please
visit our website:
Particularly for installations requiring a suitable barrier gland, make sure that you handle
them correctly and observe the rules and notes given in the respective mounting and as-
sembly instructions.
We show the basic procedures in the following video tutorial:
“SAMCON 02 Mounting and installing Ex-d barrier glands to ExConnection Rails”
https://go.samcon.eu/v02
Fig. 5-9 Barrier gland
Re-twist the cable pairs

Doc.-ID: 190314-PT08BA-ES-ExCam XF-P1367_EN_rev.00.docx, Page 17 of 32
5.3.4 Cable kits - "plug and play" connection packages
As an option, there are various cable kits for different cables are available in different
lengths. The connection packages include everything you need for a professional system
installation:
Fig. 5-10 Cable kit –plug & play connection package
Available connection packages:
Length
Non-reinforced cable
SKDP03-T
Reinforced cable
ASKDP03-T
10 meters
SKDP03-T CABLE EXCAM 10M
(01540-001)
This cable set includes:
10 meters SKDP03-T system cable, digital
1 barrier gland Ex-d
5 ml Loctite 243 screw locking
1 x CAT6 RJ45 industrial plug
1 set of documents
ASKDP03-T CABLE EXCAM 10M
(01543-001)
This cable set includes:
10 meters ASKDP03-T system cable, digital
1 bolted connection Ex-d
1 bolted connection Ex-e
5 ml Loctite 243 screw locking
1 x CAT6 RJ45 industrial plug
1 set of documents
(a)
(b)
(c)
(d)
10/25/95 m SKDP03-T system
cable, digital (a)
1 barrier gland with sealing
compound (b)
5 ml of Loctite thread locking
(c)
One CAT6 RJ45 industrial
connectors (5.5 - 10.5 mm) (d)
Heat-shrinkable tube 40 cm,
yellow-green (e)
Heat-shrinkable tube 10 cm,
black (e)
8 cable end sleeves (e)
1 set of documents
(e)

Doc.-ID: 190314-PT08BA-ES-ExCam XF-P1367_EN_rev.00.docx, Page 18 of 32
25 meters
SKDP03-T CABLE EXCAM 25M
(01541-001)
This cable set includes:
25 meters SKDP03-T system cable, digital
1 barrier gland Ex-d
5 ml Loctite 243 screw locking
1 x CAT6 RJ45 industrial plug
1 set of documents
ASKDP03-T CABLE EXCAM 25M
(01545-001)
This cable set includes:
25 meters ASKDP03-T system cable, digital
1 bolted connection Ex-d
1 bolted connection Ex-e
5 ml Loctite 243 screw locking
1 x CAT6 RJ45 industrial plug
1 set of documents
95 meters
SKDP03-T CABLE EXCAM 95M
(01542-001)
This cable set includes:
95 meters SKDP03-T system cable, digital
1 barrier gland Ex-d
5 ml Loctite 243 screw locking
1 x CAT6 RJ45 industrial plug
1 set of documents
ASKDP03-T CABLE EXCAM 95M
(01542-001)
This cable set includes:
95 meters ASKDP03-T system cable, digital
1 bolted connection Ex-d
1 bolted connection Ex-e
5 ml Loctite 243 screw locking
1 x CAT6 RJ45 industrial plug
1 set of documents
Tab. 5-4 Available cable kits
5.3.5 Fusing
PoE power supply requires no fuses.
The power supply fusing depends on the cable cross-section and length.
Attention!
Recommendation for fusing relates to 40W@24VDC at 100 meters
1.5 mm2
Attention!
When the heating switches on, high current peaks occur! Use slow-
blow fuses.
Attention!
Please pay attention to the national and international regulations re-
garding selectivity and line protection.
Potential/
Wire no.
Colour
(IEC60757)
Conductor
Voltage
Maximum power consump-
tion/fusing:
L+ / 1
BK
1.5mm2,
stranded wire
+24 V DC
40 W of continuous power
Fine-wire fuse
(L+) 4000 mA -T- slow-blow
(high inrush load!)
L- / 2
BU
1.5mm2,
stranded wire
0 VDC / GND
PE
YE/GN
1.5mm2,
stranded wire
PE
Tab. 5-5 Recommendation for fusing

Doc.-ID: 190314-PT08BA-ES-ExCam XF-P1367_EN_rev.00.docx, Page 19 of 32
5.3.6 Tests prior to switching on the voltage
Attention!
Prior to starting the device, perform all tests as indicated by the na-
tional regulations. Furthermore, check the correct function and instal-
lation of the device in accordance with this User Manual and other ap-
plicable regulations.
Attention!
Incorrect installation and operation of the camera may lead to a loss of
warranty!
Attention!
Do not switch on the camera at temperatures below 0°C!
6 Working in the camera housing
The customer may open the housing only if it is absolutely necessary. Only exchanging
the SD memory card or a hardware reset are reasons for this.
Open the pressure-resistant housing extremely carefully! After having finished the work,
securely re-close it and ensure that the explosion protection is restored! To do this, you
need to proceed step by step, as described in the instructions below.
6.1 Work preparation:
Attention!
Prepare your work carefully and in accordance with the relevant
regulations.
Attention!
Depending on classification of hazard areas, it is imperative to obtain
a work approval first!
If you adjust the camera yourself or open the pressure-resistant en-
closure (Ex-d) under voltage, it is absolutely imperative to prevent po-
tentially explosive atmosphere!

Doc.-ID: 190314-PT08BA-ES-ExCam XF-P1367_EN_rev.00.docx, Page 20 of 32
6.2 Opening the pressure-resistant housing
„WARNING – MUST NOT BE OPENED IN HAZARD AREAS“
Note: Depending on classification of hazard areas, a work approval
has to be obtained.
Even after switching on the power supply, it is absolutely imperative
to avoid potentially explosive atmosphere when opening the camera
housing. Opening the housing requires disassembly and working in a
safe (i.e. non-explosive!) area.
Attention!
Pay attention not to damage the thread surface of the flame-proof gap.
Attention!
Pay attention not to damage the housing seals. Keep them clean!
If the ExCam XF P1367 is equipped with a weather protection roof (optional accessory),
remove the roof before you start working! To do so, untighten the 4x8mm lens screws
M4*0.7 at the front and rear sides of the bracket holders (Fig. 6-1).
Fig. 6-1 Removing the weather protection roof (1/2) (this illustration is an example)
