Sami Wearable WS-2341 User manual

WEARABLE
User Manual
WS-2341
Thank you for purchasing the Sami wearable WS-2341. Read the instructions carefully to obtain optimum results and preserve
it for future reference. Sami has developed wearable devices since 2015 and we use the best components possible for the
product.
This product is not suitable for children below 5 years. Suitable ages 5-12 years.

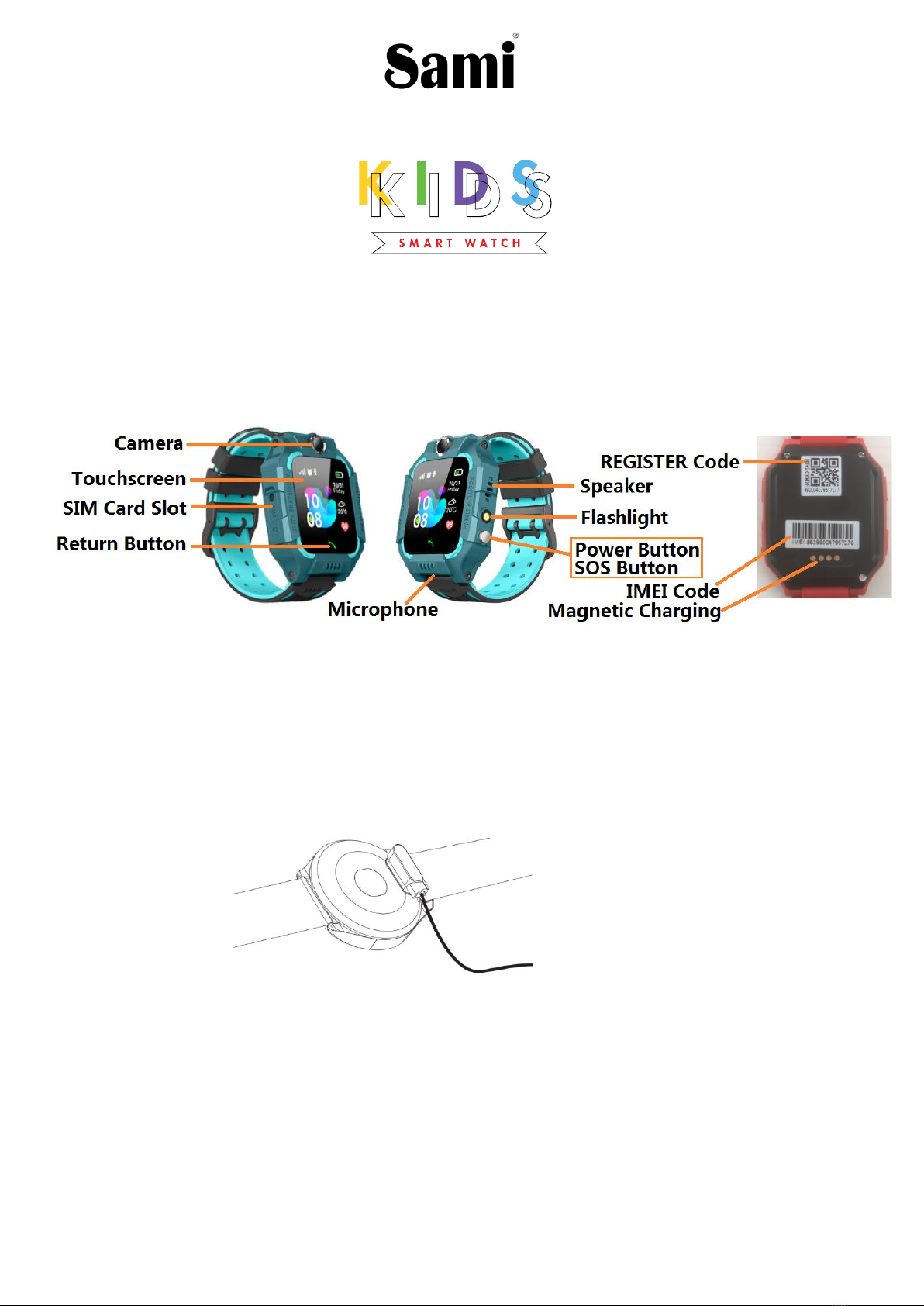

DESCRIPTION OF THE WEARABLE.
CONTENTS
Wearable, USB magnetic charging cable, screwdriver, instruction manual. SIM is not included.
CHARGING
Connect the device to a computer or laptop with the USB Magnetic cable for charging. Put in contact the magnetic end of
the usb cable with the charging points positioned in the back of your device. Kindly use only the USB cable included with the
wearable. If you use a power adapter for charging, the output of the power adapter should be 5V, 1A. Charging time:
2hours. Please charge the device fully before using it. Take care of the magnet side of the cable, if connect to AC and you
have contact with a metal surface, you may damage the charging cable
HOW TO POWER ON / POWER OFF?
1) To turn ON the smart watch, long press the Power button for few seconds to make it Power On.
2) To turn OFF the smart watch, long press the Power button for few seconds to make it Power Off; once the smart
watch has been registered to the SeTracker2 APP, it can’t be Power Off by long pressing the Power Button, and it
can only be Power Off at the SeTracker2 APP. If you try to off on the watch, you will get a ALARM SOS message on
your phone on app and by SMS
3) The smart watch will be Power Off automatically, once it is run out of Power.
HOW TO CONTROL?
1) On the display screen (touchscreen), short tap the touchscreen to select, long tap to enter; tap and slide
left/right/up/down to change between the different menu pages.
2) Short press the Return Button to return. The Return Button is situated at the centre bottom of the display screen.

3) Short press the Power Button to light up/ light off the display screen; short press the Power Button to return to home screen
interface. Long press the Power Button to make the smart watch Power On/Power Off/SOS.
GETTING STARTED:
>>>Step One: Fully charging the smart watch. It will take 2 hours.
>>>Step Two: Insert a valid Micro SIM Card into the SIM card slot. Do NOT try to insert a Nano SIM Card.
NOTE: When you are going to insert in a Micro SIM card, make sure the smart watch is Power OFF. Or else it will need you to
restart the smart watch after the Micro SIM card has been inserted in.
Make sure the Micro SIM card,
***a valid Micro SIM card;
***must applied the Mobile Internet Data service, which is provided by the Telecom provider;
***must applied the incoming phone call number displaying service, which is provided by the Telecom provider.
How to insert the Micro SIM card into the SIM card slot?
Firstly, there is a small screwdriver provided in the gift box, use the small screwdriver to take off the screw from the shell of SIM
Card Slot.

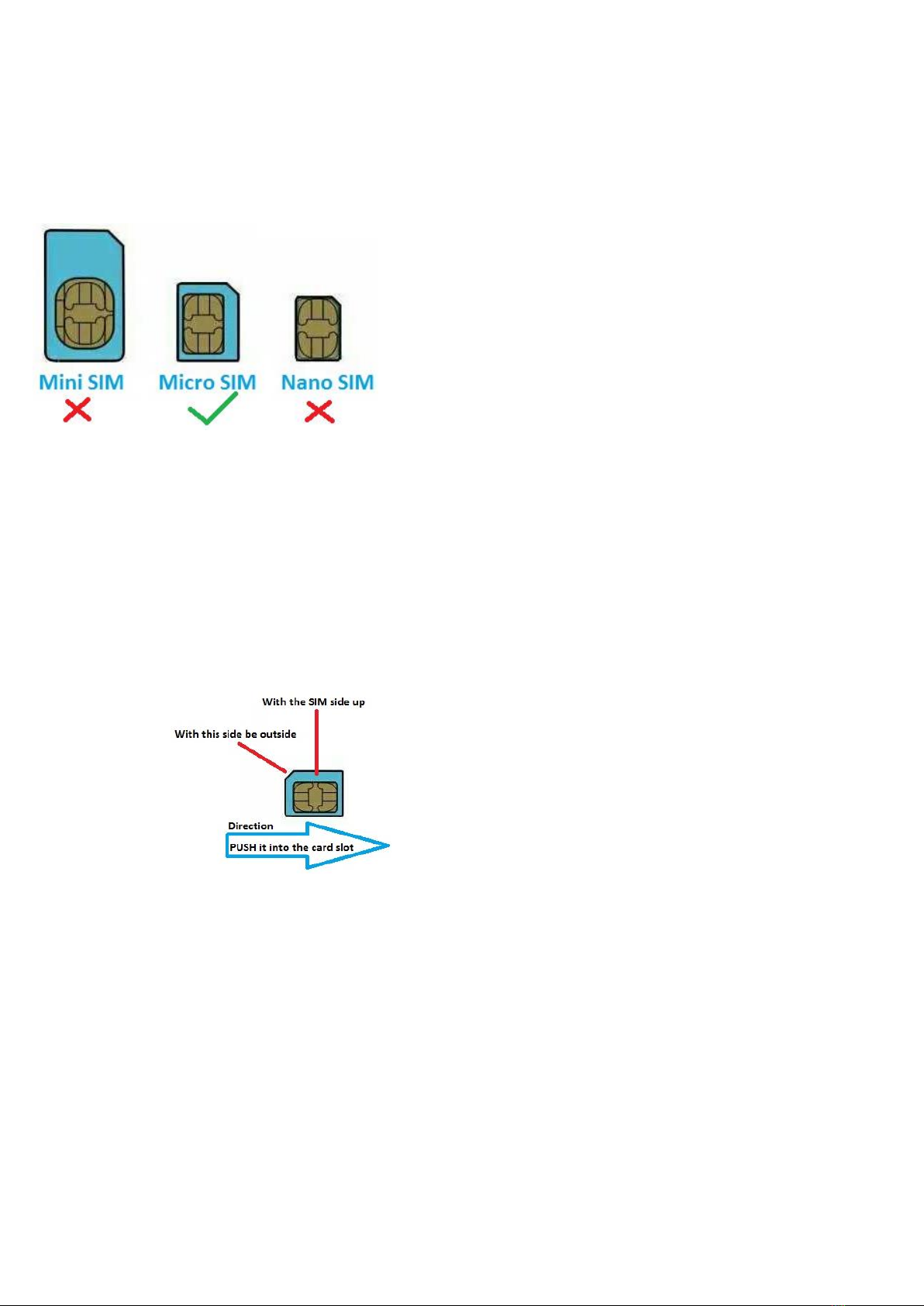

Secondly, take off the shell, and then insert the Micro SIM card into the SIM card slot. Follow below sketch.
You can hear a tiny sound once the Micro SIM card has been inserted into the SIM card slot and into the right position.
To take the Micro SIM card out from the card slot, push it in towards inside, to let the Micro SIM card bounce off the slot.
Do not throw away the Black Elastic when you open the Card slot shell. The smart watch won't be splashproof anymore, if
you throw away the black elastic.
This product communication is on 2G data system. The 2G network must be available in your country.
>>>Step Three: Download and to install the SeTracker2. (Do NOT download the SeTracker). If you have Android use Play Store
and if have IOS system, use the APP STORE.
Install the SeTracker2 on your Android smart phone or iPhone.
Always tap OK/Yes/Confirm/Accept/Allow for any pop-up requests.
NOTE: The APK/APP should be SeTracker2. Do not mistake to use SeTracker.
>>>Step Four: At your smart phone, run the SeTracker2, register a new account and use the new account to log on the

SeTracker2. Before log on the SeTracker2, the Area must select Europe and Africa. It will be displayed on the Log on interface
of the SeTracker2
>>>Step Five: At SeTracker2, tap the waterdrop icon which is situated at the right top tap Device List tap Add
Device tap the Scan icon which is on the right side of ‘Please scan or input device ID’; at the same time, on the
display screen of the smart watch, tap and slide to find the Device Info tap Register Code , scan this Register Code to
make the smart watch register to the SeTracker2 APP. (The Register code also can be found on the back of the smart
watch). The device code will be input automatically then. input a nickname select the relationship to the kid, for
example, I am Dad tap OK to finish the registration of smart watch.
>>>Step Six: At SeTracker2, tap the Settings icon which is situated at the centre bottom tap Phone Book input the
contact name(s) and the mobile phone number(s) tap Save. The Contacts which saved at the Phone Book at SeTracker2,
will be sync to the Phone Book of the smart watch automatically.
Only the saved phone number(s) can make phone calling to the smart watch. You can call the smart watch directly at your
smart phone; it does not support to dial at the SeTracker2.
NOTE: Maximum 10 contacts can be pre-set at the Phonebook of SeTracker2.
After above six steps, the smart watch has been completely registered.
Furthermore, there are more functions can be found at SeTracker2 as following,
SETTINGS
SOS Number
Location Update Schedule
Sound Guardian
Family Members
Do Not Disturb
SMS Alerts
Set Local Base Station
Watch Finder
Phonebook
Switch setting
Language
Time Zone
Shutdown the Device
Remote Restart
Exit
LEFT TOP Menu
Remove ADS
Message
Alarm Clock
Rewards
Remote Camera
RIGHT TOP Menu
Personal Info
Device List
Change Password
Exit

BOTTOM Menu
Chat: instant message chat in group
Geofence: safety zone
Settings
Locate
History
PRODUCT FEATURES
POWER BUTTON
TOUCH RETURN BUTTON
TOUCH SCREEN. Capacitive touch screen 1.44"
BUILT IN SPEAKER
BUILD IN MICROPHONE
BUILD IN FLASHLIGHT
BUILD IN LBS LOCATIONING
BUILD IN 2G GSM MODULE
DISPLAY SCREEN OF THE SMART WATCH
Time/Date/Battery/SIM card signal/Red Heart
Dial
Phonebook
Camera
Learning Game
Talk : instant message chat. Can send only voice message from the watch. From the app can send voice message or text
message.
Flashlight : do not focuse on eyes.
Device Info : including App Download, Register Code.
FUNCTIONS
PHONE CALL - from the smart watch can dial any phone numbers to make phone calls.
PHONE CALL - only the pre-set phone numbers can dial phone calls to the smart watch.
CHAT / TALK - instant voice message chat in group
SOS - one key(long press the Power Button) to dial the pre-set phone numbers
GEOFENCE –safety zone. Can be set at the SeTracker2. It will alarm you once the kid is going out of the digital map fence.
REMOTE CAMERA - the smart watch & the kid will not be disturbed when using the smart watch’s camera to remote view.
REMOTE SOUND HEARING - the smart watch & the kid will not be disturbed when using this function to hear the sound.
(settings--- sound guardian) This function depending on your country can be available or not due to regulations.
MAP TRACE TRACK
REAL-TIME LOCATION VIEW AT MAP AT SETRACKER2
TECHNICAL SPECIFICATIONS:
Display screen: Full screen capacitive touch screen 1.44".
Screen resolution: 128x128pixels.
Internal Memory: RAM 32MB, ROM 32MB
System: Nucleus
CPU: RDA8955
Camera: 0.08MP
Locationing: LBS Locationing
Network: 2G GSM
GSM Band: 1900/1800/850/900
SIM Card Slot: support Micro SIM card
Charge I/O port : USB magnetic charging cable
Battery: Built in Li-Polymer 400mAh
Stand by time: 2~3 DAYS
Working time: 1~2 DAYS
Water-resist Rating: IP67 (this device resists raindrops, it’s not water proof)
Weight: 46g

Declaration of Conformity
Hereby we,
Name of manufacturer:
SANTOSHI SL
Address:
CALLE FELIPE ASENJO N.56
Zip code & City:
28947 - FUENLABRADA ( MADRID )
Country:
SPAIN
declare that this DoC is issued under our sole responsibility and that this product:
Product description:
SMARTWATCH
Type designation(s):
WS-2341
Trademark:
SAMI WEARABLE
is in conformity with the relevant Union harmonization legislation:
DIRECTIVE EMC 2014/30/EU
DIRECTIVE LVD 2014/35/EU
Standard CE (RED): DIRECTIVE 2014/53/EU
Standard RoHS: 2011/65/EU: (RoHS) Restriction of Hazardous Substance.
Amendment RoHS: Directive (EU)2015/863
with reference to the following standards applied:
Health & Safety
EN 50566:2017
EN 62209-2:2010
EN 62479:2010
EN 60950-1:2006 + A11:2009 + A1:2010+A12:2011+A2:2013
Electromagnetic Compatibility
Draft EN 301 489-1 V2.2.1
EN 301 489-19 V2.1.1
Draft EN 301 489-52 V1.1.0
EN 55032:2015
EN 55035:2017
EN 61000-3-2:2014
EN 61000-3-3:2013
Effective Use of Spectrum
EN 301 511 V12.5.1
EN 303 413 V1.1.1
Signature
Full name: VISHAL MIRPURI
Position: ADMINISTRATOR
Date: 31 / 12 / 2019
