Samlex Europe SEC-1212G User manual

SEC - 1212G
SEC - 1225G
SEC - 1235
SEC - 2412G
Model No.
AC-DC POWERSUPPLY
OWNER’S MANUAL
Please read this manual before operating your power supply
Switch Mode AC-DC Power supply

TABLE OF CONTENTS
Topic Page
Important safety instructions............................................. 1
Description and features ................................................... 2
Connection and operation ................................................ 2
Cooling and fan control .................................................... 3
Battery charging and back up ........................................... 3
Trouble shooting ............................................................... 4
Switching power supplies & RF Noise ........................... 5,6
.................................................................... 7
Warranty information ....................................................... 8

CAUTION !
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING—TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. THERE ARE NO USER
SERVICEABLE PARTS INSIDE—REFER TO QUALIFIED SERVICE PERSONNEL.

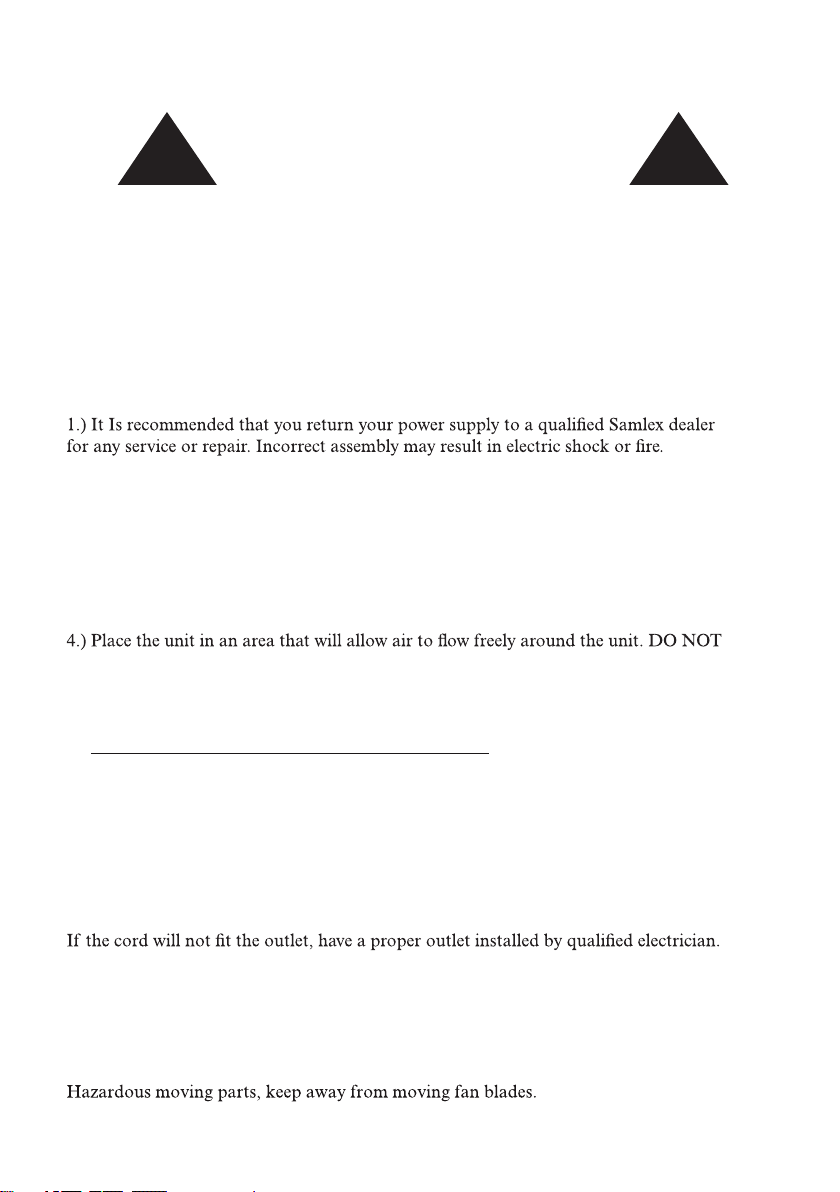

IMPORTANT SAFETY INSTRUCTIONS
Please read before using your power supply.
2.) To reduce the risk of electric shock, unplug power supply from outlet before attempting
any maintenance or cleaning. Turning off controls will not reduce this risk.
3.) An extension cord should not be used unless absolutely necessary. If an extension
cord must be used make sure that the pins on the plug are the same number, size and shape
as those of the original power supply plug.
block or obstruct vent openings on the side/bottom of the unit.
5.) Keep the unit away from moisture and water.
6.) NEVER OPERATE THE UNITS IN PARALLEL
WARNING
Your power supply should be grounded to reduce the risk of electric shock.
The power supply is equipped with grounding conductor and grounding plug.
The cord must be plugged into an outlet that is properly installed and grounded in
accordance with all local codes and ordinances. Never alter the AC cord of plug provided.
Improper connection can result in risk of electric shock.
DO NOT USE THE POWER SUPLY FOR DIRECT CHARGING OF BATTERY OR
DIRECT CONNECTION TO A BATTERY FOR BATTERY BACK-UP. ( Please read
the section on Battery Back-up ).
1
! !

DESCRIPTION
SEC-1212G, SEC-1225G and SEC 1235 are switched mode power supplies which convert
, 50 H to regulated 13.8 VDC based on pulse width modulation ( PWM ) control.
The SEC-2412G converts 2 0Vac, 50 Hz to 27.6 VDC.
FEATURES
❒ Based on switched mode technology and PWM control
❒ Compact and lightweight
❒
❒ Protected against short circuit, over current and
❒ Over voltage (through PWM controller)
❒ SEC-1212G is convection cooled. SEC-1225G/1235 and 2412G have forced
❒ Air cooling and over temperature shut down
❒ Fully approved Ce/LVD and safety
❒ Complies with european emission and immunity standards
CONNECTION AND OPERATION
NOTE! The DC output connector has a tubular hole of diameter 0.2” (5mm) with a set
screw. F
of your 12V DC or 24V DCdevice.
Ensure that the power supply’s ON/OFF switch is off and it is unplugged from the AC
outlet. Switch off your 12 or 24V DC device and connect it’s positive and negative to the
RED ( Positive ) and WHITE ( Negative ) terminals respectively. Ensure that the connections
are secure and tight. Plug the power supply into the AC outlet. Press the ON/Off switch of
the power supply to ON and observe that the neon indicator in the switch illuminates. If
the indicator fails to light , recheck the connection, AC outlet and the fuse inside the
power supply.
Your 12 or 24V DC device may now be switched on.
2

COOLING AND FAN CONTROL / THERMAL SHUT DOWN (SEC-1225G/1235 AND 2412G)
SEC-1212G is cooled by convection.
PLACE THE UNIT IN A WELL VENTILATED OPEN AND COOL AREA.
DO NOT BLOCK THE VENTILATION OPENINGS ON THE SIDES
SEC-1225G/1235 and 2412G are cooled by convection and forced air. A temperature controlled
fan has been provided to improve cooling at higher loads. The fan is controlled by a sensor
mounted on the power transformer. THE FAN WILL BE OFF AT LOWER LOADS.
It will come on only when the temperature of the power transformer is above 70¼C due to
mounted on the power transformer will activate over temperature shut down at 100¼C.
The output voltage will be automatically resumed once the unit cools down.
PLACE THE UNIT IN A WELL VENTILATED OPEN AND COOL AREA.
DO NOT BLOCK THE OPENINGS AT THE FAN SUCTION ON THE BOTTOM
AND THE DISCHARGE OPENINGS ON THE SIDES .
BATTERY CHARGING AND BATTERY BACK-UP
WARNING ! THESE UNITS ARE POWER SUPPLIES AND NOT BATTERY CHARGERS.
DO NOT CONNECT THESE UNITS DIRECTLY TO A BATTERY
These units should NOT BE DIRECTLY CONNECTED TO A BATTERY for charging or
for battery back-up. Battery charging and battery back-up may be undertaken only when the
battery is connected through suitable external isolating diodes and charge limiting resistor.
The isolating diode will ensure that the battery does not back power the power supply. When
a battery is deeply discharged, it will initially draw a very large charging current and thus,
will force the power supply into current limit mode for prolonged periods. This is harmful for
the power supply. The charge limiting resistor will limit the charging current, thereby,
ensuring that the maximum charging current is well below the current limit value of the
power supply.
WE OFFER OPTIONAL BATTERY BACK-UP AND CHARGING MODULE .
3
!

TROUBLESHOOTING -GENERAL
PROBLEM : Power ON/OFF switch does not illuminate when turned on.
PROBABLE CAUSE SUGGESTED REMEDY
No power in the AC outlet Check there is power in the outlet.
AC side fuse inside the power Replace the fuse inside the unit.
supply is blown See fuse ratings at page 8
PROBLEM : AC side fuse blows as soon as power is turned on.
PROBABLE CAUSE SUGGESTED REMEDY
Unit is defective Please contact your dealer
PROBLEM : The output voltage is 0 V or very low
PROBABLE CAUSE SUGGESTED REMEDY
Input voltage is very low Check that the input voltage is V
The unit is in current limit condition Check the output terminals are not
due to overload caused by large reactive shorted. Remove the load. If the output
loading or by the output being voltage gets restored, the load is shorted
short circuited or is offering large reactive impedance.
Unit is shut down due to over Check that the fan has not failed or
temp. (SEC-1225G/1235 /2412G) the vent openings are not blocked
PROBLEM : Output voltage drops as soon as the load is switched on
PROBABLE CAUSE SUGGESTED REMEDY
The unit is going into current Reduce the load current to less than
limit protection mode the current limit value. Motors,
pumps, compressors,zrelays, incan-
descent and halogen lamps and large
capacitors in the input section of the
DC devices draw very high inrush or
starting currents of up to 10 times
their normal operating currents.
Ensure that these inrush/starting
currents are below the current limit
value of the power supply.
4

SWITCHING POWER SUPPLIES AND RF NOISE
1 Switched mode power supplies ( SMPS ) employ high frequency switching and thus,
are a source of radio interference, a recipient of radio interference and a conduit of
radio interference. ( Older linear type transformer based power supplies do not employ
high frequency switching voltages and will be quieter as compared to switching type
of supplies ).
2 The primary emission sources originate in the switching devices due to their fast switching
current transitions: harmonics of the switching frequency and broadband noise created by
under-damped oscillations in the switching circuit. The secondary source is from the bridge
of the switching power supplies ( excepting those with power factor correction ) are
notorious for generating power supply harmonics due to the non linear input current
waveform. The noise is both conducted and radiated through the input power cord and
the DC output wiring to the radio.
3 Switching power supplies are also recipients of radio interference. The normal operation
of the power supply can be disturbed due to RF noise getting coupled into the power supply.
Thus, the power supply may generate excessive RF noise and lose output voltage regulation
due to excessive transmitter energy being coupled through the AC / DC lines to the power
supply’s regulator feedback path. This may be due to antenna being too close or due to the
antenna or feed system not radiating properly. First check the antenna system SWR. Then,
if necessary, relocate either the antenna or the power supply farther apart.
4 The receiver may “hear” the power supply. A slowly moving, slightly buzzing carrier heard
in the receiver may be caused by the antenna being too close. As with the transmitter related
noise pick up, a loose coaxial connector or a broken or a missing ground may aggravate this
problem. Normally these noises will be below the background or “band” noise. Increase the
separation between the power supply and the receiving antenna. Use an outdoor antenna.
This will reduce the amount of signal picked up from the power supply and also increase
the amount of the desired signal.
5 The conducted and radiated RF noise from these power supplies is limited by internal
supply. The chassis is, in turn, connected to the earth ground pin of the ac input power cord.
Thus, the chassis of the power supply is connected to the earth ground of the 2 0 V
distribution system. The net RF noise generated by these power supplies complies with
the limits laid down in the European Standards for emissions and immunity.
5

6. Following additional guidelines may be followed to reduce the effects of RF noise:
a Use additional appropriate AC radio frequency interference (RFI)
supply. Recommended: Corcom Inc. ( www.cor.com ) “Q”
series. Filtered, ferrite coated cord set ( www.emceupen. com ) is
another choice. These cord sets, with integral line interference
ences over a
wide frequency range. Because they are shielded, they are also
effective against radiated interferences. In addition to the built-in
absorbing ferrite compound. This provides additional attenuation at
absorption of the ferrite-coated cable avoids resonance's at high
frequencies, reducing the conducted and radiated RF noises
even further
b Use additional appropriate DC radio frequency interference (RFI)
ply.
Recommended:Corcom Inc.(www.cor.com ) “DA” / “DC” series
c The positive and negative terminals of the dc output side of the power
supply are isolated from its chassis. As pointed out at para 5 above, all
of the power supply and onward to the earth ground of the 2 0 V
system through the earth ground pin of the power cord. Therefore, the
negative terminal of the power supply should never be connected /
bonded to the chassis of the power supply.
d Twist the positive and negative wires from the output of the power supply
to the radio
6

7

2 YEAR Limited Warranty
The SEC 1212G/1225G/1235 /2412G manufactured by Samlex Europe B.V. ( the “ Warrantor “ ) is
warranted to be free from defects in workmanship and materials under normal use and service.
This warranty is in effect for 2 years from the date of purchase by the user ( the “ Purchaser “)
For a warranty claim, the Purchaser should contact the place of purchase to obtain a Return
Authorization Number.
The defective part or unit should be returned at the Purchaser’s expense to the authorized
location. A written statement describing the nature of the defect, the date of purchase,
the place of purchase, and the Purchaser’s name, address and telephone number should
also be included.
If upon the Warrantor’s examination, the defect proves to be the result of defective material
or workmanship, the equipment will be repaired or replaced at the Warrantor’s option without
charge, and returned to the Purchaser at the Warrantor’s expense.
No refund of the purchase price will be granted to the Purchaser, unless the Warrantor is unable
to remedy the defect after having a reasonable number of opportunities to do so.
Warranty service shall be performed only by the Warrantor. Any attempt to remedy the defect
by anyone other than the Warrantor shall render this warranty void.
There shall be no warranty for defects or damages caused by faulty installation or hook-up,
abuse or misuse of the equipment including exposure to excessive heat, salt or fresh water
spray, or water immersion.
No other express warranty is hereby given and there are no warranties which extend beyond
those described herein. This warranty is expressly in lieu of any other expressed or implied
obligations on the part of the Warrantor or its employees and representatives.
There shall be no responsibility or liability whatsoever on the part of the Warrantor or its
employees and representatives for injury to any persons, or damage to person or persons,
damage which may be claimed to have been incurred through the use or sale of the equipment,
including any possible failure of malfunction of the equipment, or part thereof.
The Warrantor assumes no liability for incidental or consequential damages of any kind.
WWW.SAMLEX.COM
WWW.SAMLEX-SOLAR.COM
8

DECLARATION OF CONFORMITY
For the following equipment :
Product Name:
POWER SUPPLY
Model No.:
SEC-1212G, SEC-1225G, SEC-1235G, SEC-2412G
Trade Name:
Applicant:
SAMLEX EUROPE B. V.
Address:
ARIS VAN BROEKWEG 15, 1507 BA ZAANDAM THE NETHERLANDS
Is herewith conrmed to comply with the EMC requirements set out in the Directive 2014/30/EU and
LVD requirements set out in the Directive 2014/35/EU of the European Parliament and of the Council
of April 20, 2016 on the approximation of the laws of the Member States relating to electromagnetic
compatibility and EC Low Voltage Directive. For the evaluation regarding the electromagnetic
interference, the following EMC standards were applied:
EMI: Class B EMS:
EN55022:2010 EN55024:2010
EN61000-3-2:2006+A2:2009 EN61000-4-2:2008
EN61000-3-3:2008 EN61000-4-3:2006+A1:2008+A2:2010
EN61000-4-4:2004+A1:2010
EN61000-4-5:2005
EN61000-4-6:2008
EN61000-4-8:2009
EN61000-4-11:2004
EN62368-1:2018
The following manufacturer/importer is responsible for this declaration:
M. van Veen Zaandam 01-10-2019
www.samlex.com
www.samlex-solar.com
9

UK – DECLARATION OF CONFORMITY
For the following equipment :
Product Name:
POWER SUPPLY
Model No.:
SEC-1212G, SEC-1225G, SEC-1235G, SEC-2412G
Trade Name:
Applicant:
SAMLEX EUROPE B. V.
Address:
ARIS VAN BROEKWEG 15, 1507 BA ZAANDAM THE NETHERLANDS
Is herewith conrmed to comply with the EMC requirements set out in the electromagnetic compability
regulations 2016. For the evaluation regarding the electromagnetic interference, the following EMC
standards were applied:
EMI: Class B EMS:
EN55022:2010 EN55024:2010
EN61000-3-2:2006+A2:2009 EN61000-4-2:2008
EN61000-3-3:2008 EN61000-4-3:2006+A1:2008+A2:2010
EN61000-4-4:2004+A1:2010
EN61000-4-5:2005
EN61000-4-6:2008
EN61000-4-8:2009
EN61000-4-11:2004
EN62368-1:2018
The following manufacturer/importer is responsible for this declaration:
M. van Veen Zaandam 27-01-2022
www.samlex.com
www.samlex-solar.com
10

www.samlex.com
www.samlex-solar.com
