Samson XM 410 User manual

Powered Mixers
SIX CHANNEL POWERED MIXER
WITH 24BIT DIGITAL EFFECTS

Safety Instructions/Consignes de sécurité/Sicherheitsvorkehrungen
ACHTUNG: Um die Gefahr eines Brandes oder Stromschlags zu verringern, sollten Sie dieses Gerät weder Regen noch Feuchtigkeit aussetzen.Um die Gefahr eines
Stromschlags zu verringern, sollten Sie weder Deckel noch Rückwand des Geräts entfernen. Im Innern befinden sich keine Teile, die vom Anwender gewartet werden kön-
nen. Überlassen Sie die Wartung qualifiziertem Fachpersonal.Der Blitz mit Pfeilspitze im gleichseitigen Dreieck soll den Anwender vor nichtisolierter“gefährlicher Spannung”
im Geräteinnern warnen. Diese Spannung kann so hoch sein, dass die Gefahr eines Stromschlags besteht. Das Ausrufezeichen im gleichseitigen Dreieck soll den Anwender
auf wichtige Bedienungs- und Wartungsanleitungen aufmerksam machen, die im mitgelieferten Informationsmaterial näher beschrieben werden.
Wichtige Sicherheitsvorkehrungen
1. Lesen Sie alle Anleitungen, bevor Sie das Gerät in Betrieb nehmen.
2. Bewahren Sie diese Anleitungen für den späteren Gebrauch gut auf.
3. Bitte treffen Sie alle beschriebenen Sicherheitsvorkehrungen.
4. Befolgen Sie die Anleitungen des Herstellers.
5. Benutzen Sie das Gerät nicht in der Nähe von Wasser oder Feuchtigkeit.
6. Verwenden Sie zur Reinigung des Geräts nur ein feuchtes Tuch.
7. Blockieren Sie keine Belüftungsöffnungen. Nehmen Sie den Einbau des Geräts nur entsprechend den Anweisungen des Herstellers vor.
8. Bauen Sie das Gerät nicht in der Nähe von Wärmequellen wie Heizkörpern, Wärmeklappen, Öfen oder anderen Geräten (inklusive Verstärkern) ein, die Hitze erzeugen.
9. Setzen Sie die Sicherheitsfunktion des polarisierten oder geerdeten Steckers nicht außer Kraft. Ein polarisierter Stecker hat zwei flache, unterschiedlich breite Pole. Ein
geerdeter Stecker hat zwei flache Pole und einen dritten Erdungsstift. Der breitere Pol oder der dritte Stift dient Ihrer Sicherheit. Wenn der vorhandene Stecker nicht in
Ihre Steckdose passt, lassen Sie die veraltete Steckdose von einem Elektriker ersetzen.
10. Schützen Sie das Netzkabel dahingehend, dass niemand darüber laufen und es nicht geknickt werden kann. Achten Sie hierbei besonders auf Netzstecker,
Mehrfachsteckdosen und den Kabelanschluss am Gerät.
11. Ziehen Sie den Netzstecker des Geräts bei Gewittern oder längeren Betriebspausen aus der Steckdose.
12. Überlassen Sie die Wartung qualifiziertem Fachpersonal. Eine Wartung ist notwendig, wenn das Gerät auf irgendeine Weise, beispielsweise am Kabel oder Netzstecker
beschädigt wurde, oder wenn Flüssigkeiten oder Objekte in das Gerät gelangt sind, es Regen oder Feuchtigkeit ausgesetzt war, nicht mehr wie gewohnt betrieben
werden kann oder fallen gelassen wurde.
WARNING: To reduce the risk of fire or electric shock, do not expose this unit to rain or moisture. To reduce the hazard of electrical shock, do not remove cover or back. No
user serviceable parts inside. Please refer all servicing to qualified personnel.The lightning flash with an arrowhead symbol within an equilateral triangle, is intended to alert
the user to the presence of uninsulated "dangerous voltage" within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to per-
sons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the
literature accompanying the product.
Important Safety Instructions
1. Please read all instructions before operating the unit.
2. Keep these instructions for future reference.
3. Please heed all safety warnings.
4. Follow manufacturers instructions.
5. Do not use this unit near water or moisture.
6. Clean only with a damp cloth.
7. Do not block any of the ventilation openings. Install in accordance with the manufacturers instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has
two blades and a third grounding prong. The wide blade or third prong is provided for your safety. When the provided plug does not fit your outlet, consult an electrician
for replacement of the obsolete outlet.
10. Protect the power cord from being walked on and pinched particularly at plugs, convenience receptacles and at the point at which they exit from the unit.
11. Unplug this unit during lightning storms or when unused for long periods of time.
12. Refer all servicing to qualified personnel. Servicing is required when the unit has been damaged in any way, such as power supply cord or plug damage, or if liquid has
been spilled or objects have fallen into the unit, the unit has been exposed to rain or moisture, does not operate normally, or has been dropped.
ATTENTION: Pour éviter tout risque d’électrocution ou d’incendie, ne pas exposer cet appareil à la pluie ou à l’humidité. Pour évitertout risque d’électrocution, ne pas ôter le
couvercle ou le dos du boîtier. Cet appareil ne contient aucune pièce remplaçable par l'utilisateur. Confiez toutes les réparations à un personnel qualifié. Le signe avec un éclair
dans un triangle prévient l’utilisateur de la présence d’une tension dangereuse et non isolée dans l’appareil. Cette tension constitue un risque d’électrocution. Le signe avec
un point d’exclamation dans un triangle prévient l’utilisateur d’instructions importantes relatives à l’utilisation et à la maintenance du produit.
Consignes de sécurité importantes
1. Veuillez lire toutes les instructions avant d’utiliser l’appareil.
2. Conserver ces instructions pour toute lecture ultérieure.
3. Lisez avec attention toutes les consignes de sécurité.
4. Suivez les instructions du fabricant.
5. Ne pas utiliser cet appareil près d’une source liquide ou dans un lieu humide.
6. Nettoyez l’appareil uniquement avec un tissu humide.
7. Veillez à ne pas obstruer les fentes prévues pour la ventilation de l’appareil. Installez l’appareil selon les instructions du fabricant.
8. Ne pas installer près d’une source de chaleur (radiateurs, etc.) ou de tout équipement susceptible de générer de la chaleur (amplificateurs de puissance par exemple).
9. Ne pas retirer la terre du cordon secteur ou de la prise murale. Les fiches canadiennes avec polarisation (avec une lame plus large) ne doivent pas être modifiées. Si votre
prise murale ne correspond pas au modèle fourni, consultez votre électricien.
10. Protégez le cordon secteur contre tous les dommages possibles (pincement, tension, torsion,, etc.). Veillez à ce que le cordon secteur soit libre, en particulier à sa sortie
du boîtier.
11. Déconnectez l’appareil du secteur en présence d’orage ou lors de périodes d’inutilisation prolongées.
12. Consultez un service de réparation qualifié pour tout dysfonctionnement (dommage sur le cordon secteur, baisse de performances, exposition à la pluie, projection liq-
uide dans l’appareil, introduction d’un objet dans le boîtier, etc.).

PRECAUCION: Para reducir el riesgo de incendios o descargas, no permita que este aparato quede expuesto a la lluvia o la humedad. Para reducir el riesgo de descarga eléc-
trica, nunca quite la tapa ni el chasis. Dentro del aparato no hay piezas susceptibles de ser reparadas por el usuario. Dirija cualquier reparación al servicio técnico oficial. El
símbolo del relámpago dentro del triángulo equilátero pretende advertir al usuario de la presencia de“voltajes peligrosos”no aislados dentro de la carcasa del producto, que
pueden ser de la magnitud suficiente como para constituir un riesgo de descarga eléctrica a las personas. El símbolo de exclamación dentro del triángulo equilátero quiere
advertirle de la existencia de importantes instrucciones de manejo y mantenimiento (reparaciones) en los documentos que se adjuntan con este aparato.
Instrucciones importantes de seguridad
1. Lea todo este manual de instrucciones antes de comenzar a usar la unidad.
2. Conserve estas instrucciones para cualquier consulta en el futuro.
3. Cumpla con todo lo indicado en las precauciones de seguridad.
4. Observe y siga todas las instrucciones del fabricante.
5. Nunca utilice este aparato cerca del agua o en lugares húmedos.
6. Limpie este aparato solo con un trapo suave y ligeramente humedecido.
7. No bloquee ninguna de las aberturas de ventilación. Instale este aparato de acuerdo a las instrucciones del fabricante.
8. No instale este aparato cerca de fuentes de calor como radiadores, calentadores, hornos u otros aparatos (incluyendo amplificadores) que produzcan calor.
9. No anule el sistema de seguridad del enchufe de tipo polarizado o con toma de tierra. Un enchufe polarizado tiene dos bornes, uno más ancho que el otro. Uno con
toma de tierra tiene dos bornes normales y un tercero para la conexión a tierra. El borne ancho o el tercero se incluyen como medida de seguridad. Cuando el enchufe
no encaje en su salida de corriente, llame a un electricista para que le cambie su salida anticuada.
10. Evite que el cable de corriente quede en una posición en la que pueda ser pisado o aplastado, especialmente en los enchufes, receptáculos y en el punto en el que
salen de la unidad.
11. Desconecte de la corriente este aparato durante las tormentas eléctricas o cuando no lo vaya a usar durante un periodo de tiempo largo.
12. Dirija cualquier posible reparación solo al servicio técnico oficial. Deberá hacer que su aparato sea reparado cuando esté dañado de alguna forma, como si el cable de
corriente o el enchufe están dañados, o si se han derramado líquidos o se ha introducido algún objeto dentro de la unidad, si esta ha quedado expuesta a la lluvia o la
humedad, si no funciona normalmente o si ha caído al suelo.
Instrucciones de seguridad / Istruzioni di Sicurezza
ATTENZIONE: per ridurre il rischio di incendio o di scariche elettriche, non esponete questo apparecchio a pioggia o umidità. Per ridurre il pericolo di scariche elettriche evitate
di rimuoverne il coperchio o il pannello posteriore. Non esistono all'interno dell'apparecchio parti la cui regolazione è a cura dell'utente. Per eventuale assistenza, fate riferimento
esclusivamente a personale qualificato. Il fulmine con la punta a freccia all'interno di un triangolo equilatero avvisa l'utente della presenza di "tensioni pericolose" non isolate
all'interno dell'apparecchio, tali da costituire un possibile rischio di scariche elettriche dannose per le persone. Il punto esclamativo all'interno di un triangolo equilatero avvisa
l'utente della presenza di importanti istruzioni di manutenzione (assistenza) nella documentazione che accompagna il prodotto.
Importanti Istruzioni di Sicurezza
1. Prima di usare l'apparecchio, vi preghiamo di leggerne per intero le istruzioni.
2. Conservate tali istruzioni per una eventuale consultazione futura.
3. Vi preghiamo di rispettare tutte le istruzioni di sicurezza.
4. Seguite tutte le istruzioni del costruttore.
5. Non usate questo apparecchio vicino ad acqua o umidità.
6. Pulite l'apparecchio esclusivamente con un panno asciutto.
7. Evitate di ostruire una qualsiasi delle aperture di ventilazione. Posizionatelo seguendo le istruzioni del costruttore.
8.
Non posizionatelo vicino a sorgenti di calore come radiatori, scambiatori di calore, forni o altri apparecchi (amplificatori compresi) in grado di generare calore.
9. Non disattivate la protezione di sicurezza costituita dalla spina polarizzata o dotata di collegamento a terra. Una spina polarizzata è dotata di due spinotti, uno più
piccolo ed uno più grande. Una spina dotata di collegamento a terra è dotata di due spinotti più un terzo spinotto di collegamento a terra. Questo terzo spinotto, eventu-
almente anche più grande, viene fornito per la vostra sicurezza. Se la spina fornita in dotazione non si adatta alla vostra presa, consultate un elettricista per la sostituzione
della presa obsoleta.
10. Proteggete il cavo di alimentazione in modo che non sia possibile camminarci sopra né piegarlo, con particolare attenzione alle prese, ai punti di collegamento e al punto
in cui esce dall'apparecchio.
11. Staccate l'apparecchio dalla alimentazione in caso di temporali o tempeste o se non lo usate per un lungo periodo.
12. Per l'assistenza, fate riferimento esclusivamente a personale qualificato. È necessaria l'assistenza se l'apparecchio ha subito un qualsiasi tipo di danno, come danni al cavo
o alla spina di alimentazione, nel caso in cui sia stato versato del liquido o siano caduti oggetti al suo interno, sia stato esposto a pioggia o umidità, non funzioni corret-
tamente o sia stato fatto cadere.
Copyright 2005 - 2006, Samson Technologies Corp.
Printed January, 2007 v1.1
Samson Technologies Corp.
45 Gilpin Avenue
Hauppauge, New York 11788-8816
Phone: 1-800-3-SAMSON (1-800-372-6766)
Fax: [phone]
www.samsontech.com

Table of Contents
ENGLISH
Introduction.......................................1
XM410Features....................................2

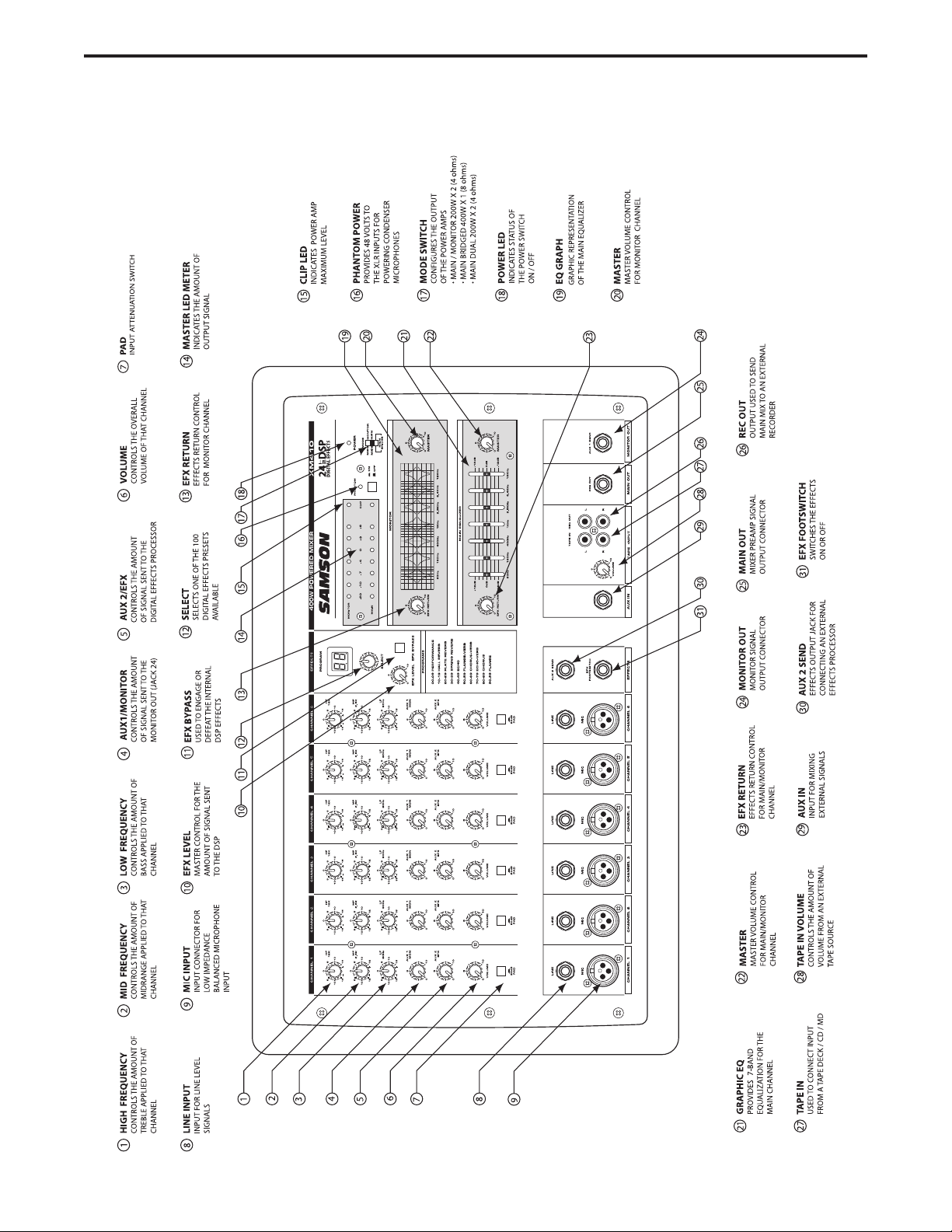

ControlsandFunctions.............................3

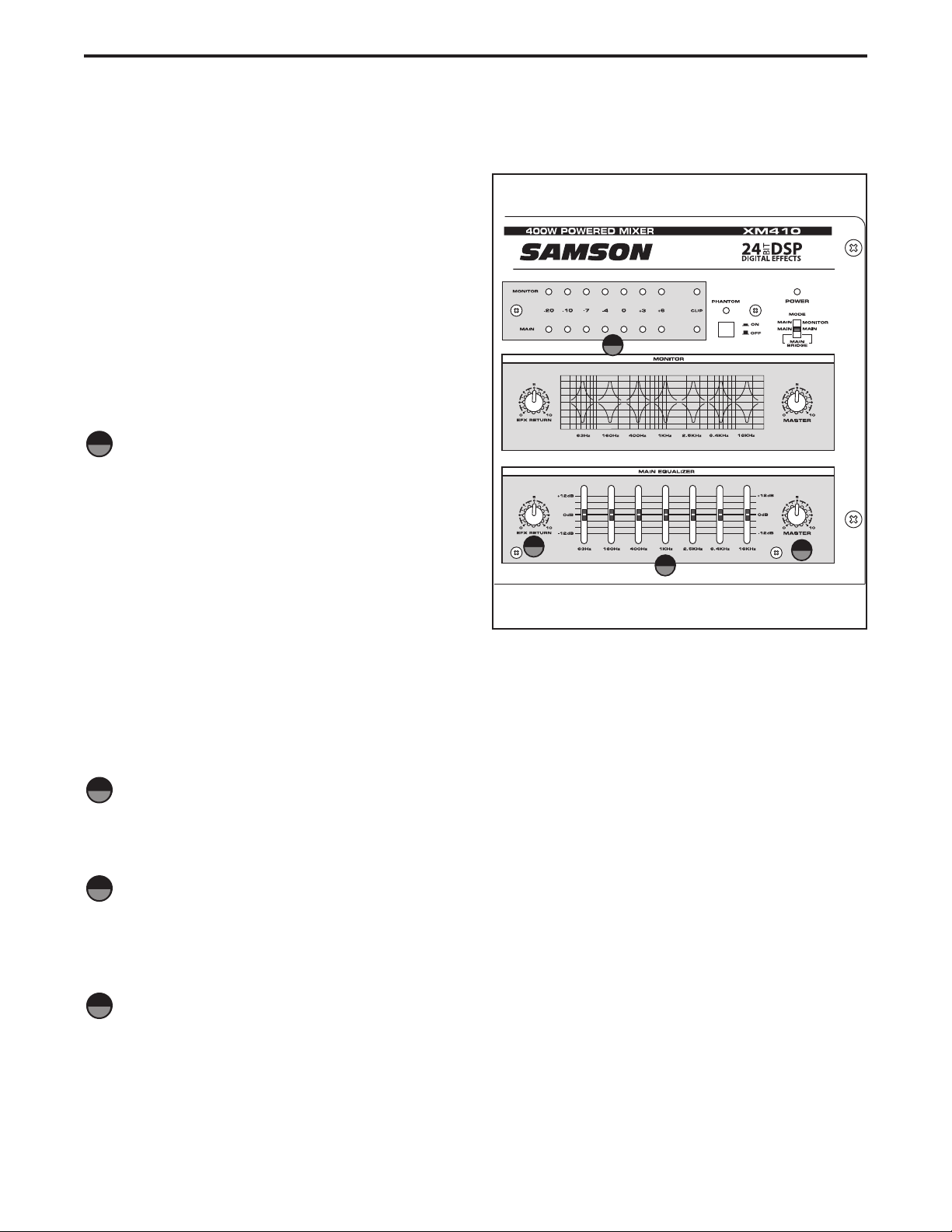

ControlsandFunctions.............................4
INPUTCHANNELSECTION..........................4
24 BIT DIGITAL EFFECT SECTION . . . . . . . . . . . . . . . . . . . . 5
TAPEINANDAUXINSECTION......................5

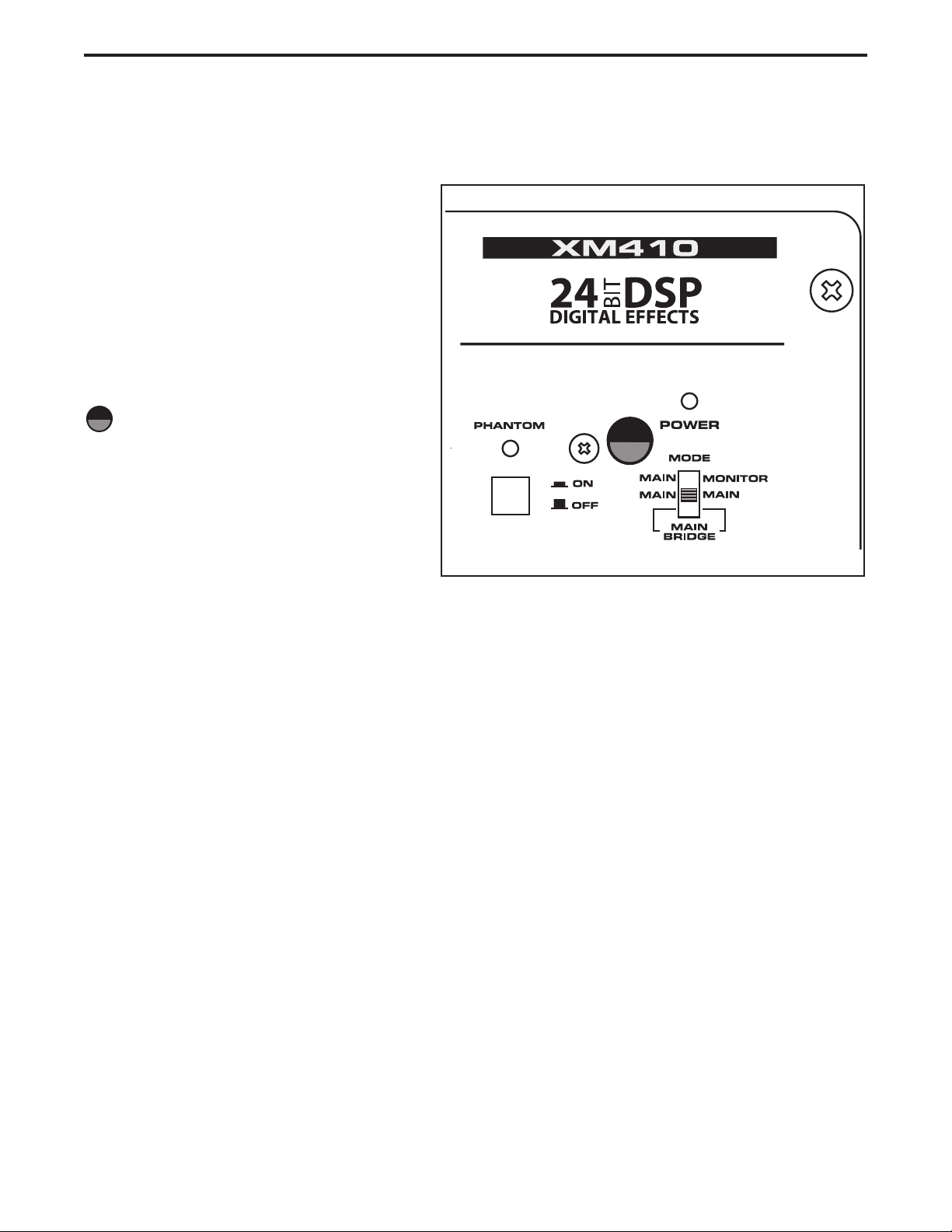

POWERAMPSECTION..............................6
MONITORSECTION ................................8
XM410 Input and Output Connections. . . . . . . . . . . . . . 9
CHANNEL 1–6 MIC and LINE INPUTS . . . . . . . . . . . . . . . . 9
EXTERNAL INPUT JACKS (AUX IN/TAPE IN). . . . . . . . . . . 9
EXTERNALOUTPUTJACKS.........................10

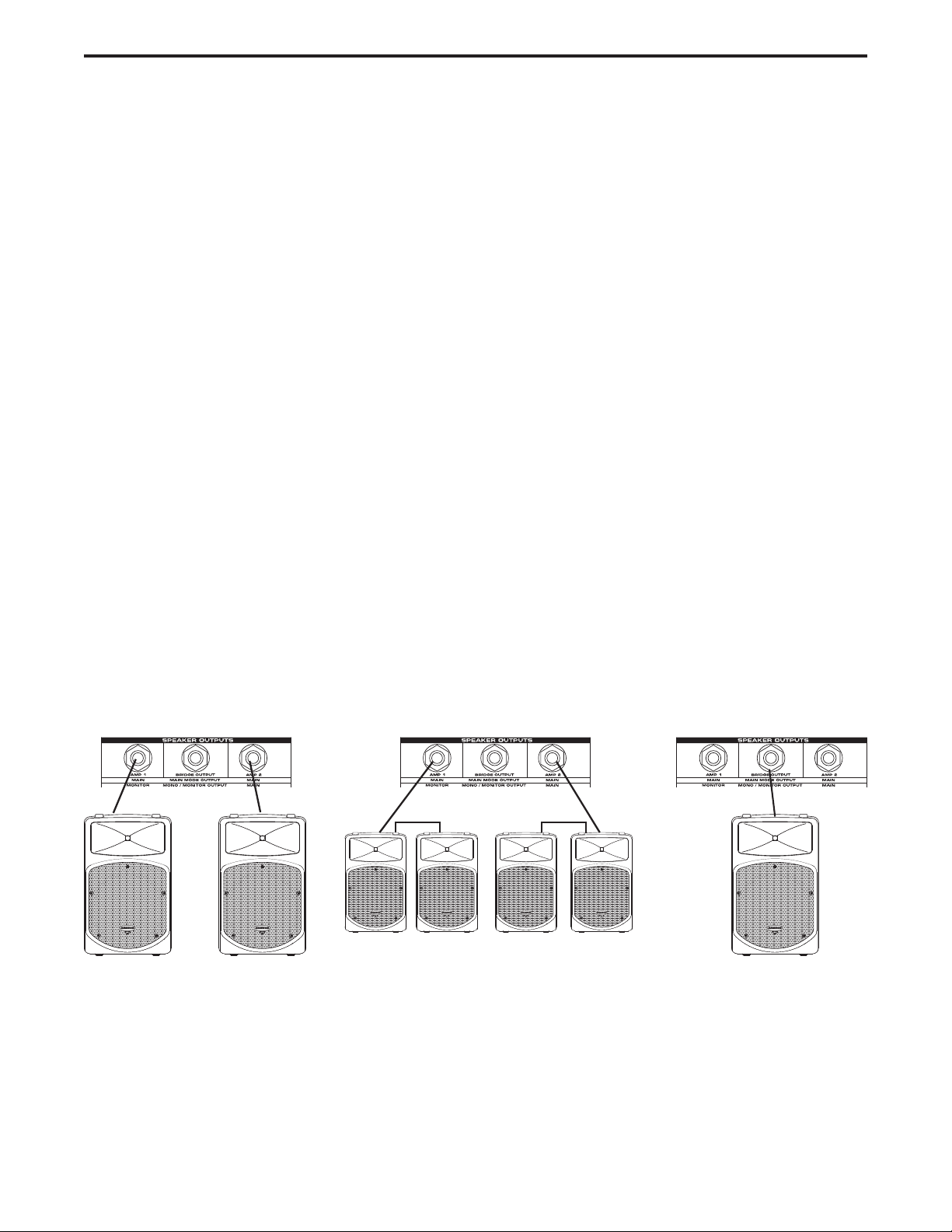

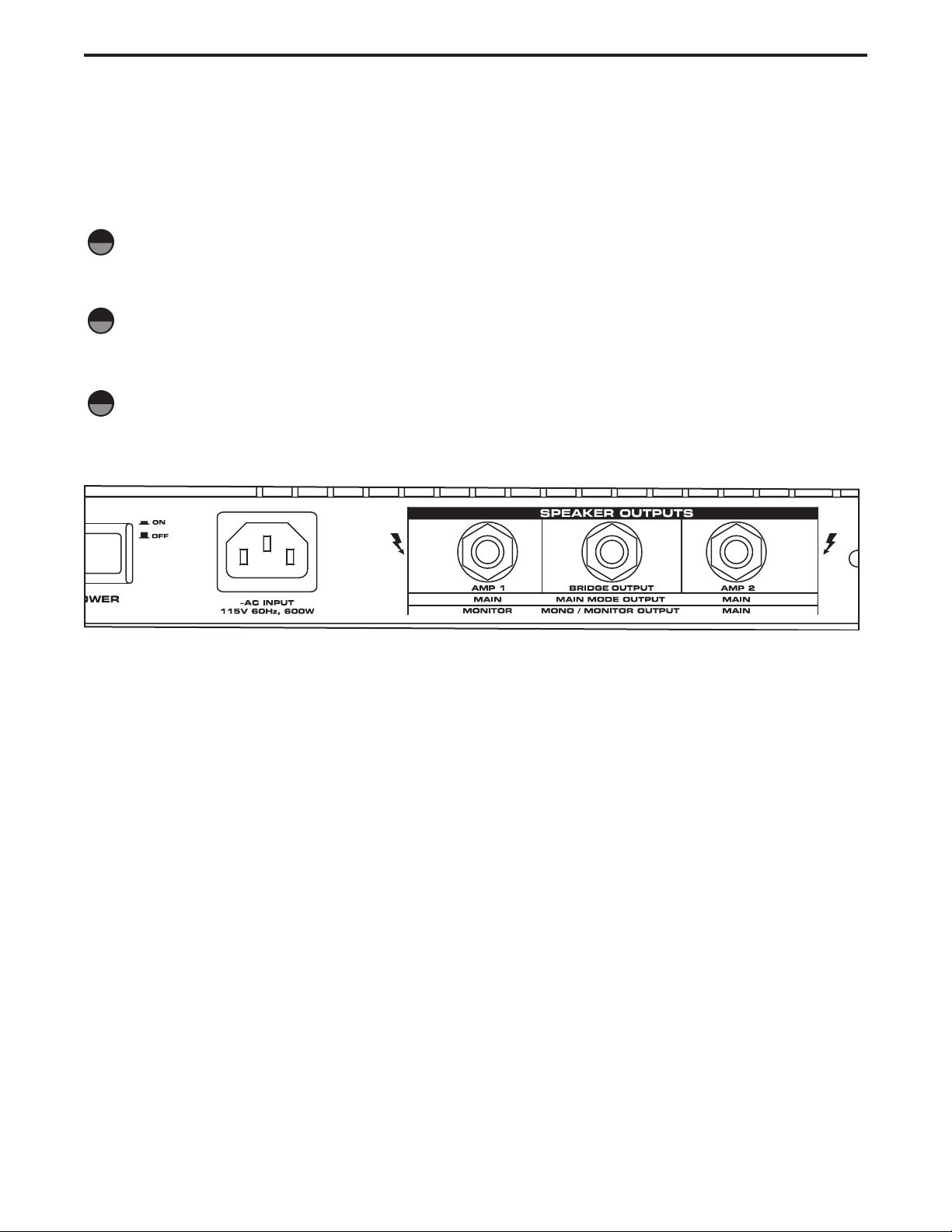

SPEAKERCONNECTION ...........................11
OperatingtheXM410.............................12
BASICOPERATION ................................12
USING THE DIGITAL EFFECTS . . . . . . . . . . . . . . . . . . . . . . 13

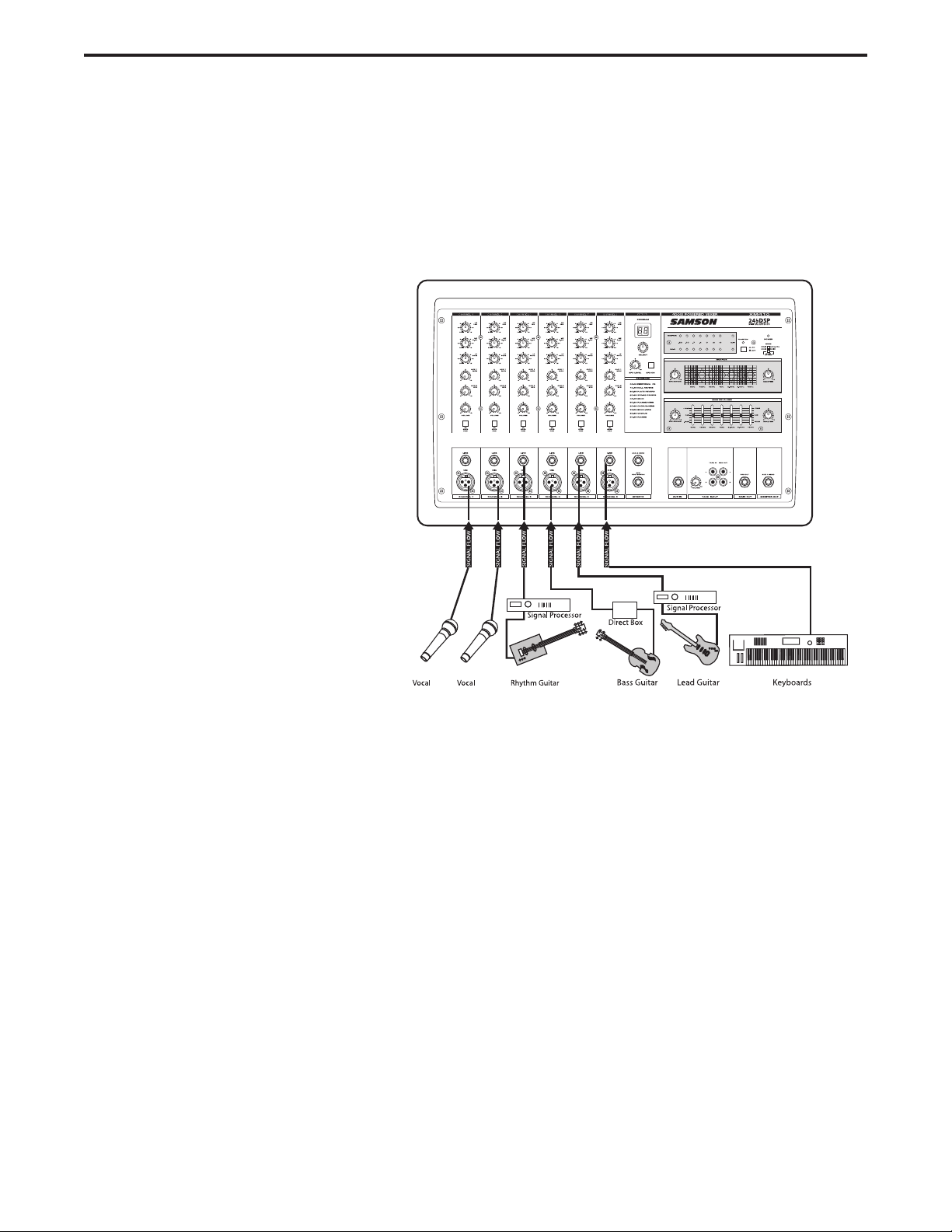

XM410 System Set-Ups.........................15-16
XM410WiringGuide..............................81
Specifications.....................................82
BlockDiagram....................................87
FRANÇAIS
Introduction......................................17
XM410 — Caractéristiques . . . . . . . . . . . . . . . . . . . . . . . . 18
Faceavant........................................19
Réglagesetfonctions.............................20
VOIES D'ENTRÉE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Réglagesetfonctions.............................22
ÉTAGEDEPUISSANCE.............................22
SECTION DES RETOURS MONITOR . . . . . . . . . . . . . . . . . 24
XM410 — Connexions d'entrée et de sortie . . . . . . . . 25
VOIES MIC 1–6 MIC et entrées LINE . . . . . . . . . . . . . . . . 25
UtilisationduXM410..............................28
UTILISATION DES EFFETS NUMÉRIQUES . . . . . . . . . . . . 29
UTILISATION D'EFFETS EXTERNES . . . . . . . . . . . . . . . . . . 30
LECTURED'UNCD ................................30
XM410 - Configurations . . . . . . . . . . . . . . . . . . . . . . . . 31-32
CONNEXIONDUXM410...........................81
Caractéristiques techniques . . . . . . . . . . . . . . . . . . . . . . . 83
Synoptique.......................................87
DEUTSCHE
Einleitung ........................................33
XM410Features...................................34
Vorderseite.......................................35
ReglerundFunktionen............................36
ReglerundFunktionen............................37
MONITOR-SEKTION ...............................40
XM410 Eingänge und Ausgänge. . . . . . . . . . . . . . . . . . . 41
CHANNEL 1–6 MIC- und LINE-EINGÄNGE . . . . . . . . . . 41
XM410 Eingänge und Ausgänge. . . . . . . . . . . . . . . . . . . 42
EXTERNEAUSGÄNGE..............................42
BOXEN-ANSCHLUSS...............................43
XM410bedienen..................................44
ELEMENTAREBEDIENUNG.........................44
DIGITALEFFEKTE EINSETZEN . . . . . . . . . . . . . . . . . . . . . . 45
EXTERNEN EFFEKT EINSETZEN . . . . . . . . . . . . . . . . . . . . . 46
CDWIEDERGEBEN.................................46
XM410 System-Einrichtung. . . . . . . . . . . . . . . . . . . . . . . . 47
XM410 System-Einrichtung. . . . . . . . . . . . . . . . . . . . . . . . 48
XM410ANSCHLIESSEN............................81
TechnischeDaten.................................84
Blockdiagramm...................................87
ESPAÑOL
Introducción......................................49
Características del XM410 . . . . . . . . . . . . . . . . . . . . . . . . . 50
Distribución del panel frontal. . . . . . . . . . . . . . . . . . . . . . 51
Controlesyfunciones.............................52
SECCION DE CANAL DE ENTRADA . . . . . . . . . . . . . . . . . 52
SECCION DE EFECTOS DIGITALES A 24 BITS. . . . . . . . . 53
SECCION DE ETAPA DE POTENCIA. . . . . . . . . . . . . . . . . . 54
SECCION DE SALIDA MAIN O PRINCIPAL. . . . . . . . . . . . 55
SECCIONDEMONITOR............................56
Conexiones de entrada y salida del XM410. . . . . . . . . 57
CONECTORES DE SALIDA EXTERIOR. . . . . . . . . . . . . . . . 58
CONEXIONDEALTAVOCES ........................59
ManejodelXM410................................60
FUNCIONAMIENTO BASICO. . . . . . . . . . . . . . . . . . . . . . . . 60
USO DE LOS EFECTOS DIGITALES . . . . . . . . . . . . . . . . . . 61
USO DE UNA UNIDAD DE EFECTOS EXTERIOR . . . . . . 62
REPRODUCCIONDEUNCD .......................62
Configuraciones de sistemas del XM410 . . . . . . . . 63-64
CONEXIONDELXM410............................81
Especificaciones técnicas . . . . . . . . . . . . . . . . . . . . . . . . . 85
Diagramadebloques.............................87
ITALIANO
Introduzione......................................65
XM410-Caratteristiche ...........................66
IlPannelloFrontale................................67
ControllieFunzioni...............................68
I CONTROLLI DEL PANNELLO FRONTALE . . . . . . . . . . . 68
SEZIONE EFFETTI DIGITALI A 24 BIT . . . . . . . . . . . . . . . . 69
SEZIONE DEGLI INGRESSI TAPE E AUX . . . . . . . . . . . . . . 69
ControllieFunzioni...............................70
SEZIONE DEL FINALE DI POTENZA . . . . . . . . . . . . . . . . . 70
SEZIONE DI USCITA PRINCIPALE (MAIN) . . . . . . . . . . . . 71
ControllieFunzioni...............................72
SEZIONEMONITOR................................72
XM410 - Connessioni di Ingresso e di Uscita. . . . . . . . 73
INGRESSI MIC E DI LINEA DEI CANALI DA 1 A 10 . . . . 73
PRESEDIUSCITAESTERNE.........................74
XM410 - Connessioni di Ingresso e di Uscita. . . . . . . . 75
L'Usodell'XM410..................................76
FUNZIONAMENTODIBASE........................76
L'Usodell'XM410..................................77
Il Collegamento dell'XM410 . . . . . . . . . . . . . . . . . . . . . . . 79
Il Collegamento dell'XM410 . . . . . . . . . . . . . . . . . . . . . . . 80
IL COLLEGAMENTO DELL'XM410 . . . . . . . . . . . . . . . . . . . 81
Specifiche........................................86
DiagrammaaBlocchi .............................87

1
Congratulations on your purchase of the Samson XM410 powered mixer! The XM410 is a six channel, 400 Watt
powered mixer with a built-in, 24 BIT DSP (Digital Signal Processor) effects. The XM410 will give you clean,
clear sound reproduction thanks to the high quality, low noise microphone preamps, super clean mix bus,
on-board 7-band graphic equalizer and the high output/low distortion power amplifier. For studio quality
processing, you can add one of the 100 dazzling digital effects including Delays, Chorus and lush Reverbs to
your voice or instruments. The XM410’s ingenious Kickback enclosure allows you to tilt the unit back to see,
and operate, the controls with ease. The unit is easy to transport with its compact size and oversized, sure-grip
handle. The super-tough ABS construction ensures reliable, high quality sound from venue-to-venue and
performance-to-performance day in, and night out. Optimized for live sound reinforcement and commercial
installations, the XM410 is an ideal mixer and power amp solution offering big sound in a compact package.
In these pages, you’ll find a detailed description of the features of the XM410 powered mixer, as well a descrip-
tion of its front and rear panels, step-by-step instructions for its setup and use, and full specifications. You’ll
also find a warranty card enclosed—please don’t forget to fill it out and mail it in so that you can receive
online technical support and so we can send you updated information about these and other Samson prod-
ucts in the future. Also, be sure to check out our website (www.samsontech.com) for complete information
about our full product line.
With proper care and adequate air circulation, your unit will operate trouble free for many years. We recom-
mend you record your serial number in the space provided below for future reference.
Serial number: ___________________________
Date of purchase: _________________________
Should your unit ever require servicing, a Return Authorization number (RA) must be obtained before ship-
ping your unit to Samson. Without this number, the unit will not be accepted. Please call Samson at 1-800-
3SAMSON (1-800-372-6766) for a Return Authorization number prior to shipping your unit. Please retain the
original packing materials and if possible, return the unit in the original carton and packing materials. If you
purchased your Samson product outside the United States, please contact your local distributor for warranty
information and service.
Introduction

2
XM410 Features
The Samson XM410 Powered Mixer is a comprehensive, all-in-one mixer / power amplifier solution for live
sound applications. Here are some of its main features:
• Six channel powered mixer in ergonomically correct kickback enclosure allowing you to easily see and
operate the front panel functions.
• Six Mic / Line inputs with 1/4-inch phone and XLR connectors.
• 2 x 200 Watts, or 200 Watt Main / 200 Watt Monitor, or 400 Watts Bridged power operating modes.
• A built-in, 24-bit DSP (Digital Signal Processor) with 100 selectable presets including Reverb, Delay
and Chorus, offers dazzling studio quality effects.
• Dynamic or condenser microphones connect easily to the low noise mic pre-amps with available 48
Volt Phantom Power.
• The 3-Band EQ on each channel enables you to tailor the tonal response for each input.
* Two Auxiliary sends on each channel for building an independent mix to send to the DSP effects and
monitors.
• 7-band Graphic Equalizer for the Main mix, allowing the system to be set-up for maximum gain before
feedback.
• A convenient Tape / CD Input is provided so you connect a stereo device for accompaniment or back-
ground music.
• Brilliant sound quality from the advanced circuit design, utilizing low noise operational amplifiers.
• Durable ABS plastic enclosure is road tough insuring reliable performance from night to night and
venue to venue .
• Convenient oversize, sure grip handle make the unit easy to carry.
• Three-year extended warranty.

3
Controls and Functions
FRONT PANEL LAYOUT

4
Controls and Functions
INPUT CHANNEL SECTION
The following section details each part of the XM410’s INPUT CHANNELS includ-
ing the 3-BAND EQ, the MONITOR and EFX sends, LEVEL and PAD controls.
HIGH MID LOW - Channel Equalizer
The XM410 input channels feature a 3-band equalizer allowing you to adjust the
high, mid, and low frequencies independently on each channel. The channel’s
frequency response is flat when the knobs are in the "12:00" position. Rotating
the knob towards the right will boost the corresponding frequency band by
12dB/15dB, and rotating it towards the left will cut the frequency by 12dB/15dB.
The frequency centers, range of boost or cut, and equalizer type for each band
are as follows:
High: 12KHz +/- 15dB shelving type
Mid: 2.5KHz +/- 12dB peaking type
Low: 80Hz +/- 15dB shelving type
AUX 1/MON - Monitor Send
Each of the XM410’s channels include a MONITOR send which controls the
amount of that channel’s signal that is sent to the MONITOR bus. The Input
channel’s MONITOR sends are mixed together and are sent to the speakers con-
nected to the POWER AMP 1 A/B jacks if the POWER AMP select switch is set to
MAIN+MONITOR.
AUX 2 / EFX Effects Send
The XM410 provides high quality, 24 Bit digital effects, and the level of effects
can be set independently on each channel. The channel’s EFX (Effects) knob controls the amount of sig-
nal that is sent to the EFX bus. The signal of the EFX bus is routed to the DSP EFX section for on-board
signal processing. The EFX signal can also be sent to an external effect device connected to the EFX
OUT jacks located on the front panel.
NOTE: The channel’s EFX signal is sent to the EFX bus from a location in the signal path after the
VOLUME control (4). This is commonly referred as a POST FADER send. This means that the amount of
signal that is sent to the EFFECT bus will be affected not only by the setting of the EFX knob control,
but it will also be affected by the setting of the VOLUME control.
VOLUME - Level Control
The VOLUME control adjusts the output volume of each channel.
PAD - Pad Switch
The PAD switch attenuates the input signal by 20dB. When connecting a hot signal such as a line level
device to channels 1-6, or if the mic input is distorted, turn this switch on (the pressed-in position) and
readjust the VOLUME control.





1
2
3
4
5
FRONT PANEL CONTROLS

5
SELECT - Digital Effects Select Switch
The SELECT switch allows you to pick one of the 100 built-in digital effects.
Simply rotate the SELECT to choose the effect.
Effect PROGRAM List
This section identifies the ten banks of built-in DSP effects presets. The first
bank of 10 presets are designed for live performance, and the following
banks are set up in groups by the types of effects.
EFX LEVEL - Master Effect Send
The EFX LEVEL control is used to send the effect mix bus to an external effect
device connected to the AUX 2 SEND jack. The EFX LEVEL is also used to
control the overall level sent to the internal DSP.
EFX ON - switch
The EFX ON control is used to turn the internal Digital Effect on and off. The
effects are bypassed when the switch is in the out position and the display
shows two dashes
6
7
8
6
7
8
VOLUME - Tape In Level Control
This adjusts the amount of signal that is sent from the TAPE IN jacks to the
MAIN bus.

9
Controls and Functions
TAPE IN AND AUX IN SECTION
This allows you to adjust the level of the signal from an external device
such as an MP3 , cassette, or CD player or from an external effect device.
FRONT PANEL CONTROLS
24 BIT DIGITAL EFFECT SECTION
The XM410 features a built-in, 24 Bit Digital Effects processor with 100 high quality,
studio grade effects like Delay, Chorus and Reverb. The following section describes
the features of the powerful on-board digital effects section:

6
10
POWER AMP SECTION
The XM410’s power amplifier section can
be configured to operate several ways
depending on whether you need MAIN
plus MONITOR amplifiers to power your
speakers, or if you just need more power
for the MAIN speakers. The section below
describes the XM410 power amp modes.
Mode - Power amp Mode switch
The MODE switch is used to select one of
three different operating modes, MAIN-
MONITOR, MAIN-MAIN and MAIN-BRIDGE.
The following is a description of each of
the POWER operating modes:
CAUTION! Only change the power amp mode switch when the XM410’s power is SWITCHED OFF!
MAIN-MONITOR
With this setting, the MAIN and MONITOR sections can be used independently. The MAIN bus signal will
be sent from the POWER AMP 2 jack, and the MONITOR bus signal will be sent from the POWER AMP 1
jack.
MAIN-MAIN
With this setting, the two power amp channels can be used independently. The MAIN bus signal will be
output from the POWER AMP 1 jack (Rear Panel), and also, from the POWER AMP 2 jack (Rear Panel 1).
MAIN-BRIDGE
With this setting, the two power amp channels (A and B) will be connected in bridge mode. Only the
MAIN bus signal will be output from the BRIDGE jack.

FRONT PANEL CONTROLS
Controls and Functions
