Samson Expedition Express+ User manual

Owner's Manual

2
Copyright 2019, V1.2
Samson Technologies Corp.
278-B Duffy Ave
Hicksville, New York 11801
www.samsontech.com
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG,
Inc. and any use of such marks by Samson Technologies is under license. Other trademarks
and trade names are those of their respective owners.”
Important Safety Information
AVIS
RISQUE DE CHOC ÉLECTRONIQUE -
NE PAS OUVRIR
This lightning flash with arrowhead symbol within an equilateral triangle is
intended to alert the user to the presence of non-insulated “dangerous voltage”
within the product’s enclosure that may be of sufficient magnitude to constitute
a risk of electric shock.
The exclamation point within an equilateral triangle is intended to alert the user
to the presence of important operating and maintenance instructions in the
literature accompanying the appliance.
WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR
BACK) AS THERE ARE NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
If you want to dispose this product, do not mix it with general household waste.
There is a separate collection system for used electronic products in accordance
with legislation that requires proper treatment, recovery and recycling.
Private household in the 28 member states of the EU, in Switzerland and Norway
may return their used electronic products free of charge to designated collection facilities or
to a retailer (if you purchase a similar new one).
For Countries not mentioned above, please contact your local authorities for a correct
method of disposal.
By doing so you will ensure that your disposed product undergoes the necessary treatment,
recovery and recycling and thus prevent potential negative effects on the environment and
human health.

Expedition Express+ • Portable PA System 3
Important Safety Information
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the third prong are provided for
your safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at the plugs,
convenience receptacles, and at the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug the apparatus during lightening storms or when unused for long
periods of time.
14. Refer all servicing to qualified personnel. Service is required when the apparatus has
been damaged in any way, such as power supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
15. This appliance shall not be exposed to dripping or splashing water and that no object
filled with liquid such as vases shall be placed on the apparatus.
16. Caution-to prevent electrical shock, match wide blade plug wide slot fully insert.
17. Please keep a good ventilation environment around the entire unit.
18. To prevent injury, this apparatus must be securely attached to the stand in accordance
with the installation instructions.
19. WARNING: The battery (battery or batteries or battery pack) shall not be exposed to
excessive heat such as sunshine, fire or the like.
20. CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the
same or equivalent type.
21. WARNING: The mains plug/appliance coupler is used as disconnect device, the
disconnect device shall remain readily operable.
22. Battery disposal should be drawn to environmental aspects and should be according to
local law requirements.
23. No naked flame sources, such as lighted candles, should be placed on the apparatus.

4
Important Safety Information
FCC Notice
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that
may cause undesired operation.
2. Changes or modifications not Expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reason-
able protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio com-
munications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television recep-
tion, which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
RF Warning Statement
The device has been evaluated to meet general RF exposure requirement. The device can be
This device complies with RSS-310 of Industry Canada. Operation is subject to the condi-
tion that this device does not cause harmful interference.
Hereby, Samson Technologies Corp., declares that this Expedition Express+ is in compliance
with the essential requirements and other relevant provisions of Directive 2014/53/EU. The
declaration of conformity may be consulted at:
http://www.samsontech.com/site_media/support/manuals/Expedition_Express_Plus_DOC.pdf
used in fixed/mobile (min20cm) exposure condition without restriction.

Expedition Express+ • Portable PA System 5
Thank you for purchasing the Expedition Express+ battery-powered portable sound system,
featuring wireless Bluetooth®connectivity, to stream audio from your smart phone, tablet,
or computer. The Expedition Express+ is a complete all-in-one solution providing the flex-
ibility of a three-channel mixer (with inputs for a microphone, instrument, and line level
devices), a line output for linking multiple speakers, and bass and treble tone controls.
Expedition Express+ packs more than enough power to entertain small, medium and
large groups alike with pristine, full range audio. Its built-in amplifier delivers 75 watts
of power to the 2-way speaker design. A 6” woofer supports plenty of low end, while a 1”
tweeter provides the shimmering highs that are essential to faithfully reproducing vocals
and instruments. Lightweight and compact, the Expedition Express+ weighs less than 15
lb making it an excellent complement to any mobile speaker situation. The internal battery
provides up to 20 hours of audio on a full charge or the Expedition Express+ can be plugged
in to an outlet for continuous playback.
Whether you are looking for a sound system for use outdoors, in the classroom, for karaoke,
for presentations, or performing live music, the Expedition Express+ provides high quality,
portable audio in a small self-powered package.
We recommend you keep the following records for reference, as well as a copy of your sales
receipt.
Serial number: ______________________________________________________
Date of purchase: ___________________________________________________
If you have any questions or comments regarding the Express+ Portable PA System or any
other products from Samson, do not hesitate to contact us at [e-mail].
With proper care and maintenance, your Express+ Portable PA System will operate trouble-
free for many years. Should your Express+ Portable PA System ever require servicing, a
Return Authorization (RA) number must be obtained before shipping your unit to Samson.
Without this number, the unit will not be accepted. Please visit www.samsontech.com/ra for
an RA number prior to shipping your unit. Please retain the original packing materials and,
if possible, return the unit in its original carton. If your Express+ Portable PA System was
purchased outside of the United States, contact your local distributor.
Introduction

6

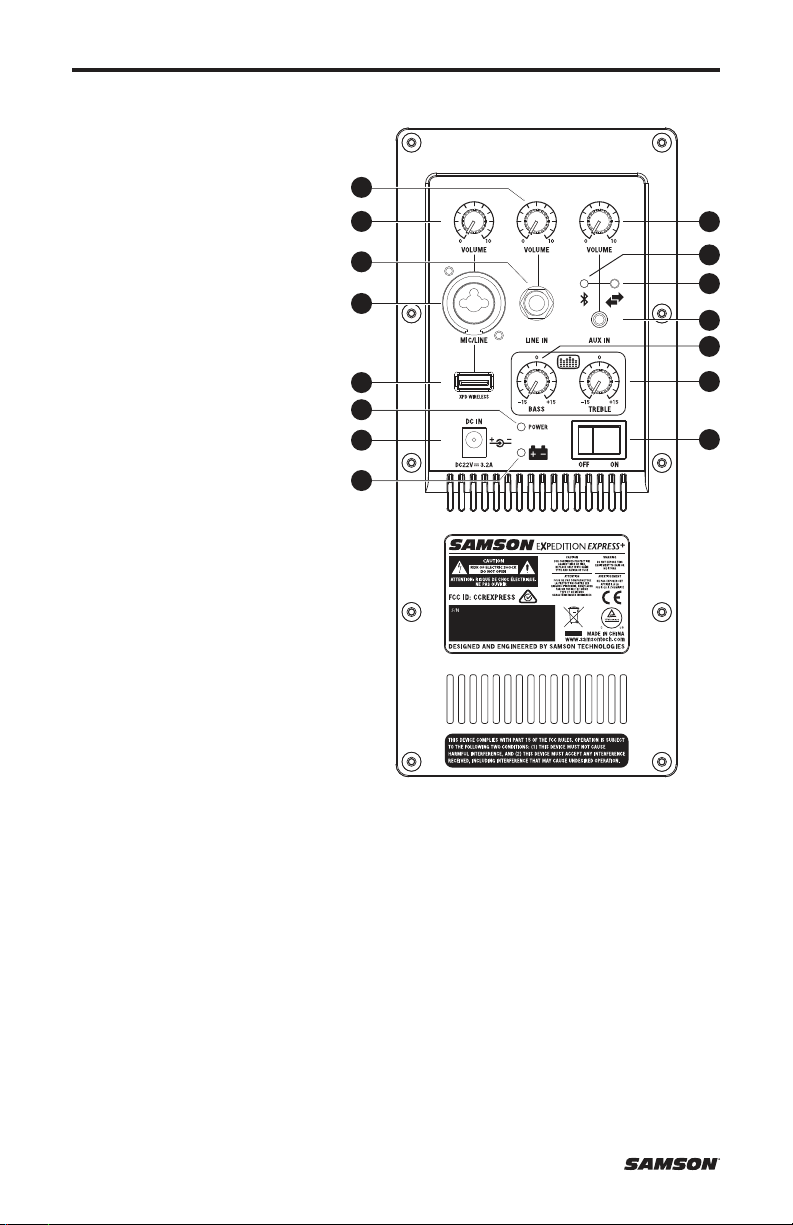

Express+ Controls and Connections
1. MIC/LINE Input - Use this XLR
- 1/4" combo input to connect
microphones or a line devices.
2. XPD WIRELESS Input - Connect a
Samson XPD digital wireless USB
receiver to this input. The wireless
receiver gets its power from the
Express+, so no additional power
supply is needed.
3. MIC/LINE VOLUME - Used to
control the level of the MIC/LINE
and XPD Wireless inputs.
4. LINE IN - 1/4" input used to
connect line level devices.
5. LINE IN VOLUME - Used to control
the level of the 1/4" Line input.
6. AUX INPUT - Connect a line level
device using a 1/8" (3.5mm) audio
cable.
7. Pairing Button - Press this button
to enable discoverable mode to
pair with a Bluetooth audio device.
8. Pairing Indicator - Displays the
Bluetooth status of the Expedition
Express+ system.
9. AUX / BLUETOOTH VOLUME - Used
to control the level of the 1/8" Aux
and Bluetooth audio.
10. BASS EQ - Controls the low
frequency tone of the entire
system.
11. TREBLE EQ - Controls the high frequency tone of the entire system.
12. POWER Switch - Switches on the main power.
13. POWER Indicator - Lights green when the power switch is in the ON position.
14. Battery Level Indicator - Displays the status of the battery charge level. Indicator lights
red while charging, and turns green when the battery is fully charged.
15. DC INPUT - Connect the supplied power adapter here.
1
3
2
15
14
9
6
12
11
7
8
10
13
4
5

Expedition Express+ • Portable PA System 7
The Express+ has an internal, rechargeable battery capable of up to 20 hours of
continuous audio on a full charge. Even though the system may have some charge when first
taken out of the box, it is recommended to fully charge your Express+ before first using the
system.
To charge the battery:
• Set the power switch to the “OFF”
position.
• Connect the Expedition Express+
to an AC power outlet using the
included power adapter.
• Keep the system plugged in until
the Power Supply indicator turns
green, indicating the battery is fully
charged.
If you find that the operation time of the
Express+ becomes noticeably decreased,
even after fully charging, the battery
should be replaced. Contact Samson
customer service or your local distributor
for a replacement battery.
Charging the Battery
The Express+ utilizes a sealed lead-acid gel cell battery.
When not in use, the battery will slowly self-discharge. If
you are planning not to use the Express+ for a long period of
time, it is advised to fully charge the unit before storing.
It is also important to charge the unit every six months when not used.
This will ensure a healthy battery and extend its life. If the battery
is left with a very low charge for an extended period of time, it is
possible to recharge the battery to working condition, but the charge
time can take up to 72 hours.
!

8
• Set the Express+ power switch to the OFF position, and fully turn all of the LEVEL
controls counterclockwise to 0.
• If an outlet is available, connect the included power adapter to the DC input of the
speaker, and plug it into an electrical outlet.
• Connect your audio sources.
• Set the Express+ power switch to the ON position.
• Turn the channel Volume controls up and set the input levels, following the steps below.
Making Connections
Microphone Input
• Connect a microphone using a balanced XLR
microphone cable.
• While speaking or singing at performance
level into the microphone, slowly raise the
channel MIC/LINE VOLUME control until you
have reached the desired level.
NOTE: If not using the Mic Input, turn the MIC/
LINE VOLUME control all the way down to keep
out any unwanted noise.
Aux Input
• Connect a line level device using 1⁄8”
(3.5mm) cable.
• Set the output volume of your audio device to
it's maximum setting.
• While playing music from a line level audio
source, slowly raise the AUX/BLUETOOTH
VOLUME control until you have reached the
desired level.
Quick Start

Expedition Express+ • Portable PA System 9
Quick Start
XPD Wireless Input (sold separately)
• Plug the XPD USB receiver into the XPD
Wireless USB jack.
• Turn the MIC/LINE VOLUME knob on the
Express+ completely counterclockwise to 0.
• Place a fresh set of AA (LR6) batteries in the
transmitter battery holder, taking care to observe
the polarity markings, then replace the cover.
• Turn on the power to the transmitter by pressing
and holding Power switch; the indicator LED will
light amber.
• Speak or sing into the mic at a normal
performance level and raise the MIC/LINE
VOLUME control until the desired level is
reached.

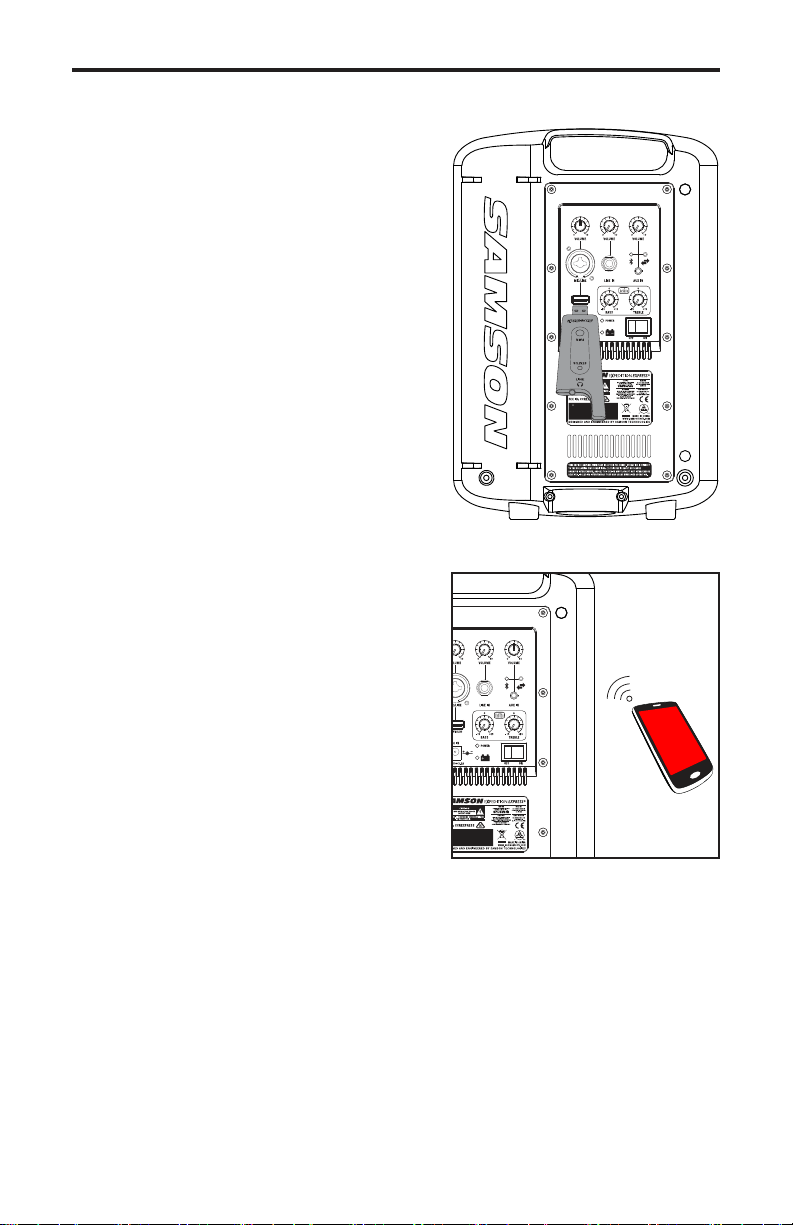

Bluetooth®
• Turn the BLUETOOTH VOLUME control down
counterclockwise to 0.
• With the Express+ and your Bluetooth device
powered on; press the PAIR button on the rear
panel of the Express+ to make the speaker
discoverable. The Pairing indicator will slowly
flash blue.
• In the settings of your Bluetooth device, set it to
“discover” available devices.
• From the Bluetooth device list, select the
“Express Plus” device.
• If your device asks for a passkey, enter digits
0000 (four zeros) and press OK. Some devices
may also ask you to accept the connection.
• The Express+ speaker indicates that pairing is complete when the indicator turns
steady blue. You can now stream audio from your device to the Express+ speakers.
• With the volume control on your Bluetooth device turned up, play some music, and
slowly raise the Express+ LINE/BLUETOOTH VOLUME control until you have reached
the desired level.

10
The Expedition Express+ provides three different
placement options for your specific situation.
For maximum sound coverage the Expedition
Express+ can be used with a standard 1 3/8” speaker
stand. The speaker should be raised above the heads
of the listening audience. Take care when placing the
speaker on a stand, to ensure that it is on a level,
steady surface and will not tip over.
When using the speaker on the floor, or when the speaker is
below the listener, the Expedition Express+ features a monitor
angle position to project the sound up, towards the audience.
For smaller settings, the speaker can be placed vertically on a
table or desk.
Take care when placing the Expedition Express+ in direct sunlight
for long periods of time, as this may discolor or damage the unit.
Do not place the speaker on wet surfaces, as it can cause
malfunction. If you notice condensation on the unit, dry the
speaker before using or storing.
Feedback is the annoying howling and squealing that can be heard when the microphone
picks up sound from the speaker. The sound is then re-amplified back through the speaker
again, creating a feedback loop. Follow these steps to minimize the likelihood of feedback:
• Avoid pointing the microphone directly at the speaker. In general it is recommended
that the microphone be positioned behind the speaker enclosure. This uses the
directional characteristics of the speaker and microphone to your advantage.
• Keep the microphone as far from the speaker as possible. This will help achieve
isolation between the speaker and the microphone, and allow you to increase the
output of the Expedition Express+.
• Position the microphone as close to the sound source as possible. This will enable the
microphone to pick up more direct sound, and allow you to reduce the microphone
input gain control.
• Reduce the overall level of the speaker.
Speaker Placement
Avoiding Feedback

Expedition Express+ • Portable PA System 11
Power Output 75 watts (peak)
Speakers 6" Woofer + 1" HF Driver
Mic/Instrument Input XLR - 1/4" connector
Line Input 1/4"
MP3 Input 1/8"
LEVEL Controls Mic/Line, Line, Aux/Blutooth
Tone Controls Treble & Bass, ±15 dB Independent
Bluetooth Bluetooth 5.0+BR+EDR, A2DP
Working Frequency 2.402GHz ~ 2.480GHz
RF Power +2dBm
Built-in Battery 12V / 2.2AH, Rechargeable & Sealed
Operation Up to 20 hours subject to operating conditions
Battery Charging Approx. 5 hours for a single charge
AC/DC Adapter SMPS AC100~240V, 50~60Hz/ DC22V 3A
Construction Polypropylene
Grill Perforated Steel Grill, powder coated
Mounting Integral 1 3/8" Pole Mount Receptacle
Included Accessories Handheld microphone, XLR microphone cable
Operating Temperature -10°C ~ +40°C
Dimensions 8.75" x 8.25" x 12.75"
222mm x 210mm 323mm
Weight 11.9 lb
5.4 kg
Specifications

Having Trouble with your Expedition Express+?
We can help!
CONTACT OUR SUPPORT TEAM: [email protected]
Our experts can help you resolve any issues.
Samson Technologies Corp.
278-B Duffy Ave
Hicksville, New York 11801
Phone: 1-800-3-SAMSON (1-800-372-6766)
Fax: [phone]
www.samsontech.com
Follow us:
@samson @samsontech @samson_technologies
