࡛Thank you forpurchasing this Samsung airconditioner.
࡛Before operating this unit, please read this usermanual carefullyand retain itforfuture reference.

2English
Contents
SafetyInformation 3
SafetyInformation 3
AtaGlance 11

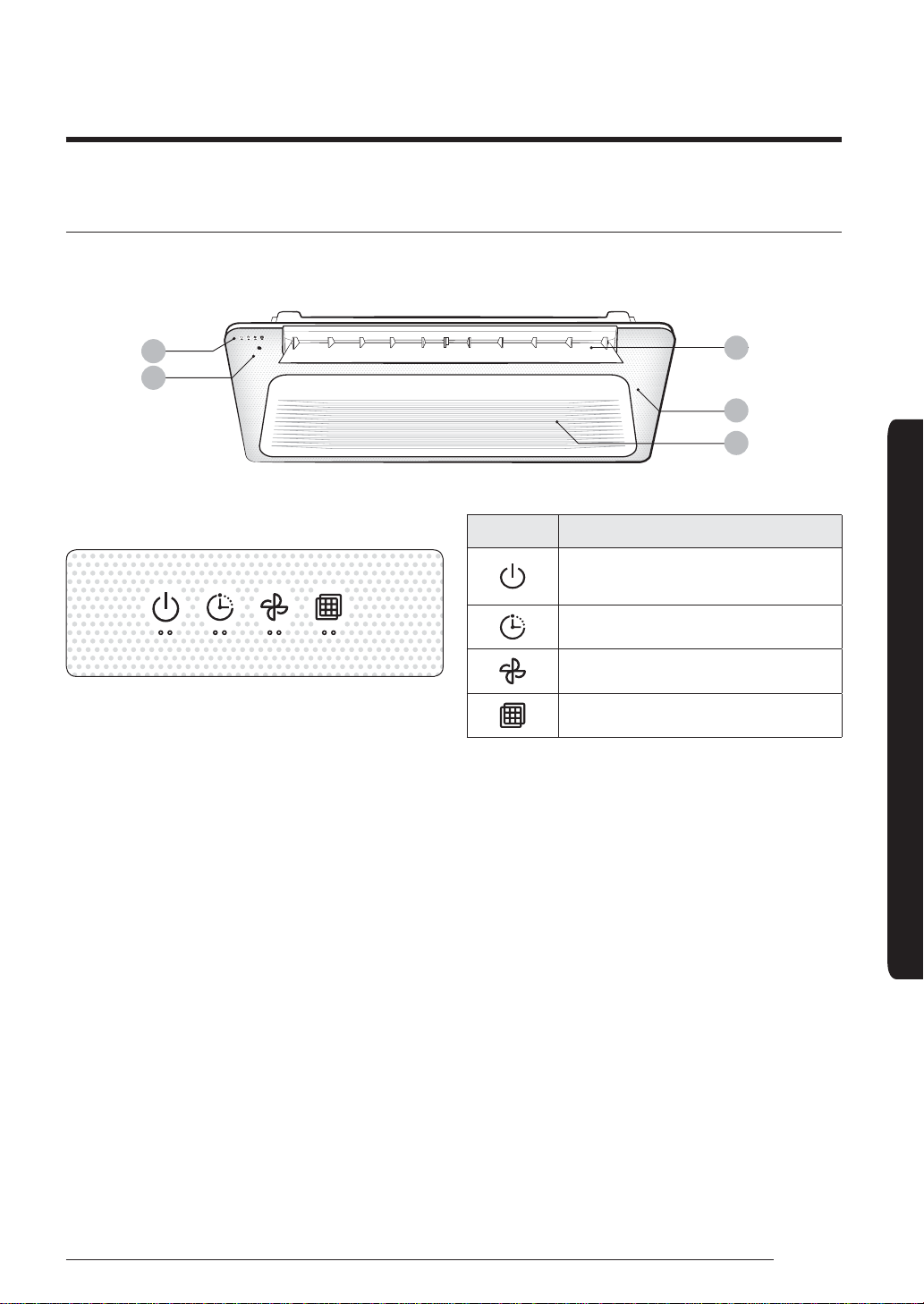

IndoorUnit Overview 11
Main parts 11
PowerSmart Features 12
Operating temperature and humidity 12
Cleaningand Maintenance 13
Cleaning and Maintaining 13
Aʪɇ˝ϩ˵ʪʒͱͱθЇϩʪуϩʪθͱθ࡛Aʪɇ˝ϩ˵ʪͱЇϩʒͱͱθЇϩ˵ʪɇϩʪуʀ˵ɇ˝ʪθ ߣߥ

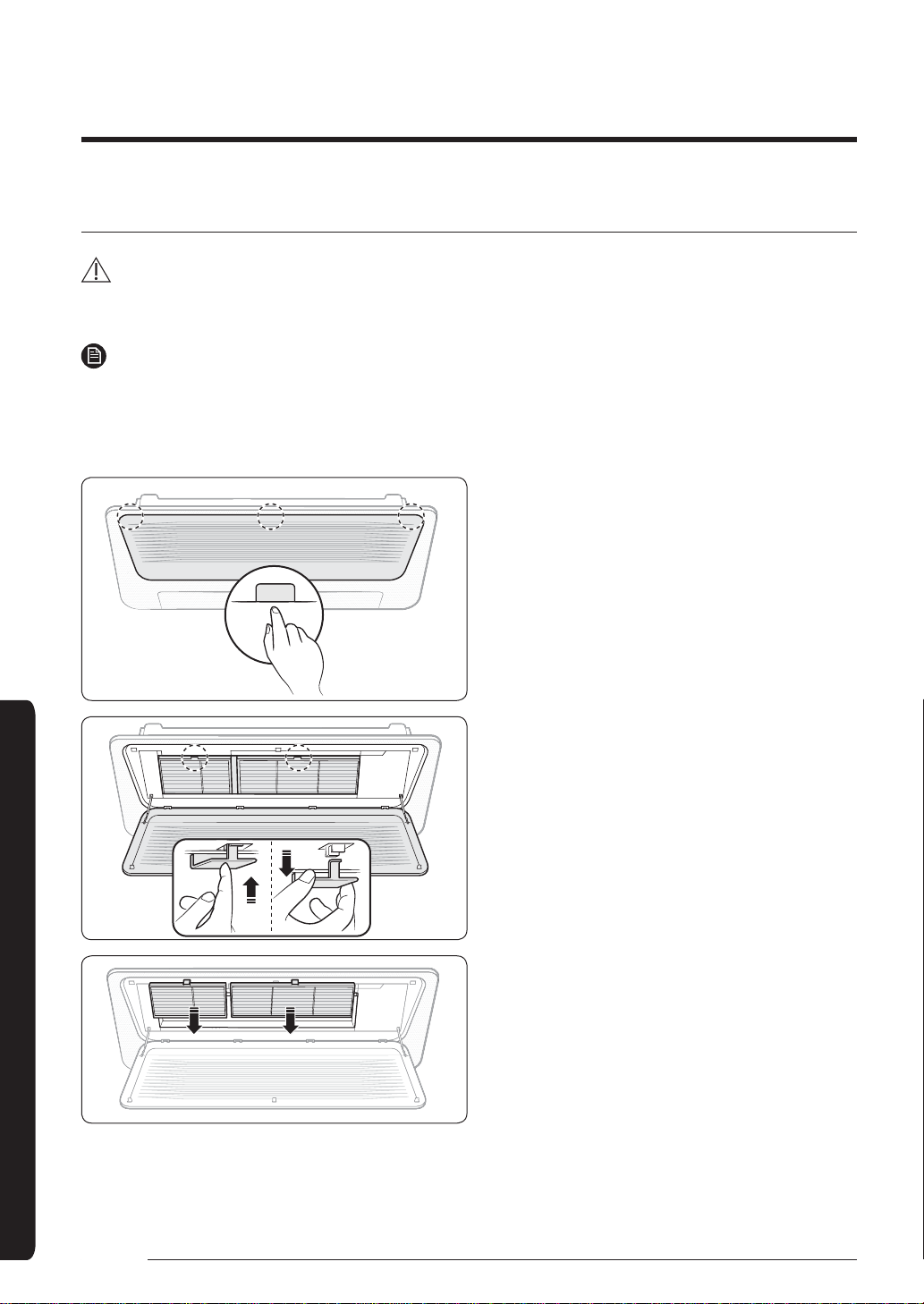

Cleaning the airfilter 14
Periodical maintenance 17
Troubleshooting 18
Information about refrigerant 21
Important information: regulation regarding the refrigerant used 21
Correct Disposalof This Product
(WasteElectrical&ElectronicEquipment)
(Applicableincountrieswith separatecollectionsystems)
This marking on the product, accessories orliterature indicates thatthe product and its electronic accessories (e.g.
charger, headset, USB cable) should not be disposed of with otherhouseholdwaste atthe end of theirworking life. To
prevent possible harm to the environment orhuman health from uncontrolledwaste disposal, please separate these
items from othertypes ofwaste and recycle them responsibly to promote the sustainable reuse of material resources.
Household users should contact eitherthe retailerwhere theypurchased this product, ortheirlocal government office, for
details ofwhere and how theycan take these items forenvironmentally safe recycling.
Business users should contact theirsupplierand check the terms and conditions of the purchase contract. This product
and its electronic accessories should not be mixedwith othercommercialwastes fordisposal.
Forinformation on Samsung’s environmental commitments and product-specific regulatoryobligations, e.g. REACH,
WEEE, Batteries,visit: www.samsung.com/uk/aboutsamsung/sustainability/environment/our-commitment/data/

3
English
SafetyInformation
Before usingyournewairconditioner, please read this manual thoroughly
to ensure thatyou knowhowto safely and efficientlyoperate the extensive
features andfunctions of yournewappliance.
Because the following operating instructions covervarious models,the
characteristics of yourairconditionermaydifferslightlyfrom those described in
this manual. Ifyou have anyquestions, callyournearest contact centre orfind
help and information online at www.samsung.com.
WARNING
Hazards orunsafe practices that mayresult in severe personal injuryordeath.
CAUTION
Hazards orunsafe practices that mayresult in minorpersonal injuryorproperty
damage.
Followdirections.
Do NOTattempt.
Make sure the machine is grounded to prevent electric shock.
Cut-off the powersupply.
Do NOTdisassemble.
WARNING:Lowburningvelocitymaterial
(Thisappliance isfilledwithR-32.)
Theuserandinstallerguides shouldbereadcarefully.
Theuserandinstallerguides shouldbereadcarefully.
Theserviceguide shouldbe readcarefully.
SafetyInformation

4English
SafetyInformationSafetyInformation
SafetyInformation
FORINSTALLATION
WARNING
Usethepowerlinewiththepowerspecificationsoftheproductorhigheranduse
thepowerlineforthisapplianceonly.Inaddition,donotuseanextensionline.
࡛ Extending the powerline mayresult in electric shock orfire.
࡛ Do not use an electrictransformer. This mayresult in electric shock orfire.
࡛ If thevoltage/frequency/rated current condition is different, it maycause fire.
Theinstallationofthisappliancemustbeperformedbyaqualifiedtechnicianor
servicecompany.
࡛ Failing to do so mayresult in electric shock, fire, explosion, problemswith the
product, orinjuryand mayalsovoidwarrantyon the installed product.
Installaswitchandcircuitbreakerdedicatedtotheairconditioner.
࡛ Failing to do so mayresult in electric shock orfire.
Fixtheoutdoorunitfirmlysothattheelectricpartoftheoutdoorunitisnot
exposed.
࡛ Failing to do so mayresult in electric shock orfire.
Donotinstallthisappliancenearaheater,inflammablematerial.Donotinstall
thisapplianceinahumid,oilyordustylocation,inalocationexposedtodirect
sunlightandwater(raindrops).Donotinstallthisapplianceinalocationwhere
gasmayleak.
࡛ This mayresult in electric shock fire, explosion, orproblems withthe product.
Neverinstalltheoutdoorunitinalocationsuchasonahighexternalwallwhereit
couldfall.
࡛ If the outdoorunit falls, it mayresult in injury, death orpropertydamage.
Thisappliancemustbeproperlygrounded.Donotgroundtheappliancetoagas
pipe,plasticwaterpipe,ortelephoneline.
࡛ Failure to do so may result in electric shock, fire, an explosion, orotherproblems
with the product.
࡛ Neverplug the powercord into a socket that is not grounded correctlyand make
surethat it is in accordance with local and national codes.

5
English
SafetyInformation
CAUTION
Installyourapplianceonalevelandhardfloorthatcansupportitsweight.
࡛ Failingtodosomayresultinabnormalvibrations,noise,orproblemswiththeproduct.
Installthedrainhoseproperlysothatwaterisdrainedcorrectly.
࡛ Failing to do so mayresult inwateroverflowing and propertydamage.Avoid
adding draintowaste pipes as odours may arise inthe future.
Theproductshall bestoredina roomwithno ignitionsources
(e.g.openflames,gasappliance,electricheater,etc.).
࡛ Note thatthe refrigerant has no odour.
Wheninstallingtheoutdoorunit,makesuretoconnectthedrainhosesothat
drainingisperformedcorrectly.
࡛ Thewatergenerated during the heating operation in the outdoorunit may
overflowand result in propertydamage.
In particular, inwinter, if a block of ice falls, it mayresult in injury, death or
propertydamage.
Donotinstalltheproductina placewherethermo-hygrostatisneeded
(suchasserverroom,machineryroom,computerroom,etc.)
࡛ Those places do not provide guaranteed operation condition of the product
therefore performance can be poorin these places.
FORPOWER SUPPLY
WARNING
Whenthecircuitbreakerisdamaged,contactyournearestservicecentre.
Donotpullorexcessivelybendthepowerline.Donottwistortiethepowerline.Donot
hookthepowerlineoverametalobject,placeaheavyobjectonthepowerline,insertthe
powerlinebetweenobjects,orpushthepowerlineintothespacebehindtheappliance.
࡛ This mayresult in electric shock orfire.
CAUTION
Whennotusingtheairconditionerforalongperiodoftimeorduringathunder/
lightningstorm,cutthepoweratthecircuitbreaker.
࡛ Failing to do so mayresult in electric shock orfire.

6English
SafetyInformationSafetyInformation
SafetyInformation
FOR USING
WARNING
Iftheapplianceisflooded,pleasecontactyournearestservicecentre.
࡛ Failing to do so mayresult in electric shock orfire.
Iftheappliancegeneratesastrangenoise,aburningsmellorsmoke,unplugthe
powerplugimmediatelyandcontactyournearestservicecentre.
࡛ Failing to do so mayresult in electric shock orfire.
Incaseofamalfunction,immediatelystopoperationoftheairconditioner
anddisconnecttheentirepowersystem.Thenconsulttheauthorizedservice
personnel.
Intheeventofagasleak(suchaspropanegas,LPgas,etc.),ventilateimmediately
withouttouchingthepowerline.Donottouchtheapplianceorpowerline.
࡛ Do not use aventilating fan.
࡛ Aspark mayresult in an explosion orfire.
Toreinstalltheairconditioner,pleasecontactyournearestservicecentre.
࡛ Failing to do so mayresult in problemswith the product, waterleakage, electric
shock, orfire.
࡛ Adeliveryserviceforthe product is not provided. Ifyou reinstall the product in
anotherlocation, additional construction expenses and an installation feewill be
charged.
࡛ Especially,when you wishto installthe product in an unusual location such as in
an industrial area ornearthe seaside where it is exposed to salt inthe air, please
contactyournearest service centre.
Donottouchthecircuitbreakerwithwethands.
࡛ This mayresult in electric shock.
Donotturntheairconditioneroffwiththecircuitbreakerwhileitisoperating.
࡛ Turning the airconditioneroff and then on againwith the circuit breakermay
cause a spark and result in electric shock orfire.

7
English
SafetyInformation
Afterunpackingtheairconditioner,keepallpackagingmaterialswelloutofthe
reachofchildren,aspackagingmaterialscanbedangeroustochildren.
࡛ If a child places a bag overits head, it mayresult in suffocation.
Donottouchthefrontpanelwithyourhandsorfingersduringtheheating
operation.
࡛ This mayresult in electric shock orburns.
Donotinsertyourfingersorforeignsubstancesintotheoutletwhentheair
conditionerisoperatingorthefrontpanelisclosing.
࡛ Take special carethat children do not injure themselves byinserting theirfingers
into the product.
Donotinsertyourfingersorforeignsubstancesintotheairinlet/outletoftheair
conditioner.
࡛ Take special carethat children do not injure themselves byinserting theirfingers
into the product.
Donotstrikeorpulltheairconditionerwithexcessiveforce.
࡛ This mayresult infire, injury, orproblemswith the product.
Donotplaceanobjectneartheoutdoorunitthatallowschildrentoclimbontothe
machine.
࡛ This mayresult in children seriouslyinjuring themselves.
Donotusethisairconditionerforlongperiodsoftimeinbadlyventilated
locationsornearinfirmpeople.
࡛ Since this may be dangerous due to a lack of oxygen, open awindowat least once
an hour.
Donotusemeanstoacceleratethedefrostoperationortoclean,otherthanthose
recommendedbySamsung.
Donotpierceorburn.
Beawarethatrefrigerantsmaynotcontainanodour.
Ifanyforeignsubstancesuchaswaterhasenteredtheappliance,cutthepower
byunpluggingthepowerplugandturningthecircuitbreakeroffandthencontact
yournearestservicecentre.
࡛ Failing to do so mayresult in electric shock orfire.

8English
SafetyInformationSafetyInformation
SafetyInformation
Donotattempttorepair,disassemble,ormodifytheapplianceyourself.
࡛ Do not use anyfuse (such as copper, steelwire, etc.)otherthan the standard fuse.
࡛ Failing to do so mayresult in electric shock,fire, problemswith the product, or
injury.
CAUTION
Donotplaceobjectsordevicesundertheindoorunit.
࡛ Waterdripping from the indoorunit mayresult in fire orpropertydamage.
Checkthattheinstallationframeoftheoutdoorunitisnotbrokenatleastonceayear.
࡛ Failing to do so mayresult in injury, death orpropertydamage.
MaxcurrentismeasuredaccordingtoIECstandardforsafetyandcurrentis
measuredaccordingtoISOstandardforenergyefficiency.
Whentheairconditionerdoesnotoperateproperlyforcoolingorheating,there
isapossibilityofrefrigerantleakage.Ifanyleakage,stopoperation,ventilatethe
room,andconsultyourdealerimmediatelyforrechargingrefrigerant.
Therefrigerantisnotharmful.However,ifitcomesincontactwithfire,itmay
generateharmfulgasesandthereisriskoffire.
Duringtransportationoftheindoorunit,thepipelinesshallbecoveredwith
bracketsforprotection.Donotmovetheproductwithholdingthepipelines.
࡛ It maycause gas leakage.
Donotinstalltheproductinashiporavehicle(suchasacampervan).
࡛ Salt,vibration orotherenvironmentalfactormaycause the product malfunction,
electric shock orfire.
Donotstandontopoftheapplianceorplaceobjects(suchaslaundry,lighted
candles,lightedcigarettes,dishes,chemicals,metalobjects,etc.)onthe
appliance.
࡛ This mayresult in electric shock, fire, problemswith the product, orinjury.
Donotoperatetheappliancewithwethands.
࡛ This mayresult in electric shock.
Donotsprayvolatilematerialsuchasinsecticideontothesurfaceofthe
appliance.
࡛ Aswell as being harmful to humans, it may also result in electric shock, fire or
problemswith the product.

9
English
SafetyInformation
Donotdrinkthewaterfromtheairconditioner.
࡛ Thewatermaybe harmful to humans.
Donotapplyastrongimpacttotheremotecontrolleranddonotdisassemblethe
remotecontroller.
Donottouchthepipesconnectedwiththeproduct.
࡛ This mayresult in burns orinjury.
Donotcutorburntherefrigerantcontainerorpipings.
Donotpointtheairdirectiontothefireplaceorheater.
Donotusethisairconditionertopreserveprecisionequipment,food,animals,
plantsorcosmetics,orforanyotherunusualpurposes.
࡛ This mayresult in property damage.
Avoiddirectlyexposinghumans,animalsorplantstotheairflowfromtheair
conditionerforlongperiodsoftime.
࡛ This mayresult in harmto humans, animals orplants.
Thisapplianceisnotintendedforusebypersons(includingchildren)withreduced
physical,sensoryormentalcapabilities,orlackofexperienceandknowledge,
unlesstheyhavebeengivensupervisionorinstructionconcerninguseofthe
appliancebyapersonresponsiblefortheirsafety.Childrenshouldbesupervised
toensurethattheydonotplaywiththeappliance.
ForuseinEurope:Thisappliancecanbeusedbychildrenagedfrom8years
andaboveandpersonswithreducedphysical,sensoryormentalcapabilities
orlackofexperienceandknowledgeiftheyhavebeengivensupervisionor
instructionconcerninguseoftheapplianceinasafewayandunderstandthe
hazardsinvolved.Childrenshallnotplaywiththeappliance.Cleaninganduser
maintenanceshallnotbemadebychildrenwithoutsupervision.

10 English
SafetyInformationSafetyInformation
SafetyInformation
FORCLEANING
WARNING
Donotcleantheappliancebysprayingwaterdirectlyontoit.Donotusebenzene,
thinner,alcoholoracetonetocleantheappliance.
࡛ This mayresult in discoloration, deformation, damage, electric shock orfire.
Beforecleaningorperformingmaintenance,unplugtheairconditionerfromthe
wallsocketandwaituntilthefanstops.
࡛ Failing to do so mayresult in electric shock orfire.
CAUTION
Takecarewhencleaningthesurfaceoftheheatexchangeroftheoutdoorunit
sinceithassharpedges.
࡛ To avoid cuttingyourfingers,wearthick cotton gloveswhen cleaning it.
࡛ This should be done bya qualified technician please contact yourinstalleror
service centre.
Donotcleantheinsideoftheairconditionerbyyourself.
࡛ Forcleaning inside the appliance, contact yournearest service centre.
࡛ When cleaning the internal filter, refertothe descriptions in the‘Cleaning and
Maintaining’section.
࡛ Failure to do may result in damage, electric shock orfire.
࡛ Make sure to prevent anyinjuryfrom sharp edges of the surfacewhen handling
the heat exchanger.

11
English
AtaGlance
IndoorUnitOverview
Mainparts
The indoorunit and its displaymaylook slightly different from the illustration shown below,
depending on the model and the paneltype.
02
01
04
05
03
01 Display
02 Remote control sensor
03 Airflowblade
04 Wind-Free panel
(You can use theWind-Free Cooling function
when the Cool, Dry, orFan mode is running.)
(Referto the remote control manual for
product operation.)
05 Airintake
Indication Function
Operation indicator
࡛ Operation(Blue) / Defrost(Yellow)
Timerindicator
Fan indicator
Filterreset indicator

12 English
PowerSmart Features
AtaGlance
PowerSmart Features
Operatingtemperature and humidity
When using the airconditionerfollowthe operating temperature and humidityranges.
Mode Outdoortemperature Indoortemperature Indoorhumidity
Cool mode Depending on the outdoor
unit specifications
ߤߣঙϩͱߥߤঙ 80% orless
Heat mode ߤߩঙͱθʪϑϑ -
Drymode ߣߪঌAϩͱߥߤঌA -
CAUTION
࡛ Ifyou usethe airconditionerat a relative humidityabove 80%, it maycause a formation of
condensation and a leakage ofwateron the floor.
࡛ The rated heating capacityis based on an outdoortemperature of 7°C. If the outdoortemperature
goes down below 0°C, heating efficiencies maydecrease depending onthe temperature
conditions.
࡛ If the indoorunit is out of the operatingtemperature and humidityrange, the safery device may
operate and the airconditionermaystops.

13
English
CleaningandMaintenance
CleaningandMaintaining
Cleaningthe indoorunitexterior
Wipe the surface of the indoorunit with atepid
damp cloth.
Removethe dust accumulated inthe narrow
gaps of the product with a soft brush.
CAUTION
࡛ Do not use alkaline detergent, sulphuric
acid, hydrochloric acid, ororganic solvents
(such as thinner, kerosene, and acetone)to
clean the surfaces.
࡛ Do not attach anystickers on the surfaces
because this may cause damage.
࡛ Whenyou clean the heat exchangeron the
indoorunit, you need to disassemble the
indoorunit. Therefore,you must contact the
local service centerforhelp.

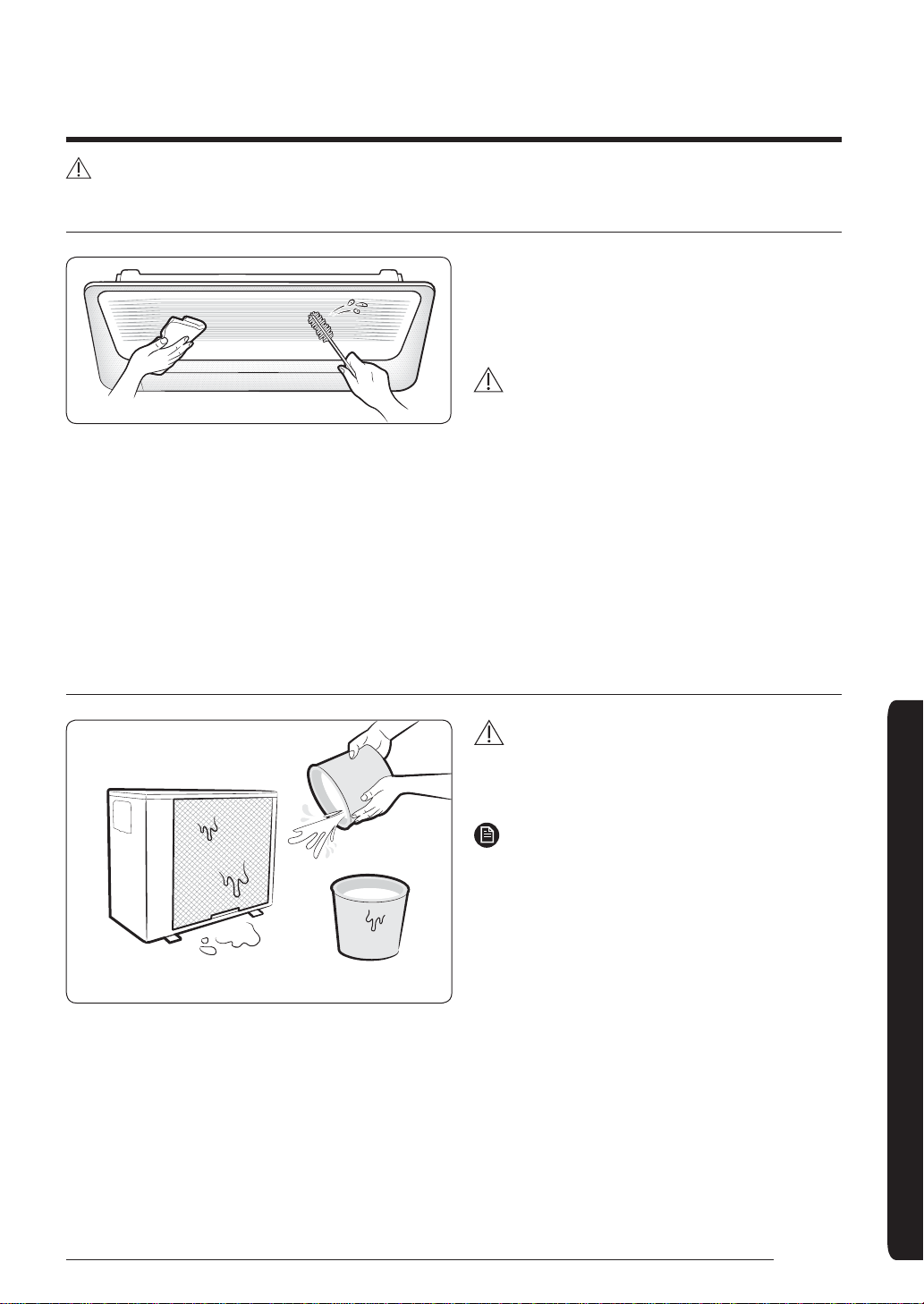

Cleaningthe outdoorunit heat exchanger
Spraywatertocleanthedust.
CAUTION
࡛ The heat exchangerof the outdoorunit has
sharp edges. Take care when cleaning its
surface.
NOTE
࡛ If it is difficult to clean the heat exchanger
of the outdoorunit, contact the local service
center.
Before cleaning the indoorunit, be sureto turn offthe auxiliary powerswitch.

14 English
CleaningandMaintainingCleaningandMaintaining
CleaningandMaintenance
Cleaningthe airfilter
CAUTION
࡛ Before cleaning the indoorunit, be sureto turn offthe auxiliary powerswitch.
࡛ Be sureto holdthe grillewith a hand to prevent dropping from the opening of the front grille.
NOTE
࡛ When removing the grill completely, unhookthe safetyhooks on both sides of the grill.
1 Detaching the airfilter
PUSH
Press the Push signs on thefront panel, then
open the grille.
ťθʪϑϑϩ˵ʪťЇϑ˵ϑ˝ϑ࣑࣒ͱϩ˵ʪɇθ˙ϩʪθ࢏
Grab the handle of the airfilterand pull it out
from the indoorunitwithyourhand.
Pull the airfilterout of the indoorunit.

15
English
CleaningandMaintenance
2 Cleaning the airfilter
Clean the airfilterwith avacuum cleanerorsoft
brush. If dust is too heavy,then rinse itwith
runningwaterand dryit in a ventilated area.
CAUTION
Do not scrub the airfilterwith a brush orother
cleaning utensil. This may damage thefilter.
NOTE
࡛ If the airfilterdries in a humid area, it may
produce offensive odours. Clean it again and
dryit in awell-ventilated area.
࡛ The cleaning period maydifferdepending
on the usage and environmental conditions,
so clean the airfiltereveryweek if the air
conditioneris in the dustyarea.
࡛ You can request afiltercleaning service.
Note that it is a charged service.
3 Reassembling the airfilter
To assemble the airfilter, proceed in reverse
orderof detaching.
CAUTION
࡛ If the indoorunit is usedwithout the airfilter,
it maybe damaged dueto dust.

16 English
CleaningandMaintainingCleaningandMaintaining
CleaningandMaintenance
4 Resetting the airfilter(Wired remote control is an optional item.)
Aftercleaning and reassembling the airfilter,
be sureto reset the filter-cleaning reminderas
follows:
࡛ Indoorunit withthewired remote control:
Press the FilterReset button.
࡛ Indoorunit withthewireless remote control:
Press the OptionsɵЇϩϩͱͱθ࣑Filter
Reset࣒9˝Χθʪϑϑϩ˵ʪSET button.
NOTE
࡛ Be sure to reset the filter-cleaning reminder
everytimeyou cleanthe airfilteralthough
the filterreset indicator( ) does not blink.

17
English
CleaningandMaintenance
Periodicalmaintenance
Unit Maintenance item Interval Requires qualified
technicians
Indoor
unit
Clean the airfilter. At least once a month
Clean the condensate drain pan. Once ayear Required
Clean up the heat exchange. Once ayear Required
Clean the condensate drain pipe. Once every 4 months Required
Replace the remote control batteries. At least once ayear
Outdoor
unit
Clean the heat exchangeron the
outside of the unit. Once every 4 months Required
Clean the heat exchangeron the
inside of the unit. Once ayear Required
Clean the electric components with
jets of air. Once ayear Required
Verify that allthe electric
components are firmly tightened. Once ayear Required
Clean the fan. Once a year Required
Verify that the fan assemblies are
firmlytightened. Once ayear Required
Clean the condensate drain pan. Once ayear Required

18 English
CleaningandMaintainingCleaningandMaintaining
CleaningandMaintenance
Troubleshooting
Referto thefollowing chart if the airconditioneroperates abnormally. This maysave time and
unnecessaryexpense.
Problem Solution
The airconditioner
does not operate
at all.
࡛ Check if the powerplug is properlyconnected.
࡛ Checkwhetherthe auxiliarypowerswitch (MCCB, ELB) isturned on.
࡛ If the auxiliarypowerswitch (MCCB, ELB) is turned off, the air
conditionerdoes notwork althoughyou pressthe (Power) button.
࡛ Whenyou clean the airconditionerordo not use it foran extended
period of time,turn off the auxiliarypowerswitch (MCCB, ELB).
࡛ Afterthe airconditioneris not used foran extended period of time, be
sureto turn onthe auxiliary powerswitch (MCCB, ELB) 6 hours before
starting operation.
NOTE
࡛ The auxiliary powerswitch (MCCB, ELB) is sold separately.
࡛ Make sure that auxiliarypowerswitch (MCCB, ELB) is installed in
the distribution box insidethe building.
࡛ If the airconditioneris turned off bythe Timed off function, turn on the
airconditioneragain by pressing the (Power) button.
Thetemperature
does not change.
࡛ Checkwhetherthe Fan mode is running. In the Fan mode, the air
conditionercontrols the set temperature automatically, and you cannot
change the set temperature.
Warm airdoes not
come out of the air
conditioner.
࡛ Checkwhetherthe outdoorunit is designed forcooling only. In this case,
warm airdoes not come out althoughyou select the Heat mode.
࡛ Checkwhetherthe remote control is designed onlyforcooling only. Use
a remote control that supports both cooling and heating.
The fan speed does
not change.
࡛ Checkwhetherthe Auto orDrymode is running. In these modes,the
airconditionercontrolsthe fan speed automatically, and you cannot
change the fan speed.
Thewireless
remote control
does not operate.
࡛ Checkwhetherthe batteries are discharged. Replace the batterieswith
newones.
࡛ Make sure that nothing is blocking the remote control sensor.
࡛ Checkwhetheranystrong lighting sources are nearthe airconditioner.
Strong lightwhich comesfromfluorescent bulbs orneon signs may
interfere with the remote control.
Thewired remote
control does not
operate.
࡛ Checkwhetherthe indicatoris displayed at the bottom right of the
remote control display. In this case, turn off both the airconditionerand
the auxiliary powerswitch, andthen contact a service centre.

19
English
CleaningandMaintenance
Problem Solution
The airconditioner
is not turned on or
off immediately
withthewired
remote control.
࡛ Checkwhetherthe wired remote control is set forgroup control. In this
case,the airconditioners connectedto thewired remote control are
ϩЇθʪʒͱͱθͱ˙˙ϑʪαЇʪϩɇц࢏Ɵ˵ϑͱΧʪθɇϩͱϩɇʪϑЇΧϩͱߥߤϑʪʀͱʒϑ࢏
The Timed on/off
function does not
operate.
࡛ Check whetheryou pressed the (SET) button on the remote control
aftersetting the on/off time. Set the on/off time.
The indoorunit
displayblinks
continuously.
࡛ Turn on the airconditioneragain bypressing the (Power) button.
࡛ Turn off and then turn on the auxiliarypowerswitch, and then turn on
the conditioner.
࡛ If the indoorunit displayis still blinking, contact a service centre.
Iwant to get cooler
air. ࡛ Operate the airconditionerwith a electric fanto save energyand enhance the cooling efficiency.
The airis not cool or
warm enough.
࡛ In the Cool mode, cool airdoes not come out if the set temperature is
higherthan the current temperature.
– Remote control: Press the Temperature button repeatedlyuntil the
set temperature (minimum:18°C) is setto lowerthan the current
temperature.
࡛ In the Heat mode,warm airdoes not come out if the set temperature is
lowerthan the current temperature.
– Remote control: Press the Temperature button repeatedly untilthe
ϑʪϩϩʪΧʪθɇϩЇθʪ࣑ɇуЇࡤߥߢঌA࣒ϑϑʪϩϩͱ˵˝˵ʪθϩ˵ɇϩ˵ʪʀЇθθʪϩ
temperature.
࡛ Both cooling and heating do not operate in the Fan mode. Selectthe
Cool, Heat,Auto, orDrymode.
࡛ Checkwhetherthe airfilteris blockedwith dirt.A dustyfiltermay
decreasethe cooling and heating efficiencies. Clean the airfilter
frequently.
࡛ If a coveris on the outdoorunit oranyobstacle is present nearthe
outdoorunit, remove them.
࡛ Install the outdoorunit in a well-ventilated place.Avoiding places
exposed to direct sunlight orclose to a heating appliance.
࡛ Place a sunscreen overthe outdoorunit to protect it from direct sunlight.
࡛ If the indoorunit is installed in a place exposed to direct sunlight, pull
the curtains on thewindows.

20 English
CleaningandMaintainingCleaningandMaintaining
CleaningandMaintenance
Problem Solution
The airis not cool or
warm enough.
࡛ Close thewindows and doors to maximize the cooling and heating
efficiencies.
࡛ If the Cool mode is stopped and then started immediately, cool aircomes
ͱЇϩɇ˙ϩʪθɇɵͱЇϩߥЇϩʪϑϩͱΧθͱϩʪʀϩϩ˵ʪʀͱΧθʪϑϑͱθͱ˙ϩ˵ʪͱЇϩʒͱͱθЇϩ࢏
࡛ When the Heat mode is started,warm airdoes not come out
immediately to prevent cool airfrom coming out atthe beginning.
࡛ If the refrigerant pipe is too long,the cooling and heating efficiencies
maybe decreased. Avoid exceeding the maximum pipe length.
The airconditioner
makes strange
noises.
࡛ In certain conditions (especially,when the outdoortemperature is
lowerthan 20°C), a hissing, rumbling, orsplashing sound maybe heard
while the refrigerant is circulating through the airconditioner. This is a
normal operation.
࡛ Whenyou press the (Power) button onthe remote control, noise
maybe heard from the drain pump inside the airconditioner. This noise
is a normal sound.
Unpleasant odours
permeate the room.
࡛ If the airconditioneris running in a smokyarea orif there is a smell
entering from outside,ventilate the room properly.
࡛ If both indoortemperature and indoorhumidity are high, operate the air
conditionerin the Clean orFan mode for1 to 2 hours.
࡛ If the airconditionerhas not been operated foran extended period of
time, cleanthe indoorunit and then operate the airconditionerin the
ɇͱʒʪ˙ͱθߥϩͱߦ˵ͱЇθϑϩͱʒθцϩ˵ʪϑʒʪͱ˙ϩ˵ʪʒͱͱθЇϩ˙ͱθθʪͱЭɇ
of unpleasant odours.
࡛ If the airfilterblockedwith dirt, cleanthe airfilter.
Steam is produced
on the indoorunit.
࡛ Inwinter, if the indoorhumidity is high, steam maybe produced around
the airoutletwhilethe defrostfunction is running. This is a normal
operation.
The outdoorunit
fan continues to
operatewhen the
airconditioneris
turned off.
࡛ When the airconditioner is turned off, the outdoorunit fan may
continue to operate to reduce noise of the refrigerant gas. This is a
normal operation.
Waterdrops
fromthe piping
connections of the
outdoorunit.
࡛ Condensation maydevelop dueto the difference intemperature. This is
a normal condition.
Steam is produced
on the outdoorunit.
࡛ Inwinter, whenthe airconditionerruns in the Heat mode, thefrost on
the heat exchangermelts and steam maybe produced. This is a normal
operation, neitherproduct malfunction nora fire.
