Samsung DVM S AM100MXVDGH/ET Instruction manual

Model : Essential Type
VRF
Technical
Data Book
DVM S for Euro_ET
(R410A, 50Hz, HP)

2
History
Version Modification Date Remark
Ver. 1.0 Release DVM S Essential (R410A, 50Hz, HP) for Euro_ET TDB 16.12.19.

3

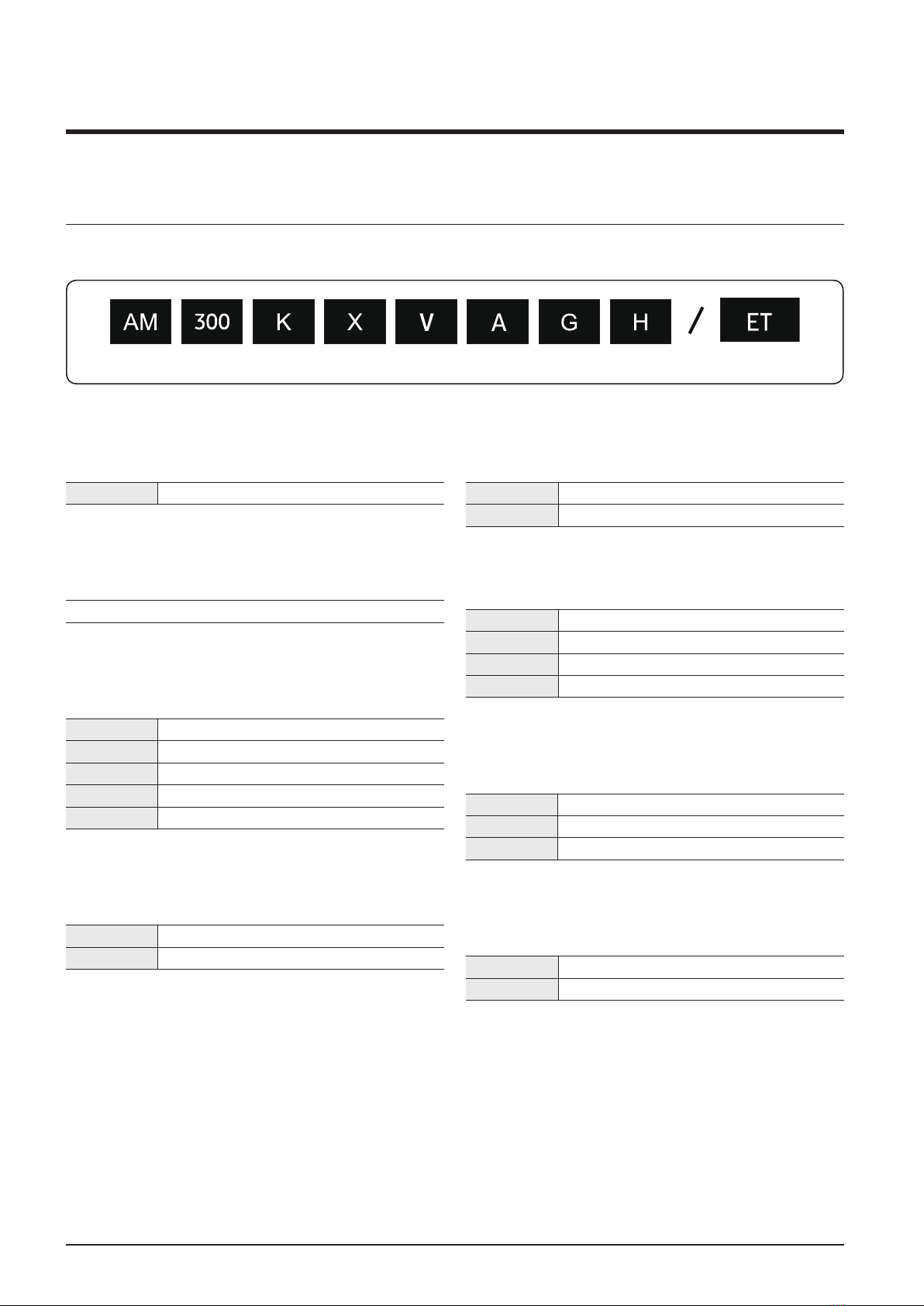

(1) Classification
AM DVM
(2) Capacity
x 1/10 HP (3 digits)
(3) Version
F2013
H2014
J2015
K2016
M2017
(4) Product Type
XOutdoor Unit
NIndoor Unit
(5) Feature 1
VInverter
MDVM S Eco
(6) Feature 2
AStandard + General Temp.+ Module
HHigh EER + Low Temp. + Module
GHigh EER + General Temp. + Module
DStandard + General Temp. + Non-Module
(7) Rating Voltage
E1Ø, 220~240V, 50Hz
G3Ø, 380~415V, 50Hz
N3Ø, 380~415V, 50/60Hz
(8) Mode
HHeat Pump
RHeat Recovery
Installation
Nomenclature
Outdoor Unit
Model Name
(1) (2) (3) (4) (5) (6) (7) (8) Buyer

4
Samsung’s VRF system air conditioners offer instant temperature control, user-friendly installation and advanced
functionality, along with smart power usage. Our flagship VRF-based Samsung DVM S is a highly innovative system
that adopts the new third-generation Samsung Scroll Compressor (SSC) technology with Dual Digital Inverter .
DVM S provides world-class energy efficiency and the most powerful cooling and heating performance available on
the market. This ideal air conditioning system accomodates all variable environments, including large commercial
or residential buildings.
Samsung DVM S offers innovative features to benefit the indoor comfort as well operational coasts of the system
through technological advances such as:
The world’s largest capacity
Capacities of the outdoor units offer up to 30 HP rooftop space savings as well as
lowering the installations and transportation costs.
High seasonal energy efficiency
Samsung DVM S adopts a dual inverter scroll compressor that upgrades refrigerant
flow and the motor’s operating performance. It makes ESEER of DVM S is up to 8.00.
Superior Heating Performance &
Wide Operating Temperature Range with Flash injection
Increase refrigerant flow by 32%, extend heating operation range at -25°C, thanks to
Flash Injection technology, extended compressor reliability range and control
compression ratio.
Features & Benefits

5

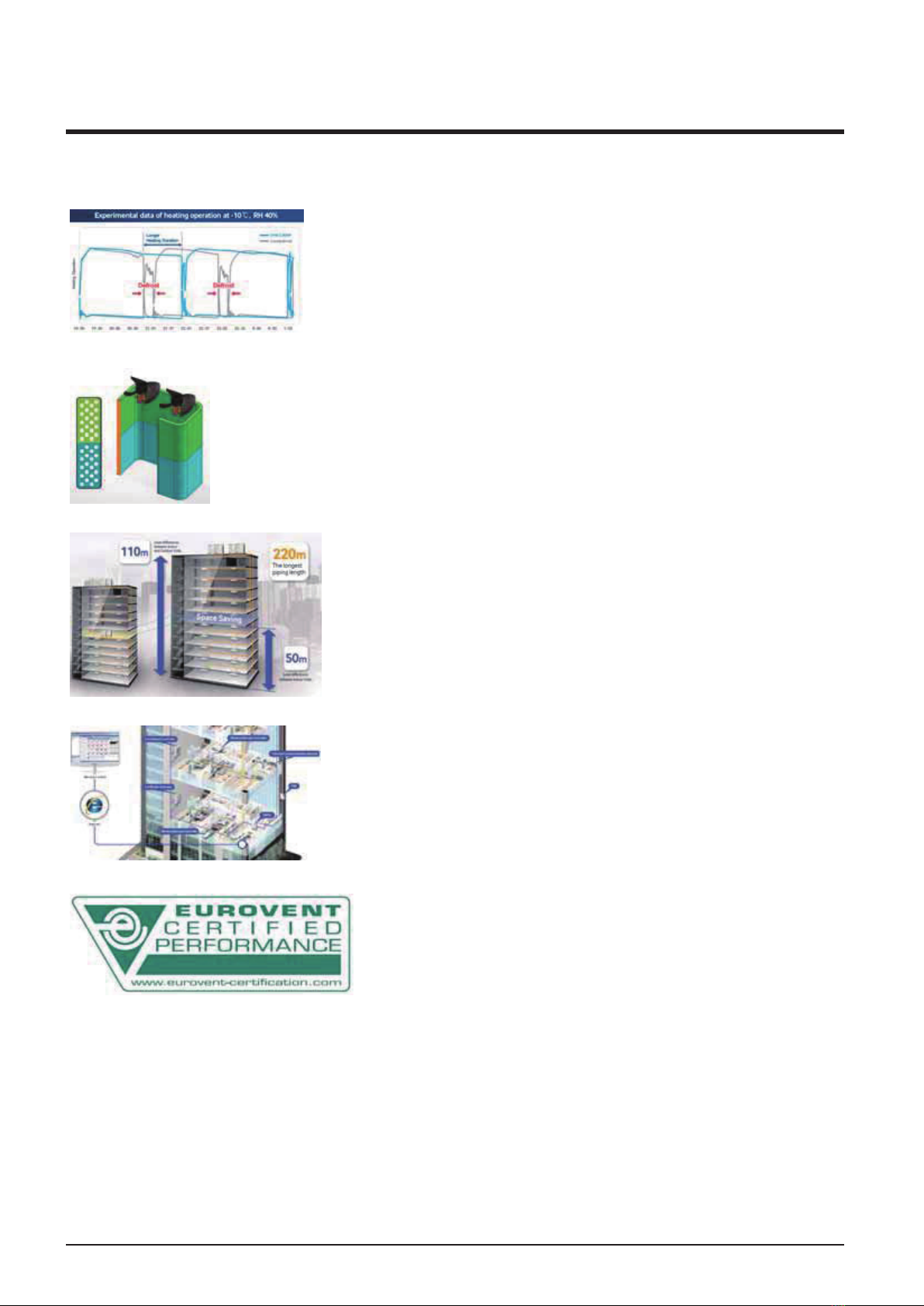

Intelligent Defrosting Logic
DVM S Intelligent Defrost Control logic keeps the unit in the heating mode
for up to 40% longer through out the heating season compared to
conventional model by monitoring the air resistance through the heat
exchanger.
Optimised Heat Exchanger
Combination of optimised coil path and different types of fin design for upper and
lower parts of the condenser evens out the airflow profile to optimise the heat transfer
process.
Extended Piping Length Limits
Allows extended piping length of up to 220 m, and units will still give
a great performance overwide areas. With this technology,
installation is available with a maximum height level of 110 m, which
is equivalent to 20 stories (each story is considered 5 m high).
Smart management
Further improves system’s energy efficiency due to precise indoor
climate control. Web-based remote monitoring and management
system allows quick and easy HVAC control and breakdown alert.
Eurovent Certified Performance
Samsung DVM S had become the 1st VRF Product to be certified by
Eurovent, the European Committee of HVAC&R, in March 2014.
Features & Benefits

6
Contents
1. Combination Table 7
2. Specification 11
3. Electric Characteristics 23
4. Dimensional Drawing 24
5. Center of Gravity 26
6. Electrical Wiring Diagrams 28
7. Sound Data 30
8. Operation Range 35
9. Piping Diagram 37
10. Installation 41
11. Accessory 77

7
1. Combination Table
Outdoor Units
Essential
System Model Capacity of Single Unit (HP)
Capa Code No. of Modules 8HP 10HP 12HP 14HP 16HP 18HP 20HP 22HP 24HP 26HP 28HP 30HP
10HP AM100MXVDGH/ET 1 1
12HP AM120MXVDGH/ET 1 1
14HP AM140MXVDGH/ET 1 1
16HP AM160MXVDGH/ET 1 1
18HP AM180MXVDGH/ET 1 1
20HP AM200MXVDGH/ET 2 2
22HP AM220MXVDGH/ET 2 1 1
24HP AM240MXVDGH/ET 2 2
26HP AM260MXVDGH/ET 2 1 1
28HP AM280MXVDGH/ET 2 2
30HP AM300MXVDGH/ET 2 1 1
32HP AM320MXVDGH/ET 2 1 1
34HP AM340MXVDGH/ET 2 1 1
36HP AM360MXVDGH/ET 2 2
38HP AM380MXVDGH/ET 3 2 1
40HP AM400MXVDGH/ET 3 1 2
NOTE
• Ma ke sure to use an indoor unit that is compatible with DVM S.
•Indoor units can be connected within the range indicated in following table.
•If the total capacity of the connected indoor units exceeds the indicated maximum capacity, cooling and heating
capacity of the indoor unit may decrease.
•Total capacit
y of the connected indoor units can be allowed from 50% to 130% of the total outdoor unit capacity.

You can connect maximum 64 indoor units to the outdoor unit. Maximum quantity of connectable indoor unit is set to 64
since outdoor unit only support up to 64 communication address. Indoor unit address can be
assigned from 0~63. If the indoor unit address was assigned from 64~79, E201 error will occur.

• In case of combining modules more than 90HP, please consult the manufacturerwhen connecting the indoor unit and
deciding on piping length in accordance with design of the building.

1. Combination Table
8

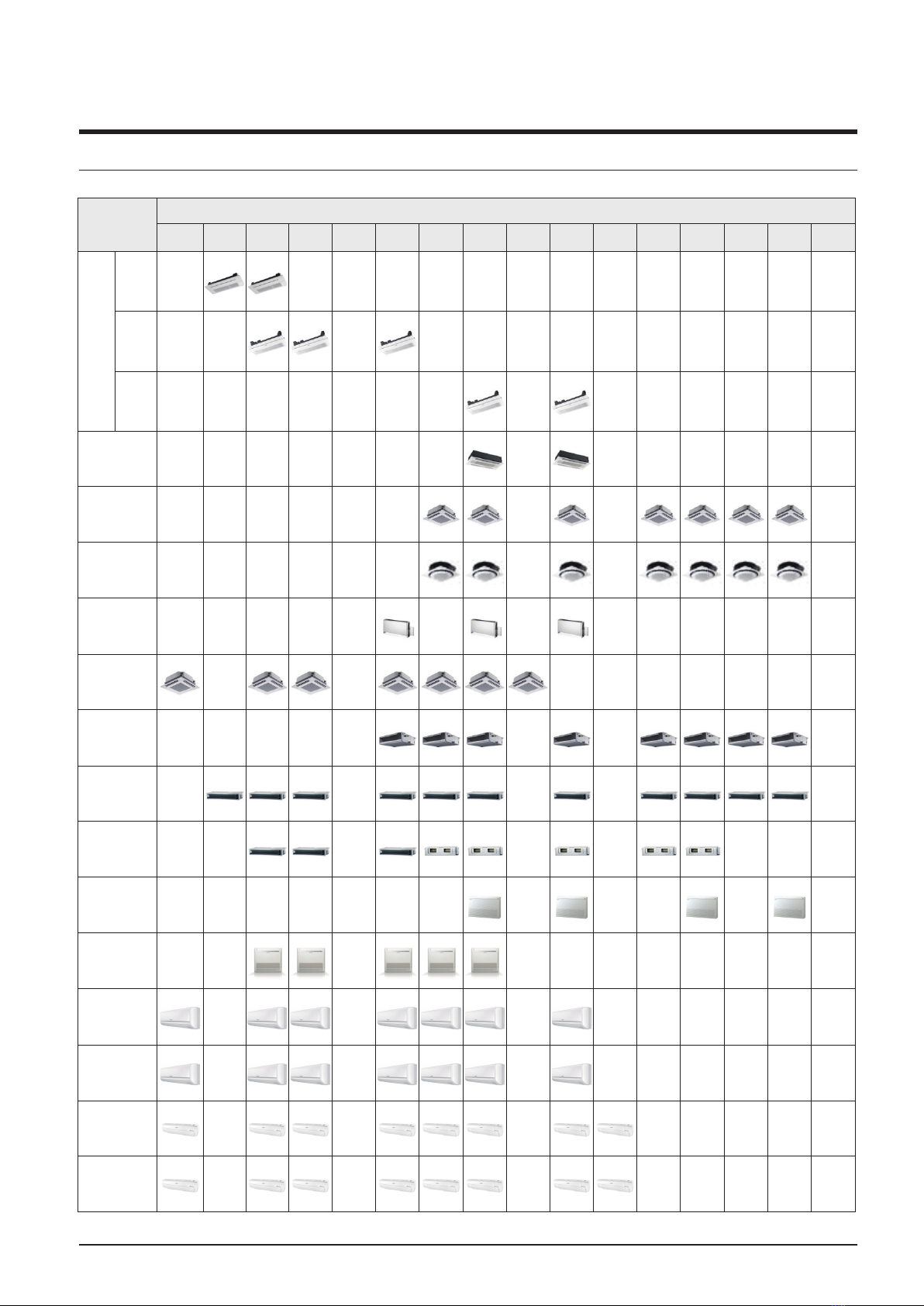

Model
Capacity (kW)
1.5 1.7 2.2 2.8 3.2 3.6 4.5 5.6 6.0 7.1 8.2 9.0 11.2 12.8 14.0 16.0
1Way
CST



2Way CST
4Way CST
360 CST
Floor
Standing Unit
4Way CST S
(600X600)
Duct S (MSP)
Slim Duct
MSP Duct
Ceiling
Console
Boracay
Boracay (with
EEV)
AR5000
AR5000 (with
EEV)
Indoor Units

9
1. Combination Table
Model
Capacity (kW)
6.0 7.1 8.2 9.0 11.2 12.8 14.0 16.0 18.0 22.0/
22.4 25.0 28.0 32.0 50.0 500 CMH
1000
CMH
HSP Duct
OAP Duct
Big Duct
PAC
Hydro Unit HE
Hydro Unit HT
ERV Plus
NOTE
•Make sure to use an indoor unit that is compatible with DVM S.
•If the total capacity of the connected indoor units exceeds the indicated maximum capacity, cooling and heating
capacity of the indoor unit may decrease.
•Total capacity of the connected indoor units can be allowed from 50% to 130% of the total outdoor unit capacity.

You can connect maximum 64 indoor units to the outdoor unit. Maximum quantity of connectable indoor unit is set to 64
since outdoor unit only support up to 64 communication address. Indoor unit address can be assigned from 0~63. If the
indoor unit address was assigned from 64~79, E201 errorwill occur.

Indoor Units

1. Combination Table
10

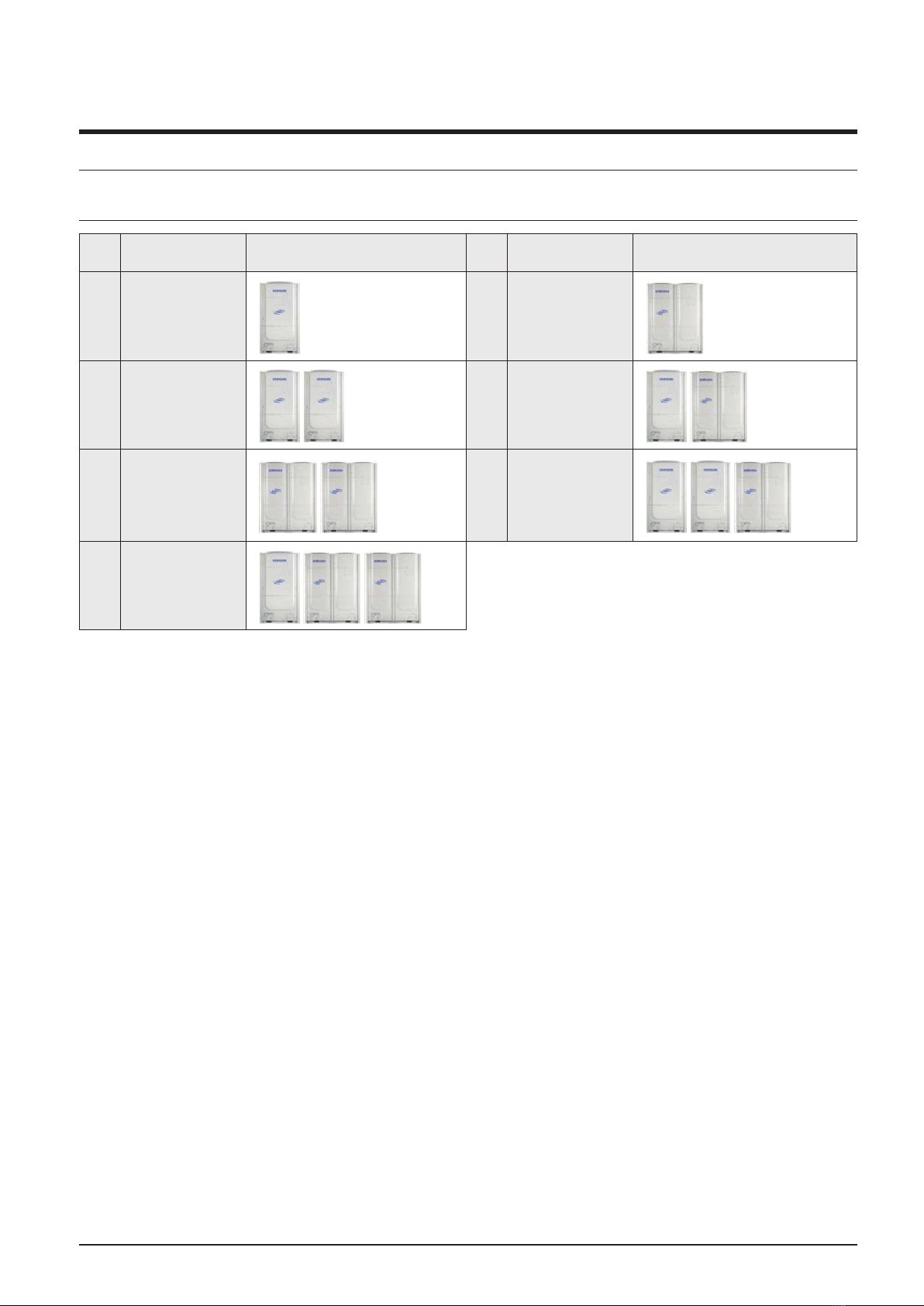

Essential
Capa
[HP] Model Name Model Capa [HP] Model Name Model
10
12
AM100MXVDGH/ET
AM120MXVDGH/ET
14
16
18
AM140MXVDGH/ET
AM160MXVDGH/ET
AM180MXVDGH/ET
20
22
24
AM200MXVDGH/ET
AM220MXVDGH/ET
AM240MXVDGH/ET
26
30
AM260MXVDGH/ET
AM300MXVDGH/ET
28
32
34
36
AM280MXVDGH/ET
AM320MXVDGH/ET
AM340MXVDGH/ET
AM360MXVDGH/ET
38 AM380MXVDGH/ET
40 AM400MXVDGH/ET
External Appearance

Essential
11
2. Specification
2. Specification
Type DVM S DVM S DVM S
Model Name AM100MXVDGH/ET AM120MXVDGH/ET AM140MXVDGH/ET
Outdoor unit module 1 ---
Outdoorunit module 2 ---
Outdoorunit module 3 ---
Outdoorunit module 4 ---
PowerSupply Ø, #, V, Hz
3, 4, 380-415, 50 3, 4, 380-415, 50 3, 4, 380-415, 50
Mode - HEAT PUMP HEAT PUMP HEAT PUMP
Performance HP HP 10 12 14
Capacity Cooling kW 28.0 / 28.0

33.6 / 33.6

40.0 / 40.0

Heating kW 31.5 / 28.0

37.8 / 33.6

45.0 / 40.0

Maximum number of connectable indoor units EA 18 21 26
Total capacity of the connected IndoorUnits Min. kW 14.0 16.8 20.0
Total capacity of the connected IndoorUnits Max. kW 36.4 43.7 52.0
Power Power Input Cooling kW 7.18 / 7.18

9.36 / 9.36

12.42 / 12.42

Heating kW 7.50 / 6.67

9.22 / 8.20

11.14 / 9.90

Current Input Cooling A 11.50 15.00 19.90
Heating A 12.00 14.80 17.90
Current Minimum Ssc MVA 4.5 5.3 5.4
MCA A 21.1 25.0 25.0
MFA A 32 32 32
Efficiency EER Cooling W/W 3.90 / 3.90

3.59 / 3.59

3.22 / 3.22

COP Heating W/W 4.20 / 4.20

4.10 / 4.10

4.04 / 4.04

ESEER W/W 7.08 6.58 6.60
Casing Material Body - EGI Steel Plate EGI Steel Plate EGI Steel Plate
Base - EGI Steel Plate EGI Steel Plate EGI Steel Plate
Heat
Exchanger
Type - Fin & Tube Fin & Tube Fin & Tube
Material Fin - Al Al Al
Tube - Cu Cu Cu
Fin Treatment - Anti-corrosion Anti-corrosion Anti-corrosion
Compressor Output kW x n 6.39 x 1 6.39 x 1 6.39 x 1
Model Name - DS-GB066FAV* x 1 DS-GB066FAV* x 1 DS-GB066FAV* x 1
Oil Type - PVE PVE PVE
Initial charge cc x n 1,100 x 1 1,100 x 1 1,100 x 1
Fan Type - Propeller Propeller Propeller
Discharge direction - Top Top Top
Quantity EA 1 1 2
Air Flow Rate m
3
/min 170 220 255
l/s 2,833 3,667 4,250
External Static Pressure Max. mmAq 888
Pa 78.45 78.45 78.45
Fan Motor Type - BLDC Motor BLDC Motor BLDC Motor
Output W x n 830 x 1 830 x 1 620 x 2
Piping
Connections
Liquid Pipe Type
Braze connection Braze connection Braze connection
Φ, mm (inch) 9.52 (3/8) 12.70 (1/2) 12.70 (1/2)
Gas Pipe Type Braze connection Braze connection Braze connection
Φ, mm (inch) 22.22 (7/8) 28.58 (1-1/8) 28.58 (1-1/8)
High pressure Gas Pipe(HR Only) Type ---
Φ, mm (inch) ---
Heat Insulation - Both liquid and gas pipes Both liquid and gas pipes Both liquid and gas pipes
Piping length (ODU-IDU) Max. [Equiv.] m 200[220] 200[220] 200[220]
Piping length (1st Branch-IDU) Max. m 90 90 90
Total piping length (System) Max. m 1,000 1,000 1,000
Level difference (ODU in highest
position)
Max. m
110 110 110
Level difference (IDU in highest
position)
Max. m
110 110 110
Level difference (IDU-IDU) Max. m 50 50 50

Essential
2. Specification
12
Type DVM S DVM S DVM S
Model Name AM100MXVDGH/ET AM120MXVDGH/ET AM140MXVDGH/ET
Outdoor unit module 1 ---
Outdoorunit module 2 ---
Outdoorunit module 3 ---
Outdoorunit module 4 ---
Wiring
connections
Transmission Cable mm
2
0.75 0.75 0.75
Remark - F1, F2 F1, F2 F1, F2
Power supply intake - Both indoor and outdoor unit Both indoor and outdoor unit Both indoor and outdoor unit
Refrigerant Type - R410A R410A R410A
Factory Charging kg 5.5 6.5 7.7
tCO
2
e 11.48 13.57 16.08
Sound Sound Pressure Cooling dB(A) 58 62 61
Heating dB(A) 60 64 63
Sound Power dB(A) 79 81 81
External
Dimension
Net Weight kg
197.0 210.0 226.0
Shipping Weight kg 204.0 217.0 246.0
Net Dimensions (WxHxD) mm 880 x 1,695 x 765 880 x 1,695 x 765 1,295 x 1,695 x 765
Shipping Dimensions (WxHxD) mm 948 x1,887 x 832 948 x1,887 x 832 1,363 x 1,887 x 832
Operating
Temp. Range
Cooling ℃
-5 ~ 48 -5 ~ 48 -5 ~ 48
Heating ℃ -25 ~ 24 -25 ~ 24 -25 ~ 24
NOTE
• Specification may be subject to change without prior notice.
• Specification comply with EN14511.
1) Capacities are based on (Equivalent refrigerant piping 7.5m, Level differences 0m);
- Cooling : Indoor temperature 27°C DB, 19°C WB / Outdoor temperature 35°C DB, 24°C WB
- Heating : Indoor temperature 20°C DB, 15°C WB / Outdoor temperature 7°C DB, 6°C WB
Eurovent certified
2) Allowed combination ratio of the total rated indoor unit capacity over the rated outdoor unit capacity is
50~130%.
3) Sound pressure level is obtained in an anechoic room.
- Sound pressure level is a relative value, depending on the distance and acoustic environment.
- Sound pressure level may differ depending on operation condition.
- dBA = A-weighted sound pressure level
- Reference acoustic pressure 0 dB = 20uPa
4) Sound power level is an absolute value that a sound source generates.
- dBA = A-weighted sound power level
- Reference power : 1pW
- Measured according to ISO 3741
5) Sound values of multi combination are theoretical values based on sound results of individual installed units.
6) These products contain R410A (GWP=2,088) which is fluorinated greenhouse gas.
7) If outdoor unit is located in a higher position than indoor unit, level difference is 110m or under.
(If the level difference is higher than 50m, make a decision by PDM kit installation Guide software whether
the PDM kit should be installed or not.)
- PDM kit: Pressure Drop Modulation kit
When the outdoor unit is below the indoor unit & the level differences are 40m or more, contact your local
dealer for more information.
• In case you want to know more information regarding capacity and correction, please refer to capacity table
TDB on pvi.samsung.com site.

Essential
13
2. Specification
Type DVM S DVM S DVM S
Model Name AM160MXVDGH/ET AM180MXVDGH/ET AM200MXVDGH/ET
Outdoor unit module 1 - - AM100MXVDGH/ET
Outdoorunit module 2 - - AM100MXVDGH/ET
Outdoorunit module 3 ---
Outdoorunit module 4 ---
PowerSupply Ø, #, V, Hz
3, 4, 380-415, 50 3, 4, 380-415, 50 3, 4, 380-415, 50
Mode - HEAT PUMP HEAT PUMP HEAT PUMP
Performance HP HP 16 18 20
Capacity Cooling kW 45.0 / 45.0

50.4 / 50.4

56.0
Heating kW 50.4 / 45.0

56.7 / 50.4

63.0
Maximum number of connectable indoor units EA 29 32 36
Total capacity of the connected IndoorUnits Min. kW 22.5 25.2 28.0
Total capacity of the connected IndoorUnits Max. kW 58.5 65.5 72.8
Power Power Input Cooling kW 13.80 / 13.80

16.00 / 16.00

14.36
Heating kW 12.63 / 11.28

14.80 / 13.16

15.00
Current Input Cooling A 22.10 25.70 23.00
Heating A 20.30 23.70 24.00
Current Minimum Ssc MVA 7. 2 8.8 9.0
MCA A 32.0 39.2 42.2
MFA A 40 50 63
Efficiency EER Cooling W/W 3.26 / 3.26

3.15 / 3.15

3.90
COP Heating W/W 3.99 / 3.99

3.83 / 3.83

4.20
ESEER W/W 6.39 5.91 7.08
Casing Material Body - EGI Steel Plate EGI Steel Plate EGI Steel Plate
Base - EGI Steel Plate EGI Steel Plate EGI Steel Plate
Heat
Exchanger
Type - Fin & Tube Fin & Tube Fin & Tube
Material Fin - Al Al Al
Tube - Cu Cu Cu
Fin Treatment - Anti-corrosion Anti-corrosion Anti-corrosion
Compressor Output kW x n 7.81 x 1 7.81 x 1 (6.39 x 1) x 2
Model Name -   (DS-GB066FAV* x 1) x 2
Oil Type - PVE PVE PVE
Initial charge cc x n 1,400 x 1 1,400 x 1 (1,100 x 1) x 2
Fan Type - Propeller Propeller Propeller
Discharge direction - Top Top Top
Quantity EA 222
Air Flow Rate m
3
/min 255 290 170 x 2
l/s 4,250 4,833 2,833 x 2
External Static Pressure Max. mmAq 888
Pa 78.45 78.45 78.45
Fan Motor Type - BLDC Motor BLDC Motor BLDC Motor
Output W x n 620 x 2 620 x 2 (830 x 1) x 2
Piping
Connections
Liquid Pipe Type
Braze connection Braze connection Braze connection
Φ, mm (inch) 12.70 (1/2) 15.88 (5/8) 15.88 (5/8)
Gas Pipe Type Braze connection Braze connection Braze connection
Φ, mm (inch) 28.58 (1-1/8) 28.58 (1-1/8) 28.58 (1-1/8)
High pressure Gas Pipe(HR Only) Type ---
Φ, mm (inch) - - 28.58 (1-1/8)
Heat Insulation - Both liquid and gas pipes Both liquid and gas pipes Both liquid and gas pipes
Piping length (ODU-IDU) Max. [Equiv.] m 200[220] 200[220] 200[220]
Piping length (1st Branch-IDU) Max. m 90 90 90
Total piping length (System) Max. m 1,000 1,000 1,000
Level difference (ODU in highest
position)
Max. m
110 110 110
Level difference (IDU in highest
position)
Max. m
110 110 110
Level difference (IDU-IDU) Max. m 50 50 50

Essential
2. Specification
14
Type DVM S DVM S DVM S
Model Name AM160MXVDGH/ET AM180MXVDGH/ET AM200MXVDGH/ET
Outdoor unit module 1 - - AM100MXVDGH/ET
Outdoorunit module 2 - - AM100MXVDGH/ET
Outdoorunit module 3 ---
Outdoorunit module 4 ---
Wiring
connections
Transmission Cable mm
2
0.75 0.75 0.75
Remark - F1, F2 F1, F2 F1, F2
Power supply intake - Both indoor and outdoor unit Both indoor and outdoor unit Both indoor and outdoor unit
Refrigerant Type - R410A R410A R410A
Factory Charging kg 8.4 8.4 5.5 x 2
tCO
2
e 17.54 17.54 22.97
Sound Sound Pressure Cooling dB(A) 63 64 61
Heating dB(A) 67 67 63
Sound Power dB(A) 83 84 82
External
Dimension
Net Weight kg
253.0 255.0 197.0 x 2
Shipping Weight kg 273.0 275.0 204.0 x 2
Net Dimensions (WxHxD) mm 1,295 x 1,695 x 765 1,295 x 1,695 x 765 (880 x 1,695 x 765) x 2
Shipping Dimensions (WxHxD) mm 1,363 x 1,887 x 832 1,363 x 1,887 x 832 (948 x1,887 x 832) x 2
Operating
Temp. Range
Cooling ℃
-5 ~ 48 -5 ~ 48 -5 ~ 48
Heating ℃ -25 ~ 24 -25 ~ 24 -25 ~ 24
NOTE
• Specification may be subject to change without prior notice.
• Specification comply with EN14511.
1) Capacities are based on (Equivalent refrigerant piping 7.5m, Level differences 0m);
- Cooling : Indoor temperature 27°C DB, 19°C WB / Outdoor temperature 35°C DB, 24°C WB
- Heating : Indoor temperature 20°C DB, 15°C WB / Outdoor temperature 7°C DB, 6°C WB
Eurovent certified
2) Allowed combination ratio of the total rated indoor unit capacity over the rated outdoor unit capacity is
50~130%.
3) Sound pressure level is obtained in an anechoic room.
- Sound pressure level is a relative value, depending on the distance and acoustic environment.
- Sound pressure level may differ depending on operation condition.
- dBA = A-weighted sound pressure level
- Reference acoustic pressure 0 dB = 20uPa
4) Sound power level is an absolute value that a sound source generates.
- dBA = A-weighted sound power level
- Reference power : 1pW
- Measured according to ISO 3741
5) Sound values of multi combination are theoretical values based on sound results of individual installed units.
6) These products contain R410A (GWP=2,088) which is fluorinated greenhouse gas.
7) If outdoor unit is located in a higher position than indoor unit, level difference is 110m or under.
(If the level difference is higher than 50m, make a decision by PDM kit installation Guide software whether
the PDM kit should be installed or not.)
- PDM kit: Pressure Drop Modulation kit
When the outdoor unit is below the indoor unit & the level differences are 40m or more, contact your local
dealer for more information.
• In case you want to know more information regarding capacity and correction, please refer to capacity table
TDB on pvi.samsung.com site.

Essential
15
2. Specification
Type DVM S DVM S DVM S
Model Name AM220MXVDGH/ET AM240MXVDGH/ET AM260MXVDGH/ET
Outdoor unit module 1 AM100MXVDGH/ET AM120MXVDGH/ET AM120MXVDGH/ET
Outdoorunit module 2 AM120MXVDGH/ET AM120MXVDGH/ET AM140MXVDGH/ET
Outdoorunit module 3 ---
Outdoorunit module 4 ---
PowerSupply Ø, #, V, Hz
3, 4, 380-415, 50 3, 4, 380-415, 50 3, 4, 380-415, 50
Mode - HEAT PUMP HEAT PUMP HEAT PUMP
Performance HP HP 22 24 26
Capacity Cooling kW 61.6 6 7. 2 73.6
Heating kW 69.3 75.6 82.8
Maximum number of connectable indoor units EA 40 43 47
Total capacity of the connected IndoorUnits Min. kW 30.8 33.6 36.8
Total capacity of the connected IndoorUnits Max. kW 80.1 87.4 95.7
Power Power Input Cooling kW 16.54 18.72 21.78
Heating kW 16.72 18.44 20.36
Current Input Cooling A 26.50 30.00 34.90
Heating A 26.80 29.60 32.70
Current Minimum Ssc MVA 9.8 10.6 10.7
MCA A 46.1 50.0 50.0
MFA A 63 63 63
Efficiency EER Cooling W/W 3.72 3.59 3.38
COP Heating W/W 4.14 4.10 4.07
ESEER W/W 6.81 6.58 6.59
Casing Material Body - EGI Steel Plate EGI Steel Plate EGI Steel Plate
Base - EGI Steel Plate EGI Steel Plate EGI Steel Plate
Heat
Exchanger
Type - Fin & Tube Fin & Tube Fin & Tube
Material Fin - Al Al Al
Tube - Cu Cu Cu
Fin Treatment - Anti-corrosion Anti-corrosion Anti-corrosion
Compressor Output kW x n (6.39 x 1) x 2 (6.39 x 1) x 2 (6.39 x 1) x 2
Model Name - (DS-GB066FAV* x 1) x 2 (DS-GB066FAV* x 1) x 2 (DS-GB066FAV* x 1) x 2
Oil Type - PVE PVE PVE
Initial charge cc x n (1,100 x 1) x 2 (1,100 x 1) x 2 (1,100 x 1) x 2
Fan Type - Propeller Propeller Propeller
Discharge direction - Top Top Top
Quantity EA 2 2 3
Air Flow Rate m
3
/min 170 x 1 + 220 x 1 220 x 2 220 x1 + 255 x 1
l/s 2,833 x 1 + 3,667 x 1 3,667 x 2 3,667 x1 + 4,250 x 1
External Static Pressure Max. mmAq 888
Pa 78.45 78.45 78.45
Fan Motor Type - BLDC Motor BLDC Motor BLDC Motor
Output W x n (830 x 1) x 2 (830 x 1) x 2 (830 x 1) x 1 + (620 x 2) x 1
Piping
Connections
Liquid Pipe Type
Braze connection Braze connection Braze connection
Φ, mm (inch) 15.88 (5/8) 15.88 (5/8) 19.05 (3/4)
Gas Pipe Type Braze connection Braze connection Braze connection
Φ, mm (inch) 28.58 (1-1/8) 34.92 (1-3/8) 34.92 (1-3/8)
High pressure Gas Pipe(HR Only) Type ---
Φ, mm (inch) 28.58 (1-1/8) 28.58 (1-1/8) 28.58 (1-1/8)
Heat Insulation - Both liquid and gas pipes Both liquid and gas pipes Both liquid and gas pipes
Piping length (ODU-IDU) Max. [Equiv.] m 200[220] 200[220] 200[220]
Piping length (1st Branch-IDU) Max. m 90 90 90
Total piping length (System) Max. m 1,000 1,000 1,000
Level difference (ODU in highest
position)
Max. m
110 110 110
Level difference (IDU in highest
position)
Max. m
110 110 110
Level difference (IDU-IDU) Max. m 50 50 50

Essential
2. Specification
16
Type DVM S DVM S DVM S
Model Name AM220MXVDGH/ET AM240MXVDGH/ET AM260MXVDGH/ET
Outdoor unit module 1 AM100MXVDGH/ET AM120MXVDGH/ET AM120MXVDGH/ET
Outdoorunit module 2 AM120MXVDGH/ET AM120MXVDGH/ET AM140MXVDGH/ET
Outdoorunit module 3 ---
Outdoorunit module 4 ---
Wiring
connections
Transmission Cable mm
2
0.75 0.75 0.75
Remark - F1, F2 F1, F2 F1, F2
Power supply intake - Both indoor and outdoor unit Both indoor and outdoor unit Both indoor and outdoor unit
Refrigerant Type - R410A R410A R410A
Factory Charging kg 5.5 x 1 + 6.5 x1 6.5 x 2 6.5 x1 + 7.7 x 1
tCO
2
e 25.06 27.14 29.65
Sound Sound Pressure Cooling dB(A) 63 65 65
Heating dB(A) 65 67 67
Sound Power dB(A) 83 84 84
External
Dimension
Net Weight kg
197.0 x1 + 210.0 x 1 210.0 x 2 210.0 x 1 + 226.0 x 1
Shipping Weight kg 204.0 x 1 + 217.0 x 1 217.0 x 2 217.0 x 1 + 246.0 x 1
Net Dimensions (WxHxD) mm
(880 x 1,695 x 765) x 2 (880 x 1,695 x 765) x 2 (880 x 1,695 x 765) x 1 +
(1,295 x 1,695 x 765) x 1
Shipping Dimensions (WxHxD) mm
(948 x1,887 x 832) x 2 (948 x1,887 x 832) x 2 (948 x1,887 x 832) x 1 +
(1,363 x 1,887 x 832) x1
Operating
Temp. Range
Cooling ℃
-5 ~ 48 -5 ~ 48 -5 ~ 48
Heating ℃ -25 ~ 24 -25 ~ 24 -25 ~ 24
NOTE
• Specification may be subject to change without prior notice.
• Specification comply with EN14511.
1) Capacities are based on (Equivalent refrigerant piping 7.5m, Level differences 0m);
- Cooling : Indoor temperature 27°C DB, 19°C WB / Outdoor temperature 35°C DB, 24°C WB
- Heating : Indoor temperature 20°C DB, 15°C WB / Outdoor temperature 7°C DB, 6°C WB
Eurovent certified
2) Allowed combination ratio of the total rated indoor unit capacity over the rated outdoor unit capacity is
50~130%.
3) Sound pressure level is obtained in an anechoic room.
- Sound pressure level is a relative value, depending on the distance and acoustic environment.
- Sound pressure level may differ depending on operation condition.
- dBA = A-weighted sound pressure level
- Reference acoustic pressure 0 dB = 20uPa
4) Sound power level is an absolute value that a sound source generates.
- dBA = A-weighted sound power level
- Reference power : 1pW
- Measured according to ISO 3741
5) Sound values of multi combination are theoretical values based on sound results of individual installed units.
6) These products contain R410A (GWP=2,088) which is fluorinated greenhouse gas.
7) If outdoor unit is located in a higher position than indoor unit, level difference is 110m or under.
(If the level difference is higher than 50m, make a decision by PDM kit installation Guide software whether
the PDM kit should be installed or not.)
- PDM kit: Pressure Drop Modulation kit
When the outdoor unit is below the indoor unit & the level differences are 40m or more, contact your local
dealer for more information.
• In case you want to know more information regarding capacity and correction, please refer to capacity table
TDB on pvi.samsung.com site.

Essential
17
2. Specification
Type DVM S DVM S DVM S
Model Name AM280MXVDGH/ET AM300MXVDGH/ET AM320MXVDGH/ET
Outdoor unit module 1 AM140MXVDGH/ET AM120MXVDGH/ET AM140MXVDGH/ET
Outdoorunit module 2 AM140MXVDGH/ET AM180MXVDGH/ET AM180MXVDGH/ET
Outdoorunit module 3 ---
Outdoorunit module 4 ---
PowerSupply Ø, #, V, Hz
3, 4, 380-415, 50 3, 4, 380-415, 50 3, 4, 380-415, 50
Mode - HEAT PUMP HEAT PUMP HEAT PUMP
Performance HP HP 28 30 32
Capacity Cooling kW 80.0 84.0 90.4
Heating kW 90.0 94.5 101.7
Maximum number of connectable indoor units EA 51 54 58
Total capacity of the connected IndoorUnits Min. kW 40.0 42.0 45.2
Total capacity of the connected IndoorUnits Max. kW 104.0 109.2 117.5
Power Power Input Cooling kW 24.84 25.36 28.42
Heating kW 22.28 24.02 25.94
Current Input Cooling A 39.80 40.70 45.60
Heating A 35.80 38.50 41.60
Current Minimum Ssc MVA 10.8 14.1 14.2
MCA A 50.0 64.2 64.2
MFA A 63 75 75
Efficiency EER Cooling W/W 3.22 3.31 3.18
COP Heating W/W 4.04 3.93 3.92
ESEER W/W 6.60 6.18 6.21
Casing Material Body - EGI Steel Plate EGI Steel Plate EGI Steel Plate
Base - EGI Steel Plate EGI Steel Plate EGI Steel Plate
Heat
Exchanger
Type - Fin & Tube Fin & Tube Fin & Tube
Material Fin - Al Al Al
Tube - Cu Cu Cu
Fin Treatment - Anti-corrosion Anti-corrosion Anti-corrosion
Compressor Output kW x n (6.39 x 1) x 2 (6.39 x 1) x 1 + (7.81 x 1) x 1 (6.39 x 1) x 1 + (7.81 x 1) x 1
Model Name -
(DS-GB066FAV* x 1) x 2 (DS-GB066FAV* x 1) x 1 +

(DS-GB066FAV* x 1) x 1 +

Oil Type - PVE PVE PVE
Initial charge cc x n (1,100 x 1) x 2 (1,100 x 1) x 1 + (1,400 x1) x 1(1,100 x 1) x 1 + (1,400 x 1) x 1
Fan Type - Propeller Propeller Propeller
Discharge direction - Top Top Top
Quantity EA 434
Air Flow Rate m
3
/min 255 x 2 220 x 1 + 290 x 1 255 x 1 + 290 x 1
l/s 4,250 x 2 3,667 x 1 + 4,833 x 1 4,250 x 1 + 4,833 x 1
External Static Pressure Max. mmAq 888
Pa 78.45 78.45 78.45
Fan Motor Type - BLDC Motor BLDC Motor BLDC Motor
Output W x n (620 x 2) x 2 (830 x 1) x 1 + (620 x 2) x 1 (620 x 2) x 2
Piping
Connections
Liquid Pipe Type
Braze connection Braze connection Braze connection
Φ, mm (inch) 19.05 (3/4) 19.05 (3/4) 19.05 (3/4)
Gas Pipe Type Braze connection Braze connection Braze connection
Φ, mm (inch) 34.92 (1-3/8) 34.92 (1-3/8) 34.92 (1-3/8)
High pressure Gas Pipe(HR Only) Type ---
Φ, mm (inch) 28.58 (1-1/8) 28.58 (1-1/8) 28.58 (1-1/8)
Heat Insulation - Both liquid and gas pipes Both liquid and gas pipes Both liquid and gas pipes
Piping length (ODU-IDU) Max. [Equiv.] m 200[220] 200[220] 200[220]
Piping length (1st Branch-IDU) Max. m 90 90 90
Total piping length (System) Max. m 1,000 1,000 1,000
Level difference (ODU in highest
position)
Max. m
110 110 110
Level difference (IDU in highest
position)
Max. m
110 110 110
Level difference (IDU-IDU) Max. m 50 50 50

Essential
2. Specification
18
Type DVM S DVM S DVM S
Model Name AM280MXVDGH/ET AM300MXVDGH/ET AM320MXVDGH/ET
Outdoor unit module 1 AM140MXVDGH/ET AM120MXVDGH/ET AM140MXVDGH/ET
Outdoorunit module 2 AM140MXVDGH/ET AM180MXVDGH/ET AM180MXVDGH/ET
Outdoorunit module 3 ---
Outdoorunit module 4 ---
Wiring
connections
Transmission Cable mm
2
0.75 0.75 0.75
Remark - F1, F2 F1, F2 F1, F2
Power supply intake - Both indoor and outdoor unit Both indoor and outdoor unit Both indoor and outdoor unit
Refrigerant Type - R410A R410A R410A
Factory Charging kg 7.7 x 2 6.5 x 1 + 8.4 x 1 7.7 x 1 + 8.4 x 1
tCO
2
e 32.16 31.11 33.62
Sound Sound Pressure Cooling dB(A) 64 66 66
Heating dB(A) 66 69 68
Sound Power dB(A) 84 86 86
External
Dimension
Net Weight kg
226.0 x 2 210.0 x 1 + 255.0 x 1 226.0 x 1 + 255.0 x 1
Shipping Weight kg 246.0 x 2 217.0 x 1 + 275.0 x 1 246.0 x 1 + 275.0 x 1
Net Dimensions (WxHxD) mm
(1,295 x 1,695 x 765) x 2 (880 x1,695 x 765) x 1 +
(1,295 x 1,695 x 765) x 1 (1,295 x1,695 x 765) x 2
Shipping Dimensions (WxHxD) mm
(1,363 x 1,887 x 832) x 2 (948 x1,887 x 832) x 1 +
(1,363 x 1,887 x 832) x1 (1,363 x 1,887 x 832) x 2
Operating
Temp. Range
Cooling ℃
-5 ~ 48 -5 ~ 48 -5 ~ 48
Heating ℃ -25 ~ 24 -25 ~ 24 -25 ~ 24
NOTE
• Specification may be subject to change without prior notice.
• Specification comply with EN14511.
1) Capacities are based on (Equivalent refrigerant piping 7.5m, Level differences 0m);
- Cooling : Indoor temperature 27°C DB, 19°C WB / Outdoor temperature 35°C DB, 24°C WB
- Heating : Indoor temperature 20°C DB, 15°C WB / Outdoor temperature 7°C DB, 6°C WB
Eurovent certified
2) Allowed combination ratio of the total rated indoor unit capacity over the rated outdoor unit capacity is
50~130%.
3) Sound pressure level is obtained in an anechoic room.
- Sound pressure level is a relative value, depending on the distance and acoustic environment.
- Sound pressure level may differ depending on operation condition.
- dBA = A-weighted sound pressure level
- Reference acoustic pressure 0 dB = 20uPa
4) Sound power level is an absolute value that a sound source generates.
- dBA = A-weighted sound power level
- Reference power : 1pW
- Measured according to ISO 3741
5) Sound values of multi combination are theoretical values based on sound results of individual installed units.
6) These products contain R410A (GWP=2,088) which is fluorinated greenhouse gas.
7) If outdoor unit is located in a higher position than indoor unit, level difference is 110m or under.
(If the level difference is higher than 50m, make a decision by PDM kit installation Guide software whether
the PDM kit should be installed or not.)
- PDM kit: Pressure Drop Modulation kit
When the outdoor unit is below the indoor unit & the level differences are 40m or more, contact your local
dealer for more information.
• In case you want to know more information regarding capacity and correction, please refer to capacity table
TDB on pvi.samsung.com site.

Essential
19
2. Specification
Type DVM S DVM S
Model Name AM340MXVDGH/ET AM360MXVDGH/ET
Outdoor unit module 1 AM160MXVDGH/ET AM180MXVDGH/ET
Outdoorunit module 2 AM180MXVDGH/ET AM180MXVDGH/ET
Outdoorunit module 3 - -
Outdoorunit module 4 - -
PowerSupply Ø, #, V, Hz
3, 4, 380-415, 50 3, 4, 380-415, 50
Mode - HEAT PUMP HEAT PUMP
Performance HP HP 34 36
Capacity Cooling kW 95.4 100.8
Heating kW 107.1 113.4
Maximum number of connectable indoor units EA 61 64
Total capacity of the connected IndoorUnits Min. kW 47.7 50.4
Total capacity of the connected IndoorUnits Max. kW 124.0 131.0
Power Power Input Cooling kW 29.80 32.00
Heating kW 27.43 29.60
Current Input Cooling A 47.80 51.40
Heating A 44.00 47.40
Current Minimum Ssc MVA 16.0 17.6
MCA A 71.2 78.4
MFA A 80 90
Efficiency EER Cooling W/W 3.20 3.15
COP Heating W/W 3.90 3.83
ESEER W/W 6.13 5.91
Casing Material Body - EGI Steel Plate EGI Steel Plate
Base - EGI Steel Plate EGI Steel Plate
Heat
Exchanger
Type - Fin & Tube Fin & Tube
Material Fin - Al Al
Tube - Cu Cu
Fin Treatment - Anti-corrosion Anti-corrosion
Compressor Output kW x n (7.81 x 1) x 2 (7.81 x 1) x 2
Model Name -  
Oil Type - PVE PVE
Initial charge cc x n (1,400 x1) x 2 (1,400 x1) x 2
Fan Type - Propeller Propeller
Discharge direction - Top Top
Quantity EA 4 4
Air Flow Rate m
3
/min 255 x 1 + 290 x 1 290 x 2
l/s 4,250 x 1 + 4,833 x 1 4,833 x 2
External Static Pressure Max. mmAq 8 8
Pa 78.45 78.45
Fan Motor Type - BLDC Motor BLDC Motor
Output W x n (620 x 2) x 2 (620 x 2) x 2
Piping
Connections
Liquid Pipe Type
Braze connection Braze connection
Φ, mm (inch) 19.05 (3/4) 19.05 (3/4)
Gas Pipe Type Braze connection Braze connection
Φ, mm (inch) 34.92 (1-3/8) 41.28 (1-5/8)
High pressure Gas Pipe(HR Only) Type - -
Φ, mm (inch) 28.58 (1-1/8) 34.92 (1-3/8)
Heat Insulation - Both liquid and gas pipes Both liquid and gas pipes
Piping length (ODU-IDU) Max. [Equiv.] m 200[220] 200[220]
Piping length (1st Branch-IDU) Max. m 90 90
Total piping length (System) Max. m 1,000 1,000
Level difference (ODU in highest
position)
Max. m
110 110
Level difference (IDU in highest
position)
Max. m
110 110
Level difference (IDU-IDU) Max. m 50 50

Essential
2. Specification
20
Type DVM S DVM S
Model Name AM340MXVDGH/ET AM360MXVDGH/ET
Outdoor unit module 1 AM160MXVDGH/ET AM180MXVDGH/ET
Outdoorunit module 2 AM180MXVDGH/ET AM180MXVDGH/ET
Outdoorunit module 3 - -
Outdoorunit module 4 - -
Wiring
connections
Transmission Cable mm
2
0.75 0.75
Remark - F1, F2 F1, F2
Power supply intake -Both indoor and outdoor unit Both indoor and outdoor unit
Refrigerant Type -
R410A R410A
Factory Charging kg 8.4 x 2 8.4 x 2
tCO
2
e 35.08 35.08
Sound Sound Pressure Cooling dB(A) 67 67
Heating dB(A) 70 70
Sound Power dB(A) 87 87
External
Dimension
Net Weight kg
253.0 x 1 + 255.0 x1 255.0 x 2
Shipping Weight kg 273.0 x 1 + 275.0 x1 275.0 x 2
Net Dimensions (WxHxD) mm (1,295 x 1,695 x 765) x 2 (1,295 x 1,695 x 765) x 2
Shipping Dimensions (WxHxD) mm (1,363 x 1,887 x 832) x 2 (1,363 x 1,887 x 832) x 2
Operating
Temp. Range
Cooling ℃
-5 ~ 48 -5 ~ 48
Heating ℃ -25 ~ 24 -25 ~ 24
NOTE
• Specification may be subject to change without prior notice.
• Specification comply with EN14511.
1) Capacities are based on (Equivalent refrigerant piping 7.5m, Level differences 0m);
- Cooling : Indoor temperature 27°C DB, 19°C WB / Outdoor temperature 35°C DB, 24°C WB
- Heating : Indoor temperature 20°C DB, 15°C WB / Outdoor temperature 7°C DB, 6°C WB
Eurovent certified
2) Allowed combination ratio of the total rated indoor unit capacity over the rated outdoor unit capacity is
50~130%.
3) Sound pressure level is obtained in an anechoic room.
- Sound pressure level is a relative value, depending on the distance and acoustic environment.
- Sound pressure level may differ depending on operation condition.
- dBA = A-weighted sound pressure level
- Reference acoustic pressure 0 dB = 20uPa
4) Sound power level is an absolute value that a sound source generates.
- dBA = A-weighted sound power level
- Reference power : 1pW
- Measured according to ISO 3741
5) Sound values of multi combination are theoretical values based on sound results of individual installed units.
6) These products contain R410A (GWP=2,088) which is fluorinated greenhouse gas.
7) If outdoor unit is located in a higher position than indoor unit, level difference is 110m or under.
(If the level difference is higher than 50m, make a decision by PDM kit installation Guide software whether
the PDM kit should be installed or not.)
- PDM kit: Pressure Drop Modulation kit
When the outdoor unit is below the indoor unit & the level differences are 40m or more, contact your local
dealer for more information.
• In case you want to know more information regarding capacity and correction, please refer to capacity table
TDB on pvi.samsung.com site.
