Wired remote controller
MWR-WE10N
Air Conditioner
installation manual
imagine the possibilities
Thank you for purchasing this Samsung product.
This manual is made with 100% recycled paper.
EN PT ES DE FR EL IT RU AR
DB68-03716A(1)
uhzh~GyGjt~yT~lXWuluptWZ^X]hOXPUGGGY\ YWXZTWYTWXGGG㝘䟸G]aZ[aXZ

2
Safety Information
WARNING
Contact a service center for installation.
XPotential risk of malfunction, water leak, electric shock and re.
Install the product with proper power supply.
XPotential risk of re or product damage.
Consult the place of purchase or a contact center to disassemble or repair the product.
XPotential risk of malfunction, electric shock, or re.
The electric work must be done by qualied person according to national wiring regulations and installation guide.
XIf an unauthorized person performs the installation, any resulting defects can cause malfunctions,
electrical shocks, or re accidents.
Install the product on a hard and even place that can support its weight.
XIf the place cannot support its weight, the product may fall down and it may cause product damage.
Do not move or reinstall the product on your discretion.
XPotential risk of electric shock or re.
Check if the installation work is done correctly according to the installation manual.
XIncorrect installation may cause electric shock or re.
When you want to dispose your Wired Remote Controller, ask the service center.
This installation manual explains how to install a Wired Remote Controller connected to the indoor unit of
your Trane system air conditioner.
Please read this manual thoroughly before installing the product.
(Please refer to appropriate installation for any optional product installation.)
WARNING Hazards or unsafe practices that may result in severe personal injury or death.
CAUTION
Hazards or unsafe practices that may result in minor personal injury or property damage.
uhzh~GyGjt~yT~lXWuluptWZ^X]hOXPUGGGY YWXZTWYTWXGGG㝘䟸G]aZ[aW\

3
ENGLISH
CAUTION
Do not install the product where there’s combustible gas.
XPotential risk of re and explosion.
Ensure no water gets into the Wired Remote Controller.
XPotential risk of electric shock or re.
Install the air conditioner away from direct exposure to sunlight, in room temperature range of 0°C(32°F)~39°C(102°F).
XPotential risk of electric shock or malfunction.
Do not handle the product with sharp objects.
XPotential risk of electric shock or product damage.
Do not install the product in areas exposed to oil or vapor.
XPotential risk of product damage or malfunction.
Do not put undue stress on the power cable.
XPotential risk of broken cable and re.
Do not install the product in areas with frequent use of acid or alkali spray.
XPotential risk of electric shock or product malfunction
Do not connect power cable to a communication terminal.
XPotential risk of re.
Be cautious not to interfere any other electrical devices if the product is installed in a place such as hospital.
XPotential risk of product malfunction.
uhzh~GyGjt~yT~lXWuluptWZ^X]hOXPUGGGZ YWXZTWYTWXGGG㝘䟸G]aZ[aW]

4
Wired Remote Controller Installation
Optional accessories
External Dimensions
• The Wired Remote Controller should be installed by an installation expert.
• Check and conrm the power is o before installing your Wired Remote Controller.
• Install the Wired Remote Controller cables in accordance with the electrical wiring rules, and allow it to pass
through the inner area of the wall so that other people can’t reach it.
120.0(4.72)
124.0(4.88)
63.8(2.51)
19.5(0.76)
[Unit : mm(inch)]
Wired Remote
Controller (1) Cable Tie (2) Cable Clamp(3) M4X16Screw (5) User Manual (1) Installation
Manual (1) U Terminal (4)
uhzh~GyGjt~yT~lXWuluptWZ^X]hOXPUGGG[ YWXZTWYTWXGGG㝘䟸G]aZ[aW]

5
ENGLISH
Wired Remote Controller Installation
KPush the two hooks at the same time.
1. Push the two hooks at the bottom of your Wired Remote Controller at the same time, and then pull up the
front cover to separate it from the rear cover.
2. Arrange the power cable and the communication cable so that they t in the housing along the edges of the
rear cover.
• Insert a at head screwdriver into the square groove in the upper area of the
hook to disassemble it easily.
<When the cable is not concealed> <When the cable is concealed>
15cm(6inch)
10cm(4inch)
If you need more space for the
wiring work, you can take it off.
uhzh~GyGjt~yT~lXWuluptWZ^X]hOXPUGGG\ YWXZTWYTWXGGG㝘䟸G]aZ[aW]

6
Wired Remote Controller Installation
4. Reassemble your Wired Remote Controller.
Wired Remote Controller Installation
• Align the controller with the upper groove rst, and insert it by turning it downward as
shown in the gure.
After assembly, check and conrm that no wires are stuck in the gap between the rear and
front cover.
• When installing a Wired Remote Controller by using a cable longer than 10m(32.80 ft), you must install the
communication cable and the power cable separately. (Electrical interference can cause your Wired Remote Controller
to malfunction.)
• When installing your Wired Remote Controller on the wall, consider the size of the wire hole, and select a wire with
a proper thickness.
• Wire that is connectable to Wired Remote Controller PCB.
- If you install the Wired Remote Controller by reclaiming, install it according to U-terminal cable specication.
- If you install the Wired Remote Controller by using two pieces of PVC wire, remove the 30cm(12inch) of the
sheath of the cable and install it only with the two pieces of wires. (Recommended specication: AWG21)
• The following are the specs of the compression ring terminal connected to your Wired Remote Controller PCB.
W
t
G
E
F
L
Stud D
Range of Permitted Wires Rated
Size
Stud
Size Basic Size
[mm (inch)]
AWG mm
2
(inch
2
)
mm
2
(inch
2
)
mm
(inch) tøDG E F WL
22~16
0.25~1.65
(0.0003 ~
0.0025)
1.5
(0.0023)
3
(0.1181)
0.7
(0.0275)
3.8
(0.1496)
10.0
(0.3937)
4.5
(0.1771)
6.5
(0.2559)
6.0
(0.2362)
21.2
(0.8346)
KMaximum distance for connecting communication and
power cable: 100 m(3.280 ft)
• Screws on the PCB terminal must be tightened with less than 6N-cm tightening torque. If the tightening torque is
greater, it may damage the screw thread.
3. Using more than two screws, rmly ax the rear cover of the remote controller to the wall, and then connect
the communication & power cable[(F3,F4) or (3, 4)], making sure these cables have reasonable length,
to the terminal at the back of the cover.
10mm(0.4inch) or more
10mm(0.4inch)
or more
50mm(2inch) or more
10mm(0.4inch) or more
Screw hole
Rear cover
Front cover
PCB terminal
Wire (not supplied)
KBefore fixing the rear cover, secure at least
10mm(0.4inch) space of upper side, left side,
right side, and 50mm(2inch) space
of bottom side.
KYou must fit the screws into
the screw holes.
Indoor unit
Wired Remote
Controller
KDo not tighten the screws on the
PCB terminal with excessive force.
uhzh~GyGjt~yT~lXWuluptWZ^X]hOXPUGGG] YWXZTWYTWXGGG㝘䟸G]aZ[aW^

7
ENGLISH

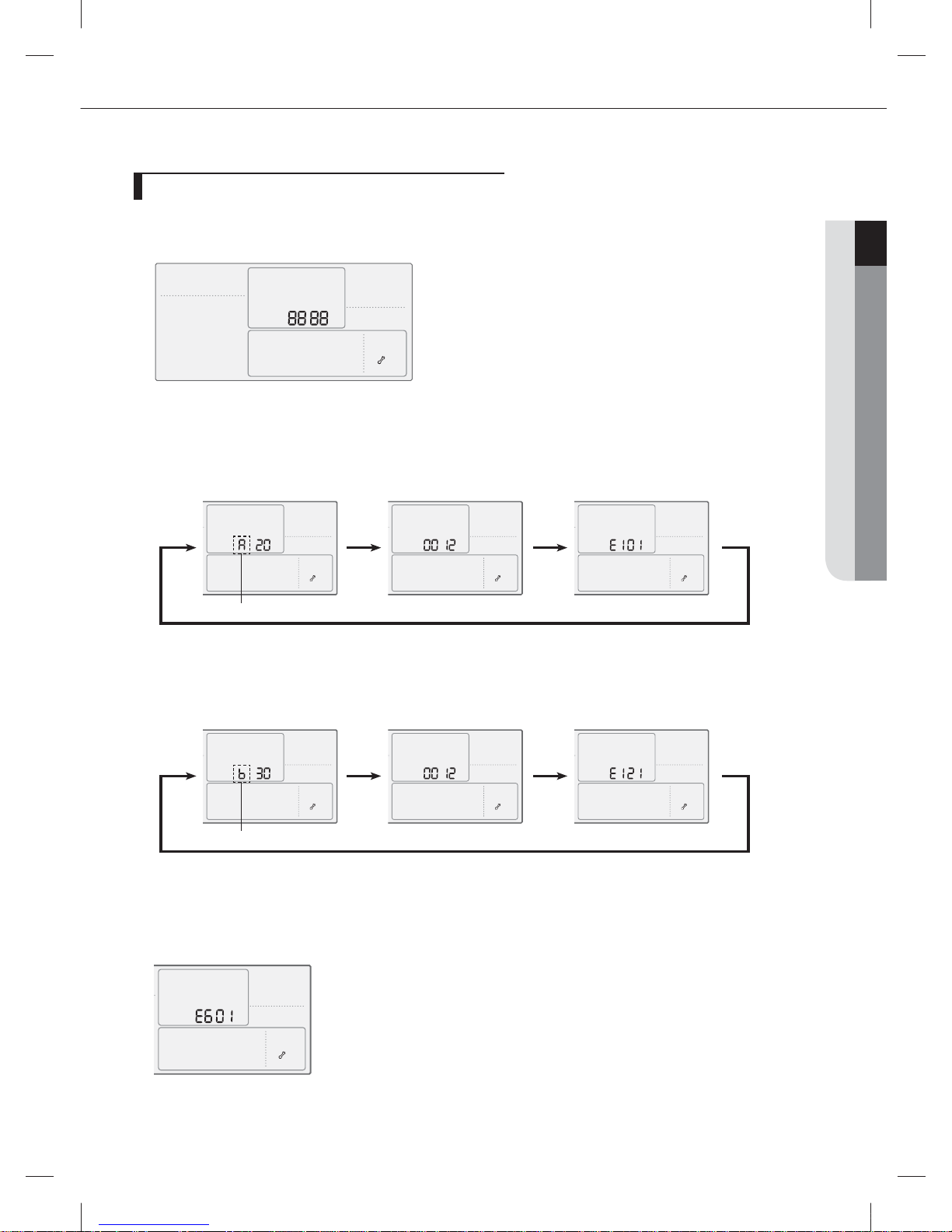

Tracking Your Indoor Unit from the Wired Remote Controller
1. Tracking of your Wired Remote Controller will automatically start when you turn on the power after installation.
2. If you want to perform tracking again after installation, then press the Esc and Delete buttons at the same time
for more than ve seconds.
X
The system will reset, and tracking will start again.
3. During tracking, the total number of currently searched indoor units and ventilator(ERV) will be displayed.
4. It may take about 5 minutes at initial installation or when you re-set the Master setting.
• If you want to perform tracking again after installation, then press the Esc and Delete buttons at the same time
for more than ve seconds.
Displays the total number
of units searched
Indicates tracking
in progress
uhzh~GyGjt~yT~lXWuluptWZ^X]hOXPUGGG^ YWXZTWYTWXGGG㝘䟸G]aZ[aW^

8
COM2(F3, F4) COM2(F3, F4) COM2(F3, F4)
COM1(F1, F2) COM1(F1, F2)
Ventilator(ERV) Ventilator(ERV) Ventilator(ERV)
Wired Remote
Controller
Wired Remote
Controller
Wired Remote
Controller
Master ventilator(ERV)
Individual Control with Your Wired Remote Controller
X
Individual control means that you are using one remote controller to control one indoor unit or ventilator(ERV).
Wired Remote Controller Installation
When Connected to an Indoor Unit Only
When Connected to an ventilator(ERV) Only
Outdoor Unit
Indoor Unit
COM1(F1,F2)
COM2(F3,F4)
COM1(F1,F2)
COM2(F3, F 4) COM2(F3,F4)
Wired Remote
Controller
Wired Remote
Controller
Wired Remote
Controller
Indoor Unit Indoor Unit
• Regardless of the indoor group address (RMC address) or the ventilator(ERV) group address, only the indoor unit
connected to COM2is individually controlled.
uhzh~GyGjt~yT~lXWuluptWZ^X]hOXPUGGG_ YWXZTWYTWXGGG㝘䟸G]aZ[aW_

9
ENGLISH
Outdoor Unit
Indoor Unit
Wired Remote
Controller
Outdoor Unit
Indoor Unit
COM1(F1, F2)
COM2(F3, F4)
COM1(F1, F2)
COM2(F3, F4)
Outdoor Unit
COM1(F1, F2) COM1(F1, F2)
Wired Remote
Controller
COM2(F3, F4) COM2(F3, F4)
COM1(F1, F2)
Indoor Unit Indoor Unit Indoor Unit
Group Control with Your Wired Remote Controller
X
Group control means that you are using one Wired Remote Controller to control two or more indoor units and
ventilator(ERV) at the same time.

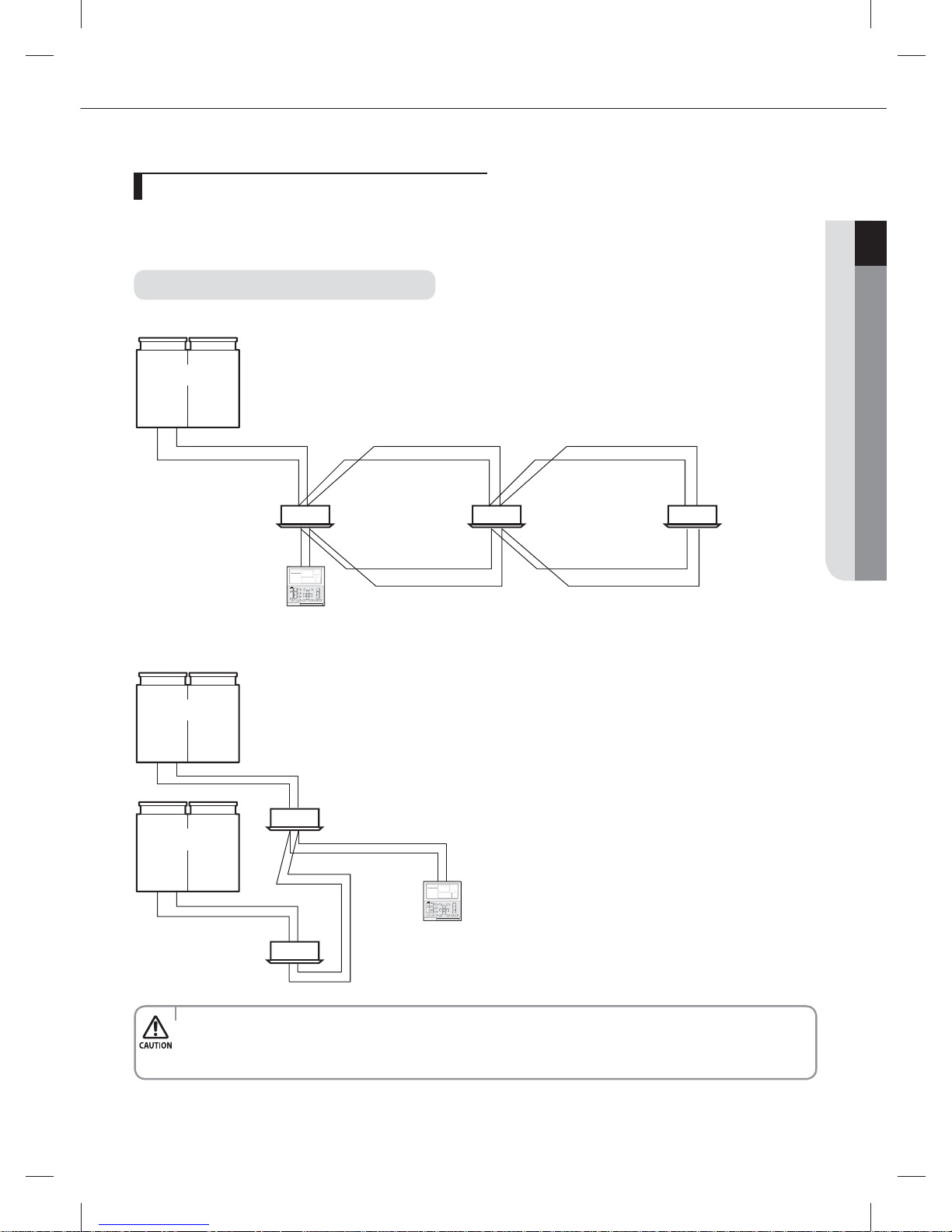

When Connected to an Indoor Unit Only
• Regardless of the indoor unit’s group address (RMC address), only the indoor units connected to COM2are
controlled in group.
• Regardless of your outdoor units, you can control a maximum of 16indoor units as a group.
(1) Using One Wired Remote Controller to control three indoor Units
(2) Using One Wired Remote Controller to control indoor units connected to dierent outdoor unit
uhzh~GyGjt~yT~lXWuluptWZ^X]hOXPUGGG` YWXZTWYTWXGGG㝘䟸G]aZ[aW_

10
Wired Remote Controller Installation
When Connected to an ventilator(ERV) Only
(1) Using One Wired Remote Controller to Control Three ventilator(ERV)
Wired Remote
Controller
COM2(F3, F4)
Master ventilator(ERV)
COM1(F1, F2)
Ventilator(ERV) Ventilator(ERV) Ventilator(ERV)
COM1(F1, F2)
COM2(F3, F4)
COM1(F1, F2)
• Regardless of the ventilator(ERV)'s group address (RMC address), only the ventilator(ERV) connected to COM2
controlled in group.
uhzh~GyGjt~yT~lXWuluptWZ^X]hOXPUGGGXW YWXZTWYTWXGGG㝘䟸G]aZ[aW_

11
ENGLISH
Outdoor Unit
COM1(F1,F2) COM1(F1,F2)
Wired Remote
Controller
COM2(F3,F4) COM2(F3,F4)
COM1(F1,F2)
Indoor Unit Indoor Unit Indoor Unit
COM2(F3,F4)
Ventilator(ERV)

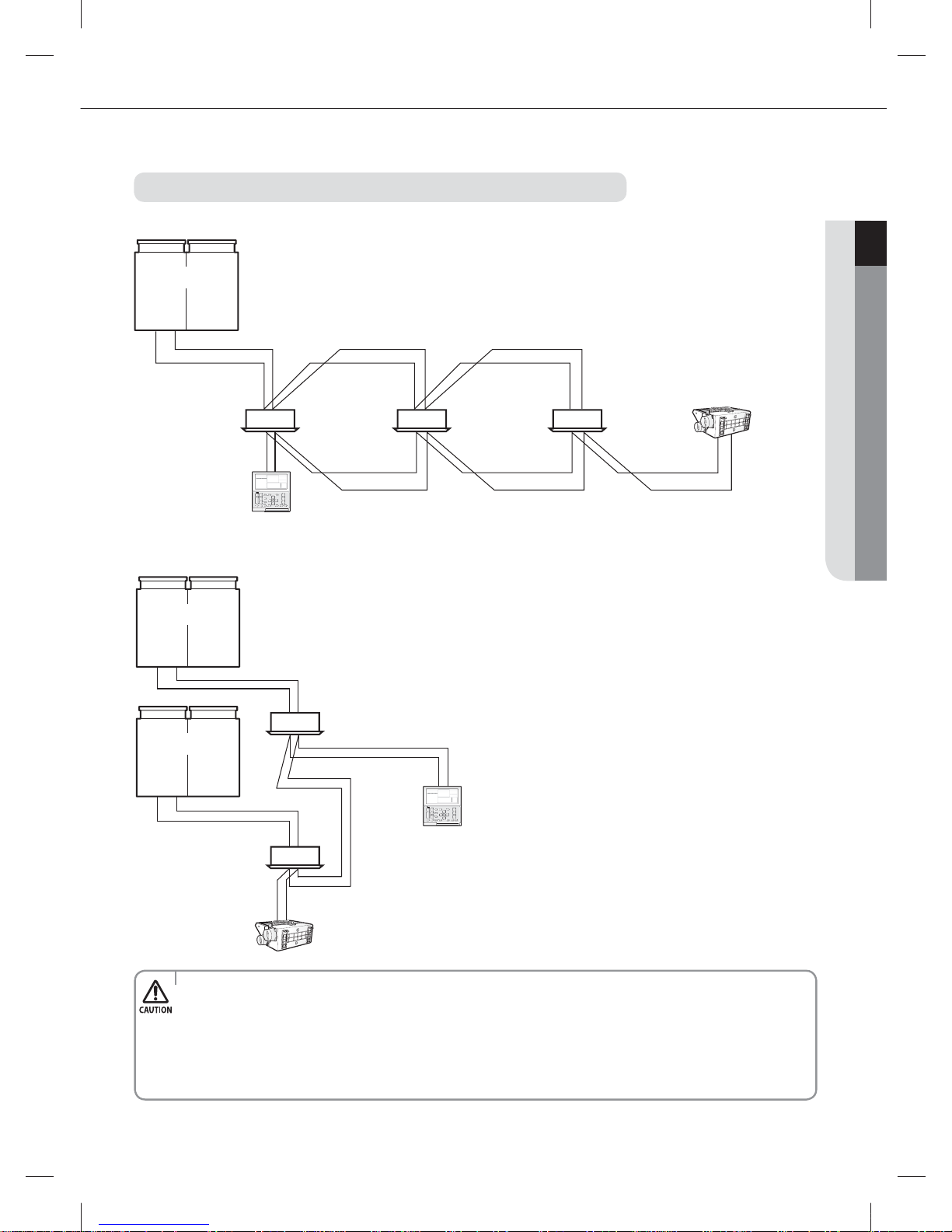

When Connected to an Indoor Unit and an ventilator(ERV) together
• Regardless of the indoor unit’s group address (RMC address), only the indoor units and ventilator(ERV) connected
to COM2are controlled in group.
• When controlling indoor units and ventilator(ERV) together in group, you can control maximum of 16indoor units
and ventilator(ERV).
• If you want to use the power saving function, you have to connect Wired Remote Controller to only one indoor
unit and one ventilator(ERV).
(1) Using One Wired Remote Controller to control multiple indoor units and ventilator(ERV)
(2)
Using One Wired Remote Controller to control indoor units connected to dierent outdoor unit and
ventilator(ERV)
Outdoor Unit
Indoor Unit
Wired Remote
Controller
Outdoor Unit
Indoor Unit
COM1(F1,F2)
COM2(F3,F4)
COM1(F1,F2)
Ventilator(ERV)
COM2(F3,F4)
uhzh~GyGjt~yT~lXWuluptWZ^X]hOXPUGGGXX YWXZTWYTWXGGG㝘䟸G]aZ[aW`

12
Outdoor Unit
Indoor Unit
COM1(F1,F2)
Wired Remote
Controller (Master)
COM2(F3,F4)
Wired Remote
Controller (Slave)
Wired Remote Controller
(Master)
COM2(F3, F4)
Master ventilator(ERV)
COM1(F1, F2)
Ventilator(ERV)
Wired Remote Controller
(Slave)

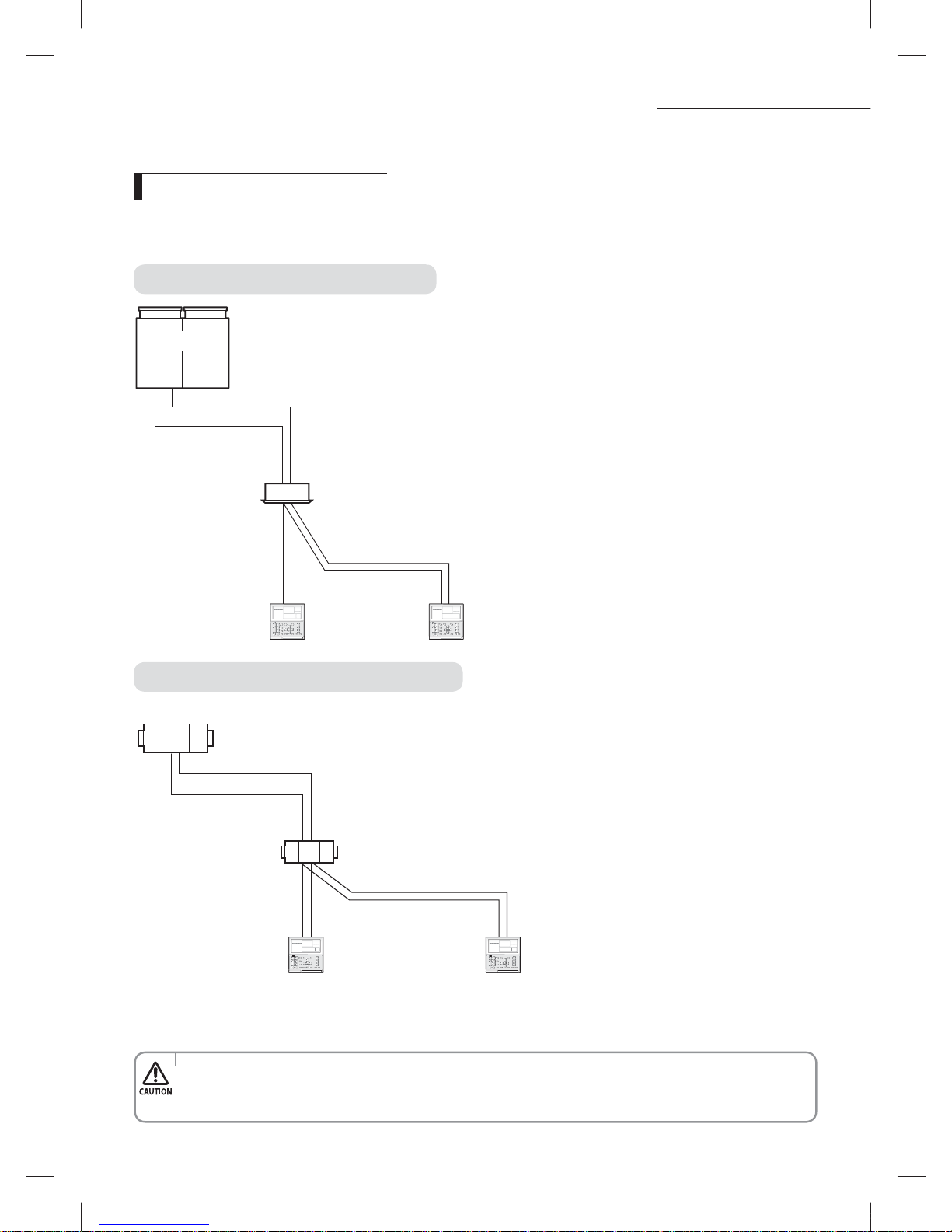

Controlling 2-Remote controller
X
2-Remote controller is controlling one indoor unit, ventilator(ERV) or one group of indoor units and
ventilator(ERV) with two remote controllers.
When Connected to an Indoor Unit Only
When Connected to an ventilator(ERV) Only
• For the slave Wired Remote Controller settings, please refer to the sections about the additional functions of the
Wired Remote Controller. (Refer to page20)
0: Master, 1 : Slave
Wired Remote Controller Installation
uhzh~GyGjt~yT~lXWuluptWZ^X]hOXPUGGGXY YWXZTWYTWXGGG㝘䟸G]aZ[aW`

13
ENGLISH
Outdoor Unit
Indoor Unit
COM1(F1,F2)
Wired Remote
Controller (Master)
COM2(F3,F4)
Wired Remote
Controller (Slave)
COM2(F3,F4)
Ventilator(ERV)
When Connected to an Indoor Unit and an ventilator(ERV) Together
• Regardless of the indoor unit group address (RMC address), only the indoor units connected to COM2are
controlled by 2-remote controller.
• For the slave Wired Remote Controller settings, please refer to the sections about the additional functions of the
Wired Remote Controller. (Refer to page20)
0: Master, 1 : Slave
uhzh~GyGjt~yT~lXWuluptWZ^X]hOXPUGGGXZ YWXZTWYTWXGGG㝘䟸G]aZ[aW`

14
Initializing Your Wired Remote Controller Communication

If the number of indoor unit or ventilator(ERV) is decreased while you are using your remote control to control one
indoor unit, ventilator(ERV) or a group of indoor units and ventilator(ERV), then you need to initialize your remote
controller communication.
Wired Remote Controller Installation
1. Press the Esc and Delete buttons at the same time for more than ve seconds.
X
Your Wired Remote Controller will be initialized, and the device will search for the indoor units/ventilator(ERV)
connected to your Wired Remote Controller again.
uhzh~GyGjt~yT~lXWuluptWZ^X]hOXPUGGGX[ YWXZTWYTWXGGG㝘䟸G]aZ[aXW

15
ENGLISH
LCD Display
Errors Displayed on Your Wired Remote Controller
X
Error codes for the Wired Remote Controller and the product connected to your Wired Remote Controller will be
displayed in the LCD display.
Indoor Unit
When an Error Occurs in Your Indoor/Outdoor Units (Product Group Display: A)
X
The product address for the error will be displayed, followed by the error code.
Example : Error 101 occurs for Indoor Unit No. 200012.
Ventilator(ERV)
When an Error Occurs in Your Ventilator(ERV) (Product Group Display: B)
X
The product address for the error will be displayed, followed by the error code.
Example : Error 121 has occurred at ventilator(ERV) No. 300012.
When an Error Occurs in Your Wired Remote Controller
X
Only an error code will be displayed. (No address will be displayed.)
Example : Error 601 has occurred at your Wired Remote Controller.
uhzh~GyGjt~yT~lXWuluptWZ^X]hOXPUGGGX\ YWXZTWYTWXGGG㝘䟸G]aZ[aXW

16

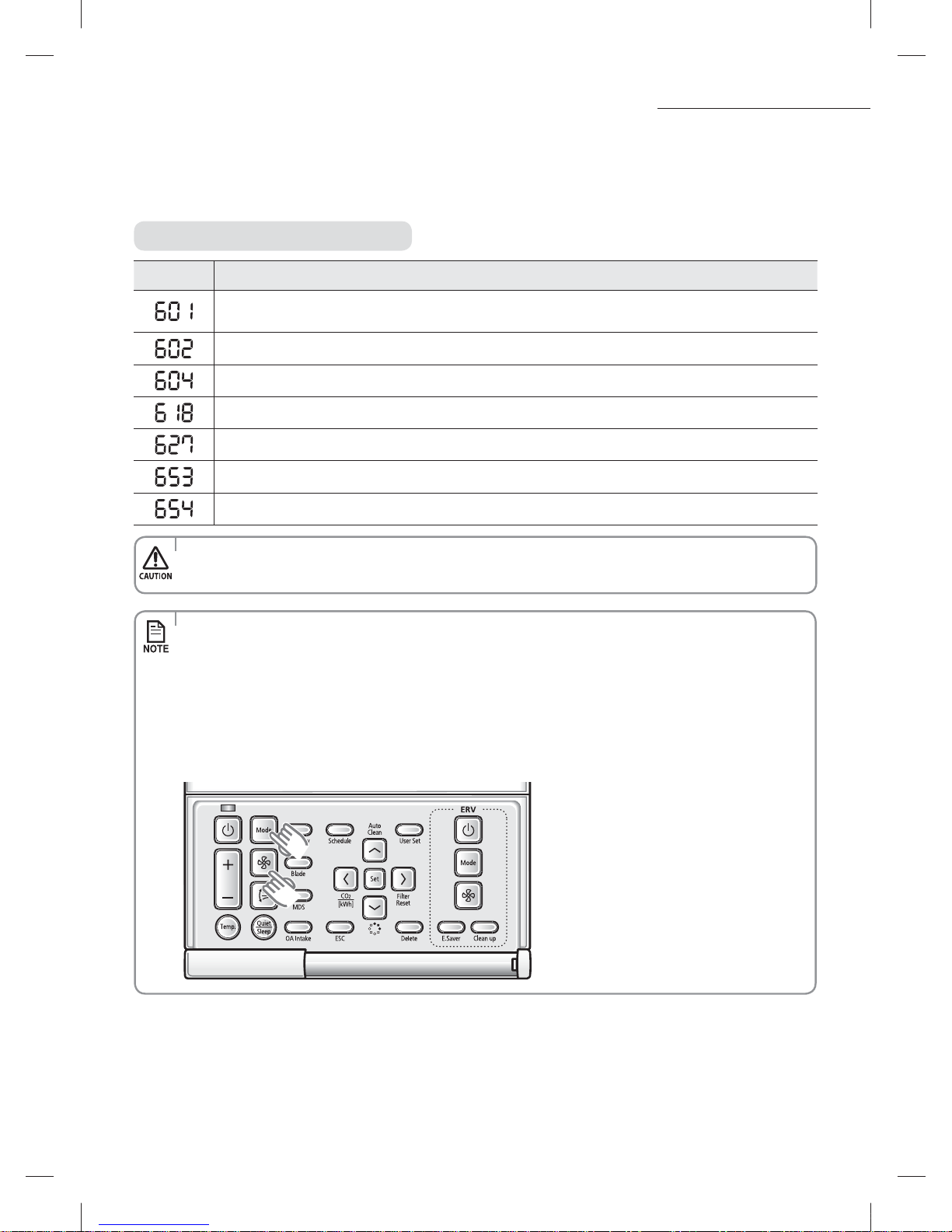

AA
Display Description
Communication error between wired remote controller and indoor/ERV units after successful
communication.
No communication between Master(Main) and Slave(Sub) wired remote controllers.
No communication between wired remote controller and indoor/ERV units
Over 16indoor/ERV indoor units installed.
Two or more wired remote controllers set as Slave(SUB).
Temperature sensor Open/Short error.
EEPROM Read, Write error
• For the error codes for your indoor/outdoor units and ventilator(ERV), refer to the installation manual of each
device.
[Setting/Cancelling the Mode master indoor unit]
• Mode master indoor unit setting is simply selecting an indoor unit that will become standard among many
indoor units to prevent mixed operation (which one or more indoor units operating in dierent operation
mode).
- Setting: Connect just 1 indoor unit and stop the operation. Then press and hold the Mode button for 5seconds
to set the indoor unit as 'Mode master indoor unit'
- Cancelling: Connect just 1 indoor unit and stop the operation. Then press and hold the Fan speed button for 5
seconds to cancel the 'Mode master indoor unit' setting.
Wired Remote Controller Installation
Wired Remote Controller Error Codes
uhzh~GyGjt~yT~lXWuluptWZ^X]hOXPUGGGX] YWXZTWYTWXGGG㝘䟸G]aZ[aXX

ENGLISH
17
AA
Main Menu Sub-menu 123 546
Data bit
Additional Functions of Your Wired Remote Controller
Wired Remote Controller Installation/Service Mode
uhzh~GyGjt~yT~lXWuluptWZ^X]hOXPUGGGX^ YWXZTWYTWXGGG㝘䟸G]aZ[aXX

AA
18
1. If you want to use the various additional functions for your Wired Remote Controller, press the Set and
Esc buttons at the same time for more than three seconds.
X
You will enter the additional function settings, and the [main menu] will be displayed.
2. Refer to the list of additional functions for your Wired Remote Controller on the next page, and select the desired
menu.
X
Using the [ ∧ ]/[ ∨ ]buttons, select a main menu number and press the [ ＞ ]button to enter the sub-menu setting
screen.
X
Using the [ ∧ ]/[ ∨ ]buttons, select a sub-menu number and press the [ ＞ ]button to enter data setting screen.
X
When you enter the setting stage, the current setting will be displayed.
X
Refer to the chart for data settings.
X
Using the [ ∧ ]/[ ∨ ]buttons, select the settings. Press the [ ＞ ]button to move to the next setting.
X
Press the Set button to save the settings and exit to the sub-menu setting screen.
X
Press the Esc button to exit to normal mode.
• While setting the data, you can use the [ ＜ ]/[ ＞ ]buttons to set the range of Data bit.
• While conguring the setting, press the Esc button to exit to the setting sub-menu without saving your
changes.
Wired Remote Controller Installation/Service Mode
uhzh~GyGjt~yT~lXWuluptWZ^X]hOXPUGGGX_ YWXZTWYTWXGGG㝘䟸G]aZ[aXX

19
ENGLISH
Main
menu
Sub
menu Function Data
bit
Factory
setting
Description Unit
1
1Wireless remote controller
Option setting/checking (1)
Cooling/Heating selection 1 00– Cooling/Heating,
1 – Cooling only -
Use of wireless remote controller 210– No use, 1 - Use -
MAIN/SUB wired remote
controller 30 0–MAIN, 1- SUB -
Temperature unit 400– Celcius(°C), 1 – Fahrenheit(°F) -
2Wireless remote controller
Option setting/checking (2)
Temperature sensor selection 1 00– Indoor unit,
1 – Wired remote controller -
Use of average temperature 20 0– No use, 1 - Use -
Use of Auto mode 310– No use, 1 - Use -
Temperature display 40 0– Set temperature,
1 - Room temperature -
AC On/Off button function 50
0– Indoor unit + ERV,
1 – Indoor unit only,
2– ERV only,
-
3Blade
setting/checking
Lock of Blade1 1 00– Unlock, 1 – lock -
Lock of Blade2200– Unlock, 1 – lock -
Lock of Blade330 0– Unlock, 1 – lock -
Lock of Blade4400– Unlock, 1 – lock -
4ERV option
Setting/checking
Use of By-Pass mode 1 00– No use, 1 - Use -
Use of Auto mode 20 0– No use, 1 - Use -
Use of air purification mode 30 0– No use, 1 - Use -
Use of external control 40 0– No use, 1 - Use -
5Room Temperature
compensation
Temperature control reference 1,2,30 -9~ 40°C(15~104°F)
0.1°C
Temperature compensation value 4,5,60 -9.9~ 9.9°C
0.1°C
6Number of connected units Number of indoor units 1,2-0~ 16-
Number of ERVs 3,4-0~ 16-
7Temperature increment/decrement (°C only) 1 00-1°C, 1-0.5°C, 2-0.1°C -
8Set/Check ERV Energy saving
operation
Select individual Energy saving
operation 10
0-ON/OFF alternating operation,
1-Outdoor air cooling operation
for different temperature setting
-
Minimum temperature of
outdoor air cooling 3,4155~ 15°C (41~59°F) °C
0Factory option setting 1 00– Unchanged
1 – Factory setting -
21Software code 1~6- Software code -
2Software version 1~6- Software version -
Additional Functions of Your Wired Remote Controller
• ‘NONE’will be displayed if the indoor unit does not support the function.
In some cases, the setting may not possible or it may be not applied though it is set on the unit.
• If communication initialization is needed after the setting, the system will reset automatically and
communication will be initialized.
uhzh~GyGjt~yT~lXWuluptWZ^X]hOXPUGGGX` YWXZTWYTWXGGG㝘䟸G]aZ[aXX
