Samsung SGH-P310 User manual

GSM TELEPHONE
SGH-P310
GSM TELEPHONE CONTENTS
1. Safety Precautions
2. Specification
3. Product Function
4. Array course control
5. Exploded View and Parts List
6. MAIN Electrical Parts List
7. Block Diagrams
8. PCB Diagrams
9. Flow Chart of Troubleshooting
10. Reference data

Contents
1. Safety Precautions
1-1. Repair Precaution ......................................................................................................1-1
1-2. ESD(Electrostatically Sensitive Devices) Precaution ...............................................1-2
2. Specification
2-1. GSM General Specification .......................................................................................2-1
2-2. GSM Tx Power Class ...............................................................................................2-2
3. Product Function
3-1. Main Function ............................................................................................................3-1
4. Array course control
Software Downloading
4-1. Downloading Binary Files ..........................................................................................4-2
4-2. Pre-requsite for Downloading ....................................................................................4-2
4-3. S/W Downloader Program .........................................................................................4-3
5. Exploded View and Parts List
5-1. Cellular phone Exploded View ..................................................................................5-1
5-2. Cellular phone Part list .............................................................................................5-2

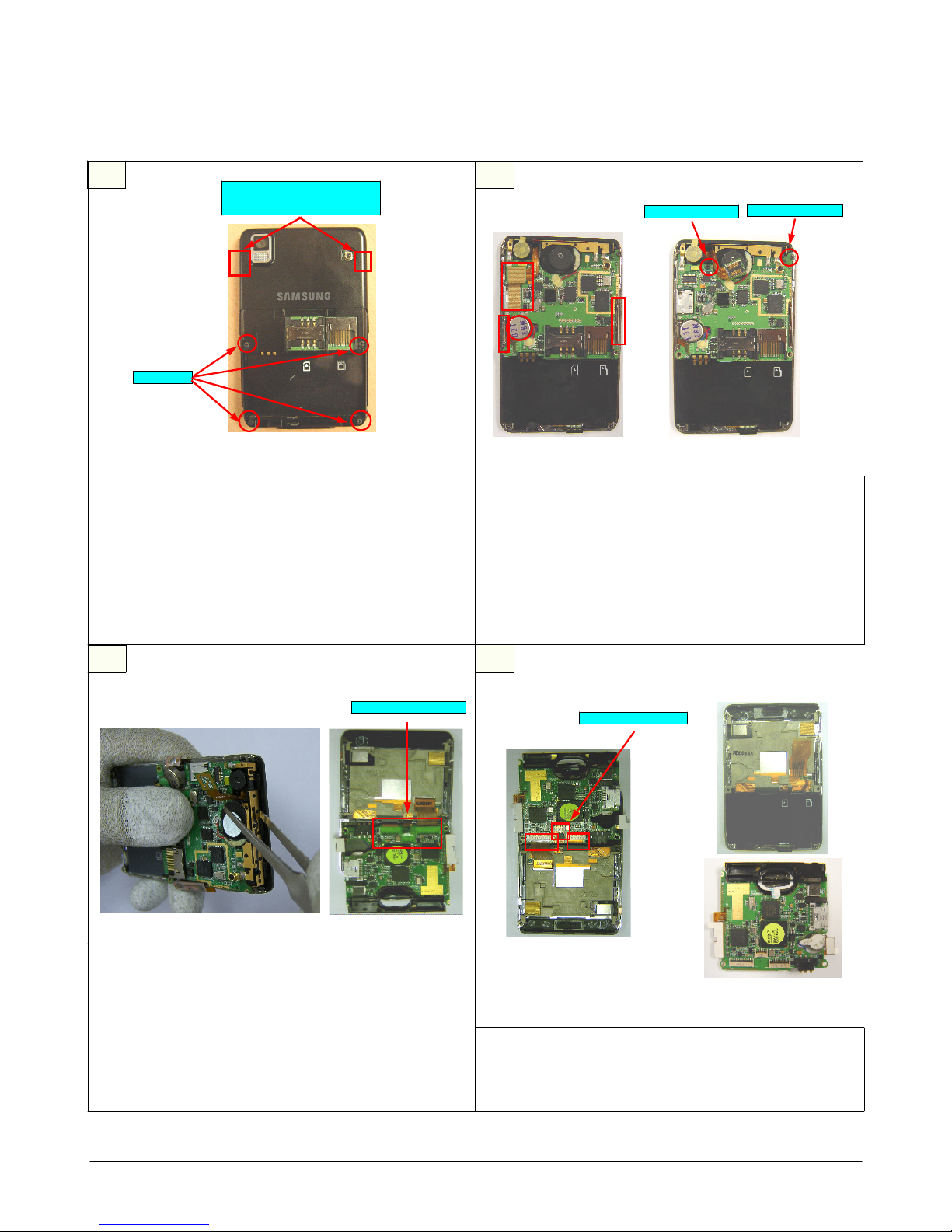

5-3. Disassembly ...............................................................................................................5-4
5-4. Assembly ....................................................................................................................5-6
5-5. LCD KIT Disassembly ...............................................................................................5-8
5-6. LCD KIT Assembly ....................................................................................................5-9
6. MAIN Electrical Parts List
7. Block Diagrams
8. PCB Diagrams

Contents
9. Flow Chart of Troubleshooting
9-1. Baseband
9-1-1. Power ON .............................................................................................................9-1
9-1-2. Initial ......................................................................................................................9-4
9-1-3. Sim Part ................................................................................................................9-6
9-1-4. Charging Part ........................................................................................................9-8
9-1-5. Microphone Part ....................................................................................................9-9
9-1-6. Speaker Part .......................................................................................................9-11
9-1-7. LCD ......................................................................................................................9-13
9-1-8. Camera ................................................................................................................9-16
9-2. RF
9-2-1. GSM Receiver.......................................................................................................9-18
9-2-2. DCS Receiver.......................................................................................................9-19
9-2-3. PCS Receiver.......................................................................................................9-20
9-2-4. GSM Transmitter...................................................................................................9-23
9-2-5. DCS Transmitter...................................................................................................9-24
9-2-6. PCS Transmitter...................................................................................................9-25
9-2-7. Bluetooth Part .....................................................................................................9-27
10. Reference data

SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-1
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
●Repair in Shield Box, during detailed tuning.
Take specially care of tuning or test,
because specipicty of cellular phone is sensitive for surrounding interference(RF noise).
●Be careful to use a kind of magnetic object or tool,
because performance of parts is damaged by the influence of manetic force.
●Surely use a standard screwdriver when you disassemble this product,
otherwise screw will be worn away.
●Use a thicken twisted wire when you measure level.
A thicken twisted wire has low resistance, therefore error of measurement is few.
●Repair after separate Test Pack and Set because for short danger (for example an
overcurrent and furious flames of parts etc) when you repair board in condition of
connecting Test Pack and tuning on.
●Take specially care of soldering, because Land of PCB is small and weak in heat.
●Surely tune on/off while using AC power plug, because a repair of battery charger is
dangerous when tuning ON/OFF PBA and Connector after disassembing charger.
●Don't use as you pleases after change other material than replacement registered on SEC
System. Otherwise engineer in charge isn't charged with problem that you don't keep this
rules.

SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easilly by static electricity. Such parts are called by
ESD(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
●Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity
prevention string on wrist.
●Use earthed soldering steel when you connect or disconnect ESD.
●Use soldering removing tool to break static electricity. , otherwise ESD will be damaged by
static electricity.
●Don't unpack until you set up ESD on product. Because most of ESD are packed by box
and aluminum plate to have conductive power,they are prevented from static electricity.
●You must maintain electric contact between ESD and place due to be set up until ESD is
connected completely to the proper place or a circuit board.

2. Specification
2-1
2-1. GSM General Specification
GSM900
Phase 1
EGSM 900
Phase 2
DCS1800
Phase 1 PCS1900
Freq. Band[MHz]
Uplink/Downlink
890~915
935~960
880~915
925~960
1710~1785
1805~1880
1850~1910
1930~1990
ARFCN range 1~124 0~124 & 975~1023 512~885 512~810
Tx/Rx spacing 45 MHz 45 MHz 95 MHz 80 MHz
Mod. Bit rate/
Bit Period
270.833 kbps
3.692 us
270.833 kbps
3.692 us
270.833 kbps
3.692 us
270.833 kbps
3.692 us
Time Slot
Period/Frame Period
576.9 us
4.615 ms
576.9 us
4.615 ms
576.9 us
4.615 ms
576.9 us
4.615 ms
Modulation 0.3 GMSK 0.3 GMSK 0.3 GMSK 0.3 GMSK
MS Power 33 dBm~13 dBm 33 dBm~5 dBm 30 dBm~0 dBm 30 dBm~0 dBm
PowerClass 5pcl~15pcl 5pcl~19pcl 0pcl~15pcl 0pcl~15pcl
Sensitivity -102 dBm -102 dBm -100 dBm -100 dBm
TDMA Mux 8 8 8 8
Cell Radius 35 Km 35 Km 2 Km -

Speclflcation
2-2
2-2. GSM Tx Power Class
TX Power
control level GSM900
5 33±2 dBm
6 31±2 dBm
7 29±2 dBm
8 27±2 dBm
9 25±2 dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3 dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control level DCS1800
0 30±3 dBm
1 28±3 dBm
2 26±3 dBm
3 24±3 dBm
4 22±3 dBm
5 20±3 dBm
6 18±3 dBm
7 16±3 dBm
8 14±3 dBm
9 12±4 dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control level PCS1900
0 30±3 dBm
1 28±3 dBm
2 26±3 dBm
3 24±3 dBm
4 22±3 dBm
5 20±3 dBm
6 18±3 dBm
7 16±3 dBm
8 14±3 dBm
9 12±4 dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm

SAMSUNG Proprietary-Contents may change without notice
3. Product Function
3-1
This Document can not be used without Samsung's authorization
Main Function
- Camera and camcorder
- Image editor
- Music player
- Photo printing
- Phone to TV
- File viewer
-Bluetooth
- Web browser
- Offline mode
-E-mail
- Multimedia Message Service
-Java
- Voice recorder

SAMSUNG Proprietary-Contents may change without notice
4. Array course control
4-1
This Document can not be used without Samsung's authorization
Test Jig (GH80-03307A)
Test Cable (GH39-00478A)
RF Test Cable (GH39-00182A)

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-2
This Document can not be used without Samsung's authorization
Software Downloading
4-1. Downloading Binary Files
• Three binary files for downloading SGh-P310.
– P310XXFF3.s3 : Main source code binary.
4-2. Pre-requsite for Downloading
• Downloader Program(OptiFlash.exe)
• SGH-P310 Mobile Phone
• Data Cable
• Binary files

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-3
This Document can not be used without Samsung's authorization

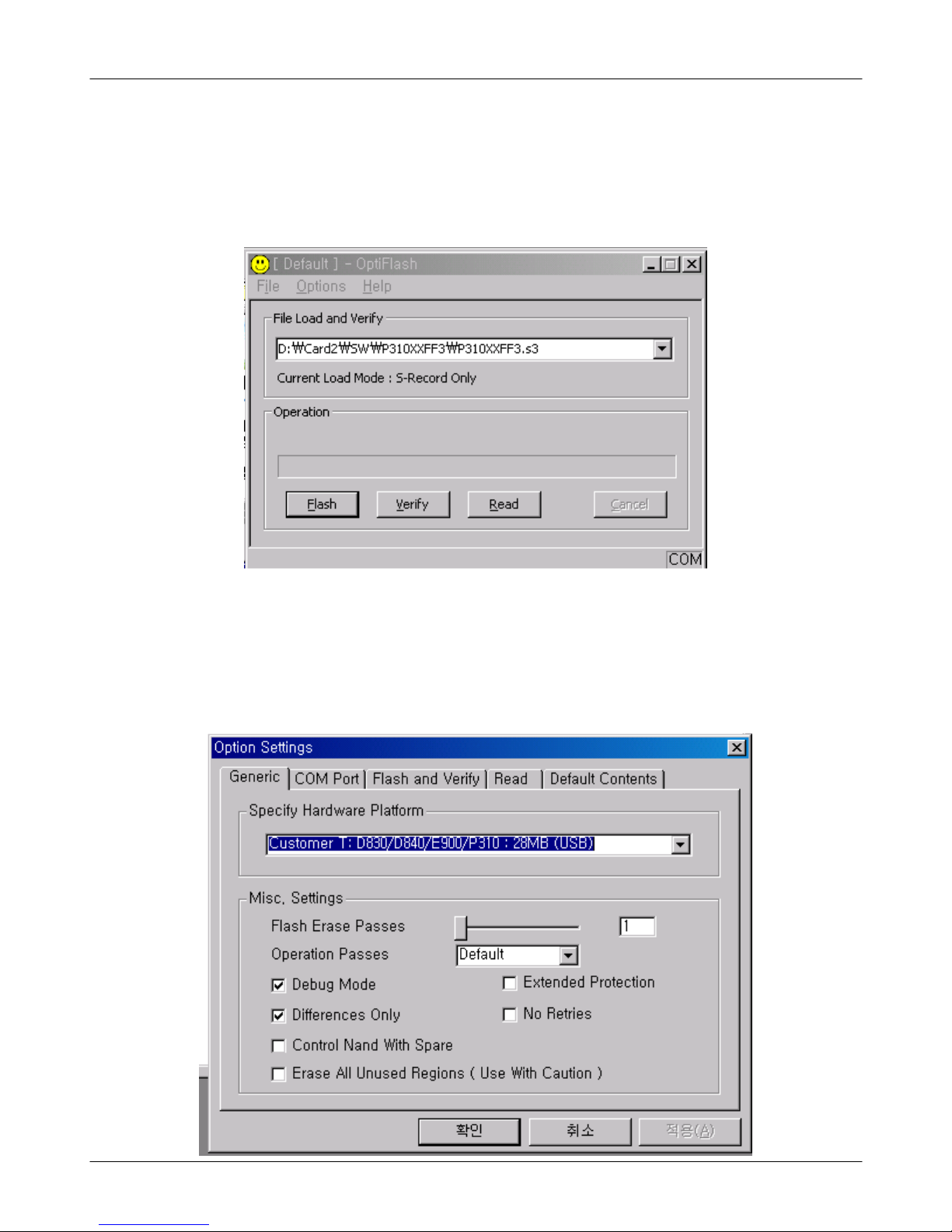

4-3. S/W Downloader Program
1. Load the binary download programby executing the “OptiFlash.exe”
2. Select the “Options” -> “Settings” -> “Generic” -> “Specify hardware
platform”.
Choose hardware platform for the downloader file setting.
Set the everything else as the default values which are shown below

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-4
This Document can not be used without Samsung's authorization
3. Select the COM port when the download cable is connected
Up to twelve ports are supported. Additionally you can select the
maximum transfer speed OptiFlash will use to communicate with
the phone. However, OptiFlash will use a slower speed if either the
PC’s or the phone’s serial hardware is incapable of handling the
selected speed

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-5
This Document can not be used without Samsung's authorization
4. Select the“Flash&Verify” -> “Browse”
Set the directory path and choose the latest s/w binary, for example
“X820XXYY.s3”,for the downloader binary setting.
Make sure that not to change the reserved memory
regions.
In case of X820 the reserved regions are :
-0x20000010 – 0x2000ffff
-0x21ff0000– 0x21ff1fff
-0x29000000 – 0x30000000

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-6
This Document can not be used without Samsung's authorization
5. Click “OK” button then press “Flash”.
(Before pressing ‘Flash’ button, push the button ‘*’and ‘END’ at the same
time. Then press ‘Flash’.)
Downloader will upload the binary file as below for the downloading. 
6. When downloading is finished successfully, there is a “All is well”
message. 
7. After finishing downloading, Certain memory resets should be done to
guarantee the normal performance.
8. Confirm the downloaded version name and etc. :
*#1234#
Full Reset : 
*2767*3855#

SAMSUNG Proprietary-Contents may change without notice
5. Exploded View and Parts List
5-1
This Document can not be used without Samsung's authorization
5-1. Cellular phone Exploded View
QMW04
QFR01
QLC01
QLB01
QAN02
QMP01
QVK01
QCR08
QCA01
QRE01
QRF01
QVO01
QBA02
QBA00
QRF03
QCK01
QKP01
QME01
QCA02
QMO01
QCR08
QVO06
QCR10
QCR04
QSP01
QBA01
QMI03
QVO07
QME03

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-2
This Document can not be used without Samsung's authorization
Design LOC Discription SEC CODE
QAN02 INTENNA-SGHP310 GH42-00921A
QBA00 ASSY COVER-BATTERY GH98-01619A
QBA01 BATTERY-1040MAH,BLK,ENG,MAIN GH43-02564A
QBA02 BATTERY-750MAH,BLK,ENG,MAIN GH43-02565A
QCA01 UNIT-2M CAMERA GH59-03429A
QCA02 UNIT-CAMERA KEY GH59-03402A
QCR04 SCREW-MACHINE 6001-001479
QCR08 SCREW-MACHINE 6001-001456
QCR10 SCREW-MACHINE 6001-001633
QFR01 ASSY CASE-FRONT GH98-01542A
QKP01 ASSY KEYPAD-(XEF/XKA) GH98-01620A
QLB01 ASSY BRACKET-LCD GH98-01610A
QLC01 LCD-LCD MODULE,SGHP310 GH07-00954A
QME01 UNIT-KEY FPCB GH59-03401A
QME03 UNIT-TOUCH KEY GH59-03398A
QMI03 RMO-RUBBER HOLDER MIC GH73-07572A
QMO01 MOTOR DC GH31-00088A
QMP01 PBA MAIN-SGH P310 GH92-02774A
QMW04 ASSY COVER-MAIN WINDOW GH98-01611A
QRF01 PMO-COVER RF GH72-32601A
QSP01 SPEAKER 3001-002027
QVK01 UNIT-VOLUME KEY GH59-03396A
QVO01 PMO-VOLUME KEY GH72-32600A
QVO06 NDC-DECO KEY GH71-06837A
QVO07 IPR-DECO KEY STOPPER GH70-01641A
QRE01 ASSY CASE-REAR GH98-01618A
QRF03 PMO-COVER EAR SLIDE GH72-32598A
QCK01 PMO-CAMERA KEY GH72-32599A
5-2. Cellular phone Parts list

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-3
This Document can not be used without Samsung's authorization
Discription SEC CODE
BAG PE 6902-000297
CBF INTERFACE-DATA LINK CABLE GH39-00444A
ADAPTOR-SGHD800 TA(EU) GH44-01060A
S/W CD-SAMSUNG PC STUDIO 3.0 GH46-00307A
UNIT-EARPHONE(BLK) GH59-02499A
LABEL(P)-WATER SOAK GH68-02026A
LABEL(P)-WATER SOAK GH68-02026A
LABEL(P)-OPEN MP3 GH68-11246A
LABEL(R)-MAIN(FRANCE) GH68-12149B
MANUAL USERS-EU FRENCH GH68-12467A
BOX(P)-UNIT MAIN(EU) GH69-04386A
CUSHION-CASE TA2 MA4 GH69-04395A
RMO-RUBBER BT GH73-08468A
MPR-TAPE JY VOL KEY GH74-26344A
MPR-TAPE JY CAM KEY GH74-26345A
MPR-TAPE FRONT GH74-26347A
MPR-INSU TAPE KEY CONN GH74-26619A
MPR-GASK TAPE GOLD IF CONN GH74-26620A
MPR-ELEC TAPE CAM BT GH74-26904A
MPR-INSU TAPE TOUCH KEY GH74-28135A
MPR-SPONGE IF CONN GH74-28137A
MPR-INSU TAPE GH74-28345A

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-4
This Document can not be used without Samsung's authorization
5-3. Disassembly
1
3
2
4
1) Insert tweezer into the upper side of Intenna like a
picture, then detach PBA Ass’y from Front Ass’y with
care.
2) Detach a tape of connectors.
※caution
1) Please be careful when you detach PBA
Ass’y, because there
is Double-stick on the below.
1) After take 3 FPCBs out connector, detach
PBA Ass’y from Front Ass’y.
※caution
1) Be careful with the damages of connectors.
1) Unscrew 4points rear bolts the back of a
set.
2) First take the left side hook apart, next rig
ht side and then remove the whole Rear
like upper picture.
※caution
1) When you take a Rear apart, be careful a
out the damage of the
hook.
1) Detach a EMI tape of IF connector and divide
camera FPCB from the
connector.
2) Detach a camera key FPCB, a volume key FPCB,
and a motor stick to the Front then unscrew a and b.
※caution
1) Be careful, the motor wire isn’t down.
2) Be careful with the damages of FPCBS.
1.4*5
The location of
the hook Bolt A:1.4*3 Bolt B:1.4*4
Isolation Tape 3 connectors

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-5
This Document can not be used without Samsung's authorization
56
1) Remove a rubber with tweezers which
attached left-upper side of a LCD Braket.
2) Unscrew and take apart the LCD Braket.
※caution
1) Be careful with the damage of FPCB when
removing.
1) Band a Front Ass’y and make a space.
Squeeze a tweezers into the space and
detach the LCD from a Window carefully.
※caution
1) Detach very carefully because there is
Double-stick between the LCD and the
Window.
1.4*3

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-6
This Document can not be used without Samsung's authorization
1
3
2
4
1) Place the MIC as the picture below
※caution
1) Check the MIC FPCB is OK
1) Put the MIC COVER and CREW
2) Attach KEYPAD
3) Press the KEYPAD not to be detached
※caution
1) Check the KEY PAD is OK
5-4. Assembly
1) As seen above, insert an each FPCB in the
front set to the connectors in PBA,
※caution
1) Each connector should be certainly clicked
along the marked line
2) Be careful of the possible damage on FPCB
1) Stick the insulation tape on the connectors.
2) Fold up the PBA and put it on the front set.
※caution
1) Edge of PBA should be well-fit to the hook
in LCD bracket.
3 connectors Insulation Tape
Bolt A(1.4*3) Bolt B(1.4*4)
