Samsung SM-N910U User manual

www.samsung.com/hk
User Manual
SM-N910U
English (HK). 09/2014. Rev.1.0

2
Table of Contents
Read me first
Getting started
7 Package contents
8 Device layout
10 S Pen
13 Using the SIM or USIM card and
battery
19 Using a memory card
21 Turning the device on and off
21 Locking and unlocking the screen
Basics
22 Using the touchscreen
25 Home screen layout
28 Notification and quick settings panels
30 Opening apps
30 Installing or uninstalling apps
32 Entering text
35 Screen capture
35 Using the dictionary
36 My Files
37 Power saving feature
38 Viewing help information
S Pen features
39 Air command
40 Action memo
42 Smart select
43 Image clip
44 Screen write
45 S Note
52 Scrapbook
52 Using the S Pen
Motions & usability features
56 Motions and gestures
59 Multi window
64 One-handed operation
65 Increasing touchscreen sensitivity
Personalising
66 Managing the Home and All apps
screens
68 Setting wallpaper and ringtones
69 Changing the screen lock method
70 My Places
73 Finger Scanner
78 Private mode

Table of Contents
3
112 S Voice
114 Music
116 Video
118 Internet
119 Voice Recorder
121 Clock
122 Calculator
123 Dropbox
123 Flipboard
124 Smart Remote
126 Evernote
127 PEN.UP
127 Google apps
Connecting with other
devices
130 Quick Connect
132 Bluetooth
134 Wi-Fi Direct
135 NFC
138 Screen Mirroring
140 MirrorLink
141 Mobile printing
Device & data manager
142 Updating the device
143 Transferring files between the device
and a computer
144 Backing up and restoring data
144 Performing a data reset
79 Easy mode
80 Transferring data from your previous
device
81 Setting up accounts
Phone & contacts
83 Phone
86 Contacts
Messages & email
88 Messages
89 Email
Camera & gallery
91 Camera
100 Gallery
Safety assistance
103 Emergency mode
104 Send help messages
Useful apps
105 Car mode
107 S Finder
108 S Planner
110 S Health

Table of Contents
4
Settings
145 An introduction
145 Configuring settings
145 QUICK SETTINGS
146 CONNECTIONS
150 DEVICE
155 PERSONALISATION
157 SYSTEM
161 APPLICATIONS
Accessibility
162 About Accessibility
162 Using the Home key to open
accessibility menus
162 Voice feedback (TalkBack)
168 Vision
170 Hearing
172 Dexterity and interaction
175 Answering or ending calls
175 Using single tap mode
175 Managing accessibility settings
Troubleshooting

5
Read me first
Please read this manual before using the device to ensure safe and proper use.
•
Descriptions are based on the device’s default settings.
•
Some content may differ from your device depending on the region, service provider, or
device’s software.
•
Content (high quality content) that requires high CPU and RAM usage will affect the
overall performance of the device. Apps related to the content may not work properly
depending on the device’s specifications and the environment that it is used in.
•
Samsung is not liable for performance issues caused by apps supplied by providers other
than Samsung.
•
Samsung is not liable for performance issues or incompatibilities caused by edited
registry settings or modified operating system software. Attempting to customise the
operating system may cause the device or apps to work improperly.
•
Software, sound sources, wallpapers, images, and other media provided with this device
are licensed for limited use. Extracting and using these materials for commercial or other
purposes is an infringement of copyright laws. Users are entirely responsible for illegal
use of media.
•
You may incur additional charges for data services, such as messaging, uploading and
downloading, auto-syncing, or using location services depending on your data plan. For
large data transfers, it is recommended to use the Wi-Fi feature.
•
Default apps that come with the device are subject to updates and may no longer be
supported without prior notice. If you have questions about an app provided with
the device, contact a Samsung Service Centre. For user-installed apps, contact service
providers.
•
Modifying the device’s operating system or installing softwares from unofficial sources
may result in device malfunctions and data corruption or loss. These actions are violations
of your Samsung licence agreement and will void your warranty.

Read me first
6
Instructional icons
Warning: situations that could cause injury to yourself or others
Caution: situations that could cause damage to your device or other equipment
Notice: essential information for using the device, functional limitations of using the
device, usage charge information, or legal notices
Note: notes, usage tips, or additional information

7
Getting started
Package contents
Check the product box for the following items:
•
Device
•
Battery
•
Quick start guide
•
The items supplied with the device and any available accessories may vary
depending on the region or service provider.
•
The supplied items are designed only for this device and may not be compatible
with other devices.
•
Appearances and specifications are subject to change without prior notice.
•
You can purchase additional accessories from your local Samsung retailer. Make
sure they are compatible with the device before purchase.
•
Use only Samsung-approved accessories. Using unapproved accessories may cause
the performance problems and malfunctions that are not covered by the warranty.
•
Availability of all accessories is subject to change depending entirely on
manufacturing companies. For more information about available accessories, refer
to the Samsung website.

Getting started
8
Device layout
Microphone
Back key
Multipurpose jack
Proximity/Light/Gesture
sensor
Front camera
Power key
Touchscreen
Recents key
Microphone
Home key (Fingerprint
recognition sensor)
LED indicator
Speaker
Headset jack
Main antenna
Microphone
Volume key
NFC antenna (on the
battery)
Rear camera
Flash
Back cover
Loud speaker
S Pen
Infrared port
GPS antenna

Getting started
9
•
Do not cover the antenna area with your hands or other objects. This may cause
connectivity problems or drain the battery.
•
Using a Samsung-approved screen protector is recommended. Unapproved screen
protectors may cause the sensors to malfunction.
•
Do not allow water to contact the touchscreen. The touchscreen may malfunction
in humid conditions or when exposed to water.
Keys
Key Function
Power
•
Press and hold to turn the device on or off.
•
Press to turn on or lock the screen.
Recents
•
Tap to open the list of recent apps.
•
Tap and hold to access additional options for the current
screen.
Home
•
Press to turn on the screen while the screen is locked.
•
Press to return to the Home screen.
•
Press twice to launch S Voice .
•
Press and hold to launch Google .
Back
•
Tap to return to the previous screen.
Volume
•
Press to adjust the device volume.

Getting started
10
S Pen
S Pen button
S Pen nib
Tweezers
Name Functions
S Pen nib
•
Use the S Pen to write, draw, or perform touch actions on the
screen.
•
Hover the S Pen over items on the screen to access additional
S Pen features, such as Air Button and the air view feature.
S Pen button
•
Hover the S Pen over the screen and press the S Pen button to
display the air command features.
•
While pressing and holding the S Pen button, drag the S Pen over
items to select them.
Tweezers
•
Remove the S Pen nib with the tweezers when replacing the nib.

Getting started
11
Removing the S Pen
When you remove the S Pen from the slot, the device launches Action memo or displays the
air command features depending on the S Pen detachment option setting.
To change the setting, open the All apps screen and tap
Settings
→
S Pen
→
Detachment
options
.
Replacing the S Pen nib
If the nib is dull, replace it with a new one.
1 Firmly hold the nib with the tweezers and remove it.

Getting started
12
2 Insert a new nib into the S Pen.
Be careful not to pinch your fingers with the tweezers.
•
Do not reuse old nibs. Doing so may cause the S Pen to malfunction.
•
Do not press the nib excessively when inserting the nib into the S Pen.
•
Do not insert the round end of the nib into the S Pen. Doing so may cause damage
to the S Pen or your device.
•
If the S Pen is not working properly, take it to a Samsung Service Centre.
•
If you use the S Pen at sharp angles on the screen, the device may not recognise
the S Pen actions. Do not bend or apply excessive pressure with the S Pen while
using it.
•
The Recents key and the Back key can be used with the S Pen.
•
For more information about the S Pen, visit the Samsung website.

Getting started
13
Using the SIM or USIM card and battery
Installing the SIM or USIM card and battery
Insert the SIM or USIM card provided by the mobile telephone service provider, and the
included battery.
•
Only microSIM cards work with the device.
•
Some LTE services may not be available depending on the service provider. For
more information about service availability, contact your service provider.
1 Remove the back cover.
Be careful not to damage your fingernails when you remove the back cover.
Do not bend or twist the back cover excessively. Doing so may damage the cover.

Getting started
14
2 Insert the SIM or USIM card with the gold-coloured contacts facing downwards.
•
Do not insert a memory card into the SIM card slot. If a memory card happens to
be lodged in the SIM card slot, take the device to a Samsung Service Centre to
remove the memory card.
•
Use caution not to lose or let others use the SIM or USIM card. Samsung is not
responsible for any damages or inconveniences caused by lost or stolen cards.
3 Insert the battery with the battery’s gold-coloured contacts properly aligned with the
device’s contacts.
2
1

Getting started
15

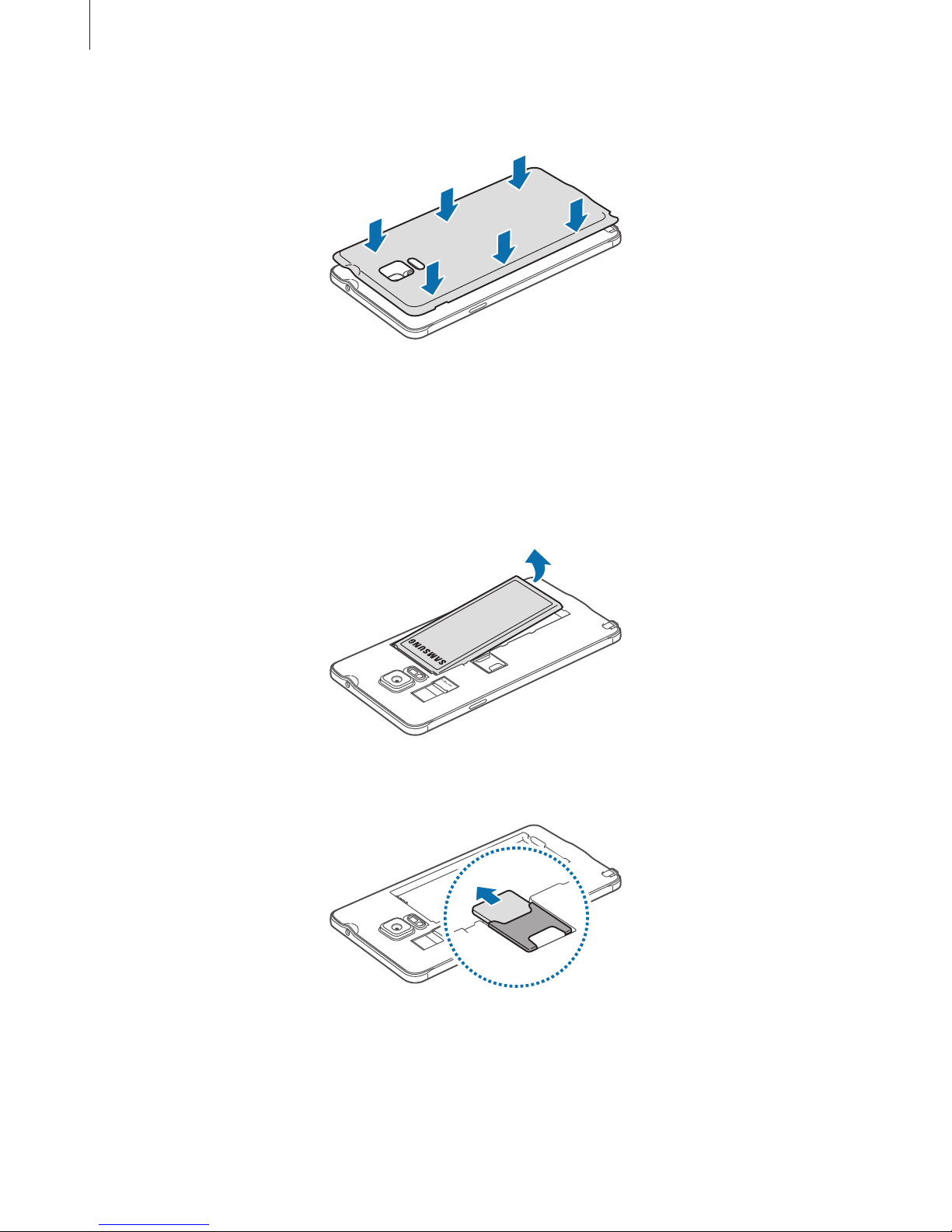

4 Replace the back cover.
Removing the SIM or USIM card and battery
1 Remove the back cover.
2 Pull out the battery.
3 Press the SIM or USIM card with your finger, and then pull it out.

Getting started
16
Charging the battery
Use the charger to charge the battery before using it for the first time. A computer can be also
used to charge the battery by connecting them via the USB cable.
Use only Samsung-approved chargers, batteries, and cables. Unapproved chargers or
cables can cause the battery to explode or damage the device.
If the battery is completely discharged, the device cannot be turned on immediately
when the charger is connected. Allow a depleted battery to charge for a few minutes
before turning on the device.
Connect the USB cable to the USB power adaptor, and then plug the end of the USB cable
into the multipurpose jack.
Connecting the charger improperly may cause serious damage to the device. Any
damage caused by misuse is not covered by the warranty.
•
If the device receives an unstable power supply while charging, the touchscreen
may not function. If this happens, unplug the charger from the device.
•
While charging, the device and the charger may heat up. This is normal and should
not affect the device’s lifespan or performance. If the battery gets hotter than usual,
the charger may stop charging.
•
If the device is not charging properly, take the device and the charger to a
Samsung Service Centre.

Getting started
17
After fully charging, disconnect the device from the charger. First unplug the charger from the
device, and then unplug it from the electric socket.
Do not remove the battery before removing the charger. This may damage the
device.
To save energy, unplug the charger when not in use. The charger does not have a
power switch, so you must unplug the charger from the electric socket when not in
use to avoid wasting power. The charger should remain close to the electric socket
and easily accessible while charging.
Reducing the battery consumption
Your device provides various options that help you conserve battery power.
•
When you are not using the device, switch to sleep mode by pressing the Power key.
•
Activate power saving mode.
•
Close unnecessary apps using the task manager.
•
Deactivate the Bluetooth feature when not in use.
•
Deactivate the Wi-Fi feature when not in use.
•
Deactivate auto-syncing of apps.
•
Decrease the backlight time.
•
Decrease the screen brightness.
•
When the battery power is low, the battery icon appears empty.
•
If you use multiple apps at once, network apps, or apps that need a connection
to another device, the battery will drain quickly. To avoid disconnecting from the
network or losing power during a data transfer, always use these apps after fully
charging the battery.
•
The device can be used while it is charging, but it may take longer to fully charge
the battery.

Getting started
18
Fast charging
The device has a built-in fast charging feature. You can use this feature to charge the battery
more quickly while the device or its screen is turned off.
About Fast charging
•
Fast charging uses battery charging technology that charges the battery faster by
increasing the charging power. The device supports Samsung’s Adaptive fast charging
feature and Qualcomm Quick Charge 2.0.
•
To use Fast charging on your device, connect it to a battery charger that supports
Adaptive fast charging or Quick Charge 2.0.
Increasing the charging speed
To increase the charging speed, turn the device or its screen off when you charge the battery.
•
While charging the battery when the device is turned off, the icon appears on the
screen.
•
While charging the battery when the device’s screen is turned on, a pop-up window
appears requesting you to turn the screen off. Turn off the screen to increase the charging
speed.
•
You cannot use the built-in fast charging feature when you charge the battery
using a standard battery charger.
•
If the device heats up or the ambient air temperature rises, the charging speed may
decrease automatically. This is a normal operating condition to prevent damage to
the device.

Getting started
19
Using a memory card
Installing a memory card
Your device accepts memory cards with maximum capacities of 128 GB. Depending on the
memory card manufacturer and type, some memory cards may not be compatible with your
device.
•
Some memory cards may not be fully compatible with the device. Using an
incompatible card may damage the device or the memory card, or corrupt the data
stored in it.
•
Use caution to insert the memory card right-side up.
The device supports the FAT and the exFAT file systems for memory cards. When
inserting a card formatted in a different file system, the device asks to reformat the
memory card.
1 Remove the back cover.
2 Insert a memory card with the gold-coloured contacts facing downwards.
3 Replace the back cover.
•
Frequent writing and erasing of data shortens the lifespan of memory cards.
•
When inserting a memory card into the device, the memory card’s file directory
appears in the
My Files
→
SD card folder.

Getting started
20
Removing the memory card
Before removing the memory card, first unmount it for safe removal.
On the Home screen, tap
Apps
→
Settings
→
Storage
→
Unmount SD card .
1 Remove the back cover.
2 Pull out the memory card.
3 Replace the back cover.
Do not remove the memory card while the device is transferring or accessing
information. Doing so can cause data to be lost or corrupted or damage to the
memory card or device. Samsung is not responsible for losses that result from the
misuse of damaged memory cards, including the loss of data.
Formatting the memory card
A memory card formatted on a computer may not be compatible with the device. Format the
memory card on the device.
On the Home screen, tap
Apps
→
Settings
→
Storage
→
Format SD card
→
Format SD
card
→
Erase everything .
Before formatting the memory card, remember to make backup copies of all
important data stored in the memory card. The manufacturer’s warranty does not
cover loss of data resulting from user actions.
