Samsung SM-G973F User manual

SM-G973F Common
Mobile Device CONTENTS
1. Safety Precautions
2. Specification
3. Product Function

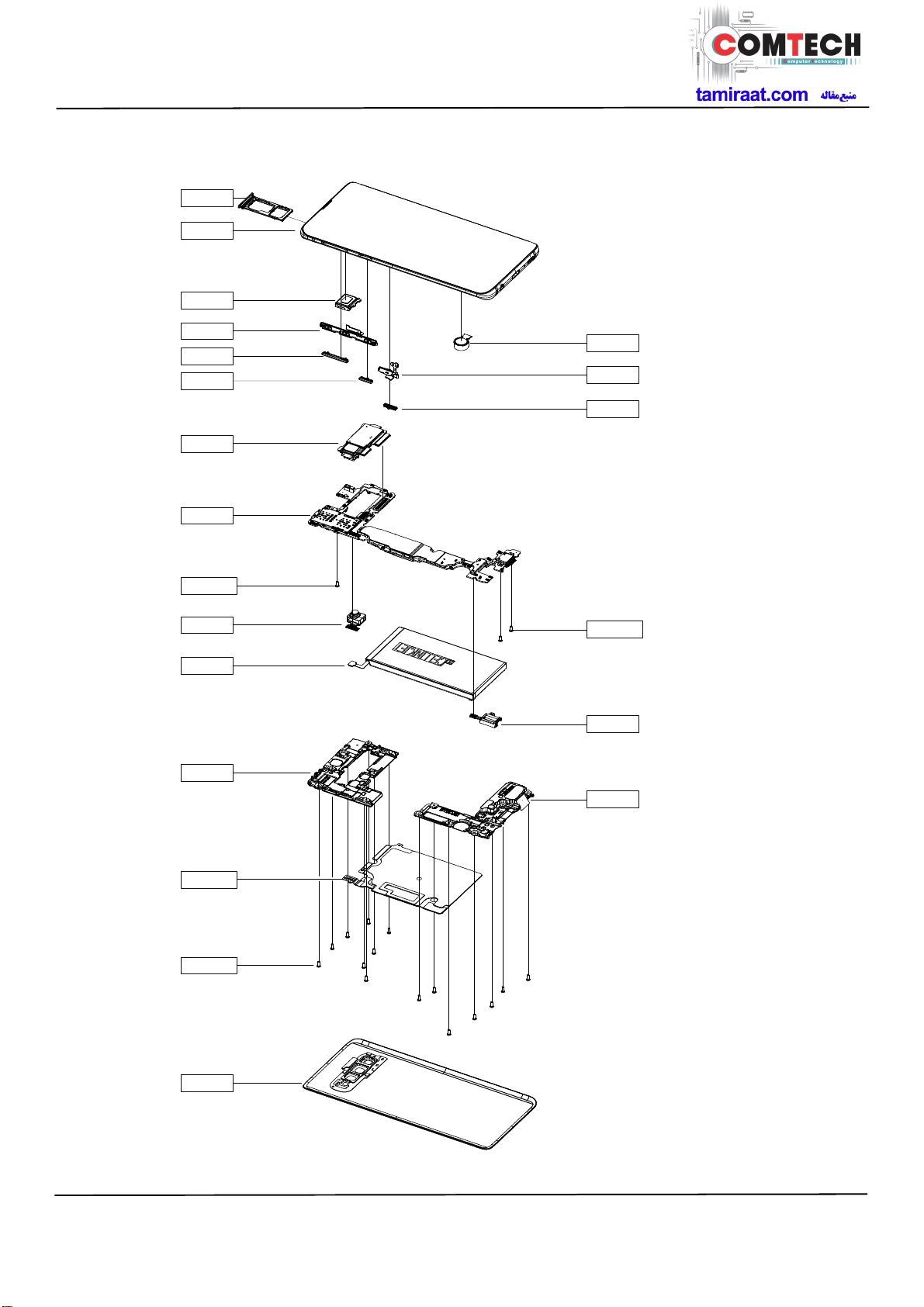

4. Exploded View and Parts list
5. MAIN Electrical Parts List
6. Level 1 Repair
7. Level 2 Repair
8. Level 3 Repair
9. Reference Abbreviation
4.
2
Notice: All functionality, features, specifications,
and other product information provided in this
document, including but not limited to, benefits,
design, pricing, components, performance,
availability, and capabiliti-es of the product are
subject to change without notice. Samsung
reserves the right to alter this doc-ument or the
product described herein at anytime, without
obligation to provide notification of such
changes.

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
1. Safety Precautions
1-1. Repair Precaution
Before attempting any repair or detailed tuning, shield the device from RF noise or static
electricity discharges.
Use only demagnetized tools that are specifically designed for small electronic repairs,
as most electronic parts are sensitive to electromagnetic forces.
Use only high quality screwdrivers when servicing products. Low quality screwdrivers can
easily damage the heads of screws.
Use only conductor wire of the properly gauge and insulation for low resistance, because of the low margin
of error of most testing equipment.
We recommend 22-gauge twisted copper wire.
Hand-soldering is not recommended, because printed circuit boards (PCBs) can be easily
damaged, even with relatively low heat. Never use a soldering iron with a power rating of
more than 100 watts and use only lead-free solder with a melting point below 250°C (482°F).
Prior to disassembling the battery charger for repair, ensure that the AC power is disconnected.
Always use the replacement parts that are registered in the SEC system. Third-party replacement parts
may not function properly.

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
1. Safety Precautions
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Many semiconductors and ESDs in electronic devices are particularly sensitive to static discharge and can
be easily damaged by it. We recommend protecting these components with conductive anti-static bags
when you store or transport them.
Always use an anti-static strap or wristband and remove electrostatic buildup or dissipate
static electricity from your body before repairing ESDs.
Ensure that soldering irons have AC adapter with ground wires and that the ground wires are properly
connected.
Use only desoldering tools with plastic tips to prevent static discharge.
Properly shield the work environment from accidental electrostatic discharge before opening
packages containing ESDs.
The potential for static electricity discharge may be increased in low humidity environments,
such as air-conditioned rooms. Increase the airflow to the working area to decrease the
chance of accidental static electricity discharges.

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of anycontentordatafrom thisdocumentwithoutSamsung’swritten authorization isstrictlyprohibited.
2. Specification
2-1. GSM General Specification
Item
GSM 850
EGSM 900
DCS1800
PCS1900
Freq. Band[MHz]
Uplink/Downlink
824~849
869~894
880~915
925~960
1710~1785
1805~1880
1850~1910
1930~1990
ARFCN range 128~251 0~124 & 975~1023 512~885 512~810
Tx/Rx spacing 45MHz 45MHz 95MHz 80MHz
Mod. Bit rate/
Bit Period
270.833kbps
3.692us
270.833kbps
3.692us
270.833kbps
3.692us
270.833kbps
3.692us
Time Slot Period/
Frame Period
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
Modulation GSM/
EGPRS
GMSK/
8PSK
GMSK/
8PSK
GMSK/
8PSK
GMSK/
8PSK
MS Power 33dBm~5dBm 33dBm~5dBm 30dBm~0dBm 30dBm~0dBm
Power Class 4(GMSK)
E2(8PSK)
4(GMSK)
E2(8PSK)
1(GMSK)
E2(8PSK)
1(GMSK)
E2(8PSK)
Sensitivity -102dBm -102dBm -100dBm -100dBm
TDMA Mux 8 8 8 8

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of anycontentordatafrom thisdocumentwithoutSamsung’swritten authorization isstrictlyprohibited.
2. Specification
2-2. WCDMA General Specification
Item
WCDMA
2100(B1)
WCDMA
1900(B2)
WCDMA
AWS(B4)
WCDMA
850(B5)
WCDMA
900(B8)
Freq. Band[MHz]
Uplink/Downlink
1920~1980
2110~2170
1850~1910
1930~1990
1710~1755
2110~2155
824~849
869~894
880~915
925~960
ARFCN range
UL：9612~9888
DL：10562~10838
UL：9262~9538
DL：9662~9938
UL：1312~1513
DL：1537~1738
UL：4132~4233
DL：4357~4458
UL：2712~2868
DL：2937~3088
Tx/Rx spacing 190MHz 80MHz 400MHz 45MHz 45MHz
Mod. Bit rate/
Bit Period
42.2Mbps(DL)
5.42Mbps(UL) 42.2Mbps(DL) 5.42Mbps(UL) 42.2Mbps(DL) 5.42Mbps(UL) 42.2Mbps(DL) 5.42Mbps(UL) 42.2Mbps(DL) 5.42Mbps(UL)
Time Slot Period/
Frame Period
WCDMA
10ms/0.667ms
HSPA
2ms/0.667ms
WCDMA
10ms/0.667ms
HSPA
2ms/0.667ms
WCDMA
10ms/0.667ms
HSPA
2ms/0.667ms
WCDMA
10ms/0.667ms
HSPA
2ms/0.667ms
WCDMA
10ms/0.667ms
HSPA
2ms/0.667ms
Modulation QPSK
16QAM
64QAM
QPSK
16QAM
64QAM
QPSK
16QAM
64QAM
QPSK
16QAM
64QAM
QPSK
16QAM
64QAM
MS Power
(dBm) 25.7 ~ -49(↓) 25.7 ~ -49(↓) 25.7 ~ -49(↓) 25.7 ~ -49(↓) 25.7 ~ -49(↓)
Power Class 3(max+24dBm) 3(max+24dBm) 3(max+24dBm) 3(max+24dBm) 3(max+24dBm)
Sensitivity -106dBm -104dBm -106dBm -104dBm -103dBm

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of anycontentordatafrom thisdocumentwithoutSamsung’swritten authorization isstrictlyprohibited.
2. Specification
2-3. LTE General Specification
Item
LTE Band1
LTE Band2
LTE Band3
LTE Band4
LTE Band5
Freq. Band[MHz]
Uplink/Downlink
1920~1980
2110~2170
1850~1910
1930~1990
1710~1785
1805~1880
1710~1755
2110~2155
824~849
869~894
ARFCN range UL:18000~18599
DL:0~599
UL:18600~19199
DL:600~1199
UL:19200~19949
DL:1200~1949
UL:19950~20399
DL:1950~2399
UL:20400~20649
DL:2400~2649
Tx/Rx spacing (MHz) 190 80 95 400 45
Channel Bandwidth
(MHz) 5/10/15/20 1.4/3/5/10/15/20 1.4/3/5/10/15/20 1.4/3/5/10/15/20 1.4/3/5/10
Modulation QPSK,16/64QAM
256QAM(DL only)
QPSK,16/64QAM
256QAM(DL only)
QPSK,16/64QAM
256QAM(DL only)
QPSK,16/64QAM
256QAM(DL only)
QPSK,16/64QAM
256QAM(DL only)
MS Power (dBm) 25.7~-39(↓) 25.7~-39(↓) 25.7~-39(↓) 25.7~-39(↓) 25.7~-39(↓)
Sensitivity (QPSK,
BW 10MHz) (dBm) -96.3 -94.3 -93.3 -96.3 -94.3
Item
LTE Band7
LTE Band8
LTE Band12
LTE Band13
LTE Band17
Freq. Band[MHz]
Uplink/Downlink
2500~2570
2620~2690
880~915
925~960
699~716
729~746
777~787
746~756
704~716
734~746
ARFCN range UL:20750~21449
DL:2750~3449
UL:21450-21799
DL:3450-3799
UL:23010~23179
DL:5010~5179
UL:23180~23279
DL:5180~5279
UL:23730~23849
DL:5730~5849
Tx/Rx spacing (MHz) 120 45 30 -31 30
Channel Bandwidth
(MHz) 5/10/15/20 1.4/3/5/10 1.4/3/5/10 5/10 5/10
Modulation QPSK,16/64QAM
256QAM(DL only)
QPSK,16/64QAM
256QAM(DL only)
QPSK,16/64QAM
256QAM(DL only)
QPSK,16/64QAM
256QAM(DL only)
QPSK,16/64QAM
256QAM(DL only)
MS Power (dBm) 25.7~-39(↓) 25.7~-39(↓) 25.7~-39(↓) 25.7~-39(↓) 25.7~-39(↓)
Sensitivity (QPSK,
BW 10MHz) (dBm) -94.3 -93.3 -93.3 -93.3 -93.3

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of anycontentordatafrom thisdocumentwithoutSamsung’swritten authorization isstrictlyprohibited.
2. Specification
Item
LTE Band18
LTE Band19
LTE Band20
LTE Band25
LTE Band26
LTE Band28
Freq. Band[MHz]
Uplink/Downlink
815~830
860~875
830~845
875~890
832~862
791~821
1850~1915
1930~1995
814~849
859~894
703~748
758~803
ARFCN range UL:23850~23999
DL:5850~5999
UL:24000~24149
DL:6000~6149
UL:24150~24449
DL:6150~6449
UL:26040~26689
DL:8040~8689
UL:26690~27039
DL:8690~9039
UL:27210~27659
DL:9210~9659
Tx/Rx spacing
(MHz) 45 45 -41 80 45 55
Channel
Bandwidth
(MHz)
5/10/15 5/10/15 5/10/15/20
1.4/3/5/10/15/2
0
1.4/3/5/10/15 3/5/10/15/20
Modulation QPSK,16/64QAM
256QAM(DL only)
QPSK,16/64QAM
256QAM(DL only)
QPSK,16/64QAM
256QAM(DL only)
QPSK,16/64QAM
256QAM(DL only)
QPSK,16/64QAM
256QAM(DL only)
QPSK,16/64QAM
256QAM(DL only)
MS Power
(dBm) 25.7~-39(↓) 25.7~-39(↓) 25.7~-39(↓) 25.7~-39(↓) 25.7~-39(↓) 25.7~-39(↓)
Sensitivity
(QPSK, BW
10MHz)
(dBm)
-96.3 -96.3 -93.3 -92.8 -93.8 -94.8

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of anycontentordatafrom thisdocumentwithoutSamsung’swritten authorization isstrictlyprohibited.
2. Specification
Item
LTE Band32
LTE Band38
LTE Band39
LTE Band40
LTE Band41
LTE Band66
Freq. Band[MHz]
Uplink/Downlink
N/A
1452~1496 2570~2620 1880~1920 2300~2400 2496~2690 1710~1780 2110~2200
ARFCN range DL:9920~10359 UL/DL:37750 ~
38249
UL/DL:38250 ~
38649
UL/DL:38650 ~
39649
UL/DL:39650 ~
41589
UL:131972 ~
132671
DL:66436 ~ 67335
Tx/Rx spacing
(MHz) N/A
0
0
0
0
400
Channel
Bandwidth
(MHz)
5/10/15/20 5/10/15/20 5/10/15/20 5/10/15/20 5/10/15/20 1.4/3/5/10/15/20
Modulation QPSK,16/64QAM
256QAM(DL only)
QPSK,16/64QAM
256QAM(DL only)
QPSK,16/64QAM
256QAM(DL only)
QPSK,16/64QAM
256QAM(DL only)
QPSK,16/64QAM
256QAM(DL only)
QPSK,16/64QAM
256QAM(DL only)
MS Power
(dBm) 25.7~-39(↓) 25.7~-39(↓) 25.7~-39(↓) 25.7~-39(↓) 25.7~-39(↓) 25.7~-39(↓)
Sensitivity
(QPSK, BW
10MHz)
(dBm))
-96.3 -96.3 -96.3 -96.3 -94.3 -95.8

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of anycontentordatafrom thisdocumentwithoutSamsung’swritten authorization isstrictlyprohibited.
2. Specification
2-4. TDSCDMA General Specification
Item
TDSCDMA2010(A)
TDSCDMA1880(F)
Chip rate 1.28 Mcps 1.28 Mcps
OBW 1.6 MHz 1.6 MHz
Freq. Band[MHz]
Uplink/Downlink 2010~2025
1880~1920
ARFCN range 10054~10121 9404~9596
Tx/Rx spacing
(MHz)
0
0
MS Power
(dBm) 25.7 ~ -48(↓) 25.7 ~ -48(↓)
Power Class 2(max+24dBm) 2(max+24dBm)
Sensitivity
(dBm /1.28 MHz) -107.3 -107.3

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of anycontentordatafrom thisdocumentwithoutSamsung’swritten authorization isstrictlyprohibited.
2. Specification
2-5. GSM Tx Power Class
TX Power
Control level
GSM850
TX Power
Control level
EGSM900
TX Power
Control level
DCS1800
TX Power
Control level
PCS1900
5 33±2 dBm 5 33±2 dBm
0
30±3 dBm
0
30±3 dBm
6 31±2 dBm 6 31±2 dBm 1 28±3 dBm 1 28±3 dBm
7 29±2 dBm 7 29±2 dBm 2 26±3 dBm 2 26±3 dBm
8 27±2 dBm 8 27±2 dBm 3 24±3 dBm 3 24±3 dBm
9 25±2 dBm 9 25±2 dBm 4 22±3 dBm 4 22±3 dBm
10 23±2 dBm 10 23±2 dBm 5 20±3 dBm 5 20±3 dBm
11 21±2 dBm 11 21±2 dBm 6 18±3 dBm 6 18±3 dBm
12 19±2 dBm 12 19±2 dBm 7 16±3 dBm 7 16±3 dBm
13 17±2 dBm 13 17±2 dBm 8 14±3 dBm 8 14±3 dBm
14 15±2 dBm 14 15±2 dBm 9 12±4 dBm 9 12±4 dBm
15 13±2 dBm 15 13±2 dBm 10 10±4 dBm 10 10±4 dBm
16 11±3 dBm 16 11±3 dBm 11 8±4 dBm 11 8±4 dBm
17 9±3dBm 17 9±3dBm 12 6±4 dBm 12 6±4 dBm
18 7±3 dBm 18 7±3 dBm 13 4±4 dBm 13 4±4 dBm
19 5±3 dBm 19 5±3 dBm 14 2±5 dBm 14 2±5 dBm
- - - - 15 0±5 dBm 15 0±5 dBm

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission,orinfringementofanycontentordatafromthisdocumentwithoutSamsung’swritten authorization isstrictlyprohibited.
3. Product Function
Main Function
Item
Description
OS Android V9.0
RF
2G
GSM : GSM850 / GSM900 / DCS1800 / PCS1900
3G
WCDMA : B1 / B2 / B4 / B5 / B8
TD-SCDMA : B34 / B39
4G
(LTE)
- FDD : B1 / B2 / B3 / B4 / B5 / B7 / B8 / B12 / B13 / B17 / B18 / B19 / B20 / B25 / B26 / B28 / B32 /
B66
- TDD : B38 / B39 / B40 / B41
Battery Typ : 3400mAh / Rated : 3300mAh
Base Band EXYNOS9820 Quad 2.7GHz(2x), 2.3GHz(2x), 1.9GHz(4x)
Other RF GPS, GLONASS, BEIDOU, Galileo, BT5.0, USB 3.1 T y p e -C, Wi-Fi 802.11 a/b/g/n/ac/ax MIMO, NFC,
MST
Camera
Triple Camera ( Wide: 12M, A/F, OIS, F1.5-2.4 / Tele: 12MP, A/F, OIS, F2.4 / Ultra Wide: 16M, F2.2)
with LED Flash, Front Camera (10M, A/F, F1.9)
LCD 6.1" Quad HD+, 3040 x 1440, Dynamic AMOLED
RAM 6GB or 8GB
Storage 128GB or 512GB (512GB storage only for 8GB RAM)
Sensor Accelerometer, Barometer, Fingerprint Sensor, Gyro Sensor, Geomagnetic Sensor, Hall Sensor, HR
Sensor, Proximity Sensor, RGB Light Sensor
Accessory Charger : 5V/2A or 9V/1.67A Data cable : USB Type-C
Ear jack : 3.5pi, 4Pin

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
4. Exploded View and Parts List
4-1. Cellular phone Exploded View
QAN01
QAN02
QBA01
QBC01
QCR205
QCR210
QCA02
QMP01
QCA01
QAR01
QVO01
QVO02
QCK02
QFR01
QSM01
QCR210
QMO01
QCK01
QCK02
QJK01
QSP01
※SVC REPAIR TAPE
QRT01

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of anycontentordatafrom thisdocumentwithoutSamsung’swritten authorization isstrictlyprohibited.
5. MAIN Electrical Parts List
Parts code
Desing Loc
Description
R4009,R4027,R9028 0202-002125 -
U12031 0202-002125 -
D8001 0401-001110 Diode
D8000,D9000 0404-001250 Diode
ZD9005 0406-001561 Diode
ZD9003 0406-001709 Diode
ZD8005,ZD8007 0406-001729 Diode
ZD9001,ZD9004 0406-001781 Diode
ZD11011,ZD11018 0406-001787 Diode
ZD9007,ZD9008,ZD9009 0406-001787 Diode
ZD9010 0406-001787 Diode
ZD11009,ZD11010 0406-001804 Diode
ZD11014,ZD11015 0406-001804 Diode
ZD11016,ZD11017 0406-001804 Diode
ZD11021,ZD11022 0406-001804 Diode
ZD8003 0406-001805 Diode
ZD11012,ZD11013 0406-001809 Diode
ZD11007,ZD11020 0406-001826 Diode
LED10000 0601-003707 LED
U8036 0801-003639 IC
U10007 0903-002233 IC
U9036 1001-001755 IC
U1005 1001-001975 IC
U8025 1001-002045 IC
U1002,U1003,U1004 1001-002075 IC
U2000 1001-002075 IC
U11026,U5018 1009-001076 IC
UME4000 1107-002611 IC
U5008 1201-003735 IC
PAM1001 1201-004114 IC
PAM1000 1201-004157 IC
U9015,U9017 1201-004178 IC
U1006 1201-004210 IC
U12008 1202-001120 IC
U10002 1203-008472 IC
U4000 1203-008729 IC
U8008 1203-008802 IC
U5012 1203-008811 IC

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of anycontentordatafrom thisdocumentwithoutSamsung’swritten authorization isstrictlyprohibited.
5. MAIN Electrical Parts List
U12014,U5011,U8035 1203-008867 IC
U12006 1203-009032 IC
U10000 1203-009035 IC
U9048 1203-009080 IC
U8031 1203-009156 IC
U8033 1203-009168 IC
U8015 1203-009187 IC
U12019 1203-009191 IC
U1008 1204-003761 IC
U1001 1204-003773 IC
U12023 1205-005217 IC
U9025 1205-005729 IC
U5025 1205-005871 IC
U5004 1205-005880 IC
U3000 1205-006032 IC
UCP5000 1205-006121 IC
U5024 1209-002513 IC
U5021 1209-002558 IC
U5023 1209-002567 IC
U5020 1209-002578 IC
U11022 1209-002607 IC
U5100 1209-002608 IC
U5101 1209-002619 THERMISTOR
TH11000,TH5000 1404-001724 THERMISTOR
TH6000,TH8000,TH8001 1404-001724 THERMISTOR
TH8002,U4002 1404-001724 THERMISTOR
V1003,V2013,V5011 1405-001395 VARISTOR
V7004,V7009,V7010 1405-001395 VARISTOR
V7011,V7014,V7019 1405-001395 VARISTOR
V7026,V7028 1405-001395 VARISTOR
V11001 1405-001404 VARISTOR
V1002 1405-001412 VARISTOR
U12029,V2000,V2001 1405-001415 VARISTOR
V2015,V3000,V5007 1405-001415 VARISTOR
V11000,V11006,V11008 1405-001420 VARISTOR
V5002,V5012,V7012 1405-001420 VARISTOR
V7023 1405-001420 VARISTOR
V5001 1405-001423 VARISTOR
V11002,V11003,V11004 1405-001428 VARISTOR

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of anycontentordatafrom thisdocumentwithoutSamsung’swritten authorization isstrictlyprohibited.
5. MAIN Electrical Parts List
V11017,V7031 1405-001428 VARISTOR
V11012,V11013,V11014 1405-001445 VARISTOR
V1001 1405-001450 VARISTOR
V11007,V11015,V11016 1405-001458 VARISTOR
R11016,R11018,R11019 2007-001284 R-CHIP
R11021 2007-001284 R-CHIP
R11000 2007-007100 R-CHIP
R5032 2007-007142 R-CHIP
R9015,R9016 2007-007193 R-CHIP
R6001,R6031,R6078 2007-007310 R-CHIP
R5030,R5031 2007-007314 R-CHIP
R10006,R4000,R4001 2007-007741 R-CHIP
R4005,R5101,R8032 2007-007741 R-CHIP
R8033,R8039,R9006 2007-007741 R-CHIP
R9020 2007-007741 R-CHIP
R5105 2007-007798 R-CHIP
R6043 2007-007942 R-CHIP
R6045 2007-007946 R-CHIP
R3000 2007-008043 R-CHIP
R10009,R12004 2007-008052 R-CHIP
R12002,R8042 2007-008211 R-CHIP
R9010 2007-008294 R-CHIP
R10003 2007-008296 R-CHIP
R8041 2007-008403 R-CHIP
R11002 2007-008419 R-CHIP
R10002,R8036 2007-008486 R-CHIP
R8010,R8034,R8035 2007-008531 R-CHIP
R9011 2007-008531 R-CHIP
R11015,R11017,R11020 2007-008774 R-CHIP
R11022,R5102,R5103 2007-008774 R-CHIP
R4025 2007-008785 R-CHIP
R8038 2007-008809 R-CHIP
R5100 2007-009111 R-CHIP
R10005,R11014,R4015 2007-009157 R-CHIP
R4016,R5033,R6062 2007-009157 R-CHIP
R6063,R8015,R8016 2007-009157 R-CHIP
R8017,R8029,R8030 2007-009157 R-CHIP
R9014,R9017 2007-009157 R-CHIP
R5003,R7063 2007-009182 R-CHIP

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of anycontentordatafrom thisdocumentwithoutSamsung’swritten authorization isstrictlyprohibited.
5. MAIN Electrical Parts List
R9003,R9004,R9005 2007-009201 R-CHIP
R9025 2007-009201 R-CHIP
R10018,R10019,R4002 2007-009212 R-CHIP
R4003,R4004,R4006 2007-009212 R-CHIP
R4007,R4026,R6023 2007-009212 R-CHIP
R6024,R6060,R6061 2007-009212 R-CHIP
R8040,R9007,R9019 2007-009212 R-CHIP
R8023,R8024 2007-009233 R-CHIP
R12005,R4024 2007-009314 R-CHIP
R11001,R12000,R5029 2007-009408 R-CHIP
R6027,R6028,R9012 2007-009408 R-CHIP
R5013,R5014 2007-009805 R-CHIP
R10007,R11010,R11011 2007-009866 R-CHIP
R11012,R11013,R8001 2007-009866 R-CHIP
R8031 2007-009866 R-CHIP
R10014,R10015,R6036 2007-009879 R-CHIP
R6037 2007-009879 R-CHIP
R11004,R11005 2007-009924 R-CHIP
R9009 2007-009969 R-CHIP
R8009,R8012,R8013 2007-010202 R-CHIP
R8025,R8026 2007-010685 R-CHIP
R6000 2007-011043 R-CHIP
R6051,R6052,R6054 2007-011262 R-CHIP
R6055,R6058,R6064 2007-011262 R-CHIP
R6065,R6066,R6067 2007-011262 R-CHIP
R6068,R6070,R6071 2007-011262 R-CHIP
R6073,R6074,R9026 2007-011262 R-CHIP
R5010,R5011 2007-011378 R-CHIP
R9024 2007-011532 R-CHIP
R10004,R12001,R12003 2007-011542 R-CHIP
R6038,R6039,R6040 2007-011546 R-CHIP
R6041,R6079,R6080 2007-011546 R-CHIP
R6081,R6082 2007-011546 R-CHIP
R3002,R3003,R3005 2007-011548 R-CHIP
R3006,R6044 2007-011548 R-CHIP
R5006,R5007,R5008 2007-011591 R-CHIP
R5009,R6002,R6003 2007-011591 R-CHIP
R6006,R6007,R6008 2007-011591 R-CHIP
R6009,R6012,R6013 2007-011591 R-CHIP

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of anycontentordatafrom thisdocumentwithoutSamsung’swritten authorization isstrictlyprohibited.
5. MAIN Electrical Parts List
R6014,R6015,R6021 2007-011591 R-CHIP
R6022,R6025,R6026 2007-011591 R-CHIP
R6029,R6030,R6032 2007-011591 R-CHIP
R6033,R6034,R6035 2007-011591 R-CHIP
R6085,R6086,R8019 2007-011591 R-CHIP
R8020 2007-011591 R-CHIP
R6010,R6011,R6019 2007-011594 R-CHIP
R6020,R6091,R6092 2007-011594 R-CHIP
R6042 2007-011599 R-CHIP
R4012 2007-011648 R-CHIP
R8018 2007-012197 R-CHIP
R12010 2007-012202 R-CHIP
C8188,C8189 2203-000138
C-CERAMIC, CHIP
C5072,C5079 2203-000233
C-CERAMIC, CHIP
C5077 2203-000330
C-CERAMIC, CHIP
C5103,C8185 2203-000438
C-CERAMIC, CHIP
C8150 2203-000489
C-CERAMIC, CHIP
C8127,C8128 2203-000679
C-CERAMIC, CHIP
C8180,C8186 2203-000725
C-CERAMIC, CHIP
C11008,C8190,C8191 2203-000812
C-CERAMIC, CHIP
C8124 2203-001033
C-CERAMIC, CHIP
C11009 2203-002285
C-CERAMIC, CHIP
C5076 2203-005057
C-CERAMIC, CHIP
C10092,C10094,C10095 2203-005682
C-CERAMIC, CHIP
C14431,C2038 2203-005682
C-CERAMIC, CHIP
C1071 2203-005717
C-CERAMIC, CHIP
C9035,C9037,C9041 2203-005726
C-CERAMIC, CHIP
C9077 2203-005726
C-CERAMIC, CHIP
L2025 2203-005729
C-CERAMIC, CHIP
C2030,C2047,C9055 2203-005731
C-CERAMIC, CHIP
C9061,L2022 2203-005731
C-CERAMIC, CHIP
C9048,C9059,C9060 2203-005732
C-CERAMIC, CHIP
C9064,C9066,C9078 2203-005732
C-CERAMIC, CHIP
C10024 2203-005734
C-CERAMIC, CHIP
C1004,C10054,C10055 2203-005736
C-CERAMIC, CHIP
C10064,C10065,C10066 2203-005736
C-CERAMIC, CHIP
C10069,C1007,C10070 2203-005736
C-CERAMIC, CHIP
C10093,C1015,C1017 2203-005736
C-CERAMIC, CHIP
C1021,C1022,C1023 2203-005736
C-CERAMIC, CHIP

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of anycontentordatafrom thisdocumentwithoutSamsung’swritten authorization isstrictlyprohibited.
5. MAIN Electrical Parts List
C1024,C1027,C1032 2203-005736
C-CERAMIC, CHIP
C1033,C1036,C1037 2203-005736
C-CERAMIC, CHIP
C1038,C1041,C1044 2203-005736
C-CERAMIC, CHIP
C1045,C1046,C1047 2203-005736
C-CERAMIC, CHIP
C1050,C1054,C1061 2203-005736
C-CERAMIC, CHIP
C1069,C1080,C1082 2203-005736
C-CERAMIC, CHIP
C1085,C11012,C1109 2203-005736
C-CERAMIC, CHIP
C1114,C1115,C1118 2203-005736
C-CERAMIC, CHIP
C1122,C1123,C14432 2203-005736
C-CERAMIC, CHIP
C2013,C2014,C2015 2203-005736
C-CERAMIC, CHIP
C2017,C2020,C2025 2203-005736
C-CERAMIC, CHIP
C2027,C2028,C2029 2203-005736
C-CERAMIC, CHIP
C2036,C2045,C2064 2203-005736
C-CERAMIC, CHIP
C2065,C3027,C3029 2203-005736
C-CERAMIC, CHIP
C4015,C5114,C5119 2203-005736
C-CERAMIC, CHIP
C5200,C5204,C5205 2203-005736
C-CERAMIC, CHIP
C8117,L1005,L1014 2203-005736
C-CERAMIC, CHIP
L1025,L1039,L1041 2203-005736
C-CERAMIC, CHIP
L1049,L1051,L1056 2203-005736
C-CERAMIC, CHIP
L1063,L1100,L2028 2203-005736
C-CERAMIC, CHIP
L2043,L5037 2203-005736
C-CERAMIC, CHIP
C1020,C1031,C1084 2203-005777
C-CERAMIC, CHIP
C2006 2203-005777
C-CERAMIC, CHIP
C10053,C10062,C10086 2203-005779
C-CERAMIC, CHIP
C1019,C1030,C1055 2203-005789
C-CERAMIC, CHIP
C1072,C1086,C1087 2203-005789
C-CERAMIC, CHIP
C1088,C2009,L5065 2203-005789
C-CERAMIC, CHIP
L2008 2203-005792
C-CERAMIC, CHIP
C5067 2203-005806
C-CERAMIC, CHIP
C1094,C9047 2203-006121
C-CERAMIC, CHIP
C2039,L1004 2203-006187
C-CERAMIC, CHIP
L2005 2203-006305
C-CERAMIC, CHIP
C2033,L2037 2203-006318
C-CERAMIC, CHIP
C2091,C3021,C3024 2203-006400
C-CERAMIC, CHIP
C3025,C4181 2203-006400
C-CERAMIC, CHIP
C1006,C2021 2203-006410
C-CERAMIC, CHIP
C1029,C1048,L1030 2203-006556
C-CERAMIC, CHIP
C2035 2203-006665
C-CERAMIC, CHIP
C4424,C6006 2203-006668
C-CERAMIC, CHIP

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of anycontentordatafrom thisdocumentwithoutSamsung’swritten authorization isstrictlyprohibited.
5. MAIN Electrical Parts List
C1095 2203-006712
C-CERAMIC, CHIP
C1090,C1091,C1093 2203-006839
C-CERAMIC, CHIP
C1097,C1098,C1100 2203-006839
C-CERAMIC, CHIP
C5057,C8114,C8123 2203-006839
C-CERAMIC, CHIP
C8131,C8137 2203-006839
C-CERAMIC, CHIP
C11001,C11003,C11004 2203-006844
C-CERAMIC, CHIP
C11006,C3026 2203-006844
C-CERAMIC, CHIP
C3012,C3014,U4003 2203-006979
C-CERAMIC, CHIP
C2024 2203-007194
C-CERAMIC, CHIP
C4004,C7012 2203-007210
C-CERAMIC, CHIP
C1096 2203-007271
C-CERAMIC, CHIP
C4000,C4035,C5061 2203-007317
C-CERAMIC, CHIP
C5062,C7055,C7065 2203-007317
C-CERAMIC, CHIP
C7104,C7108,C7121 2203-007317
C-CERAMIC, CHIP
C9033,C9036,C9038 2203-007317
C-CERAMIC, CHIP
C9039,C9040,C9072 2203-007317
C-CERAMIC, CHIP
C9074,C9076 2203-007317
C-CERAMIC, CHIP
C10040,C9006,C9007 2203-007391
C-CERAMIC, CHIP
C9030 2203-007391
C-CERAMIC, CHIP
C1081,C1099 2203-007392
C-CERAMIC, CHIP
C10014,C10017,C10039 2203-007393
C-CERAMIC, CHIP
C10063,C1092,C12008 2203-007393
C-CERAMIC, CHIP
C12009,C5055,C5098 2203-007393
C-CERAMIC, CHIP
C5099,C5201,C8019 2203-007393
C-CERAMIC, CHIP
C8063,C8070,C8091 2203-007393
C-CERAMIC, CHIP
C8135,C8140,C8177 2203-007393
C-CERAMIC, CHIP
C9065,C9068 2203-007393
C-CERAMIC, CHIP
L1028 2203-007403
C-CERAMIC, CHIP
C8115 2203-007425
C-CERAMIC, CHIP
C9070 2203-007456
C-CERAMIC, CHIP
C9067 2203-007486
C-CERAMIC, CHIP
C5074,C8149,C8151 2203-007544
C-CERAMIC, CHIP
C8152,C8154,C8157 2203-007544
C-CERAMIC, CHIP
C8159,C8171 2203-007544
C-CERAMIC, CHIP
C10025,C10073,C10090 2203-007621
C-CERAMIC, CHIP
C11013,C2001,C2023 2203-007621
C-CERAMIC, CHIP
C2037,C3002,C3010 2203-007621
C-CERAMIC, CHIP
C3015,C3020,C3023 2203-007621
C-CERAMIC, CHIP
C4005,C4039,C4041 2203-007621
C-CERAMIC, CHIP

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of anycontentordatafrom thisdocumentwithoutSamsung’swritten authorization isstrictlyprohibited.
5. MAIN Electrical Parts List
C5021,C5053,C5056 2203-007621
C-CERAMIC, CHIP
C5059,C5060,C5073 2203-007621
C-CERAMIC, CHIP
C5100,C5101,C6000 2203-007621
C-CERAMIC, CHIP
C6001,C8007,C8017 2203-007621
C-CERAMIC, CHIP
C8043,C8044,C8136 2203-007621
C-CERAMIC, CHIP
C8163,C9018,C9057 2203-007621
C-CERAMIC, CHIP
C9058 2203-007621
C-CERAMIC, CHIP
C5037 2203-007781
C-CERAMIC, CHIP
C10005,C10012,C10013 2203-007796
C-CERAMIC, CHIP
C1018,C1042,C11011 2203-007796
C-CERAMIC, CHIP
C12013,C12020,C12021 2203-007796
C-CERAMIC, CHIP
C12039,C3005,C3008 2203-007796
C-CERAMIC, CHIP
C3009,C3011,C3013 2203-007796
C-CERAMIC, CHIP
C3016,C3017,C3028 2203-007796
C-CERAMIC, CHIP
C3030,C4001,C5000 2203-007796
C-CERAMIC, CHIP
C5001,C5002,C5003 2203-007796
C-CERAMIC, CHIP
C5004,C5040,C5041 2203-007796
C-CERAMIC, CHIP
C5054,C5063,C5068 2203-007796
C-CERAMIC, CHIP
C5069,C5094,C7000 2203-007796
C-CERAMIC, CHIP
C7001,C7010,C7011 2203-007796
C-CERAMIC, CHIP
C7014,C7015,C7024 2203-007796
C-CERAMIC, CHIP
C7027,C7028,C7030 2203-007796
C-CERAMIC, CHIP
C7031,C7032,C7034 2203-007796
C-CERAMIC, CHIP
C7035,C7036,C7045 2203-007796
C-CERAMIC, CHIP
C7047,C7050,C7052 2203-007796
C-CERAMIC, CHIP
C7053,C7056,C7057 2203-007796
C-CERAMIC, CHIP
C7058,C7059,C7060 2203-007796
C-CERAMIC, CHIP
C7061,C7062,C7064 2203-007796
C-CERAMIC, CHIP
C7066,C7067,C7068 2203-007796
C-CERAMIC, CHIP
C7069,C7070,C7071 2203-007796
C-CERAMIC, CHIP
C7072,C7073,C7074 2203-007796
C-CERAMIC, CHIP
C7075,C7076,C7077 2203-007796
C-CERAMIC, CHIP
C7078,C7079,C7080 2203-007796
C-CERAMIC, CHIP
C7081,C7084,C7086 2203-007796
C-CERAMIC, CHIP
C7088,C7089,C7090 2203-007796
C-CERAMIC, CHIP
C7092,C7093,C7095 2203-007796
C-CERAMIC, CHIP
C7096,C7097,C7106 2203-007796
C-CERAMIC, CHIP
C7111,C7112,C7113 2203-007796
C-CERAMIC, CHIP
C7115,C7116,C7117 2203-007796
C-CERAMIC, CHIP
