Using this manual
2
Using this manual
Thank you for purchasing this Samsung mobile phone.
This phone will provide you with high quality mobile
communication and entertainment based on Samsung’s
exceptional technology and high standards.
This user manual has been specially designed to guide you
through the functions and features of your phone.
Read me rst
Please read all safety precautions and this manual•
carefully before using your phone to ensure safe and
proper use.
The descriptions in this manual are based on the default
•
settings of your phone.
Images and screenshots used in this user manual may
•
dier in appearance from the actual product.
Content in this user manual may dier from the product,
•
or from software provided by service providers or
carriers, and is subject to change without prior notice.
Refer to www.samsungmobile.com for the latest version
of the user manual.
Available features and additional services may vary by
•
phone, software, or service provider.
Applications and their functions may vary by country,
•
region, or hardware specications. Samsung is not
liable for performance issues caused by third-party
applications.
Sound sources, wallpapers, and images provided in this
•
phone are licenced for limited use between Samsung
and their respective owners. Extracting and using
these materials for commercial or other purposes is an
infringement of copyright laws. Samsung is not liable for
such copyright infringement by the user.
Downloaded from http://www.gsmarc.com

Using this manual 3
This product includes certain free/open source•
software. The exact terms of the licenses, disclaimers,
acknowledgements and notices are available on the
Samsung's website http://opensource.samsung.com.
Please keep this manual for future reference.
•
Instructional icons
Before you start, familiarise yourself with the icons you will
see in this manual:
Warning—situations that could cause injury to
yourself or others
Caution—situations that could cause damage to
your phone or other equipment
Note—notes, usage tips, or additional
information
►Refer to—pages with related information; for
example: ►p.12 (represents“see page 12”)
→
Followed by—the order of options or menus
you must select to perform a step; for example:
In Menu mode, select Messages
→
Create new
message (represents Messages, followed by
Create new message)
[ ] Square brackets—phone keys; for example:
[] (represents the Power/End key)
< > Angled brackets—softkeys that control dierent
functions at each screen; for example: <OK>
(represents the OK softkey)
Downloaded from http://www.gsmarc.com

Using this manual
4
Trademarks
SAMSUNG, and the SAMSUNG logo are registered•
trademarks of Samsung Electronics.
Bluetooth
• ®is a registered trademark of the Bluetooth
SIG, Inc. worldwide.
Java
• ™is a trademark of Sun Microsystems, Inc.
All other trademarks and copyrights are the property of
•
their respective owners.
Copyright
Copyright © 2012 Samsung Electronics
This user manual is protected under international
copyright laws.
No part of this user manual may be reproduced,
distributed, translated, or transmitted in any form or by any
means, electronic or mechanical, including photocopying,
recording, or storing in any information storage and
retrieval system, without the prior written permission of
Samsung Electronics.
Downloaded from http://www.gsmarc.com

Contents 5
Access menus .................................................... 20
Use My menu mode ......................................... 20
Customise your phone .................................... 20
Switch networks ................................................ 24
Enter text ............................................................ 25
Communication ................................... 26
Calling .................................................................. 26
Call log ................................................................. 32
Messages ............................................................ 32
Assembling ............................................. 8
Unpack .................................................................. 8
Insert the SIM or UIM card and battery ......... 8
Charge the battery ........................................... 10
Insert a memory card (optional) ................... 12
Attach a hand strap (optional) ...................... 14
Getting started ..................................... 15
Turn your phone on and o ........................... 15
Get to know your phone ................................. 16
Contents
Downloaded from http://www.gsmarc.com

Contents
6
Web ........................................................ 56
Internet ............................................................... 56
Connectivity ......................................... 58
Bluetooth ............................................................ 58
PC connections .................................................. 60
Tools ....................................................... 62
Alarms .................................................................. 62
Calculator ............................................................ 63
Convertor ............................................................ 63
Image editor ...................................................... 64
Entertainment ...................................... 39
Camera ................................................................ 39
Music .................................................................... 44
FM radio .............................................................. 47
Games and more ............................................... 49
Personal information .......................... 50
Phonebook ......................................................... 50
Calendar .............................................................. 52
Memo ................................................................... 53
Task ...................................................................... 54
Voice recorder .................................................... 55
Downloaded from http://www.gsmarc.com

Contents 7
SIM cards management .................................. 72
Application settings ......................................... 72
Security ............................................................... 77
Network settings .............................................. 78
PC connections .................................................. 78
Memory settings ............................................... 79
Reset settings .................................................... 79
Troubleshooting .................................. 80
Safety precautions ............................... 85
Mobile Prayer ..................................................... 65
My les ................................................................ 66
Stopwatch .......................................................... 68
Timer .................................................................... 68
World clock ......................................................... 68
Settings .................................................. 70
Access the Settings menu ............................... 70
Phone proles ................................................... 70
Display and light ............................................... 71
Time and date .................................................... 71
Phone settings ................................................... 72
Downloaded from http://www.gsmarc.com

Assembling
8
The items supplied with your phone may vary•
depending on the software and accessories
available in your region or oered by your service
provider.
You can obtain additional accessories from your
•
local Samsung dealer.
The supplied accessories perform best for your
•
phone.
Accessories other than the supplied ones may not
•
be compatible with your phone.
Insert the SIM or UIM card and
battery
When you subscribe to a cellular service, you will receive
a Subscriber Identity Module (SIM) card for a GSM
network or User Identity Module (UIM) card for a CDMA
network, with subscription details, such as your personal
identication number (PIN) and optional services.
Assembling
Unpack
Check your product box for the following items:
Mobile phone
•
Battery•
Travel adapter (charger)•
User manual•
Use only Samsung-approved software. Pirated or
illegal software may cause damage or malfunctions
that are not covered by your manufacturer's
warranty.
Downloaded from http://www.gsmarc.com

Assembling 9
Insert the SIM or UIM card.
3
Your phone has SIM and UIM card slots to allow you to
use the left slot for the SIM card and right slot for the
UIM card.
Place the SIM or UIM card into the phone with the•
gold-coloured contacts facing down.
If you do not insert a SIM or UIM card card, you can
•
only use your phone’s non-network services and
some menus.

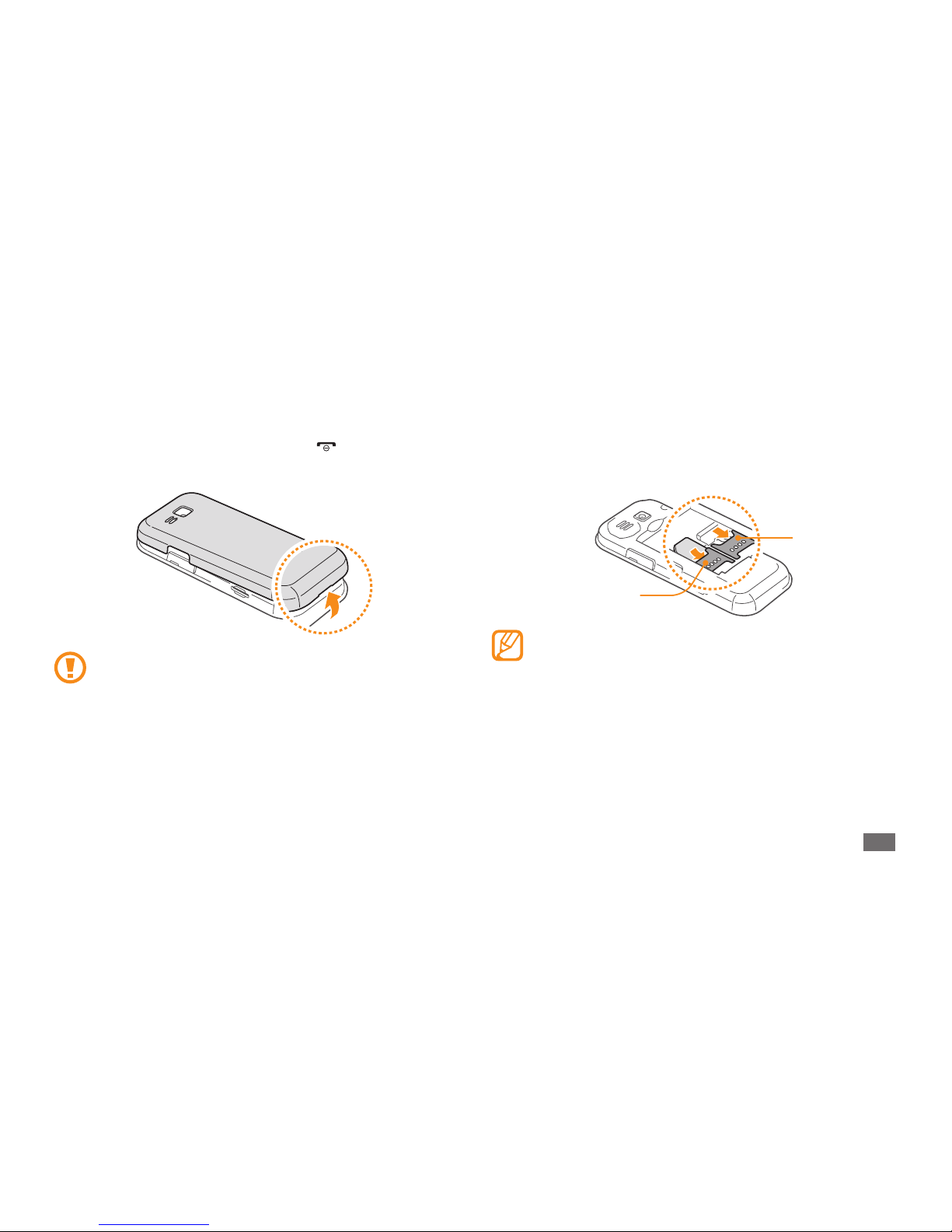

To insert the SIM or UIM card and battery,
If the phone is on, press and hold [
1
] to turn it o.
Remove the back cover.
2
Be careful not to damage your ngernails when you
remove the back cover.
SIM card slot
UIM card slot
Downloaded from http://www.gsmarc.com

Assembling
10
Charge the battery
Before using the phone for the rst time, you must charge
the battery.
You can charge the phone with the provided travel adapter
or by connecting the phone to a PC with a PC data cable.
Use only Samsung-approved chargers and cables.
Unauthorised chargers or cables can cause batteries
to explode or damage your phone.
When your battery is low, the phone will emit a
warning tone and display a low battery message.
The battery icon will also be empty and
blinking. If the battery level becomes too low, the
phone will automatically power o. Recharge your
battery to continue using your phone.
Insert the battery.
4
Replace the back cover.
5
Downloaded from http://www.gsmarc.com

Assembling 11
Plug the large end of the travel adapter into a power
3
outlet.
You can use the phone while it is charging, but it•
may take longer to fully charge the battery.
While charging, the phone may heat up. This
•
is normal and should not aect your phone’s
lifespan or performance.
If your phone is not charging properly, bring your
•
phone and the charger to a Samsung Service
Centre.
When the battery is fully charged (the battery icon is
4
no longer moving), unplug the travel adapter from the
phone and then from the power outlet.
Do not remove the battery before removing the
travel adapter. Doing this may cause damage to the
phone.
›
Charge with the travel adapter
Open the cover to the multifunction jack on the side
1
of the phone.
Plug the small end of the travel adapter into the
2
multifunction jack.
Improperly connecting the travel adapter can cause
serious damage to the phone. Any damage caused
by misuse is not covered by the warranty.
Downloaded from http://www.gsmarc.com

Assembling
12
When the battery is fully charged (the battery icon is
4
no longer moving), unplug the PC data cable from the
phone and then from the PC.
Insert a memory card (optional)
To store additional multimedia les, you must insert
a memory card. Your phone accepts microSD™or
microSDHC™memory cards with maximum capacities of
8 GB (depending on memory card manufacturer and type).
Samsung uses approved industry standards for
memory cards, but some brands may not be fully
compatible with your phone. Using an incompatible
memory card may damage your phone or the
memory card and can corrupt data stored on the
card.
When you charge the battery for the rst time, charging
your battery completely may take about 2.5 hours. Because
the battery is a consumable part, the battery will gradually
wear out and the charging time will be reduced. The initial
charging capacity of your battery is about 1000 mAh.
›
Charge with the PC data cable
Before charging, ensure that your PC is turned on.
Open the cover to the multifunction jack on the side
1
of the phone.
Plug the small end of the PC data cable into the
2
multifunction jack.
Plug the large end of the PC data cable into a USB port
3
on a PC.
Depending on the type of PC data cable you are
using, it may take some time before charging
begins.
Downloaded from http://www.gsmarc.com

Assembling 13
Push the memory card in the memory card slot until it
3
locks in place.
Replace the back cover.
4
›
Remove the memory card
Ensure that the phone is not currently using the
1
memory card.
Remove the back cover.
2
Push the memory card gently until it disengages from
3
the phone.
Pull the memory card out of the memory card slot.
4
Replace the back cover.
5
Do not remove a memory card while the phone is
transferring or accessing information, as this could
result in loss of data or damage to the memory card
or phone.
Your phone supports only the FAT le structure for•
memory cards. If you insert a card formatted with
a dierent le structure, your phone will ask you to
reformat the memory card.
Frequent writing and erasing of data will shorten
•
the lifespan of memory cards.
Remove the back cover.
1
Insert a memory card with the gold-coloured contacts
2
facing down.
Downloaded from http://www.gsmarc.com

Assembling
14
›
Format the memory card
Formatting your memory card on a PC may cause
incompatibilities with your phone. Format the memory
card only on the phone.
In Menu mode, select Settings
→
Memory settings
→
Memory card and press <Options>
→
Format memory
card.
Before formatting the memory card, remember to
make backup copies of all important data stored on
your phone. The manufacturer’s warranty does not
cover loss of data resulting from user actions.

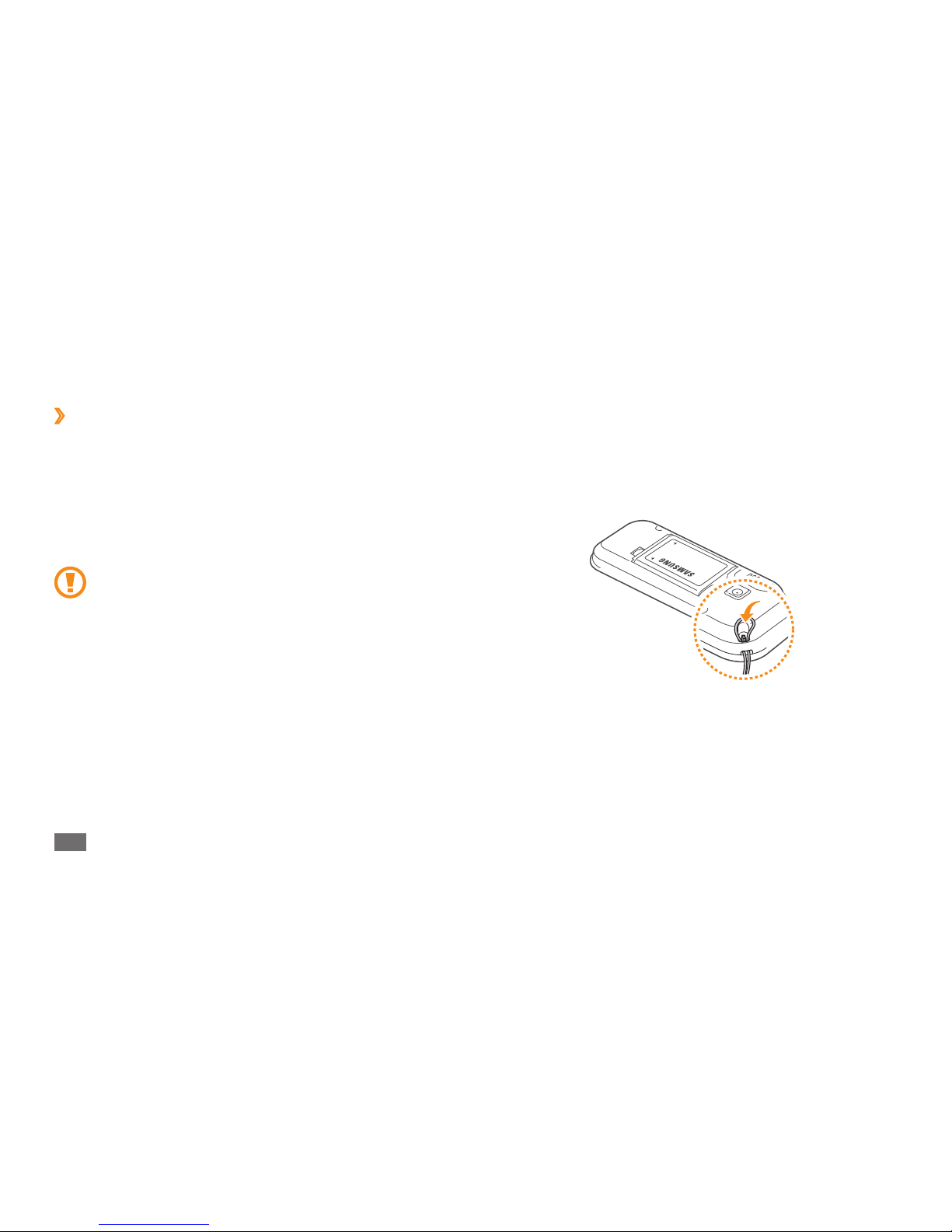

Attach a hand strap (optional)
Remove the back cover.
1
Slide a hand strap through the hand strap hole and
2
hook it over the small projection.
Replace the back cover.
3
Downloaded from http://www.gsmarc.com

Getting started 15
Getting started
Turn your phone on and o
To turn on your phone,
Press and hold [
1
].
Enter your PIN and press <
2
OK> (if necessary).
Press <
3
OK> to register your cards.
Press [
4
] to select a slot.
Assign a name and signal icon to the SIM or UIM card,
5
and press <Next>.
Repeat step 5 for the other SIM or UIM card.
6
Select a primary SIM or UIM card and press <
7
Save>.
To turn your phone o, repeat step 1 above.
Follow all posted warnings and directions from•
ocial personnel when in areas where the use of
wireless devices is restricted, such as aeroplanes
and hospitals.
To use your phone's non-network services only,
•
switch to the oine prole. ►p. 21
Downloaded from http://www.gsmarc.com

Getting started
16
Get to know your phone
›
Phone layout
Speaker Camera lens
Back cover
Multifunction jack
Internal antenna
Right softkey
Conrm key
Power/End key
My menu key
Network switch
key
Display
Earpiece
Left softkey
Dial key
Mouthpiece
4-way navigation key
Alphanumeric keys
Special function keys
Downloaded from http://www.gsmarc.com

Getting started 17
Key Function
Dial
Make or answer a call; In Idle
mode, retrieve recently dialled,
missed, or received numbers.
Power/End
Turn the phone on or o (press
and hold); End a call; In Menu
mode, return to the Idle mode.
Alpha-
numeric
Enter numbers, letters, and
special characters; In Idle mode,
press and hold [1] to access
voice mails and [0] to enter an
international call prex.
Special
function
Enter special characters or
perform special functions; In
Idle mode, press and hold [ ]
for the silent prole; In Idle
mode, press and hold [ ] to lock
the phone.
›
Keys
Key Function
Softkeys Perform actions indicated at the
bottom of the display.
4-way
navigation
In Idle mode, access user-
dened menus (left/right/up/
down); In Menu mode, scroll
through menu options.
Conrm
In Idle mode, launch the web
browser; In Menu mode, select
the highlighted menu option.
Network
switch
Switch between SIM and UIM
card when you make calls or
send messages; In Idle mode,
access the SIM card selection
mode.
My menu In Idle mode, access My menu
mode
Downloaded from http://www.gsmarc.com

Getting started
18
›
Indicator icons
Icons shown on the display may vary depending on
your region or service provider.
Icon Denition
/Signal strength
Call in progress
SOS message feature activated
GPRS network connected
EDGE network connected
Roaming (outside of normal service area)
Call diverting activated
Alarm activated
›
Idle screen
When the phone is in Idle mode, you will see the following
screen. From this screen, you can view your phone’s status
and access applications.
Downloaded from http://www.gsmarc.com

Getting started 19

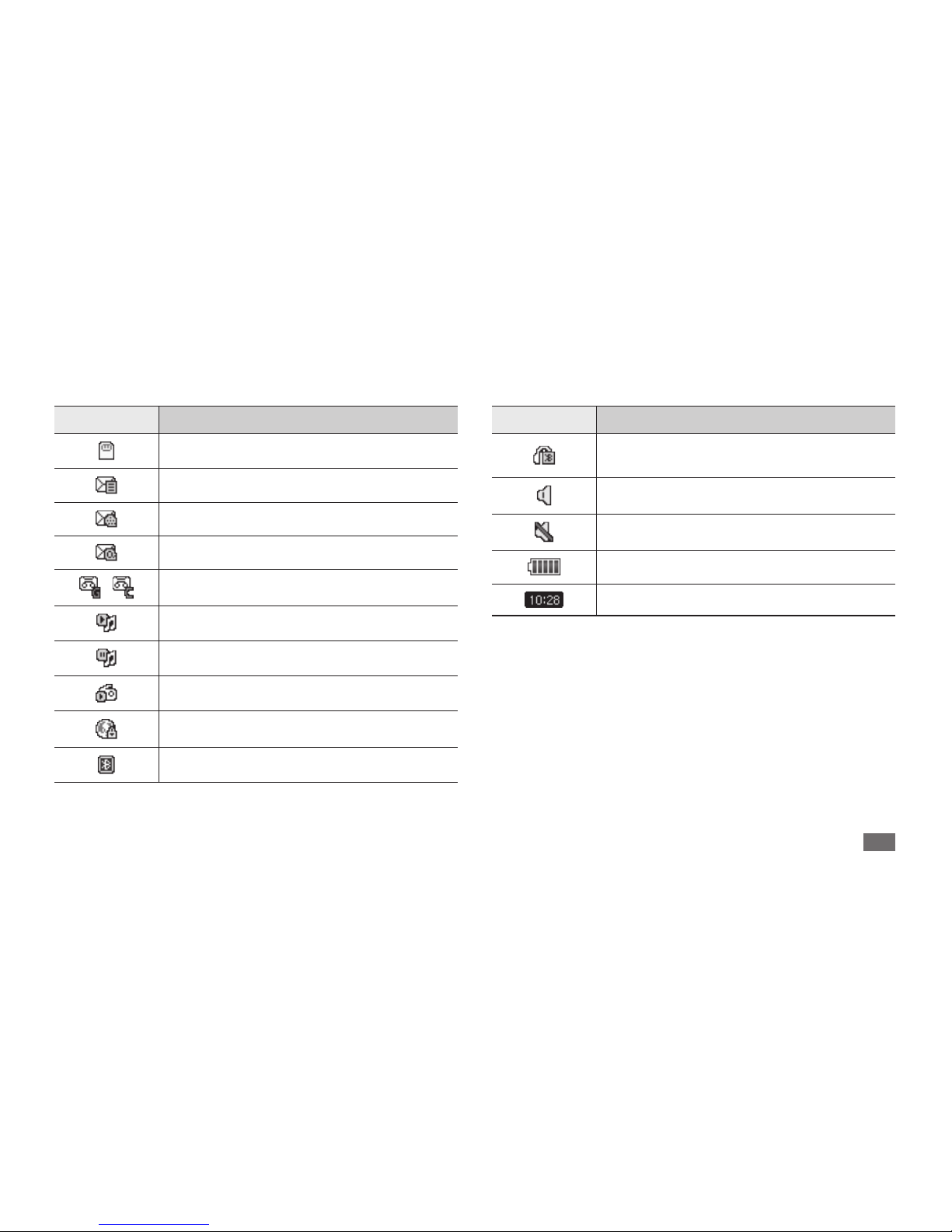

Icon Denition
Bluetooth hands-free car kit or headset
connected
Normal prole activated
Silent prole activated
Battery power level
Current time
Icon Denition
Memory card inserted
New text message (SMS)
New multimedia message (MMS)
New email message
/ New voice mail messages
Music playback in progress
Music playback paused
FM radio on
Connected to secured web page
Bluetooth activated
Downloaded from http://www.gsmarc.com

Getting started
20
To assign menus,
In Menu mode, select
1
Settings
→
Phone settings
→
My menu.
Select a location
2
→
a menu you want.
Repeat step 2 to assign more menus (if necessary)
3
Customise your phone
Get more from your phone by customising it to match your
preferences.
›
Change the language of the display
In Menu mode, select
1
Settings
→
Phone settings
→
Language.
Select a language you want.
2
Access menus
To access your phone’s menus,
In Idle mode, press <
1
Menu> to access Menu mode.
Press the Navigation key to select a menu or
2
application.
Press <
3
Select>, <Save>, or the Conrm key to conrm
the highlighted option.
Press <
4
Back> to move up one level; Press [ ] to close
the menu or application and return to Idle mode.
Use My menu mode
Use My menu mode to easily access your favourite menus.
To access My menu mode,
In Idle mode, press [
1
].
Select the menu you want.
2
Downloaded from http://www.gsmarc.com
