2. Specification
This Document can not be used without Samsung's authorization
2-1
EGSM 850 EGSM 900 DCS 1800 PCS 1900 WCDMA 900 WCDMA 2100
Freq.
Band[MHz]
Uplink/Downlink
824~849
869~894
880~915
925~960
1710~1785
1805~1880
1850~1910
1930~1990
880~915
925~960
1920~1980
2110~2170
ARFCN range 128~251 0~124 &
975~1023 512~885 512~810 UL:2712~2863
DL:2937~3088
UL:9612~9888
DL:10562~10838
Tx/Rx spacing 10MHz 10MHz 20MHz 20MHz 45MHz 190MHz
Mod. Bit rate/
Bit Period
270.833kbps
3.692us
270.833kbps
3.692us
270.833kbps
3.692us
270.833kbps
3.692us
3.84Mcps
(chip rate)
3.84Mcps
(chip rate)
Time Slot
Period/
Frame Period
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
Frame length
:10ms
Slot length :
0.667ms
Frame length :
10ms
Slot length :
0.667ms
Modulation 0.3GMSK 0.3GMSK 0.3GMSK 0.3GMSK QPSK
HPSK
QPSK
HPSK
MS Power 33dBm
~5dBm
33dBm
~5dBm
30dBm
~0dBm
30dBm
~0dBm
24dBm
~-50dBm
24dBm
~-50dBm
Power Class
4
(max
+33dBm)
4
(max
+33dBm)
1
(max
+30dBm)
1
(max
+30dBm)
3
(max +24dBm)
3
(max +24dBm)
Sensitivity -102dBm -102dBm -102dBm -102dBm -103.7 -106.7dBm
TDMA Mux 8 8 8 8
Cell Radius 35Km 2Km 2Km 2Km 2Km
2-1. GSM General Specification

SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Specification
2-2
TX Power
control level PCS1900
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control level
GSM850
GSM900
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3 dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control level DCS1800
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
2-2. GSM TX power class

SAMSUNG Proprietary-Contents may change without notice
3. Product Function
3-1
This Document can not be used without Samsung's authorization
Main Function
•HSDPA(900/2100), EDGE, GPRS(850/900/1800/1900)
•2.8 QVGA 16M TFT LCD
•8 Megapixel CMOS with AF and Dual Power LED
•Smart Reader, Image Stabilizer, Auto-Panorama Shot, Smile Shot, Blink Shot,
Wide Dynamic Range (WDR), Face Detection
•Video Player (DivX / H.263 / H.264 / WMV / MP4)
•QVGA 120 fps Video recording, VGA 30 fps recording
•Bluetooth v2.0 +EDR
•USB v2.0 HS compatible
•WLAN 802.11 b/g
•FM Radio with RDS
•A-GPS
•16GB Flash + External Memory slot : microSDHC™ (up to 16GB)
•Optical Mouse, Accelerometer
•Music Player (MP3/ AAC / AAC+ / eAAC+ / WMA / AMR/ RealAudio)
•Instant Messaging capability
•E-mail
•Featured applications provide alarms, calendar, calculator, record audio, converter, timer, stopwatch,
and world time.
•File viewer (MS office, PDF)
•Multimedia Message Service (MMS)
•Multimedia capability (with included Media player)
•Photo caller ID
•Speakerphone capability
•WEB/WAP browser (HTMS, xHTML, WML)

SAMSUNG Proprietary-Contents may change without notice
11.Reference data
11-1
This Document can not be used without Samsung's authorization
Reference Abbreviation
-AAC:Advanced Audio Coding.
-AVC :Advanced Video Coding.
-BER :Bit Error Rate
-BPSK:Binary Phase Shift Keying
-CA :Conditional Access
-CDM :Code Division Multiplexing
-C/I :Carrier to Interference
-DMB :Digital Multimedia Broadcasting
-EN :European Standard
-ES :Elementary Stream
-ETSI:European Telecommunications Standards Institute
-MPEG:Moving Picture Experts Group
-PN :Pseudo-random Noise
-PS :Pilot Symbol
-QPSK:Quadrature Phase Shift Keying
-RS :Reed-Solomon
-SI :Service Information
-TDM :Time Division Multiplexing
-TS :Transport Stream

SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-1
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
●Repair in Shield Box, during detailed tuning.
Take specially care of tuning or test,
because specipicty of cellular phone is sensitive for surrounding interference(RF noise).
●Be careful to use akind of magnetic object or tool,
because performance of parts is damaged by the influence of manetic force.
●Surely use astandard screwdriver when you disassemble this product,
otherwise screw will be worn away.
●Use athicken twisted wire when you measure level.
Athicken twisted wire has low resistance, therefore error of measurement is few.
●Repair after separate Test Pack and Set because for short danger (for example an
overcurrent and furious flames of parts etc) when you repair board in condition of
connecting Test Pack and tuning on.
●Take specially care of soldering, because Land of PCB is small and weak in heat.
●Surely tune on/off while using AC power plug, because arepair of battery charger is
dangerous when tuning ON/OFF PBA and Connector after disassembing charger.
●Don't use as you pleases after change other material than replacement registered on SEC
System.
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easilly by static electricity. Such parts are called by
ESD(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
●Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity
prevention string on wrist.
●Use earthed soldering steel when you connect or disconnect ESD.
●Use soldering removing tool to break static electricity. ,otherwise ESD will be damaged by
static electricity.
●Don't unpack until you set up ESD on product. Because most of ESD are packed by box
and aluminum plate to have conductive power,they are prevented from static electricity.
●You must maintain electric contact between ESD and place due to be set up until ESD is
connected completely to the proper place or acircuit board.

SAMSUNG Proprietary-Contents may change without notice
4. Array course control
4-1
This Document can not be used without Samsung's authorization
4-1. Software Adjustments
-There is 2set to download the binary image into your device.
[First set]
1. JIG BOX (UMTS TEST JIG; GH80-03308A)
2. USB Cable :JIG to PC
3. Test Cable :JIG to I8510 (0.4M:GH39-01088A, 1.5M: GH39-01090A)
4. Power Cable :JIG to power supply
5. Serial Cable :JIG to PC
6. Power Supply
7. Rf Cable :GH39-00985A
3

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-2
This Document can not be used without Samsung's authorization
[Second Set]
USBDataLinkCable:I8510 to PC (GH39-00922A)
Standard Battery for I8510 (GH43-02986A)
1

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-3
This Document can not be used without Samsung's authorization
4-2. Software Download
4-2-1. Preparation
□ :Downloader application. Proper version for aROM image.
□USB Driver for Apollo: This differs to USB driver for PC Studio.
:Extract SS60_Downloader_Driver.zip to afolder
□UNRAR.DLL :It needs to copy unrar.dll into c:\windows\system32.
□MSXML.MSI :It needs to install MSXML.MSI.
□ROM Images :PDA(*.XML) has several images and one xml file. PHONE(*.BIN) has aone ima
ge.
□USB Cable
□Charged battery(Upper level 3)

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-4
This Document can not be used without Samsung's authorization
4-2-2. Concupts &cautions.
There are two ways to download. Use Apollo with images or use .EXE
package which is an integrated executable of Apollo and required images.
User can download PDA or PHONE separately but it is always ecommended
to download both at the same time with same version.
To download an image, the phone need to be set to aproper download
mode. There are 3download modes.
□PDA download :Hold 1, 4 keys and power on
-> blue screen with information.
□PHONE download :Hold 7, * keys and power on
->“MODEM DOWNLOAD”displayed on red background
□PDA +PHONE download :Hold 4, 7 keys and power on
->“ALL DOWNLOAD”displayed on red background
For PDA download, the phone displays progress on the screen while it
displays the sentence ”MODEM DOWNLOAD”with red background.
For PDA +PHONE download mode, PHONE image is downloaded first then
PDA downloading starts after rebooting.
Do NOT interrupt downloading process or the phone will be damaged.
You would not be able to boot up the phone or to re-flash the phone.
Let it finish download process even though you are flashing wrong images.
You need to flash same image 3times whenever the bootloader or partition
configuration is changed. Check the release information to get details. If the
phone doesn’t boot up properly after flashing, try to flash twice more.
Apollo version should match with specific image releases. Check release
information to figure out correct Apollo version. If you are not sure use
latest version.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-5
This Document can not be used without Samsung's authorization
4-2-3. USB Driver installation for PDA
Execution Apollo.exe.
I8510 connect to the Host computer using download equipment set.
Hold “1+4” key and insert power supplied test cable when use equipment set 1
or Hold “1+4” key and press power on key when use equipment set 2.
Install PDA side driver.
Follow New H/W Installation Manager.
Select ‘IBootHostUSB.inf’file under ‘i550_Apollo_Drivers\PDA_driver’folder when
Windows asks for new h/w driver. It is safe to choose “Yes”for the waring window.
Confirm “SAMSUNG Symbian USB Downloader”Installed.
Refer to Next Page.
** If Windows doesn’t ask for USB driver, it means USB driver installation was
failed before. Open Hardware Manager then delete devices with ?or !mark then
try again. If it doesn’t work, you need to right click on the device then try Driver
Update.
After installing PDA driver, Apollo shows the connection status if it is installed properly.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-6
This Document can not be used without Samsung's authorization

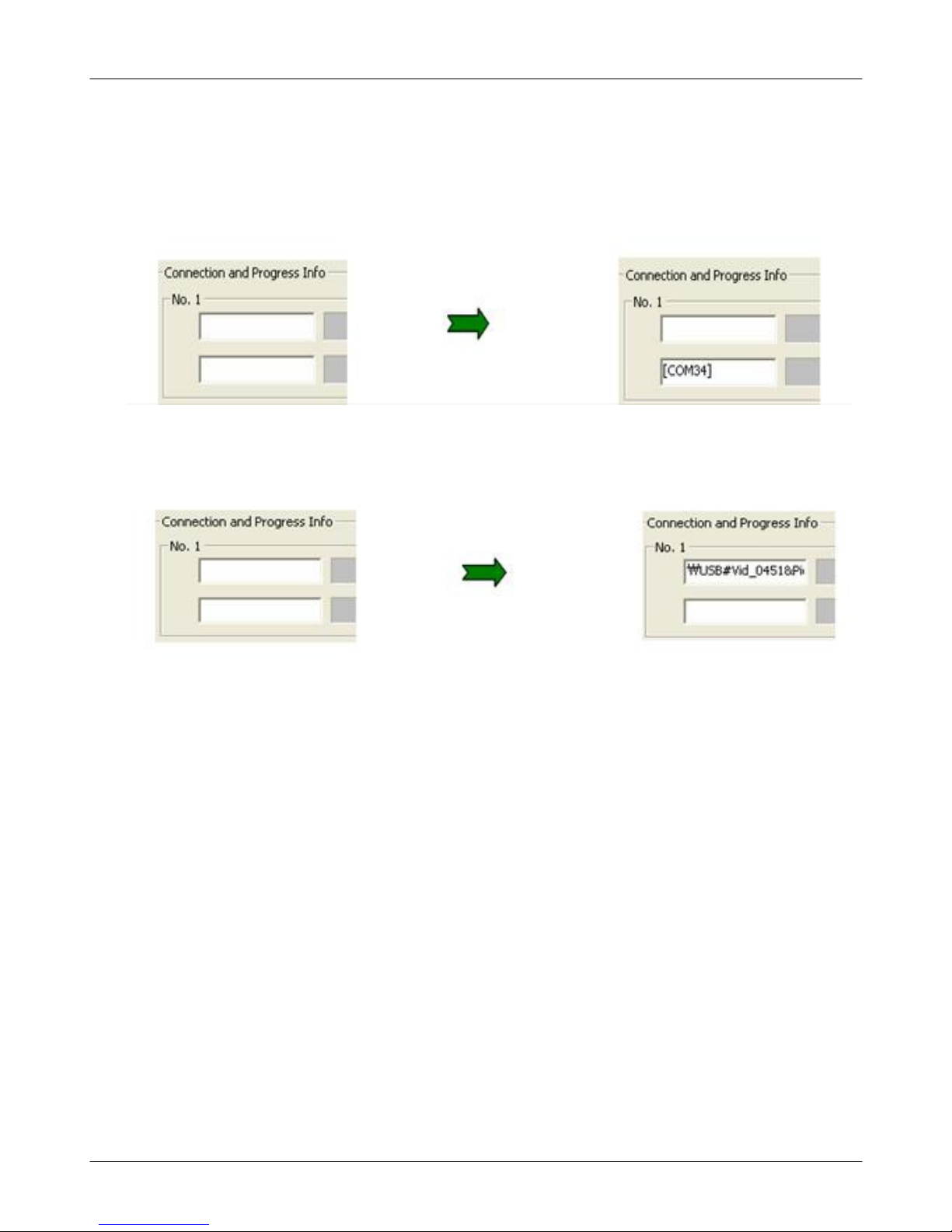

4-2-4. USB Driver installation for MODEM
Hold “7 + *” key and insert power supplied test cable when use equipment set 1or
Hold “7+ *” key and press power on key when use equipment set 2.
Install Modem side driver.
Execute ‘Setup.exe’file under ‘i450_Apollo_Drivers\PHONE_driver’folder when
Windows asks for new h/w driver.
Confirm “SAMSUNG USB Composite Device”Installed.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-7
This Document can not be used without Samsung's authorization
4-2-5. USB Driver installation
1. After insralling PDA driver. Apollo shows rhe connection staus ifit is installed property.
2. After insralling Modem driver. Apollo shows rhe connection staus ifit is installed property.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-8
This Document can not be used without Samsung's authorization
4-2-6. Download the image using APOLLO
Execution Apollo.exe.
Select aRom Image to download
Check this field : 1. I8510 (Primera)

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-9
This Document can not be used without Samsung's authorization
Select the proper check option .
PDA stasus
-Bootloader :Update PDA Bootloader section.
-NV Clear :IMEI section erase.
You can see following message when you click this option
MODEM Status
-Boot Update :Update Modem Bootloader section.
Select country, Operator and Custom version

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-10
This Document can not be used without Samsung's authorization
Make sure that phone and host computer connection, click proper download
button.
PDA download :Hold 1, 4 keys and power on -> Blue screen with some information.
MODEM download :Hold 7, * keys and power on -> Blinking "MODEM DOWNLOAD"
on blue screen
All download :Hold 4, 7 keys and power on -> Blinking "ALL DOWNLOAD" on blue screen

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-11
This Document can not be used without Samsung's authorization
Do NOT interrupt downloading process.
-Pda download time: About 1min.
-Modem download time :About 2min.
-All download time: About 3min.
Confirm Download Complete.
-I8510 will be reboot when PDA download complete.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-12
This Document can not be used without Samsung's authorization
4-2-7. Troubleshooting
Unable to install USB driver.
Try another Download equipment
Try another I8510.
Consult to R&D team.
Download stops in the middle.
Close and launch Apollo again then try again.
Check the battery is charged enough.
Download doesn’t start
Check the connection between Apollo and aI8510.
Check the image that is not damaged.
Select an image and download again.
Phone doesn’t boot up after downloading.
Check the release version of PDA and MODEM. They should be same.
Make sure that rom image, and then try to download.

5. Exploded View and Parts List
5-1
This Document can not be used without Samsung's authorization
5-1. Cellular phone Exploded View
QFU01
QLC01
QME03
QVO01
QSH04
QMO01
QCR03
QCR60
QCR32
QSH02
QCA02
QAR01
QPC01
QFL01
QCR03
QSC01
QCW15
QSD01
QCR57
QHI01
QHI03
QRF07
QCK02
QCR03
QAN02
QFR01
QCK01
QKP01
QME01
QMP01
QVK01
QAN06
QMI01
QSH03
QSH01
QCA01
QSP01
QRE01
QBA01
QBA00
QCR60
QKP02
QJK01
QCK04
QME02
QCR57
