Samsung NA30R5310FG User manual

Gas Cooktop
Installation manual
NA30*5310F* / NA36*5310F*
Install_NA30R5310FG_AA_DG68-01133A-00_EN.indd 1 2019-04-12  12:13:30

2 English
WARNING: If the information in this manual is not followed
exactly, a re or explosion may result causing property damage,
personal injury or death.
• DO NOT store or use gasoline or other ammable vapors and
liquids in the vicinity of this or any other appliance.
• WHAT TO DO IF YOU SMELL GAS:
-DO NOT try to light any appliance.
-DO NOT touch any electrical switch.
-DO NOT use any phone in your building.
-Immediately call your gas supplier from a neighbor’s phone.
Follow the gas supplier’s instructions.
-If you cannot reach your gas supplier, call the re
department.
• Installation and service must be performed by a qualied
installer, service agency, or the gas supplier.
Contents
Before you begin 3
Important safety information 3
Gas cooktop components 8
What’s in the box 8
Installation requirements 10
Pre-installation checklist 10
Location requirements 10
Gas supply requirements 12
Special gas requirements (gas models sold in Massachusetts) 13
Electrical requirements 13
Installation instructions 14
Installing your gas cooktop 14
Step 1. Unpack the cooktop 14
Step 2. Installing the cooktop 14
Step 3. Connect the cooktop to gas supply 15
Step 4. Check for gas leaks 16
Step 5. Electrical connections 17
Step 6. Assemble the cooktop burners 17
Step 7. Check the ignition of cooktop burners 19
Step 8. Checking the ame quality 19
Step 9. Install the grates 20
Step 10. Final installation checklist 22
LP (Propane) conversion instruction 22
Supplied parts 23
Converting the pressure regulator 24
Converting the cooktop burners 25
Adjusting low ame setting on cooktop burners 26
Install_NA30R5310FG_AA_DG68-01133A-00_EN.indd 2 2019-04-12  12:13:30

English 3
Before you begin
Before you begin
About this manual
READ THESE INSTRUCTIONS COMPLETELY AND CAREFULLY.
Important note to the installer
• Read all instructions contained in these installation instructions before installing
the cooktop.
• Remove all packing materials from the cooktop compartments before connecting
the electric and gas supply to the cooktop.
• Observe all governing codes and ordinances.
• Be sure to leave these instructions with the consumer.
• Installation of this appliance requires basic mechanical skills.
• Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not covered under the Warranty.
Important note to the consumer
Keep these instructions with your user manual for future reference.
• As when using any appliance generating heat, there are certain safety
precautions you should follow.
• Be sure your cooktop is installed and grounded properly by a qualied installer
or service technician.
• Make sure the wall coverings around the cooktop can withstand the heat
generated by the cooktop.
• Cabinet storage space above the cooktop burners should be a minimum of 30 in
(76.2 cm).
Important note to the servicer
The electrical diagram is attached inside the burner box.
Important safety information
READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE
• All electrical and gas equipment with moving parts can be dangerous. Please
read the important safety instructions for this appliance in this manual. The
instructions must be followed to minimize the risk of injury, death, or property
damage.
• Save this manual. Please Do Not Discard.
Symbols used in this manual
WARNING
Hazards or unsafe practices that may result in severe personal injury or death.
CAUTION
Hazards or unsafe practices that may result in electric shock, personal injury, or
property damage.
NOTE
Useful tips and instructions.
These warning icons and symbols are here to prevent injury to you and others.
Please follow them explicitly. After reading this section, keep it in a safe place for
future reference.
Install_NA30R5310FG_AA_DG68-01133A-00_EN.indd 3 2019-04-12  12:13:30

4 English
Important safety information
Important safety information
California Proposition 65 Warning
WARNING
Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Commonwealth of Massachusetts
• This product must be installed by a licensed plumber or gas tter qualied or
licensed by the State of Massachusetts. When using ball-type gas shut-off valves,
you must use the T-handle type. Multiple exible gas lines must not be connected
in series.
General safety
WARNING
To reduce the risk of re, electric shock, personal injuries, and/or death, obey the
following precautions.
• Do not touch any part of the cooktop, including
but not limited to, cooktop burners, during or
immediately after cooking.
• Know the location of the gas shut-off valve and
how to shut it off.
• Make sure the hold down brackets are properly installed on the cooktop. See the
installation instructions for more information.
• Do not let children near, in, or on the cooktop. Do not let children play with the
cooktop or any part(s) of the cooktop. Do not leave children unattended in an
area where the cooktop is in use.
• Remove all packaging materials from the cooktop before operating to prevent
ignition of these materials. Keep all packaging materials out of children’s reach.
Properly dispose the packaging materials after the cooktop is unpacked.
• Do not store any object of interest to children on the cooktop or backguard of
the cooktop. Children climbing on the cooktop to reach items could be killed or
seriously injured.
• Do not operate the cooktop if the cooktop or any part of the cooktop is damaged,
malfunctioning, or missing parts.
• Do not use the cooktop as a space heater. This cooktop is to be used for cooking
purposes only.
• Use only dry pot holders.
• Do not use the cooktop to heat unopened food containers.
• Unplug or disconnect power before servicing.
Fire safety
WARNING
To reduce the risk of re, electric shock, personal injuries, and/or death, obey the
following precautions.
• Do not store, place, or use ammable or
combustible materials such as paper, plastic,
pot holders, linens, curtains, gasoline or other
ammable vapors or liquids near the cooktop.
• Do not wear loose tting or hanging garments
while using the cooktop.
• To avoid grease buildup, regularly clean the vents.
• Do not let pot holders or other ammable materials touch a heating element. Do
not use a towel or other bulky cloths in place of a pot holder.
• Do not use water on a grease re. To put out a grease re, turn off the heat
source and smother the re with a tight-tting lid or use a multipurpose dry
chemical or foam-type re extinguisher.
• Do not heat unopened food containers - buildup of pressure may cause container
to burst and result in injury.
Install_NA30R5310FG_AA_DG68-01133A-00_EN.indd 4 2019-04-12  12:13:31

English 5
Important safety information
Gas safety
WARNING
To reduce the risk of re, electric shock, personal injuries, and/or death, obey the
following precautions.
If you smell gas:
• Close the valve and do not use the cooktop.
• Do not light a match, candle, or cigarette.
• Do not turn on any gas or electric appliances.
• Do not touch any electrical switches or plug a
power cord into an outlet.
• Do not use any phone in your building.
• Evacuate the room, building, or area of all
occupants.
• Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call the
re department.
Checking for gas leaks
• Leak testing of the appliance shall be conducted according to the manufacturer’s
instructions. Do not use a ame to check for gas leaks. Use a brush to spread a
soapy water mixture around the area you are checking. If there is a gas leak, you
will see small bubbles in the soapy water mixture at the leak point.

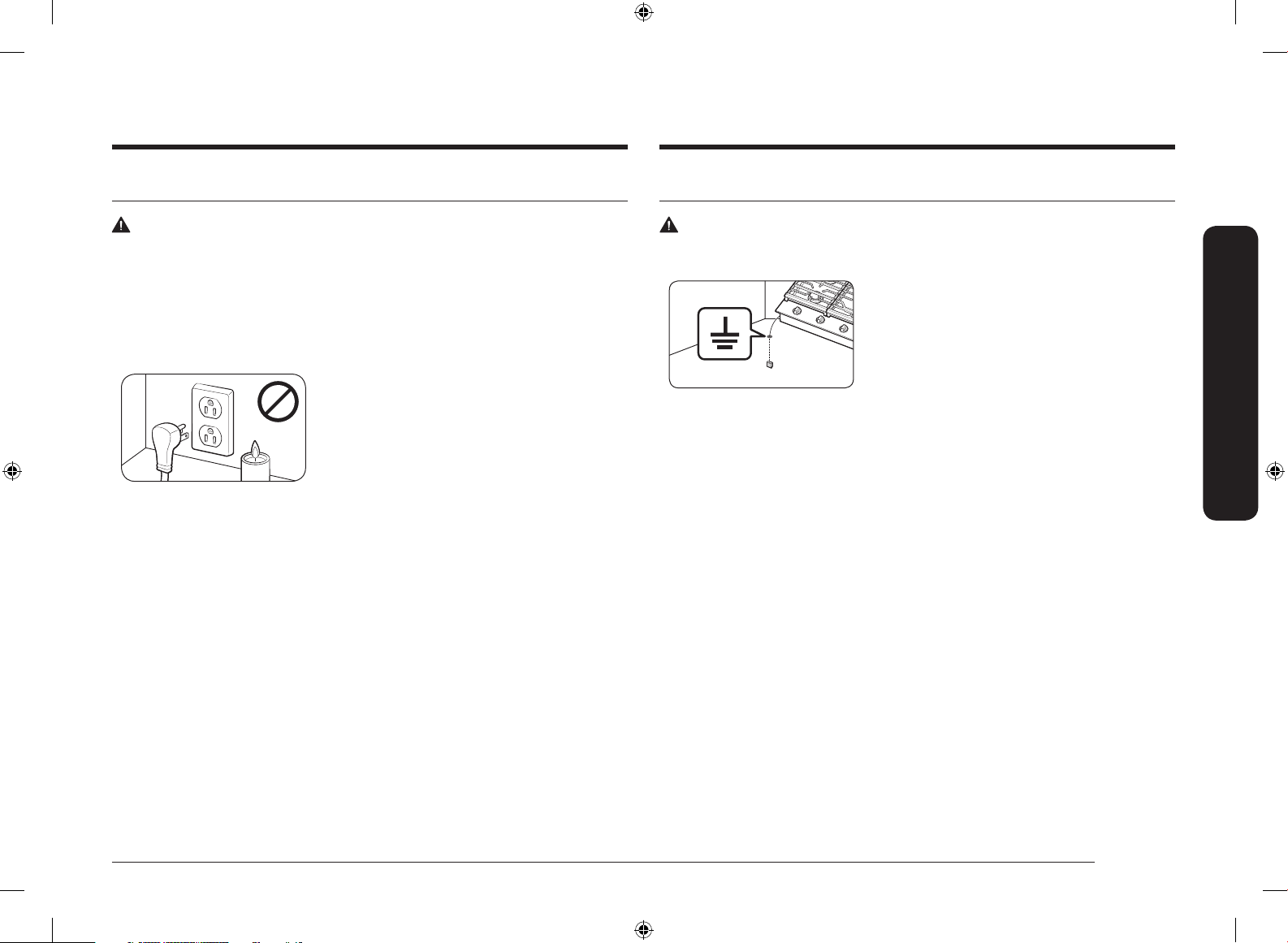

Electrical and grounding safety
WARNING
To reduce the risk of re, electric shock, personal injuries, and/or death, obey the
following precautions.
• Plug into a grounded 3-prong outlet.
• Do not remove the ground prong.
• Do not use an adapter or an extension cord.
• Do not use a damaged power plug, power cord,
or loose power outlet.
• Do not modify the power plug, power cord, or
power outlet in any way.
• Do not put a fuse in a neutral or ground circuit.
• Use a dedicated 120-volt, 60-Hz, 20-amp, AC, fused electrical circuit for this
cooktop. A time-delay fuse or circuit breaker is recommended. Do not plug more
than one appliance into this circuit.
• Do not connect the ground wire to plastic plumbing lines, gas lines, or hot water
pipes.
• This cooktop must be Earth grounded. In the event of a malfunction or
breakdown, grounding will reduce the risk of electrical shock by providing a path
for the electric current. This cooktop is equipped with a cord having a grounding
plug. The plug must be rmly plugged into an outlet that is properly installed
and grounded in accordance with the local codes and ordinances. If you are
unsure whether your electrical outlet is properly grounded, have it checked by a
licensed electrician.
• The cooktop is supplied with a 3-pronged grounded plug. This cord must be
plugged into a mating, grounded 3-prong outlet that meets all local codes and
ordinances. If codes permit the use of a separate ground wire, we recommend
that a qualied electrician determine the proper path for this ground wire.
• Electrical service to the cooktop must conform to local codes. Barring local codes,
it should meet the latest ANSI/NFPA No. 70 – Latest Revision (for the U.S.) or the
Canadian Electrical Code CSA C22.1 – Latest Revisions.
• It is the personal responsibility of the cooktop owner to provide the correct
electrical service for this cooktop.
Install_NA30R5310FG_AA_DG68-01133A-00_EN.indd 5 2019-04-12  12:13:31

6 English
Important safety information
Important safety information
• Make sure your cooktop is correctly installed and adjusted by a qualied
service technician or installer for the type of gas (natural or LP) you will use. For
your cooktop to utilize LP gas, the installer must replace the 5 cooktop burner
orices with the provided LP orice set, and reverse the GPR adapter. These
adjustments must be made by a qualied service technician in accordance with
the manufacturer’s instructions and all codes and requirements of the authority
having jurisdiction. The qualied agency performing this work assumes the gas
conversion responsibility.
• Installation of this cooktop must conform with local codes or, in the absence
of local codes, with the National Fuel Gas Code, ANSI Z223.1/NFPA.54, latest
edition. In Canada, the Natural Gas and Propane Installation Code, CSA B149.1.
This cooktop has been design-certied by ETL according to ANSI Z21.1, latest
edition, and Canadian Gas Association according to CAN/CGA-1.1, latest edition.
Installation safety
WARNING
To reduce the risk of re, electric shock, personal injuries, and/or death, obey the
following precautions.
• Have your cooktop installed and properly grounded by a qualied installer, in
accordance with the installation instructions. Any adjustment and service should
be performed only by qualied gas cooktop installers or service technicians.
• Do not attempt to service, modify, or replace your cooktop or any part of your
cooktop unless it is specically recommended in this manual. All other service
should be referred to a qualied technician.
• Always use new exible connectors when installing a gas appliance. Do not use
old exible connectors.
• Make sure the hold down brackets are properly installed on the cooktop. See the
installation instructions for more information.
• Remove all tape and packaging materials.
• Remove all accessories from the cooktop. Grates and griddles are heavy. Use
caution when handling them.
• Make sure no parts came loose during shipping.
Install_NA30R5310FG_AA_DG68-01133A-00_EN.indd 6 2019-04-12  12:13:31

English 7
Important safety information
Location safety
WARNING
To reduce the risk of re, electric shock, personal injuries, and/or death, obey the
following precautions.
• This cooktop is for indoor, household use only.
Do not install the cooktop in areas exposed to
the weather and/or water.
• Do not install the cooktop in a place which is
exposed to a strong draft.
• Select a location where a grounded, 3- prong outlet is easily accessible.
• If the cooktop is located near a window, do not hang long curtains or paper
blinds on that window.
• For the cooktop to ventilate properly, there is enough clearance at the top, back,
sides, and underneath the cooktop. The vents allow the necessary exhaust for the
cooktop to operate properly with correct combustion.
• Make sure the wall coverings around the cooktop can withstand heat up to 194
°F (90 °C) generated by the cooktop.
• Cabinet storage above the surface of the cooktop should be avoided. If cabinet
storage above the cooktop is necessary: allow a minimum clearance of 30 inches
(76.2 cm) between the cooking surface and the bottom of cabinets.
Cooktop safety
WARNING
To reduce the risk of re, electric shock, personal injuries, and/or death, obey the
following precautions.
• Make sure all burners are off when not in use.
• Do not use aluminium foil to line the grates or
any part of the cooktop.
• Do not leave burners unattended on medium or
high heat settings.
• Before igniting, make sure all burner caps are
properly in place and all burners are level.
• Always use the LITE position when igniting the burners and make sure the
burners have ignited. If ignition fails, turn the knob to OFF and wait until the gas
has dissipated.
• When you set a burner to simmer, do not turn the knob quickly. Make sure the
ame stays on.
• Do not place any objects other than cookware on the cooktop.
• This cooktop is designed to cook with a wok or wok ring attachment. If foods are
amed, they should only be amed under a ventilation hood that is on.
• Before removing or changing cookware, turn off the burners.
• Remove food and cookware immediately after cooking.
• Before removing any parts of the burner for cleaning, make sure the cooktop is
off and completely cool.
• After cleaning the burner spreader, make sure it is completely dry before re-
assembling.
• To avoid carbon monoxide poisoning, do not pour water into the cooktop well
while cleaning.
• Select cookware that is designed for top-cooktop cooking. Use cookware that is
large enough to cover the burner grates. Adjust the burner ames so that the
ames do not extend beyond the bottom of the cookware.
• To avoid cookware discoloration, deformity, and/or carbon monoxide poisoning,
do not use cookware that is exceedingly larger than the grate.
• Make sure cookware handles are turned to the side or rear of the cooktop, but
not over other cooktop burners.
Install_NA30R5310FG_AA_DG68-01133A-00_EN.indd 7 2019-04-12  12:13:31

8 English
Gas cooktop components
Important safety information
• Stand away from the cooktop while frying.
• Always heat frying oils slowly, and watch as they heat. If you are frying foods at
high heat, carefully watch during the cooking process. If a combination of fats or
oils is to be used during frying, mix them together before heating.
• Use a deep-fryer thermometer whenever possible. This prevents overheating the
fryer beyond the smoking point.
• Use a minimum amount of oil when shallow pan-frying or deep-frying. Avoid
cooking unthawed food or food with excessive amounts of ice.
• Before moving cookware full of fats or oils, make sure it has completely cooled.
• To prevent delayed eruptive boiling, always allow heated liquids to stand at least
20 seconds after you have turned off the burner so that the temperature in the
liquid can stabilize. In the event of scalding, follow these rst aid instructions:
1. Immerse the scaled area in cool or lukewarm water for at least 10 minutes.
2. Do not apply any creams, oils, or lotions.
3. Cover with a clean, dry cloth.
Gas cooktop components
What’s in the box
Parts supplied
Surface burner grates (2) *
30” Model : NA30R5310F*
Surface burner grates (3) *
36” Model : NA36R5310F*
Cooktop burners and
caps (5) *
36” Model : NA36R5310F*
Cooktop burners and
caps (4) *
30” Model : NA30R5310F*
Screw (6)
(M4L10 2 ea, M4 L16 2 ea,
W3/16 L75 2 ea)
Regulator (1) *
Hold down brackets (2) * Foam tape
• Make sure you have received all of the supplied parts shown above.
• If your cooktop was damaged during shipping or you do not have all of the
supplied parts, contact your local retailer.
NOTE
If you need an accessory marked with an * (asterisk), please contact the Samsung
Call Center using the phone number listed on the last page of this manual or visit
our on-line parts web site at www.samsungparts.com.
Install_NA30R5310FG_AA_DG68-01133A-00_EN.indd 8 2019-04-12  12:13:32

English 9
Gas cooktop components

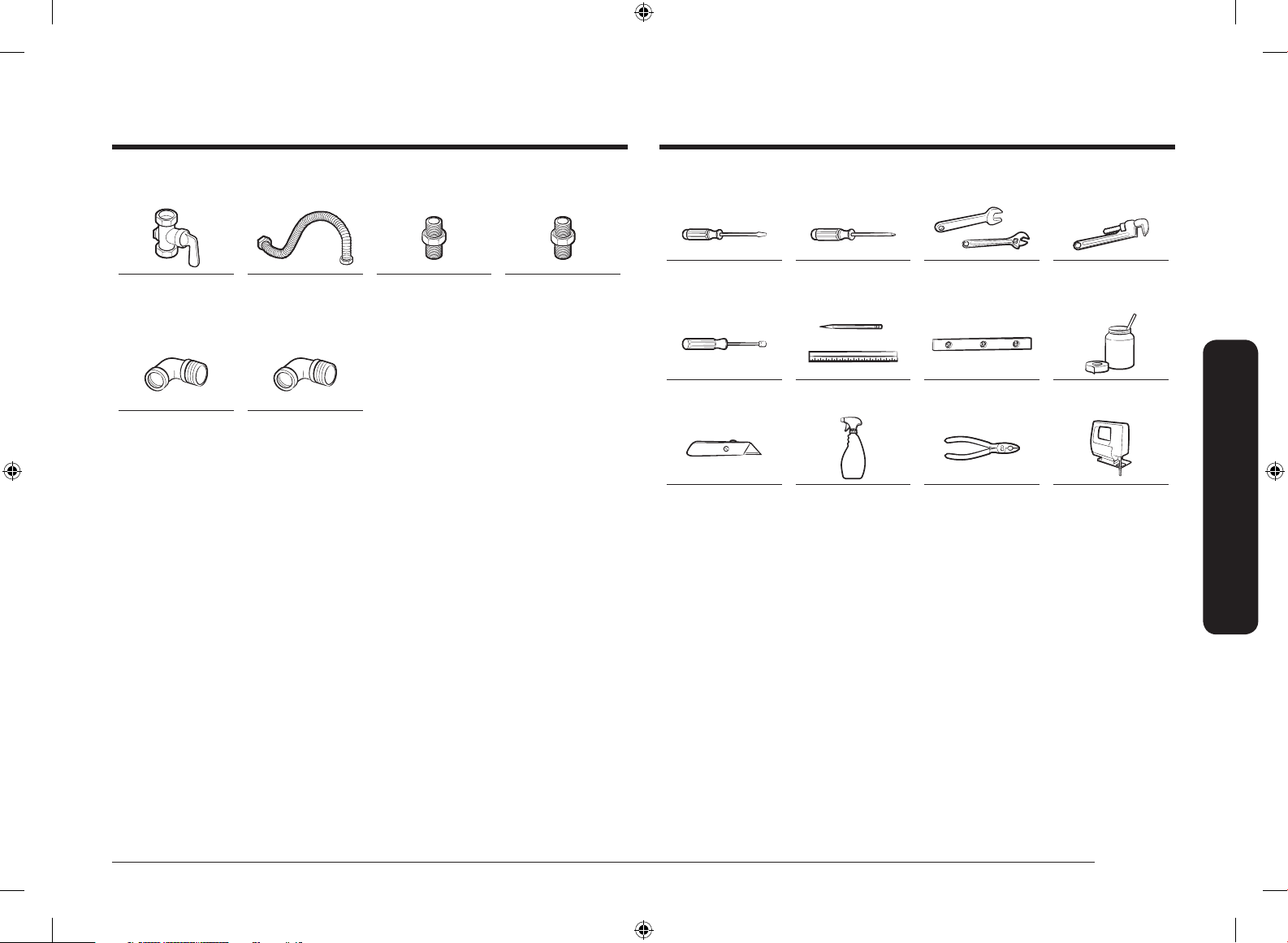

Parts needed
Gas line shut-off
valve
Flexible metal
appliance connector
½ in (ID) x 5 ft
Flare union adapter
¾ in or ½ in (NPT) x
½ in (ID)
Flare union adapter
½ in (NPT) x ½ in
(ID)
135-degree elbow
(optional)
90-degree elbow
(optional)
Tools needed
Flat-blade
screwdriver
Phillips screwdriver Open-end or
adjustable wrench
Pipe wrench (2)
¼" Nut driver Pencil and ruler Level Pipe joint compound
Utility knife Soapy water
solution
Pliers Saber saw
Install_NA30R5310FG_AA_DG68-01133A-00_EN.indd 9 2019-04-12  12:13:33

10 English
Installation requirements
Installation requirements
Pre-installation checklist
1. When preparing cooktop opening, make sure the inside of the cabinet, and the
cooktop do not interfere with each other.
2. Remove packing materials, grate boxes, regulator with literature, and literature
package from the cooktop before beginning installation.
Location requirements
BEFORE YOU BEGIN to install this appliance, refer to the following information,
dimensions, and clearances. These dimensions must be met for safe use of the
cooktop. The location of the electrical outlet and gas piping may be adjusted to
meet the following dimensions and clearances.
CAUTION
This cooktop has been designed to comply with the maximum allowable wood
cabinet temperature of 194 °F (90 °C). Make sure the wall covering, countertops,
and cabinets around the cooktop can withstand the heat (up to 194 °F [90 °C])
generated by the cooktop. If not, discoloration, delamination, or melting may occur.

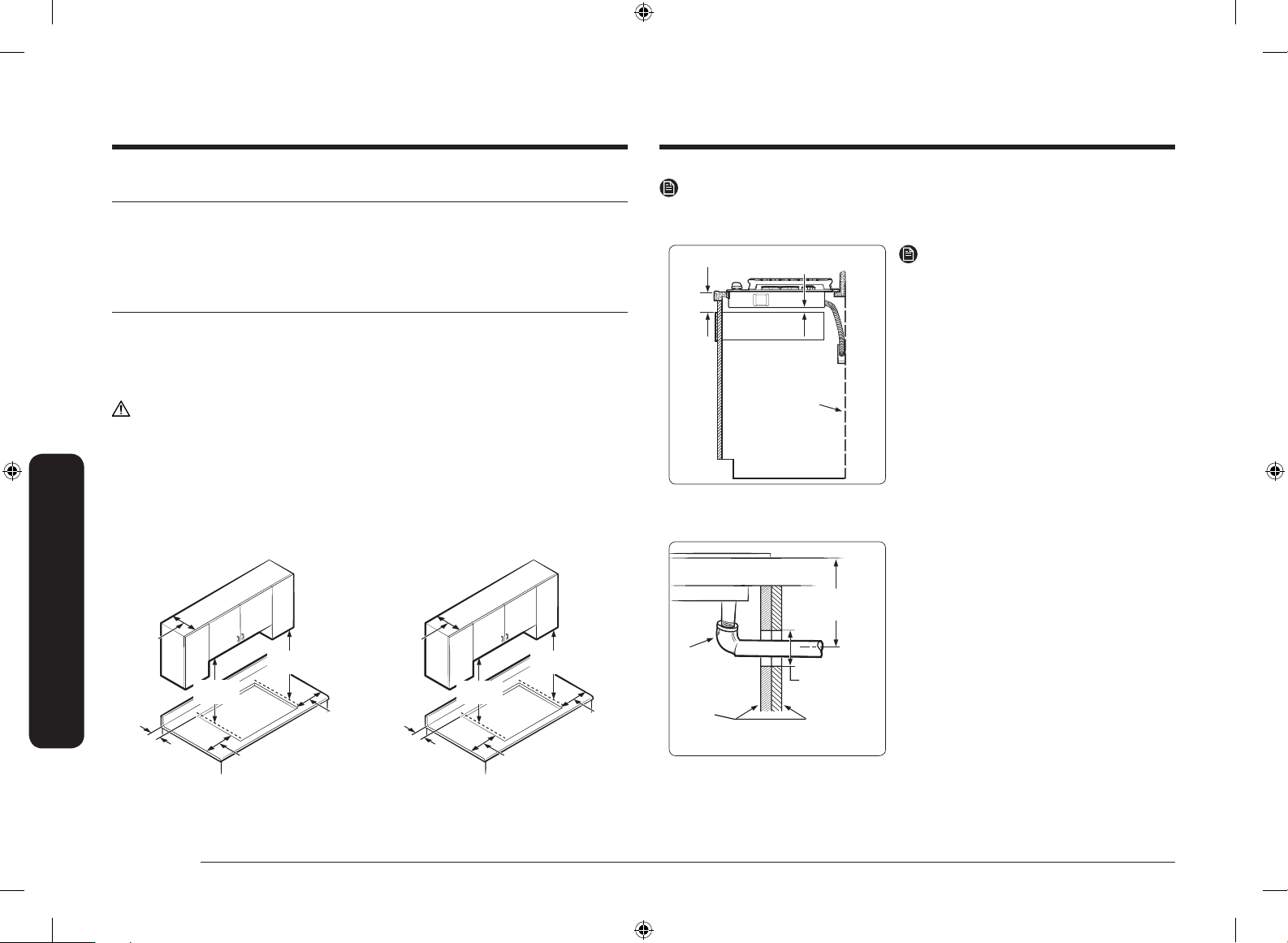

Maintain the following minimum clearance dimensions
13” MAX.
(330 mm)
13” MAX.
(330 mm)
30” MIN
(762 mm)
30” MIN
(762 mm)
12” MIN
(304.8 mm)
30” - NA30*5310F* 36” - NA36*5310F*
12” MIN
(304.8 mm)
18” MIN
(457 mm)
18” MIN
(457 mm)
27/8” MIN
(73.0 mm)
12”
(304.8 mm)
33/8” Min
(85.7 mm) 12”
(304.8 mm)
NOTE
All horizontal clearances must be maintained for a minimum of 18” (457 mm)
above the cooking surface.
Electrical outlet 12”
(30.5 cm) minimum
below countertop
3
9
/ 16 ”
(90.5 mm)
7/16”
(11.1 mm)
DRAWER
NOTE
Allow 7/16” minimum vertical clearance
from the cooktop bottom (or 39/16”
minimum depth from the countertop) to
any combustible surfaces, including the
upper edge or a drawer installed below the
cooktop.
Installation over built-in oven
90° Elbow
5” To Center of 2” Dia.
Hole From Countertop
2” Dia. Hole
(207/8” from front
of countertop to
hole Center
View from Front of Cooktop
Cabinet Sides
See built-in oven installation for complete
installation instructions.
Install_NA30R5310FG_AA_DG68-01133A-00_EN.indd 10 2019-04-12  12:13:34

English 11
Installation requirements

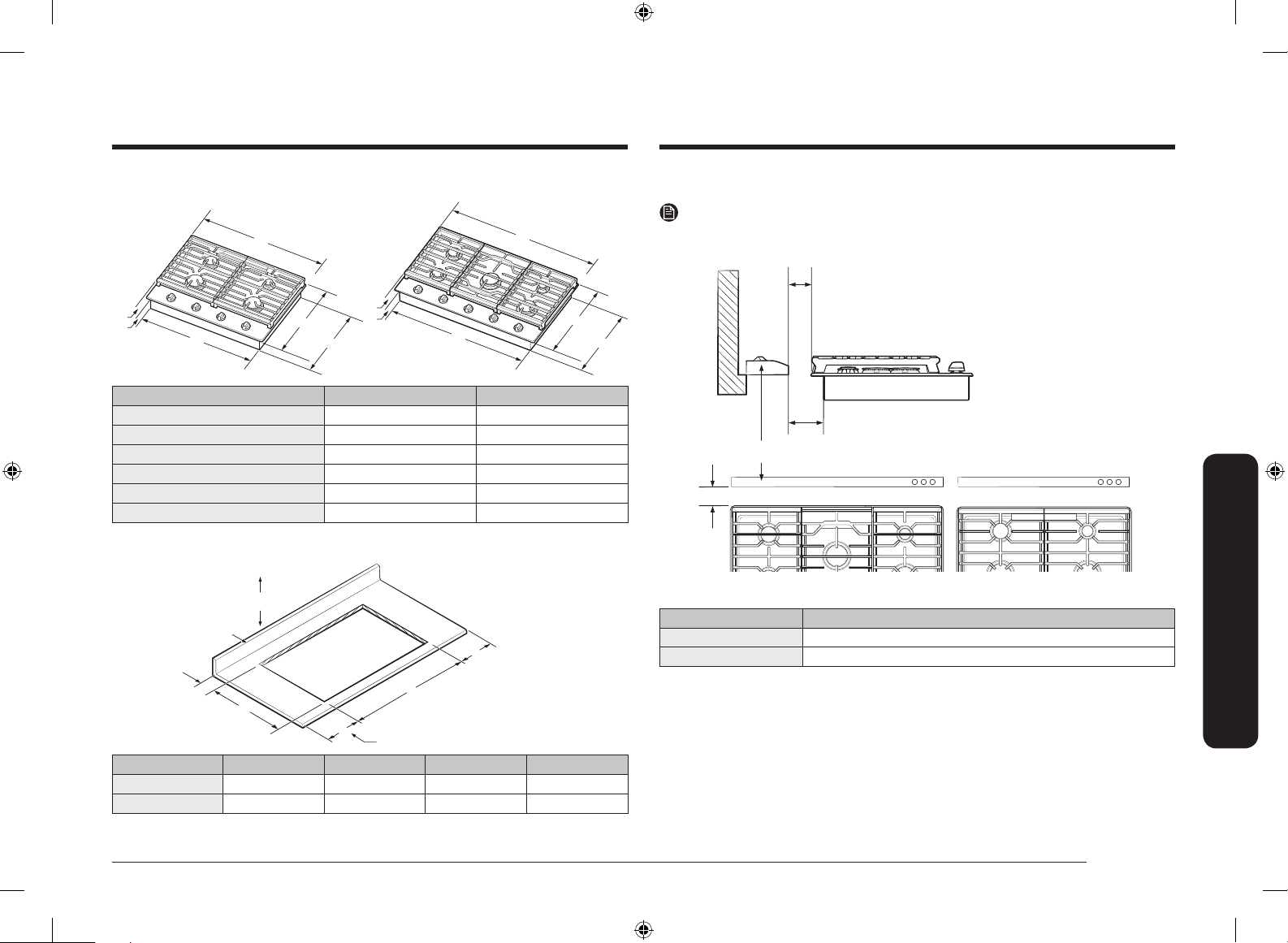

Overall cooktop dimensions
E
D
C
B
E
F
A
A
D
C
B
F
30” Model 36” Model
Model NA30*5310F* NA36*5310F*
A30” (762 mm) 36” (914.4 mm)
B281/8” (715 mm) 3311/16” (855.4 mm)
C193/8” (492.1 mm) 187/8” (479.1 mm)
D21” (533 mm) 21” (533 mm)
E(Countertop to grate surface) 29/16” (65 mm) 29/16” (65 mm)
F(Chassis Height) 31/8” (79.5 mm) 31/8” (79.5 mm)
Cutout dimensions of countertop
Vertical
combustible
surface
G
H
J
J
I
Rear wall
Minimum distance to combustible side
wall above countertop (both sides)
Model (G) Min. (H) Min. (I) Min. (J) Min.
NA30*5310F* 27/8” (73 mm) 195/8” (498.5 mm) 281/2” (723.9 mm) 12” (304.8 mm)
NA36*5310F* 33/8” (85.7 mm) 191/8” (485.8 mm) 337/8” (860.4 mm) 12” (304.8 mm)
Installation dimensions with downdraft hood
NOTE
Make sure the clearance dimensions when you install the cooktop with downdraft
hood.
19/16” (40 mm) Min.
Cooktop
(K) Cutout to downdraft hood
19/16” (40 mm) Min.
Cooktop frame to downdraft hood
Downdraft Hood
30” Model36” Model
Model (K) Min.
NA30*5310F* 27/16” (62 mm)
NA36*5310F* 3” (76 mm)
Install_NA30R5310FG_AA_DG68-01133A-00_EN.indd 11 2019-04-12  12:13:34

12 English
Installation requirements
Installation requirements
Single Oven Under counter
D
A
F
E
B
G
C
H
01 02
01 This cooktop can be installed above any
Samsung single built-in oven. Refer to
installation manual of oven.
02 Gas and Electrical Connections for Gas
Cooktop Must be Located in an Adjacent
Accessible Location to the Right.
Size
A Min. 33/4” (9.5 cm)
B4” (10.1 cm)
CMin. 281/2” / Max. 285/8” (Min. 72.4 cm / Max. 72.7 cm)
DMin. 1” / Max. 11/4” (Min. 2.5 cm / Max. 3.2 cm)
EMin. 271/4” / Max. 273/8” (Min. 69.2 cm / Max. 69.5 cm)
F24” (61 cm)
GMin. 22” (Min 55.9 cm)
HMax. 91/2” (Max. 24.1 cm) – Junction Box
Utility locations and dimensions
Front of unit
Power cord 393/8”
(100.0 cm) long
3/8”-18 NPT male
gas inlet
* Gas inlet protrudes 19/16” (4.0 cm)
from bottom.
Front of cooktop
Chassis
11/4”
(3.2 cm)
115/16”
(5.0 cm)
Gas supply requirements
Provide adequate gas supply
This cooktop is designed to operate at a pressure of 5 in (13 cm) of water column
on natural gas or 10 in (25 cm) of water column on LP gas (propane or butane).
Make sure you are supplying your cooktop with the type of gas for which it is
designed. Do not attempt to convert the appliance from the gas specied in this
manual to a different gas without consulting the gas supplier.
This cooktop is convertible for use on natural or propane gas. If you decide to use
this cooktop on LP gas, conversion must be made by a qualied LP installer before
attempting to operate the cooktop.
For proper operation, the pressure of natural gas supplied to the regulator must be
between 5 in and 13 in (13 cm and 33 cm) of water column.
For LP gas, the pressure supplied must be between 10 in and 13 in (25 cm and
33 cm) of water column.
When checking for proper operation of the regulator, the inlet pressure must be at
least 1 in (2.5 cm) greater than the operating (manifold) pressure as given.
Install_NA30R5310FG_AA_DG68-01133A-00_EN.indd 12 2019-04-12  12:13:35

English 13
Installation requirements
The pressure regulator located at the inlet of the cooktop manifold must remain in
the supply line regardless of whether natural or LP gas is being used.
NOTE
• The cooktop comes from the factory with a regulator in the shipping carton. Use
only the regulator provided. The regulator must be installed in the gas line that
runs from the cooktop gas inlet to the gas shut off valve.
• An external manual shut-off valve must be installed between the gas inlet and
the cooktop for the purpose of turning on or shutting off gas to the appliance.
• Be sure the connectors are installed when you need coupling by a qualied
installer.
• Never reuse old connectors when installing the cooktop. The use of old
connectors can cause gas leaks and personal injury. Always use new exible
connectors when installing a gas appliance.
Special gas requirements (gas models sold in Massachusetts)
COMMONWEALTH OF MASSACHUSETTS REQUIREMENTS:
WARNING
Gas leaks may occur in your system, creating a dangerous situation.
– Gas leaks may not be detected by smell alone.
– Gas suppliers recommend you purchase and install a UL-approved gas detector.
Gas detector should be installed in accordance with the manufacturers
instructions.
• Cooktop must be installed by a qualied plumber or gas tter by the State of
Massachusetts.
• A T-handle manual gas valve MUST be installed in the gas supply line to your
cooktop.
• If a exible gas connector is used to install your cooktop, multiple exible gas
lines must not be connected in series.
Electrical requirements
WARNING
• It is the owner’s responsibility to make sure that the electrical service meets
electrical requirements and that he electrical outlet has been properly installed
by a licensed electrician.
• To reduce the risk of re, electric shock, or personal injury:
All cooktops
• Do not use an extension cord or adapter plug with this cooktop.
• This cooktop must be properly grounded.
• Check with a qualied electrician if you are in doubt as to whether your cooktop
is properly grounded.
• Do not modify the plug provided with your cooktop — if it doesn’t t the outlet,
have a proper outlet installed by a qualied electrician.
• All wiring and grounding must be done in accordance with local codes or, in the
absence of local codes, with the National Electrical Code, ANSI/NFPA No. 70 –
Latest Revision (for the U.S.) or the Canadian Electrical Code CSA C22.1 – Latest
Revisions and local codes and ordinances.
• Wiring diagram is located on the inside of the burner box.
• This cooktop is equipped with an electronic ignition system that will not operate
if plugged into an outlet that is not properly polarized.
Gas cooktops
• All gas models are equipped with a power cord with an equipment-grounding
conductor and a grounding plug.
• A 120-Volt, 60-Hz, AC, approved electrical service with 20-amp circuit breaker or
time-delay fuse is required for all U.S. and Canadian models.
Install_NA30R5310FG_AA_DG68-01133A-00_EN.indd 13 2019-04-12  12:13:35

14 English
Installation instructions
Grounding
• All cooktops must be grounded for personal safety.
• The plug must be rmly plugged into a three-prong outlet that is properly
installed and grounded in accordance with all local codes and ordinances. In
the event of a malfunction or breakdown, grounding will decrease the risk of
electrical shock by providing a path for the electric current.
• Do not use a damaged power plug or loose wall outlet.
• Do not use an extension cord or adapter with this appliance
• Do not, under any circumstances, cut, modify, remove, or otherwise defeat the
grounding (third) prong from the power cord. If the plug and the outlet do not
match or you have any doubt, have a qualied electrician install the proper
outlet. The customer should have the wall receptacle and circuit checked by a
qualied electrician to make sure the receptacle is properly grounded.
• NEVER connect ground wire to plastic plumbing lines, gas lines, or water pipes.
CAUTION
Failure to follow these instructions can result in death, re, or electrical shock.
Additional installation requirements for mobile homes
The installation of appliances designed for mobile home installation must conform
with the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part
3280 (formerly the Federal Standard for Mobile Home Construction and Safety,
Title 24, HUD, Part 280) or, when such standard is not applicable, the Standard
for Manufactured Home Installations, latest edition (Manufactured Home Sites,
Communities and Set-Ups), ANSI A225.1, latest edition, or with local codes. In
Canada, mobile home installation must be in accordance with the current CAN/CSA
Z240/MH Mobile Home Installation Code.
Installation instructions
Installing your gas cooktop
IMPORTANT:
Please read the following instructions, as well as the Important Safety Instructions
section at the front of this manual, completely and carefully BEFORE installing
and/or operating the gas cooktop. Improper installation, adjustment, service, or
maintenance can cause personal injury or property damage.
NOTE
To ensure proper installation, we strongly recommend that you hire a professional
installer.
Step 1. Unpack the cooktop
Remove all packaging materials. Failure to remove packaging materials could
result in damage to the appliance.
Inventory all loose parts against the Parts supplied components listed on page 8.
Check for shipping damage and/or missing parts. Any damage and/or missing
parts should be reported to your local retailer.
Step 2. Installing the cooktop
1. Locate electrical outlet and gas shut-off
valve beneath cabinet.
2. Apply the foam tape around the edge of
the cutout opening. Do not overlap the
foam strips.
• The foam strip helps avoid damage
to the underside of the cooktop from
debris and helps the cooktop sit at on
uneven counters.
3. Protect surface of cooktop
• Place a towel or tablecloth onto the
countertop.
Install_NA30R5310FG_AA_DG68-01133A-00_EN.indd 14 2019-04-12  12:13:35

English 15
Installation instructions
Correct installation
4. With bottom side rst, gently put the
cooktop down.
• Make sure the front of the countertop is
parallel to the cooktop
• Make nal check that all required
clearances are met.
Front of unit
Gas inlet
Power cord
Hold Down Bracket Installation
Hold down
bracket holes
5. Secure the cooktop to the countertop
using the two provided hold-down
brackets as shown.
Hold down bracket install guide
M4 L10 screw
M4 L16 screw
Case 1.
Countertop
Side wall of
undercounter
cabinet
Hold down
bracket
W3/16 L75 screw
Case 2.
Countertop
Chassis
Hold down
bracket
Chassis
M4 L10 screw
Step 3. Connect the cooktop to gas supply
Shut off the main gas supply valve before disconnecting the old cooktop and leave
it off until the new hookup has been completed. Don’t forget to relight the burner
on other gas appliances when you turn the gas back on.
Because hard piping restricts movement of the cooktop, the use of a CSA
International-certied exible metal appliance connector is recommended unless
local codes require a hard-piped connection.
WARNING
If the information in this manual is not followed exactly, a re or explosion may
result, causing death, personal injury, or property damage.
– Do not store or use gasoline or other ammable vapors and liquids in the
vicinity of this or any other appliance.
– WHAT TO DO IF YOU SMELL GAS:
• DO NOT light a match, candle, or cigarette.
• DO NOT try to light any appliance.
• DO NOT touch any electrical switch.
• DO NOT use any phone in your building.
• Clear the room, building, or area of all occupants.
Install_NA30R5310FG_AA_DG68-01133A-00_EN.indd 15 2019-04-12  12:13:35

16 English
Installation instructions
Installation instructions
• Immediately call your gas supplier from a neighbor’s phone. Follow the gas
supplier’s instructions.
• If you cannot reach your gas supplier, call the re department.
– Installation and service must be performed by a qualied installer, service
agency, or gas supplier.
– Do not install the cooktop without also installing the included gas regulator. Do
not use the cooktop without the regulator installed.
– Ensure that the arrow on the regulator points in the direction of the gas ow,
towards the cooktop.
– Do not apply excessive pressure when tightening gas connections and ttings.
– Test the gas lines for leaks as instructed before use. Do not use a ame to check
for leaks.
Never use an old connector when installing a new cooktop. If the hard-piping
method is used, you must carefully align the pipe; the cooktop cannot be moved
after the connection is made.
To prevent gas leaks, apply pipe-joint compound or wrap pipe-thread tape with
Teon on all male (external) pipe threads.
1. Attach the gas pressure regulator (included with the cooktop) to the cooktop
pipe nipple inlet. For tight installations, the regulator may be installed upstream
from the pipe nipple, anywhere between the shut-off valve and the cooktop.
For best performance, minimize gas pressure loss by attaching the regulator as
close as possible to the cooktop gas inlet.
2. Complete connection of the gas supply to the cooktop by installing a exible
gas line between the pressure regulator and the shut-off valve.
WARNING
Do not exceed 25 ft-lbs of torque when making gas line connections.
Overtightening may crack the pressure regulator resulting in a gas leak.
Flexible connector hookup
Installer: Inform the consumer of the location of the gas shut-off valve.
Adapter
Flex
Connector
(6-ft max.)
Adapter
Gas Shut-Off Valve
½-in or ¾-in Gas
Pipe
Gas Flow into Cooktop
Pressure
Regulator
Tubing Line
to Cooktop
Control
Manifold
NOTE
The gas shut-off valve should be installed
in an accessible location in the gas piping,
external to the appliance, for the purpose
of turning on or shutting off the gas to the
appliance.
Step 4. Check for gas leaks
WARNING
To prevent death, personal injury, explosion, and/or re hazard, DO NOT use a
ame to check for gas leaks.
When using test pressures greater than ½ psig to pressure-test the gas supply
system of the residence, disconnect the cooktop and individual shut-off valve
from the gas supply piping. When using test pressures of ½ psig or less to test
the gas supply system, simply isolate the cooktop from the gas supply system by
closing the individual shut-off valve.
1. When all connections have been made, make sure all cooktop controls are in the
off position and turn on the main gas supply valve.
2. Use a liquid leak detector at all joints and connections to check for leaks in the
system.
3. Tighten all connections if necessary to prevent gas leakage in the cooktop or
supply line.
Install_NA30R5310FG_AA_DG68-01133A-00_EN.indd 16 2019-04-12  12:13:36

English 17
Installation instructions
Step 5. Electrical connections
WARNING
• Disconnect all electrical power of the main circuit breaker or fuse box before
installing.
• BEFORE OPERATING OR TESTING, follow the grounding requirements on pages 14
in this manual. Improper connection of the grounding plug can result in a rick of
electric shock.
• All gas cooktops come with a power cord. The power cord is connected to the
bottom of the cooktop. Please review “Electrical requirements” on pages 13.
• The electrical system, including the power cord, is preinstalled and prewired at
the factory. Altering any part of this system may result in a short or overload.
1. Plug in the power cord. Make sure the outlet meets local or national electrical
codes as referenced on pages 13.
2. Check the gas supply line to make sure it did not get damaged and it stayed
connected during positioning.
Step 6. Assemble the cooktop burners
CAUTION
• Do not operate the cooktop burners without all burner parts in place.
• Be careful not to push in any cooktop controls while removing the cooktop
burner. A slight electrical shock might result which could cause you to knock
over hot cookware.
• Do not remove the top or touch the electrode of any burner while another
burner is turned on. Electrical shock might result.

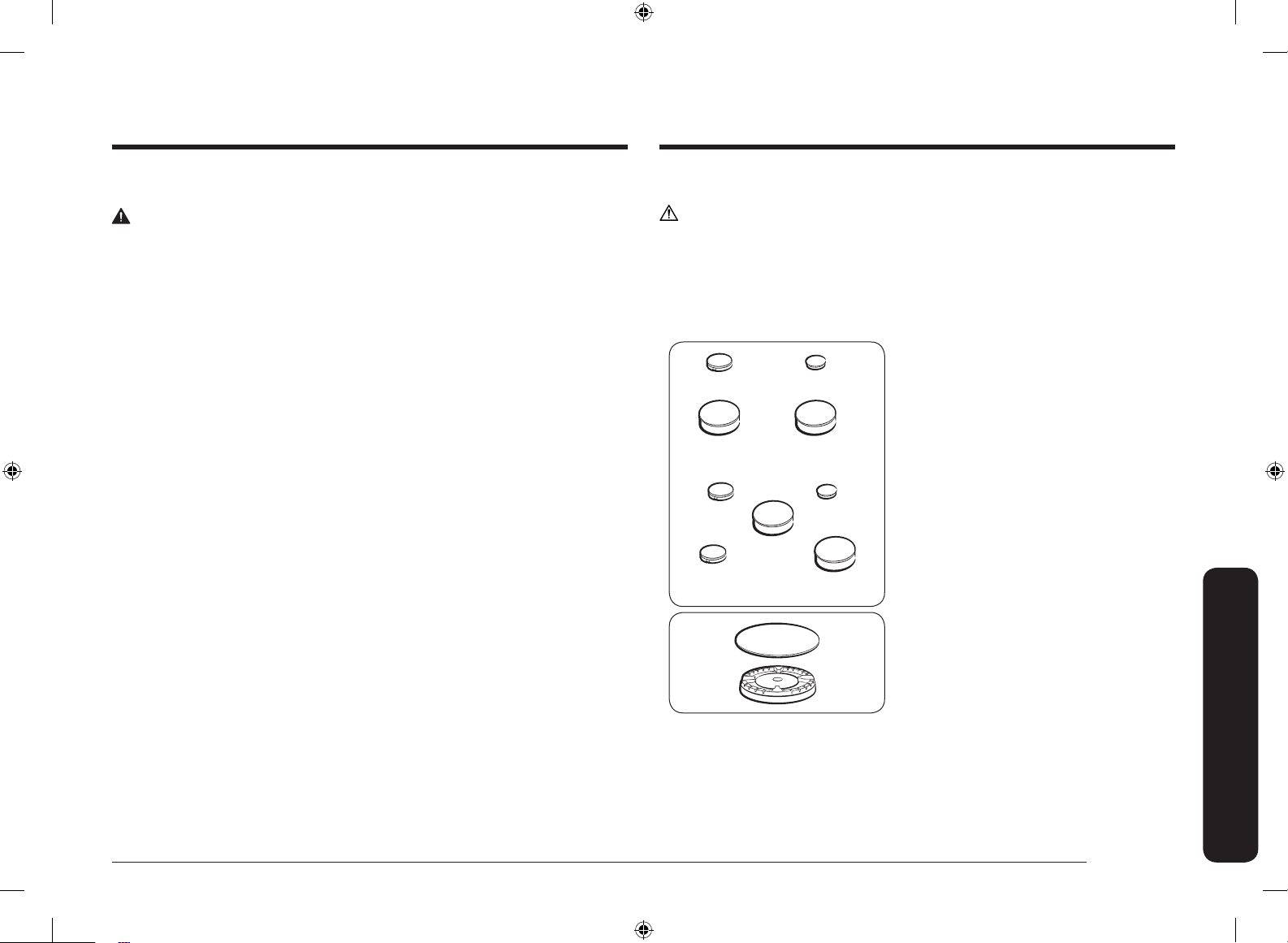

30” - NA30*5310F*
36” - NA36*5310F*
1. Position cooktop burner heads on top of
the cooktop burner manifolds as shown
on the left. The electrodes will t into
the slot in the bottom of the heads. Make
sure the cooktop burner heads are at
and parallel with the cooktop.
2. Place the matching size caps on top of
each cooktop burner head.
Install_NA30R5310FG_AA_DG68-01133A-00_EN.indd 17 2019-04-12  12:13:36

18 English
Installation instructions
Installation instructions
Round Burner head
1. Orient the burner head so that the
opening for the electrode lines up with
the electrode.
2. Install the burner head so that the
electrode passes through the opening for
the electrode. Make sure the burner head
lies at on the stove top.
Burner Head CAUTION
Make sure all burner components (heads
and caps) are reinstalled properly. They
will be stable and rest at when correctly
installed.
Burner Cap
1. Match the burner caps to the burners by
size, and then re-install the caps on the
burner heads.
CAUTION
Make sure each cap is re-installed on the
correct burner head, is centered on the
burner head, and lies at.
Burner cap CAUTION
Make sure all burner components (heads
and caps) are reinstalled properly. They
will be stable and rest at when correctly
installed.
Install_NA30R5310FG_AA_DG68-01133A-00_EN.indd 18 2019-04-12  12:13:37

English 19
Installation instructions

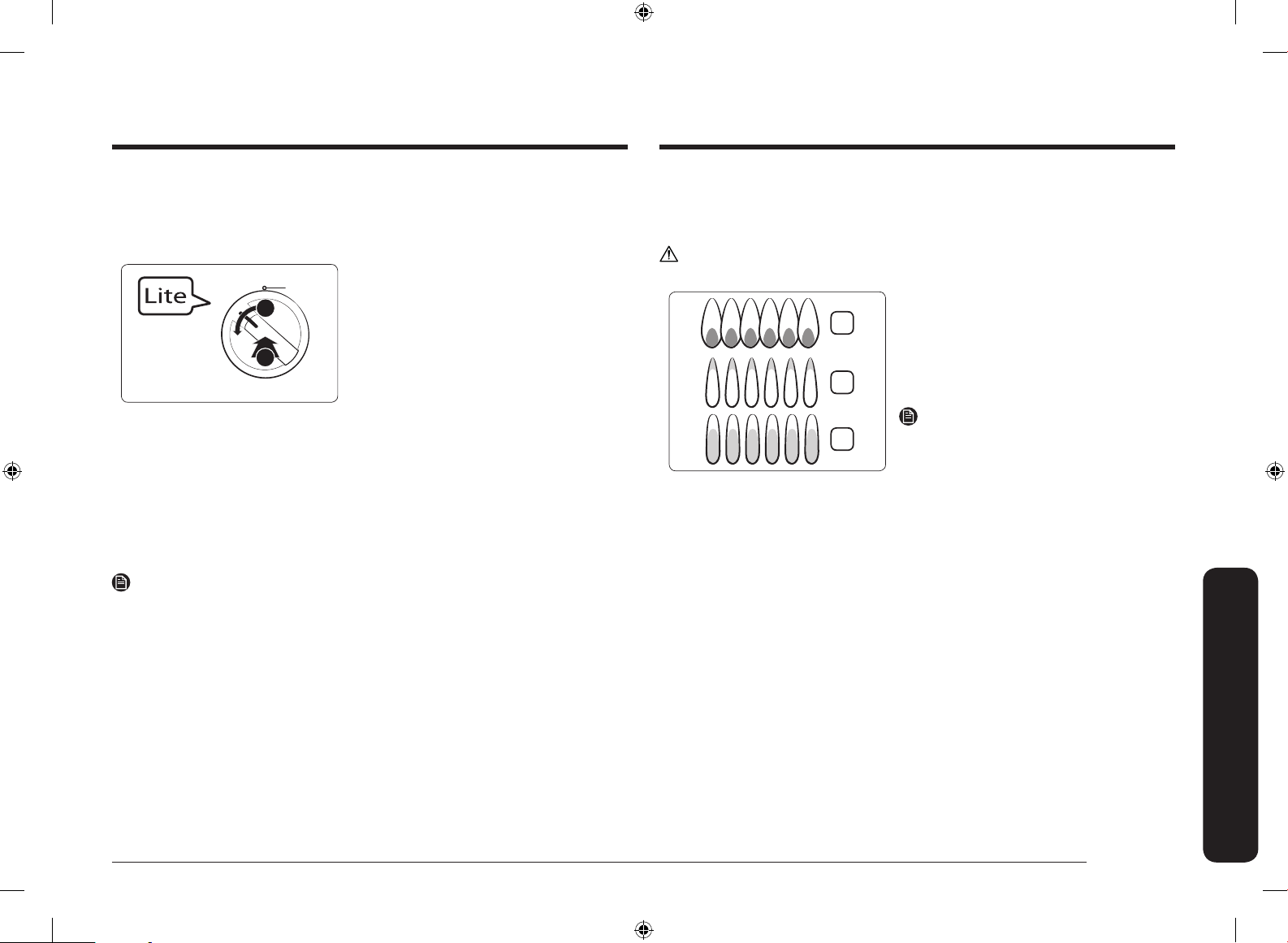

Step 7. Check the ignition of cooktop burners
Check the operation of all cooktop burners after the cooktop has been installed
and assembled, gas supply lines have been carefully checked for leaks, and
electrical power cord has been plugged in.
Lite
MED
HI LO
OFF
2
1
To turn on a cooktop burner
1. Push in and turn the control knob for that
cooktop burner to the Lite position. The
“clicking” sound indicates the electronic
ignition system is operating properly. The
burner will light in about 4 seconds, after
the air has been purged from the supply
line .
2. After the burner lights, turn the control
knob to the desired setting. The “clicking”
sound will stop and the ame height will
change from Max. to Min. during turning
the control knob.
3. Repeat steps 1 and 2 to check the
operation of each cooktop burner in
succession.
NOTE
• If the burner does not light within 4 seconds, turn the knob off and wait one
minute before trying again.
• When you push in and turn the control knob, all spark igniters will make a series
of sparks, but only the burner turned to Lite will light.
Step 8. Checking the ame quality
All combustion ames need to be visually checked to determine their ame
quality.
CAUTION
If you attempt to measure the ame, please use caution. Burns could result.
2
3
1
1. Soft blue ames—Normal for natural gas
operation.
2. Yellow tips on outer cones—Normal for
LP gas operation.
3. Yellow ames—Abnormal for any gas
operation; call for service.
NOTE
If burner ame looks like 3, the cooktop
should not be used until it is serviced. Call
for service. Normal burner ames shall look
like 1 or 2, depending on the gas type you
use.
Install_NA30R5310FG_AA_DG68-01133A-00_EN.indd 19 2019-04-12  12:13:37

20 English
Installation instructions
Installation instructions
Step 9. Install the grates
36” Model : NA36R5310F*
NOTE
Install the grates as instructed below for longest life. When installed properly, the
openings in the grates are centered over the burners.
The three cooktop grates are designed to t in specic positions on the cooktop.
For maximum stability, these grates should only be used in their proper positions.
• Place the left and right grates so that the thicker side of the right grate lines up
with the right side of the cooktop and the thicker side of the left grate lines up
with the left side of the cooktop.
• The center grate must be installed with the lled-in section, marked with the
word ‘BACK’, oriented towards the back of the cooktop.
The center grate has two overhangs to help you locate the side grates correctly. It
hits the side grates when you locate wrong direction. See the illustration below.
To replace the grates correctly, follow these steps:
1. Orient the center grate as noted direction.
2. Gently lower the legs of the center grate so that leg dimples can match
embosses on cooktop.
3. Locate thicker side of remaining two grates to face outside of cooktop
4. Gently lower the legs of two remaining grates into the corresponding embosses
without interfering with center grate overhang.
Thicker side must
be on the left
Thicker side must
be on the right
Install_NA30R5310FG_AA_DG68-01133A-00_EN.indd 20 2019-04-12  12:13:37
