Samsung WF10 User manual

Computer Basics
This section allows you to have an over
all look at your new computer.
It shows you how to turn
the computer On/Off and
how to use the basic devices
such as keyboard,
mouse, etc.
Chapter 1
Chapter 1
computer WF10-1 3/7/02 4:59 PM Page 1

SAMSUNG Computer WF10
Play/Pause
Repeat
6
SAMSUNG Computer WF10
CD (or DVD, DVD Combo) Drive ◆
CD Storage space
You may store
your recovery/software CDs.
On Display (Refer to page 12)
Audio Button
You may play an audio CD without having to
start Windows (Refer to page 27)
Volume Control Dial Used when listening to a
CD by using the Audio Button.
Skip/Search
USB device port
Headphone jack
Microphone jack
IEEE 1394 device
port (4PIN)
Digital (S/PDIF-Optical) sound port
Connet to MD Player, 5.1 Channel
speaker, etc. (Refer to page 30)
Stop
Skip/Search
Power Button / Power Display Light
Green : Computer ON
Orange: Standby Mode
PC Card slot
You may use PC (PCMCIA) cards.
Push upward
NN
NNoo oott ttee ee
NN
NNoo oott ttee ee
SAMSUNG Computer WF10
Looking at your computer
Front View
The ◆indicates an optional item.
The particular item may not be included with your model or
may be different from what is actually provided.
computer WF10-1 3/7/02 4:59 PM Page 6

7
Chapter 1. Computer Basics
Back View
The mark indicates mandatory devices that must be connected.
■Sound card
NN
NNoo oott ttee ee
Mouse port (PS/2)
Game joystick, etc port
Rear speaker jack (Line out)
Microphone jack
Sound input device jack (Line in)
Digital(S/PDIF-Coaxial)/Analog(5.1 Speakers)
sound output jack
The default setting is set on digital sound.
The setting must be changed to use analog sound.
(Refer to page 30)
Front speaker jack (Line out)
Keyboard port (PS/2)
Serial device port
Printer (LPT) port
Telephone port
(for connection when needed)
Analog monitor port
Sound card
12V power output port
Monitor (MCX15A) power, etc.
IEEE 1394 device port (6PIN)
USB device port
(USB keyboard, mouse)
Telephone line port
(for communications via a modem)
Digital (DVI) monitor port
The default setup for the graphics card output is set on
analog. You may change the setting to digital when using
an LCD monitor. (Refer to page 85)
LAN card
Power cable port
computer WF10-1 3/7/02 4:59 PM Page 7

SAMSUNG Computer WF10

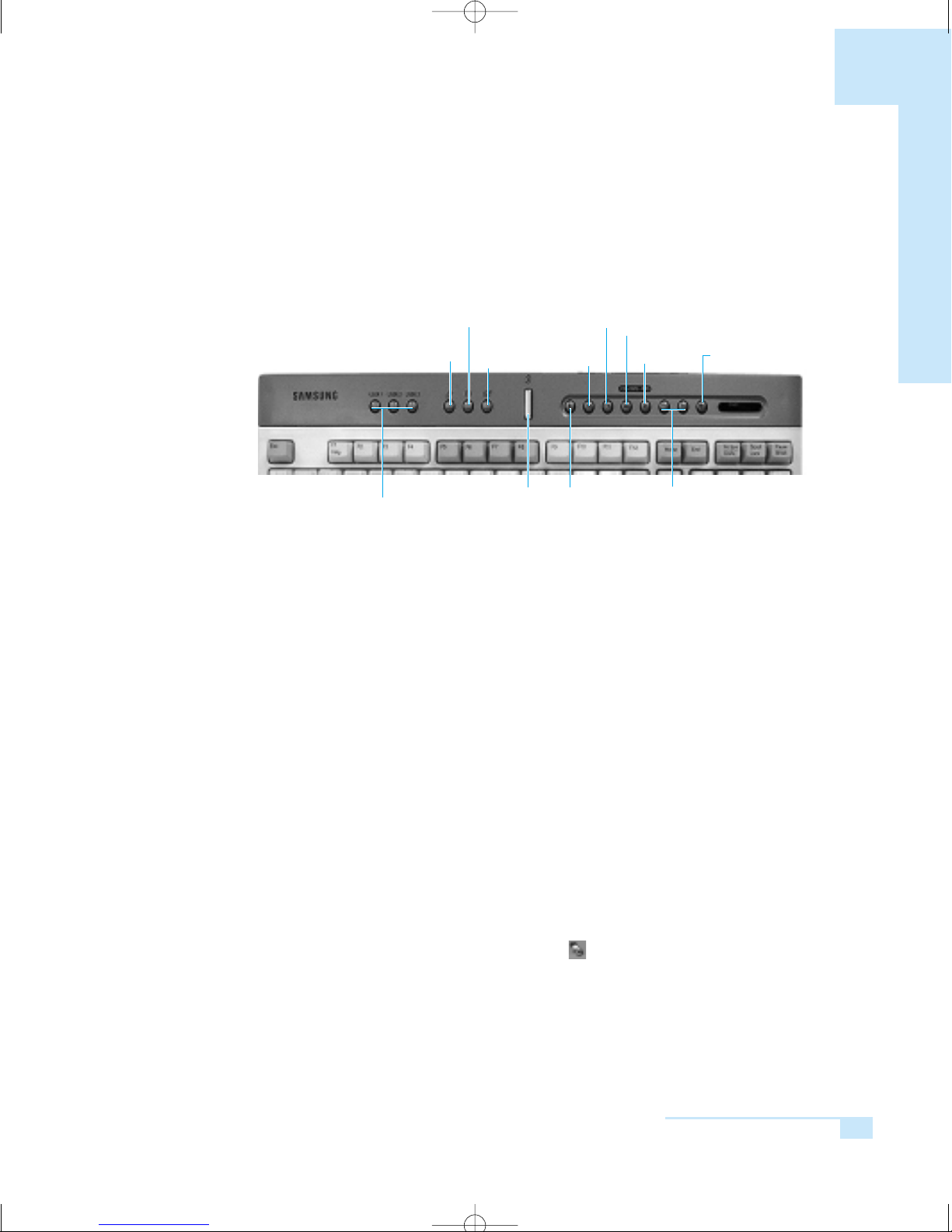

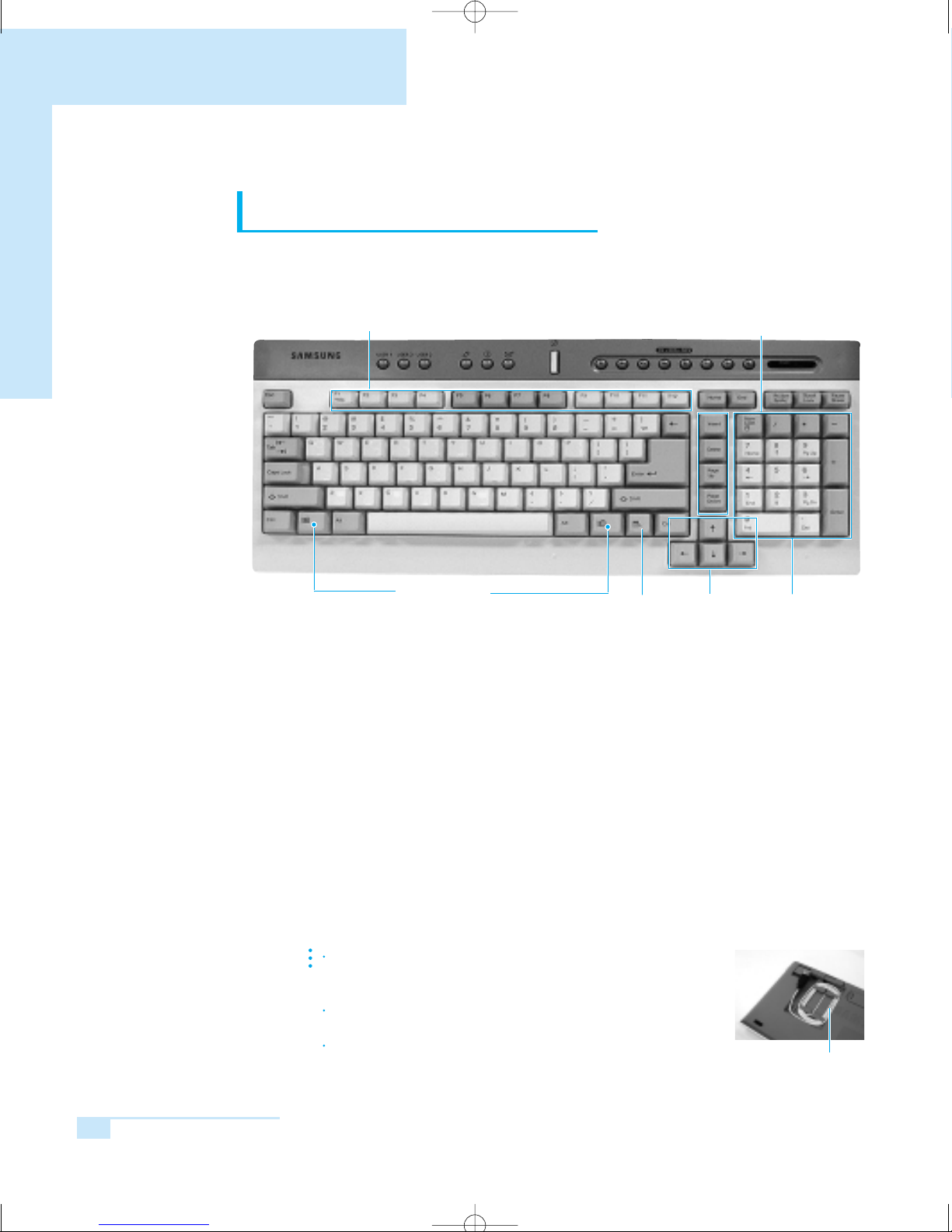

Keyboard components
The keyboard is a device which is used to input data.
You have the option to choose between standard or wireless keyboards.
■Function keys Executes the various program functions.
Their use varies according to the program
■Additional keys Moves the cursor up/down or to the front
or back of a line.
■Windows keys Displays the Windows start menu.
■Application key Displays the program menu for the program
currently in operation.
■Directional keys Moves the cursor up/down and right/left.
■Numeric keys The keys are used to input numbers when
Num Lock is ON.
The wireless keyboard operates only on the WF10 model computer.
The operational status is displayed on the front operation display
window.
Refer to Chapter 3 Changing the wireless switch to use more
than three keyboards at one time.
If the batteries die on your wireless keyboard, you may use
the power cable located inside of the keyboard, to connect to
your computer’s USB port for use.
8
SAMSUNG Computer WF10
Function keys
Power cable
Additional keys
Application key
Windows keys Numeric keys
NN
NNoo oott ttee ee
Directional keys
SAMSUNG Computer WF10
computer WF10-1 3/7/02 4:59 PM Page 8

9
Chapter 1. Computer Basics
Special keys
Special keys are located at the top of your keyboard.
You can use these keys to make use of your computer more conveniently.
■Power save key
Executes the Power save standby mode.
The power display lights turns orange when the sandby mode is executed.
Push any key on your keyboard or mouse to restart your computer.
However, because the wireless mouse will not operate, please use your wireless
keyboard.
■Program keys
You can assign frequently used programs to each key for more
convenient use.
- To change the key setup
Ex) Setting up Microsoft Paint for the USER 1 key
1. Double-click on the Magic Keyboard icon( ) on the Taskbar.
2. Select USER 1 in Key setup of Magic Keyboard Properties and click Browse...
3. Select the program of your choice in Browse... and click Open.
Ex) Program location: C:\ WINDOWS\ System32\ mspaint.exe
4 Click OK and the change is saved.
Volume control
Skip/SearchStopRun Norton AntiVirus Mail Receipt
display
Play/Pause
Skip/Search
Connect to the Internet
Open CD Drive
Power Save key
Program keys
USER 1 key: Run Explorer
USER 2 key: Run Calculator
USER 3 key: Run Note Pad
Mute
computer WF10-1 3/7/02 4:59 PM Page 9

SAMSUNG Computer WF10
10
SAMSUNG Computer WF10
Using the mouse
The mouse is a device used to move and/or control the cursor or
pointer on the display.
You have the option of choosing a standard or wireless mouse with your computer.
Therefore, your mouse may be different from what is described here.
The pointer on your computer’s display moves in the direction in which you move
the mouse.
The wireless mouse operates only on the WF10 model computer.
The operational status is displayed on the front operation display window.
The wireless mouse must be used near the front of the computer.
An obstacle between the mouse and the computer may prevent the mouse from
operating properly. Additionally, if you are pointing in the wrong direction or too
far away from the computer, the mouse will not operate properly.
Refer to Chapter 3 Changing the wireless switch to use more than one keyboard
at one time.
What is a cursor or pointer?
It is a mark that indicates the location of the mouse.
The arrow-shaped symbol, used to move objects is called a pointer and
the -shaped symbol used to indicate the location of text input is called a cursor.
Wheel dial
Right button
Left button
NN
NNoo oott ttee ee
NN
NNoo oott ttee ee
SAMSUNG Computer WF10
computer WF10-1 3/7/02 4:59 PM Page 10

11
Chapter 1. Computer Basics

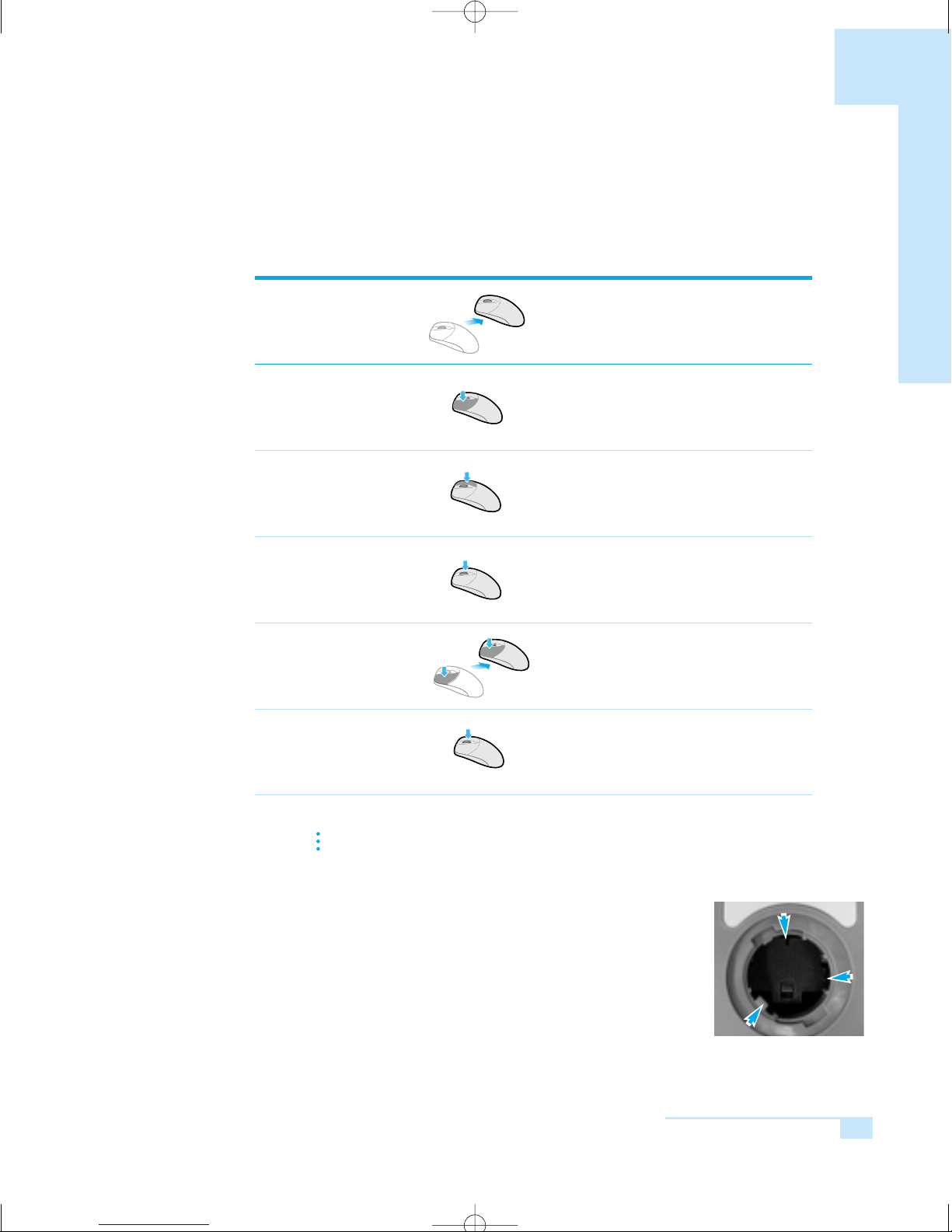

■The functions of the mouse
If your mouse is not working properly
Dust, etc. on the desk may collect inside of the mouse, causing it to malfution.
You must clean the mouse periodically to prevent such occurrences.
1. Turn counter clockwise, the ball cover located on the bottom
of your mouse and open it take out the ball from
the mouse.
2. Use a soft cloth to remove dirt from the ball.
3. Remove dirt, etc. from the roller (3 sections).
Use of excessive force or sharp objects may damage
the roller. Please pay attention.
4. Replace the ball in the mouse and turn cover clockwise
to fix it in place.
Execution methodFunction
To move the
pointer
Move your mouse to the
direction of your choice,
the pointer will move
accordingly.
Move
NN
NNoo oott ttee ee
To select an item Place your mouse on the
item and click once on your
left mouse button
Click
To run a program or
open a file or folder Swiftly click twice on your
left mouse button.
Double-
click
To open the
shortcut menu Click on the item with the
right mouse button.
Click on
right mouse
button
To move a
selected item
Select the item to move
and drag to the location of
your choice while pressing
on the left mouse button.
Click/drag
To view the top/bot-
tom of your
monitor display
Scroll your wheel dial
up and down.
Scroll
Roller location
computer WF10-1 3/7/02 4:59 PM Page 11

12
SAMSUNG Computer WF10
SAMSUNG Computer WF10
Turning computer On/Off
To turn computer On
1. Connect all the peripheral devices according to instructions in
the Installation Guide.
2. Turn the Monitor and other peripheral equipment ON.
3. Press the Power button to turn your computer ON.
If you have multiple users registered, click on User Name in the Start Menu.
When you turn your computer On for the first time, you will see
the Windows registration window appear on the monitor display.

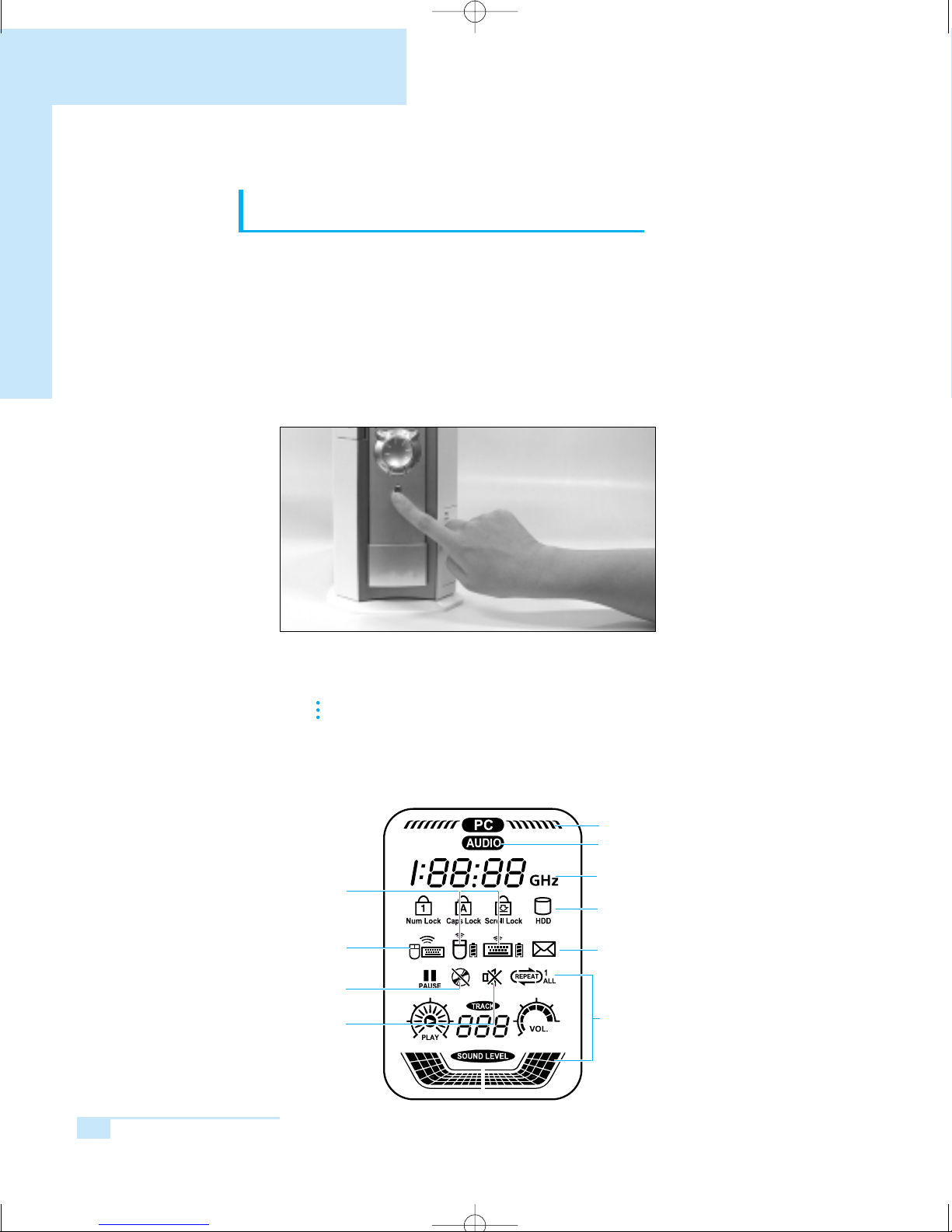

■Looking at On Display
NN
NNoo oott ttee ee
Wireless keyboard/
mouse movement display Mail inbox display
Computer operation display
Audio Button operation display
CPU operation speed/
audio CD play time display
Wireless keyboard Lock key and
Hard Drive operation display
Audio Button operation display
(may not operate in certain
multimedia programs)
Wireless keyboard/
mouse battery charge level
(appears when charged 50% or less)
NO Audio CD display
Mute
computer WF10-1 3/7/02 4:59 PM Page 12

To turn computer Off

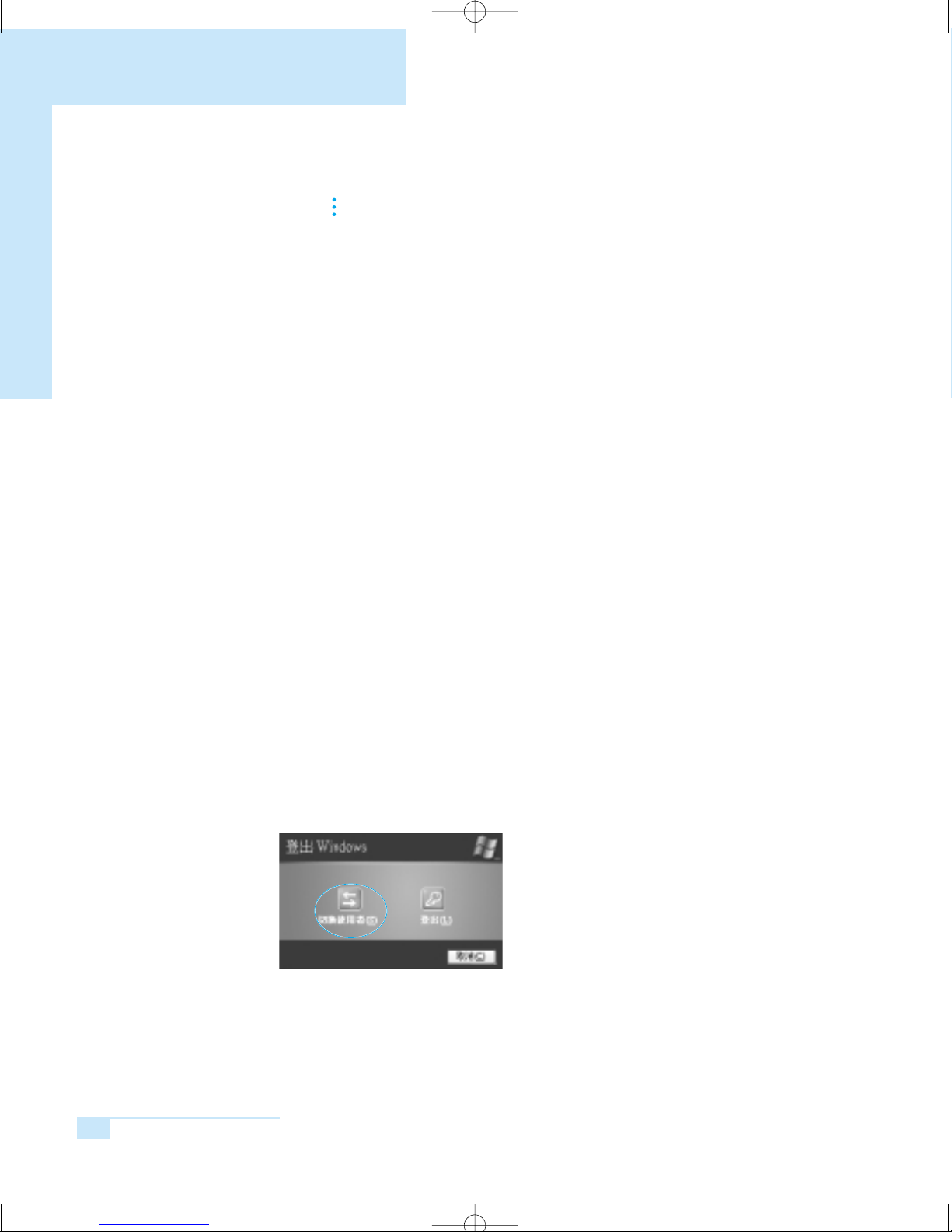

1. Click on start on the Taskbar and click on Turn Off Computer.
2. Click Turn Off from the [Turn Off Computer] window.
If your computer does not turn Off, press on the power button for five seconds
to turn it off manually.
When you turn your computer Off manually.
The Hard Drive may be exposed to damage due to electric waves flowing
within the computer.
Additionally, your computer may conduct Disk Check upon restarting your
computer after manual Turn Off.
Unplugging the power cable, telephone cable, etc while your computer is in
use may cause computer electric shock to damage your computer.
Please take caution to avoid such damage.
13
Chapter 1. Computer Basics
CC
CCaa aauu uutt ttii iioo oonn nn
computer WF10-1 3/7/02 4:59 PM Page 13

SAMSUNG Computer WF10
14
SAMSUNG Computer WF10
When using a circuit breaker
If you use a circuit breaker (rated 30A/30mA ELB), you can use up to twelve
computer systems (including the monitors) simultaneously.
However, if excessive electricity flow causes the circuit breaker to suspend
power, you may run the risk of losing data in your computer.
For a safe usage environment, we recommend the acquisition of about
30% margin. Therefore, the use of about eight computers per each circuit
breaker is recommended.
User account registration and revision
You may register several users on one computer and
create individual user environments for use.
Let’s look at ways in which users may be added or switched.
■To add a user
1. Click start Control Panel.
2. Click User Accounts then click on Create a New Account.
3. Click Type a name for the new account and Next.
4. Select the Account Type and click Create Account.
A new user account is created.
■To switch a user
1. Click start Log Off.
2. Click Switch User.
3. In the [Windows Log On] window, select the desired User Name.
WW
WWaa aarr rrii iinn nngg gg
