The CE Mark is a Directive conformity mark of the
European Community (EC)

Thank you for buying a Samsung Camera. This manual will guide you through using the Digimax 230, including taking
images, downloading images and using MGI PhotoSuite III SE software.
Please read this manual before using your new camera.
ENGLISH

SPECIAL FEATURES
Thank you for buying a Samsung Digital Camera.
This digital camera has the following features.
A high resolution of 2.0 mega pixels
A 3 X optical and 2 X digital zoom lens
Movie clip recording function
Voice Recording & Playback for still image
An easy and fast PC interface with USB Storage Driver & Digimax viewer
This device has been tested in accordance with the limits of a class B digital device
under item 15 of the FCC rules. These limits are designed to provide protection against
harmful interference in commercial installation.
This equipment generates, absorbs and can emit radio frequency energy. If it is not
installed and used in accordance with the instructions, it may cause harmful interference
to radio communication.
There is however, no guarantee that interference will not occur in some situations.
Should any interference occur when this device is in operation, please try one or more of
the following measures.
Change the location and direction of any aerial.
Increase distance between camera and affected device.
Use a different socket away from the affected device.
Please contact a Samsung agent or a radio/TV engineer.
This device complies with part 15 of the FCC Rules.
An FCC warning

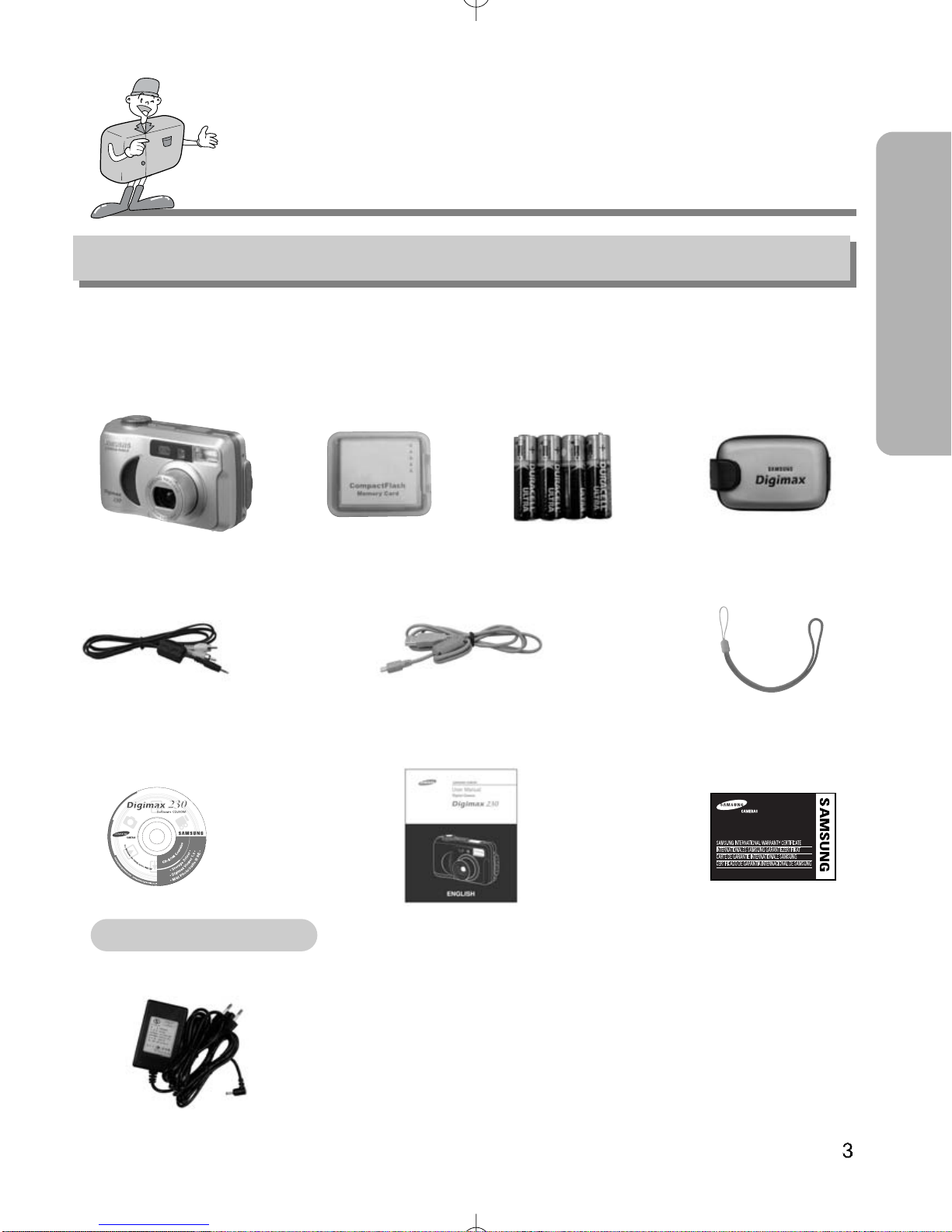

MANUFACTURER’S CONTENTS
Manufacturer's contents
Please check that you have the correct contents before using this product.
READY
AC Adapter
Digital camera CompactFlash
TM
card (CF CARD) 4 AA Alkaline Batteries Pouch
User manual
Accessories (optional)
Product warranty
Applications S/ W ,
Driver CD-ROM
USB cableVideo cable Camera strap

THIS DIGITAL CAMERA CAN BE USED FOR
Editing images
on a PC
Recording images
onto CD
Printing images
Viewing images
on TV

READY
THIS DIGITAL CAMERA CAN BE USED FOR
Inserting images
directly into any
electronic document
Taking a self-portrait
and using the image
to personalize name
cards
You can even create your
own unique gift-wrap paper
by using your digital
images.
Creation of
a digital photo album

CONTENTS
Ready
Getting to Know your camera 7
Safety note 8
Identification of features 10
Product Exterior 10
Viewfinder 12
LCD panel indicator 14
LCD monitor indicator 15
LCD monitor menu indicator 17
Preparation 19
Connecting to Power 19
Using the batteries 19
Using the AC power adapter 20
Attaching the strap 20
Inserting the CF CARD 21
Removing the CF CARD 21
Instructions on how to use the CF CARD 23
Selecting the date and time 24
Advanced
Setting up play function
by using the camera button 54
Setting up play back function using the LCD
monitor 59
Setting up the camera system 65
Starting Set up mode 65
Connecting to an external monitor 74
PC mode 75
Important notes 76
Caution 76
Warning indicator 78
Before contacting a service center 79
Specification 82
Camera working mode 26
Taking photos 27
Setting up the shooting function 30
Movie clip shot 30
Using the camera buttons
to adjust the camera 31
Using the LCD monitor
to adjust the camera 38
Setting up play back functions 53
Starting play mode 53
Software
Software manual 84
How to set up the software for Windows 85
Setting up USB driver for Windows 86
Setting up DirectX 8.1 for windows 88
Setting up Digimax Viewer 90
Setting up the MGI PhotoSuite III SE 92
Connecting the camera for Windows 95
Removable Disk 95
How to use the software 97
Digimax Viewer 97
MGI PhotoSuite III SE 98
Removing USB Driver for Windows 111
Connecting the camera for MAC 113
How to install and
use the USB driver for MAC 114
FAQ 115

GETTING TO KNOW YOUR CAMERA
Symbol Explanations
Prior to using this camera, please read the user manual thoroughly.
Keep the manual in a safe place.
This manual contains instructions on using this camera that will help you to use this camera
safely and correctly. This will help prevent danger and injury to others.
READY
Warning
This is a descriptive statement warning of the result if the instructions are ignored or not
understood.
Note
This explains use of the camera, please refer to this.
Reference
This should further assist camera operation.

SAFETY NOTE
WARNING
Do not attempt to modify this camera in any way. This may result in fire, injury, electric
shock or severe damage to you or your camera. Internal inspection, maintenance and
repairs should be carried out by your dealer or Samsung Camera Service Center.
Do not use the flash in close proximity to the people or animals. Positioning the flash too
close to your subject’s eyes, may cause eyesight damage. Do not attempt to photograph
children using a flash closer than 1 meter proximity.
When taking photographs, never point the lens of the camera directly into very strong
light. This may result in permanent damage to the camera or your eyesight.
Please do not use this product in close proximity to flammable or explosive gases, as this
could increase the risk of explosion.
For safety reasons keep this product and accessories out of reach of children or animals
to prevent accidents e.g.:
Swallowing batteries or small camera accessories.
In case of accidents, please consult a doctor immediately.
There is a risk of permanent eye damage if the flash is operated at a distance of less
than one meter from a person’s eyes.
There is a possibility of injury from the camera’s moving parts.
Should any form of liquid enter the camera, do not use it. Switch off the camera, and then
disconnect the power source (batteries or AC Power Adapter). You must contact your
dealer or Samsung Camera Service Center. Do not continue to use the camera as this
may cause a fire or electric shock.
Do not insert or drop metallic or inflammable foreign objects into the camera through
access points e.g. CARD slot and battery chamber. This may cause a fire or electric
shock.
Do not operate this camera with wet hands. This could pose a risk of electric shock.

READY
SAFETY NOTE
NOTE
Do not leave this camera in places subject to extremely high temperatures, such as a
sealed vehicle, direct sunlight or other places of extreme variances in temperature.
Exposure to extreme temperatures may adversely affect the camera’s internal
components and could cause a fire.
When in use, do not cover the camera or AC Power Adapter. This may cause heat to build
up and distort the camera case or cause a fire.
Always use the camera and its accessories in a well-ventilated area.
Leakage, overheating, or burst batteries could result in fire or injury.
Do not short circuit, heat or dispose of batteries in fire.
Do not use old batteries with new ones, or mix brands of batteries.
Ensure the batteries are positioned correctly with regard to polarity (+ / -).
When the camera is not in use for long periods, always unplug the camera from its power
source (batteries or AC Power Adapter) for safety purposes.
Leaking batteries can cause fire and pollution to the environment.
Allowing dust to accumulate in the camera over a long period is hazardous as extreme
circumstances may cause a fire. It is best to clean your camera prior to seasonal periods
of high humidity.
Consult your dealer or Samsung Camera Service Center for information on the cost of
cleaning your camera.
Do not move the camera while it is switched on, if you are using the AC Power Adapter.
After use, always switch off the camera before unplugging the adapter from the AC Power
wall socket. Then make sure that any connector cords or cables to other devices are
disconnected before moving the camera.
Failure to do so may damage the cords or cables and cause a fire or electric shock.

IDENTIFICATION OF FEATURES
Product Exterior (Front / Top / Bottom)
Microphone
Shutter button
(page 31)
Mode dial (page 26)
Strap eyelet
Lens
Self-timer lamp
Viewfinder
Flash fading control
sensor
LCD panel
Flash
Tripod socket
Cover lock
Battery
chamber cover
Mode dial lamp

READY
IDENTIFICATION OF FEATURES

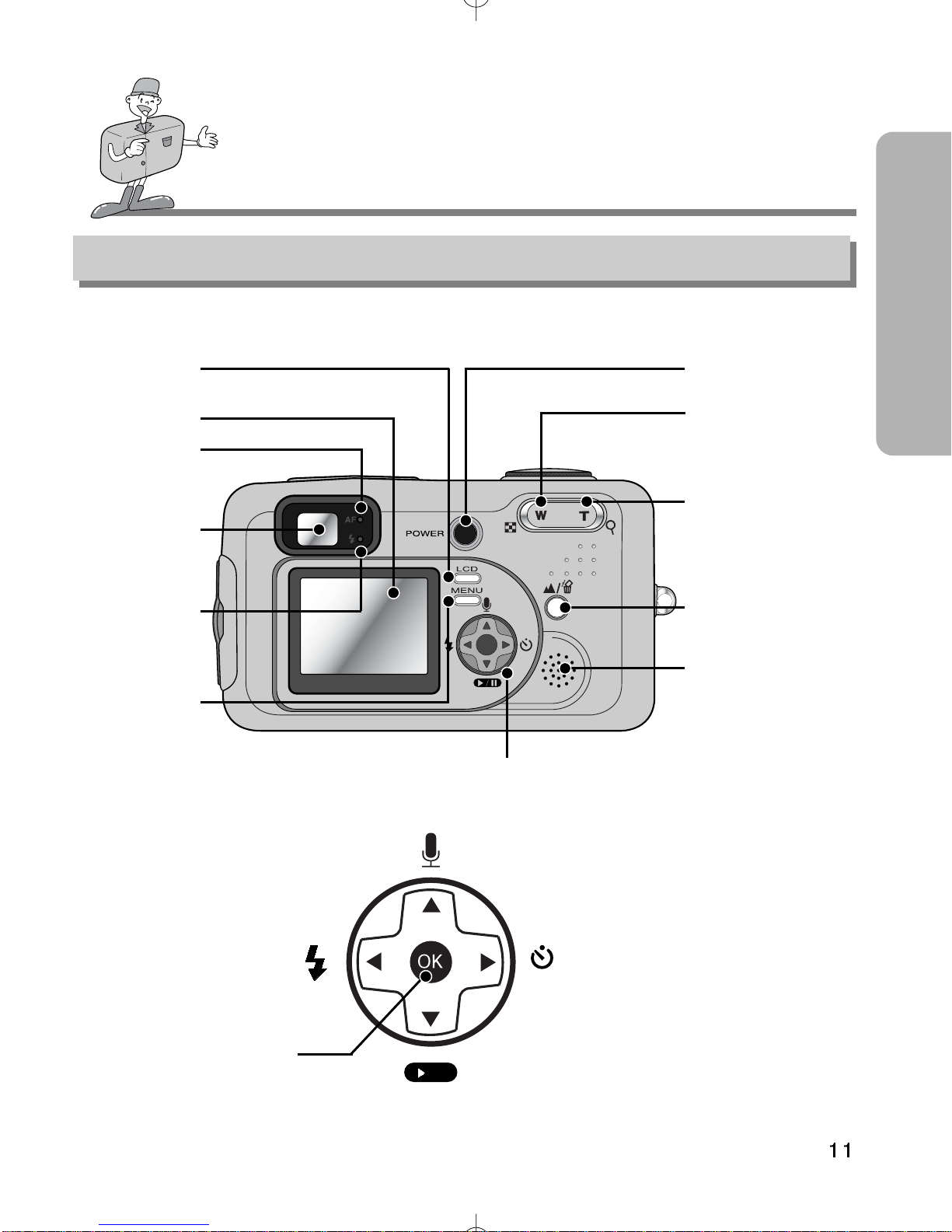

Product Exterior (Back)
LCD monitor
Autofocus
indicator (Green)
lamp
Viewfinder
Flash indicator
(Red) lamp
5-function button
Speaker
Zoom ( W ) / Thumbnail
button
(page 33 / page 54)
Zoom (T) /Digital zoom
button
(page 33 / page 55)
Power button (page 31)
LCD button
MENU button
LANDSCAPE /
DELETE button
FLASH/LEFT button (page 35)
PLAY&PAUSE/DOWN button (page 57 / page 34)
OK button (page 34 / page 55 )
SELF-TIMER / RIGHT button (page 37)
MIC / UP button (page 57 / page 34)
/ II

IDENTIFICATION OF FEATURES

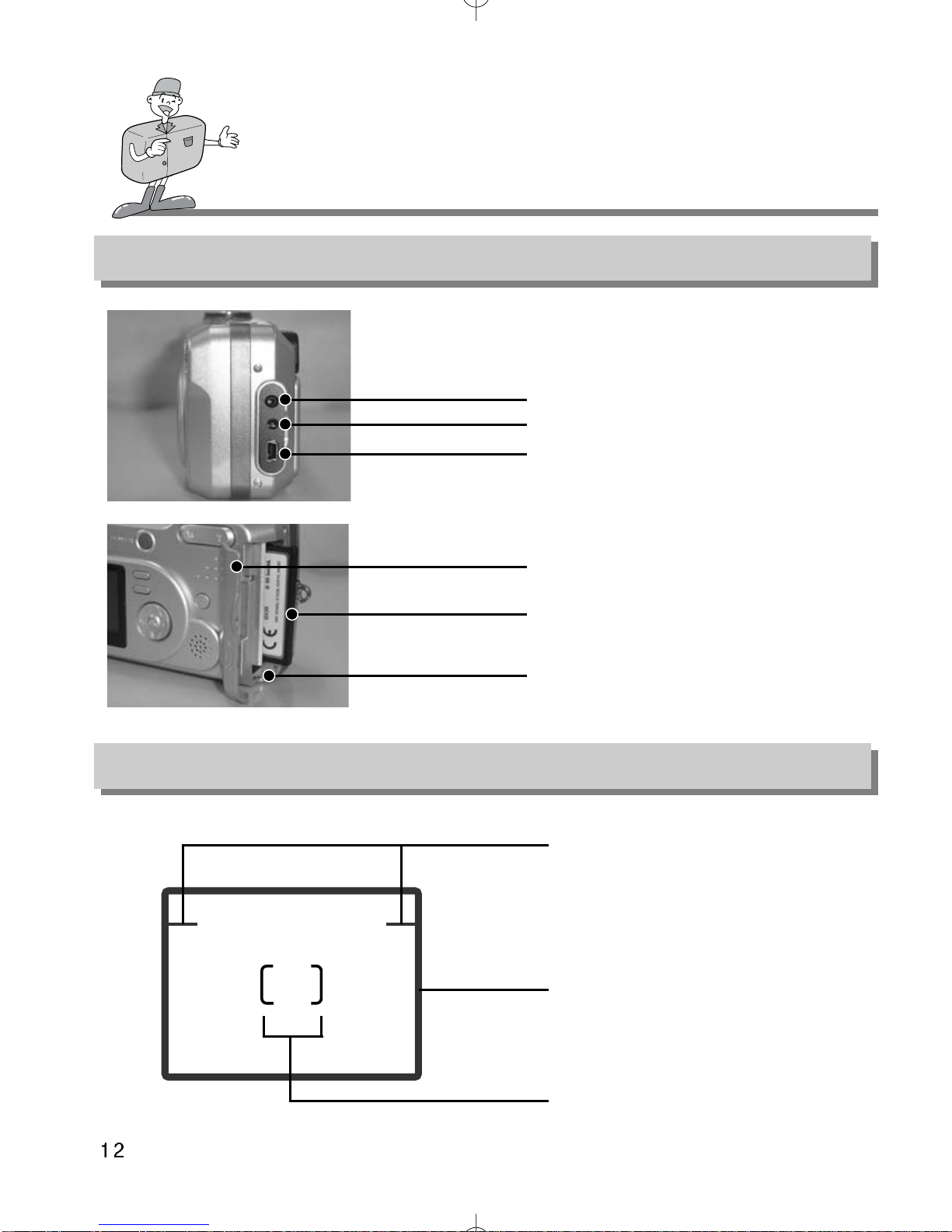

Product Exterior (side)
Viewfinder
Close range picture area mark
Picture area frame
Optimum picture area over 1.5m
Autofocus frame
Optimum picture area within 0.8m ~ 1.5m
Video connection terminal
DC input connection point (DC 6V IN)
USB connection terminal
Card cover
CF CARD
Card eject lever

READY
IDENTIFICATION OF FEATURES

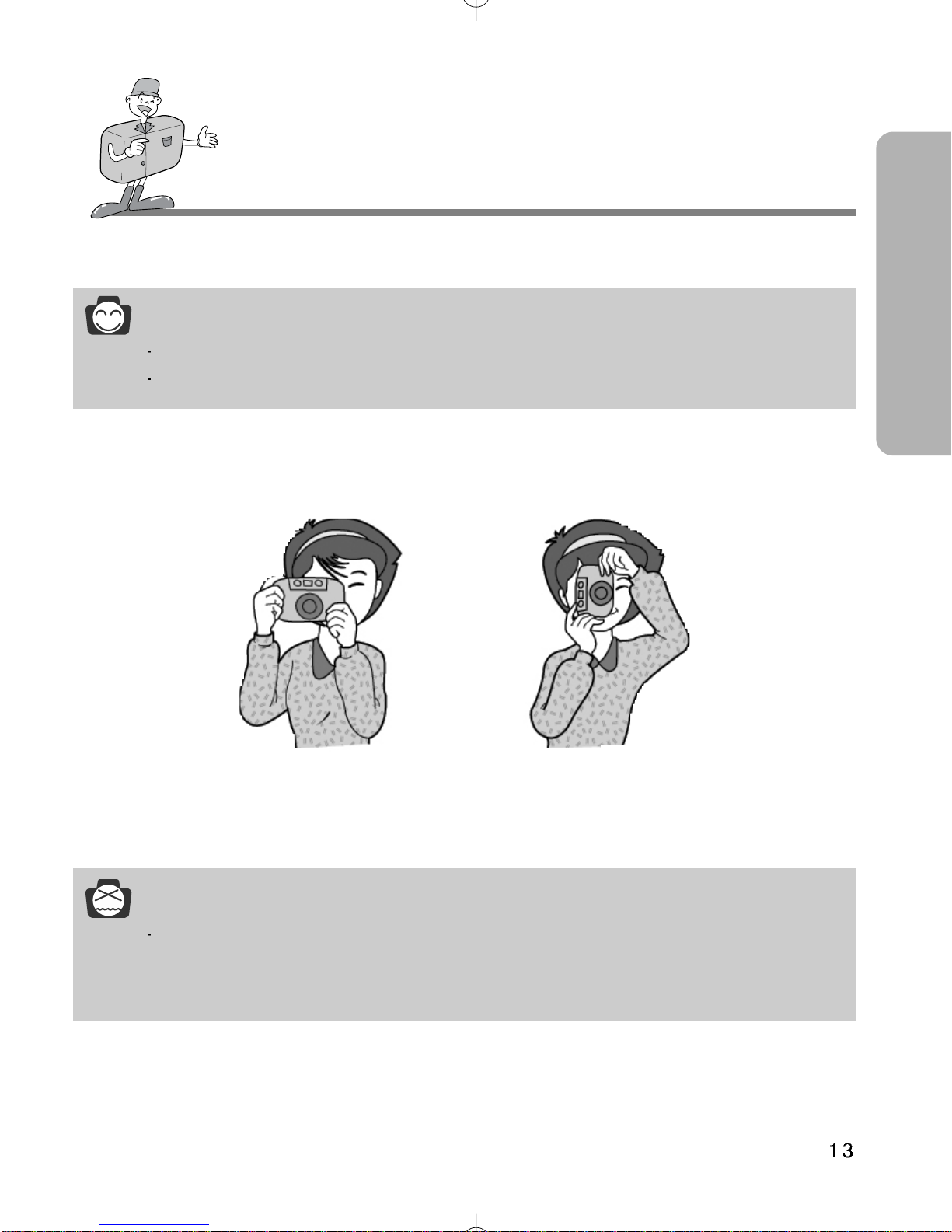

Reference
Vertical and Horizontal shots are taken in the same way.
Avoid obstructing the lens or the flash when you take a picture.
Note
As there can be some differences between what is seen through the Viewfinder and the
resulting image when taken at a range closer than 1.5m, it is recommended that you use the
LCD monitor to compose the shot.
[ Horizontal grip ] [ Vertical grip ]

IDENTIFICATION OF FEATURES
LCD panel indicator
The LCD panel displays information about the shooting conditions.
Image size
L : 1600X1200
M : 0800X0600
S : 640X0480
Shooting information
MACRO SHOT mode : Number of available shots remaining
STILL IMAGE mode : Number of available shots remaining
MOVIE CLIP mode : Available recording time
PLAY mode : Number of available shots remaining
SETUP mode : Number of available shots remaining
PC mode : USB
Battery condition indicator
: The batteries are fully charged
: Prepare new batteries
: There is no battery capacity
Replace new batteries
Flash
Auto flash and Red eye reduction :
Slow synchro : No indicator
Auto flash :
Fill in flash :
Flash off :

READY
IDENTIFICATION OF FEATURES

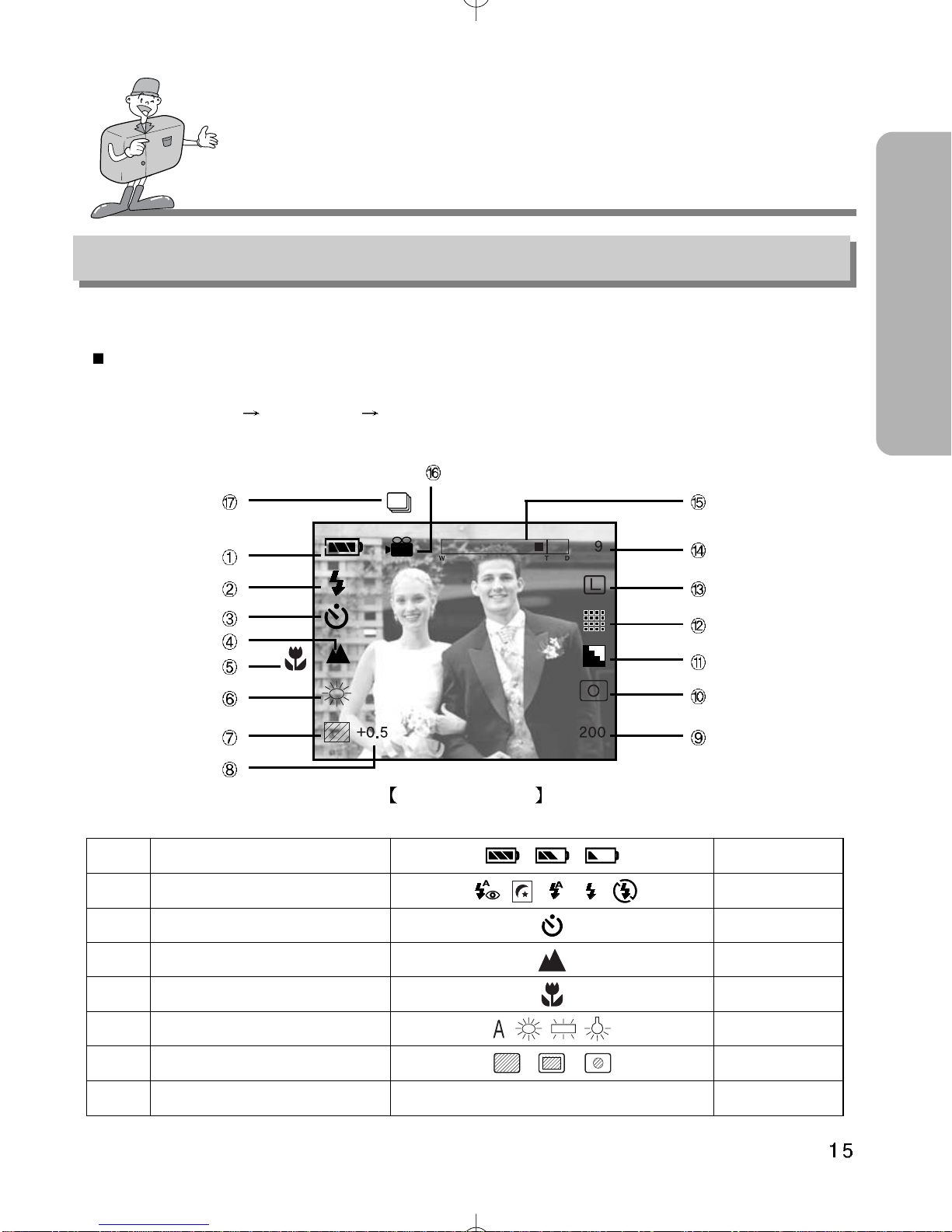

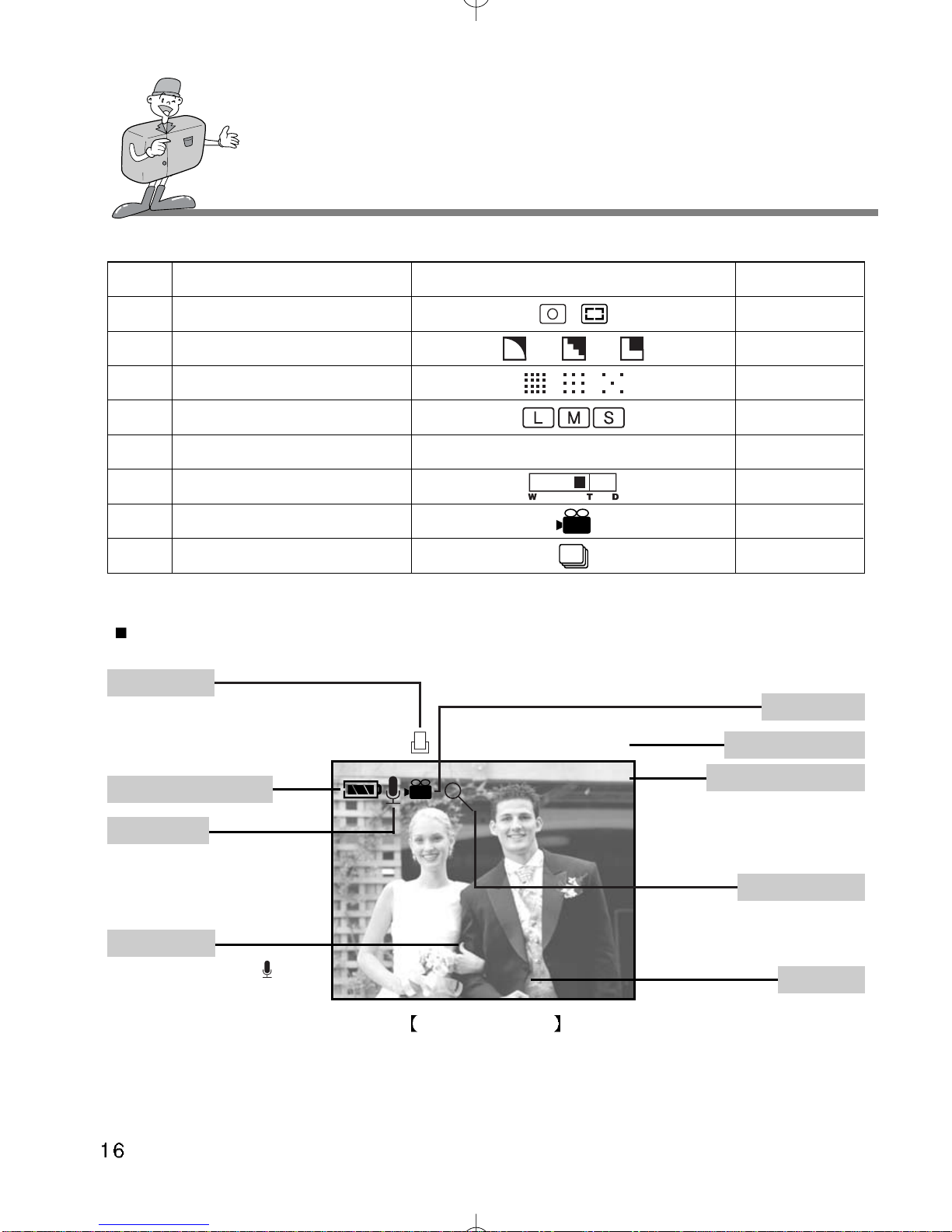

LCD monitor indicator
The LCD monitor displays information about the shooting conditions.
SHOT mode
Whenever you press the LCD button, the LCD monitor will change in the following order :
Image & Status Image only LCD Off.
1Battery condition page 14
2Flash page 36
3Self-timer page 37
4Landscape shot page 32
5Macro shot page 26
6White balance page 44
7Metering methods page 48
8Exposure compensation page 46
Image & Status
-2.0 ~ 0 ~ +2.0

IDENTIFICATION OF FEATURES
9ISO page 49
10 Focusing Methods page 39
11 Sharpness page 50
12 Image quality page 43
13 Image size page 42
14 Number of available shots remaining
15 Zoom / Digital zoom page 33
16 Movie clip shot page 30
17 Shooting mode page 40
PLAY mode
13/13
15SEC
2002/ 1/ 1/ 00 : 00
REC
2x
Movie clip shot
Movie clip running time
Image magnification
Date / Time
Image & Status
When an image that has sound
information is selected, this indicator
will be displayed.
AUTO 200 400
9
This indicator will display when you set
DPOF.
DPOF (page 61)
Battery condition (page 14) The last stored image number is
displayed.
Number of stored images
Sound indicator
When you press the MIC ( )
button, this indicator will blink and
sound recording starts.
Sound recording

READY
IDENTIFICATION OF FEATURES
LCD monitor menu indicator
Each mode has a menu as shown below. The default settings in each mode are printed below.
FOCUSING : select focusing methods (page 39)
SHOOTING MODE : select shooting mode (page 40)
IMAGE SIZE : select image size (page 42)
QUALITY : select image quality (page 43)
WHITE BALANCE : select white balance (page 44)
STILL IMAGE / MACRO SHOT mode
REC.TIME : select recording time (page 52)
VOICE : set the voice recording function ON/OFF
MOVIE CLIP mode
EXPOSURE : select exposure value(page 46)
Select metering methods(page 48)
ISO : select ISO sensitivity (page 49)
SHARPNESS : select image sharpness(page 50)
LCD : select LCD brightness (page 51)
CENTRAL
SINGLE
1600X1200
FINE
AUTO
FOCUSING
P1 SELECT OK SET
EV 0.00
METERING FULL
AUTO
NORMAL
BRIGHTNESS 5
EXPOSURE
P2 SELECT OK SET
REC. TIME 15SEC
REC. TIME
SELECT OK SET
Main Menu
Sub Menu

IDENTIFICATION OF FEATURES
Reference
There is no associated menu in PC mode and the LCD monitor is always turned off in PC
mode.
FORMAT : format CF CARD (page 65)
POWER OFF : select auto power off time (page 66)
DATE/TIME : select date/time (page 67)
BEEP : set the beep sound ON/OFF (page 68)
VIDEO OUT : select video out signal (page 69)
SETUP mode
DELETE ALL : delete all stored images (page 59)
SLIDE SHOW : select slide show function (page 60)
DPOF : select DPOF function (page 61)
FOLDER : change the folder name to 100SSCAM
(page 64)
LCD : select LCD brightness (page 64)
PLAY mode
LANGUAGE : select OSD(On Screen Display)
language (page 70)
RESET : select the default camera setting (page 71)
NO
START
QUANTITY
100SSCAM
BRIGHTNESS 5
DELETE ALL
SELECT OK SET
FORMAT NO
3 MIN
02/ 1/ 1
ON
NTSC
FORMAT
P1 SELECT OK SET
ENGLISH
NO
FORMAT
P2 SELECT OK SET

READY
PREPARATION
Connecting to Power
There are two ways in which to provide the camera with power. You can use batteries (AA
Alkaline, Ni-MH), or alternatively, you can use an AC Adapter (DC 6V / 2.0A).
Using the batteries
1
Pull the battery chamber cover lock in the direction of the
arrow( ) and open the battery chamber cover by pushing
in the direction of the arrow( ).
2
Insert the batteries taking note of the polarity (+ / -).
3
To close the battery chamber cover, push it until it clicks.
Reference
This camera will automatically switch off when not in use for a period of time.
We recommend high–capacity ALKALINE batteries (2000mAh) as manganese batteries
cannot deliver sufficient power.
Note
Important information about battery usage
Please remove the batteries if the camera will not be used for long periods.
Batteries can lose power over time and are prone to leaking if kept inside the camera.
Low temperatures (below O°C) can affect the performance of the batteries and you may
experience reduced battery life.
Batteries will normally recover at normal temperatures.
Do not use old and new batteries at the same time.
During extended use of the camera, the camera body may become warm. This is perfectly
normal. If you are planning to use this camera for long periods of time, it is advisable to
use an AC adapter.
