English 3English
Installation
Installation
Follow these instructions carefully to ensure proper installation of the dishwasher and to
prevent accidents when washing dishes.

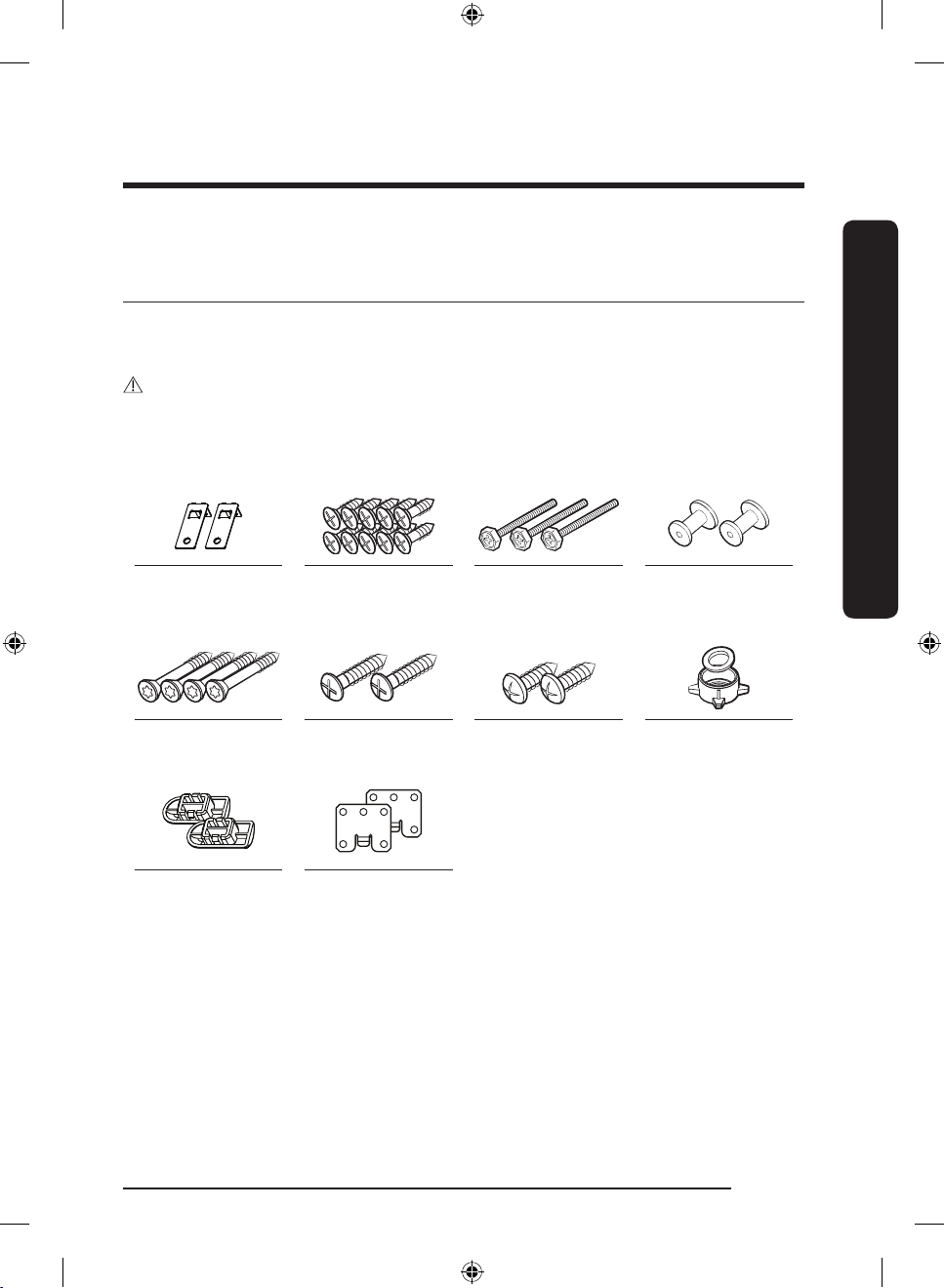

What’s included
Make sure all the parts are included in the product package. If you have a question about
the dishwasher or the parts, contact a local Samsung customer center or your retailer. The
actual appearance of the dishwasher may differ, depending on your model and country.
CAUTION
After unpacking the dishwasher, keep the packaging materials out of children’s reach to
ensure their safety.
DW60R2014AP
Top brackets (2 ea) Ø4 X 14 screws
(10 ea)
Sub foot (3 ea) Custom panel
xers (wood panel
holders, 2 ea)
Ø3.5 X 45 screws
(4 ea)
Ø3.5 X 25 screws
(2 ea)
Ø3.5 X 16 screws
(2 ea)
Nut connector &
seal (for 90° tting)
Plastic caps (2 ea) Door bracket (2 ea)
DW60R2014(A5)_IM_DD81-02707A-00_EN.indd 3 12/28/2018 11:55:57 AM

English4
Installation
Installation
DW60R2014US
Top brackets (2 ea) Ø4 X 14 screws
(2 ea)
Sub foot (3 ea) Ø3.5 X 16 screws
(2 ea)
Kick plate brackets
(2 ea)
Kick plate Nut connector &
seal (for 90° tting)
Plastic caps (2 ea)
Kick plate bolt
(4 ea)
Kick plate nut
(4 ea)
Installation kit (not provided)
Electrical tape &
Standard duct tape
Hot water line 90° Fitting (⁄") Tube ttings
Hose clamp Air gap Rubber connector Teon tape or
sealing compound
WARNING
Do not use plastic tubing. Plastic tubing can deteriorate over time and cause a leak inside
the tube tting.
DW60R2014(A5)_IM_DD81-02707A-00_EN.indd 4 12/28/2018 11:56:00 AM

English 5English
Installation
NOTE
• For the hot water line, we strongly recommend using ⁄” minimum O.D. copper tubing
with a compression tting or a exible stainless steel braided hot water supply line.
• You also need a 90° Fitting with ⁄” N.P.T. external pipe threads on one end and a tting
sized to t your hot water line (copper tubing/compression tting or braided hose) on
the other.
• For the power cable, we recommend a jacketed grounded 12-2 cable. Note that some
local codes may require the cable to have a BX style metal jacket.

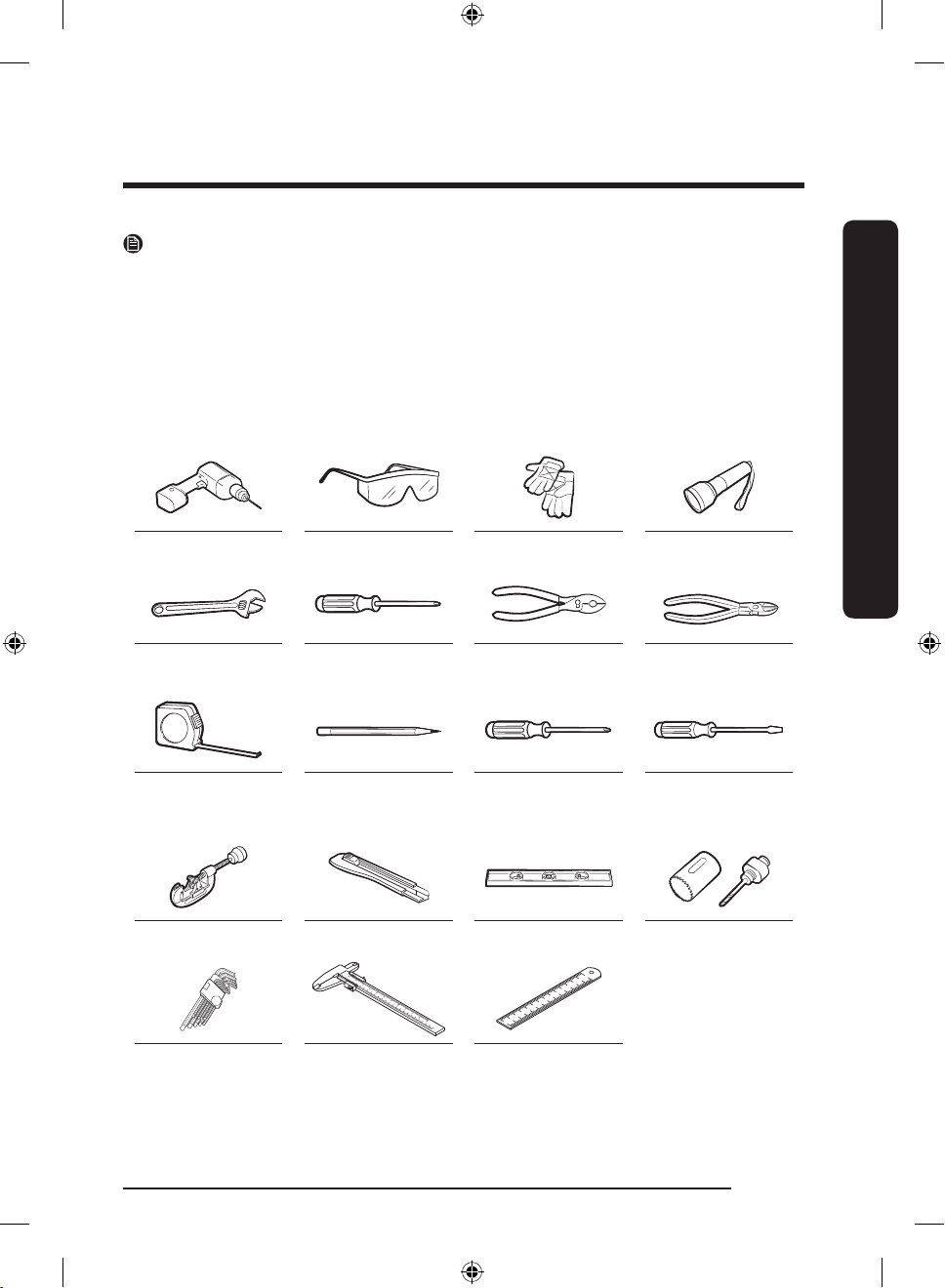

Tools required (not provided)
Electric drill Safety glasses Gloves Flashlight
Adjustable wrench Torx T15 Pliers Nipper
Tape measure Pencil Phillips screwdriver Flat head
screwdriver
Tubing cutter Cutting knife Level Hole saw
Hex L-wrench Vernier calipers Steel ruler
DW60R2014(A5)_IM_DD81-02707A-00_EN.indd 5 12/28/2018 11:56:01 AM

English6
Installation
Installation
Installation requirements
To prevent a risk of re, electric shock, or
personal injury, all wiring and grounding
must be done by a qualied technician.
Power supply
• To prevent the risk of re, electric
shock, or personal injury, all wiring
and grounding must be performed in
accordance with the National Electrical
Code ANSI/FNPA, No. 70 Latest Revision
and local codes and ordinances. It is the
personal responsibility of the appliance
owner to provide adequate electrical
service for this appliance.
• When preparing for installation, make
sure that your power supply provides an
individual 120 Volt, 60 Hz branch circuit
serving only your dishwasher with a 15
AMP fuse or circuit breaker.
• Your dishwasher must be grounded. If
your dishwasher malfunctions or breaks
down, grounding will reduce the risk of
electric shock by providing a path of
least resistance for the electric current.
WARNING
• Do not use an extension cord.
• Use only the power plug that comes
with the dishwasher.
Grounding
For permanent grounding, the dishwasher
must be properly grounded to a grounded
metal or permanent wiring system. The
grounding conductor must be run with
the circuit conductors and then connected
to the grounding terminal or lead on the
dishwasher.
WARNING
• Do not connect the ground wire to
plastic plumbing, gas lines, or hot water
pipes. Improperly connected grounding
conductors may cause electric shock.
• Do not modify the power plug of the
dishwasher. If the power plug does
not t the outlet, have a proper outlet
installed by a qualied electrician.
DW60R2014(A5)_IM_DD81-02707A-00_EN.indd 6 12/28/2018 11:56:01 AM

English 7English
Installation
Water supply
• The hot water supply line must support
water pressures between 20 psi and
120 psi (140-830 kPa).
• Water temperatures must be between
120 °F (49 °C) and 149 °F (65 °C).
To reduce a risk of leaks:
• Make sure water taps are easily
accessible.
• Turn the water tap off when the
dishwasher is not in use.
• Check for any leaks at the water hose
ttings on a regular basis.
Flooring
For safety, the dishwasher must be
installed on a solidly constructed oor.
Wooden oors may need to be reinforced
to minimize vibrations. Avoid installing
on carpet or soft tile. Carpeting and soft
tile may cause vibrations and may cause
your dishwasher to move slightly while
operating.
WARNING
Do not install the dishwasher on a poorly
supported structure.
DW60R2014(A5)_IM_DD81-02707A-00_EN.indd 7 12/28/2018 11:56:01 AM

English8
Installation
Installation
Dimensions and specications
Dishwasher
DW60R2014US Series (Built Under model)
23⁄" (600 mm)
32⁄"-33⁄" (815-845 mm)
4" (103 mm)
2⁄" (55 mm)
20⁄" (515 mm)
22⁄" (570 mm)
Front view Side view
DW60R2014AP Series (Fully Built In model)
4⁄" (121 mm)
2" (50 mm)
20⁄" (515 mm)
21⁄" (550 mm)
Front view Side view
DW60R2014(A5)_IM_DD81-02707A-00_EN.indd 8 12/28/2018 11:56:02 AM

English 9English
Installation
Cabinet
23⁄" (603.0 mm)
minimum
22⁄" (580 mm)
minimum
32⁄"-33⁄" (820-850 mm)
• This dishwasher is designed to be
enclosed on the top and on both sides
by a standard, residential kitchen
cabinet.
• The installation enclosure must be clean
and free of any obstructions.
• The enclosure must be at least 23⁄"
wide, 22⁄" deep, and 32⁄" high.
• For the front door of the dishwasher to
be ush with the leading edge of the
countertop, the countertop must be at
least 23" deep.

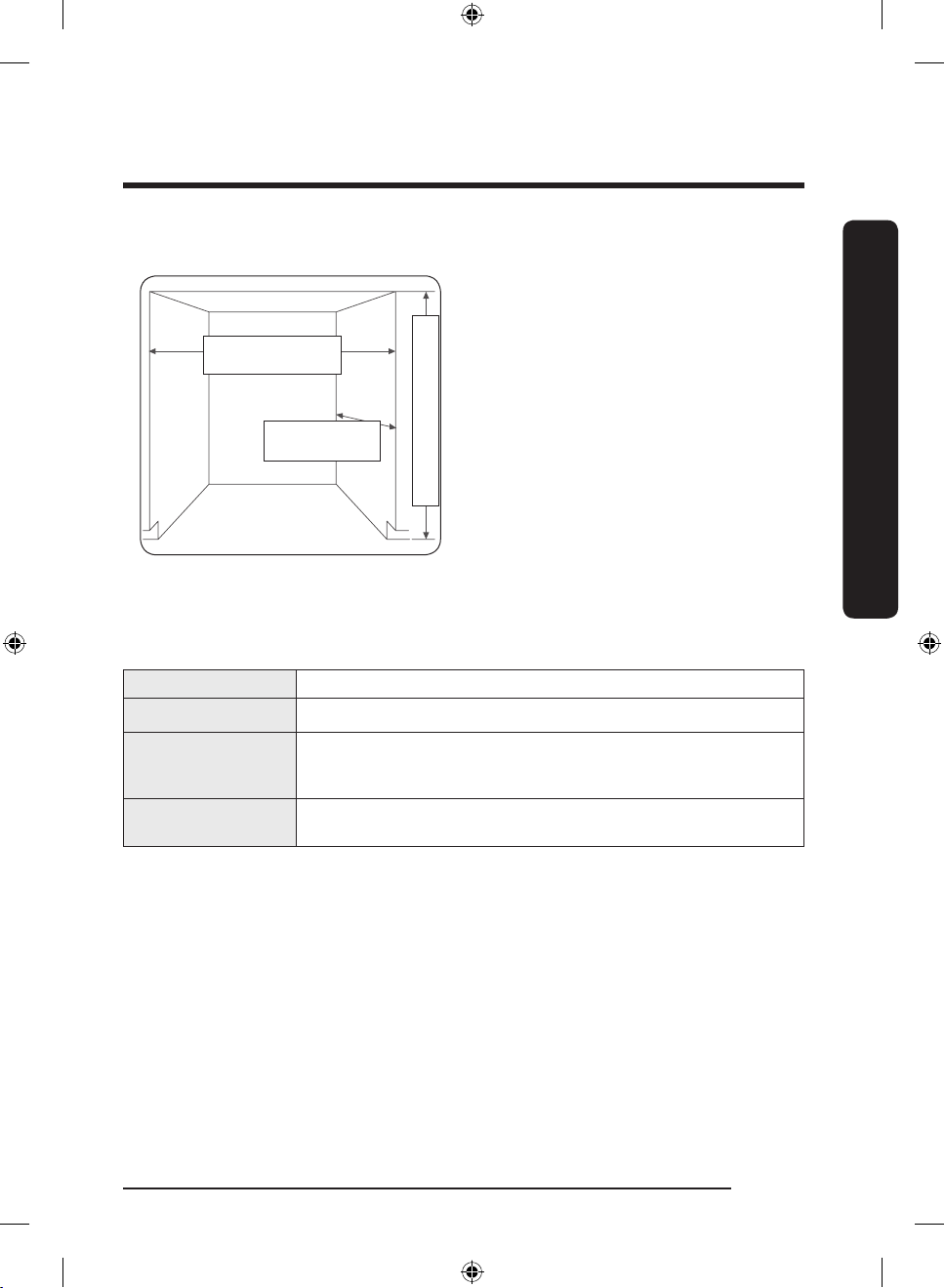

Specications
Specications are subject to change without notice for improved quality. The actual
appearance of the dishwasher may differ from the illustrations in this manual.
Power supply 120 V, 15 A, 60 Hz AC
Water pressure 20-120 psi (140-830 kPa)
Dimensions
(Width x Depth x
Height)
DW60R2014US : 23⁄ x 22⁄ x 32⁄ in. (598 x 570 x 815 mm)
DW60R2014AP : 23⁄ x 21⁄ x 32⁄ in. (598 x 550 x 815 mm)
Minimum inlet water
temperature 120 °F (49 °C)
DW60R2014(A5)_IM_DD81-02707A-00_EN.indd 9 12/28/2018 11:56:02 AM

English10
Installation
Installation
Step-by-step installation
The installation procedure may differ depending on the model.
STEP 1 Select a location
Select a location that meets the following conditions.
• The location must have a solid oor that can support the weight of the dishwasher.
• The location must be near a sink (9.8 ft/3 m) with easy access to the water supply, drain
system, and electrical outlet.
• The location must let you load dishes into the dishwasher easily.
• The location must have sufcient space for the dishwasher door to open easily
and provide enough space between the dishwasher and the cabinet sides (at least
0.1 inch/2 mm).
• The rear wall must be free of obstructions.
Installation in a new location
A
B
If you install the dishwasher in a new
location, follow these instructions before
installing the dishwasher.
1. Using a hole saw, cut a hole into the side
of the cabinet that holds the sink (A).
2. If the base inside the sink cabinet is raised
above the kitchen oor and is higher than
the connections on the dishwasher, make a
hole in the base inside the cabinet and in
the cabinet side (B).
NOTE
• If you are replacing an old dishwasher,
check the existing connections for
compatibility with the new dishwasher
and replace the connections as needed.
• You may need to cut a hole in the opposite
side of the cabinet according to the
location of the electrical outlet.
DW60R2014(A5)_IM_DD81-02707A-00_EN.indd 10 12/28/2018 11:56:03 AM

English 11English
Installation
STEP 2 Connect the hot water line
• The water line pressure must be between 20 psi and 120 psi (140–830 kPa).
• Make sure that the water temperature is delivered between 120 °F and 149 °F (49-
60 °C). Exceeding this limit may cause the dishwasher to malfunction.
• Make sure that the circuit breaker and water valve is turned off before connecting the
water supply line to the dishwasher.
• Make sure the water line is properly connected. Wrap Teon tape around every
connection and joint to prevent water leaks.
a
c
b
A
D
F
C
E
B

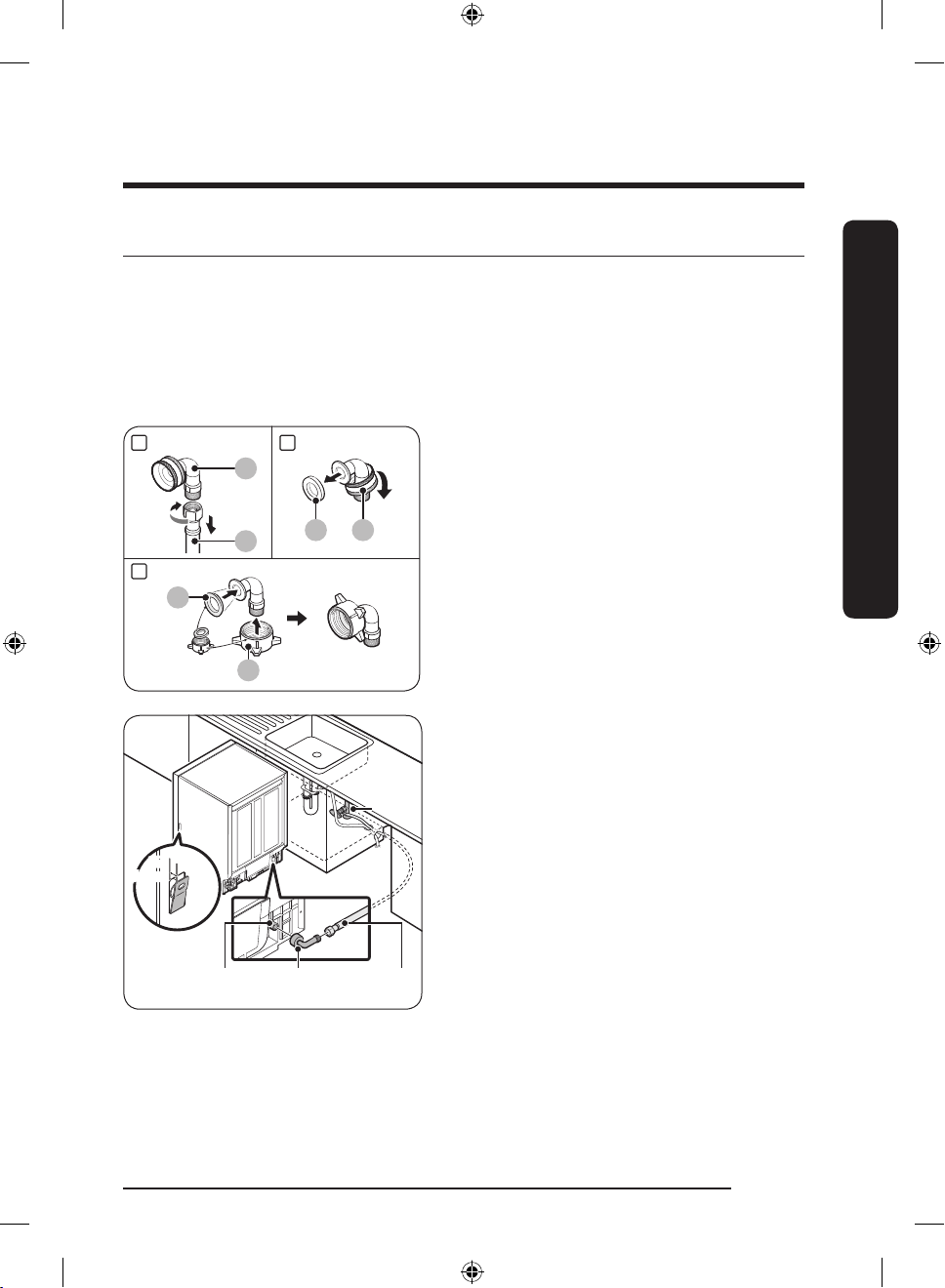

1. Use the provided nut connector
to connect the water hose to the
dishwasher.
Follow these steps:
a. Disconnect the 90° tting (A) from
the hose (B).
b. Remove the seal (C) and the nut (D)
from the 90° tting.
c. From the provided nut connector,
separate the seal (E) and the nut (F),
and then assemble them to the 90°
tting as shown in the gure. You
must insert the smaller side of the
seal.
Inlet valve 90° elbow
tting
Hot water
line
⁄"
(5 mm)
Water
valve
2. Insert the ⁄" 90-degree tting into the
inlet valve. Tighten the tting until it
points towards the water-hose channel
in the base of the dishwasher. Do not
overtighten.
3. Connect the hot water line to the tting.
4. If you want to secure the dishwasher to
the side wall for extra stability, bend the
brackets of the left and right housings
by referring to the gure.
DW60R2014(A5)_IM_DD81-02707A-00_EN.indd 11 12/28/2018 11:56:03 AM

English12
Installation
Installation

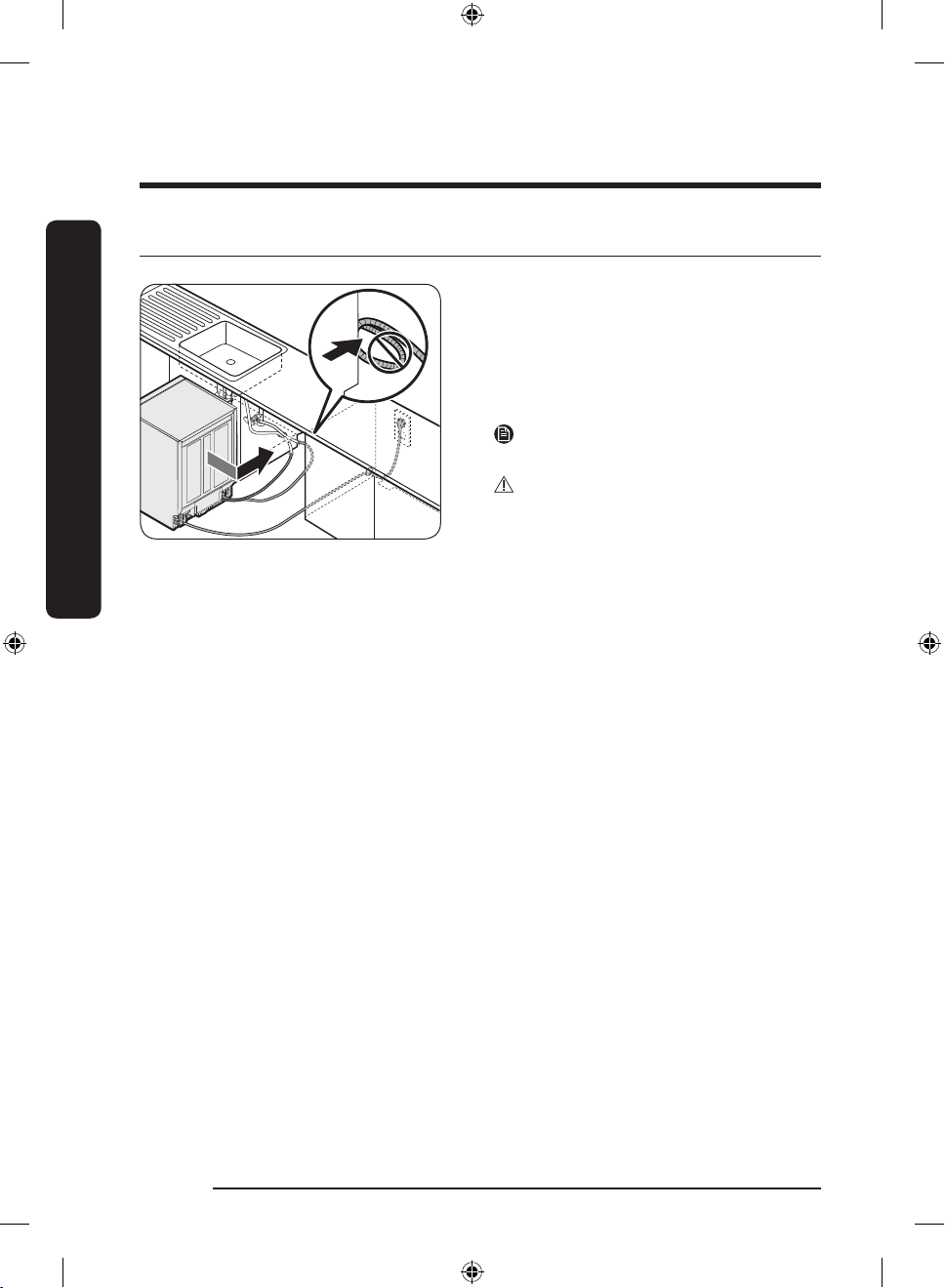

STEP 3 Arrange the hoses
1. Arrange the power cable and the drain
hose so that they move together.
2. Gently move the dishwasher to the
installation space under the sink. While
moving the dishwasher, pull any excess
portions of the water line, drain hose,
and power cable into the space.
NOTE
For DW60R2014US models, go to STEP 6.
CAUTION
• Use caution not to kink or step on the
power plug or the hoses.
• Location of the outlet can not be placed
behind the dishwasher.
DW60R2014(A5)_IM_DD81-02707A-00_EN.indd 12 12/28/2018 11:56:04 AM

English 13English
Installation
STEP 4 Install the custom panel (FBI models only (DW60R2014AP))
Ø2
~8

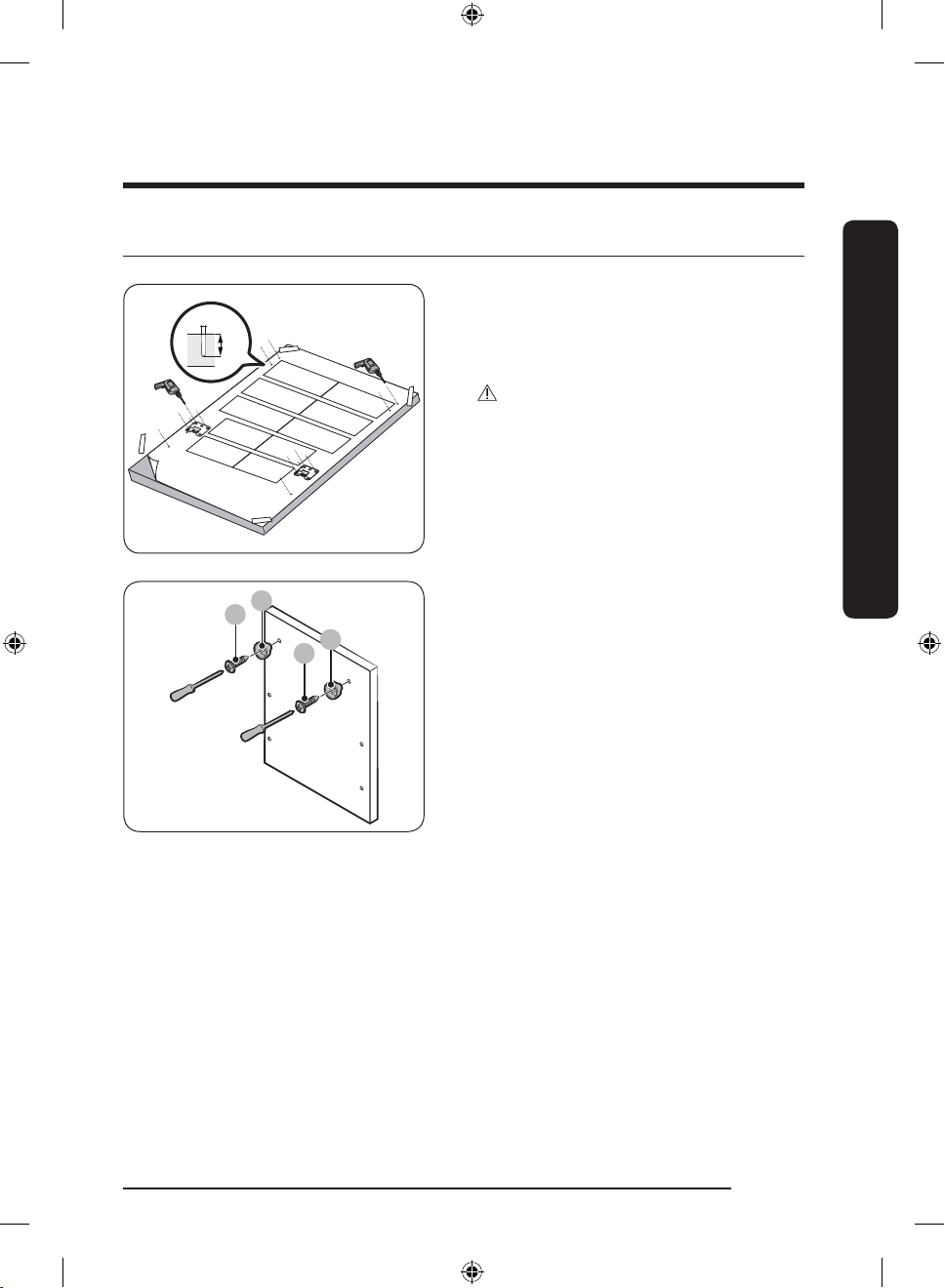

1. Put the installation template on the
back of the custom panel and x it
temporarily using transparent tape. Note
that the rear of the custom panel will be
attached to the dishwasher door.
CAUTION
• The top end of the custom panel must
be aligned with the top end of the
installation template.
• Use a custom panel between 7 lbs and
18 lbs.
2. Pre-drill the 14 points marked on the
installation template using a 2-pi drill bit
to a depth of ~8 mm.
B
C
B
C
3. Remove the installation template and
tighten the custom panel xers (B) at
the top with 2 screws (C, Ø3.5 X 25) as
shown.
DW60R2014(A5)_IM_DD81-02707A-00_EN.indd 13 12/28/2018 11:56:04 AM

English14
Installation
Installation
A
1⁄"
4. While holding the custom panel, attach
it to the door and insert the custom
panel xers (A) into the corresponding
holes at the top of the door as shown.
5. Push the custom panel downward to x.
CAUTION
Do not let the custom panel extend more
than 1⁄" from the top of the dishwasher.
6. Adjust the spring level while the door
is approximately opened at 30 degrees.
The door should hold its position, and
should not fall open.
CAUTION
• Do not adjust the spring level while the
door is completely opened.
• If the custom panel weighs more than
18 lbs (8 kg), the door may fall open.
Custom panels weighing more than
18 lbs (8 kg) are not recommended.
DW60R2014(A5)_IM_DD81-02707A-00_EN.indd 14 12/28/2018 11:56:05 AM

English 15English
Installation

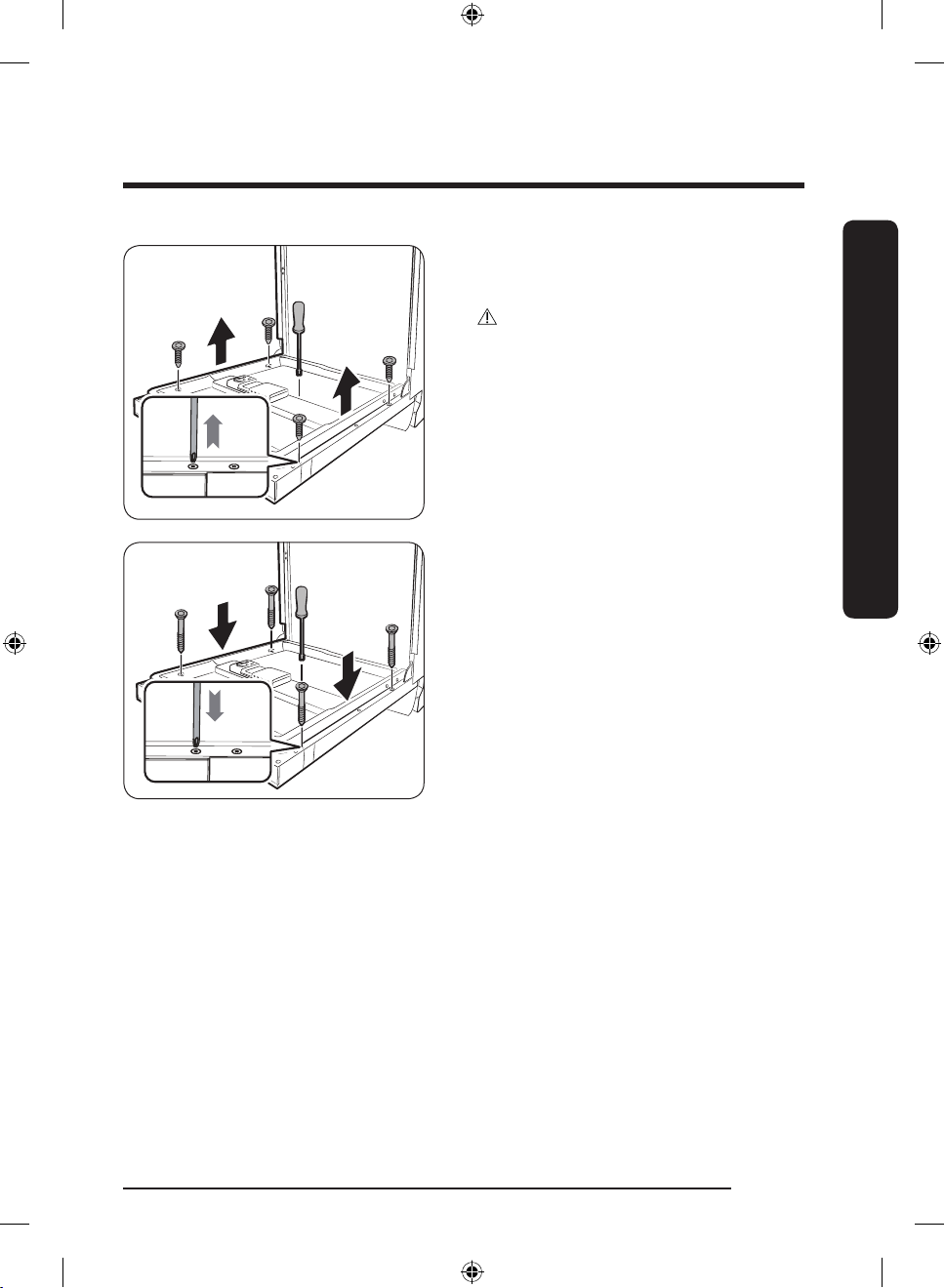

7. Open the dishwasher door and remove
the 4 screws using the Torx T15
screwdriver.
CAUTION
Use caution when opening the door. The
door might open or close unexpectedly
if the spring level is not adjusted
appropriately, resulting in physical injury.
8. Secure the custom panel to the door by
fastening the 4 screws (Ø3.5 X 45) using
the Torx T15 screwdriver.
DW60R2014(A5)_IM_DD81-02707A-00_EN.indd 15 12/28/2018 11:56:05 AM

English16
Installation
Installation

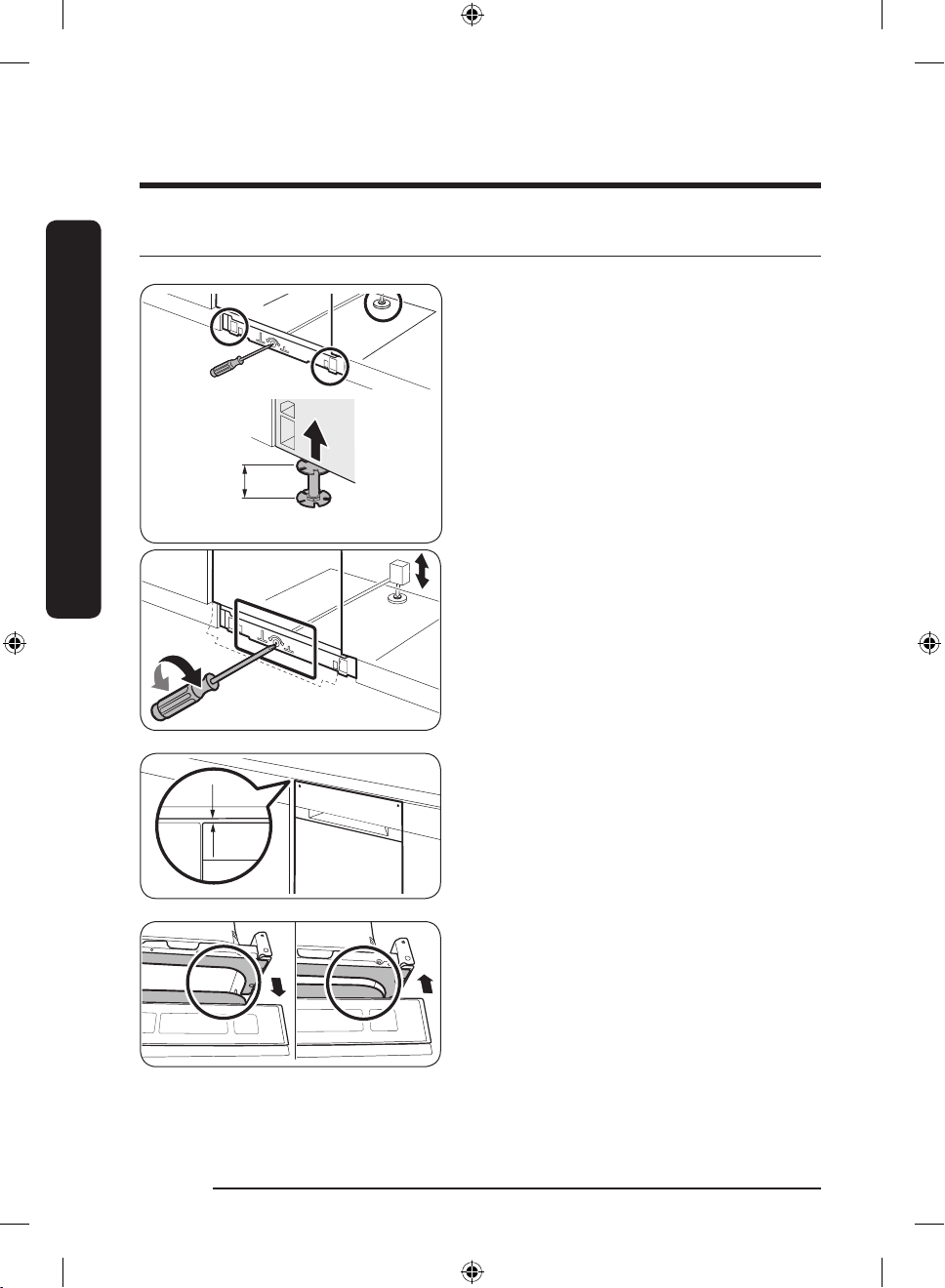

STEP 5 Level the dishwasher
0-1⁄" (0-30 mm)
Normal
You can adjust the height of the dishwasher
to level it. Note that in these steps, the
dishwasher is currently inserted halfway.
1. Use the level to check if the dishwasher
is level.
2. When adjusting the front height, use the
regular foot for heights lower than 1⁄".
• To lower the height, turn the foot
clockwise.
• To raise the height, turn the foot counter
clockwise.
3. To adjust the rear height, insert the
screwdriver in the bottom center of the
dishwasher.
• To lower the height, turn the
screwdriver clockwise.
• To raise the height, turn the screwdriver
counter clockwise.
Min. ⁄"
(5 mm)
4. Leave at least a ⁄" space between the
top of the dishwasher and the bottom of
the countertop.
5. When levelling is complete, check if the
door opens and closes properly.
DW60R2014(A5)_IM_DD81-02707A-00_EN.indd 16 12/28/2018 11:56:06 AM

English 17English
Installation

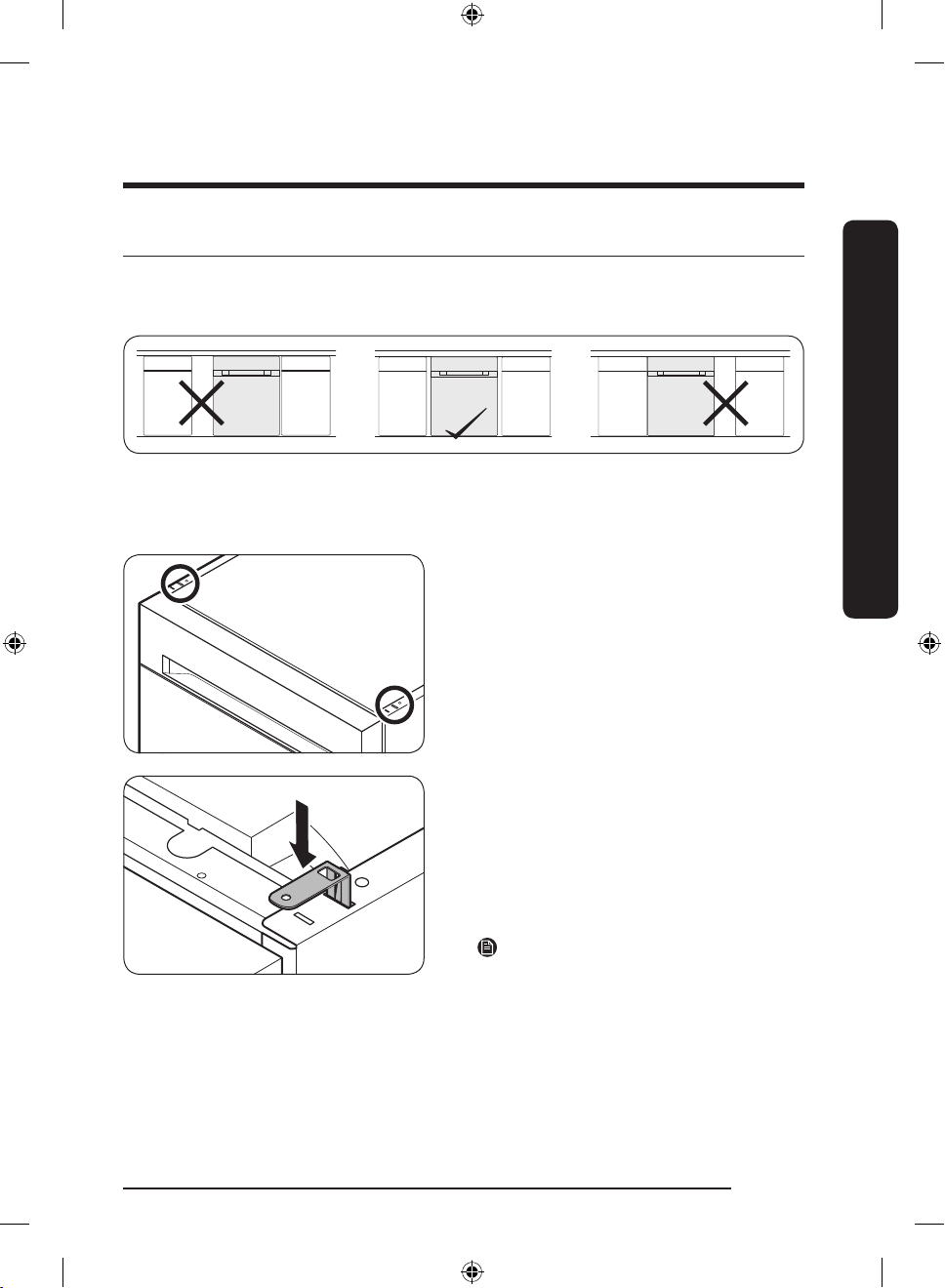

STEP 6 Secure the dishwasher
Correct positioning
Before securing the dishwasher, make sure the dishwasher is positioned in the center.
To the countertop
You can use the brackets to secure the dishwasher to the countertop. Alternatively, you
can drill the side holes to secure the dishwasher to the cabinet sides.
1. Put a large towel on the bottom of
the dishwasher (covering the sump) to
prevent wood shavings or screws from
falling into the dishwasher sump.
2. Insert the provided brackets into the top
front holes of the dishwasher as shown.
3. Insert the dishwasher fully into place
under the countertop.
4. Carefully drill 2 screw holes into the
bottom of the countertop from beneath,
one for each countertop bracket.
• Make sure the hole you drill is smaller
than the diameter of the screw.
5. Insert the provided screws into the hole
of brackets, and then tighten to secure
the dishwasher to the countertop.
NOTE
Use a magnetic screwdriver to help prevent
screws from falling into the dishwasher.
DW60R2014(A5)_IM_DD81-02707A-00_EN.indd 17 12/28/2018 11:56:06 AM

English18
Installation
Installation
Ø2
~8
6. Insert the provided screws into the
brackets, and then tighten to secure the
dishwasher to the countertop.
NOTE
Use a magnetic screwdriver to help prevent
screws from falling into the dishwasher.
7. Connect the water hose, but do not
open the water tap until installation is
complete.

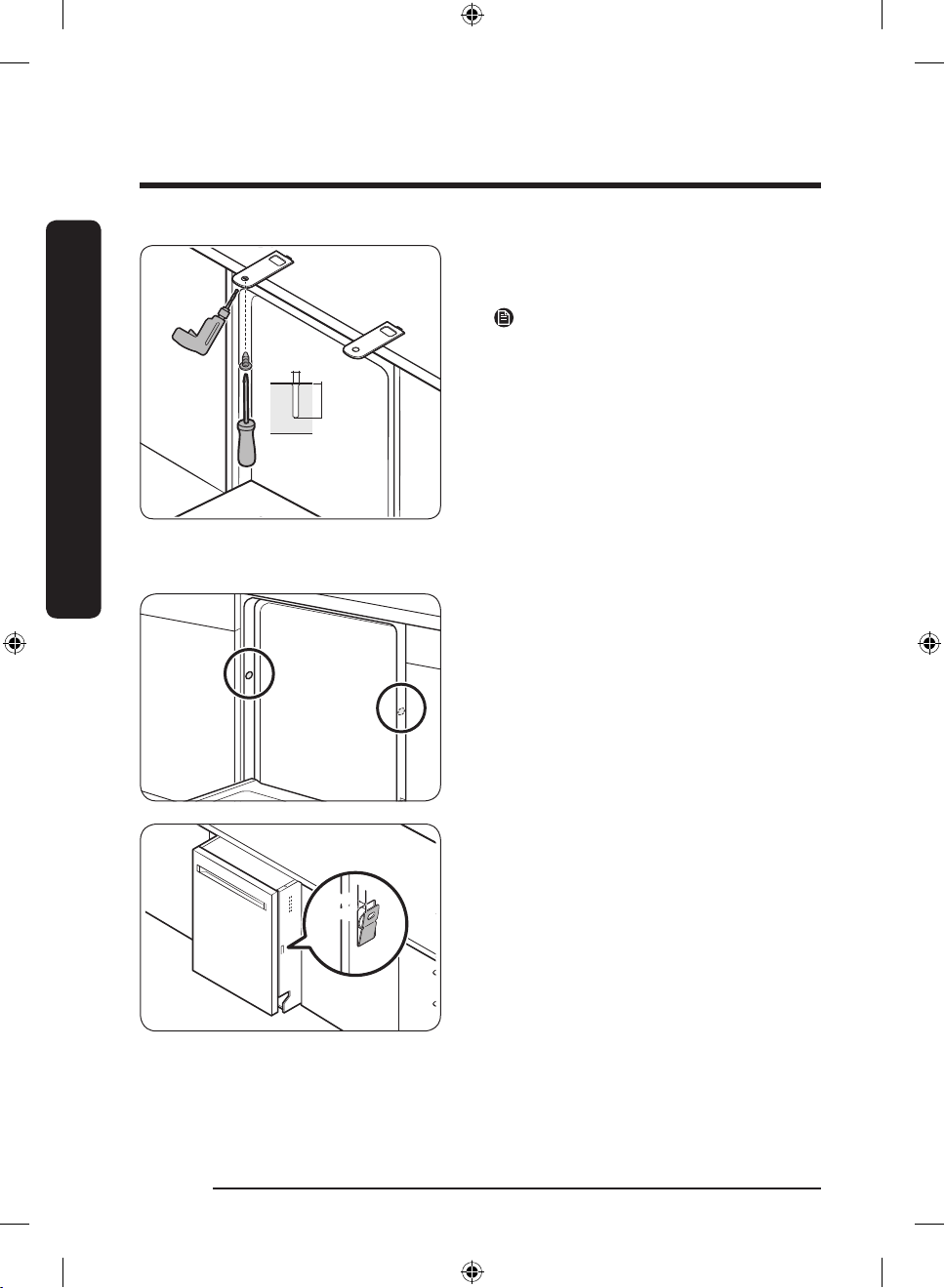

To the side walls
1. Put a large towel on the bottom of
the dishwasher (covering the sump) to
prevent wood shavings or screws from
falling into the dishwasher sump.
⁄"
(5 mm)
2. To prevent damage to the drain hose
through the water supply line, slightly
pull out the dishwasher and bend the
built-in ear brackets of the left and right
housings by ⁄" (5 mm). When done,
reinsert the dishwasher with its center
aligned.
DW60R2014(A5)_IM_DD81-02707A-00_EN.indd 18 12/28/2018 11:56:06 AM

English 19English
Installation

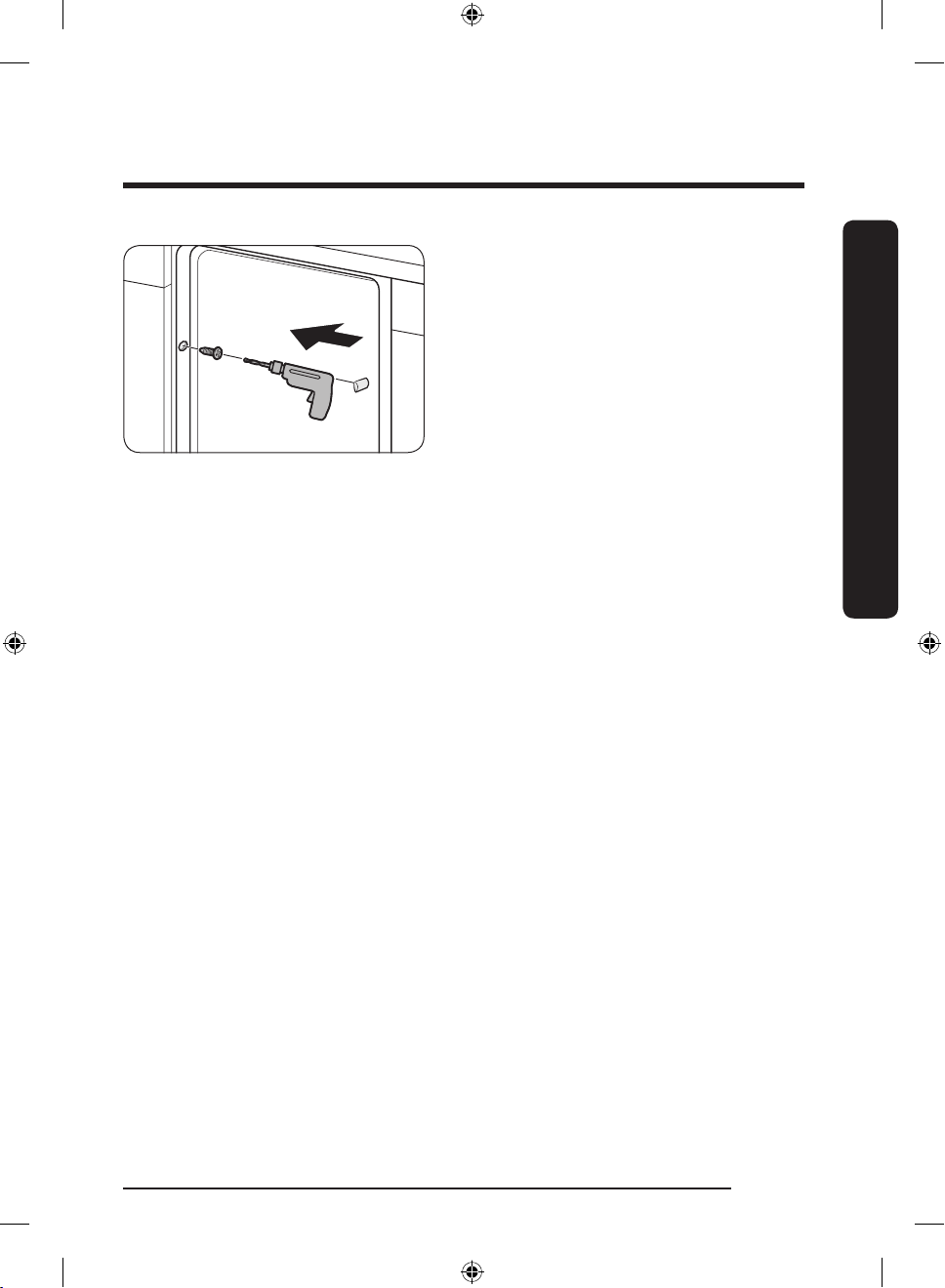

3. Drill one hole into both sides of the
kitchen cabinet, totaling 2 screw holes.
• Make sure the hole you drill is smaller
than the diameter of the screw.
• Make sure the drill bit does not strike
the sides of the spacer cap holes.
4. Tighten the provided screws into the
holes to secure the dishwasher to the
cabinet.
5. Insert the provided plastic caps to the
2 places where screws are fastened.
DW60R2014(A5)_IM_DD81-02707A-00_EN.indd 19 12/28/2018 11:56:06 AM

English20
Installation
Installation

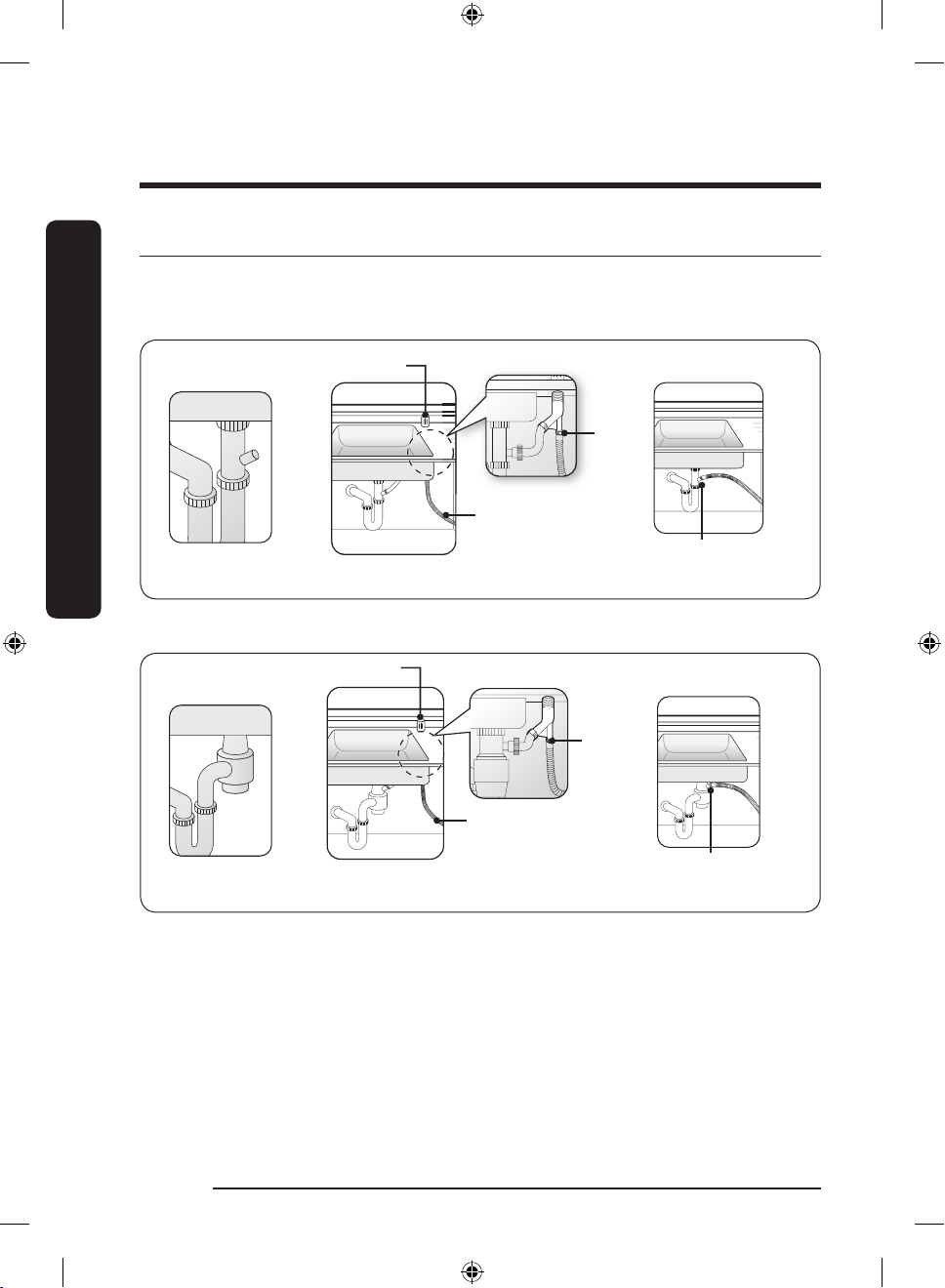

STEP 7 Connect the drain hose
There are several ways to insert the drain hose into the drain hose connector of the sink.
You must connect the drain hose in accordance with the water pipe installation regulations
in your region.
Air gap
Drain hose
Hose
clamp
Hose clamp
Without disposal With an air gap/without disposal Without an air gap
Drain system with no waste-disposal
Air gap
Drain hose
Hose
clamp
Hose clamp
With disposal With an air gap/with disposal Without an air gap
Drain system with a waste-disposal
DW60R2014(A5)_IM_DD81-02707A-00_EN.indd 20 12/28/2018 11:56:08 AM
