Contents
Safety information 4
What you need to know about the safety instructions 4
Important safety symbols 4
CALIFORNIA PROPOSITION 65 WARNING 5
Important safety precautions 6
Warnings 7
Cautions 7
Before installation 9
Key installation requirements 9

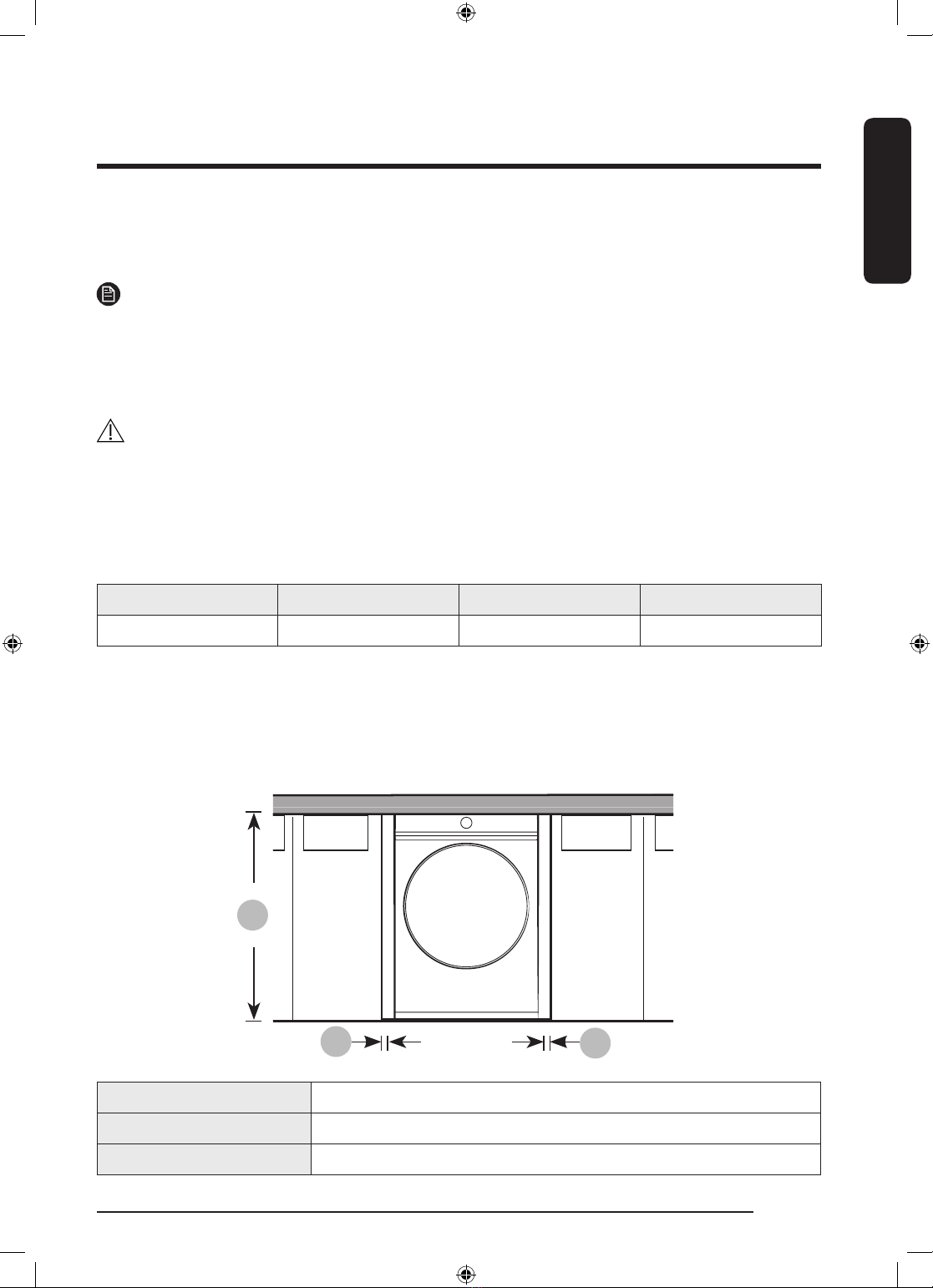

Location considerations 9

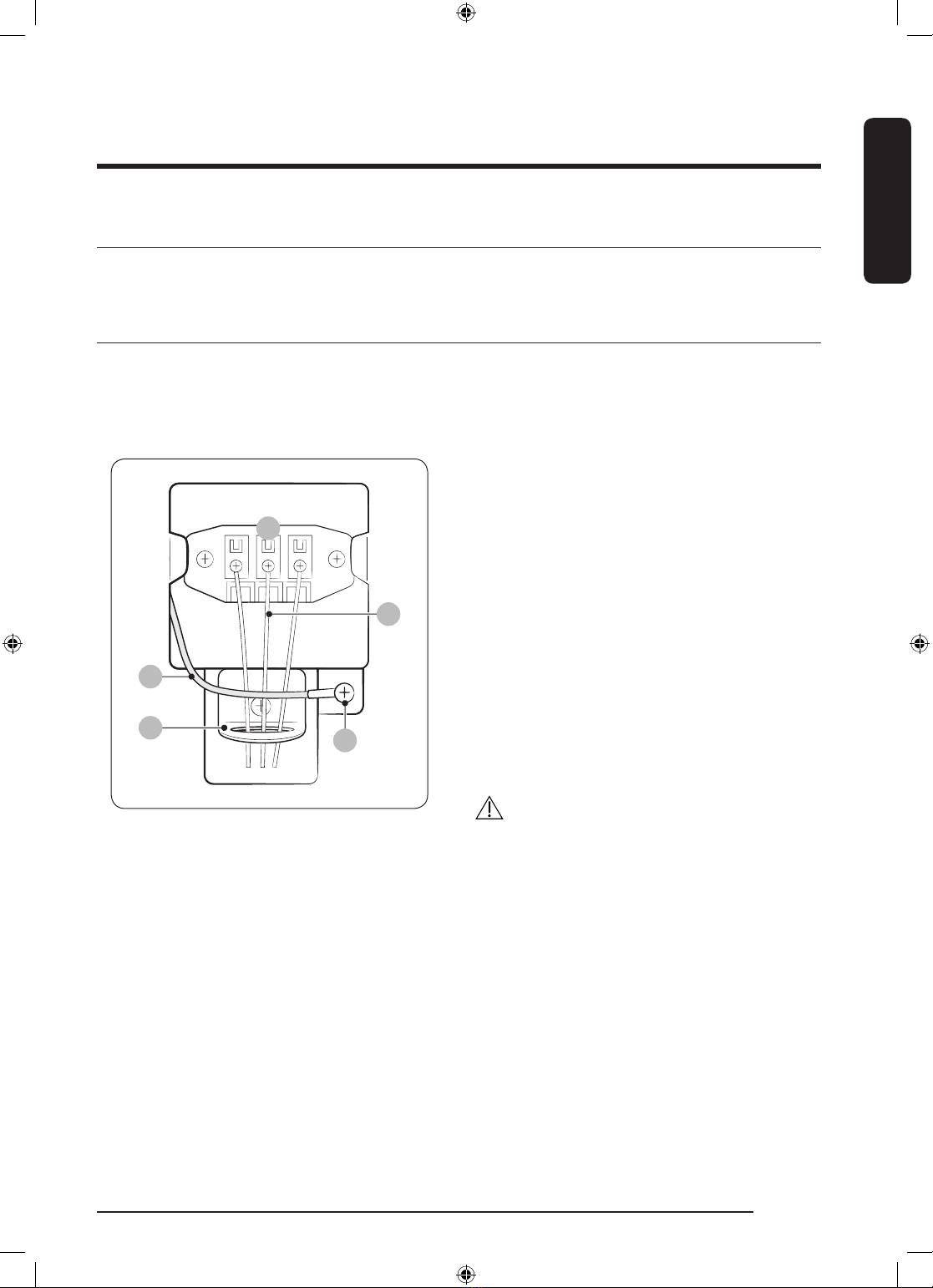

Electrical requirements 13
Step-by-step installation 17
Switching the door position 25
Before you start 29
Sort and load 29
Functional prerequisite 29
Operations 30
Control panel 30
Simple steps to start 32
Cycle overview 33
Cycle guide 34
Special features 36
Troubleshooting 43
Checkpoints 43
Information codes 45
DV6900B_LED_WEB_Heatpump_EN.indd 2 2022/6/23 16:15:44

English 3
English
Specications 46
Fabric care chart 46
Protecting the environment 47
Specication sheet 48
Cycle chart 49
DV6900B_LED_WEB_Heatpump_EN.indd 3 2022/6/23 16:15:44

SAVE THESE INSTRUCTIONS
English4
English
Safety information
Congratulations on your new Samsung dryer. This manual contains important information
on the installation, use and care of your appliance. Please take some time to read this
manual to take full advantage of your dryer’s many benets and features.
Install the clothes dryer according to the manufacturer’s instructions and local codes.
What you need to know about the safety instructions
Please read this manual thoroughly to ensure that you know how to safely and efciently
operate the extensive features and functions of your new appliance. Please store the
manual in a safe location close to the appliance for future reference. Use this appliance
only for its intended purpose as described in this instruction manual.
Warnings and Important Safety Instructions in this manual do not cover all possible
conditions and situations that may occur. It is your responsibility to use common sense,
caution and care when installing, maintaining and operating your dryer.
Because the following operating instructions cover various models, the characteristics of
your dryer may differ slightly from those described in this manual and not all warning
signs may be applicable. If you have any questions or concerns, contact your nearest
service center or nd help and information online at www.samsung.com.
Important safety symbols
What the icons and signs in this user manual mean:
WARNING
Hazards or unsafe practices that may result in severe personal injury, death and/or
property damage.
CAUTION
Hazards or unsafe practices that may result in personal injury and/or property damage.
NOTE
Indicates that a risk of personal injury or material damage exists.
These warning signs are here to prevent injury to yourself and others.
Please follow them explicitly.
After reading this manual, store it in a safe place for future reference.
Read all instructions before using the appliance.
As with any equipment that uses electricity and moving parts, potential hazards exist.
To safely operate this appliance, familiarize yourself with its operation and exercise care
when using it.
DV6900B_LED_WEB_Heatpump_EN.indd 4 2022/6/23 16:15:44

SAVE THESE INSTRUCTIONS
English
SAVE THESE INSTRUCTIONS
English 5
WARNING - Risk of Fire
• Clothes dryer installation must be performed by a qualied installer.
• Install the clothes dryer according to the manufacturer’s instructions and local codes.
• Do not install a clothes dryer with exible plastic venting materials. If exible metal
(foil type) duct is installed, it must be of a specic type identied by the appliance
manufacturer as suitable for use with clothes dryers. Flexible venting materials are
known to collapse, be easily crushed, and trap lint. These conditions will obstruct
clothes dryer airow and increase the risk of re.
• To reduce the risk of severe injury or death, follow all installation instructions.
• Save these instructions.
WARNING - To reduce the risk of re or explosion:
• Do not dry items that have been previously cleaned, washed, soaked, or spotted with
gasoline, dry cleaning solvents, or other ammable or explosive substances. They
emit vapors that could ignite or explode. Any material that has been in contact with a
cleaning solvent or ammable liquids or solids should not be placed in the dryer until
all traces of these ammable liquids or solids and their fumes have been removed.
There are many highly ammable items used in homes, such as acetone, denatured
alcohol, gasoline, kerosene, some liquid household cleaners, some spot removers,
turpentine, waxes, and wax removers.
• Do not dry items containing foam rubber (may be labeled latex foam) or similarly
textured rubber-like materials on a heat setting. Heated foam rubber materials can,
under certain circumstances, ignite spontaneously.
WARNING - Fire or explosion hazard:
• Failure to follow safety warnings exactly could result in serious injury, death or
property damage.
• Do not store or use gasoline or other ammable vapors and liquids near this or any
other appliance.
• Installation and service must be performed by a qualied installer, service agency.
CALIFORNIA PROPOSITION 65 WARNING
WARNING
Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
DV6900B_LED_WEB_Heatpump_EN.indd 5 2022/6/23 16:15:44

SAVE THESE INSTRUCTIONS
Safety information
SAVE THESE INSTRUCTIONS
English6
English
Important safety precautions
WARNING
To reduce the risk of re, electric shock, or injury to persons when using your appliance,
follow basic precautions, including the following:
1. Read all instructions before using this appliance.
2. Do not dry articles that have been previously cleaned in, washed in, soaked in,
or spotted with gasoline, dry-cleaning solvents, or other ammable or explosive
substances, as they give off vapors that could ignite or explode.
3. Do not use the dryer to dry clothes which have traces of any ammable substance,
such as vegetable oil, cooking oil, machine oil, ammable chemicals, paint thinner,
etc., or anything containing wax or chemicals, such as mops and cleaning cloths.
Flammable substances may cause the fabric to catch re by itself.
4. Do not store or use gasoline or other ammable vapors and liquids near this or any
other appliance.
5. Do not allow children to play on or in the appliance. Close supervision of children is
necessary when the appliance is used near children.
6. Before the appliance is removed from service or discarded, remove the door to the
drying compartment.
7. Do not reach into the appliance if the drum is moving.
8. Do not install or store this appliance where it will be exposed to the weather.
9. Do not tamper with internal controls.
10. Do not repair or replace any part of the appliance or attempt any service unless
specically recommended in the user-maintenance instructions or in published user-
repair instructions that you understand and have the skills to carry out.
11. Do not use fabric softeners or products to eliminate static unless recommended by the
manufacturer of the fabric softener or product.
12. Clean the lint screen before or after each load.
13. Do not use heat to dry articles containing foam rubber or similarly textured rubber-
like materials.
14. The interior of the appliance should be cleaned periodically by qualied service
personnel.
DV6900B_LED_WEB_Heatpump_EN.indd 6 2022/6/23 16:15:44

SAVE THESE INSTRUCTIONS
English
SAVE THESE INSTRUCTIONS
English 7
15. Do not place items exposed to cooking oils in your dryer. Items contaminated with
cooking oils may contribute to a chemical reaction that could cause a load to catch re.
To reduce the risk of re due to contaminated loads, the nal part of a tumble dryer
cycle occurs without heat (cool down period). Avoid stopping a tumble dryer before
the end of the drying cycle unless all items are quickly removed and spread out so that
the heat is dissipated.
16. This appliance must be grounded. See “Electrical requirements” and ”Grounding” in
“Installation” section.
17. Do not allow children to play on or in the appliance. Close supervision of children is
necessary when the appliance is used near children.
18. Do not insert your hand under the dryer.
• This may result in injury.
19. Take care that children’s ngers are not caught in the door when closing it.
• This may result in injury.
Warnings
WARNING
• Ensure pockets are free of small, irregularly shaped hard objects and foreign material,
i.e. coins, knives, pins, etc. These objects could damage your dryer.
• Sharp Edges – To reduce the risk of injury, use care when cleaning the condenser or
evaporator coil ns.
• Certain internal parts are intentionally not grounded and may present a risk of electric
shock only during servicing. Service Personnel - Do not contact the following parts
while the appliance is energized: Control board, Motor, Drain pump.
Cautions
CAUTION
• Do not allow children or pets to play on, in, or in front of the appliance. Close
supervision is necessary when the appliance is used near children and pets.
• Before discarding or removing your dryer from service, remove the door to the drying
compartment to prevent children or animals from becoming trapped inside.
• Do not reach into the appliance when the drum is moving.
• Do not install or store this appliance where it will be exposed to the weather.
• Do not tamper with the controls.
DV6900B_LED_WEB_Heatpump_EN.indd 7 2022/6/23 16:15:45

SAVE THESE INSTRUCTIONS
Safety information
SAVE THESE INSTRUCTIONS
English8
English
• Do not repair, replace, or attempt to service any part of the appliance unless
specically instructed to in the user-repair instructions and you have the
understanding and skills to carry out the procedure.
• Do not use fabric softeners or products to eliminate static unless the softener or
product is recommended for dryer use by the manufacturer of the fabric softener or
product.
• Clean the lint screen before or after each load.
• Keep the area around the exhaust opening and surrounding areas free from lint, dust,
and dirt.
• The interior of the dryer and exhaust duct should be cleaned periodically by qualied
service personnel.
• This appliance must be properly grounded. Never plug the power cord into a receptacle
that is not grounded adequately or not in accordance with local and national codes. See
the installation instructions for information about grounding this appliance.
• Do not sit on top of the dryer.
• Do not dry clothing with large buckles, buttons, or other heavy metal or solid objects.
• Install and use in accordance with the manufacturer’s instructions.
• Do not place items in your dryer that have been spotted or soaked with vegetable oil
or cooking oil. Even after being washed, these items may contain signicant amounts
of these oils.
• Residual oil on clothing can ignite spontaneously. The potential for spontaneous
combustion increases when items containing vegetable oil or cooking oil are exposed
to heat. Heat sources such as your dryer can warm these items, allowing an oxidation
reaction in the oil to occur. Oxidation creates heat. If this heat cannot escape, the items
can become hot enough to catch re. Piling, stacking, or storing these kinds of items
may prevent heat from escaping and can create a re hazard.
• All washed and unwashed fabrics that contain vegetable oil or cooking oil can be
dangerous.
Washing these items in hot water with extra detergent will reduce, but not eliminate,
the hazard. Always use the Cool Down cycle for these items to reduce their
temperature. Never remove these items from the dryer hot or interrupt the drying
cycle until the items have run through the Cool Down cycle. Never pile or stack these
items when they are hot.
DV6900B_LED_WEB_Heatpump_EN.indd 8 2022/6/23 16:15:45

English
English 9
Before installation
Read through the following instructions before installing the dryer, and keep this manual
for future reference.
WARNING
Certain internal parts are intentionally not grounded and may present a risk of electric
shock only during servicing. Service Personnel - Do not contact the following parts while
the appliance is energized: Control board, Motor, Drain pump.
Key installation requirements
• A grounded electrical outlet.
• A power cord for electric dryers (except in Canada).
• A sink or drain pipe if you want to drain the water captured during drying through the
supplied long drain hose. (See page 20.)
WARNING
Remove the door from all discarded appliances to prevent a child from suffocating.
Location considerations
The dryer should be located where there is enough space at the front for loading the
dryer, and enough space behind for the exhaust system. This dryer is factory-ready for
the rear exhaust option. To exhaust out the bottom, right or the left, use the accessory
exhaust kit. Instructions are included with the kit. Make sure the room in which the dryer
is located has enough fresh air. The dryer must be located where there are no air-ow
obstructions.
The dryer must not be installed or stored in an area where it will be exposed to water
and/or weather. The dryer area must be kept clear of combustible materials, gasoline, and
other ammable vapors and liquids. A dryer produces combustible lint. The area around
the dryer should be kept lint-free.
DV6900B_LED_WEB_Heatpump_EN.indd 9 2022/6/23 16:15:45

Before installation
English10
English
Dimensions




Type Front loading dryer
Models DV25B6800H*
Dimensions
(in. (mm))
A. Overall height 33.5 (850)
B. Width 23.6 (600)
C. Depth with door open 43.3 (1101)
D. Depth 25.8 (655)
DV6900B_LED_WEB_Heatpump_EN.indd 10 2022/6/23 16:15:45

English
English 11
Clearance requirement
This clearance requirement is applicable for dryers only.
NOTE
• For washer’s clearance requirement, see the washer’s user manual.
• If the washer and dryer have different clearance requirements, use the one with the
larger value.
Alcove or closet installations
WARNING
• The dryer must be exhausted to the outside to reduce the risk of re when installed in
an alcove or closet.
• No other fuel-burning appliance should be installed in the same closet as the dryer.
• Place the dryer at least 18 in. (460 mm) above the oor for garage installation.
Minimum clearance for stable operation:
Sides Top Rear Front
1 in. (25 mm) 1 in. (25 mm) 2 in. (50 mm) 1 in. (25 mm)
If both the washer and a dryer are installed in the same location, the front of the alcove or
closet must have two unobstructed air openings for a combined minimum total area of 72
in.2(465 cm2).
Undercounter installation
BC
A
A34.4 in. (875 mm)
B1 in. (25 mm)
C1 in. (25 mm)
DV6900B_LED_WEB_Heatpump_EN.indd 11 2022/6/23 16:15:45

Before installation
English12
English
This clearance requirement is applicable for washer and dryer pair installation.
Side by side installation Stacked installation
A1 in. (25 mm)
B* 2 in. (50 mm)
C2 in. (50 mm)
D6 in. (152 mm)
E67 in. (1702 mm)
(B*): This clearance requirement only applies to the dryer. For washer’s clearance
requirement, see the washer’s user manual.
Minimum space (B*) of 2” is required for best dryer performance. In case of insufcient
space for duct installation, properly sized vent kit is needed.
NOTE
Stacking (SK-DH)
Many of Samsung’s washers and dryers can be stacked to maximize usable space. You can
purchase an optional stacking kit from your Samsung retailer. For details about stacking
and compatible models, refer to the user manual included in the stacking kit you purchase.
DV6900B_LED_WEB_Heatpump_EN.indd 12 2022/6/23 16:15:45

English
English 13
Electrical requirements
The wiring diagram is located on the plate
under the control panel or rear frame.
WARNING
• Improperly connecting the equipment
grounding conductor can result in a
risk of electric shock. Check with a
qualied electrician or serviceman if
you are in doubt as to whether your
dryer is properly grounded. Do not
modify the plug provided with your
dryer – if it doesn’t t the outlet, have
a proper outlet installed by a qualied
electrician.
• To prevent unnecessary risk of re,
electrical shock, or personal injury, all
wiring and grounding must be done in
accordance with local codes, or in the
absence of local codes, in accordance
with the National Electrical Code, ANSI/
NFPA No. 70-Latest Revision (for the
U.S.) or the Canadian Electrical Code CSA
C22.1 – Latest Revisions and local codes
and ordinances. It is your responsibility
to provide adequate electrical service
for your dryer.
Grounding
This dryer must be grounded. In the event
of a malfunction or breakdown, the ground
will reduce the risk of electrical shock by
providing a path of least resistance for the
electrical current.
WARNING
• Your dryer has an optional cord with
an equipment-grounding conductor
and a grounding plug. This cord is sold
separately.
• The plug must be plugged into an
appropriate outlet that is properly
installed and grounded in accordance
with all local codes and ordinances.
• Do not modify the plug provided with
your dryer – if it doesn’t t the outlet,
have a proper outlet installed by a
qualied electrician.
• If a power cord is not used and the
electric dryer is to be permanently
wired, the dryer must be connected to
a permanently grounded metal wiring
system, or an equipment grounding
conductor must be run with the circuit
conductors and connected to the
equipment grounding terminal or lead
on the dryer.
DV6900B_LED_WEB_Heatpump_EN.indd 13 2022/6/23 16:15:46

Before installation
English14
English
Electrical connections
Before operating or testing, follow all
grounding instructions in the “Grounding”
section. An individual branch (or separate)
circuit serving only your dryer is
recommended.
Do not use an extension cord.
U.S. only
Most U.S. dryers require a 240 volt, 60
Hz AC approved electrical service. Some
require 208 volt, 60 Hz approved electrical
service. The electric service requirements
can be found on the data label located
behind the door. A 30-ampere fuse or
circuit breaker on both sides of the line is
required.
• If a power cord is used, the cord
should be plugged into a 30-ampere
receptacle.
• The power cord is not provided with
U.S. electric model dryers. This cord is
sold separately.
Risk of Electric Shock
WARNING
• When local codes allow, you can
connect the dryer’s electrical supply
with a new power supply cord kit,
marked for use with a dryer, that is U.L.
listed and rated at a minimum of 240
volts, 30-amperes with three No. 10
copper wire conductors terminated with
closed loop terminals, open-end spade
lugs with turned up ends, or with tinned
leads.
• Do not reuse a power supply cord from
an old dryer. The power cord electric
supply wiring must be supported at the
dryer cabinet by a suitable UL-listed
strain relief.
• Grounding through the neutral
conductor is prohibited for (1) new
branch-circuit installations, (2) mobile
homes, (3) recreational vehicles, and
(4) areas where local codes prohibit
grounding through the neutral
conductor. (Use a 4-prong plug for a
4 wire receptacle, NEMA type 14-30R.)
Canada Only
• A 240 volt, 60 Hz AC approved
electrical service fused through a
30-ampere fuse or circuit breaker on
both sides of the line is required.
NOTE
All Canadian models are shipped with
the power cord attached. The power cord
should be plugged into a 30-ampere
receptacle.
In Canada, you may convert a dryer to 208
volt.
DV6900B_LED_WEB_Heatpump_EN.indd 14 2022/6/23 16:15:46

English
English 15
Installation
What’s included
Carefully unpack the dryer. Keep all packaging materials away from children. The parts
and location of parts shown below may differ from your dryer. Before installation, make
sure the dryer has all the parts listed here. If the dryer and/or parts are damaged or
missing, contact the nearest Samsung customer service center.
Dryer at a glance
01
02
05
04
07
03
06
01 Top cover 02 Water Tank
03 Door 04 Heat exchanger
05 Levelling Leg 06 Lint lter
07 Control Panel
DV6900B_LED_WEB_Heatpump_EN.indd 15 2022/6/23 16:15:46

Installation
English16
English
Accessories (supplied)
Hose guide Cable tie Hose connector
Long drain hose (6.5 ft/2 m) User manual Cleaning brush
Accessories (Canada Model Only)
Bracket-Stacking kit
(SK-DH)
NOTE
• The stacking kit allows the dryer to be stacked on top of a washer. Please note that the
stacking kit can only be used with Samsung washers and dryers. To purchase a bracket
stacking kit, contact a Samsung service center or local appliance retailer. The stacking
kit differs with the washer model.
• For stacking instructions for the dryer, see the installation manual included in the
stacking kit.
• For information about model-specic availability of the stacking kit, see the installation
manual included in the stacking kit.
DV6900B_LED_WEB_Heatpump_EN.indd 16 2022/6/23 16:15:47

English
English 17
Step-by-step installation
Make sure you have a qualied technician install the dryer. Step by step installation
instructions start below.
STEP 1 Connect the electrical wiring
First, read through the “Electrical requirements” section, and then follow the instructions
on this page or the next page. Instructions for a 3-wire system are on this page.
Instructions for a 4-wire system are on the next page.
For a 3-wire system
A
D
B
C
E
A. Center silver-colored terminal block
screw
B. Neutral wire (white or center wire)
C. Neutral grounding wire (white or green/
yellow)
D. ¾” (1.9 cm) UL-listed strain relief
E. External ground connector
1. Loosen or remove the screws from the
center terminal block.
2. Connect the neutral wire (white or
center wire) of the power cable to the
center, silver-colored terminal screw
of the terminal block. Tighten the
screws.
3. Connect the other wires to outer
terminal block screws. Tighten the
screws.
4. Tighten the strain relief screws.
5. Insert the terminal block cover into the
rear panel of the dryer. Then, secure
the cover with a hold-down screw.
CAUTION
• To convert from the 4-wire system
to 3-wire system, connect the ground
strap to the terminal block support to
ground the dryer frame to the neutral
conductor.
• Ring-type terminals are recommended.
If using strap terminals, make sure they
are tightened.
• Connect the power cord and check L1/
L2/N voltage. If the voltage is low, it
may not heat properly.
DV6900B_LED_WEB_Heatpump_EN.indd 17 2022/6/23 16:15:47

Installation
English18
English
For a 4-wire system
A
C
D
E
F
B
A. Center silver-colored terminal block
screw
B. Neutral grounding wire (white or green/
yellow)
C. ¾” (1.9 cm) UL-listed strain relief
D. Neutral wire (white or center wire)
E. External ground connector
F. Green or bare copper wire of power
cord
1. Remove the external ground
connector’s screw, and connect the
ground wire (green or unwrapped) of
the power cable to the screw.
CAUTION
• To connect the ground wire to the
neutral position without through
contact A (cabinet ground), contact
a technician. This is not user
serviceable.
• Ring-type terminals are
recommended. If using strap
terminals, make sure they are
tightened.
2. Loosen or remove the screws from the
center terminal block.
3. Connect the neutral wire (white or
center wire) and ground wire (white)
to the center, silver-colored terminal
screw of the terminal block. Tighten
the screw.
4. Connect the other wires to the outer
terminal block screws. Tighten the
screws.
5. Tighten the strain relief screws.
6. Insert the tab of the terminal block
cover into the rear panel of the dryer.
Then, secure the cover with a hold-
down screw.
CAUTION
Connect the power cord and check L1/L2/N voltage. If the voltage is low, it may not heat
properly.
WARNING
• All U.S. models are designed for a 3-wire system connection. The dryer frame is
grounded to the neutral conductor at the terminal block. A 4-wire system connection
is required for new or remodeled construction, mobile homes, or if local codes do not
permit grounding through neutral. If you use the 4-wire system, you cannot ground the
dryer frame to the neutral conductor at the terminal block.
DV6900B_LED_WEB_Heatpump_EN.indd 18 2022/6/23 16:15:47

English
English 19
• Remove the terminal block cover plate.
• Insert the power cord with a UL-listed strain relief through the hole provided in the
cabinet near the terminal block.
• A strain relief must be used.
• Do not loosen the nuts already installed on the terminal block. Be sure they are tight.
• Use a 3/8” (1 cm) deep well socket.
• Since january 1, 1996, The national electric code requires that new wiring (not existing)
utilize a 4-wire connection to this dryer.
STEP 2 Level the dryer
Before you install the dryer, make sure you have read the Installation requirements on
page 9. Please note that the following instructions are for installation without using a
drain hose. For instructions on using a drain hose, see the next section, Drain hose (if
necessary) on page 20. For convenience, consider installing the dryer next to your washer.

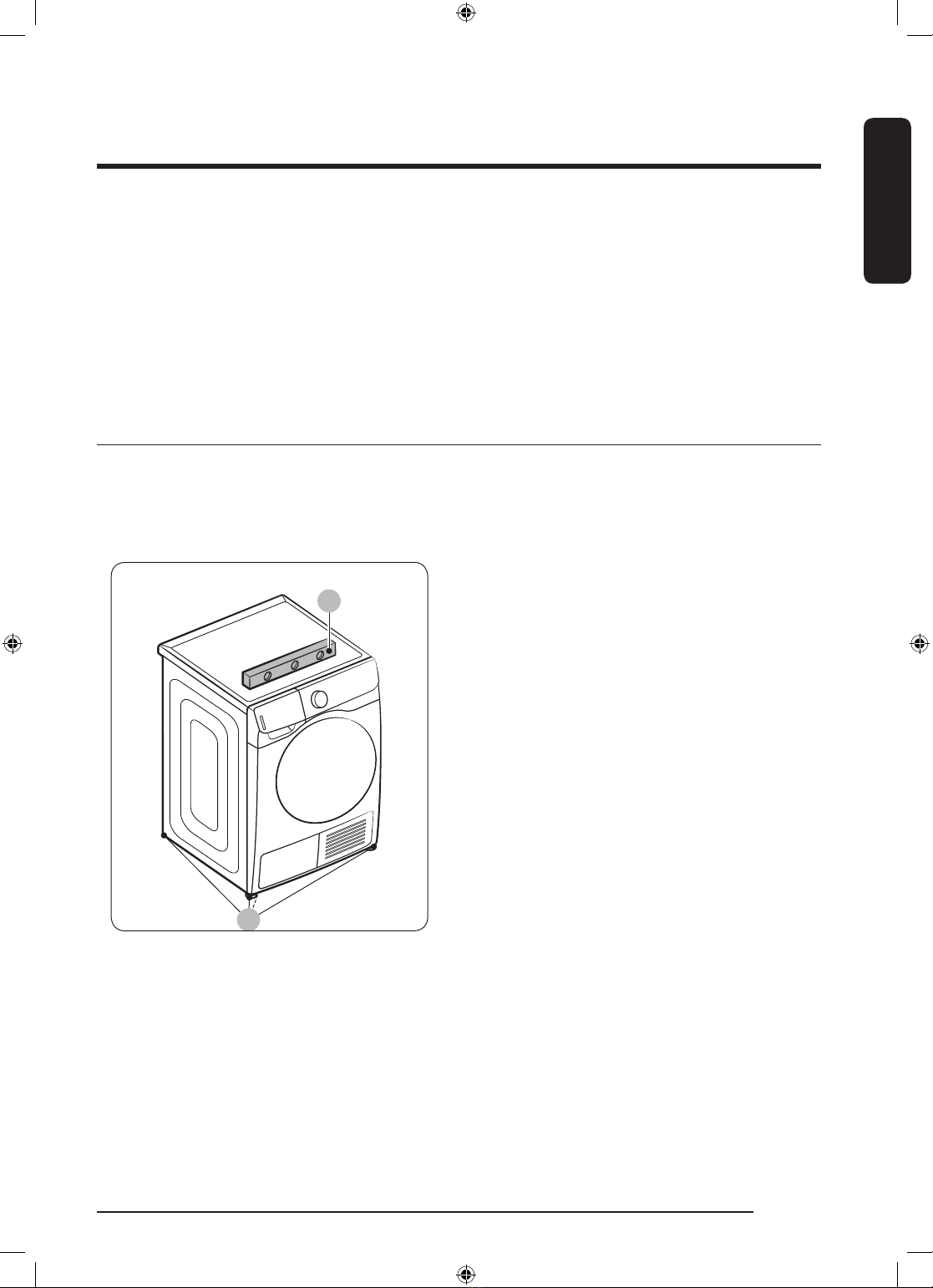

A
B
1. Carefully move the dryer to the desired
location.
2. Use a level (A) and check the levelness
of the dryer from side to side and front
to back.
3. If the dryer is not level, adjust the
levelling legs (B). Turning a leg counter-
clockwise retracts the leg. Turning a leg
clockwise extends the leg.
4. Once the dryer is level, make sure the
dryer stands rmly on the oor.
5. Plug in the dryer.
DV6900B_LED_WEB_Heatpump_EN.indd 19 2022/6/23 16:15:48

Installation
English20
English
C D
NOTE
• The dryer can be levelled using either
or both of the front and rear legs of the
dryer.
• To set the dryer to the same height as
the washer, fully retract (C) the levelling
legs by turning them counter clockwise,
then loosen (D) the legs by turning
them clockwise.
• Extend the levelling leg only as much
as necessary. Extending the levelling
leg more than necessary can cause the
dryer to vibrate.
DV6900B_LED_WEB_Heatpump_EN.indd 20 2022/6/23 16:15:48
