Samsung 430 Series User manual

SERIES lfl
LJ.50
LJ.30
LCD TV
User Manual
11 .------------------,11
II .
. I:
imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service, please register
your product at
www.samsung.com/register
Model Serial No. _

For more information about how to use e-Manual (P. 12)
Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.
Product design and specifications may be changed without notice.
Important Warranty Information Regarding Television Format Viewing
~ See the warranty card for more information on warranty terms.
Wide screen format LCD Displays (16:9. the aspect ratio of the screen width to height) are primarily designed to view wide screen format full-
motion video. The images displayed on them should primarily be in the wide screen 16:9 ratio format, or expanded to fill the screen if your model
offers this feature and the images are constantly moving. Displaying stationary graphics and images on screen, such as the dark sidebars on non-
expanded standard format television video and programming, should be limited to no more than 5% of the total television viewing per week.
Additionally, viewing other stationary images and text such as stock market reports, video game displays, station logos, web sites or computer
graphics
and patterns, should be limited as described above for all televisions. Displaying stationary images that exceed the above guidelines
can cause uneven aging of LCD Displays that leave subtle, but permanent burned-in ghost images in the LCD picture. To avoid this, vary the
programming and images, and primarily display full screen moving images, not stationary patterns or dark bars. On LCD models that offer picture
sizing features, use these controls to view different formats as a full screen picture.
Be careful in the selection and duration of television formats you use for viewing. Uneven LCD aging as a result of format selection and use, as well
as burned-in images, are not covered by your Samsung limited warranty.
• SAMSUNG ELECTRONICS NORTH AMERICAN LIMITED WARRANTY STATEMENT
Subject to the recuirements, conditions, exclusions and limitations of the original Limited Warranty supplied with Samsung Electronics
(SAMSUNG) products, and the recuirements, conditions, exclusions and limitations contained herein, SAMSUNG will additionally provide
Warranty Repair Service in the United States on SAMSUNG products purchased in Canada, and in Canada on SAMSUNG products
purchased in the United States, for the warranty period originally specified, and to the Original Purchaser only.
The abcve described warranty repairs must be performed by a SAMSUNG Authorized Service Center. Along with this Statement, the Original
Limited Warranty Statement and adated Bill of Sale as Proof of Purchase must be presented to the Service Center. Transportation to and
from the Service Center is the responsibility of the purchaser. Conditions covered are limited only to manufacturing defects in material or
workmanship, and only those encountered in normal use of the product.
Excluded, but not limited to, are any originally specified provisions for, in-home or on-site services, minimum or maximum repair times,
exchanges or replacements, accessories, options, upgrades, or consumables.
For the location of a SAMSUNG Authorized Service Center, please call toll-free:
- In the United States: 1-800-SAMSUNG (1-800-726-7864)
-
In Canada: 1-800-SAMSUNG
Still image warning
Avoid displaying still images (such as jpeg picture files), still image elements (such as TV channel logos, stock or news bars at the screen bcttom
etc.), or programs in panorama or 4:3 image format on the screen. Constantly displaying still pictures can cause image burn-in on the LCD screen,
which will affect image quality. To reduce risk of this effect, please follow the recommendations below:
• Avoid displaying the same TV channel for long periods.
• Always try to display any image in full screen. Use the TV set's picture format menu for the best possible match.
• Reduce brightness and contrast values to the minimum required to achieve the desired picture quality. Exceeding the minimum required
values may speed up the burn-in process.
•
Frequently use all TV features designed to reduce image retention and screen burn-in. Refer to appropriate e-Manual sections for details.
Securing the Installation Space
Keep the recuired distances between the TV, the wall, and other objects to ensure proper ventilation. Failing to do so may resu~ in a fire or a
problem
with the TV caused by an increase in its internal temperature.
~ When using a stand or wall-mount, use parts provided by Samsung Electronics only.
• If you use parts provided by another manufacturer, it may result in a problem with the product or an injury due to the product falling.
~------------!-~----------~
I 41nches I
, ,
, ,
,,
,,
~ ~
,
,
,
,
,
,
,
,
:----- --- ----r4i~h~- --- -----:
,,
, ,
,,
4inches I I 4inches
~ ;;-
:-- ~l
,
,
,
, ,
, ,
,!4nches I
I -------------------~
Other Warnings
~ The actual appearance of the TV may differ from the images in this manual, depending on the model.
~ Be careful when you touch the TV Some parts can be somewhat hot.

Accessories
~ Please make sure the following items are included with your TV. If any items are missing, contact your dealer.
~ The item's colors and shapes may vary depending on the model.
Input Cables (Sold Separately)
To purchase the RS232 cable, contact www.SamsungParts.com .
..".._~._ ... -.
Viewing the Control Panel
~ The product color and shape may vary depending on the model.
I
'------r ·· .. jrr
r .
'C;;;;;;;;;;;"'A",~" ~~>w' I
Speakers
Control Panel
o (Power)
• Remote control sensor
iSOURCEGl
'. MENU
." -VOL+
VCHA
Power Indicator
Turns the lV on or off.
Aim the remote control towards this spot on the lV.
Toggles between all the available input sources. In the on-screen menu, use this
button as you would use the ENTER Gbutton on the remote control.
Displays an on-screen menu, the OSD (on screen display) of your lV's features .
Adjusts the volume. In the OSD, use the -VOL+buttons as you would use the ....
and ~ buttons on the remote control.
Changes the channels. In the OSD, use the V CH Abuttons as you would use the
• and Abuttons on the remote control.
Blinks and turns off when the power is on and lights up in standby mode.
Standby mode
Your lV enters Standby mode when you turn it off and continues to consume a small amount of electric power. To be safe
and to decrease power consumption, do not leave your lV in standby mode for long periods of time (when you are away on a
holiday, for example). It is best to unplug the power cord.

Installing the TV Stand
Components
When installing the stand, use the provided components and parts.
(i)
~
~
~
~
~
@
~
3EA(M4 X L 16)
(26 inch model)
00
~
8EA (M4 X L 16)
(26 inch model) (32 inch model)
(32 inch model)
26 inch model
o1
ATIENTION I
i®@~ie
, I
@SJm-X3'
(M4 X L16)
o
Top View
~B:@'B~ :
r·t§) SJm- x4
/ (~~ ~ _L ~~ _
t :
T, TI
: ,T: :
,
,
, ,
@" .. " : ATIENTION :
........ ~@®~~
~
, OOHQTUSE DONQTUSE OOHQTUSE I
o • I CHEMICALS GREASE: OIL I
I ,
f~l···· ..... " --f.'.~ .. ~" ,,':";' ---------------
Rear
32 inch model
e
···OO~X4
(M4 X L16)
~ Place asoft cloth over the
table to protect the TV, and
then place the TV on the cloth
screen side down.
~ Insert the Stand Guide into the
slot of TV bottom side.
& »Make sure to distinguish between the front and back of each component when assembling them.

Installing the Wall Mount
Wall or Ceiling Mounting
The product should be mounted on a wall or ceiling only as recommended by the manufacturer. Unless it is correctly
mounted, the product may slide or fall, causing serious injury to a child or adult, and serious damage to the product.
Installing the Wall Mount Kit
The wall mount kit (sold separately) allows you to mount the 1V on the wall.
For detailed information on installing the wall mount, see the instructions provided with the wall mount items. Contact a
technician for assistance when installing the wall mount bracket. Samsung Electronics is not responsible for any damage to the
product or injury to yourself or others if you elect to install the wall mount on your own.
Wall Mount Kit Specifications (VESA)
Install your wall mount on a solid wall perpendicular to the floor. Before attaching the wall mount to building materials other
than plaster board. please contact your nearest dealer for additional information. If you install the 1V on a ceiling or slanted
wall, it may fall and result in severe personal injury.
~NOTE
•Standard dimensions for wall mount kits are shown in the table below.
• Samsung wall mount kits contain adetailed installation manual and all parts necessary for assembly.
• Do not use screws that do not comply with the VESA standard screw specifications.
•
Do not use screws that are longer than the standard length or do not comply with the VESA standard screw
specifications.
Screws that are too long may cause damage to the inside of the TV set.
• For wall mounts that do not comply with the VESA standard screw specifications, the length of the screws may differ
depending on the wall mount specifications.
• Do not fasten the screws too firmly. This may damage the product or cause the product to fall, leading to personal
injury. Samsung is not liable for these kinds of accidents.
•
Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or
the consumer fails to follow the product installation instructions.
•
Do not mount the TV at more than a 15 degree tilt.
• Always have two people mount the TV on a wall.
19-22
75 X 75
100 X 100
M4
23-29 200 X 100
LCD-1V
30-40 200 X 200 M6
46-55 400 X 400
4
57-65
600 X 400
M8
70-80 800 X 400
80-
1400 X 800
Do not install your Wall Mount Kit while your 1V is turned on. It may result in personal injury due to
electric shock.

Remote Control Buttons
~ This remote control has Braille points on the Power, Channel, and Volume buttons and can be used by visually impaired
persons,
SAMSUNS
Turns the lV on and off,
Press to directly access to channels.
Press to select additional digital channels
being broadcast by the same station. For
example, to select channel '54-3', press
'54', then press '-' and '3'.
Adjusts
the volume.
Displays the channel list on the screen.
Displays My Contents, Watch TV
and Source.
Quickly select frequently used functions.
Selects the on-screen menu items and
changes the values seen on the menu.
Returns to the previous menu.
Buttons used in the Channel List,
Channel Manager, My Contents
menu,
etc.
Use these buttons in My Contents and
Anynet+ modes.
Displays and selects the available video
sources.
Returns to the previous channel.
Cuts off the sound temporarily.
Changes channels.
Displays the main on-screen menu.
Automatically shuts off the lV at a preset time.
Displays information on the lV screen.
Exit the menu.
E-MANUAL: Displays the e-Manual guide,
SRS: Lets you select the SRS TruSurround
HD mode.
P.MODE: Lets you select the picture mode.
P.SIZE: Lets you choose the picture size.
CC: Controls the caption decoder.
MTS: Press to choose stereo, mono, or
Separate Audio Program (SAP broadcast).
Installing batteries (Battery size: MA)
...........
.. . ...
~:.~ ....
r&':~~"';;.c".: :
. .
.. .
.
.
.
.
.
...
..... .
~NOTE
•Use the remote control within 23 feet from the TV.
Bright light may affect the performance of the remote control.
Avoid using when near fluorescent lights or neon signs.
The color and shape may vary depending on the model.
~,' . '" ,'''': " ~~:~ .
',', \ ~ . ~ .

How to Navigate Menus
Before using the TV, follow the steps below to learn how to navigate the menu and select and adjust different functions.
o MENU button: Displays the main on-screen menu.
f) ENTER [3l / Direction button: Move the cursor and select
an item. Confirm the setting.
e RETURN button: Returns to the previous menu.
o EXIT button: Exits the on-screen menu.
1I[CoNTENTJ
o
Ie II
L:_II __ ~_II:O_
How to Operate the OSD (On Screen Display)
The access steps may differ depending on the selected menu.
MENU lID
The main menu options appear on the screen:
Picture, Sound, Channel, System, Support.
Select an icon or option with the .. or Tbutton.
Press ENTER [3l to access the sub-menus
Select the desired submenu with the .. or Tbutton.
Adjust the value of an item with the ... or ~ button. The adjustment in the OSD may differ depending
on the selected menu.
Press ENTER [3l to confirm the selection.
Press EXIT.
Connecting to an Antenna or Cable Connection
Connecting the power cord and an antenna or cable connection
VHF/UHF Antenna
or
Power Input
'-~-~~----------l
.,
i1
II
I
)
~"'. " "N I ;:. ~ .',. ~ .
j .:; • '.., ~ . .'.

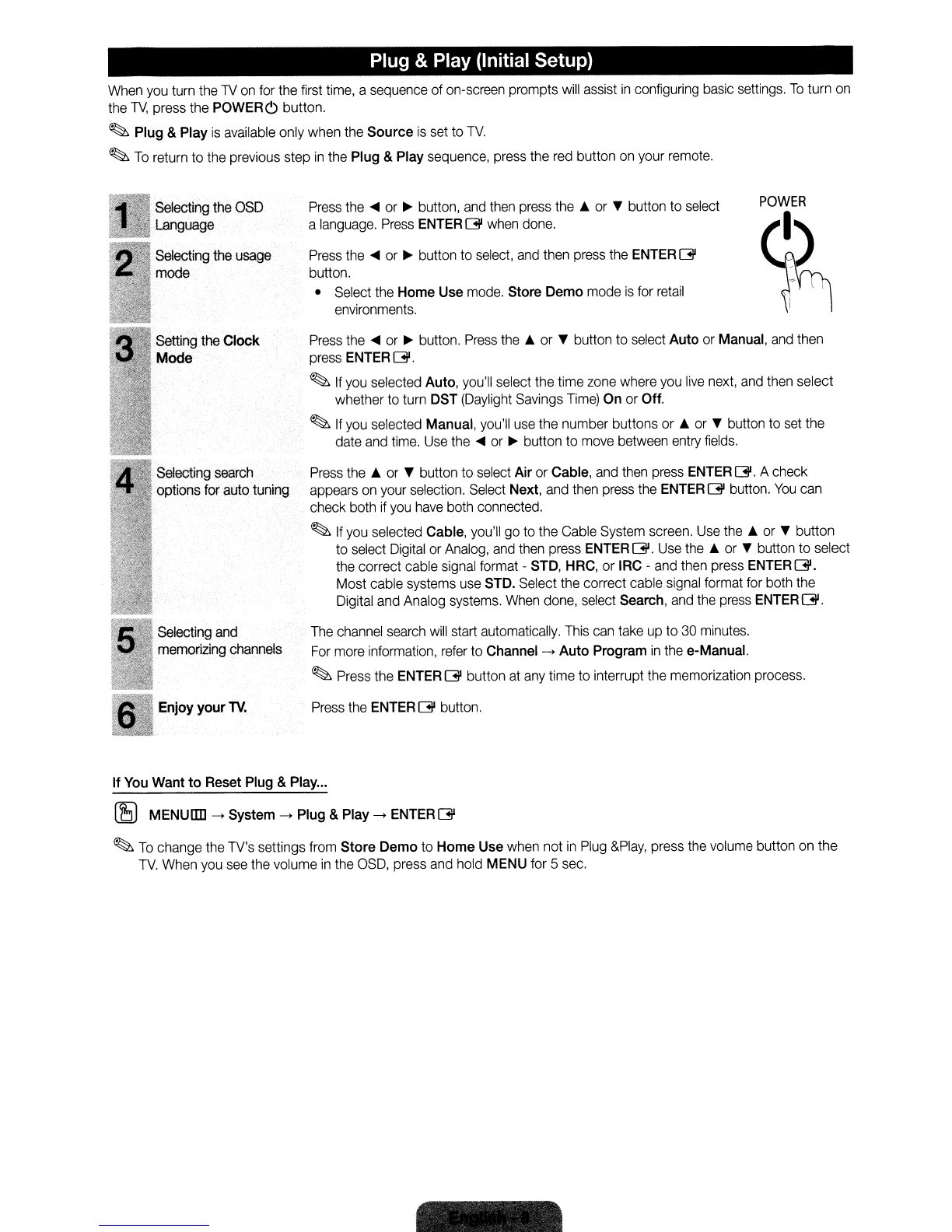

Plug &Play (Initial Setup)
When you turn the 1V on for the first time, asequence of on-screen prompts will assist in configuring basic settings. To turn on
the
1V, press the POWERc; button.
~ Plug &Play is available only when the Source is set to TV.
~ To return to the previous step in the Plug &Play sequence, press the red button on your remote.
Press the ENTER
G' button.
The channel search will start automatically. This can take up to 30 minutes.
For more information, refer to Channel
-> Auto Program in the e-Manual.
~ Press the ENTER G' button at any time to interrupt the memorization process.
Press the
~ or ~ button. Press the'" or Tbutton to select Auto or Manual, and then
press ENTER
G'.
~ If you selected Auto, you'll select the time zone where you live next, and then select
whether to turn DST (Daylight Savings Time) On or Off.
~ If you selected Manual, you'll use the number buttons or ... or Tbutton to set the
date and time. Use the
~ or ~ button to move between entry fields.
POWER
~
Press the ... or Tbutton to select Air or Cable, and then press ENTER G'. Acheck
appears on your selection. Select Next, and then press the ENTER
G' button. You can
check both if you have both connected.
~ If you selected Cable, you'll go to the Cable System screen. Use the'" or Tbutton
to select Digital or Analog, and then press ENTER
G'. Use the'" or Tbutton to select
the correct cable signal format -STD, HRC, or IRC -and then press
ENTERG'.
Most cable systems use STD. Select the correct cable signal format for both the
Digital and Analog systems. When done, select Search, and the press ENTER
G'.
Press the ~ or ~ button, and then press the'" or Tbutton to select
alanguage. Press ENTER
G' when done.
Press the
~ or ~ button to select, and then press the ENTER G'
button.
•Select the
Home Use mode. Store Demo mode is for retail
environments.
Selecting and
memorizing channels
Enjoy
your TV.
Selecting search
options for auto tuning
Setting the
Clock
Mode
Selecting the OSD
Language
Selecting the usage
mode
If You Want to Reset Plug &Play...
~ MENUIIII -> System -> Plug &Play -> ENTER G'
~ To change the TV's settings from Store Demo to Home Use when not in Plug &Play, press the volume button on the
TV. When you see the volume in the OSD, press and hold MENU for 5sec.

Connecting to an AV Device
Using an HDMI cable or HDMI to DVI Cable: HD connection (up to 1 D8Dp)
We recommend using the HOMI connection for the best quality HO picture.
Available devices: OVO player, Blu-ray player, HO cable box, HO satellite receiver (STB).
HOMI to OVI cable
HOMI cable
Red White
-,
I
i
J
~ HDMI IN 1 (DVI), 2I PC/DVI AUDIO IN
• When using an HOMIIOVI cable connection, you must use the HDMIIN 1 (DVI) jack for video. A OVO player, Blu-
ray player, HO cable box, HO STB satellite receiver, cable box, or STB satellite receiver may require a OVI-HOMI
(OVI to HOMI) cable or OVI-HOMI (OVI to HOMI) adapter. You must use the PC/DVI AUDIO IN jack for audio.
• The picture may not display normally (if at all) or the audio may not work if you connect an external device that uses
an older version of HOMI mode to the 1V If such a problem occurs, ask the manufacturer of the external device
about the HOMI version and, if out of date, request an upgrade.
• Be sure to purchase a certified HOMI cable. Otherwise, the picture may not display or a connection error may
occur.
----_._--_ .. _----_._._.- .. _._ .. _ .. -----
Using a Component (up to 1 D8Dp) or an AudioNideo Cable (48Di only)
Available devices: OVO player, Blu-ray player, cable box, STB satellite receiver, VCR
,r-'
I
AN cable
Component cable
~ When connecting to AV IN 1, the color of the AV IN 1[YIVIDEOj jack (Green)
does not match the color of the video cable (Yellow).
~ For better picture quality, the Component connection is recommended over
\....... the AN connection. tt@ttt
Yellow Red White Red Blue Green

Connecting to an Audio Device
Using an Optical (Digital) or Audio (Analog) Cable Connection
-
Digital audio system
t A_Ud_io_c_a_ble c::II."""'l~
a
AUDIO OI(,ITAI
GIJT
AUDIO OUT
Red White
L____ .-----,
Available devices: Digital Audio System, Amplifier, Home Theater
(
~ .. _--
l'
Optical cable OPTICAL
Ii• •
IIG • ~
(
~ DIGITAL AUDIO OUT (OPTICAL)
• When you connect a Digital Audio System to the DIGITAL AUDIO OUT (OPTICAL) jack, decrease the volume
of both the TV and the system.
• 5.1 CH (channel) audio is available when you connect the TV to an external device supporting 5.1 CH.
• When the receiver (home theater) is set to on, you can hear sound output from the TV's optical jack. When the
TV is receiving a DTV signal, the TV will send 5.1 CH sound to the home theater receiver. When the source is a
digital component
such as a DVD player /Blu-ray player /cable box / STB (Set-Top-Box) satellite receiver and
you connected it to the TV via HDMI, you will only hear 2 CH audio from the home theater receiver. If you want
to hear 5.1 CH audio, connect the digital audio out jack from your DVD player/ Blu-ray player /cable box / STB
satellite receiver directly to an amplifier or home theater.
~ AUDIO OUT: Connects to the audio input jacks on your amplifier/home theater.
• When connecting, use the appropriate connector (sold separately).
• When you connect an audio amplifier to the AUDIO OUT jacks, decrease the volume of the TV and adjust the
volume level with the amplifier's volume control.
'--_ .. _ .. _._- ,~,--_ ~,._ .. """-,---~_._,._ .. _---,
Connecting to aPC
Using an HDMI cable or HDMI to DVI Cable / a D-sub Cable
Audio cable
Audio cable
______ J
'----~
J
~ _ .• ---'---'------'-. nl
I
I
I
I
I
I
I
I
I
I
~
I ~ Your PC may not support an HDMI connection. !
,)
"-l ... ~' __ . "",_.",._" __ . ~ __ . __ '. .,."" ... _. __ .,," __ .... , ... __ .. _., .. , ... ,""' ...... .,.~.~ .. ',._ ....... ..,.""''''.,. __ ,_" __ .';_,,,.,,~''' .', ... __ .",,,,~,,fr

PC Display Modes (D-Sub and HDMI/DVI Input)
Optimal PC resolution is 1360 x 768@60Hz. You can also select one of the standard resolutions listed in the Resolution
column. The 1V will automatically adjust to the resolution you choose.
MAC
VESADMT
640 x 350 31.469 70.086
25.175
+ /-
720 x 400
31.469 70.087
28.322 - / +
640 x 480
35.000 66.667 30.240 -/-
832 x 624 49.726
74.551 57.284
-/-
31.469
59.940 25.175 -/-
640 x 480 37.861 72.809
31.500
- /-
37.500 75.000
31.500
-/-
37.879 60.317
40.000 +/+
800 x 600 48.077
72.188 50.000 +/+
46.875 75.000
49.500 +/+
48.363 60.004
65.000
- /-
1024 x 768 56.476 70.069
75.000
- /-
60.023 75.029
78.750 +/+
1360 x 768 47.712 60.015
85.500 +/+
~NOTE
• For HOMI/OVI cable connection, you must use the HDMI IN 1 (DVI) jack.
• The interlace mode is not supported.
•
The set might operate abnormally if you select anon-standard video format.
• Separate and Composite modes are supported. SOG (Sync On Green) is not supported.
EX-LINK
I(!)JConnector for service only.
EX-UNK
Source List
Changing the Input Source
SOURCE
~
Use to select 1V or an external input
source such as a OVO player I Blu-ray
player / cable box / STB satellite receiver.
1. Press the SOURCE button on your
remote.
2. Select a desired external input source.
• TV I PC IHDMI1/DVI IHDMI2 I AV1
I AV2 IComponent1 IComponent2
IUSB
~ You can only choose external devices that are
connected to the TV. In Source, connected inputs will
be highlighted.
~ If you want to see connected devices only, move to
Connected using the'" or ~ button.
~ PC always stays activated.
How to use Edit Name
Edit Name
lets you associate a device name to an input
source. To access Edit Name, press the TOOLS button In
Source. The following selections appear under Edit Name:
• VCR I DVD ICable STB ISatellite STB I PVR STB I
AV Receiver IGame ICamcorderI PC I DVI PC I DVI
Devices I TV IIPTV IBlu-ray I HD DVD I DMA:
Name the devices connected to the input jacks to make
your input source selection easier.
~ If you have connected a PC to the HDMIIN 1 (DVI)
port with an HOMI cable, select PC under Edit Name
to enter adevice name.
~ if you have connected a PC to the HDMIIN 1 (DVI) port
with
an HOMI to OVI cable, select DVI PC under Edit
Name to enter a device name.
~ If you connected an AV device to the HDMIIN 1 (DVI)
port with an HOMI to OVI cable, select DVI Devices
under Edit Name to enter adevice name.
Information
You can see detailed information about the selected external
device.

How to view the e-Manual
You can find instructions for your TV's features in the e-Manual in your TV. To
use, press the E-MANUAL button on your remote. Move the cursor using the up/
down/right/left buttons to highlight a category, then atopic, and then press the
ENTER (31 button. The e-Manual displays the page you want to see.
You can also access it through the menu:
~ MENU[[I] ~ Support ~ e-Manual ~ ENTER (31
~ To return to the e-Manual main menu, press the E-MANUAL button on the remote.
~ You cannot use Try Now directly if the TV is set to an external input source.
Screen Display o
Currently displayed video, TV program, etc.
• The category list. Press <Ill or ~ button to select the
category you want.
e Displays the sub-menu list. Use the arrow buttons on
your remote to move the cursor. Press the ENTER G
button
to select the sub-menu you want.
oI!l Blue (Index): Displays the index screen.
eGEnter: Selects a category or sub-menu.
o +[J Exit: Exit the e-Manual.
How to toggle between
an e-Manual topic and the corresponding OSD menu(s).
c
c===:=.-
(E.MANUAL)~====:J
• ~~~I,~;,~:~/T",,(GIIll
po ' •• '~
•," .. ,,,, ••. ~.<'...-.,.." __ 'C<>n~ ...
............ """"0 T ... ,,,,,,,,..,.c.,IJ""~"""_'~'oo,~,,,
• ;'';...::~'~'':':;;';'"''OV"'''''-'''''~',C''''''''' •
1. If you want to use the menu that corresponds to an
e-Manual topic, press the red button to select Try Now.
2. To return to the e-Manual screen, press the E-MANUAL
button.
1. Press the ENTER Gbutton when atopic is displayed.
"Do you want to execute this?" appears. Select Yes,
and then press the ENTER G button. The OSD window
appears.
2. To return to the a-Manual screen, press the E-MANUAL
button.

Viewing the Contents
Using the Zoom mode
oAdjusting picture settings
I!ll MENU!ID - Picture - Backlight -ENTER 01'
•BacklightIContrast IBrightness ISharpness IColorITint (GIRl
Your television has several setting options for picture quality control.
®NOTE
•When you make changes to
Backlight, Contrast. Brightness.
Sharpness, Color or Tint (G1R) the OSD will be adjusted accordingly.
• In PC mode, you can only make changes to Backlight, Contrast,
Brightness and Sharpness.
•settings can be adjusted and stored for each external device connected
~ Move ~ Return
How to search for atopic on the index page
o Contents Area: Contains the topic contents, if you
selected a sub-menu. To move to the previous or
next page, press the .... / ~ button.
f) Try Now: Displays the OSD menu that corresponds
to the topic. To return to the e-Manual screen, press
the E-MANUAL button.
eHome: Moves to the e-Manual home screen.
oZoom: Magnifies a screen. You can scroll through the
magnified screen by using ~ / " buttons.
e ~~ (Page): Moves to previous or next page.
Select Zoom, and then press ENTER Gto magnify the
screen. You can scroll through the magnified screen by
using the ~ or " buttons.
~ To return to the screen to normal size, press the
RETURN button.
1.
To search for a topic, press the left or right arrow
button to select a letter, and then press ENTER G.
The Index displays a list of topics and keywords that
begin with the letter you selected.
2. Press the up or down arrow button to select atopic
or keyword, and then press the ENTERG button.
3. The e-Manual page with the topic appears.
~ To close the Index screen, press the RETURN
button.

Troubleshooting
If the 1V seems to have a problem, first review this list of possible problems and solutions. Also review the Troublehsooting
section in the e-Manual. If none of the troubleshooting tips apply, visit samsung.com, and then click on Support, or call
Samsung customer service at 1-800-SAMSUNG.
The lV will not turn on.
The lV turns off automatically.
There is no picture/video
The remote control does not work.
The cable/set top box remote control
does not turn the lV on or off, or
adjust the volume.
Make sure the AC power cord is securely plugged into the wall outlet and the lV.
Make sure the wall outlet is working.
• Try pressing the POWER button on the lV to make sure the problem is not the remote.
If the lV turns on, refer to 'Remote control does not work' below.
• Ensure the Sleep Timer is set to Off in the System menu.
• If your PC is connected to the 1\1, check your PC power settings.
• Make sure the AC power cord is plugged in securely to the wall outlet and the lV.
•
When you are watching lV connected to an antenna or cable connection, the lV will turn off after
10 - 15 minutes if there is no signal.
• Check the cable connections. Remove and reconnect all cables connected to the lV and external
devices.
• Set the video outputs of your external devices (Cable/Set top Box, OVO, Blu-ray etc) to match the
lV input connections. For example, if an external device's output is HOMI, it should be connected
to an HOMI input on the lV.
Make sure your connected devices are powered on.
Be sure to select the lV's correct input source by pressing the SOURCE button on the remote
control.
Reboot the connected device by unplugging and then reconnecting the device's power cable.
• Replace the remote control batteries. Make sure the batteries are installed with their correct
polarities (+/- lin the correct direction.
• Clean the transmission window located on the top of the remote.
• Try pointing the remote directly at the lV from 5-6 feet away.
• Program the Cable/Set top Box remote control to operate the lV. Refer to the Cable/Set top Box
user manual for the SAMSUNG lV code.
~ This TFT LCD panel uses a panel consisting of sub pixels which require sophisticated technology to produce. However,
there may be a few bright or dark pixels on the screen. These pixels will have no impact on the performance of the
product.
~ You can keep your TV as optimum condition to upgrade the latest firmware on web site (samsung.com -> Support ->
Downloads) by USB.
License
srs@
TheaterSound
mOOlBy.
DIGITAL PLUS I
PULSE I
~db
2.0+Digital Out
List of Features
Excellent Digital Interface & Networking: With a built-in HD digital tuner, nonsubscription HD broadcasts can be viewed without
a
cable box / STB (Set-Tap-Box) satellite receiver.
• My Contents
Allows you to play music files, pictures, and movies saved on a USB device.
•Anynet+(HDMI-CEC)
Allows you to control all connected Samsung devices that support anynet+ with your Samsung 1V's remote.

Securing the TV to the Wall (LN32D450 Only)
Caution: Pulling, pushing, or climbing on the lV may cause the lV to fall. In particular, ensure your children do not
hang over or destabilize the lV. Doing so may cause the lV to tip over, causing serious injuries or death. Follow
all safety precautions provided in the Safety Flyer included with your lV. For added stability and safety, you can
purchase and install the anti-fall device as described below.
The lV-Holder Kit (Sold Separately)
The parts below are included in the lV Holder kit. In addition, you need to provide a wood screw, screw and molly, or other screw
appropriate for the wall or cabinet you intend to secure the lV-Holder string to. We recommend a size M4xL20 wood screw.
lV-Holder (BN96-15753A)
Installing the lV-Holder
1. Remove the screw attached to the back of your
TV, and then connect the lV-Holder to the lV
with the screw included in the lV Holder Kit that
is designated for your lV.
~ Make sure to use only the appropriate
supplied
screw. If you use adifferent screw,
you can damage your TV.
~6XL16:
Screw CD (32 inch only)
2. Firmly fasten the screw you provided (size M4xL20 or similar) to the wall or cabinet where the lV is to be installed.
~ If you fasten the screw to the wall, we recommend you drive the screw into astud. If that is not possible, use a
molly to anchor the screw.
3. Tie the lV-Holder cord to the screw fastened to the wall or cabinet so that the lV is fixed. See the illustrations below.
~ Install the TV close to the wall so that it does not fall.
~ When attaching the lV Holder cord to the wall, tie the cord level with the ground or slanted downwards for safety purposes.
~ Check the cord occasionally to make sure it is secure.
~ Before moving the TV, separate the connected cord first.
Wall
4. Verify all connections are properly secured. Periodically check the connections for any sign of fatigue or failure. If you have
any doubt about the security of your connections, contact a professional installer.
To purchase the lV-Holder Kit, contact Samsung Customer Care
- In the United States: 1-800-Samsung (1-800-726-7864)
-
In Canada: 1-800-Samsung (1-800-726-7864)

Securing the TV to the Wall
Caution: Pulling, pushing, or climbing onto the 1V may cause the 1Vto fall. In particular, ensure that your children
do not hang over or destabilize the 1V; doing so may cause the 1V to tip over, resulting in serious injuries or death.
Follow all safety precautions provided on the included Safety Flyer. For added stability, install the anti-fall device for
safety purposes, as follows.
To prevent the TV from falling ....
·
·
·
·
·
.
•
.
.
.n
....
........
....•..•....
...
~ Since the necessary clamps, screws, and string are not supplied,
please purchase these additionally.
1. Drive the screws into the clamps and firmly fasten them onto the
wall. Make sure the screws are firmly fixed into the wall.
~ Screw Specifications
• For a 17 - 29 Inches LCD 1V: M4
• For a 32 - 40 Inches LCD 1V: M6
2. Remove the screws from the back center of the 1V, put the screws
into the clamps, and then fasten the screws onto the 1V again.
3. Connect the clamps fixed onto the 1V and the clamps fixed onto
the wall with a strong cable and then tie the string tightly.
~ Verify all connections are properly secured. Periodically check
connections for any sign of fatigue for failure. If you have any doubt
about the security of your connections, contact a professional
installer.
~ Install the 1V near to the wall so that it does not fall backwards.
~ It is safe to connect the string so that the clamps fixed on the wall are equal to or lower than the clamps fixed on the 1V.
Untie the string before moving the 1V.
Storage and Maintenance

Di Ia Resolution
Environmental
Considerations
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Stand Swivel
(Left I Right)
Specifications
1360x 768
50°F to 104°F (10°C to 40°C)
10% to 80%, non-condensing
-4°F to 113°F (-20°C to 45°C)
5% to 95%, non-condensing
Screen Size
26" Class 32" Class
(Diagonal) (26.0" measured diagonally)
(31.5" measured diagonally)
Sound
Output
5WX2 10WX2
Dimensions (WxDxH)
Body 26.0x3,1 x 17.1 inches
31.3 x 3.2 x 20.1 inches
(660.7 x 78.6 x 435,0 (mm)) (795.5 x 8004 x 510.3 (mm))
With stand 26.0 x 8.7 x 19.0 inches
31.3 x 9.9 x 22.5 inches
(660.7 x 222.1 x 482.8 (mm)) (795.5 x 251.7 x 571.1 (mm))
Weight
Without Stand
13.8 Ibs (6.24 kg) 19 Ibs (8.6 kg)
WithStand
14.81bs (6.71 kg) 23.9 Ibs (10.85 kg)
~ Design and specifications are subject to change without prior notice.
~ This device is a Class Bdigital apparatus.
~ For information about the power supply, and more about power consumption, refer to the label attached to the product.
~ Dispose unwanted electronics through an approved recycler. To find the nearest recycling location, go to our website:
www.samsung.com/recyclingdirect or
call, (877) 278 - 0799 .
.• ~~~:i'.,-'1'_ C"',' .;:'\ ':'~';"~:'Iz:':
~ '. " ~ ~" .

Dimensions
• Front view! side view
1-0--.1
(Unit: inches)
LN26D450G1D
LN26D430G3D
LN32D450G1 D
LN32D430G3D
26.0
31.3
22.7
27.5
12.7
15.5
17.2
19.8
17.1
20.1
19.0
22.5
3.1
3.2
8.7
9.9
• Jack panel detail! rear view
~m
I.@ ••••
I.@ ••••
~~I @)
(Unit: inches)
LN26D450G1D
LN26D430G3D
LN32D450G1 D
LN32D430G3D
8
10.2
2.4
2.6
4.3
5.1
17.0
22.1
7.8
7.8
39
7.8
NOTE: All drawings are not necessarily to scale. Some dimensions are subject to change without prior notice. Refer to the
dimensions prior to performing installation of your TV. Not responsible for typographical or printed errors.
© 2011 Samsung Electronics America, Inc

Contact SAMSUNG WORLDWIDE
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.
CANADA 1-800-SAMSUNG (726-7864) www.samsung.com
U.S.A 1-800-SAMSUNG (726-7864) www.samsung.com
© 2011 Samsung Electronics Co., Ltd. All rights reserved.
Sam sung Electronics Canada Inc., Customer
Service 55 Standish Court Mississauga, Ontario L5R
4B2 Canada
Samsung Electronics America, Inc. 85 Challenger
Road Ridgefield Park, NJ 07660-2112
1111111111111111I1111I1111111111111 11111111
BN68-03323A-02

•Assemble Stand before removing TV from shipping box
• Components
i'
When
installing the stand, use the provided components and parts.
f.I 1 EA
~ x8(M4XL16)
Stand (depending on the model) Guide Stand Screws
Top View
Side View
.~X4"\
(M4 XL16) "t' T, :
:, I
! : : :
: : ::
.'
,T ...... ""/
: j~
I I r: ~
~~: : .. Ir~=~====3.
~ : ~ j ~ )' ~--·-----i
(!) : : :
.................. ' '_ '
ATIENTION
@@~!
I
DO NOT USE DO NOT USE DO NOT USE I
CHEMICALS GREASE all I
I
............ ~X4
(M4 XL16)
•..........
................... ----_ .. -
,,
.,,
~U-....AIt'>l'-~':" ,
"
,,'
,,
,,
.. '
---'---g~
o
~ Place asoft cloth over the table to protect the TV, and then place the TV on the cloth screen side down.
~ Insert the Stand Guide into the slot of TV bottom side.
Caution
~ .. ' M~keslJretodistin9uish betW81enl:~1
