Samsung 850 series User manual

imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service, please register
your product at
www.samsung.cam/glabal/register
Model Serial No. _

!Important Warranty Information Regarding Television Format Viewing
Wide screen format LCD Displays (16:9, the aspect ratio of the screen width to height) are primarily designed to view wide screen format
full-motion video. The images displayed on them should primarily be in the wide screen 16:9 ratio format, or expanded to fill the screen if
your model offers this feature and the images are constantly moving. Displaying stationary graphics and images on screen, such as the dark
sidebars on nonexpanded standard format television video and programming, should be limited to no more than 5% of the total television
viewing per week.
Additionally, viewing other stationary images and text such as stock market reports. video game displays. station logos, web sites or computer
graphics and patterns. should be limited as described above for all televisions. Displaying stationary images that exceed the above guidelines
can cause uneven aging of LCD Displays that leave subtle, but permanent burned-in ghost images in the LCD picture. To avoid this, vary the
programming and images. and primarily display full screen moving images, not stationary patterns or dark bars.
On LCD models that offer picture sizing features. use these controls to view different formats as a full screen picture.
Be careful in the selection and duration of television formats used for viewing. Uneven LCD aging as a result of format selection and use, as
well as burned-in images. are not covered by your Samsung limited warranty.
U.S.A Only
The product unit accompanying this user manual is licensed under certain intellectual property rights of certain third parties. In particular,
this product is licensed under the following US patents 5,991.715,5,740,317,4,972,484,5,214,678, 5,323,396, 5,539,829,5,606,618.
5,530.655. 5,777,992, 6,289.308, 5,610,985, 5,481,643,5,544,247, 5,960,037. 6,023,490, 5,878,080, and under US Published Patent
Application No. 2001-44713-A1
This license is limited to private non-commercial use by end-user consumers for licensed contents. No rights are granted for commercial
use. The license does not cover any product unit other than this product unit and !he license does not extend to any unlicensed product unit
or process conforming to ISOIIEC 11172-3 or ISOIIEC 13818-3 used or sold in combination with this product unit. The license only covers
the use of this product unit to encode andlor decode audio files conforming to the ISOIIEC 11172-3 or ISOIIEC 13818-3 No rights are
granted under this license for product features or junctions that do not conform to the ISOIIEC 11172-3 or ISOIIEC 13818-3.
Other countries
The product unit accompanying this user manual is licensed under certain intellectual property rights of certain third parties. This license is
limited to private non-commercial use by end-user consumers for licensed contents. No rights are granted for commercial use. The license
does not cover any product unit other than this product unit and the license does not extend to any unlicensed product unit or process
conforming to ISOIIEC 11172-3 or ISOIIEC 13818-3 used or sold in combination with this product unit. The license only covers the use of
this product unit to encode andlor decode audio fiies conforming to the ISOIIEC 11172-3 or ISOIIEC 13818-3. No rights are granted under
this license for product features or functions that do not conform to the ISOIIEC 11172-3 or ISOIIEC 13818-3.
SAMSUNG ELECTRONICS NORTH AMERICAN LIMITED WARRANTY STATEMENT
Subject to the requirements, conditions, exclusions and limitations of the original Limited Warranty supplied with Sam sung Electronics
(SAMSUNG) products, and the requirements, conditions, exclusions and limitations contained herein, SAMSUNG will additionally provide
Warranty Repair Service in the United States on SAMSUNG products purchased in Canada, and in Canada on SAMSUNG products
purchased in the United States, for the warranty period originally specified, and to the Original Purchaser only.
The above described warranty repairs must be performed by a SAMSUNG Authorized Service Center. Along with this Statement, the
Original Limited Warranty Statement and a dated Bill of Sale as Proof of Purchase must be presented to the Service Center. Transportation
to and from the Service Center is the responsibility of the purchaser.
Conditions covered are limited only to manufacturing defects in material or workmanship, and only those encountered in normal use of the
product.
Excluded, but not limited to, are any originally specified provisions for, in-home or on-site services, minimum or maximum repair times,
exchanges or replacements, accessories, options, upgrades, or consumables.
For the location of a SAMSUNG Authorized Service Center, please call toll-free:
In the United States: 1·800·SAMSUNG (1-800·726·7864) In Canada: 1-800-SAMSUNG
:- See the warranty card for more information on warranty terms.
Precautions When Displaying aStill Image
Astill image may cause permanent damage
to the TV screen
•
Do not display astill image on the LCD panel for more than 2hours as it can cause screen image retention. This image
retention is also known as "screen burn". To avoid such image retention, reduce the degree of brightness and contrast of the
screen when displaying astill image.
· i:J1,', Watching the LCD TV in 4:3 format for along period of time may leave traces of borders displayed on the left,
•right and center of the screen caused
by the difference of light emission on the screen.
Playing aDVD or agame console may cause asimilar effect to the screen.
Damages caused
by the above effect are not covered by the Warranty.
•Displaying still images from Video games and
PC for longer than acertain period of time may produce partial after-images.
To prevent this effect, reduce the 'brightness' and 'contrast' when displaying still images.
©2008 Samsung Electronics Co., Ltd. All rights reserved.

Contents
General Information
• List of Features 3
•Accessories 3
•
Viewing the Control Panel .4
• Viewing the Connection Panel 5
•

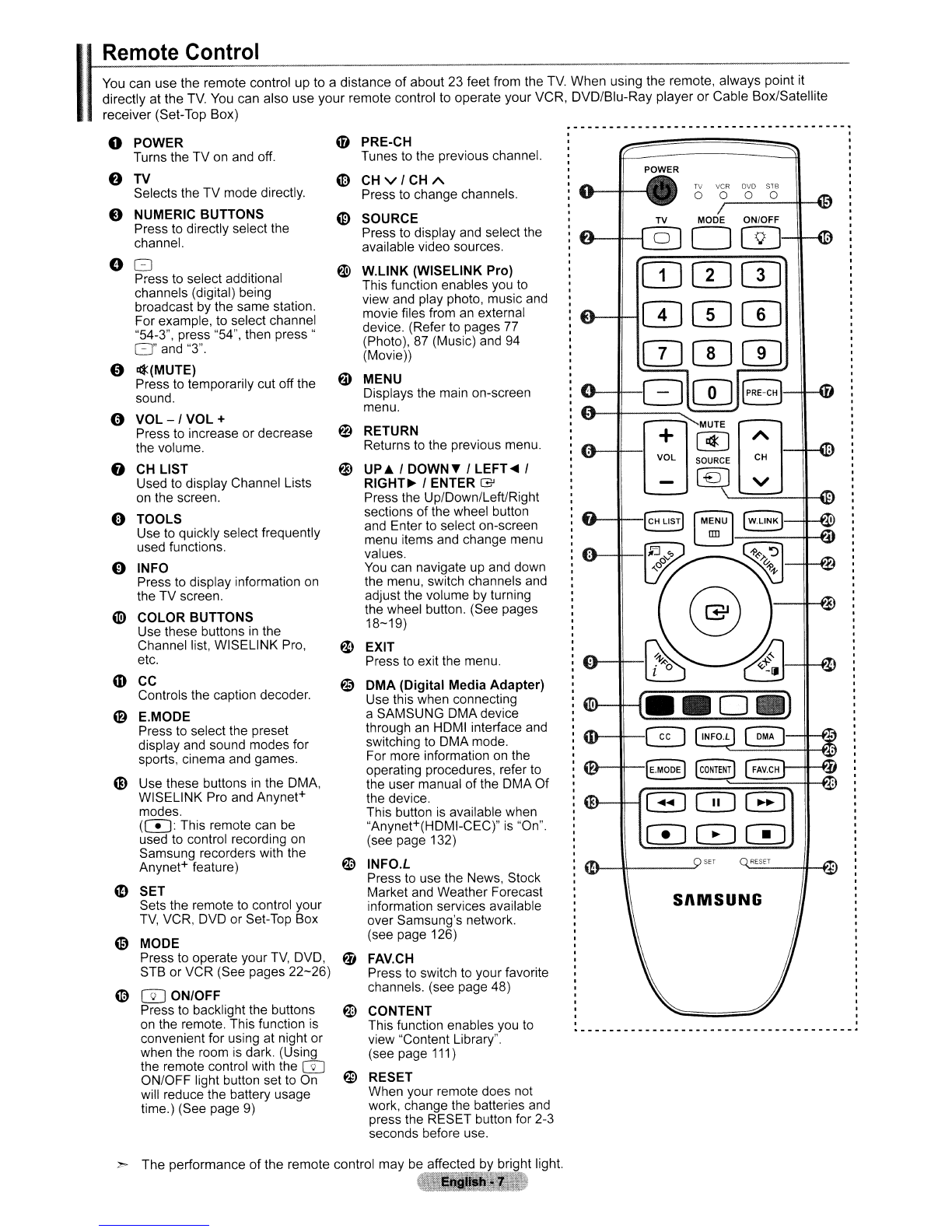

Remote Control 7
•
Mini Remote Control 8
•Installing Batteries
in the Remote Control 8
•
Using the Remote Control Backlight Buttons 9
Connections
•Connecting VHF and UHF Antennas 9
•Connecting
Cable TV 10
•Connecting aDVD/Blu-Ray player or Cable Box/Satellite
receiver
(Set-Top Box) via HDMI 11
•Connecting aDVD/Blu-Ray player or Cable Box/Satellite
receiver
(Set-Top Box) via DVI 11
•Connecting aDVD/Blu-Ray player or Cable Box/Satellite
receiver
(Set-Top Box) via Component cables 12
•Connecting aCamcorder 12
•Connecting a VCR 13
•Connecting aDigital Audio System 14
•Connecting an Amplifier/DVD Home Theater 14
•Connecting a PC 15
Operation
• Turning the TV On and Off 16
• Plug & Play Feature 16
• Changing Channels 18
•Adjusting the Volume 18
• Viewing the Display 19
• Viewing the Menus 19
• Using the TOOLS Button 20
• Memorizing the Channels 20
• Setting Up Your Remote Control 22
• Remote Control Codes 24
• To Select the Source 27
• To Edit the Input Source Name 27
Picture Control .
• Changing the Picture Standard 28
•Customizing the Picture Settings 28
•Adjusting the Detailed Settings 29
•Resetting the Picture Settings to the Factory Defaults 32
•Configuring Picture Options 33
• Viewing Picture-in-Picture 38
Sound Control
• Changing the Sound Standard .40
•Customizing the Sound .40
• Setting the TruSurround XT.. .41
•Choosing Preferred Language 42
• Choosing aMulti-Channel Sound (MTS) track 42
•Automatic Volume Control .43
•Selecting the Speaker 43
•Listening to the Sound of the Sub (PIP) Picture .44
•Resetting the Sound Settings to the Factory Defaults .45
•Connecting Headphones (Sold separately) .45
Channel Control
• Managing Channels .46
• Clearing Scrambled Channels - Digital 53
• Fine Tuning Analog Channels 53
• Checking the Digital-Signal Strength 54
PC Display
• Using Your TV as aComputer (PC) Display 55
•Display Modes 55
• Setting up the TV with your PC 56
Time Setting
• Setting the Clock 58
Function Description
•Selecting a Menu Language 62
• Using the V-Chip 62
• Viewing Closed Captions (On-Screen Text Messages)
-Analog 69
• Viewing Closed Captions (On-Screen Text Messages)
-Digital 70
•Adjusting the TV On/Off Melody Sound 71
• Setting the Light Effect 71
• Setting the Entertainment mode 72
• Using the Energy Saving Feature 72
• Upgrading the Software 73
•Self diagnosis 74
WISE LINK Pro
• Using the WISELINK Pro Function 75
• Using the Photo List 77
• Sorting Photo List 78
• Viewing a Photo or Slide Show 83
• Using the Music List 87
• Sorting Music List 88
• Playing aMusic File 92
• Using the Movie List 94
• Sorting Movie List.. 95
• Playing a Movie File 98
•Picture/Music Settings Using WISELlNK 100
• Using the Setup Menu 100
WISELINK Pro-DLNA
• Setting the DLNA Network 102
•Installing the DLNAApplication 103
• Using the DLNAApplication 104
• Using the DLNA Function 109
Content Library
• Using the Content Library 111
• Using the TV Memory Contents 112
• Using Additional Content Using External USB Memory
Storage 117

Network Settings and InfoLink
• Network Connection - Cable 118
• Network Connection - Wireless 120
• Network selection 120
• Cable Network Setup 121
• Wireless Network Setup 123
• Using I nfoLink 126
• InfoLink Setup 129
• Product Guide 130
About Anynet+
• What is Anynet+? 131
• Connecting Anynet+ Devices 131
• Setting Up Anynet+ 132
• Scanning and Switching between Anynet+ Devices 133
• Recording 134
• Listening through a Receiver (Home theater) 134
• Troubleshooting for Anynet+ 135
-
Appendix
• Troubleshooting 136
• Installing the Stand 138
• Disconnecting the Stand 138
• Auto Wall-Mount Adjustment (Sold separately) 139
• Wall Mount Kit Specifications (VESA) 140
• Using the Anti-Theft Kensington Lock 141
• Securing the TV to the Wall 142
• Specifications 143
• Dimensions 144
Symbol Press Note One-Touch Button

I General Information
I
List of Features
oAdjustable picture settings that can be stored in the TV's memory.
oAutomatic timer to turn the TV on and off.
oAspecial sleep timer.
oExcellent Digital Interface &Networking:
With abuilt-in HD digital tuner, non-subscription HD broadcasts can be viewed with no Cable Box/Satellite receiver
(Set-Top Box) needed.
•You can view News, Weather, and Stock information over the network (SAMSUNG InfoLink's Service).
•You can listen to music files and view pictures on USB Mass Storage Class (MSC) devices.
•HDMIIDVI connection of your PC to this TV.
•Excellent Picture Quality
- DNle technology provides life-like clear images.
• SRS TruSurround XT
-SRS TruSurround XT provides avirtual surround system.
I: Accessories
Remote Control &Batteries
(MAx 2)
(BN59-00700A)
Mini Remote Control &
Lithium battery (3V x 1ea)
Warranty Card I
Registration Card I
Safety Guide Manual
(Not available in all locations)
Program CD
(BN59-00726A)
Power Cord
(3903-000144)Cleaning Cloth (BN63-01798B)
Owner's Instructions Cover-Bottom
(LN46A850S1F, LN46A860S2F: BN63-04822B)
(LN52A850S1F, LN52A860S2F: BN63-04822B)
> The items color and shape may vary depending on the model.

I
Viewing the Control Panel
Buttons on the Lower-Right Part of the Panel
The buttons
on the lower-right panel control your TV's basic features, including the on-screen menu.
To use the more advanced features, you must use the remote control.
oSAMSUNG
SOlJ1CE C3' MENU -VOL +vCH
/'0..
POWER
(!)
Front Panel buttons
Touch each button to
operate.
~ The product color and shape may vary depending on the model.
oSOURCE G
Toggles between all the available input sources
(TV, AV1, AV2, S-Video, Component1, Component2,
PC, HDMI1, HDMI2IDVI, HDMI3, HDMI4). In the on-
screen menu, use this button
as you would use the
ENTER Gbutton
on the remote control.
f) MENU
Press to see an on-screen menu of your TV's features.
e -VOL+
Press to increase or decrease the volume.
In the on-screen menu, use the -VOL +buttons as you
would use the
.... and ~ buttons on the remote control.
e VCHA
Press to change channels.
In the on-screen menu, use the v CH Abuttons as
you would use
the'" and .& buttons on the remote
control.
o c:> (Power)
Press to turn the TV on and off.
oPOWER INDICATOR
Blinks and turns off when the power
is on and lights up
in stand-by mode.
8 REMOTE CONTROL SENSOR
Aim the remote control towards this spot on the TV.
9SPEAKERS

1
""1' Viewing the Connection Panel
Use the connection panel jacks to connect AN components that will be connected continuously, such as DVD/Blu-Ray
players
or aVCR. For more information on connecting equipment, see pages 9-15 .
. -------------------------------------------------------------------------------------------------------.
[LN46A850S1 F, LN52A850S1 F)
[TV Side Panel]
[TV Rear Panel]
,
AUDIO
(!)
VIDEO
.0
ID
WSELNK
~-L1.J~
__ "'I@'M
IDj@
(@lc:J@lJ
II j)
ANT IN
.
II j)
®
.•0•••
II j)
LAN •0•••0I •
[LN46A860S2F, LN52A860S2F]
" 0----.- ... ·•
VIDEO
e\,'I~tM
WiSElINK
~--I-H;t
Lill
W SEliNK
~--I-H;t
LC JJ
ANT IN
lL JJ
®
•0•••
l( JJ
LAN
•I•0•••0
R •
•• LY
..
••
>- The product color and shape may vary depending on the model.
._---------------------------------------------------- --------------------------------------------------~

o AUDIO OUT
Connects to the audio input jacks on your Amplifier/Home theater.
f) DIGITAL AUDIO OUT (OPTICAL)
Connects to aDigital Audio component.
o PC IN [PC] I[AUDIO]
Connects to the video and audio output jacks on your PC.
oHDMI IN 1, 2, 3, 4IDVI IN(HDMI2)[R-AUDIO-L]
Connects to the HOMI jack of adevice with an HOMI output.
-No sound connection is needed for an HOMI to HOMI connection. Use the HOMI
IN 2jack for OVI connection to an
external device. Use a
OVI to HOMI cable or OVI-HOMI adapter (OVI to HOMI) for video connection and the OVIIN
(HOMI2) [R-AUOIO-L] jacks for audio.
-When using an HOMI/OVI cable connection, you must use the HOMI IN 2jack.
41) ANT IN
Connects to an antenna or cable TV system.
oWISELINK
Connect aUSB mass storage device to view movies and photos and listen to music files.
You can connect to Samsung's network wirelessly using the Wireless lnfolink adapter (Sold separately).
f) AV IN 2
Video and audio inputs for external devices, such as acamcorder or VCR.
90(HEADPHONE)
Connects aset of external headphones for private listening.
oPOWER INPUT
Connects the supplied power cord.
eS-VIDEO
Connects
an S-Video signal from acamcorder or VCR.
-Use the AV IN 1[R-AUOIO-L] jacks for audio.
CD COMPONENT IN 1, 2 / AV IN 1
Connects Component video/audio. The COMPONENT IN 1 jack is also used as the AV IN 1jack.
-Connect the video cable to the COMPONENT IN 1
[YNlOEO] jack and the audio cable to the COMPONENT IN 1
[R-AUOIO-L] jacks.
oLAN
Connect aLAN cable to this port to connect to the Network (SAMSUNG InfoLink's Service). (See pages 118-119)
G) EX-LINK
Connect this to the jack on the optional wall mount bracket. This will allow you to adjust the TV viewing angle using
your remote control.
«) KENSINGTON LOCK
The Kensington Lock (optional) is adevice used to physically fix the system when used in apublic place. If you want to
use alocking device, contact the dealer where you purchased the
TV.
",. The location of the Kensington Lock may be different depending on its model.

I
•.• :~:o~~~ 1~::~~~O~Olcot up 10' "'Ioooe of ,boul 23 feel fcom Ihe 1V. Wheo u"09 Ihe ,emole, ,tw,y, po'ol It
directly at the TV. You can also use your remote control to operate your VCR, DVD/Blu-Ray player or Cable Box/Satellite
receiver (Set-Top Box)
oPOWER
Turns the TV
on and off.
oTV
Selects the TV mode directly.
eNUMERIC BUTTONS
Press to directly select the
channel.
00
Press to select additional
channels (digital) being
broadcast by the same station.
For example,
to select channel
"54-3", press "54", then
press"
0" and "3".
o ««MUTE)
Press to temporarily cut off the
sound.
o VOL-/VOL +
Press to increase or decrease
the volume.
8CH LIST
Used
to display Channel Lists
on the screen.
oTOOLS
Use to quickly select frequently
used functions.
{} INFO
Press
to display information on
the TV screen.
(I!) COLOR BUTTONS
Use these buttons
in the
Channel list, WISELINK Pro,
etc.
mCC
Controls the caption decoder.
(f) E.MODE
Press
to select the preset
display and sound modes for
sports, cinema and games.
(D Use these buttons in the DMA,
WISELINK Pro and Anynet+
modes.
(CD: This remote can be
used
to control recording on
Samsung recorders with the
Anynet+ feature)
mSET
Sets the remote
to control your
TV, VCR, DVD or Set-Top Box
@MODE
Press
to operate your TV, DVD,
STB or VCR (See pages
22-26)
~ 0ON/OFF
Press to backlight the buttons
on the remote. This function
is
convenient for using at night or
when the room
is dark. (Using
the remote control with the
[2]
ON/OFF light button set to On
will reduce the battery usage
time.) (See page 9)
'9 PRE-CH
Tunes
to the previous channel.
(9 CH vi CH "'-
Press
to change channels.
mSOURCE
Press to display and select the
available video sources.
WW.L1NK (WISELINK Pro)
This function enables you
to
view and play photo, music and
movie files from an external
device. (Refer to pages
77
(Photo), 87 (Music) and 94
(Movie))
fl) MENU
Displays the main on-screen
menu.
fb RETURN
Returns
to the previous menu.
@) UP ... I DOWN~ ILEFT ... I
RIGHT~ IENTER G
Press the UplDown/Left/Right
sections of the wheel button
and Enter to select on-screen
menu items and change menu
values.
You can navigate up and down
the menu, switch channels and
adjust the volume by turning
the wheel button. (See pages
18-19)
~ EXIT
Press
to exit the menu.
6=' DMA (Digital Media Adapter)
Use this when connecting
aSAMSUNG DMA device
through an HDMI interface and
switching to DMA mode.
For more information
on the
operating procedures, refer
to
the user manual of the DMA Of
the device.
This button
is available when
"Anynet+(HDMI-CEC)"
is "On".
(see page 132)
WINFO.L
Press
to use the News, Stock
Market and Weather Forecast
information services available
over Samsung's network.
(see page 126)
@FAV.CH
Press to switch
to your favorite
channels. (see page 48)
a> CONTENT
This function enables you
to
view "Content Library".
(see page
111)
~ RESET
When your remote does not
work, change the batteries and
press the RESET button for 2-3
seconds before use.
POWER
TV VCR DVD STB
o000
TV
(CH L1S~ [M~U J-[ w_._L1N_K_J_-II--f'U
~-- 6fJ1--II- .... ~1
oo----ll---t GJ GD EJ
CD~~
SAMSUNG

Ir
Mini Remote Control
.
'. The Mini Re~ote Control is asimplified remote control that consists of the power, channel
and volume buttons only.
oTelevision Standby button
~ This button only works when you press it for longer than 1.5 seconds.
f) v: Next channel
A : Previous channel
e +: Volume increase
- : Volume decrease
6IrDA transmitter
-Use the Mini Remote Control so that this part faces the TV.
Il
--~nst'!!ling Batter~es in the Remote Control
Normal Remote Control
1. Lift the cover at the back of the remote control upward as shown in the figure
2. Install two AAA size batteries.
- Make sure
to match the "+" and "-" ends ofthe batteries with the diagram inside the
compartment.
3. Replace the cover
-Remove the batteries and store them in acool, dry place if you won't be using the
remote control for along time.
The remote control can be used
up to about 23 feet from the TV.
(Assuming typical TV usage, the batteries should last for about one year.)
-Using the remote control with the IT] ON/OFF light button set to On will reduce the
battery usage time.
Mini Remote Control
1. Turn the battery cover counterclockwise to unlock it and then separate the battery cover
2. Insert the corresponding 3V Lithium battery.
=
3. Place the battery cover into the remote control aligning it with the grooves and then turn the
battery cover clockwise
to lock the cover
If the remote control doesn't work, check the following:
1. Is the TV power on?
2Are the plus and minus ends of the batteries reversed?
3Are the batteries drained?
4
Is there apower outage or is the power cord unplugged?
5 Is there aspecial fluorescent light or neon sign nearby?
'~:J' ::'4
I " 1\,
\. '. '

IUsing the Remote Control Backlight Buttons
Use this feature in dark surroundings and when you are unable to see the remote control buttons clearly.
1. Press the
[]] ON/OFF light button.
>Pressing the []] ON/OFF light button toggles between ON and OFF.
>When ON, the button backlight is turned on for amoment.
>Pressing aremote control button when the remote control
is on turns the button backlight on for amoment. If
you touch or move the remote control and the motion
is detected by the sensor of the remote control, the button
backlight will
be turned on for amoment.
;,-- Since there is avibrating device inside the remote control, shaking the remote control will result in asound
generated by the device.
>The button backlight will not be turned on when the remote control is turned off.
IConnections
1
•. r;c~o:-n~ne~c~t~in;g~V~H~F~a~n~d~U~H~F~A~n~te~n;n~a~s~~~~~~r~~~~~;;=~
.1 If yo", ,ntenn, h", set of le,ds th" look like the dl,gr,m to the right. see "Antenn" \ (:
with 300 0Flat Twin Leads" below. 1 _;
If your antenna has one lead that looks like the diagram to the right, see "Antennas with
750 Round Leads".
If
you have two antennas, see "Separate VHF and UHF Antennas".
Antennas with 300 0Flat Twin Leads
If you are using
an off-air antenna (such as aroof antenna or "rabbit ears") that has 300
otwin flat leads, follow the directions below.
1. Place the wires from the twin leads under the screws on a300-75 0adapter (not
supplied). Use ascrewdriver
to tighten the screws.
2. Plug the adaptor into the ANT IN terminal on the back of the TV
Antennas with 75 0Round Leads
1. Plug the antenna lead into the ANT IN terminal on the back of the TV
Separate VHF and UHF Antennas
--umr
.)
(19
.)
If you have two separate antennas for your TV (one VHF and one UHF), you must combine the two antenna signals before
connecting the antennas to the
TV This procedure requires an optional combiner-adaptor (available at most electronics
shops).
1. Connect both antenna leads to the combiner.
2. Plug the combiner into the ANT IN terminal on the bottom of the rear panel.

I
',,'," Connecting Cable TV
To connect to acable TV system, follow the instructions below,
Cable without aCable Box
1. Plug the incoming cable into the ANT IN terminal on the back of the TV
". Because this TV is cable-ready, you do not need acable box to view
unscrambled cable channels,
ANT IN
Connecting to aCable Box that Descrambles All Channels
1. Find the cable that is connected to the ANT OUT terminal on your cable box
". This terminal might be labeled "ANT our, "VHF our or simply, "our,
2. Connect the other end of this cable to the ANT IN terminal on the back of the TV
ANT OUT ' ;.c;~!'
I-=--~~
------I~ ... rl[JP
cable ~
~['
'"-=~Ca-b-Ie -Bo-x=-'
Incoming
cable
----~l:U_
2. Connect this cable to atwo-way
splitter.
Connecting to aCable Box that Descrambles Some Channels
If your cable box descrambles only some
channels (such as premium channels),
follow the instructions below,
You will need
atwo-way splitter,
an RF (NB) switch and
four lengths
of RF cable. (These items are
available at most electronics stores.)
1. Find and disconnect the cable that is
connected to the ANT IN terminal on
your cable box.
". This terminal might be labeled
"ANT IN", "VHF IN" or simply, "IN".
3. Connect an RF cable between the
OUTPUT terminal
on the splitter and
the
IN terminal on the cable box.
p.--In~-~~-I~ng-~~J-""'"'"-_' omrr--,--,co -'--"",:-:-, [-'--,,-'-., ] -IIDI /OIf ~
Splitter l ...... -£
=Cable Box Switch
4. Connect an RF cable between the
ANT OUT terminal on the cable box
and the
B-IN terminal on the RF(NB)
switch. Incoming
cable
I"I--~Ia
SL.pl~itt""er""--- I omr 'co "He[ ~ RF ~B)
Cable Box Switch
Splitter
5. Connect another cable between the
other OUT terminal
on the splitter and
the
A-IN terminal on the RF (NB)
switch.
~
__ ANTIN
Oill{
'" r'~, 0", ru :! ~ ~ @
L....,j--"".........., 0TV Rear
RF (AlB)
Cable Box Switch
6. Connect the last RF cable between the OUT terminal on the RF (AlB) switch and the ANT IN terminal on the rear of the
TV
After you have made this connection, set the NB switch to the "A" position for normal viewing. Set the NB switch to the "B"
position to view scrambled channels. (When you set the NB switch to "B", you will need to tune your TV to the cable box's
output channel, which
is usually channel 3or 4.)

TV Rear Panel
HOMI Cable (Not supplied)
I.,
, c1.onnecting a OVO/Blu-Ray player or Cable Box/Satellite receiver (Set-Top Box) via HOMI
•• This connection can only be made if there is an HOMI Output connector on the external device,
Connect an HOMI Cable TV Side Panel
between the HOMI IN OVO/Blu-Ray player or Cable Box/Satellite
receiver (Set-Top Box) Rear Panel
(1,2,3 or 4) jack on
the TV and the HOMI
jack on the OVO/Blu-
Ray player or Cable
Box/Satellite receiver
(Set-Top Box).
»> What is HOM I?
•HOMI(High-Oefinition Multimedia Interface), is an interface that enables the
transmission of digital audio and video signals using asingle cable.
•The difference between HOMI and
OVI is that the HOMI device is smaller in size and
has the HOCP (High Bandwidth Digital Copy Protection) coding feature installed. OVI
also requires aseparate audio connection (see below).
»> Each OVO/Blu-Ray player or Cable Box/Satellite receiver (Set-Top Box) has adifferent
back panel configuration.
»> The TV may not output sound and pictures may be displayed with abnormal color when
OVO/Blu-Ray players/Cable Boxes/Satellite receivers supporting HOMI versions older
than 1.3 are connected. When connecting an older HOMI cable and there is no sound,
connect the HOMI cable to the HOMI
IN 2jack and the audio cables to the OVI IN
(HOMI2) [R-AUOIO-L] jacks on the back of the TV. If this happens, contact the company
that provided the OVO/Blu-Ray player/Cable Box/Satellite receiver to confirm the HOMI
version, then request an upgrade.
»> HOMI cables that are not 1.3 may cause annoying flicker or no screen display.
W Audio Cable (Not supplied)
III OVI to HOMI Cable (Not supplied)
OVO/Blu-Ray player
or Cable Boxl
Satellite receiver (Set-Top Box)
2. Connect Audio Cables
between the OVI IN
(HOMI 2) [R-AUOIO-L]
jack on the TV and the
OVO/Blu-Ray player
or Cable Box/Satellite
receiver (Set-Top Box).
I
:
...•... Connecting a DVD/Blu-Ray player or Cable Box/Satellite receiver (Set.Top Box) via DVI
•This connection can only be made if there is a OVI Output connector on the external device.
1. Connect a OVI to HOMI TV Rear Panel
Cable or OVI-HOMI
Adapter between the
HOMI
IN 2jack on the
TV and the OVI jack on
the OVO/Blu-Ray player
or Cable Box/Satellite
receiver (Set-Top Box).
»> Each OVO/Blu-Ray player or Cable Box/Satellite receiver (Set-Top Box) has a different
back panel configuration.
»> When connecting aOVO/Blu-Ray player or Cable Box/Satellite receiver (Set-Top Box),
match the color of the connection terminal to the cable.
»> When using an HOMIIDVI cable connection, you must use the HOMI IN 2jack.
-

Connecting a DVD/Blu·Ray player or Cable Box/Satellite receiver (Set·Top Box) via Component cables
The rear panel jacks on your TV make it easy to connect aDVD/Blu-Ray player or Cable Box/Satellite receiver (Set-Top Box) to
your TV.
TV Rear Panel
mAudio Cable
(Not supplied)
mComponent Cable (Not supplied)
DVD/Blu-Ray player
or Cable Box I
Satellite receiver (Set-Top Box)
~ Component video separates the video into Y(Luminance (brightness)), Pb (Blue) and
Pr (Red) for enhanced video quality.
Be sure to match the component video and audio connections.
For example, if connecting aComponent video cable
to COMPONENT IN 1, connect
the audio cable
to COMPONENT IN 1also.
~Each DVD/Blu-Ray player or Cable Box/Satellite receiver (Set-Top Box) has adifferent
back panel configuration.
]> When connecting aDVD/Blu-Ray player or Cable Box/Satellite receiver (Set-Top Box),
match the color of the connection terminal to the cable.
Connect aComponent
Cable between the
COMPONENT
IN
(1 or 2) [Y, Ps, PRJ
jacks on the TV and the
COMPONENT
[Y, Ps, PRJ jacks on the
DVD/Blu-Ray player
or Cable Box/Satellite
receiver (Set-Top Box).
2. ConnectAudio Cables
between the
COMPONENT
IN(1 or 2)
[R-AUDIO-Lj jacks
on
the TV and the AUDIO
OUT jacks
on the DVD/
Blu-Ray player or Cable
Box/Satellite receiver
(Set-Top Box).
I
1.
TV Side Panel
m Audio Cable (Not supplied)
mVideo Cable (Not supplied)
Camcorder
2.
The side panel jacks on your TV make it easy to connect acamcorder to your TV.
They allow you to view the camcorder tapes without using aVCR.
1. Connect aVideo Cable ....--------------------------------
between the AV IN 2
[VIDEO] jack on the
TV
and the VIDEO OUT
jack
on the camcorder.
Connect Audio Cables
between the
AV IN 2
[R-AUDIO-Lj jacks
on
the TV and the AUDIO
OUT jacks
on the
camcorder.
I Connecting a Camcorder
~Each Camcorder has adifferent back panel configuration.
~ When connecting aCamcorder, match the color of the connection terminal to the cable.

1
•.. ·1 ... Connecting a VCR
"Video Connection
These instructions assume that you have already connected your TV to an antenna or acable TV system (according to the
instructions on pages 9-10). Skip step 1if you have not yet connected to an antenna
or acable system.
TV Side Panel
TV Rear Panel
[[] Audio Cable (Not supplied)
.
': :
I~ •
..
........... ..
[!] Video Cable (Not supplied) :
L.. ..,~~~~~ ~~ .L •••••••••• ••••••••••••••
3 RF Cable (Not supplied)
VCR Rear Panel
1. Unplug the cable or
antenna from the back
of the TV
2. Connect the cable or
antenna to the ANT IN
terminal on the back
of
the VCR.
3. Connect an RF Cable
between the
ANT OUT
terminal on the VCR
and the
ANT IN terminal
on the
TV
4. Connect aVideo Cable
between the VIDEO
OUT jack on the
VCR and the AV
IN 1
[YIVIDEOI or AV IN 2
[VIDEO] jack on the TV
5. Connect Audio Cables
between the AUDIO
OUT jacks on the VCR
and the AV IN 1(or AV
IN 2) [R-AUDIO-L] jacks
on the
TV
Follow the instructions in "Viewing aVCR or Camcorder Tape" to view your VCR tape.
»Each VCR has adifferent back panel configuration.
»When connecting aVCR, match the color of the connection terminal to the cable.
»When connecting to AV IN
1, the color of the AV IN 1 [YNIDEO] jack (Green) does not
match the color
of the video cable (Yellow).
»If you have a"mono" (non-stereo) VCR, use aY-connector (not supplied) to connect to
the right and left audio input jacks
of the TV Alternatively, connect the cable to the "R"
jack. If your VCR is stereo, you must connect two cables.
S-Video Connection
Your Samsung TV can be connected to an S-Video jack on aVCR. (This connection delivers abetter picture as compared
to astandard VCR.)
1.
2.
3.
To begin, follow steps
1-3 in the previous
section to connect the
antenna
or cable to your
VCR and your TV.
Connect an S-Video
Cable between the
S-VIDEO
OUT jack on
the VCR and the
[S-VIDEO]
jack on the
TV
Connect Audio Cables
between the AUDIO
OUT jacks on the VCR
and the AV IN 1
[R-AUDIO-L] jacks on
the
TV
TV Rear Panel
VCR Rear Panel
rn II
~ rn Audio Cable (Not supplied)
[I] S-Video Cable (Not supplied)
m RF Cable (Not supplied)
An S-Video cable may be included with aVCR. (If not, check your local electronics store.)
»Each VCR has adifferent back panel configuration.
»When connecting aVCR, match the color of the connection terminal to the cable.

TV Rear Panel
Optical Cable (Not supplied)
~
':.c.'·'·<·D
• ~.=-;c>~
~~~
Digital Audio System
The rear panel jacks on your TV make it easy to connect aDigital Audio System (Home theater/Receiver) to your TV.
1. Connect an Optical Cable
between the "DIGITALAUDIO
OUT (OPTICAL)" jacks on
the
TV and the Digital Audio
Input jacks on the Digital Audio
System.
When aDigital Audio System
is connected to the "DIGITAL
AUDIO OUT (OPTICAL)" jack:
Decrease the volume of the
TV and adjust the volume
level with the system's volume
control.
IConnecting aDigital Audio System
:> 5.1 CH audio is possible when the TV is connected to an external device
supporting
5.1 CH.
:> Each Digital Audio System has adifferent back panel configuration.
:> When the receiver (home theater) is set to On, you can hear sound output from
the TV's Optical jack. When the TV is displaying aDTV(air) signal, the TV will
send out
5.1 channel sound to the Home theater receiver. When the source is
adigital component such as aDVD and is connected to the TV via HDMI, only
2channel sound will
be heard from the Home Theater receiver. If you want to
hear
5.1 channel audio, connect the DIGITALAUDIO OUT (OPTICAL) jack on
the DVD/Blu-Ray player or Cable/Satellite Box directly to
an Amplifier or Home
Theater, not the
TV.
Connecting an Amplifier/DVD Home Theater
1. Connect Audio Cables
between the AUDIO OUT
[R-AUDIO-L] jacks on the TV
and AUDIO
IN [R-AUDIO-L]
jacks on the AmplifierlDVD
Home Theater.
When an audio amplifier is
connected to the "AUDIO OUT
[R-AUDIO-L]" jacks: Decrease
the volume of the TV and
adjust the volume level with
the Amplifier's volume control.
AmplifierlDVD Home Theater
I-:~·'I
*
~f~TiJ
Audio Cable (Not supplied)
TV Rear Panel
:> Each AmplifierlDVD Home Theater has adifferent back panel configuration.
:> When connecting an Amplifier/DVD Home Theater, match the color of the
connection terminal to the cable.

2.
II ~:::::~~bgC:'~C
1. Connect aD-Sub Cable
between PC IN [PC] connector
on the TV and the
PC output
connector on your computer.
Connect a
PC Audio Cable
between the PC IN [AUDIO]
jack on the TV and the Audio
Out jack of the sound card on
your computer.
Using the HDMI/DVI Cable
1. Connect an HDMI/DVI cable
between the HDMIIN 2jack
on the TV and the PC output
jack on your computer.
2. Connect a3.5 mm Stereo mini-
plug/2RCA Cable between the
DVI IN(HDMI2) [R-AUDIO-L]
jack on the TV and the Audio
Out jack of the sound card on
your computer.
TV Rear Panel
pc
II] PC Audio Cable (Not supplied)
mO-Sub Cable (Not supplied)
TV Rear Panel
PC
II] 3.5 mm Stereo mini-plug/2RCA Cable (Not supplied)
mHOMIIOVI Cable (Not supplied)
~ Each PC has a different back panel configuration.
~ When connecting aPC, match the color of the connection terminal to the cable.
»> When using an HDMI/DVI cable connection, you must use the HDMI IN 2
terminal.
-

I
I Operation
Turning the TV On and Off
--
Press the POWER C> button on the remote control. POWER
You can also use the POWER C> button on the TV.
....... lvO"
DVD SlB
0 0
,cfuAffi
Plug & Play Feature
When the TV is initially powered on, basic settings proceed automatically and subsequently.
2. Press the. or Tbutton to select language, then press the ENTER G
button.
The message "Select 'Home Use' when installing this TV
in your home." is
displayed.
Press the POWER button
on the remote control.
The message "Menu Language, Store Demo, Channels and Time will
be set."
is displayed.
Press the ENTER Gbutton, then "Select Language
of the OSD." menu
is automatically displayed. Press the ENTER Gbutton.
4. Press the •or Tbutton to memorize the channels of the selected
connection. Press the ENTER Gbutton to select "Start".
:> Air: "Air" antenna signal.
Cable: "Cable" antenna signal.
Auto: "Air" and "Cable" antenna signals.
:> In Cable mode, you can select the correct signal source among STD,
HRC, and IRC by pressing
the., T,'" or ~ button, then press the
ENTER Gbutton. If you have Digital cable, select the cable system
signal source for both Analog and Digital. Contact your local cable
company
to identify the type of cable system that exists in your particular
area.
3. Press the'" or ~ button to select "Store Demo" or "Home Use", then
press the ENTER Gbutton. The message "Select the Antenna source to
memorize."
is displayed.
:> We recommend setting the TV to "Home Use" mode for the best picture in
your home environment.
:> "Store Demo" mode is only intended for use in retail environments.
:> If the unit is accidentally set to "Store Demo" mode and you want to return
to "Home Use" (Standard): Press the Volume button on the TV. When the
volume OSD
is displayed, press and hold the MENU button on the TV for
5seconds.
I
1.

5. The TV will begin memorizing all of the available channels.
> To stop the search before it has finished, press the ENTER G' button with
"Stop" selected.
After all the available channels are stored, it starts to remove scrambled
channels (see page 53). And then, the Plug &Play menu reappears. Press
the ENTER G' button when channel memorization is complete. The message
"Set the Clock Mode." is displayed.
6. Press the ENTER G' button.
Press the & or Tbutton to select "Auto", then Press the ENTER G' button.
The message "Set to daylight saving time." is displayed.
If you select "Manual", "Set current date and time" is displayed.
(See page 58)
7. Press the & or Tbutton to select "Off", "On" or "Auto", then press the ENTER
time zone in which you live." is displayed.
8. Press the & or Tbutton to highlight the time zone for your local area. Press
the ENTER G' button. If you have received adigital signal, the time will be
set automatically. If not, see page 58 to set the clock.
9. The message "Enjoy your watching." is displayed.
When you have finished, press the ENTER G' button.
If you want to reset this feature ...
1. Press the MENU button to display the menu.
Press the & or Tbutton to select "Setup", then press the ENTER G' button.
2. Press the ENTER G' button again to select "Plug &Play".
For further details on setting up options, refer to the pages 16-17.
> The "Plug &Play" feature is only available in the TV mode.
Plug & Play
Removing scrambled channel.
DTV Air' 05 Air: 12
DTV Cable. 25 Cable: 32 DTV Cable 41
77%
Stop
G' Enter _ Skip
Plug & Play
Auto Program is completed.
119 channels are memorized.
DTV Air:05 Air' 24
OTV Cable: 10 Cable: 80

Using the Channel Buttons
Changing Channels
Using the Number Buttons
1. Press the number buttons to go directly to achannel. For example, to select
channel 27, press
2, then 7.
;,> For quick channel change, press the number buttons, then press the
ENTER Gbutton.
CD CD CD
808 .......
[j
MUTE CJ
+@A
VOL SOURCE CH ~ I
- [-EJ] V
1"~308
I MUTE
-
~L lo~cl
A
CH
Press the CH vor CH Abutton to change channels.
;,> When you press the CH vor CH Abutton, the TV changes channels in
sequence.
You will see all the channels that the TV has memorized. (The TV must
have memorized at least three channels).
You will not see channels that
were either erased or not memorized. See page 20 to memorize channels.
;,> To increase the channel number, turn the wheel clockwise when the
Channel Display
is displayed. To decrease the channel number, turn the
wheel counterclockwise.
Using the PRE-CH Button to select the Previous Channel
1. Press the PRE-CH button. The TV will switch to the last channel viewed.
;,> To quickly switch between two channels that are far apart, tune to one
channel, then use the number button
to select the second channel.
Then use the PRE·CH button to quickly alternate between them.
Using the 0Button
The 0button
is used to select stations that broadcast adigital signal.
1. For example, for Channel 7-1, press 7, then 0, then 1.
;,> HD indicates the TV is receiving aDigital High Definition signal.
SD indicates the
TV is receiving aStandard Definition signal.
;,> For quick channel change, press the number buttons, then press the
ENTER Gbutton.
I
1.
I
Adjusting the Volume
Using the Volume Button
1. Press the VOL - or VOL+button to increase or decrease the volume.
~
MUTE ~
+@A
, rr VOL SOURCE CH
- [-EJ] V
;,> To turn the volume up, turn the wheel clockwise when the Volume
Control window
is displayed. To turn the volume down, turn the wheel
counterclockwise.
Using the MUTE button
At any time, you can cut off the sound using the MUTE button.
1. Press MUTE button and the sound cuts off.
"." is displayed on the screen.
2. To turn mute off, press the MUTE button again or simply press the
VOL -
or VOL+ button.
[jMm~
+@A
VOL SOURC~ ~H
- [-EJ] V
