Table Of Contents 2
Table Of Contents
BEFORE USING THE
PRODUCT
7 Copyright
8 Icons used in this manual
8 Symbols for safety precautions
9Cleaning
9Cleaning
10 Securing the Installation Space
10 Precautions for storage
11 Safety Precautions
11 Electricity and Safety
12 Installation and Safety
14 Operation and Safety
18 Correct posture to use the product
PREPARATIONS 19 Checking the Contents
19 Removing the Packaging
20 Checking the Components
22 Parts
22 Frontal Buttons
24 Rear View
25 Side View
26 Installation
26 Attaching the Stand
27 Adjusting the Product Tilt and Height
27 Rotating the Monitor
28 Installing a Wall-mount Kit or Desktop Stand
30 Anti-theft Lock
USING "WINDOWS
EMBEDDED STANDARD 7"
31 What is "Windows Embedded Standard
7" Client?
33 Connection to Use "Windows Embedded
Standard 7"
33 LAN Connection
33 Connecting USB Devices

Table Of Contents
Table Of Contents 3
34 Using "Windows Embedded Standard 7"
34 Logon
34 "Windows Embedded Standard 7" Desktop
35 Programs
42 Configuring Utilities
43 Recover the System
CONNECTING AND USING
A SOURCE DEVICE
45 Before Connecting
45 Pre-connection Checkpoints
46 Connecting and Using a PC
46 Connecting to a PC
47 Driver Installation
48 Setting Optimum Resolution
49 Changing the Resolution Using a PC
52 Connecting to a Video Device
52 Connecting to a Dual Monitor
52 Connecting a SERIAL cable
53 Connecting a Microphone
53 Connecting to Headphones
53 Connecting the Power
SCREEN SETUP 54 Brightness
54 Configuring Brightness
55 Contrast
55 Configuring Contrast
56 Sharpness
56 Configuring Sharpness
57 SAMSUNG MAGIC Bright
57 Configuring SAMSUNG MAGIC Bright
58 SAMSUNG MAGIC Angle
58 Configuring SAMSUNG MAGIC Angle
59 Coarse
59 Adjusting Coarse

Table Of Contents
Table Of Contents 4
60 Fine
60 Adjusting Fine
CONFIGURING TINT 61 SAMSUNG MAGIC Color
61 Configuring SAMSUNG MAGIC Color
62 Red
62 Configuring Red
63 Green
63 Configuring Green
64 Blue
64 Configuring Blue
65 Color Tone
65 Configuring the Color Tone Settings
66 Gamma
66 Configuring Gamma
RESIZING OR
RELOCATING THE
SCREEN
67 H-Position & V-Position
67 Configuring H-Position & V-Position
68 Image Size (TC241W model only)
68 Changing the Image Size
69 Menu H-Position & Menu V-Position
69 Configuring Menu H-Position & Menu V-
Position
SETUP AND RESET 70 Reset
70 Initializing Settings (Reset)
71 Language
71 Changing the Language
72 Eco Saving
72 Configuring Eco Saving

Table Of Contents
Table Of Contents 5
73 Clock
73 Configuring Clock
74 Off Timer
74 Configuring Off Timer
75 On Timer
75 Configuring On Timer
76 On Timer Source
76 Configuring On Timer Source
77 On Timer Volume
77 Configuring On Timer Volume
78 Customized Key
78 Configuring Customized Key
79 Display Time
79 Configuring Display Time
80 Menu Transparency
80 Changing Menu Transparency
INFORMATION MENU AND
OTHERS
81 INFORMATION
81 Displaying INFORMATION
81 Configuring Volume in the Initial Screen
INSTALLING THE
SOFTWARE
82 Natural Color
82 What is Natural Color?
83 MultiScreen
83 Installing the Software
84 Removing the Software

Table Of Contents
Table Of Contents 6
85 MagicRMS Pro
85 About MagicRMS Pro
85 Components
86 MagicRMS Pro Server
86 MagicRMS Pro Database
86 MagicRMS Pro Console
86 PXE
86 MagicRMS Pro Agent
TROUBLESHOOTING
GUIDE
87 Requirements Before Contacting
Samsung Customer Service Center
87 Testing the Product
87 Checking the Resolution and Frequency
87 Check the following.
90 Q & A
SPECIFICATIONS 92 General
94 PowerSaver
95 Standard Signal Mode Table
APPENDIX 98 Contact SAMSUNG WORLD WIDE
104 Responsibility for the Pay Service (Cost
to Customers)
104 Not a product defect
104 A Product damage caused by customer's fault
104 Others
105 Correct Disposal of This Product (Waste
Electrical & Electronic Equipment)
105 Correct disposal of batteries in this
product
106 Terminology
INDEX

7
Before Using the Product
Before Using the Product
Copyright
The contents of this manual are subject to change without notice to improve quality.
© 2012 Samsung Electronics
Samsung Electronics owns the copyright for this manual.
Use or reproduction of this manual in parts or entirety without the authorization of Samsung Electronics is
prohibited.
Microsoft, Windows and Windows NT are registered trademarks of Microsoft Corporation.
VESA, DPM and DDC are registered trademarks of the Video Electronics Standards Association.
zAn administration fee may be charged if either
(a) an engineer is called out at your request and there is no defect in the product
(i.e, where you have failed to read this user manual).
(b) you bring the unit to a repair center and there is no defect in the product
(i.e, where you have failed to read this user manual).
zThe amount of such administration charge will be advised to you before any work or home visit is
carried out.

8
Before Using the Product
Before Using the Product
Icons used in this manual
Symbols for safety precautions
The following images are for reference only. Real-life situations may
differ from what is shown in the images.
Warning
A serious or fatal injury may result if instructions are not followed.
Caution
Personal injury or damage to properties may result if instructions are
not followed.
Activities marked by this symbol are prohibited.
Instructions marked by this symbol must be followed.

9
Before Using the Product
Before Using the Product
Cleaning
Cleaning
Exercise care when cleaning as the panel and exterior of advanced LCDs are easily scratched.
Take the following steps when cleaning.
1. Power off the monitor and computer.
2. Disconnect the power cable from the monitor.
Hold the power cable by the plug and do not touch the cable with wet
hands. Otherwise, an electric shock may result.
3. Wipe the monitor screen using a clean, soft and dry cloth.
zDo not apply a cleaning agent that contains alcohol,
solvent, or surfactant to the monitor.
zDo not spray water or detergent directly on the product.
4. Wet a soft and dry cloth in water and wring thoroughly to clean the
exterior of the monitor.
5. Connect the power cable to the product after cleaning the product.
6. Power on the monitor and computer.
!
!

10
Before Using the Product
Before Using the Product
Securing the Installation Space
zEnsure some space around the product for ventilation. An internal temperature rise may cause fire
and damage the product. Be sure to allow the amount of space as shown below or greater when
installing the product.
The exterior may differ depending on the product.
Precautions for storage
Be sure to contact Samsung Customer Service Center (page98) if the inside of the monitor needs
cleaning. (Service fee will be charged.)
10 cm
10 cm 10 cm
10 cm
10 cm

11
Before Using the Product
Before Using the Product
Safety Precautions
Electricity and Safety
The following images are for reference only. Real-life situations may differ from what is shown in the
images.
Warning

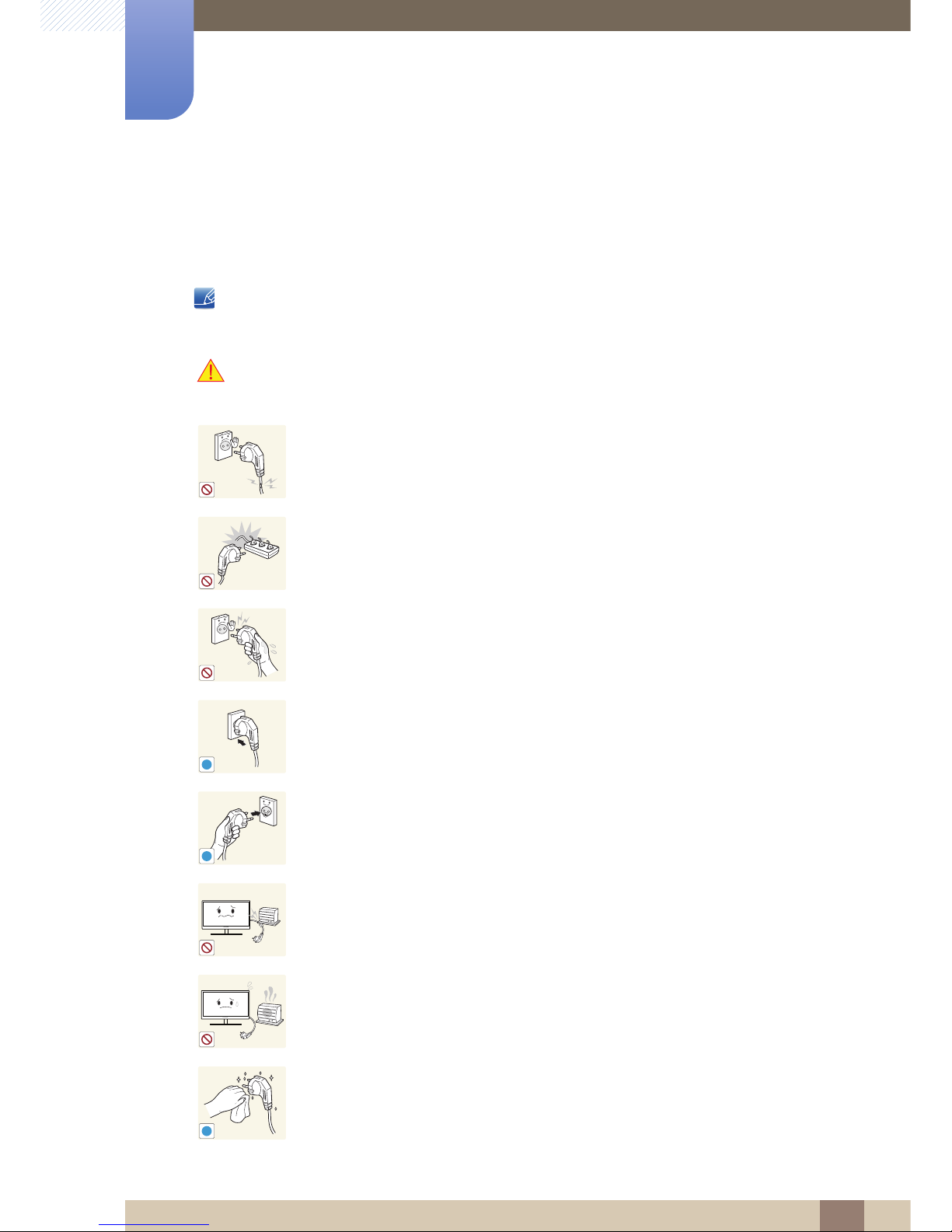

Do not use a damaged power cable or plug, or a loose power socket.
zAn electric shock or fire may result.
Do not plug many products into the same power socket.
zOtherwise, the socket may overheat and cause a fire.
Do not touch the power cable with wet hands.
zOtherwise, an electric shock may result.
Insert the power cable all the way in so it is not loose.
zAn unstable connection may cause a fire.
Ensure you connect the power cable to a grounded power socket. (type 1
insulated devices only).
zAn electric shock or injury may result.
Do not bend or pull the power cable with force. Do not weigh the power cable
down with a heavy object.
zA damaged power cord may cause an electric shock or fire.
Do not place the power cable or product near heat sources.
zAn electric shock or fire may result.
If the power cable pins or power outlet is covered with a foreign substance (dust,
etc.), wipe it off using a dry cloth.
zOtherwise, a fire may result.
!
!
!

12
Before Using the Product
Before Using the Product
Caution
Installation and Safety
Warning
Do not unplug the power cable when the product is in use.
zThe product may become damaged by an electric shock.
Do not use the power cable for products other than authorized products supplied
by Samsung.
zAn electric shock or fire may result.
Keep the power socket where the power cable is connected unobstructed.
zIf any problem occurs in the product, unplug the power cable to completely
cut the power to the product.
Power to the product cannot be completely cut off with the power switch.
Hold the plug when disconnecting the power cable from the power socket.
zAn electric shock or fire may result.
DO NOT PLACE CANDLES, INSECT REPELLANTS OR CIGARETTES ON TOP
OF THE PRODUCT. DO NOT INSTALL THE PRODUCT NEAR HEAT SOURCES.
zOtherwise, a fire may result.
Avoid installing the product in a narrow space with bad ventilation, such as a
bookshelf or wall closet.
zOtherwise, a fire may result due to an increased internal temperature.
Keep the plastic packaging bag for the product in a place that cannot be reached
by children.
zChildren may suffocate.
!
!
!
!

13
Before Using the Product
Before Using the Product
Caution

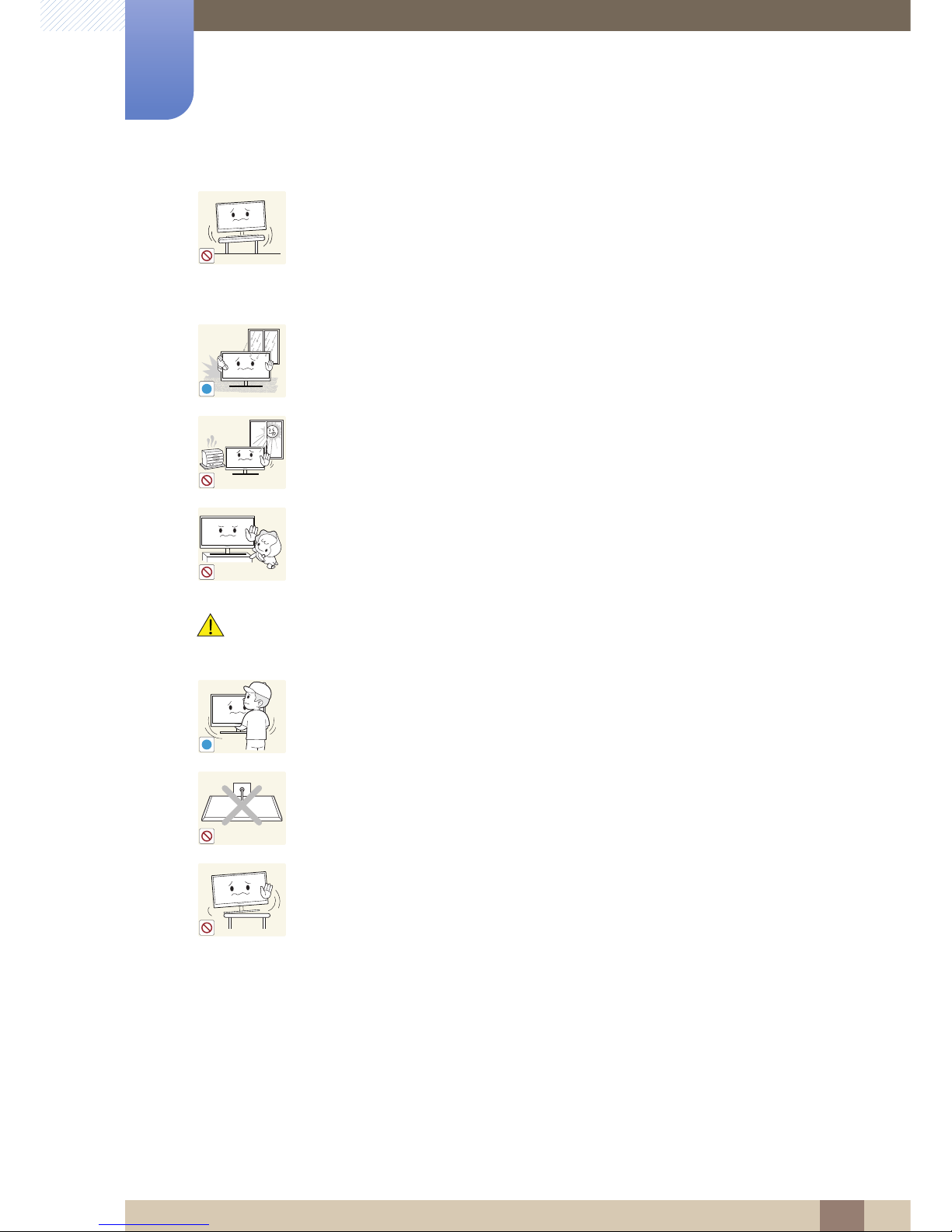

Do not install the product on an unstable or vibrating surface (insecure shelf,
sloped surface, etc.).
zThe product may fall and break or cause a personal injury.
zUsing the product in an area with excess vibration may damage the product
or cause a fire.
Do not install the product in a vehicle or a place exposed to dust, moisture (water
drips, etc.), oil, or smoke.
zAn electric shock or fire may result.
Do not expose the product to direct sunlight, heat, or a hot object such as a
stove.
zOtherwise, the product lifespan may be reduced, or a fire may result.
Do not install the product within the reach of young children.
zThe product may fall and injure children.
Take care not to drop the product when moving it.
zOtherwise, product failure or personal injury may result.
Do not set down the product on its front.
zThe screen may become damaged.
When installing the product on a cabinet or shelf, make sure that the bottom
edge of the front of the product is not protruding.
zThe product may fall and break or cause a personal injury.
zInstall the product only on cabinets or shelves of the right size.
!
!

14
Before Using the Product
Before Using the Product
Operation and Safety
Warning
Put down the product carefully.
zThe product may fall and break or cause a personal injury.
Installing the product in an unusual place (a place exposed to a lot of fine
particles, chemical substances or extreme temperatures, or an airport or train
station where the product should operate continuously for an extended period of
time) may seriously affect its performance.
zBe sure to consult Samsung Customer Service Center (page98) before
installation if you want to install the product at such a place.
High voltage runs through the product. Do not attempt to disassemble, repair, or
modify the product on your own.
zAn electric shock or fire may result.
zContact Samsung Customer Service Center (page98) for repair.
Before moving the product, turn off the power switch and disconnect the power
cable and all other connected cables.
zOtherwise, the power cord may be damaged and a fire or electric shock may
result.
If the product generates a strange noise, a burning smell, or smoke, remove the
power cable immediately and contact Samsung Customer Service Center
(page98).
zAn electric shock or fire may result.
Do not let children hang from the product or climb on top of it.
zThe product may fall, and your child may become injured or seriously
harmed.
If the product falls or the exterior is damaged, power off the product, remove the
power cable, and contact Samsung Customer Service Center (page98).
zOtherwise, an electric shock or fire may result.
Do not put a heavy object, toy, or sweets on top of the product.
zThe product or heavy objects may fall as children try to reach for the toy or
sweets resulting in a serious injury.
!
SAMSUNG
!
!
!

15
Before Using the Product
Before Using the Product
During a lightning or thunderstorm, power off the product and remove the power
cable.
zAn electric shock or fire may result.
Do not drop objects on the product or apply impact.
zAn electric shock or fire may result.
Do not move the product by pulling the power cable or any cable.
zOtherwise, the cable may be damaged and product failure, an electric shock
or fire may result.
If a gas leakage is found, do not touch the product or power cable. Also, ventilate
the area immediately.
zSparks can cause an explosion or fire.
zDuring a lightning or thunderstorm, do not touch the power cable or antenna
cable.
Do not lift or move the product by pulling the power cable or any cable.
zOtherwise, the cable may be damaged and product failure, an electric shock
or fire may result.
Do not use or keep combustible spray or an inflammable substance near the
product.
zAn explosion or fire may result.
Ensure the vents are not blocked by tablecloths or curtains.
zOtherwise, a fire may result from an increased internal temperature.
!
!
!
GAS
!

16
Before Using the Product
Before Using the Product
Caution
Do not insert a metallic object (a chopstick, coin, hair pin, etc.) or inflammable
object (paper, match, etc.) into the vent or ports of the product.
zIf water or any foreign substance enters the product, be sure to power off the
product, remove the power cable, and contact Samsung Customer Service
Center (page98).
zProduct failure, an electric shock or fire may result.
Do not place objects containing liquid (vases, pots, bottles, etc) or metallic
objects on top of the product.
zIf water or any foreign substance enters the product, be sure to power off the
product, remove the power cable, and contact Samsung Customer Service
Center (page98).
zProduct failure, an electric shock or fire may result.
Leaving the screen fixed on a stationary image for an extended period of time
may cause afterimage burn-in or defective pixels.
zIf you are not going to use the product for an extended period of time,
activate power-saving mode or a moving-picture screen saver.
Disconnect the power cable from the power socket if you do not plan on using
the product for an extended period of time (vacation, etc.).
zOtherwise, a fire may result from accumulated dust, overheating, an electric
shock, or electric leakage.
Use the product at the recommended resolution and frequency.
zYour eyesight may deteriorate.
Looking at the screen too close for an extended period of time can deteriorate
your eyesight.
Do not hold the monitor upside-down or move it by holding the stand.
zThe product may fall and break or cause a personal injury.
Do not use humidifiers or stoves around the product.
zAn electric shock or fire may result.
100
!
!
-_-
!
!
!

17
Before Using the Product
Before Using the Product
Rest your eyes for more than 5 minutes for every 1 hour of product use.
zEye fatigue will be relieved.
Do not touch the screen when the product has been turned on for an extended
period of time as it will become hot.
Store the small accessories used with the product out of reach of children.
Exercise caution when adjusting the product angle or stand height.
zOtherwise, children's fingers or hands may become stuck and injured.
zTilting the product excessively may cause it to fall and result in personal
injury.
Do not place heavy objects on the product.
zProduct failure or personal injure may result.
When using headphones or earphones, do not turn the volume too high.
zHaving the sound too loud may damage your hearing.
!
!
!

18
Before Using the Product
Before Using the Product
Correct posture to use the product
Use the product in the correct posture as follows:
zStraighten your back.
zAllow a distance of 45 to 50cm between your eye and the screen, and look slightly
downward at the screen.
Keep your eyes directly in front of the screen.
zAdjust the angle so light does not reflect on the screen.
zKeep your forearms perpendicular to your upper arms and level with the back of
your hands.
zKeep your elbows at about a right angle.
zAdjust the height of the product so you can keep your knees bent at 90 degrees or
more, your heels attached to the floor, and your arms lower than your heart.

19
1 Preparations
1 Preparations
1.1 Checking the Contents
1.1.1 Removing the Packaging

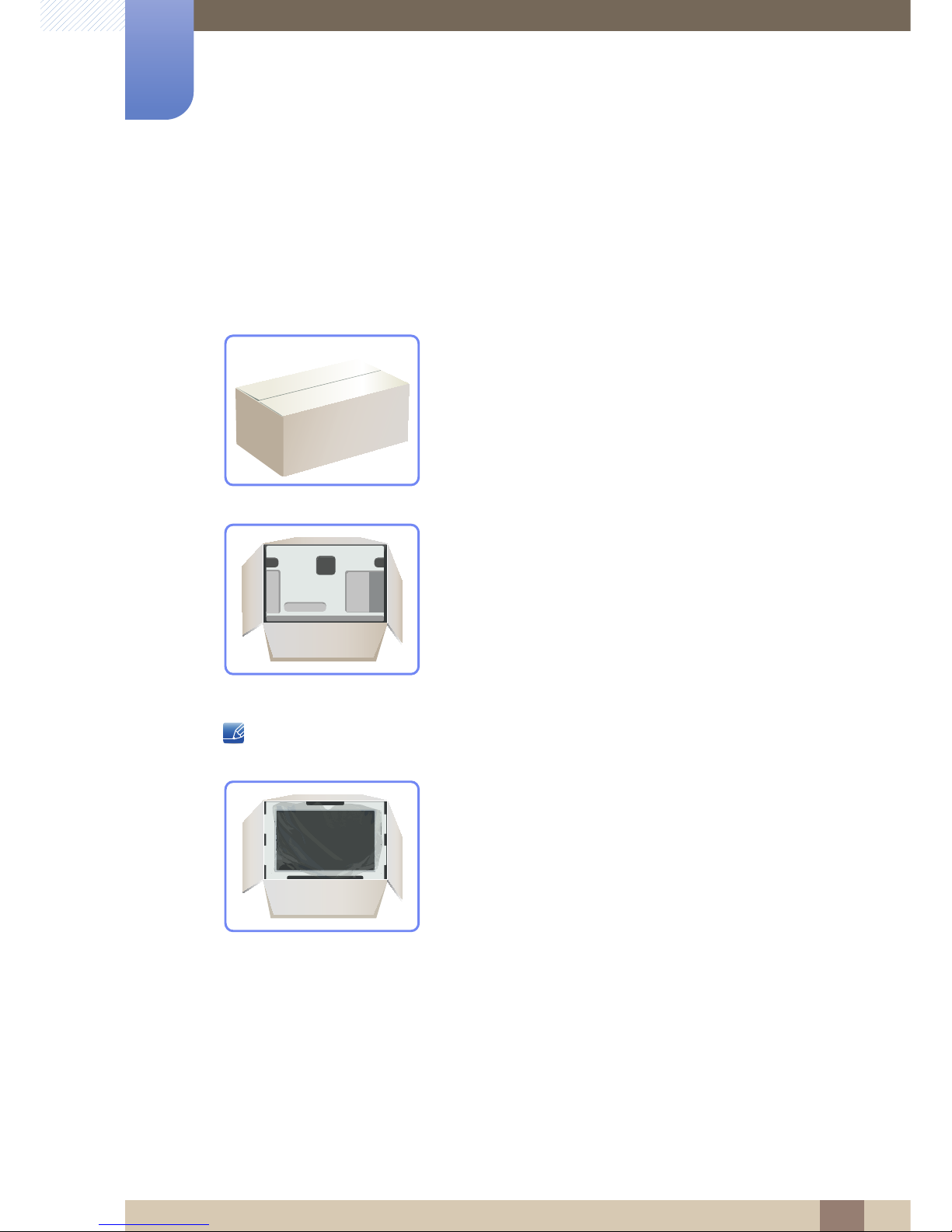

1Open the packaging box. Be careful not to damage the product when you open the packaging with
a sharp instrument.
2Remove the styrofoam from the product.
3Check the components and remove the styrofoam and plastic bag.
zThe appearance of actual components may differ from the image shown.
zThis image is for reference only.
4Store the box in a dry area so that it can be used when moving the product in the future.

20
Preparations
1
1 Preparations
1.1.2 Checking the Components
zContact the dealer from whom you purchased the product if any item is missing.
zThe appearance of the components and items sold separately may differ from the image shown.
Components
Components may vary depending on the country.
Quick setup guide Warranty card
(Not available in some
locations)
User manual
Power cable Stand base
